Mini Speed Dome Camera

 Mini  Internal  External

INSTRUCTION

MANUAL

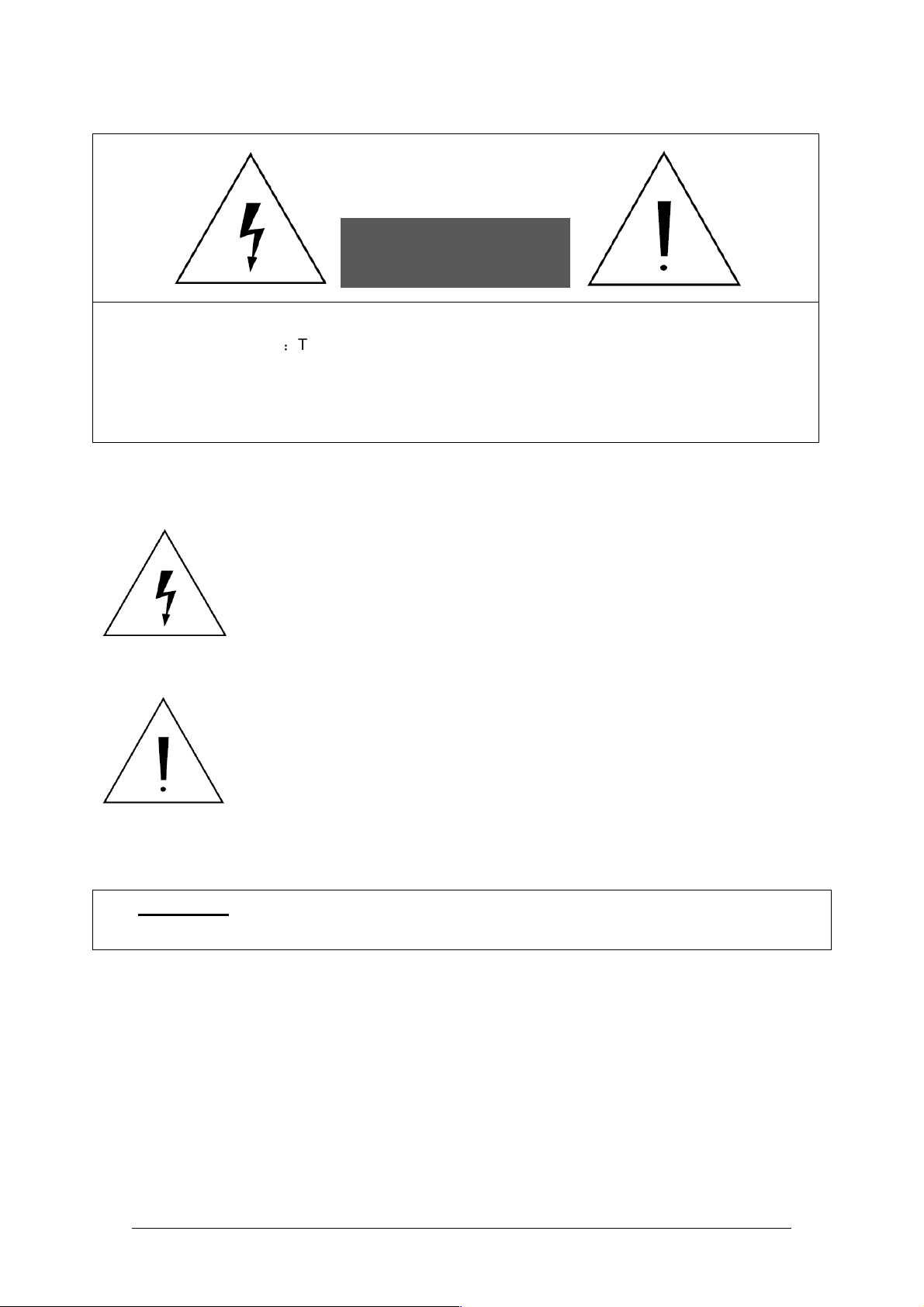

CAUTl0N

RISK OF ELECTRIC

SHOCK DO NOT OPEN

CAUTION：To reduce the risk of electrical shock, do not open covers.

No user serviceable parts inside.

Refer servicing to qualified service personal.

This lightning flash with arrowhead symbol is intended to alert the user to the

presence of un-insulated "dangerous voltage" within the product's enclosure that

may be of sufficient magnitude to constitute a risk of electric shock to persons.

This exclamation point symbol is intended to alert the user to the presence of

important operating and maintenance (servicing) instructions in the literature

accompanying the appliance.

WARNING：To prevent the risk of fire or electric shock hazard do not expose

this camera to rain or moisture.

Mini Speed Dome Camera Introduction Manual

▌▌Important Safeguard

1. Read Instructions

Read all of the safety and operating instructions before using the product.

2. Retain Instructions

Save these instructions for future reference.

3. Attachments／Accessories

Do not use attachments or accessories unless recommended by the appliance manufacturer as they

may cause hazards, damage product and void warranty.

4. Water and Moisture

Do not use this product near water or moisture.

5. Installation

Do not place or mount this product in or on an unstable or improperly supported location. Improperly

installed product may fall, causing serious injury to a child or adult, and damage to the product. Use

only with a mounting device recommended by the manufacturer, or sold with the product. To insure

proper mounting, follow the manufacturer’s instructions and use only mounting accessories

recommended by manufacturer.

6. Power source

This product should be operated only from the type of power source indicated on the marking label.

▌▌Precautions

Operating

 Before using, make sure power supply and others are properly connected.

 While operating, if any abnormal condition or malfunction is observed, stop using the camera

immediately and then contact your local dealer.

Handling

 Do not disassemble or tamper with parts inside the camera.

 Do not drop or subject the camera to shock and vibration as this can damage camera.

 Care must be taken when you clean the clear dome cover. Especially, scratch and dust will ruin your

quality of camera.

Installation and Storage

 Do not install the camera in areas of extreme temperature, which exceed the allowable range.

 Avoid installing in humid or dusty places.

 Avoid installing in places where radiation is present.

 Avoid installing in places where there are strong magnetic fields and electric signals.

 Avoid installing in places where the camera would be subject to strong vibrations.

 Never expose the camera to rain and water.

Mini Speed Dome Camera Introduction Manual

1. Introduction

2. Installation

3. Operation

Features

Product ＆ Accessories

DIP Switch Setup

Cabling

Checking before Operation

Preset and Pattern Function Pre-Check

Start OSD Menu

Reserved Preset

Preset

Swing

Pattern

Group

Other Functions

OSD Display of Main Screen

4. How to use OSD Menu

General Rules of Menu Operation

Main Menu

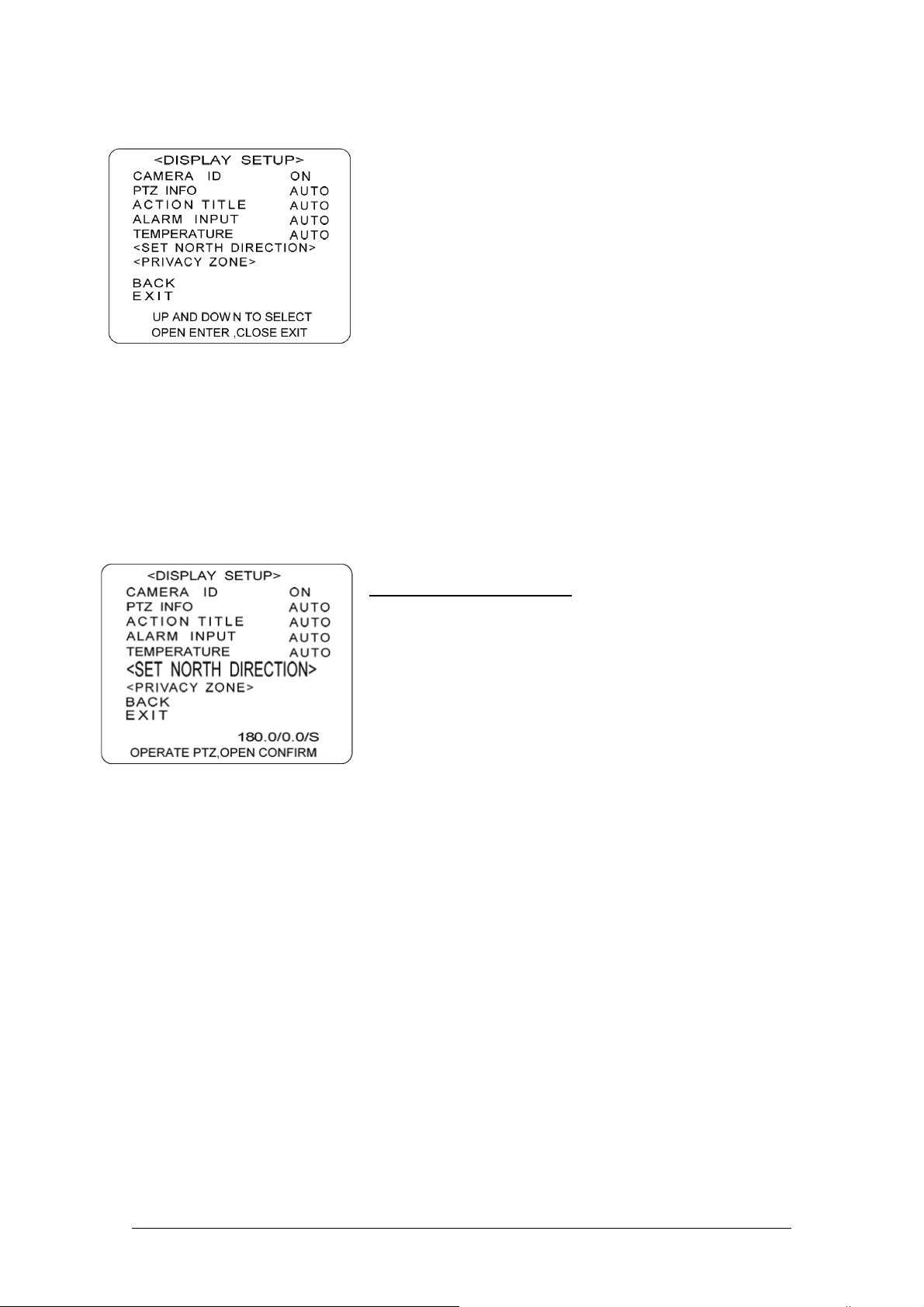

Display Setup

Privacy Zone Mask Setup

Camera Module Setup

Motion Setup

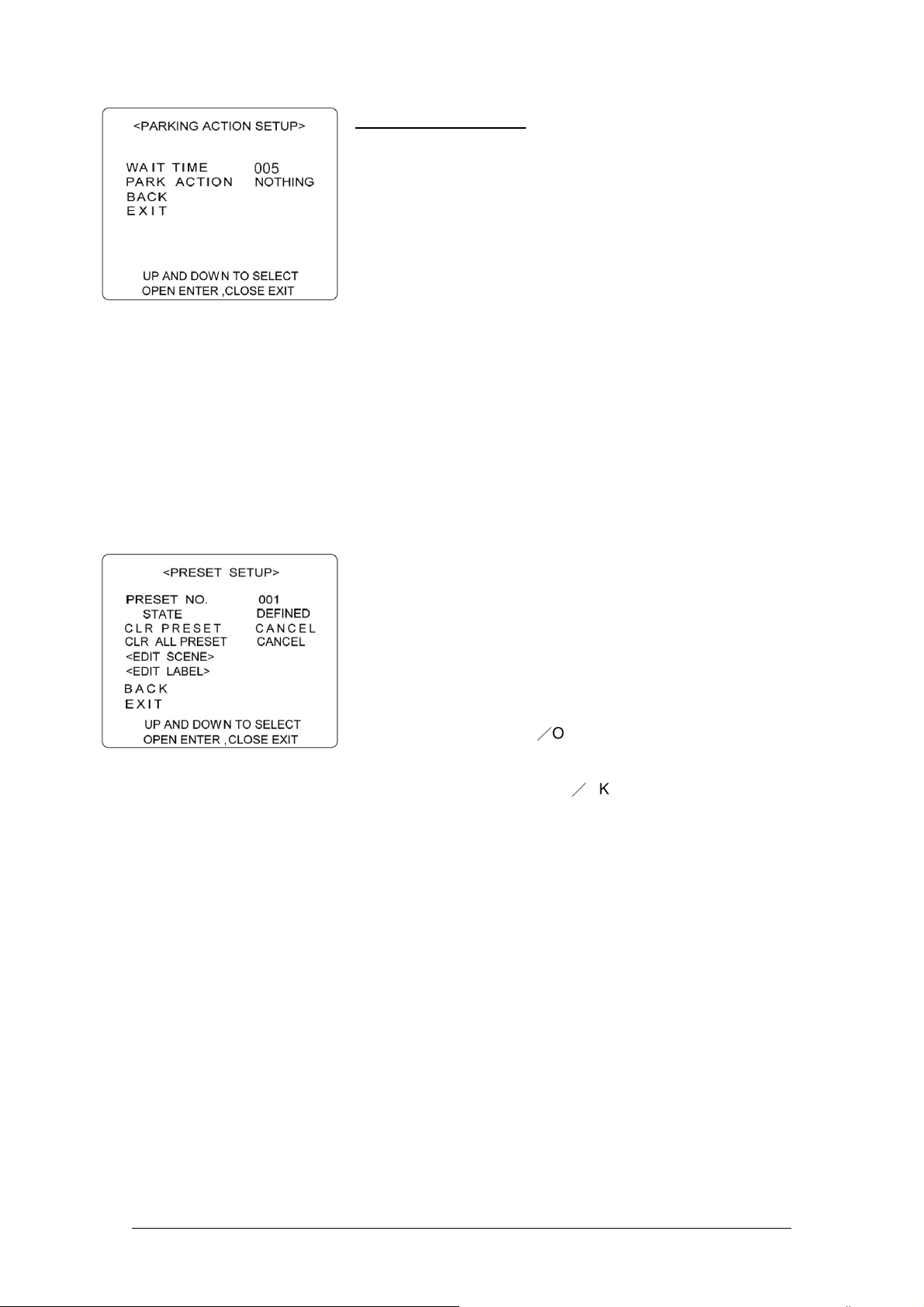

Preset Setup

Swing Setup

Pattern Setup

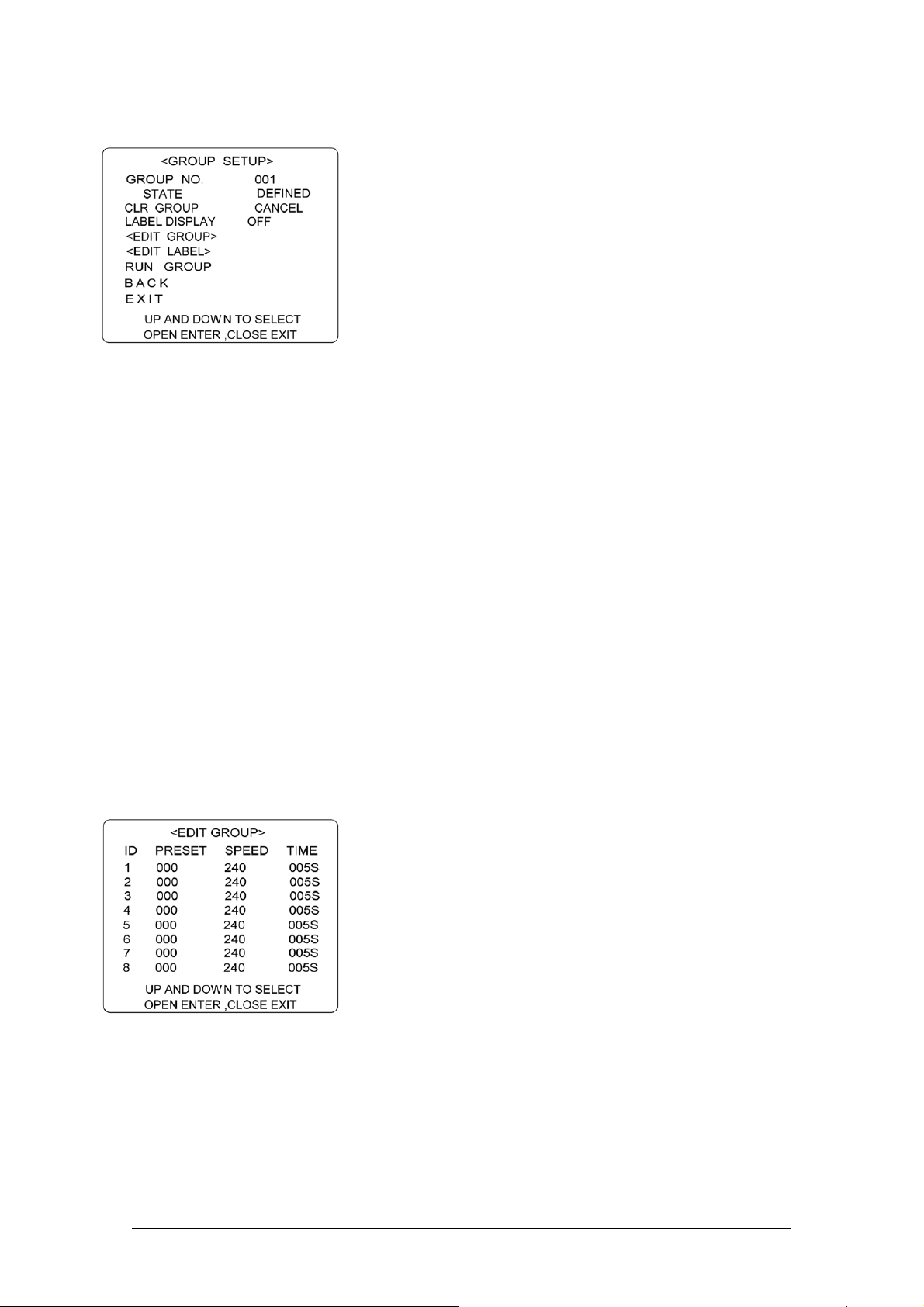

Group Setup

Alarm Setup

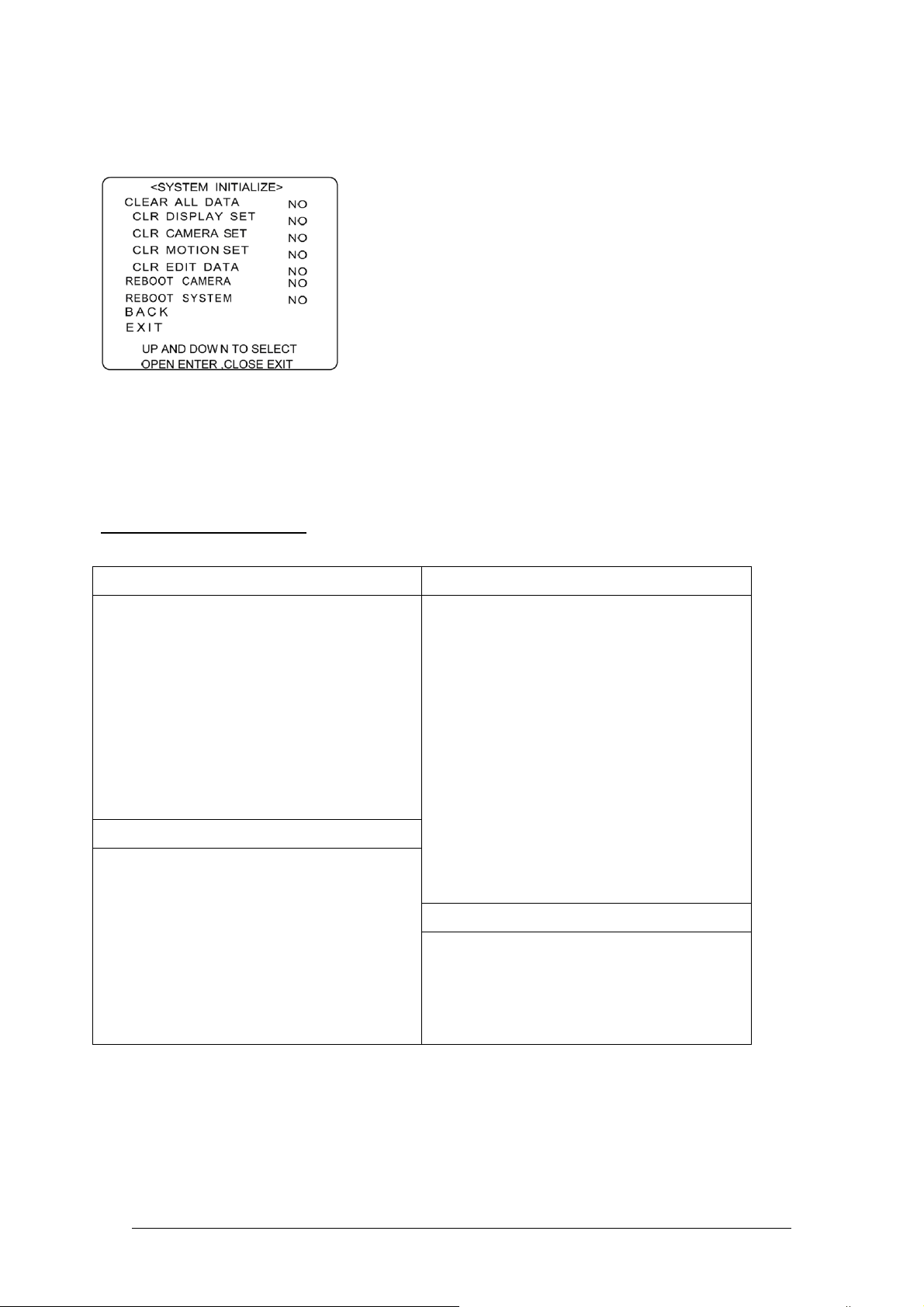

System Initialize

5. Specifications

Specifications

Dimension

Mini Speed Dome Camera Introduction Manual

██▐▐ FFeeaattuurreess ▌▌██

▌▌Camera Specifications

 CCD Sensor: 1 / 4 " Interline Transfer CCD

 Zoom Magnification: x 12 Optical Zoom, x 16 Digital Zoom (Max x 192 Zoom)

 Day & Night Function

 Various Focus Mode : Auto-Focus / Manual Focus / Semi-Auto Focus.

 Independent ＆ Simultaneous Camera Characteristic Setup in Preset operation

▌▌Powerful Pan/Tilt Functions

 Max. 300º /sec high speed Pan/Tilt Motion

 Using Vector Drive Technology, Pan/Tilt motions are accomplished in a shortest path. As a result,

time to target view is reduced dramatically and the video on the monitor is very natural to watch.

 For jog operation using a cont roller, since ultra slow speed 0.05 º/sec can be reached , it is very

easy to locate camera to desired target view. Additionally it is easy to move camera to a desired

position with zoom-proportional pan/tilt movement.

▌▌Preset, Pattern, Swing, Group, Privacy Mask and More...

 MAX. 127 Presets are assignable and characteristics of each preset can be set up independently.

 Max. 8 set of Swing action can be stored. This enables to move camera repetitively between two

preset positions with designated speed.

 Max .4 of Patterns can be recorded and played back. This enables to move camera to follow any

trajectory operated by joystick as closely as possible.

 Max- 8 set of Group action can be stored. This enables to move camera repetitively with

combination of Preset. A Group is composed of max. 16 entities of Preset.

 Privacy Masks are assignable, not to intrude on other's privacy. (8 Privacy Zones)

▌▌PTZ(Pan/Tilt/Zoom)Control

 With RS-485 communication, max. 255 of cameras can be controlled at the same time.

 Pelco-D or Pelco-P protocol can be selected as a control protocol in the current version of firmware.

Mini Speed Dome Camera Introduction Manual

▌▌OSD (On Screen Display) Menu

 OSD menu is provided to display the status of camera and to configure the functions interactively.

 The information such as Camera ID, temperature, Pan/Tilt Angle, Alarm Input and Preset can be

displayed on screen.

▌▌I/O Functions (for External Mini Model)

 To reject external electric noise and shock perfectly, alarm sensor Input is decoupled with photo

coupler.

 Using the dry contact for alarm input.

 If an external sensor is activated, camera can be set to move to the corresponding Preset position.

▌▌Reserved Presets for Special Purpose

 Most camera characteristics can be set up easily and directly with reserved preset, not entering

into OSD menu. For more information, refer to “Reserved Preset” in this manual.

Mini Speed Dome Camera Introduction Manual

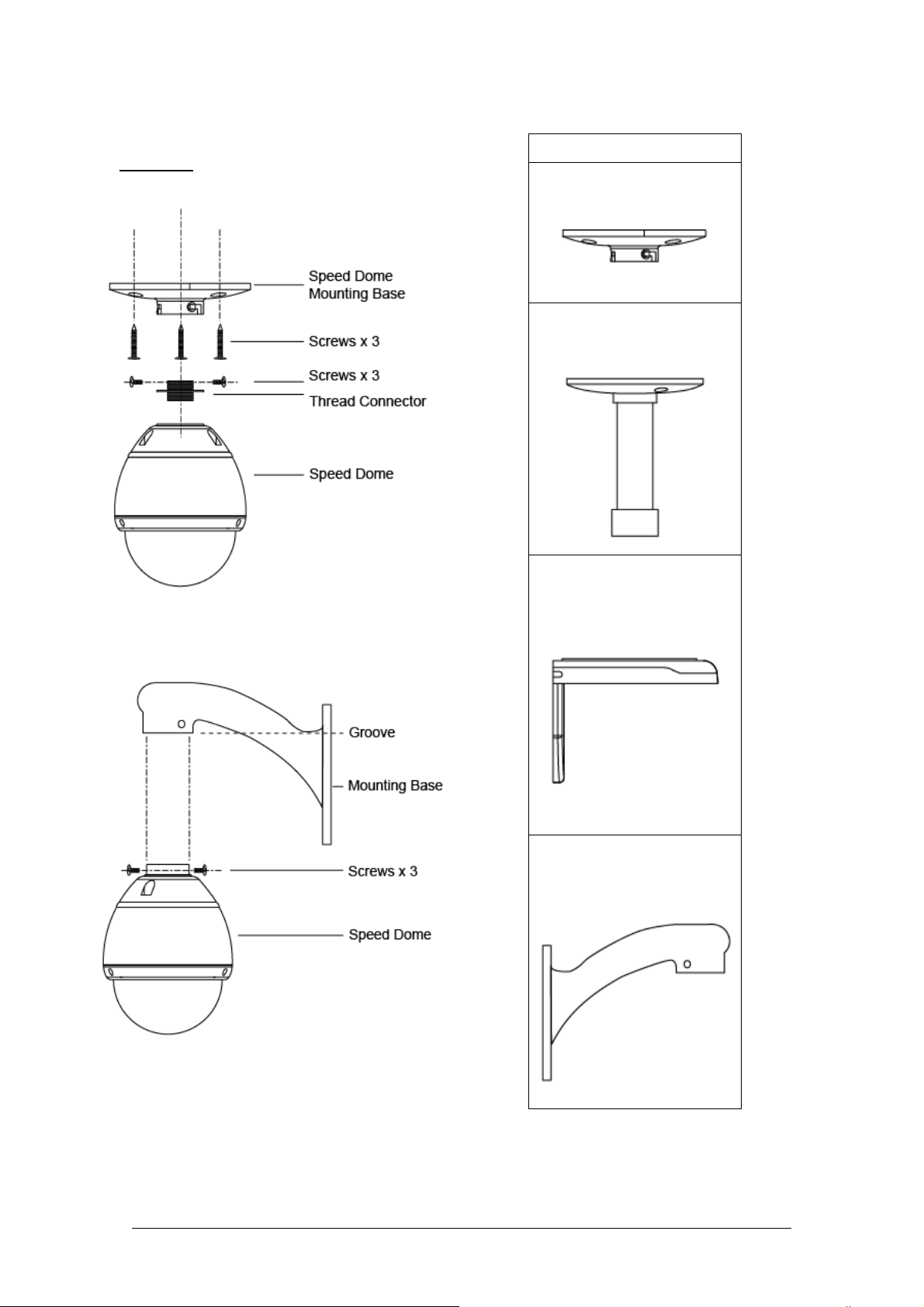

▌▌Product & Accessories

►

Assembly

* Ceiling bracket is standard for mini PTZ Dome.

Option

Ceiling Bracket

(Do not support Internal PTZ Dome)

Pendant Bracket

L type

Wall Mount Bracket

ARM Type

Wall Mount Bracket

Mini Speed Dome Camera Introduction Manual

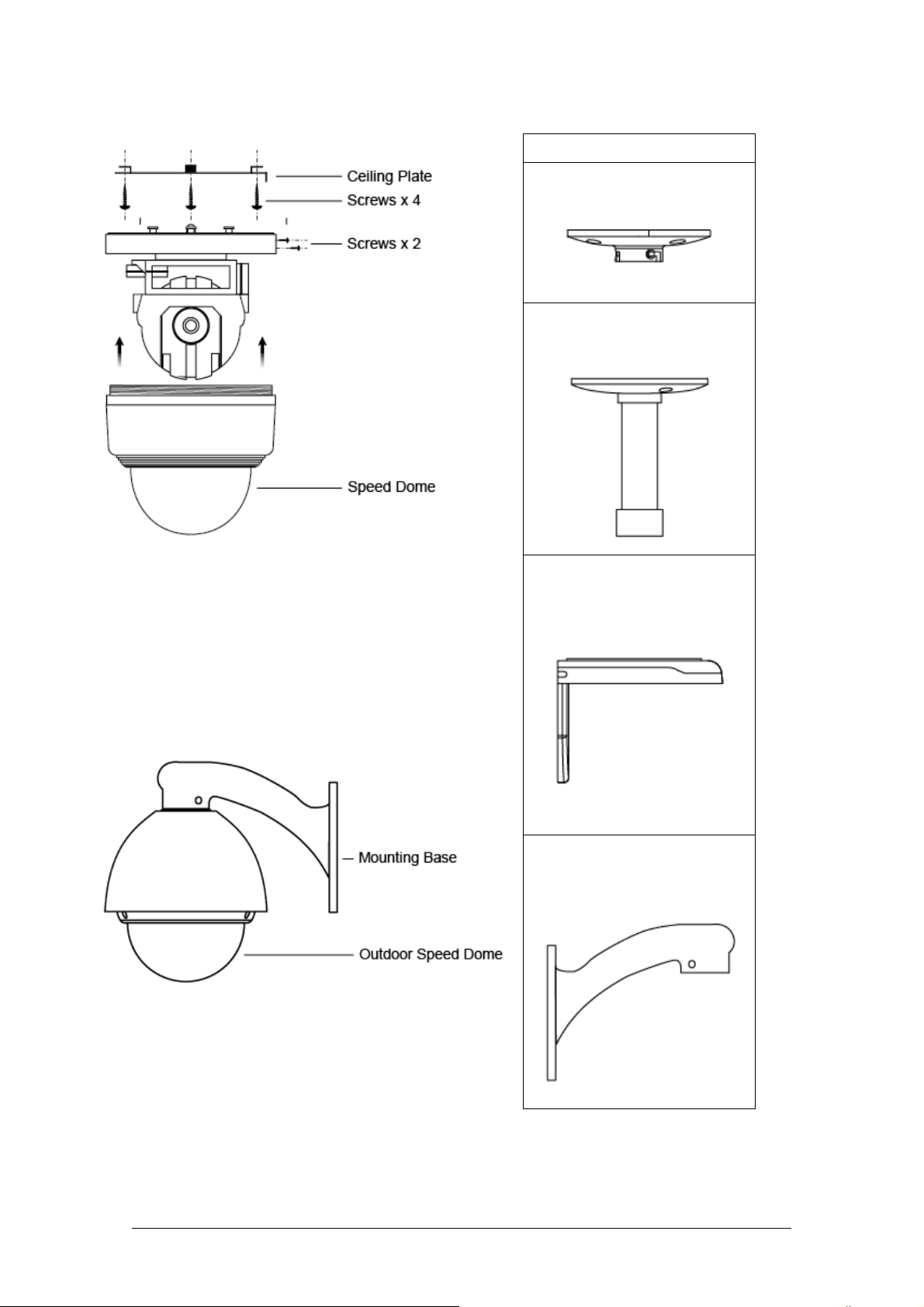

* Internal PTZ Dome built in a ceiling plate for installation.

Option

Ceiling Bracket

Pendant Bracket

L type

Wall Mount Bracket

* ARM Type wall mount bracket is standard for External

mini PTZ Dome.

ARM Type

Wall Mount Bracket

Mini Speed Dome Camera Introduction Manual

▌▌DIP Switch Setup

Before you install the camera, you should set the DIP switches to configure the camera ID,

communication baud rate.

Camera ID Communication Baud Rate

PIN 1 2 3 4 5 6 7

FUNC. A0 A1 A2 A3 A4 A5 A6 A7

ON 1 2 4 8 16 32 64 128

OFF 0 0 0 0 0 0 0

►Camera ID Setup

8 9 10

Baud Rate

Refer to

the Manual

 ID number of camera is set using binary number. The example

is shown bellow.

PIN 1 2 3 4 5 6 7 8

ID Value 1 2 4 8 16 32 64 128

OSD menu setup OFF OFF OFF OFF OFF OFF OFF OFF

ex ) ID=5

ex ) ID=10

OFF

 The range of ID is 1~255. Factory default of Camera ID is 1.

 If you want to control a certain camera, you must match the

camera ID with Cam ID setting of DVR or Controller.

 When DIP SW set all off the speed dome can change the ID

address and baud rate via OSD menu.

Mini Speed Dome Camera Introduction Manual

►Communication Baud Rate Setup

 Select the appropriate Baud Rate with DIP

switch combination.

Switch State

P9 P10

OFF OFF default 2400 bps

ON OFF 2400 bps

OFF ON 4800 bps

ON ON 9600 bps

 If you want to control using DVR or P/T

Baud Rate

controller, their protocol must be identical to

camera. Otherwise, you can not control the

camera.

 If you changed camera protocol by changing DIP

S/W, the change will be effective after you reboot

the camera.

 Factory default of baud rate is 2400 bps. You

can change it in OSD menu.

 Speed dome will detect the Pelco-D or

Pelco-P automatically in the Present

conditions.

Mini Speed Dome Camera Introduction Manual

▌▌Cabling

Cabling Terminal Block

►Power Connection

 Please, check the voltage and current capacity of rated power carefully.

Rated power is indicated in the back of main unit.

Rated Power Input Voltage Range Current Consumption

DC 12V DC 11V~13 V 0.8A

►

RS-485 Communication

 For PTZ control, connect this line to keyboard and DVR.

To control multiple cameras at the same time,

RS-485 communication lines of them is connected in parallel as shown below.

Mini Speed Dome Camera Introduction Manual

►Video Connection

 Connect with BNC coaxial cable.

►

Alarm input

Signal Description

IN COM Common point for alarm

IN1-,IN2-,IN3-, In4-, Alarm input signal

Speed dome can detect the status of alarm input (NO or NC) automatically.

Normal Open and Normal Close define as below

Normal Open

Normal Close

No contact between alarm input and common point

Keeping contact between alarm input and common point

Mini Speed Dome Camera Introduction Manual

▌▌Check points before operation

 Before power is applied, please check the cables carefully.

 The camera ID of the controller must be identical to that of the target camera. The camera ID can be

checked by reading DIP switch of the camera.

 If your controller supports multi-protocols, the protocol must be changed to match to that of the

camera.

 If you changed camera protocol by changing DIP switch, the change will be effective after you reboot

the camera.

 Since the operation method can be different for each controller available, refer to the manual for your

controller if camera can not be controlled properly. The operation of this manual is based on the

standard Pelco® Controller.

▌▌Preset and pattern Function Pre-Check

 Check how to operate preset and pattern function with controller or DVR in advance to operate

camera function fully when using controller or DVR.

 Refer to the following table when using standard Pelco® R protocol controller.

<Go Preset> Press [Call] input [Preset number]and press [Enter]

<Set Preset> Press [Preset] input [Preset number] and press [Enter]

<Run Pattern> Press [Call] input [Pattern number] and press [Enter]

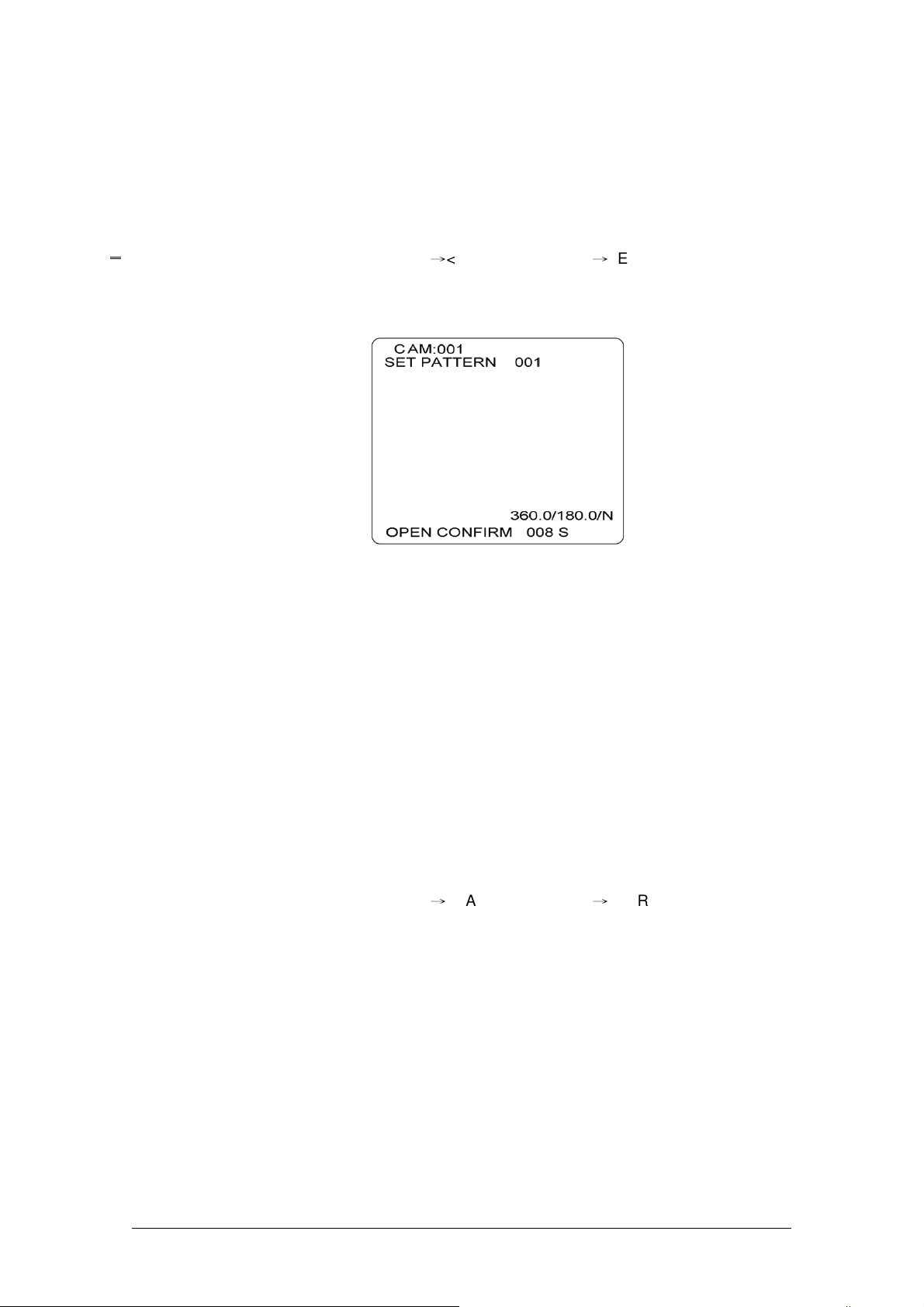

<Set Pattern> Please refer to the pattern setup, turn to “Pattern Setup”

 If controller or DVR has no pattern button or function, use shortcut keys with preset numbers. For

more information, refer to “Reserved Preset” in this manual.

Mini Speed Dome Camera Introduction Manual

▌▌Starting OSD Menu

 Function Using the OSD menu, Preset, Pattern, Swing, Group and Alarm Input function can be

configured for each application.

 Enter Menu Press <Call> + Preset Number [95] +<Enter>

▌▌Reserved Preset

 Description Some Preset numbers are reserved to special functions.

 Function <Call> [95]<Enter> : Enters into OSD menu

<Call>[131~134]<Enter> : Runs Pattern Function 1~4

<Call>[141~148]<Enter> : Runs Swing Function 1~8

<Call>[151~158]<Enter> : Runs Group Function 1~8

<Call>[200]<Enter> : Runs the minimum angle of Horizontal scanning.

<Call>[160]<Enter> : Sets Alarm ON

<Call>[161]<Enter> : Sets Alarm OFF

<Call>[170]<Enter> : Sets Camera BLC Mode to OFF

<Call>[171]<Enter> : Sets Camera BLC Mode to ON

<Call>[174]<Enter> : Sets Camera Focus Mode to AUTO

<Call>[175]<Enter> : Sets Camera Focus Mode to Manual

<Call>[176]<Enter> : Sets Camera Focus Mode to SEMI-AUTO

<Call>[177]<Enter> : Sets Day & Night Mode to AUTO

<Call>[178]<Enter> : Sets Day & Night Mode to NIGHT

<Call>[179]<Enter> : Sets Day & Night Mode to DAY

<Call>[190]<Enter> : Sets OSD Display Mode to AUTO

(Except Privacy Mask)

<Call>[191]<Enter> : Sets OSD Display Mode to OFF (Except Privacy Mask)

<Call>[192]<Enter> : Sets OSD Display Mode to ON (Except Privacy Mask)

<Call>[193]<Enter> : Sets all Privacy Mask Display to OFF

<Call>[194]<Enter> : Sets all Privacy Mask Display to ON

Mini Speed Dome Camera Introduction Manual

▌▌Preset

 Function Max 127 positions can be stored as Preset position. The Preset number can be

assigned from 1 to 128, but 95 is reserved for starting OSD menu.

 Set Preset <Preset>[1~128 ] <Enter> (Except [95])

 Run Preset <Call>[1~128 ] <Enter> (Except [95])

 Delete Preset To delete Preset, use OSD menu.

▌▌Swing

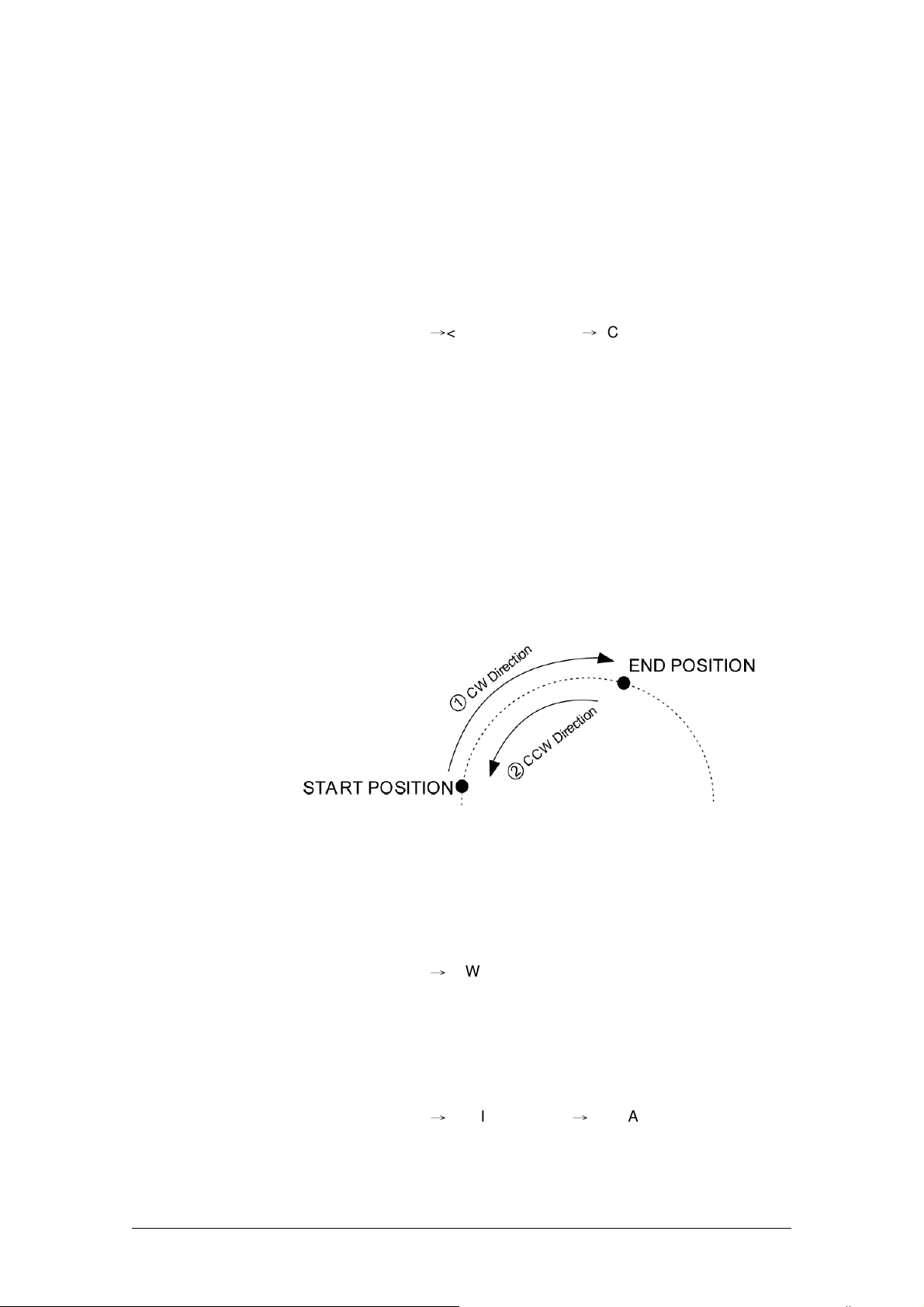

 Function By using Swing function, you can make camera to move between 2 Preset positions

repeatedly. When swing function runs, camera moves from the preset assigned as

the 1

point to the preset assigned as the 2nd point in CW (Clockwise) direction. Then

camera moves from the preset assigned as the 2nd point to the preset assigned as

the 1st point in CCW(Counterclockwise)direction.

Speed can be set up from 1° /sec to 180° /sec.

 Set Preset To set Swing, use OSD menu.

 Run Swing Ex: Run the first swing <Call>[141]<Enter>

Ex: Run the second swing <Call>[142]<Enter>

 Delete Swing To delete Swing, use OSD menu.

Mini Speed Dome Camera Introduction Manual

▌▌Pattern

 Function Pattern Function is that a camera memorizes the path (mostly curve path) by joystick

of controller for assigned time and revives the path exactly as it memorized.

4 Patterns are available and Maximum 150~180S or 500 communication commands

can be stored in a pattern.

 Setup Pattern <DOME CAMERA SETUP>→<PATTERN SETUP>→<EDIT PATTERN>

□ Pattern editing screen is displayed as bellow.

□ Movement by Joystick and preset movement can be memorized in a pattern. □ The recording time will be shown on the right-down corner

(Max 150~180S or 500 commands) □ To save the recording, press OPEN key to save.

 Run Pattern Ex) Run Pattern 1: <Call>[131]<Enter>

Ex) Run Pattern 2: <Call>[132]<Enter>

 Delete Pattern Use OSD menu to delete Pattern

Mini Speed Dome Camera Introduction Manual

▌▌Group

 Function The group function allows running sequence of Presets Max 8 group can be stored.

Each group can have max 16 preset can be set up in Group setup.

Dwell time between actions can be set up also.

 Set Group Use OSD Menu to create a Group

 Run Group Ex) Run Group 1: <Call>[151]<Enter>

Ex) Run Group 2: <Call>[152]<Enter>

 Delete Group Use OSD Menu to delete

Mini Speed Dome Camera Introduction Manual

▌▌Other Functions

 Power Up Action

This function enables to resume the last action executed before power down. Most of

actions such as Preset, Pattern, Swing and Group are available for this function but jog

actions are not available to resume.

 Auto Flip

In case that tilt angle arrives at the top of tilt orbit (90º), zoom module camera keep

moving to opposite tilt direction (180º) to keep tracing targets. As soon as zoom

module camera passes through the top of tilt direction (90º), images should be reversed

automatically.

 Parking Action

This function enables to locate the camera to specific position automatically if operator

doesn't operate the controller for a while. The Park Time can be defined as an interval

from 3 to 240 seconds.

 Home Place

This function enables to adjust the camera in the best condition as the Home Place.

 Privacy Zone Mask

To protect privacy, MAX. 8 Privacy Masks can be created on the arbitrary position to

hide objects such as windows, shops or private house. With Spherical Coordinates

system, powerful Privacy Zone Mask function is possible.

 Global/Local Image Setup

WB(White Balance) and AE (Auto Exposure) and Brightness (1 to 100)can be set up

independently for each.

 SemiAuto Focus

This mode exchanges focus mode automatically between Manual Focus mode and Auto

Focus mode by operation. Manual Focus mode activates in preset operation and Auto

Focus mode activates during jog operation With Manual mode at presets, Focus data is

memoried in each preset in advance and camera calls focus data in correspondence

with presets as soon as camera arrives at a preset. It should shorten time to get focuses

Focus mode changes to Auto Focus mode automatically when jog operation starts.

Mini Speed Dome Camera Introduction Manual

▌▌OSD Display of Main Screen

 P/T/Z Information Current Pan/Tilt angle in degree and a compass direction.

 Camera ID Current Camera ID (Address).

 Action Title Following are possible Action-Titles and their meaning.

"SET PRESET xxx" When Preset xxx is stored

"GOTO PRESET xxx" When camera reach to Preset xxx

"RUN PATTERN x" When Pattern x is in action

“RUN SWG x / GROUP xxx” When Swing is in action

"xxxxxx ERROR xxx" When undefined function is called to run

 Action Label The Label stored for specific Preset and Pattern and Group.

 Alarm Input <for External Mini Model>

This information shows current state of Alarm Input. If an Input point is ON

state it will show a number corresponding to each point If an Input point is OFF

state, ' - ' will be displayed

Ex) Point 2 & 3 of inputs are ON, OSD will show as below

 Temperature Shows Show current speed dome internal temperature.

Mini Speed Dome Camera Introduction Manual

▌▌General Rules of Key Operation for Menu

 The menu items surrounded with ( ) always has its sub menu.

 For aIl menu level, to go into sub menu, press OPEN key or use joystick in the right.

 To go to up-one-level menu, press CLOSE key or use joystick in the left.

 To move from items to item in the menu, use joystick in the Up/Down.

 To change a value of an item, use Up/Down of the joystick in the controller.

 Press OPEN key or use joystick in the right to save values and Press CLOSE key or use joystick in the left to

cancel Values.

▌▌Main Menu

 System Information Displays system information and configuration.

 Display Setup Enable/Disable of OSD display on Main Screen

 Dome Camera Setup Configure various functions of this camera.

 Alarm Setup Configure alarm action.

 System Initialize Initializes system configuration and sets all data to factory default

configuration

Mini Speed Dome Camera Introduction Manual

▌▌Display Setup

This menu defines Enable/Disable of OSD display on Main

Screen.

If an item is set to be AUTO, the item is displayed only when

the value of it is changed.

 Camera ID [ON/OFF]

 PTZ Information [ON/OFF/AUTO]

 Action Title [ON/OFF/AUTO]

 Alarm Input [ON/OFF/AUTO]

 Temperature [ON/OFF/AUTO]

■ Compass Direction Setup

Set North to assign compass direction as criteria. Move

camera and press OPEN button to save.

Mini Speed Dome Camera Introduction Manual

▌▌Privacy Zone Mask Setup

Select area in image to mask.

 Mask No [1~8]

Select Mask number. If the selected mask

has already data, camera moves as it was

set. Otherwise, “UNDEFINED” will be

displayed under “Mask No”.

 Display [ON/OFF]

Sets if camera makes mask shows or not on

images

 Clear Mask [CANCEL/OK]

Deletes data in the selected mask NO.

■ Privacy Zone Area Setup

 Move camera to area to mask. Then the menu to adjust

mask size will be displayed.

 By Pressing “OPEN” to enter, then press “OPEN” again,

the menu to adjust mask size will be displayed.

■ Privacy Zone Size Adjustment

Adjust mask size. Use joystick or arrow buttons to adjust mask

size.

● ◄ ► (TILT/WIDE) Adjusts mask width.

● ▲ ▼(FAR/NEAR) Adjusts mask height.

Mini Speed Dome Camera Introduction Manual

►Camera Setup

Setup the general functions of zoom camera module

 Focus Mode [AUTO/MANUAL/SEMIAUTO]

Sets camera focus mode.

■ SEMIAUTO Mode

This mode exchanges focus mode

 IRIS Mode [AUTO/MANUAL/SEMIAUTO]

 Day/Night [AUTO/DAY/NIGHT]

 Digital Zoom [ON/OFF]

automatically between Manual Focus mode and

Auto Focus mode Manual Focus mode

activates in preset operation and Auto Focus

mode activates when jog operation Starts.

With Manual mode at presets, Focus data is

memorized in each preset in advance and

camera calls focus data in correspondence with

presets as soon as camera arrives at a preset

Sets camera IRIS mode.

Sets camera day or night mode.

Sets digital zoom function to ON/OFF. If this is

set to OFF, optical zoom function runs but zoom

function stops at the end of optical zoom

magnification.

■ White Balance Setup

→

 WB Mode [AUTO/MANUAL]

In Manual mode, Red and Blue level can be set

up manually

 Red Adjust [50～200]

 Blue Adjust [50～200]

Mini Speed Dome Camera Introduction Manual

■ Auto Exposure Setup

→<Auto Exposure Setup>

 Backlight [HIGH/NORMAL/OFF]

Sets Backlight Compensation

 Brightness [0∼100]

Adjusts brightness of images. Iris, Shutter

Speed and Gain are adjusted automatically in

correspondence with this value

 Shutter [DEFAULT/MANUAL/A.FLK]

If Shutter Speed is set to A. Flicker, to remove

Flicker, Shutter Speed should be set to 1/100

secretary.

for NTSC and 1／120 for PAL.

 AGC [HIGH/MIDDLE/LOW/OFF]

Enhances image brightness automatically in

case that luminance level of image signal is too

low.

 SSNR [OFF/LOW/MIDDLE/HIGH]

Enhances images by deducting noises when

gain level of images is too high.

 SENS-UP [ON/OFF]

Activates Slow Shutter function when

luminance of Image (signal) is too dark

It is possible to set up the maximum number of

frames piled up one on another by Slow Shutter

function.

 SENS-UP [0~11]

The user can configure Sens-Up limit by

increasing/decreasing the shutter speed.

Mini Speed Dome Camera Introduction Manual

▌▌Motion Setup

Setup the general functions of Pan/Tilt motions.

 Motion Lock [ON/OFF]

Group. It is possible only to run those functions.

To set up and delete those functions, enter into

OSD menu.

 Power Up Action [NORTH/GROUP/PATTERN/SWING]

Refer to "Other Functions" section.

 Auto Flip [ON/OFF]

Refer to "Other Functions" section.

 H.REVERSE [ON/OFF]

Flip horizontal

 Jog Direction [INVERSE/NORMAL]

If you set this to 'Inverse', the view in the

screen is moving same direction with jog

tilting. If 'Normal' is selected, the view in

the screen is moving reversely.

 Jog Max Speed [1º /sec∼300º /sec]

Sets maximum jog speed. Jog speed is

inversely proportional to zoom magnification.

As zoom magnification goes up, pan/tilt speed

goes down

 Freeze in Preset [ON/OFF]

At start point of preset movement, camera

starts freezing the image of start point. Camera

keeps displaying the image of start point

during preset movement and does not display

the images which camera gets during preset

movement. As soon as camera stops at preset

end point, camera starts displaying live images

which it gets at preset end point.

This function availability should be different by

models.

Mini Speed Dome Camera Introduction Manual

■ Parking Action Setup

If Park Enable is set to ON, camera runs assigned function

automatically if there is no PTZ command during assigned

''Wait Time''.

 Wait Time [003~240S]

The time is displayed with "XXX S" format

and you can change this joystick or

keyboard..

 Park Action [NOTHING/PATTERN/SWING/GROUP]

Ex) If you set park action is HOME, the

camera will move to home position when

there is no PTZ command during assigned

"Wait Time".

▌▌Preset Setup

 Preset Number [1~128] (Except [95])

If a selected preset is already defined,

camera moves to pre- defined position. If a

selected preset is not defined. "UNDEFINED"

shows on monitor.

 Clear Preset [CANCEL／OK]

Delete current Preset data (include edit label)

 Clear all Preset [CANCEL／OK]

Delete all current Preset data (include edit

label)

 Edit Scene

Redefine current Preset scene position Using

Joystick move camera to desired position, By

pressing OPEN to save current PTZ data.

 Edit Label

Edits Label to show on monitor when preset

runs MAX. 18 alphabets are allowed. Enter

edit label, “?” cursor will be displayed on the

screen, using up/down of joystick to select

character, and using left/right to move cursor.

After inputting, press “OPEN” key to save and

exit the setting.

Mini Speed Dome Camera Introduction Manual

▌▌Swing Setup

 Swing Number [1~8]

Selects Swing number to edit.

 Start PositionSet up the 2 position for Swing function if a

End Position selected preset is not defined,

"UNDEFINED" will be displayed.

When swing function runs, camera moves

form the preset assigned as the start point

to the preset assigned as the end point in

CW (Clockwise) direction. The camera

moves from preset assigned as the start

point to preset assigned as the end point

CCW(Counterclockwise) direction.

Then camera moves from the preset

assigned as the endpoint to the preset

assigned as the start point in CCW

(Counterclockwise) direction.

 Swing Speed [001~180 ]

Sets Swing speed from 001 to 180.

 Clear Swing [CANCEL/OK]

Deletes current Swing data

 Run Swing Run current Swing

Mini Speed Dome Camera Introduction Manual

▌▌Pattern Setup

 Pattern Number [1~4]

Selects Pattern number to edit.

If a selected pattern number is not defined,

"UNDEFINED" will be displayed under

selected pattern number.

 Clear Pattern [CANCEL/OK]

Deletes data in current pattern

▌▌Edit Pattern

 Label Display [ON/OFF]

 Edit Pattern [OK/CANCEL]

OK: Edit the pattern function

Cancel: Don't execute the pattern function.

 Edit Pattern

Starts editing pattern. By using Joystick, move

to start position with appropriate zoom. To start

pattern recording, press OPEN key. To exit this

menu, press CLOSE key. Move camera with

joystick of controller or run preset function to

memorize the path (mostly curve path) in a

selected pattern. Maximum 500 commands can

be stored in a pattern

 Edit Label

Edits Label to show on monitor when preset

 Run Pattern Run current Pattern

runs MAX. 18 alphabets are allowed. Enter edit

label, “?” cursor will be displayed on the screen,

using up/down of joystick to select character,

and using left/right to move cursor, After

inputting, press “OPEN” key to save and exit

the setting.

Mini Speed Dome Camera Introduction Manual

▌▌Group Setup

 Croup Number [1~8]

Selects Group number to edit.

If a selected Group number is not defined,

"UNDEFINED" will be displayed under

selected Group number.

 Clear Group [CANCEL/OK]

▌▌Edit Group

Deletes data in current Group

 Edit Group Starts editing Group.

 Edit Label

Edits Label to show on monitor when preset

runs MAX. 18 alphabets are allowed. Enter

edit label, “?” cursor will be displayed on the

screen, using up/down of joystick to select

character, and using left/right to move cursor,

After inputting, press “OPEN” key to save and

exit the setting.

 Run Group Run current Group

1. Press OPEN key to start Tour setup.

2. Note that MAX. 16 “Presets” are allowed in a Tour. Move

cursor up/down and press OPEN key to set up.

3. Set up Action, Dwell time and Speed is optional. Time value

from displayed in reverse. Move cursor Left/Right to select

items and 3 sec To 240 sec. Speed value from 50 to 300.

Move cursor Left/Right to select items and move cursor

Up/Down to change each value.

Mini Speed Dome Camera Introduction Manual

▌▌Alarm Input Setup

(For External mini PTZ Dome only)

Match the Alarm sensor input to one of Preset Positions

/Home/Auto Scan/Group/Pattern/Swing. If an external sensor

is activated, camera will corresponding command position

when this item is predefined.

 Alarm Enable [ON/OFF]

Establish the current passage reports to the

police open of function with pass

 Alarm No. [001~004]

Select alarm channel number

 Alarm x Action [NOTHING/PRESET/PATTERN/SWING/

GROUP]

Assign counteraction Preset position to each

Alarm input.

 Release Time [001~240 S]

Alarm output time is postponed to a certain

time, adjustable range is 0 sec t 240 sec.

 Start Fan [20~60ºC]

Ex) If set start fan is 30ºC, the dome will start

fan when above 30ºC, and it will stop to fan

when temperature is lower than set value

5ºC.

 Start Heater [-20~10ºC]

Ex) If set start fan is -10ºC, the dome will start

heat when above -10ºC, and it will stop to

heat when temperature is higher than set

value 5ºC.

Mini Speed Dome Camera Introduction Manual

▌▌System Initialize

■ Initial Configuration Table

 Clear All Data Deletes all configuration data such as

display, camera, motion setup and so on.

 Clear Display Set Initializes Display Configuration

 Clear Camera Set Initializes Camera Configuration

 Clear Motion Set Initializes Motion Configuration

 Clear Edit Data Deletes Preset Date, Swing Data,

Pattern Data and Group Data

 Reboot Camera Reboots Zoom Camera module

 Reboot System Reboots Speed Dome Camera

Display Configuration Camera Configuration

Camera ID

PTZ Information

Action Title

Alarm Input

Temperature

Motion Configuration

Motion Lock

Power Up Action

Auto Flip

Jog Max Speed

Jog Direction

Freeze In Preset

Park Action

AUTO

OFF

NOTHING

OFF

300º/sec

NORMAL

OFF

NOTHING

Focus Mode

Iris Mode

Digital Zoom

Day & Night

White Balance

Backlight

Brightness

Shutter

AGC

SSNR

SENS-UP

User Edit Data

Preset 1~128

Swing 1~8

Pattern 1~4

Group 1~8

SemiAu to

OFF

AUTO

OFF

DEFAULT

HIGH

MID DLE

Undefined

Mini Speed Dome Camera Introduction Manual

▌▌Specifications

Type Mini External mini

Video Signal System NTSC / PAL

CCD 1/4" Interline Transfer CCD

Max. Pixels NTSC: 811(H)×508(V)410K / PAL: 795(H)×596(V)470K

Effective Pixels NTSC: 768(H)×494(V)380K / PAL: 752(H)×582(V)440K

Horizontal Res. 600 TV Line(Color), 680 TV Line(B/W)

S/N Ration 52 dB (AGC Off)

Zoom x12 Optical zoom, x16 Digital Zoom

Focal length f=3.94 ~ 46.05 mm (F1.67~1.88)

Min. Illumination 0.2 Lux /F1.67(50 IRE)Color / 0.02 Lux F1.67 (50 IRE)B/W

Day & Night Auto / Day(Color)/ Night(ICR, B/W)

Focus Auto / Manual / Semi Auto

Iris Auto / Manual / Semi Auto

Shutter Pal: x128 ~ 1/120000 sec

AGC Low / Middle / High / Off

White Balance Auto / Manual(Red, Blue Gain Adjustable)

BLC Normal / High / Off

SSNR UP ON/OFF

SSNR Low / Middle / High / Off

SSNR Pan/Tilt Speed

Tilt : 180°(Auto-Flip), 95°(Normal)

Preset

Pattern 4 Pattern, 1200 commands /Pattern

Swing 8 Swing/Speed:1~180/sec

Group 8 Group (20 action entities per Group)

Direction INVERSE / NORMAL

Other Functions Auto flip, Auto Parking, Power Up Action etc.

Communication RS-485(9600, 4800, 2400 Select table or change from OSD menu)

Protocol Pelco-D, Pelco-P, Auto identify

Privacy Zone 8 Zone

Alarm Input No 4 Input

Pan : 360°(Endless)

Go to Preset Speed : 1~300°/sec

Manual : 0.05~300°/sec

127 Preset(Label)

OSD Menu / PTZ information etc

Fan and Heater No Yes

Rated Power DC 12V / 0.8A DC 12V / 1.1A

Dimension Ø128 x 187(H)mm Ø190 x 144(H)mm

Weight about 2.4Kg about 2.6Kg

Operating Temp. 0°C ~ 40°C -30°C ~ 50°C

Mini Speed Dome Camera Introduction Manual

▌▌Dimension

► Ceiling Bracket

►ARM Type Wall Mount Bracket

► Pendant Bracket

►L Type Wall Mount Bracket

V.20111226

Mini Speed Dome Camera Introduction Manual

bettini SP-1256HSP Instruction

Specifications and Main Features

Frequently Asked Questions

User Manual
