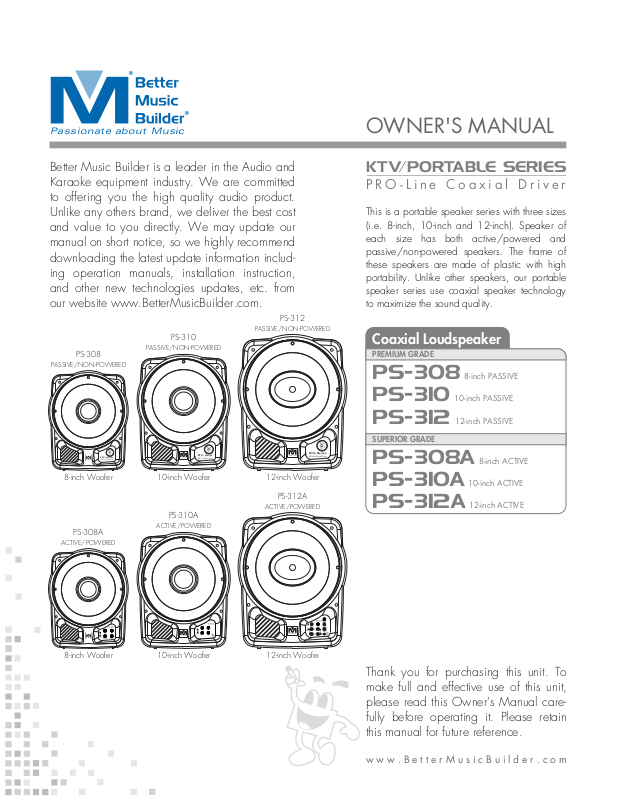

Better Music Builder PS-308, PS-310A, PS-310, PS-312, PS-312A Owner's Manual

...

Page 1

Pass io na te a bo ut M us ic

Better Music Builder is a leader in the Audio and Karaoke equipment industry. We are committed to offering you the high quality audio product. Unlike any others brand, we deliver the best cost and value to you directly. We may update our manual on short notice, so we highly recommend downloading the latest update information including operation manuals, installation instruction, and other new technologies updates, etc. from our website www.BetterMusicBuilder.com.

PS-312

PASSIVE/NON-POWERED

PS-308

PASSIVE/NON-POWERED

PS-310

PASSIVE/NON-POWERED

OWNER'S MANUAL

KTV/PORTABLE SERIES

P R O - L i n e C o a x i a l D r i v e r

This is a portable speaker series with three sizes (i.e. 8-inch, 10-inch and 12-inch). Speaker of each size has both active/powered and passive/non-powered speakers. The frame of these speakers are made of plastic with high portability. Unlike other speakers, our portable speaker series use coaxial speaker technology to maximize the sound quality.

Coaxial Loudspeaker

PREMIUM GRADE

PS-308 8-inch PASSIVE PS-310 10-inch PASSIVE PS-312 12-inch PASSIVE

KTV- Seri es

KTV- Serie s

PRO-Line Coaxial Driver

8-inch Woofer 10-inch Woofer 12-inch Woofer

PS-308A

ACTIVE/POWERED

KTV-Ser ies

PRO-Line Coaxial Driver

8-inch Woofer

Better Music Builder

PRO-Line Coaxial Driver

PS-310A

ACTIVE/POWERED

Better Music Builder

10-inch Woofer

KTV-Seri es

PRO-Line Coaxial Driver

Better Music Builder

PS-312A

ACTIVE/POWERED

Better Music Builder

12-inch Woofer

KTV -Seri es

PRO-Line Coaxial Driver

KTV-Seri es

PRO-Line Coaxial Driver

SUPERIOR GRADE

PS-308A 8-inch ACTIVE PS-310A 10-inch ACTIVE PS-312A 12-inch ACTIVE

Thank you for purchasing this unit. To make full and effective use of this unit, please read this Owner's Manual carefully before operating it. Please retain this manual for future reference.

w w w . B e t t e r M u s i c B u i l d e r . c o m

Page 2

CONTENTS

INTRODUCTION............................................................................................................................................... 3

Intro

SAFETY INSTRUCTIONS

Safet y

SYSTEM APPLICATIONS

Applic ations

• Connecting the Speaker for Model PS-308, PS-308A, PS-310 and PS-310A

• Connecting the Speaker for Model PS-312 and PS-312A

VARIOUS SYSTEM APPLICATIONS

Applic ations

• High Portability

• High Power

• High Range

CONTROLS AND FUNCTIONS...................................................................................................................... 8

Speake r

................................................................................................................................................................ 7

• Front & Rear Panel Features for Active/Powered Model PS-308A and PS-310A ......

• Front & Rear Panel Features for Active/Powered Model PS-312A ......

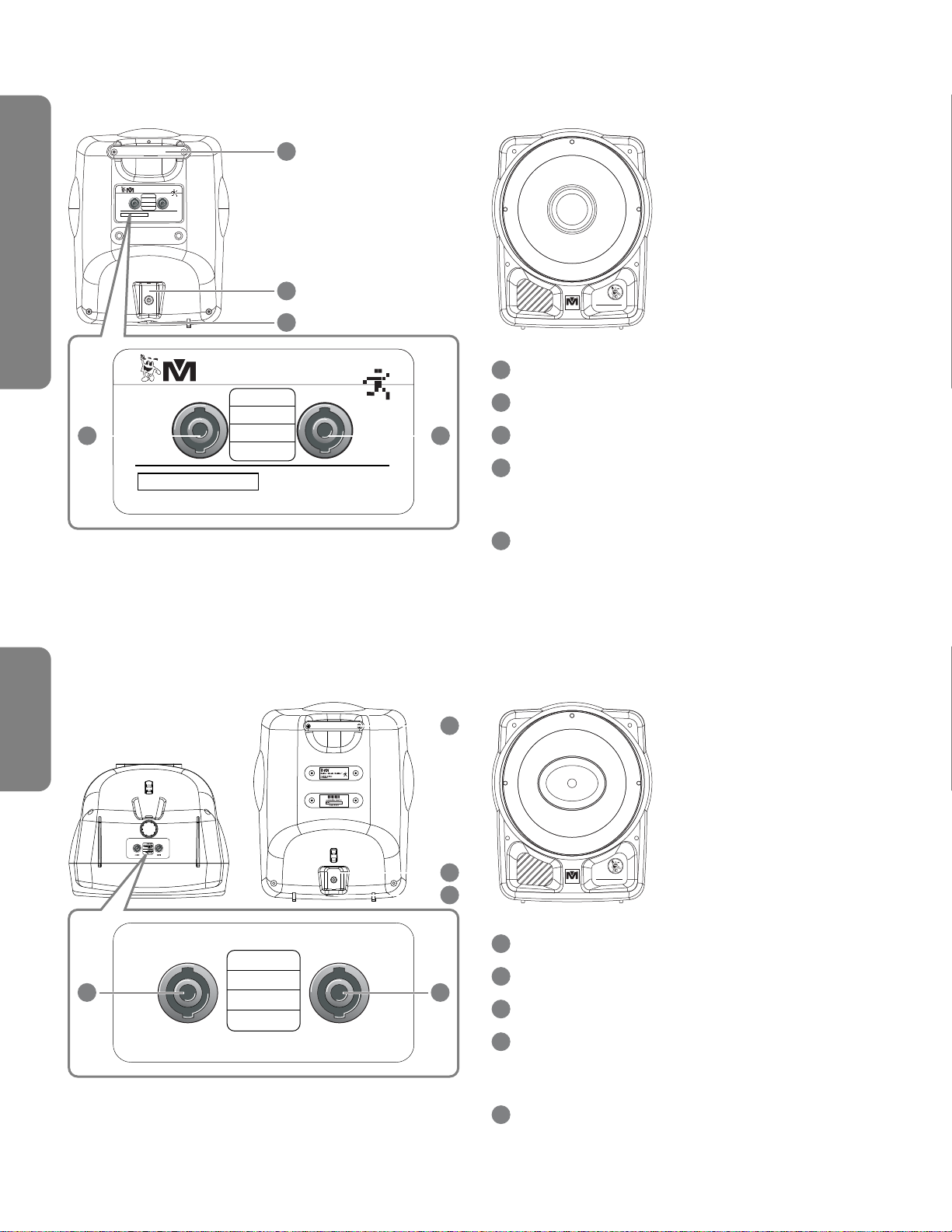

• Rear Panel Features For Passive/Non-powered Model PS-308 and PS-310

• Rear Panel Features For Passive/Non-powered Model PS-312

SYSTEM SETUP GUIDELINES

Set Up

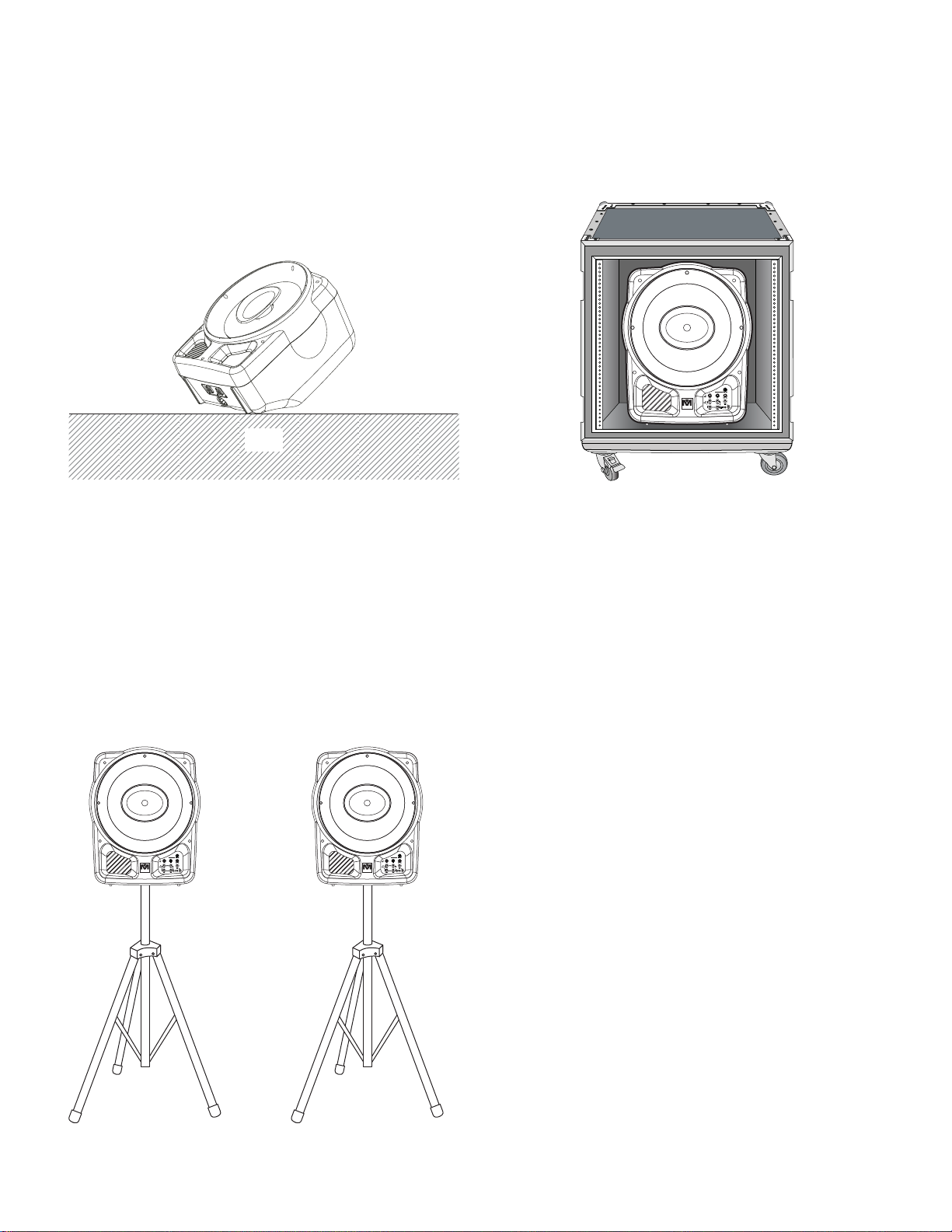

• Installation Setup..........

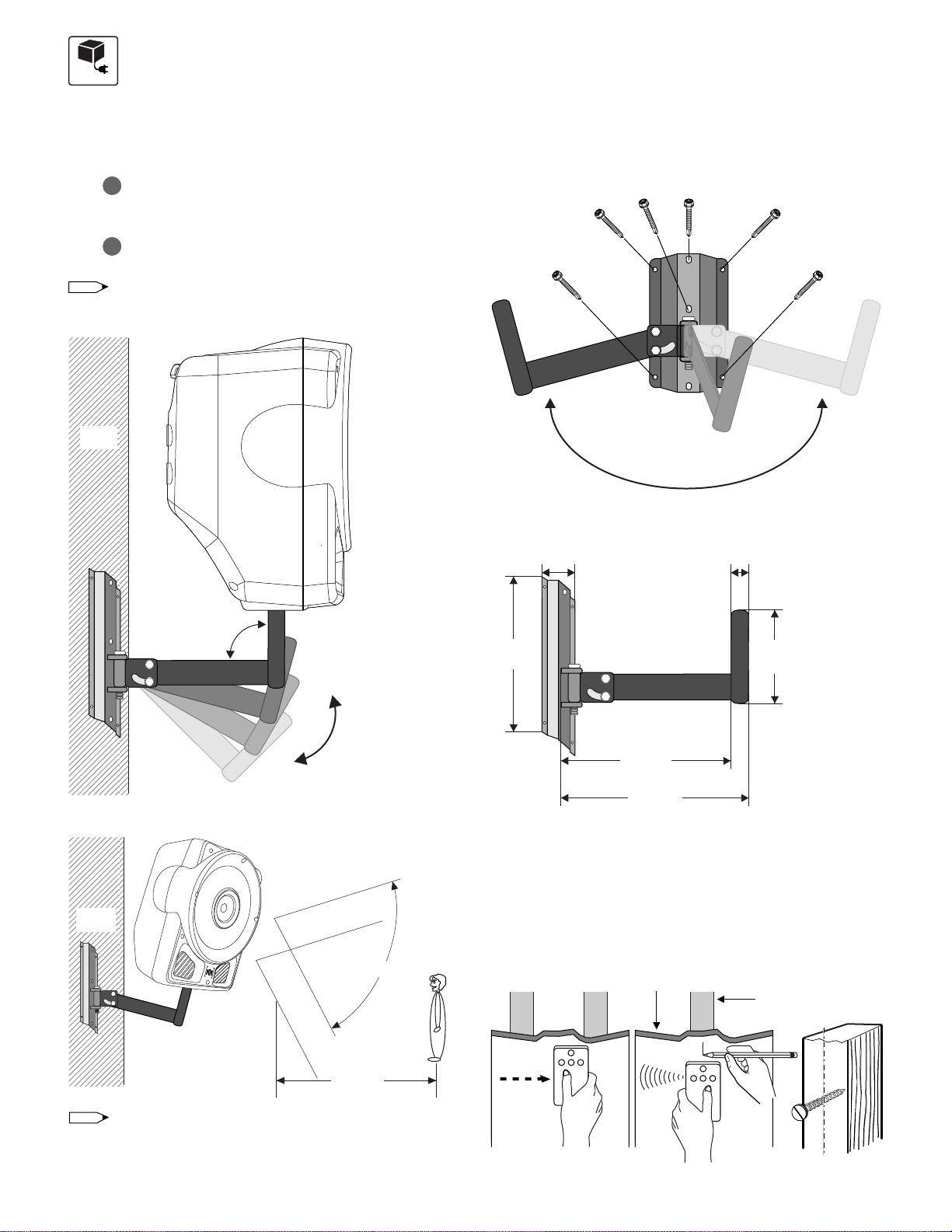

1. Mounting the Speaker to the Wall

2. Placing the Speaker on the Floor to Monitor Singing

3. Placing the Speaker on the Portable Stand

4. Store the Speaker Inside a Portable Case.

.................................................................................................................................. 4

................................ 5

....................................................................... 6

............................................................................................................... 7

.......................................................................................................................................................... 7

................... 8

................................................ 9

............................... 10

......................................................... 10

........................................................................................................................ 11

......................................................................................................................................... 11

.................................................................................................. 11

.............................................................. 12

.................................................................................. 12

TROUBLESHOOTING

Troublesho oting

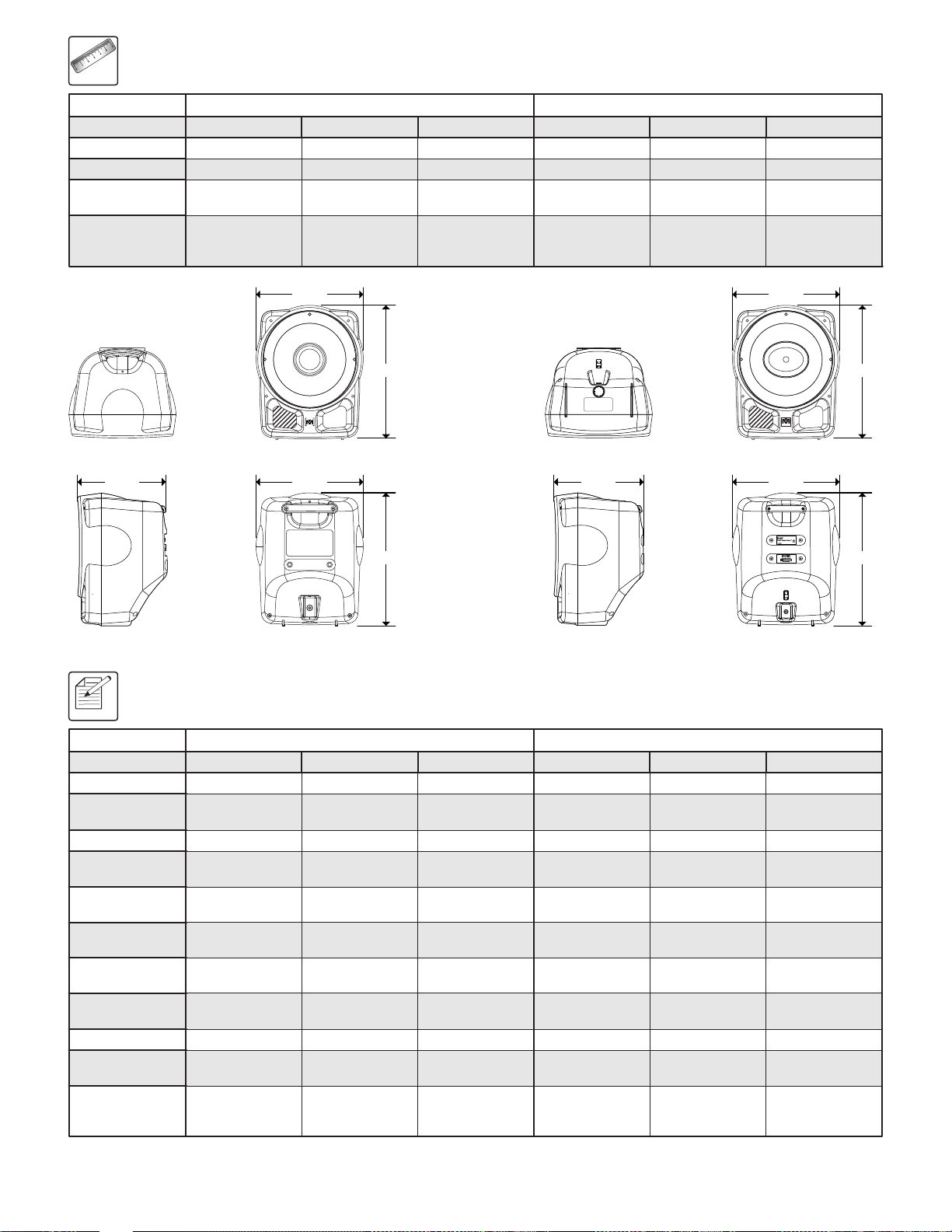

PHYSICAL DIMENSIONS

Dimens ions

SPECIFICATIONS

Spec

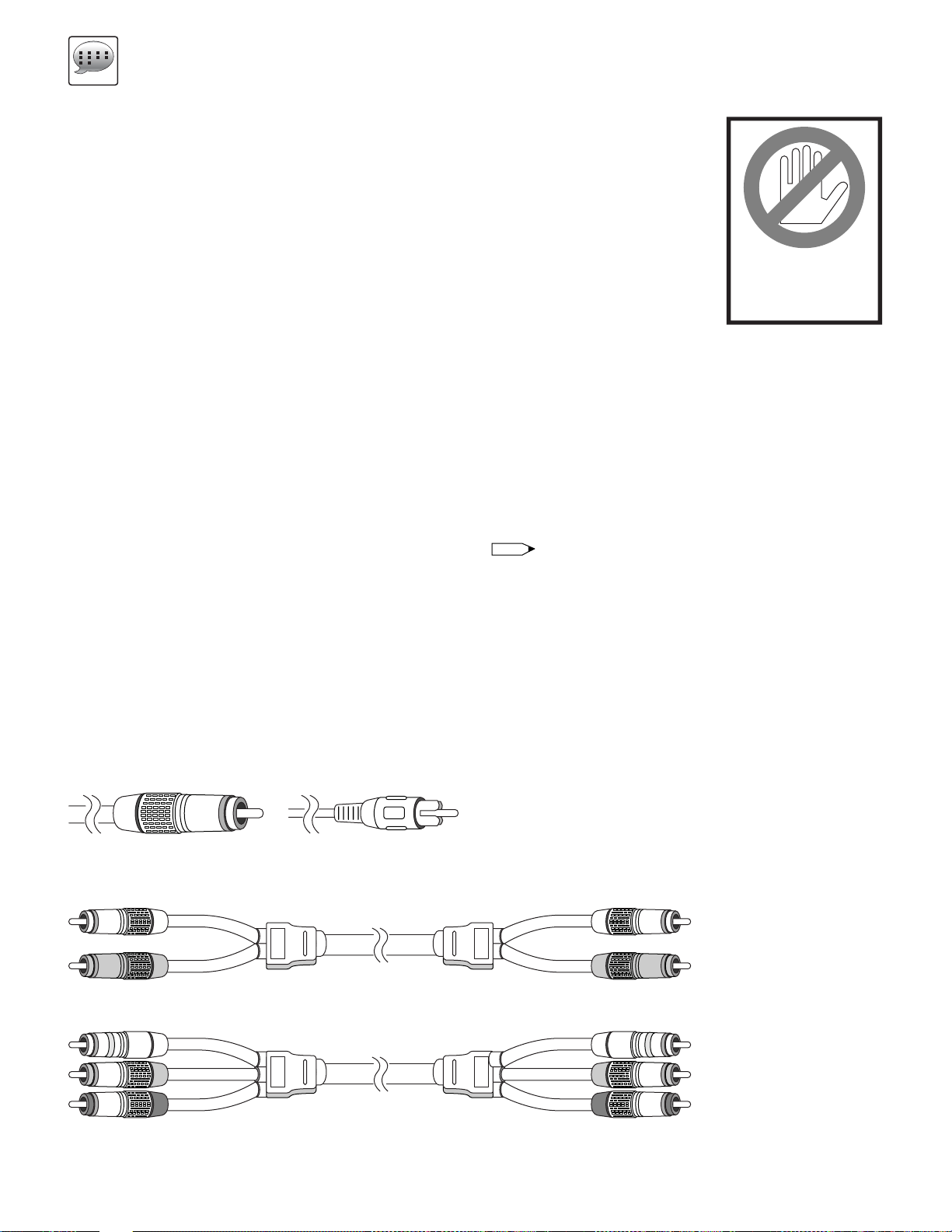

FINAL WORDS TO USER

Final Words

WARRANTY

Warrant y

AGENCY REGULATORY NOTICES

Notice s

CONTACT INFORMATION

Contac t Us

..................................................................................................................................................... 16

..................................................................................................................................... 13

.............................................................................................................................. 14

............................................................................................................................................ 14

.............................................................................................................................. 15

........................................................................................................................... 18

.............................................................................................................. 17

Page 3

INTRODUCTION

Intro

Better Music Builder engineering team created a new high performance product line called the KTV/Portable Pro-Line Series. We use the higher quality of coaxial driver to perform precise clarity and reliability on these portable speakers. The series come in two lines, active (powered) and passive (non-powered), with a total of 6 models from size 8-inches, 10-inches, or 12-inches; the active (powered speakers): PS-308, PS-310, PS-312; the passive (nonpowered): PS-308A, PS-310A, and PS-312A. The active powered Speakers are available for AC power voltage with 110V and 240V. The KTV/Portable Pro-Line Series portable center monitor speakers give you amazing power, size, and efficiency for your application. They feature Better Music Builder’s latest Coaxial Driver circuitry that delivers crystal clear vocal and undistorted sound with the ultimate Home Concert Concept for superior karaoke entertainment.

Professional KTV/Portable Pro-Line Series speakers into the home living room. The compact design of the KTV/Portable Pro-Line Series can easily be pole mounted or permanent installation onto the wall, ceiling, or under balcony. This ultra-compact, versatile, and expandable sound quality for maximum power and portability in a wide variety of applications ranging from live musical performance to compact, portable performance PA system for classroom instruction, as well as preaching and singing in church hall environment.

KTV/Portable Pro-Line Series has elevated the audience’s experience by combining the power of professional acoustic correction for high definition clarity and performance. While the KTV/Portable Pro-Line Series can thrust a huge amount of bass with the high performance HF/LF coaxial driver mount that audiences can literally feel, and it also comes with the premium grade compression driver that is capable of delivering the vocal and music in a very precise, focused, high-definition quality sound to its very limits, providing clearer, and more accurate sound to the entire audience; even when used in highly reverberant huge area like churches and banquet halls.

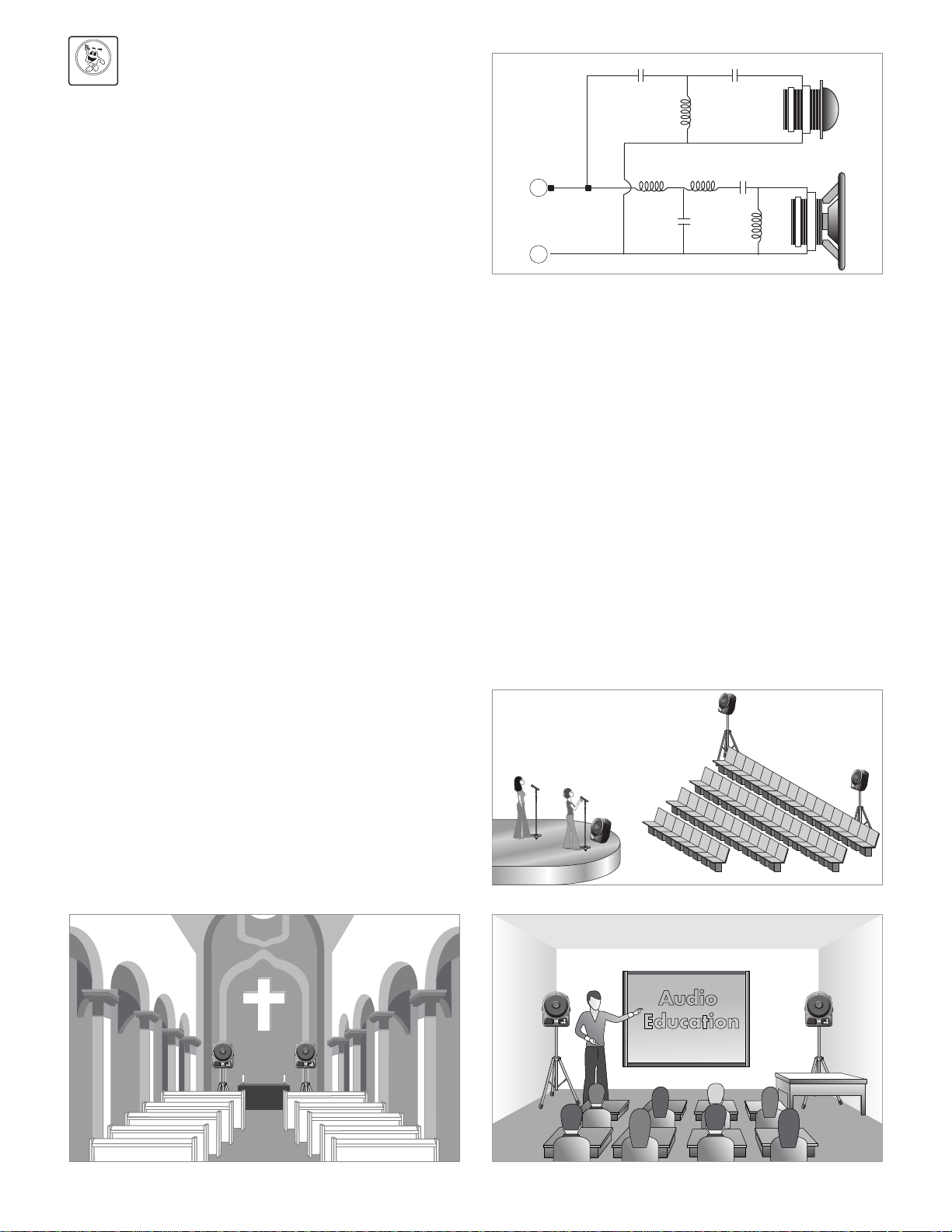

REAR SPEAKER PROFILE

COMPRESSION DRIVER HF ED3001A

−

The KTV/Portable Pro-Line Series are designed by the engineering team of Better Music Builder, especially for public use such as church, school, auditorium and also rental for events and social functions.

The KTV/Portable Pro-Line Series have three different speaker sizes of woofer (i.e. 8-inch, 10-inch and 12-inch woofer). Speaker of different sizes of woofer has two models: active/powdered and passive/non-powdered speakers. What makes KTV/Portable Pro-Line Series different from other brands of similar product is that KTV/Portable Pro-Line Series have the state-of-the-art audio technology using coaxial driver to create crystal clear and live sound.

The KTV/Portable Pro-Line Series speakers are sold in unit instead of a pair depending on your choice on active/powdered or passive/non-powdered speakers to tailor-made your needs. Please visit our website www.bettermusicbuilder.com to learn more about our KTV/Portable Pro-Line Series speakers.

EQUIPMENT RENTAL

PERFORMER

STAGE

WOOFER UNIT LF MF 06LB050-U

EQUIPMENT RENTAL for SCHOOLEQUIPMENT RENTAL for CHURCH

Audio

Education

Page 4

SAFETY INSTRUCTIONS

Safet y

SYSTEM APPLICATIONS

Appli cations

We will not notify you any errors or changes in this manual in advance. If there are any errors and changes in this manual, we will make the corrections in a timely manner. The corrections and changes will be appeared in our website. Therefore, please visit our website at BetterMusicBuilder.com frequently to find out the most updated information, corrections on errors and changes in this manual. You may also contact us at toll free at 1-800-318-2218.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT

REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS

INSIDE REFER SERVICING TO QUALIFIED PERSONNEL

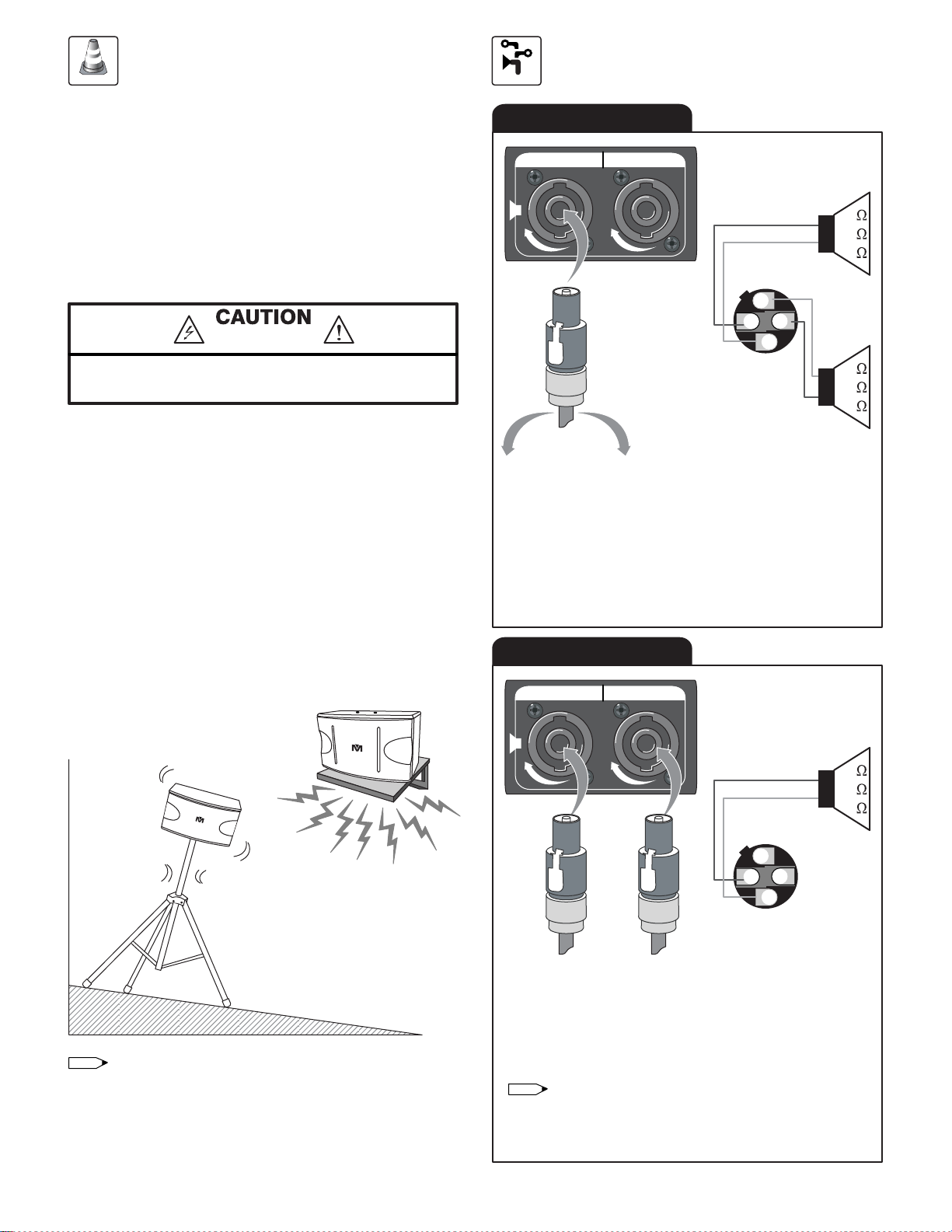

CAUTIONS FOR INSTALLATION

The engineering team of Better Music Builder is committed to designing safe audio products.

When installing the speaker on a wall or ceiling, it should be secured firmly using rigid anchor bolts to prevent it from coming off. Also, care should be taken with regard to the resonance of the mounting brackets caused by speaker operations.

SPEAKON Y CONNECTORS

INPUT OUTPUT

+ –

2–

1+ 2+

1–

– +

REFERENCE CONNECT

TO CHANNEL 2 SPEAKER

TO CHANNEL 1 SPEAKER

Speakon Outputs

The upper Speakon jack has both Channel 1 and Channel 2 outputs, so it is especially useful for parallel, bi-amp, or BRIDGE mono operation. The other Speakon carries only Channel 2's output. See the illustrations at above.

8 4 2

If the speaker is operated at high output levels, the floor, wall or ceiling may vibrate, which will impair the sound quality.

NO GOOD

NOTE

Always be sure that the surface chosen for mounting is structurally capable of supporting the weight of the speaker. Do not mount more than one speaker into one Ceiling Mounting Bracket (optional). Also, avoid having sound absorbing material such as curtains, etc. on the wall or placing the speakers too close to the window.

SPEAKON CONNECTORS

INPUT OUTPUT

+ –

2–

1+ 2+

1–

REFERENCE CONNECT

SOURCE

(from active/powered)

Source (Input) comes from the output source of the active/powered speaker while the bridge (Output) connects to the passive/non-powered speaker.

NOTE

A speakon cable is required to connect the “Output” of the acive/powered speaker to the “Input” of the passive/non--powered speaker. Please order the speakon cable from our authorized dealers.

BRIDGE

8 4 2

Page 5

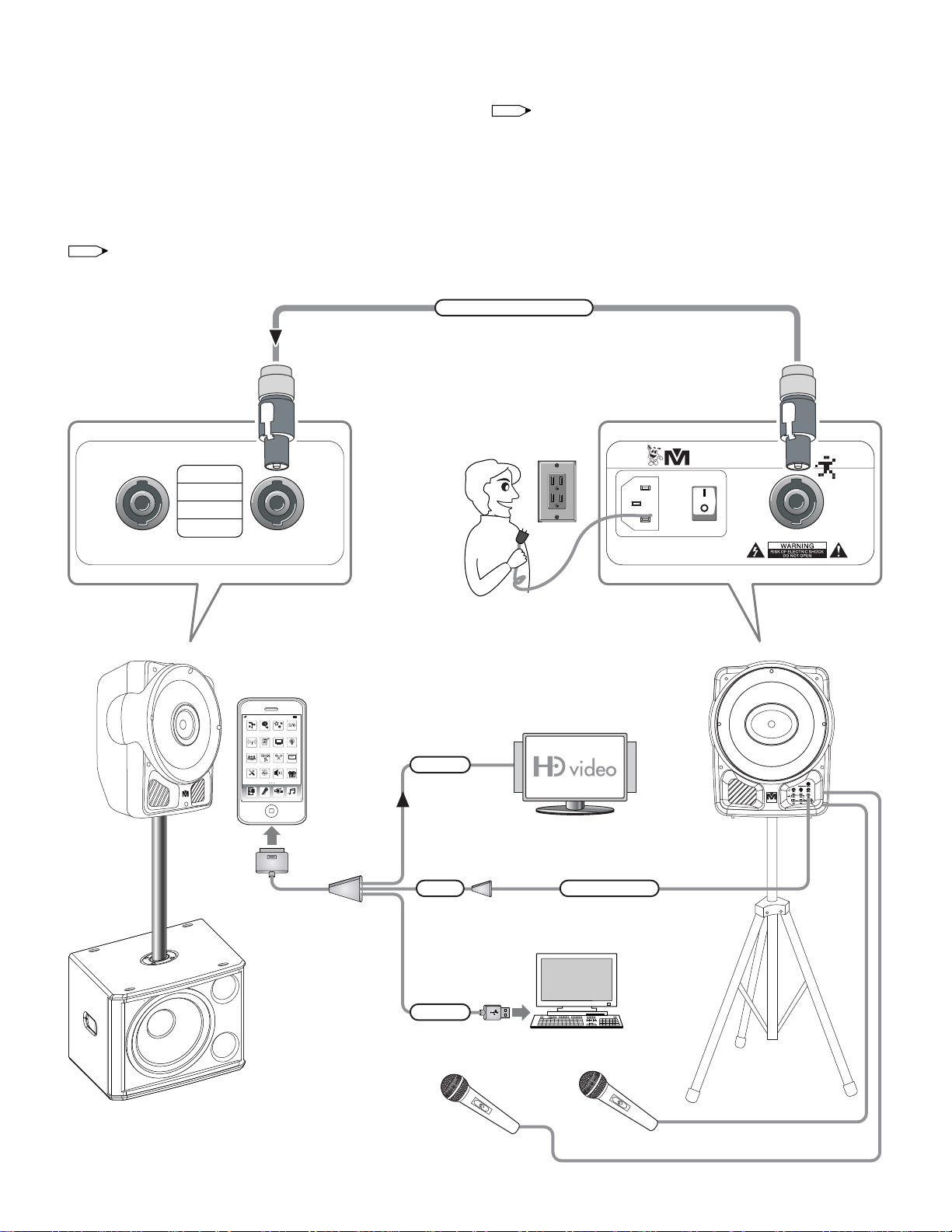

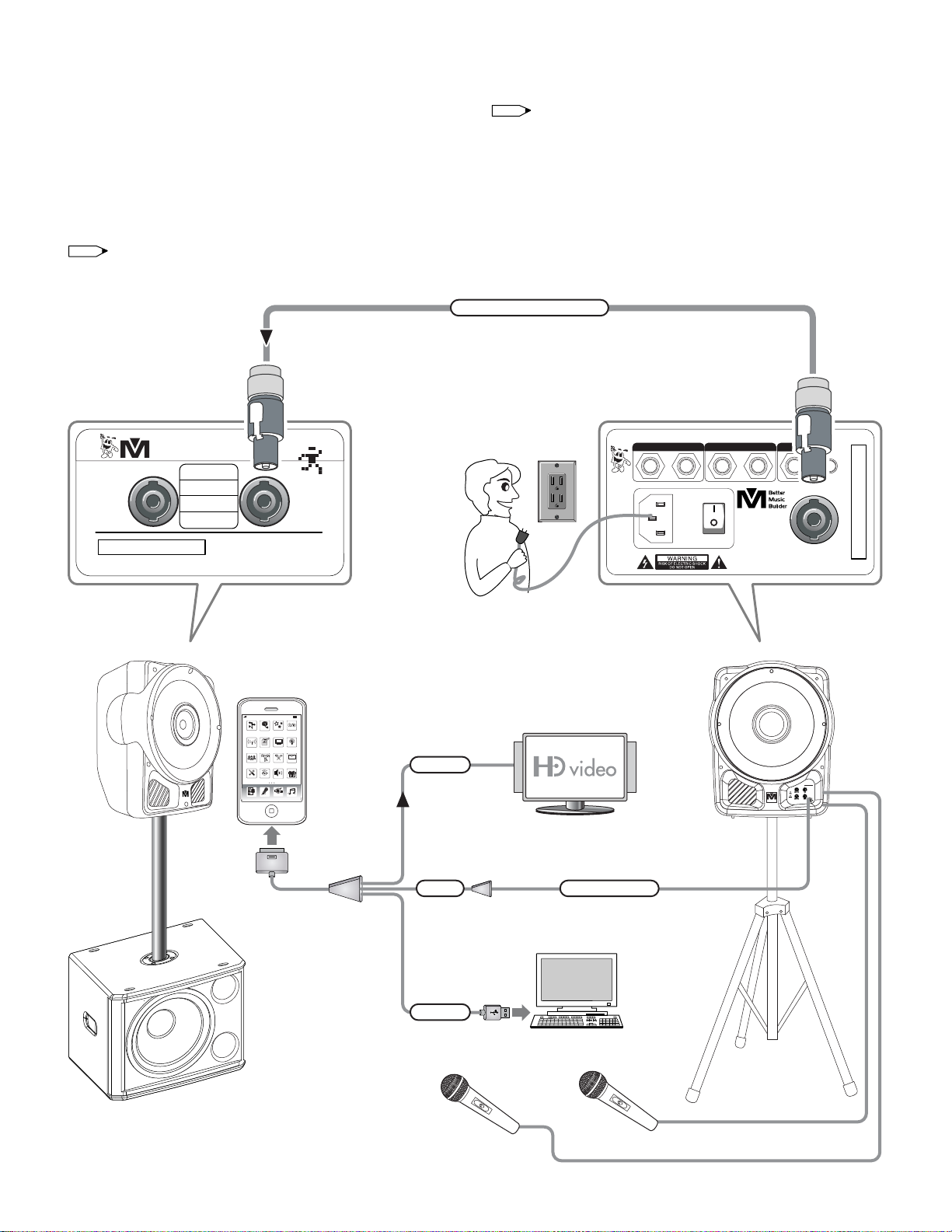

CONNECTING THE SPEAKER FOR MODEL PS-308, PS-308A, PS-310 and PS-310A

NOTE

Please order the speakon cable for the active/powdered speaker (including PS-308A, PS-310A and PS-312A) inside the package and the passive/non-powdered speakers (including PS-308, PS-310 and PS-312) from our authorized dealers. The speakon cables are available in 20 feet, 30 feet and 50 feet.

NOTE

The equipment shown in the following diagram such as floor stand, TV, I Phone, wired microphone and PC is not included.

You can hook up the active/powered speaker with the passive/non-powered speakers, so a power amplifier is not needed for connection. Two input sources such as MP3 (including iPhone/iPod) and dynamic microphone can be added to the active/powered speaker.

SPEAKON NL4FC CONNECT

This passive/non-powered connection panel are all the same in these models: PS-308 and PS-310.

[Coaxial Driver]

KTV-SERIES

OUTPUT INPUT

Serial No.:

Manufacture Code: 3604190

PASSIVE/NON-POWERED

Better Music Builder

Power Tating: 150~300 Watts

Impedance: 4~8 Ohm

Sensitivity: 90 dB (1m/1Wd)

Frequency Response: 65Hz~15kHz

360100104190

www.bettermusicbuilder.com Engineered in USA

AT&T 9:42AM 88%

Connection

Set up

Entertainment

Project

Wireless

Group sing KTV

Technical Support

Stat

Vocal

LyriPS on TV

Customer Care

SA IS

Auto Priority

Wireless

HD Video

Mail

Pro Sound

Speaker

Free Resources

Music

iPhone / iPod

AC-POWER

The Active speaker needs to be powered off from the AC-power source. Make sure the proper supply voltage is applied 110V~120V AC.

VIDEO

This active/powered connection panel are all the same in these models: PS-308A and PS-310A.

LINE IN LINE OUT

L R

AC-Power: 110~120V 50/60Hz

THE MAX. CONSUMPTION POWER 220W

L R

[Coaxial Driver]

KTV-SERIES

ACTIVE/POWERED

AUX

LINE MIC

OUTPUT

bettermusicbuilder.com Engineered in USA

360100108310

KTV-Serie s

PRO-Line Coaxial Driver

Better Music Builder

Manufacture Code: 3608310

Serial No.:

BASS POWERED SUBWOOFER

DFS-112 SUB / DFS-115 SUB (DYNAMIC FUSION SERIES)

This cable is from Apple part # MB129LL

AUDIO INPUT to AUX

CHARGER

WIRED MIC. 1

WIRED MIC. 2

Page 6

CONNECTING THE SPEAKER FOR MODEL PS-312 and PS-312A

NOTE

The equipment shown in the following diagram such as floor stand, TV, I Phone, wired microphone and PC is not included.

SPEAKON NL4FC CONNECT

This passive/non-powered connection panel are all the same in these models: PS-312 ONLY.

Power Tating: 300~600 Watts

Impedance: 4~8 Ohm

Sensitivity: 95 dB (1m/1Wd)

Frequency Respons e:

OUTPUT INPUT

PASSIVE/NON-POWERED

55Hz~20kHz

AT&T 9:42AM 88%

Connection

Set up

Entertainment

Project

Wireless

Group sing KTV

Pro Sound

Technical Support

Stat

Vocal

LyriPS on TV

Customer Care

SA IS

Auto Priority

Wireless

HD Video

Mail

Speaker

Free Resources

Music

iPhone / iPod

AC-POWER

The Active speaker needs to be powered off from the AC-power source. Make sure the proper supply voltage is applied 110V~120V AC.

VIDEO

This active/powered connection panel are all the same in these models: PS-312A ONLY.

Bette r Music B uilde r

AC-Power: 110~120V 50/60Hz THE MAX. CONSUMP TION POWER 220W

ACTIVE/POWERED

PS-312A

[Coaxial Driver]

KTV-SE RIES

OUTPUT

KTV-Seri es

PRO-Line Coaxial Driver

Better Music Builder

BASS POWERED SUBWOOFER

DFS-112 SUB / DFS-115 SUB (DYNAMIC FUSION SERIES)

This cable is from Apple part # MB129LL

AUDIO INPUT to AUX

CHARGER

WIRED MIC. 1

WIRED MIC. 2

Page 7

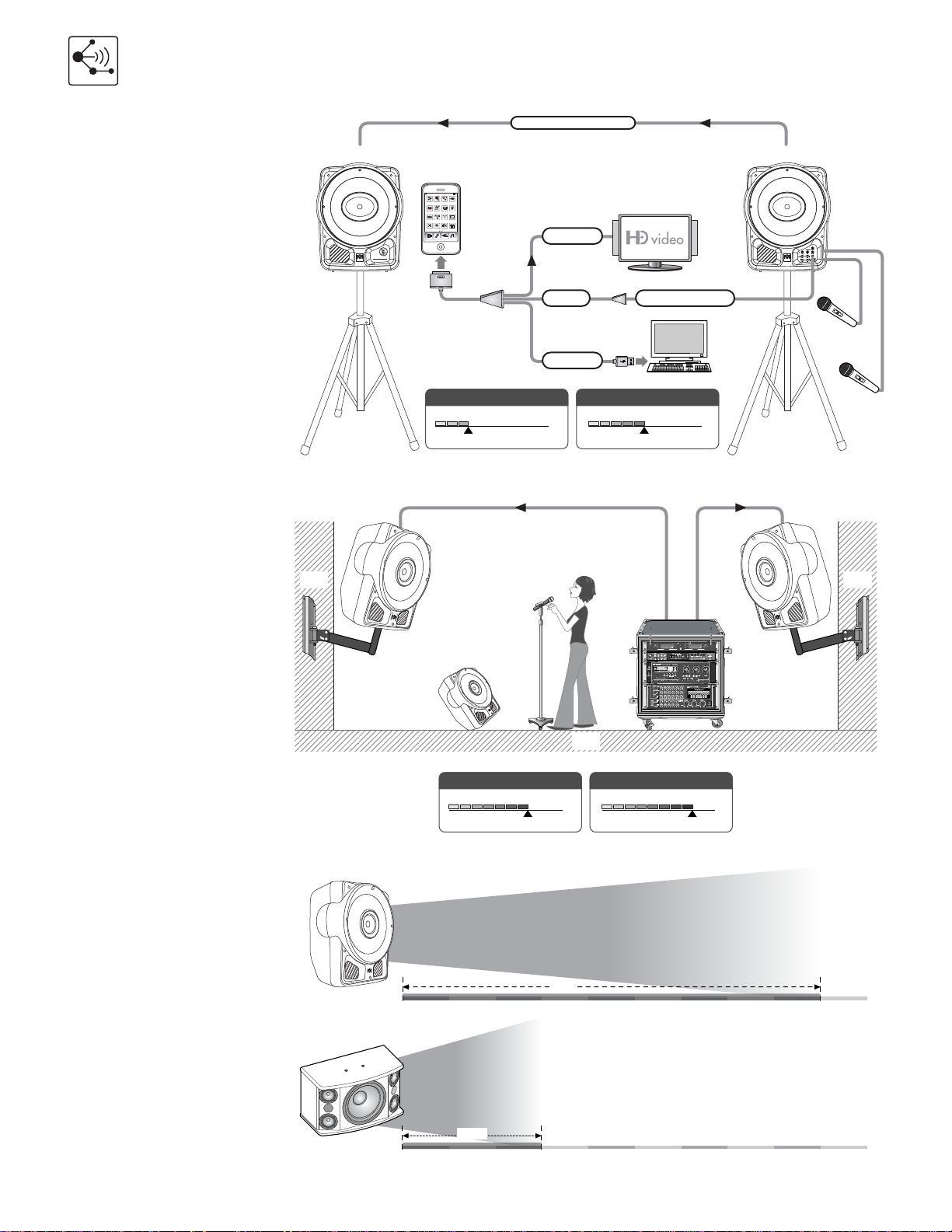

VAROIUS SYSTEM APPLICATIONS

Appli cations

1. HIGH PORTABILITY

This speaker series are designed for high portability. They are very easy to carry. You may also use the freight cases to carry audio equipment to go everywhere with these speakers for rental and any purposes.

2. HIGH POWER

This speaker series have two types of speakers: active/powered speaker and passive/non-powered speaker. When using the active/powered speaker alone, the output power is limited to 300 watts. For more than 300 watts in output, two passive/non-powered speakers and a high-power amplifier are required to generate higher power over 600 watts. Therefore, it would produce much higher power.

SPEAKON CONNECT

PASSIVE/NON-POWERED

KTV- Seri es

Better Music Builder

PRO-Line Coaxial Driver

AT&T 9:42AM 88%

Connection

Set up

Project

Wireless

Group sing KTV

Technical Support

Stat

Vocal

LyriPS on TV

iPhone / iPod

SAI S

Auto Priority

Entertainment

Wireless

HD Video

Mail

Pro Sound

Speaker

Free Resources

Customer Care

Music

VIDEO

AUDIO

INPUT to AUX

ACTIVE/POWERED

KTV-Series

PRO-Line Coaxial Driver

Better Music Builder

WIRED MIC. 1

CHARGER

POWER

300W

Average

1000W

SOUND COVERAGE

50FT

0FT

Average

100FT

PASSIVE/NON-POWERED PASSIVE/NON-POWERED

PERFORMER

Wall Wall

64 SELECTABLE WIRELESS SYSTEM

DUAL CHANNEL RECEIVER VM-82U

UHF

Better Music Builder

POWER

5 10 15 20 25 30 35 40

Better Music Builder

-30 -25 -20 -15 -10 -5 0 PEAK

MUTE

CHAN.

CH 002

CH 004

SET SET

VM-92U

ANTENNA-BVOLUME

ACTIVE/POWERED

MONITOR

RECEIVER - A LCDANTENNA-A VOLUME RECEIVER - B LCD

PORTABLE

SYSTEM

Floor

SOUND COVERAGE

80FT

0FT

Average

100FT

POWER

700W

Average

1000W

WIRED MIC. 2

3. HIGH RANGE

This speaker series can produce high sound range coverage. A normal speaker can cover up to 20 feet. This portable speaker system can cover up to 100 feet. Please refer to the diagram for the sound range coverage.

PS-312

12” WOOFER

CS-612

12” WOOFER

HIGH RANGE SOUND COVERAGE

90FT

0FT 10FT 20FT 30FT 40FT 50FT 60FT 70FT 80FT 90FT 100FT

DISPERSE SOUND COVERAGE

30FT

0FT 10FT 20FT 30FT 40FT 50FT 60FT 70FT 80FT 90FT 100FT

Page 8

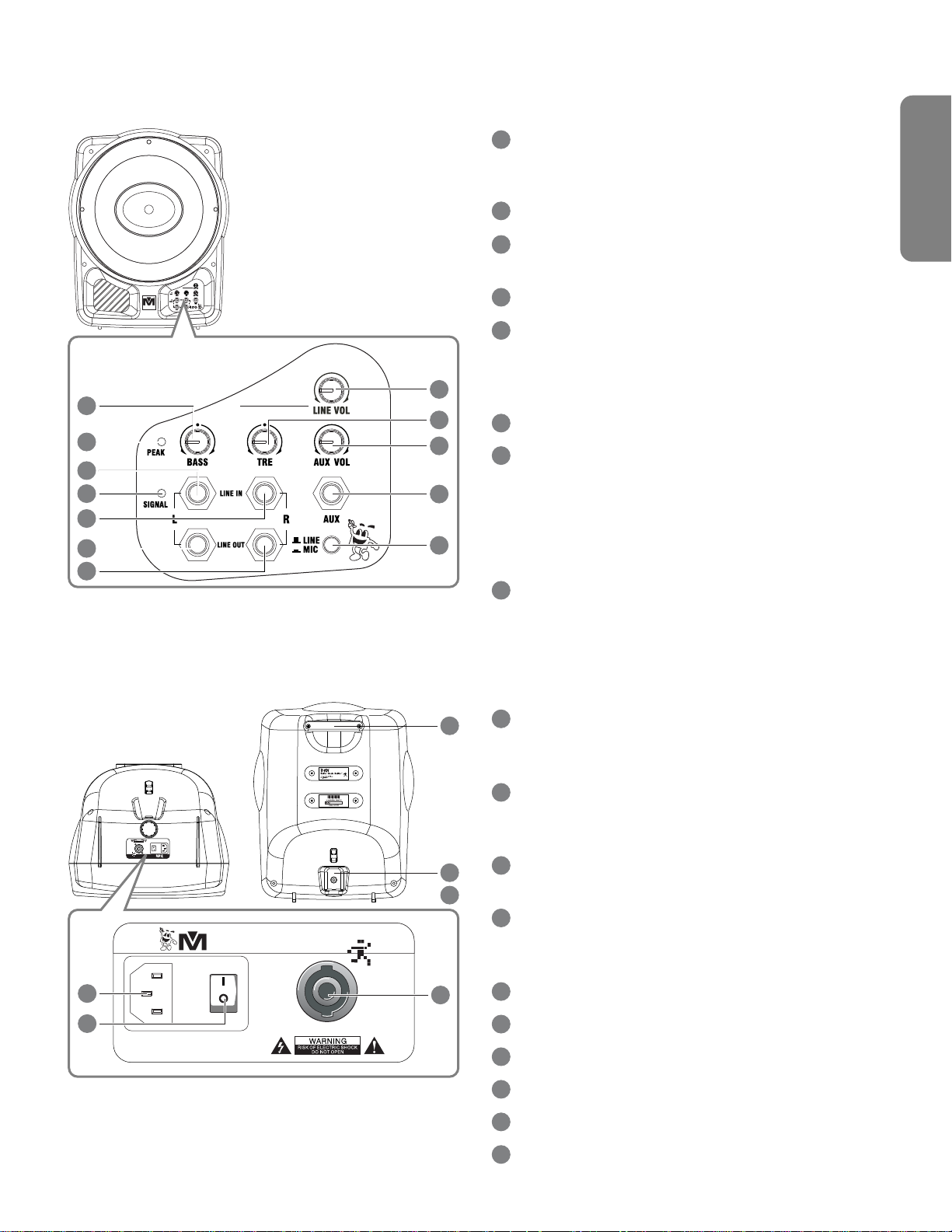

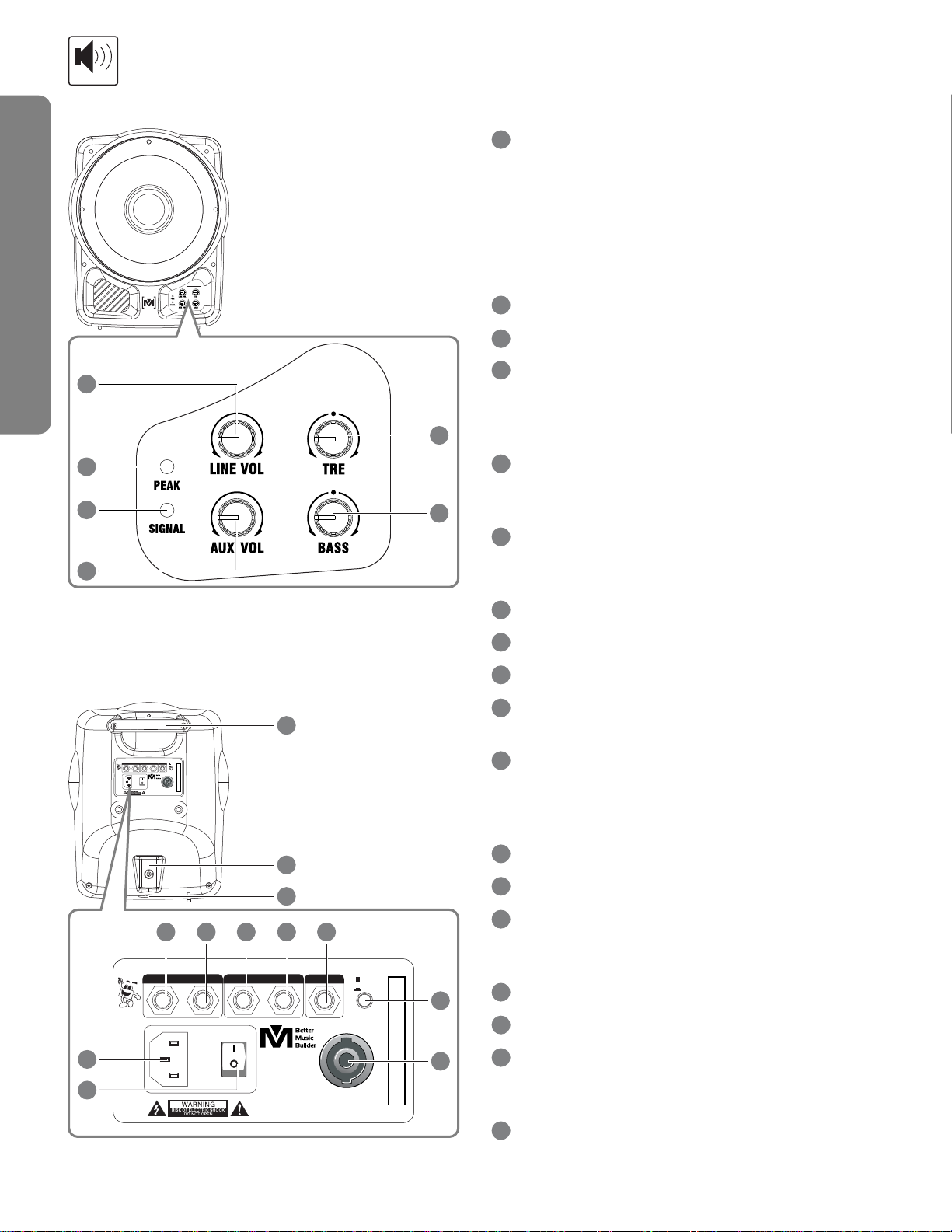

CONTROLS AND FUNCTIONS

Speaker

FRONT PANEL: features are available for active/powered model PS-308A and PS-310A ONLY.

LINE VOLUME CONTROL for the LINE LEVEL INPUT (10) LEFT and (11) RIGHT: Increase volume by rotating

clockwise and decrease volume by rotating counter-clockwise.

Attention: Please first adjust the volume to minimum. To adjust input or output signal, adjust to an appropriate volume.

OVERLOAD INDICATOR

SIGNAL INDICATOR

AUX VOLUME CONTROL for the AUX SIGNAL INPUT (14): Increase volume by rotating clockwise and decrease

volume by rotating counter-clockwise. Turn it off at minimum volume position.

TREBLE TONE CONTROL for the LINE LEVEL INPUT (10):

Increase the treble tone by rotating clockwise and decrease the treble tone by rotating counter-clockwise.

BASS TONE CONTROL for the LINE LEVEL INPUT (10):

Increase the bass tone by rotating clockwise and decrease the bass tone by rotating counter-clockwise.

PS-308A/PS-310A

KTV-Se ries

PRO-Line Coaxial Driver

PS-308A and PS-310A Front View

KTV-Se r i e s

PRO-Line Coaxial Driver

REAR PANEL : features are available for

active/powered model PS-308A and PS-310A ONLY.

LINE IN LINE OUT

AUX

LINE MIC

L R

OUTPUT

PS-308A

[Coaxial Driver]

Manufacture Code: 3608310

KTV-SERIES

bettermusicbuilder.com Engineered in USA

Serial No.:

3601 0010 8310

10 11 12 13 14

LINE IN LINE OUT

L R

AC-Power: 110~120V 50/60Hz

THE MAX. CONSUMPTION POWER 220W

L R

[Coaxial Driver]

KTV-SERIES

AUX

LINE MIC

OUTPUT

bettermusicbuilder.com Engineered in USA

360100108310

Manufacture Code: 3608310

Serial No.:

L R

AC-Power: 110~120V 50/60Hz

THE MAX. CONSUMPTION POWER 220W

SPEAKER HANDLE

SAFETY LOCKING SCREW FOR POLE MOUNT

35MM SPEAKER STAND MOUNT

LINE LEVEL INPUT TERMINAL LEFT: Source Input either for microphone or music.

LINE LEVEL INPUT TERMINAL RIGHT: Right input supplies signal to either RIGHT LINE OUTPUT (12) LEFT and (13) RIGHT or SPEAKER OUTPUT (18) when an additional passive or active speaker is required for stereo mode.

SIGNAL OUTPUT TERMINAL LEFT: Output signal.

SIGNAL OUTPUT TERMINAL RIGHT: Output signal.

AUX SIGNAL INPUT TERMINAL: Source Input either for microphone or music. Mic line sensitivity controlled by SWITCH (17).

AC-POWER INPUT TERMINAL

POWER SWITCH ON/OFF

OPTIONAL SWTICH for MICROPHONE SIGNAL INPUT and LINE SIGNAL INPUT. Press button for microphone signal and release button for line signal.

SPEAKER POWER OUTPUT TERMINAL connect to passive/non-powered speaker power input terminal.

Page 9

CONTROLS AND FUNCTIONS

FRONT PANEL : features are available for active/powered model PS-312A ONLY.

BASS TONE CONTROL for the LINE LEVEL INPUT (3):

Increase the bass tone by rotating clockwise and decrease the bass tone by rotating counter-clockwise.

OVERLOAD INDICATOR

KTV-Seri es

PRO-Line Coaxial Driver

Better Music Builder

PS-312A Front View

KT V - Se r ie s

PRO-Line Coaxial Driver

REAR PANEL : features are available for

active/powered model PS-312A ONLY.

LINE LEVEL INPUT TERMINAL LEFT: Source Input either for

PS-312A

microphone or music.

SIGNAL INDICATOR

LINE LEVEL INPUT TERMINAL RIGHT: Transfer the signal from this TERMINAL to SIGNAL OUTPUT TERMINAL (7) for output after it is controlled by LINE VOLUME

CONTROL (8).

SIGNAL OUTPUT TERMINAL LEFT: Output signal.

SIGNAL OUTPUT TERMINAL RIGHT: Transfer the signal on LINE LEVEL INPUT TERMINAL (3) which is controlled by BASS TONE CONTROL (1) to the signal input TERMINAL of another active speaker. It is also the signal output of AUX1/AUX2 which is controlled by AUX VOLUME CONTROL (10) and AUX SIGNAL INPUT TERMINAL (11).

LINE VOLUME CONTROL for STEREO (3) LEFT and (5) RIGHT: Increase volume by rotating clockwise and

decrease volume by rotating counter-clockwise. Attention: Please first adjust the volume to minimum. To

adjust input or output signal, adjust to an appropriate volume.

Bottom View

OUTPUT

KTV-SERIES

[Coaxial Driver]

PS-312A

AC-Power: 110~120V 50/60Hz THE MAX. CONSUMPTION POWER 220W

TREBLE TONE CONTROL for the LINE LEVEL INPUT (3):

Increase the treble tone by rotating clockwise and decrease the treble tone by rotating counter-clockwise.

AUX VOLUME CONTROL: Increase volume by rotating clockwise and decrease volume by rotating

THE MAX. CONSUMPTION POWER 220W AC-Power: 110~120V 50/60Hz

Better Music Builder

PS-312A

[Coaxial Driver]

KTV-SERIES

OUTPUT

counter-clockwise. Be off at the Min. position.

AUX SIGNAL INPUT TERMINAL: Source Input either for microphone or music.

OPTIONAL SWTICH for MICROPHONE SIGNAL INPUT and LINE SIGNAL INPUT. Press button for microphone signal and release button for line signal.

SPEAKER HANDLE

SAFETY LOCKING SCREW FOR POLE MOUNT

35MM SPEAKER STAND MOUNT

AC-POWER INPUT TERMINAL

POWER SWITCH ON/OFF

SPEAKER POWER OUTPUT TERMINAL connect to passive/non-powered speaker power input terminal.

Page 10

CONTROLS AND FUNCTIONS

REAR PANEL: features are available for passive/non-powered model PS-308 and PS-310 ONLY.

Better Music Builder

PS-308 [Coaxial Driver]

Power Tating:

KTV-SERIES

150~300 Watts Impedance: 4~8 Ohm Sensitivity:

INPUT OUTPUT

90 dB (1m/1Wd) Frequency Response: 65Hz~15kHz

Serial No.:

36010 0104190

www.bettermusicbuilder.com Engineered in USA

Manufacture Code: 3604190

KTV -Seri es

Better Music Builder

PRO-Line Coaxial Driver

PS-308/PS-310PS-312

[Coaxial Driver]

KTV-SERIES

4 5

INPUT OUTPUT

Serial No.:

Manufacture Code: 3604190

Better Music Builder

Power Tating: 150~300 Watts

Impedance: 4~8 Ohm

Sensitivity: 90 dB (1m/1Wd)

Frequency Response: 65Hz~15kHz

360100104190

www.bettermusicbuilder.com Engineered in USA

SPEAKER HANDLE

SAFETY LOCKING SCREW FOR POLE MOUNT

35MM SPEAKER STAND MOUNT

SPEAKER POWER INPUT TERMINAL connect to active/powered speaker power output terminal or other power signal source.

SPEAKER POWER OUTPUT TERMINAL bridge to other passive/powered speaker.

REAR PANEL : features are available for passive/non-powered model PS-312 ONLY.

Bottom View

PS-308 and PS-310 Front View

INPUT OUTPUT

9 10

Power Tating: 300~600 Watts

Impedance: 4~8 Ohm

Sensitivity: 95 dB (1m/1Wd)

Frequency Response: 55Hz~20kHz

SPEAKER HANDLE

SAFETY LOCKING SCREW FOR POLE MOUNT

35MM SPEAKER STAND MOUNT

SPEAKER POWER INPUT TERMINAL connect to

KTV -Seri es

Better Music Builder

PRO-Line Coaxial Driver

PS-312 Front View

active/powered speaker power output terminal or other power signal source.

SPEAKER POWER OUTPUT TERMINAL bridge to other passive/powered speaker.

Page 11

SYSTEM SETUP GUIDELINES

Set Up

INSTALLATION SETUP

1. MOUNTING THE SPEAKER TO THE WALL

STEP : Place the wall mount panel on the wall and put three or more screws to fasten it.

STEP : Then, put the speaker firmly onto the mount.

NOTE

The structure of the wall must be strong enough to hold up to 100 pounds.

How to Adjust the Wall Mount (SL-001)

Adjust the wall mount left/right at 180 degree and up/down at 90 degree for rotation at different angles to achieve the best sound effect. Once you have set up the right position, then you can use the screw to tight it up. Part Number: SL-001 (Optional) for wall mount.

LEFT RIGHT

Wall

90°

(ADJUSTABLE)

DOWN

180°

(ADJUSTABLE)

Dimensions

1.4 inch / 3.5 cm5.5 inch / 14 cm

9.8 inch 25 cm

11.2 inch

28.3 cm

12.5 inch

31.8 cm

3.2 inch 8 cm

Mounting to Solid Wood or Wood Studs

Wall

-6 dB

NOTE

We recommend that the speakers be tiled at an angle, so that it aims at audience’s ear level in order to achieve the best accoustic quality.

80 Degree

-6 dB

20 Feet

In North America, most of the houses have 2”x4” wood studs inside the panel walls. You may use stud finder to locate the wood studs. Then, you can drive the screw into the wood stud to mount the speaker bracket and hold it firmly.

PANEL WALL

2”X4” WOOD STUD

Page 12

2. PLACING THE SPEAKER ON THE FLOOR TO MONITOR SINGING

4. STORE THE SPEAKER INSIDE A PORTABLE CASE

This portable series speaker can be placed on the floor to perform the vocal monitoring function for live singing experience. It can also be used for business conference, coffee shop and church, etc. This portable series speaker has both active/powered (PS-308A, PS-310A & PS-312A) and passive/non-powered (PS-308, PS-310 & PS-312) models.

Floor

A speaker can be placed and stored inside a portable case as indicated in the diagram on the below, which would make it easy to carry to any places with a portable case.

KTV-Seri es

PRO-Line Coaxial Driver

Better Music Builder

PORTABLE CASE

3. PLACING THE SPEAKERS ON THE PORTABLE STAND

The speakers can be mounted on to the optional portable stand, (see figure below). Make sure that the mounting system (hardware, stand, etc.) is capable of supporting four times the weight (approximately 25 lbs per speaker) of the speakers. Part Number: AMS001B (Optional).

KTV-Serie s

PRO-Line Coaxial Driver

Better Music Builder

KTV-Serie s

PRO-Line Coaxial Driver

Better Music Builder

LEFT SPEAKER

(Stand is not included)

RIGHT SPEAKER

(Stand is not included)

Page 13

TROUBLESHOOTING

Troublesh ooting

1. SYMPTOM: NO SOUND ON ACTIVE/POWERED SPEAKER.

Probable cause:

The A/C power of the active/powered speaker is not turned on.

Remedy:

Turn on the A/C power.

2. SYMPTOM: NO SOUND ON PASSIVE/ NON-POWERED SPEAKER.

Probable causes:

A. The A/C power of the active/powered speaker is not

turned on.

B. The speakon connection from the active/powered speaker to the passive/non-powered speaker is done properly.

Remedy:

Check the connection and make sure that it is connected properly.

3. SYMPTOM: NOISES FROM THE SPEAKER.

Probable causes:

The A/C power cord of the active/powered speaker is not grounded.

Remedy:

Change a new magnet cord of the A/C power cord.

Remedy:

A. Check the connection between the microphone and the active/powered speaker. Make sure that they are connected properly. For condense microphone, it doesn't work with the active/powered speaker. You may need to change to a dynamic vocal microphone.

B. Turn the volume on the "VUX Volume" to an appropriate level. If the volume is still not high enough, you may need to upgrade your existing audio system to a system with much higher output.

6. SYMPTOM: CRACKING NOISES FROM THE SPEAKER.

Probable causes:

The tweeter may burn out.

Remedy:

Change a new tweeter. Note: we recommend you hiring a professional to help you change a tweeter in order to do it properly.

7. SYMPTOM: SOUNDS LIKE DAZZ, DAZZ, DAZZ ........

COMING FROM THE SPEAKER.

Probable causes:

The speakon cable (with small gauges) is over 100 feet for connection.

Remedy:

Change to a cable with 12 or 14 gauges or a high quality cable with bigger size.

4. SYMPTOM: MUSIC LEVEL IS TOO LOW.

Probable causes:

Line volume is not adjusted properly.

Remedy:

Adjust the line volume on the front panel of the active/powered speaker. After adjusting the line volume to maximum level but still low in volume, it means that the sound system does not have sufficient output power. You may need to add an extra speaker to increase the volume.

5. SYMPTOM: MICROPHONE VOLUME IS TOO LOW.

Probable causes:

A. The microphone is poorly connected to the "AUX

Volume" of the active/powered speaker.

B. The volume on the "AUX Volume" is too low.

8. SYMPTOM: TOO MUCH MICROPHONE FEEDBACK FROM THE SPEAKER.

Probable causes:

Incorrect tremble and bass adjustments on the active/powered speaker.

Remedy:

Adjust the tremble and bass to an appropriate level to avoid the microphone feedback.

Page 14

PHYSICAL DIMENSIONS

Dimen sions

PASSIVE / NON-POWERED

MODEL

NET WEIGHT

SHIPPING WEIGHT

DIMENSIONS

(WXHXD)

PACKING

DIMENSIONS

(WXHXD)

This dimension diagram are all the same in these models: PS-308, PS-310, PS-308A and PS-310A.

PS-308

14.3 lbs / 6.5 Kg

17.6 lbs / 8 Kg

12.7×15.6×10.7 in

32.3×39.7×27.1 cm

14.7x17.8x12.6 in

37.4×45.3×32.1 cm

Top view Front view

DEPTH

PS-310

20.4 lbs / 9.3 Kg

24.4 lbs / 11.1 Kg

14.8×18.3×12.4 in

37.6×46.4×31.6 cm

16.8x20.5x14.5 in

42.7×52×36.8 cm

WIDTH

HEIGHT

WIDTH

PS-312

32.2 lbs / 14.6 Kg

37.2 lbs / 16.9 Kg

17.3×21.3×14.7 in

44×54.2×37.4 cm

19.3x24x16.5 in 49×61×41.9 cm

ACTIVE / POWERED

PS-308A

18.7 lbs / 8.5 Kg

23.2 lbs / 10.5 Kg

12.7×15.6×10.7 in

32.3×39.7×27.1 cm

14.7x17.8x12.6 in

37.4×45.3×32.1 cm

This dimension diagram are all the same in these models: PS-312 and PS-312A.

25.2 lbs / 11.4 Kg

29.6 lbs / 13.4 Kg

14.8×18.3×12.4 in

37.6×46.4×31.6 cm

16.8x20.5x14.5 in

42.7×52×36.8 cm

Bottom view

DEPTH

PS-310A

PS-312A

36.4 lbs / 16.5 Kg

42 lbs / 19.1 Kg

17.3×21.3×14.7 in 44×54.2×37.4 cm

19.3x24x16.5 in 49×61×41.9 cm

WIDTH

HEIGHT

Better Music Builder

Front view

WIDTH

Side view

SPECIFICATIONS

Spec

MODEL

TYPE

MAX. POWER

HANDLING

CABINET TYPE

SUPPORTED

FIXTURE

WOOFER

“SPOT” RANGE

TWEETER

FREQUENCY

RESPONSE

SENSITIVITY

CROSSOVER

FREQUENCY

HIGHLIGHTED

FEATURES

PS-308

Center Monitor

300 Watts

Plastic

Ground, Wall Mount,

Floor Stand

8” (1 unit)

2-Way Full Range,

HF Horn

65Hz ~ 15kHz

90 dB

2.6 kHz

2-Way Full Range,

Plastic Speaker with

Coaxial Horn

HEIGHT

Back view

Side view

Back view

PASSIVE / NON-POWERED ACTIVE / POWERED

PS-310

Center Monitor

400 Watts

Plastic

Ground, Wall Mount,

Floor Stand

10” (1 unit)

2-Way Full Range,

HF Horn

65Hz ~ 15kHz

93 dB

3 kHz

2-Way Full Range,

Plastic Speaker with

Coaxial Horn

PS-312

Center Monitor

600 Watts

Plastic

Ground, Wall Mount,

Floor Stand

12” (1 unit)

34mm Compression

Driver

2-Way Full Range,

HF Horn

55Hz ~ 15kHz

95 dB

1.8 kHz

2-Way Full Range,

Plastic Speaker with

Coaxial Horn

PS-308A

Center Monitor

220 Watts

Plastic

Ground, Wall Mount,

Floor Stand

8” (1 unit)

3” (1 unit)

65Hz ~ 15kHz

110 dB SPL

LF=120Hz,

HF=6.3kHz

2-Way Full Range,

Active Coaxial

PS-310A

Center Monitor

220 Watts

Plastic

Ground, Wall Mount,

Floor Stand

10” (1 unit)

3” (1 unit)

65Hz ~ 15kHz

113 dB SPL

LF=120Hz,

HF=6.3kHz

2-Way Full Range,

Active Coaxial

HEIGHT

PS-312A

Center Monitor

220 Watts

Plastic

Ground, Wall Mount,

Floor Stand

12” (1 unit)

34mm Compression

Driver

2-Way Full Range

50Hz ~ 20kHz

115 dB SPL

LF=120Hz,

HF=6.3kHz

2-Way Full Range,

Active Coaxial

Page 15

FINAL WORDS TO USER

Final Word s

The engineering team of Better Music Builder has many years of experience in audio equipment design. The team constantly develops new audio technologies, designs innovative audio and Karaoke equipment to suit your specific needs and provides you great ideas for home entertainment.

Our engineering team also designs audio equipment for commercial use by restaurants, coffee shops, churches, and school auditoriums, etc. If the commercial area for audio equipment installation exceeds 2,000 square feet, we highly recommend you to hire audio professionals to handle the installation in order to avoid risks in breaking the equipment with improper installation and safety protection purposes.

We also provide educational and technical information on audio equipment and technologies. For example, we provide free installation diagrams to make it easier to connect the system. In addition, to get best connections for the sharpest image and sound quality, we provide hot tip for choosing the high quality type of A/V cable connections. Free information on audio equipment and technologies available for download from our website, ww w.B e tter M usicBuild e r.c om.

Please do not remove the “Yellow Label” in the rear of the machine; otherwise, the warranty will be void automatically. We design it to protect your own safety. If repair and maintenance service is needed, please contact us directly or hire a professional technician. To learn more about the technical aspects, visit our

Any form of

tampering with this

product, will void

the warranty.

website ww w.B e tter M usicBuild e r.c om and download the relevant information for review.

Before hooking up the system, turn off the AC powers on all machines including audio/video equipment and TV. Otherwise, it may damage the equipment, especially on the HDTV in which a spot might appeared on the TV screen. After hooking up the system, double check the audio/video connections to ensure that they are connected correctly.

NOTE

Sometimes, loose or poor cable quality would affect the microphone effects, picture quality, or even cause the machine to shut down suddenly.

HIGH QUALITY A/V CABLE

FOR CONNECTION

Again, we must thank you for choosing Better Music Builder product. We hope you can make the best use of the machine and enjoy it for years to come. If you have any questions regarding our product, please feel free to contact us at ww w.Be t terM u sicBuilder.c o m.

POOR QUALITY CABLE

AUDIO RCA CABLE

AUDIO/VIDEO RCA CABLE

Page 16

WARRANTY

Warran ty

ONE-YEAR LIMITED WARRANTY FOR HOME USE EQUIPMENT

Our one-year warranty covers both parts and labors. The warranty becomes effective from the date of your purchase for one year.

Our warranty only covers defects due to product defectiveness with free of defects in materials or workmanship. However, our warranty does not cover defects due to normal wears, damage in transit, improper use, abuse or failure to follow the proper instructions for maintenance. This warranty is void in the event of unauthorized repairs, alternations, modifications and removing of the product label.

Please also note that our warranty does not cover any shipping cost for the return of defective products to us for inspection, repair and maintenance. Our warranty for Better Music Builder products can only be executed in North America.

90-DAY LIMITED WARRANTY FOR PUBLIC AND COMMERCIAL USE EQUIPMENT

Our 90-day warranty applies to speakers, amplifiers, mixers and microphones for both public and commercial use such as restaurant, coffee shop, KTV nightclub, church and school, etc. It covers both parts and labors. The warranty becomes effective from the date of your purchase for 90 days.

ADDITIONAL NOTES:

1. Limited warranty for home use equipment is only valid in

North America.

2. Limited warranty is valid only if you purchase our products from our authorized dealers (including both regular retailers and online retailers) in North America. If you choose to purchase our products from an authorized dealer, we will not provide any limited product warranty for you. To protect your limited product warranty, please purchase our products from one of our authorized dealers in North America near you.

3. Limited warranty is automatically void if the yellow label stating “No Warranty After Opening” is removed from the product.

TO REGISTER YOUR WARRANTY

Please fill out the warranty card that came with your unit, download or submit online warranty form. However, we need the invoice for your purchase in order to process this warranty. You may also register your warranty online. Please visit our website at www.b e tte r m usicbuilder.c o m.

Page 17

AGENCY REGULATORY NOTICES

Notices

Federal Communications Commission Notice

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio or television technician for help.

Modifications

The FCC requires the user to be notified that any changes or modifications made to this device that are not approved may void the user’s authority to operate the equipment.

your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Japanese Notice

Japanese Power Cord Notice

Japanese Material Content Declaration

Cables

Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods to maintain compliance with FCC rules and regulations.

Materials Disposal

Disposal of this material can be regulated because of environmental considerations. For disposal or recycling information, contact your local authorities or the Electronic Industries Alliance (EIA) (http://www.eiae.org).

Disposal Of Waste Equipment By Users In Private Households In The European Union

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of

A Japanese regulatory requirement, defined by Specification JIS-C-0950, 2005, mandates that manufacturers provide Material Content Declarations for certain categories of electronic products offered for sale after July 1, 2006.

Korean Notice

Recycling Program

The terms and availability of these programs vary by geography because of differences in regulatory requirements and local customer demand.

因为在当地的监管要求和客户的需求，这些条件和程序的情况不同。

Page 18

CONTACT INFORMATION

Conta ct Us

MAILING ADDRESS

Bet ter Music Buil der 293 00 Kohout ek Wa y #150 Union City, CA 94 587 U.S.A .

TELEPHONE NUMBERS

USA Re gion USA Toll Free: 1-800 -318-2218 Sale s & Ma rketing: 510- 477-9955 Custome r S er vice: 510 - 477-9955

FAX NUMBERS

USA Re gion Sale s & Ma rketing: 510- 477-9922 Custome r S er vice: 510 - 477-9922

WORLD WIDE WEB

E-mail: info@b ett ermusicb uilder.c om We bsite: w w w.bet ter m usicbuild er.com

MAINTENANCE

With proper maintenance and regular service, it would maintain the machine quality and prolong its life. We recommend you to print the following information clearly for future reference on maintenance and warranty.

MODEL#____________________________ DATE PURCHASED (MM/DD/YYYY)_____________________________

DEALER NAME_____________________________ CITY_____________ ST./PROV._______ ZIP/P.C.____________

DEALER WEBSITE http://www.______________________________________________ INVOICE #_____________

DEALER PHONE #_____________________________ DEALER E-MAIL______________________________________

Page 19

MAINTENANCE

NOTE

Page 20

Unlike any others ... that’s cost & value for you

Pa ssi on ate a bou t Mus ic

www . B e t t e rMusicBui l d e r .com

Thank you for purchasing this unit. To make full and effective use of this unit, please read this Owner's Manual carefully before operating it.

Please retain this manual for future reference.

PORTABLE SYSTEM

DUAL CHANNEL RECEIVER VM-8 2U

5 10 15 20 25 30 35 40

RF AF

CHAN.

-30 -25 -20 -15 -10 -5 0 PEAK

MUTE

CH 00 2

SET SE T

RECEIVER - A LCDANTENNA-A VOLUME RECEIV ER - B LCD

SPEAKER IS SOLD IN UNIT (NOT IN PAIR) SPEAKER IS SOLD IN UNIT (NOT IN PAIR)

Better Music Builder

VM-92U

Better Music Builder

POWER

64 SELECTABLE WIRELESS SYS TEM

UHF

5 10 15 20 25 30 35 40

-30 -25 -20 -15 -10 -5 0 PEAK

MUTE

CHAN.

CH 00 4

ANTENNA-BVOLUME

360100118960
