P44 Stepper
User Manual
Table of Contents
Introduction 1
Safety Warning 2
Overview of Parts 2
Attaching to Chair 3
Manoeuvring Around 4
Setting Pedal Stops 4
Getting On 5
Setting the Resistance (models without LCD) 6
LCD Operation 7
Removing Battery (models with LCD) 13
Charging Battery (models with LCD) 14
Technical Data 15
Preventative Maintenance 15
Scheduled Maintenance- Replace Brake Pads 16
Troubleshooting 19
Location of Serial Number 21
Customer Service 21
Warranty 22
Owner Identication and Information 22
Safety Warning
Always see your physician before beginning any exercise program, especially if you have
pre-existing health conditions. If you feel faint or dizzy while using this product, stop immediately and seek medical help or advice. Do not operate this product if it appears damaged.
Read this manual in its entirety before use and refer back to it as necessary.
The caution symbol will appear in the outer margins of a page to
indicate a potentially hazardous situation that may result in injury.
!
CAUTION
1
2
chair pole
pedal
pedal stop
resistance knob
LCD
Introduction
Thank you for purchasing the P44 chair-mounted stepper. This device incorporates a unique
leg motion that allows for independent resistance setting, stroke length, and stroke rate from
leg-to-leg. P44 accommodates a decreased knee range of motion better than circular pedal
travel and also acts as a strengthening device, making it ideal to help in the treatment of:
• osteoarthritis
• total knee replacement
• ACL damage
• stroke recovery
• generalgeriatrictness
Time, work, power, and the resistance setting are not only displayed on the LCD, but this
data is stored and can be wirelessly transferred via bluetooth® to a PC for analysis. P44
more accurately charts patient progress electronically.
All of this technology is wrapped in a stylish package that is light weight, highly portable,
and attaches to any 4-legged chair (including wheelchairs) in seconds.
Overview of Parts
Set a chair with a suitable seat
height (at least 17.5 inches from
ground) and chair leg width (so
that pole extends at least 2 inches
past outside legs) in front of P44.
Pull the pole free of P44, grasp
the front handle and gently roll
the device underneath chair seat
far enough that the pole can be
slid behind the front legs.
Slide the pole into the slot in P44,
making sure it catches behind
both front legs and extends at
least 2 inches past each leg.
Attaching to Chair
Improper
chair leg
width could
result in P44
becoming free
of chair legs.
Ensure P44 is
securely
attached via
chair pole
to front legs
before use.
3
!
CAUTION
!
CAUTION
With one hand pull the pedal arm
toward the front of P44 and hold
it while pulling the pin that secures the pedal stop to the pedal
arm with the other hand.
Slide the pedal stop bar towards
the front of P44 for a starting posi-
tionrequiringlesskneeexion
and in the opposite direction for
a starting position that requires
morekneeexion.Thepedal
stop can also be removed from
the slot and inserted the reverse
way for a starting position requir-
ingalmostnoexionatall.
Setting Pedal Stops
Releasing the
pedal arm
while adjusting
the pedal stop
could result in
arm springing
back.
Never induce
a knee exion
that is painful
or uncomfortable.
4
!
CAUTION
!
CAUTION
Manoeuvring Around
The chair attachment pole is also
used as a handle to manoeuvre
P44 around. Insert it into the hole
in the front and lift up. The higher
you lift, the easier it is to push
P44 in a straight line. Avoid pulling P44- the pole can slip out and
it is harder to manoeuvre.
!
CAUTION
Ensure the
pole is in far
enough by
pushing it
into the hole
until you meet
resistance.
Approach P44 attached to a chair
from either side and lift one leg
up and over to the other side.
Sit down with one leg on either
side of P44.
Alternatively, the user can also
beginseatedrstandtheP44
then manoeuvred into place by
someone else.
Place the ball of each foot on the
pedal on both sides.
Getting On
5
Steady yourself on back of
chair.
Extend both legs out together or
alternatively to begin use.
If foot is in
danger of slipping off pedal,
use adjustable strap to
secure.
!
CAUTION
!
CAUTION
6
Setting Resistance (models without LCD)
The resistance is controlled by the
two knobs below the information
sticker. The left knob controls resistance for the left pedal and the
right knob controls resistance for
the right pedal. (From here, you
can also follow the instructions on
the information sticker).
Extend the left pedal out once to
test the current resistance. Turn
the left knob clockwise to increase the resistance and counterclockwise to decrease the resistance.
Extend the left pedal out again
and adjust as required.
Repeat on the right side.
7
Remove the black plastic plug
from the hole located on the
bridge.
Slide the aluminum bracket rod
side down, with the foam pads
touching the P44, into the hole as
far as it will go.
Clip each side-release clip into
the mating end located on each
pedal. Adjust the length of the
strap according to the height of
theuserand/orthedegreeofexion desired.
Connecting Leg Linkage Attachment
LCD Operation
8
L
C
R
screen
left key centre key right key
The LCD is required to set the level of resistance as well as display the
time, work, and power of the workout session. The optional wireless
bluetooth® transfer of stored data is also initiated via the LCD.
LCD Operation: Setting the Resistance
9
L
C
R
WELCOME TO P44
BETTER MOTION 4 LIFE
Press any of the three keys to turn
the LCD on and the following
message will appear. Press any
key again to set the resistance.
L
C
R
FORCE LBS C = OK
PUSH R FOR KGS
To set the resistance level in lbs
press ; to change the units to
kgs press
C
R
L
C
R
L FORCE 0.0 LBS
for less force turn
The left side resistance must be
setrst.Theindicatorwillinitially show 0.0 lbs. The scrolling prompt will inform you
that turning the left hand knob
counter-clockwise decreases the
resistance and turning the same
knob clockwise increases the
resistance.
LCD Operation: Setting the Resistance
10
Turn the left hand knob clockwise
half a turn to increase the resistance and then extend your left
leg out twice to see the current
resistance reading on the LCD.
L
C
R
L FORCE 13.5 LBS
for less force turn
Ifyouarenotsatisedwiththe
level of resistance, repeat the
steps above to increase or decrease the resistance. Once you
aresatised,nishbypressing
L
L
C
R
R FORCE 0.0 LBS
for less force turn
Repeat the same steps to set the
resistance on the right side and
then press to begin the workout.
R
!
CAUTION
Setting the resistance above
50 lbs will
result in an
error and the
LCD stopping
the workout.
!
CAUTION
Do not set
a resistance
level that is
too difcult or
painful.
LCD Operation: Workout Information
11
Once the workout begins, the
LCD continuously scrolls between
time, power, and work. Press any
of the three buttons to advance
through the screens manually.
To stop the workout at any time,
press all three buttons at the same
time. The following message will
then be displayed.
Once the workout has been
stopped, press to review the
current workout, press to
continue the workout and press
to reset the system.
L
C
R
L WORK 23.5 CAL
R WORK 20.5 CAL
L
C
R
workout complete
!
CAUTION
Be sure to
press all three
buttons simultaneously or
the workout
will not be
stopped.
L
C
R
L
C
R
workout complete
press l to review the
LCD Operation: Data Transfer
12
Coming Soon...
Place P44 carefully on its backside. Remove the red and black
leads from the terminals.
Unscrew the two wing nuts and
remove the aluminum battery
plate from the bolts.
Removing Battery (models with LCD)
Crossing the
leads or placing on incorrect terminal
could result in
an electrical
shock.
13
!
CAUTION
Pull the battery up and away from
the body.
14
When the battery is low, a warn-
ingwillashontheLCD.
The input for the battery charger
is located on the right side of the
body, down by the foot.
Plug the correct end of battery
charger cord into the input in the
body and then plug the charger
into a 120V wall socket. Charge
for a minimum of 4 hours.
Charging Battery (models with LCD)
L
C
R
Battery Low
!
CAUTION
Avoid an
electrical short
by always
plugging the
charger into
P44 before the
wall socket.
!
CAUTION
P44 can be
used while
plugged into
the wall.
Technical Data
15
Length
Width
Height
Unit Weight
Maximum User Weight
Resistance
Power
26 in / 66 cm
17 in / 43 cm
27 in / 68.5 cm
25 lbs / 13.5 kg
Chair-dependent
0 - 50 lbs / 22.5 kg per side
12V rechargeable DC battery
with wall pack transformer
Preventative Maintenance
Part Action Frequency
Battery Charge Every 8 hours
Plastic cover Clean w/ soapy water Weekly
Nylon straps Inspect for fraying Weekly
Cutout on bottom Vacuum lightly Monthly
16
Scheduled Maintenance: Replacing Brake Pads
Release all tension (turn resistance
knobs counter-clockwise) and
place P44 on its backside.
Disconnect the two leads from
the battery. Remove the battery
(refer to page 13).
The threaded rod that secures the
two brake calipers has a pin in
the centre that needs to be pulled
with a set of needle-nosed pliers.
!
CAUTION
Touching either the metal
of the lead or
the battery
can cause an
electric shock.
17
Slide the rod to the right and
remove the left hand caliper from
the disc by pulling up and away.
Turn it over so that the pads are
visible on the left hand side.
Take a 3/16 allen key and turn
counter-clockwise so that the tab
attached to the top of the pad
itself slides to the left and into the
slot in the caliper.
Grasp the tab attached to the top
of each pad and remove the pads
from the calipers.

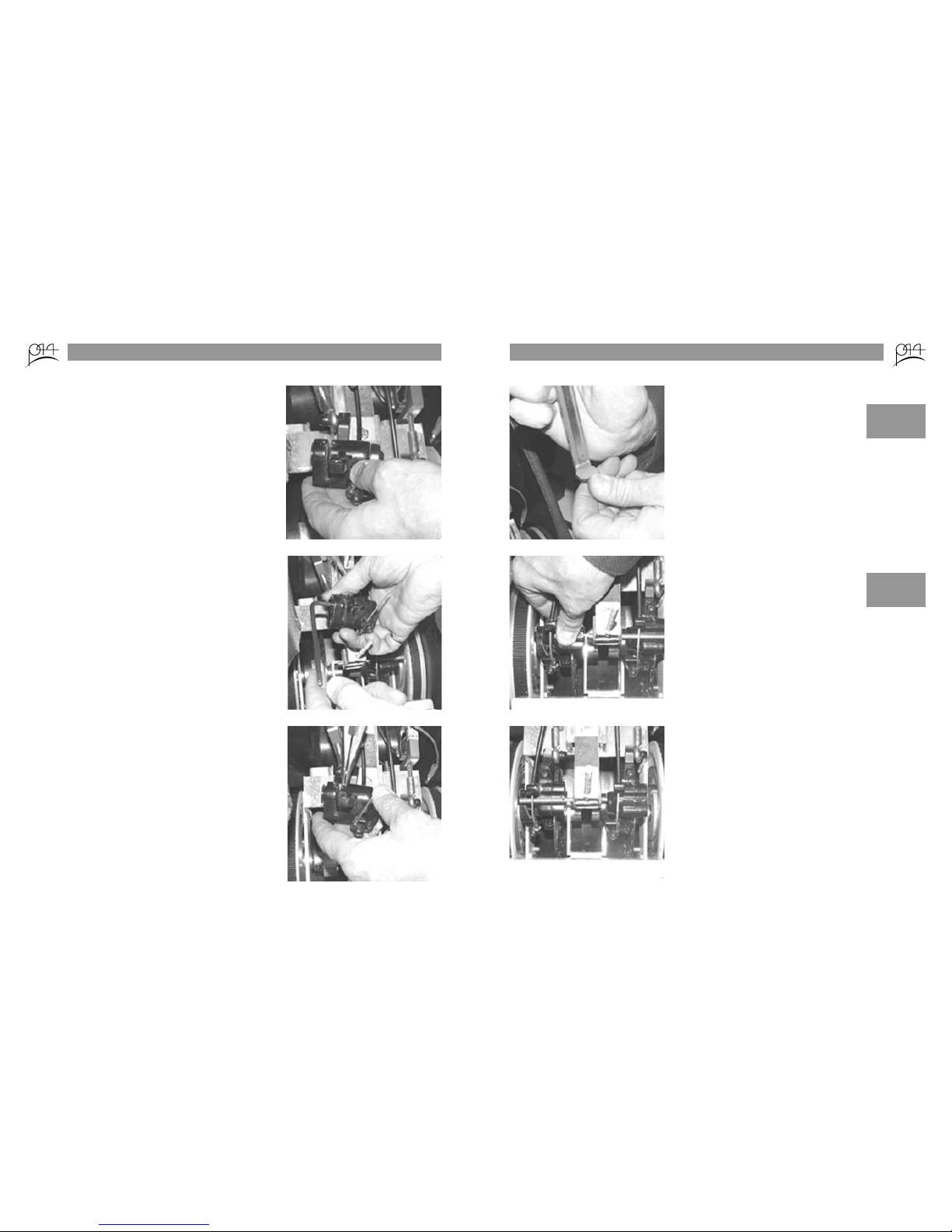

18
A new pad is 2.5mm thick and a
pad less than 0.5mm should be
changed. If it is between these
thicknesses, the pad can be reinstalled and tightened, via the
allen key.
After either re-installing the existing pads or replacing with new
pads, use the allen key to tighten
the outer pad with approximately
a 2mm space between the two
pads. Turn over and slide back on
brake disc.
Once re-installed, slide the rod to
the left and repeat the same steps
to check/replace the pads on the
right side. Once both calipers
have been worked on, centre the
rod and replace the pin to secure
it in place. Re-install the battery
and place the P44 back right-side
up.
!
CAUTION
If in doubt,
replace with
a new pad. If
below 0.5mm,
little to no
reistance will
be felt.
!
CAUTION
If the space
between the
pads is less
than 2 mm,
the caliper will
not slide onto
the disc.
19
Troubleshooting
Battery is dead. Charge the battery.
Leads not connected
to the battery.
Look to see if leads
are connected to the
battery. If not, connect them. (Refer to
page 13)
Display malfunction. Contact customer
service.
LCD back light burnt
out.
Contact customer
service.
User not pushing on
correct pedal.
Push left pedal for
left side and right
pedal for right side.
No resistance has
been set.
Turn correct dial
clockwise.
Strain gauge has
malfunctioned.
Contact customer
service.
Resistance set over
50 lbs / 22.5 kg.
Reduce resistance
below 50 lbs / 22.5
kg.
User has stopped
workout by depressing all three buttons.
Press to
continue workout.
User has stopped
pushing pedals.
Start pushing pedals
again.
No power/work is
being done.
Start pushing pedals.
Strain gauge has
malfunctioned.
Contact customer
service.
All three buttons not
depressed at once.
Depress all three
buttons at once.
LCD won’t turn on.
LCD not backlit.
LCD not displaying
resistance setting.
LCD stops workout.
LCD not displaying
power/work done on
one or both sides.
Cannot stop work
out.
Issue Cause Solution
C
20
Pin is not pulled out
far enough.
Pull pin until pedal
stop slides freely.
Too much resistance. Turn proper resis-
tance knob counterclockwise.
Knob being turned
wrong way.
Turn knob clockwise.
Brake pads need
changing.
Change brake pads
(refer to p. 16).
Centre rod is not
slide over far enough
to right or left.
Slide rod all the way
to the right or left.
Centre rod has slid
over and is preventing caliper from slipping on.
Slide rod all the way
to the right or left.
Brake pads tightened
too much.
Use allen key to
back off brake pad
to increase space
between them.
Black plastic cap not
removed from hole.
Remove black plastic cap.
Something has fallen
into hole, preventing
leg linkage attachment from sliding in.
Inspect hole to see if
anything has mistakenly fallen in.
Attachment installed
backwards.
Re-install, making
sure foam pads are
touching P44.
Strap is tangled. Untangle strap.
Pedal stop will not
move to adjust.
Pedal lever will not
move on either side.
No increase in resistance despite turning
knob.
Brake caliper will
not come off of
brake disc.
Brake caliper will
not go back onto
brake disc.
Leg linkage attachment will not slide
in.
Leg linkage attachment malfunctioning.
Issue Cause Solution
21
The serial number is located
above the battery on the underside of the P44.
Customer Service
Many questions or concerns can be answered in the SUPPORT section
of our website: www.p44.ca
Ifpersonalizedserviceisrequired,contactyourdistributorrstand
make sure to have your serial number ready.
Better Motion Group can be contacted directly at:
Phone: 1.877.”P”44.9044
Fax: (289) 470.1046
Email: info@bettermotiongroup.com
Address: BETTER MOTION GROUP
225 Industrial Pkwy S., #31
Aurora, ON
L3X 1V3
CANADA
Location of Serial Number
22
Warranty
One Year Limited Parts Warranty
Better Motion Group warrants replacement of repair of any part due to
defect in material and/or workmanship for the period of one year from
the original date of purchase. The original sales slip or other proof or
purchase must be produced by the original owner to qualify for such replacement or repair. Shipping charges are not covered under the terms
of this warranty (unless the one year labour warranty has not elapsed).
One Year Limited Labour Warranty
Better Motion Group warrants all repair work, including shipping
charges, for one year from the original date of purchase. The original
sales slip or other proof or purchase must be produced by the original
owner to qualify for such service.
Warranties do not cover normal wear and tear (including brake pads,
lever straps, and pedal straps), damage due to accident, misuse, abuse,
neglect, recommended maintenance, or installation of parts or accessories not originally intended or compatible with the P44 Pro as sold.
There are no other warranties or guarantees expressed or implied by
Better Motion Group.
Owner Identication and Information
Name: Purchase Date:
Address: Serial Number:
Loading...
