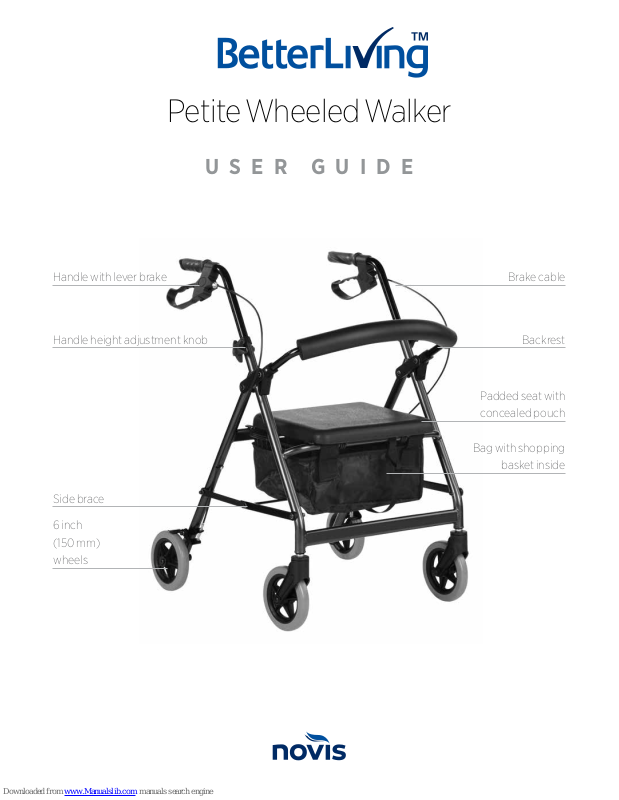

Padded seat with
concealed pouch
Handle with lever brake
Side brace
Brake cable
Handle height adjustment knob
6 inch
(150 mm)
wheels
Bag with shopping
basket inside
Backrest
Petite Wheeled Walker
USER GUIDE
2
User Guide Petite
Product Overview
The Petite Wheeled Walker is ideally suited
for users 5’5” (165 cm) or less, oering lower
overall height range and seat height. Designed
for general indoor (and limited outdoor) use,
the lightweight alloy frame has 6 inch (150 mm)
wheels for easy operation and manoeuvrability
on smooth surfaces.
The moulded handgrips with soft touch brakes are
ideal for people with limited strength or mobility.
Handle height can easily be adjusted, with an overall
extension range of 135 mm. The fully moulded
PU seat is completely seamless, reducing the
potential for skin tear or abrasion, plus foam
backrest for added comfort when seated.
Includes the added convenience of a removable
basket and bag that can be used together
or individually. A small PVC pouch is hidden
beneath the seat, oering additional security
for small personal valuables. Includes easy
closing mechanism and compact fold down
design for convenient transport or storage.
Petite Wheeled Walker
Index
Overview page 3
Set Up page 4
Operation page 6
Transport and Storage page 7
Safety and Maintenance page 8
Cleaning page 9
Accessories page 10
Warranty page 11
Definitions of Symbols Used
The following symbols may appear in
this manual, on the Control Unit, or on its
accessories. Some of the symbols represent
standards and compliances associated with the
Control Unit and its use.
Important information
Caution
Electrical hazard
Infection control
Do not...
Important Notice
Before operating this medical equipment, it is
important to read this manual and understand
the operating instructions and safety
precautions. Failure to do so could result in
patient injury and/or damage to the product.
Therapeutic devices and/or medical equipment
should only be used in accordance with
manufacturer’s instructions and under the
consent, supervision and management of a
suitably qualified health professional.
Novis Healthcare has a policy of continuous
product improvement and reserves the
right to amend specifications presented in
this guide. Information correct at time of
production (July 2017) .
© 2017 Novis Healthcare. All rights reserved.
3
Petite User Guide
Box Contents and Inspection
Carefully remove all components from the
box and check items against the list below.
Any damaged or missing components should
be reported to your authorised dealer or
manufacturer.
Prior to use, remove all packaging and plastic
wrapping and check the wheeled walker for
any damage that may have occurred in transit,
paying particular attention to:
⬡ Any damage to the wheels, handles or frame.
⬡ Damage to the seat or backrest.
⬡ Any missing or loose screws or wheelnuts.
User Guide (this document)
Wheeled Walker
Handle fastener set:
Right handle with loop brake
Left handle with loop brake
Shopping basket with handle
Backrest
2x Star Knobs
2x Bolts
2x Washers
Intended Use
⬡ This wheeled walker is designed primarily for
indoor use as a walking aid and a temporary
seat. If used outside, it is recommended for
smooth or sealed surfaces.
⬡ It is not designed to be used as a wheelchair.
⬡ The maximum occupant weight is
130 kilograms, as stated on the
manufacturer’s label.
⬡ The wheeled walker should only be used
and maintained in accordance with the
instructions in this User Guide.
Overview
4
User Guide Petite
Unfold the wheeled walker
Remove the protective covering from all four
wheels. Remove cardboard from between the rear
wheels and brake latches.
Place the wheeled walker on a stable surface.
Unfold by spreading the frame while pushing
down on the side braces, making sure each brace
locks horizontally in place.
Insert the basket
Place the shopping
basket inside the bag.
The basket hooks to the
frame and hangs inside
the bag.
Close the padded seat.
Insert and adjust handle height
Insert the handles into the tubes at the top of the frame,
with the brake cable on the outside of the frame.
Set Up
Ideal handle height
A series of holes are placed 25 mm
apart along the handle, allowing
handle height to be adjusted to suit
the user. Ideal handle height is set
when the top of the handle aligns
with the user’s wrist.
5
Petite User Guide
Align handle and frame holes at the ideal height,
and then insert the bolt (from inside the frame)
and push until fully inserted. Ensure the bolt head
fits securely within the hexagonal frame hole.
Place washer on bolt (curved face against frame),
screw on the Star Knob and tighten firmly. Please
note, the Star Knob should be on the outside of the
frame.
Insert the backrest
Place the padded backrest into the brackets
on the top rear of the frame. Press buttons on
backrest to click into place.
Check brake function
Check the brake cables are running outside the
frame and adjust the cable guides to store cables
neatly against the frame.
Make sure the brakes are working properly before
using the wheeled walker.
Set Up
6
User Guide Petite
Using as a walking aid
When using the wheeled walker as a walking aid, it is recommended
both hands be placed firmly on the handles, with fingers curled around
the brake levers so that the walker can be stopped immediately in case
of an emergency.
The ideal walking technique is to push the walker forward to a
comfortable arm’s length, then step in towards the walker, and repeat.
Operation
Operating the brakes
To stop the wheeled walker, gently squeeze the brake
levers until the walker comes to a complete stop.
Locking the brakes (park brake function)
The brakes should be locked whenever using the
walker as an aid to sit or stand, or as a temporary seat,
or when leaving the walker unattended.
To lock the brakes, push down on the brake levers
until t hey click. Always check the brake lock is activated
before sitting on the seat.
To release the brake lock, pull up on the brake lever
until the lock disengages. Never release the brake
lock while sitting on the seat.
Brake on
Park Brake on
Using as a temporary seat
Before using the wheel walker as a temporary seat, ensure
the wheeled walker is placed on a safe, level surface.
Before sitting, lock both brake levers and ensure the
lock is properly activated or serious injury may result.
7
Petite User Guide
Transportation & Storage
Removing the basket and bag
To remove the basket and/or bag, lift up and fold
back the padded seat. Use the handle to lift out the
shopping basket.
The bag can be removed for cleaning or when
attaching specific accessories such as an Oxygen
Bottle Carrier. To remove the bag, undo the hook
and loop fastenings on each corner of the bag and
pull free.
Folding the wheeled walker
To fold the wheeled walker for storage or
transport, pull up on the backrest to fold in
vertical position. Lift up the seat and remove
the shopping basket.
To fold the frame, pull up firmly on the strap
located at the base of the bag. This will
disengage the side braces and collapse the
frame. Push the frame together for a compact
fold.
For more compact storage, both handles can
also be removed. Simply unscrew both Star
Knobs, and remove the washers and bolts
before sliding the handles out of the frame.
Store all items safely with the frame and basket.
8
User Guide Petite
General Safety Precautions
Do not use the wheeled walker to
transport a person while seated.
⬡ A risk assessment should always be carried
out to ensure the product is suitable.
⬡ Before use, the user should read these
instructions and familiarise themselves with
the wheeled walker. Ensure all components
are properly and securely installed.
⬡ Ensure the user has sucient strength to
safely operate and control the wheeled
walker and hand brakes.
⬡ Before sitting on the wheeled walker ensure
the brake locks are firmly applied.
Do not release brakes until user is standing.
⬡ Do not exceed the maximum recommended
working load.
⬡ Avoid storing the wheeled walker in direct
sunlight; padded seat or parts exposed to
sunlight will heat up and may cause injury
to the skin.
⬡ Do not place more than 5 kilograms of
shopping or other items into the designated
shopping basket and bag.
⬡ When seated, do not attempt to reach for
objects by leaning forward on the seat or by
reaching down between your knees. Do not lean
over the backrest to reach objects behind you as
this may cause the wheeled walker to tip over.
⬡ Use only on designated footpaths or
walkways; do not use on roads, streets or
highways.
⬡ Do not use the wheeled walker on any incline
greater than 9 degrees, or on a slope with
water, ice or snow covering.
⬡ Use caution when traversing kerbs or
obstacles as this may cause the wheeled
walker to tip over and cause bodily harm or
damage to the walker or the user.
Regular Maintenance
Professional inspection of the
wheeled walker is recommended
at least once a year.
Any service or repairs, especially to the
brakes, must be performed by a trained
professional. Any unauthorised repairs or
service may void your warranty.
⬡ Regularly check the wheeled walker for
damage and wear, paying special attention
to the workings of the brakes and the
condition of the wheels. If the wheeled
walker is damaged in any way, stop using the
wheeled walker immediately and contact
your authorised dealer or the manufacturer.
⬡ Check handle grips do not twist on the
handles.
⬡ Check the brake levers are firm; if loose or
worn they must be replaced before use.
⬡ Check the eciency of the braking system
to ensure rear wheels do not move when the
brakes are engaged or locked.
With brakes released, there should be no
drag on the wheels and the wheeled walker
should move easily.
If you notice an unfamiliar braking sensation
or any abnormalities, stop using the wheeled
walker immediately and contact your
authorised dealer or the manufacturer.
⬡ Check all screws and wheelnuts are firmly
secured.
Safety & Maintenance
9
Petite User Guide
Do not use high pressure cleaners, steam cleaners or harsh, caustic chemicals for cleaning.
Frame
Wipe the wheeled walker frame with a damp cloth.
For more stubborn dirt, use a mild detergent solution
up to 40 °C. Dry thoroughly before use to avoid
corrosion.
Clean the wheels using a damp brush with plastic
bristles (do not use a wire brush or you may damage
the rubber or painted finish).
Bag and seat
Regularly clean the padding materials
using a mild detergent solution up to
40 °C, or wash with alcohol-based
disinfectants if necessary.
Dry thoroughly before use.
Cleaning
10
User Guide Petite
Oxygen Bottle Carrier
Walking Stick Holder
BL1430
Designed to sit under the seat of any ‘A’
frame wheeled walker. Suspended by hooks
attaching to front and back cross piece. Angled
for optimal oxygen supply and safety. Fits an
oxygen cylinder up to 125 mm in diameter.
BL1478
Allows easy storage and
transport for walking
sticks. Attaches to frame of
wheeled walker or walking
frame.
Comprised of upper clip
(near handles) and lower
cup (near wheels) to secure
walking sticks top and
bottom.
Accessories
11
Petite User Guide
This warranty is provided by
Novis Healthcare (ABN 45 102 735 491) of
12 / 12 Mars Road Lane Cove 2066
New South Wales Australia.
Australian Consumer Law
Our goods come with guarantees that cannot be
excluded under the Australian Consumer Law. You
are entitled to a replacement or may be entitled to
a refund for a major failure and compensation for
any other reasonable foreseeable loss or damage.
You are also entitled to have the goods repaired or
replaced if the goods fail to be acceptable quality
and the failure does not amount to a major failure.
Where a failure does not amount to a major failure
Novis Healthcare is entitled to choose between
providing you with a repair, replacement or refund.
To obtain compensation, you would need to provide
documentary evidence of the loss or damage suered
and documentary evidence that such loss or damage
was a reasonable foreseeable consequence of a
failure by Novis Healthcare to comply with a consumer
guarantee under the Australian Consumer Law.
At our option:
⬡ goods repaired may be replaced by refurbished
goods of the same type rather than being repaired
⬡ refurbished parts may be used to repair goods
In addition to all rights and remedies which you may
be entitled to under the Competition and Consumer
Act 2010 (Commonwealth) and any other relevant
legislation, Novis Healthcare warrants each of its
products to be free of defects in materials and
workmanship for a period of 12 months (unless
otherwise stated), commencing from the date the
product is received by the purchaser.
Product Warranty
In addition to all rights and remedies which you may
be entitled to under the Competition and Consumer
Act 2010 (Cth) and any other relevant legislation,
Novis Healthcare warrants each of its products will,
with normal use and service to be free from faulty
parts, manufacture or workmanship for a period of 12
months (unless otherwise stated), commencing from
the date of purchase.
Subject to the provisions of the Australian Consumer
Law, Novis Healthcare excludes, to the fullest extent
permitted by law, all liability in respect of loss of
profit or other economic loss, direct or indirect or
consequential, special, general or other damages
or other expenses or costs which may include
negligence.
Warranty Claims
To claim under this warranty, please contact Novis
Healthcare and have your receipt or proof of purchase
available. Novis Healthcare may need to assess the
defect before determining any claim, and additional
information may be requested to process your claim.
Any expenses incurred relating to the return of the
defective product to Novis Healthcare will be borne
by us. We will then, at our discretion, either repair or
replace the product, or refund your money and take
back the product. Warranty repairs do not extend the
length of the warranty period.
Limited Liabilities
Our liability under this manufacturer’s warranty is
subject to us being satisfied that a defect was caused
by faulty parts, manufacture or workmanship, and
was not caused or substantially contributed to by
other factors or circumstances beyond our control,
including (but not limited to) defective installation,
maintenance or repair, product modification
or alteration, any neglect, misuse, or excessive
use, normal wear and tear or failure to follow
manufacturer’s instructions.
The benefits conferred by this manufacturer’s
warranty are in addition to all rights and remedies
conveyed by the Competition and Consumer Act
2010 (Cth), and any other statutory rights to which
you may already been entitled, and this warrant does
not exclude, restrict or modify such rights or remedies
that are implied by law.
Mail To
Novis Service Centre:
Unit 12, 12 Mars Road Lane Cove NSW 2066
For more information please contact us on
1300 738 885, email novis@novis.com.au
or visit www.novis.com.au
Warranty
Pressure care and patient handling specialists
novis.com.au / 1300 738 885
NAME
Petite Wheeled Walker
COLOUR
Red
PRODUCT WEIGHT
7. 6 k g
OVERALL HEIGHT
715 > 850 mm
OVERALL WIDTH
585 mm
SEAT WIDTH
360 mm
SEAT HEIGHT
470 mm
SEAT DEPTH
310 mm
WHEELS
150 mm (solid)
FRAME
Aluminium
SAFE WORKING LOAD
130 kg
CONFORMS TO
ARTG 176830
Loading...
