Heavy Duty Floor Machines

Operator’s Manual

CREWMAN™ 20 HD Item #83014-00 CREWMAN™ 17 HD Item #83013-00 FOREMAN™ 20 HD Item #85021-00 FOREMAN™ 17 HD Item #85028-00

FOREMAN™ 20 DS Item #83010-00 FOREMAN™ 17 DS Item #83009-00

Page 3

Page 4

Specifications

Betco, Corp. 8/27/2007 Page 3 Floor Machine

• Cleaning Path/Pad Size: 17”, 20”

• Hour Meter: Yes / 0.1 hour resolution

• Motor: 1.5 hp, 120v, 12 A, 60 HZ

• Pad Speed: 175 RPM

• Power Cord: 50’ 14/3 Safety Yellow

• Handle Grips: Anti-Fatigue

• Operating Wheels: 5” Non-marking

• Productivity: Bonnet-1100 sq.ft/hr., buff/scrub-2400 sq.ft/hr., strip-800

sq.ft/hr.

• Weight: 90 lbs.

• Dimensions: Length 24.25”, Width 20”, Height 48”

! WARNING! IMPORTANT SAFETY INSTRUCTIONS

Carefully read and understand this manual before operating this machine. To reduce risk of fire, electric shock, or injury:

• Do not operate in explosive areas, near flammable liquids or gases.

• Only plug into a properly grounded outlet.

• Do not exposure to rain, store indoors.

• Do not plug in or handle machine with wet hands.

• Do not operate the machine with a damaged cord or plug.

• Do not block or disconnect safety lever.

• Do not leave machine plugged in while unattended.

• Unplug machine before servicing.

• Do not put fingers under the pad or pad holder.

• Unplug the machine before installing or removing the pad.

• Use only high speed burnishing pads.

• Do not put any foreign object into openings. Do not use with any opening

blocked; keep free of dust, lint, hair, & anything that may reduce airflow.

• Keep hair, loose clothing, fingers, & all parts of body away from openings & moving parts.

• Turn off all controls before unplugging.

• Do not use in or around flammable or combustible liquids such as gasoline

or use in areas where they may be present.

• Connect to a properly grounded outlet only. See grounding instructions.

Page 5

Grounding Instructions

Betco, Corp. 8/27/2007 Page 4 Floor Machine

This machine must be grounded. If it should electrically malfunction, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This machine is equipped with a cord having an equipment-grounding conductor & grounding plug. The plug must be plugged into an appropriate outlet that is properly installed & grounded in accordance with all local codes & ordinances.

! DANGER!

Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the machine. If plug will not fit the outlet, have a proper outlet installed by a qualified electrician.

Replace the plug if the grounding pin is damaged or broken. Extension cords connected to this machine should be 12 gauge, 3-wire cords

with 3-prong plugs & outlets. DO NOT use extension cords more than 50 feet long.

Page 6

Operating Instructions

Betco, Corp. 8/27/2007 Page 5 Floor Machine

Check machine for damage to cord or plug. Use suitable pads or brushes. To install or change the pad:

1. Unplug the machine.

2. Tip the machine back on the wheels.

3. Install pad driver or brush.

4. Center the pad on the pad driver.

To operate the machine:

1. Plug into a grounded outlet.

2. Release the handle and lower it.

3. The handle can be locked into a comfortable position for the operator or used free floating.

4. Press the safety lever and squeeze the trigger to start the machine.

5. Do not operate in one place as damage to the floor or finish could result.

6. Do not operate the machine with the handle in the upright position.

7. Remove the pad after every use.

8. Store the machine tilted back on the transport wheels.

9. Use only new or clean pads and reverse them as needed.

Maintenance Instructions

To maintain appearance – wipe the machine with a damp cloth after use. Warning – Unplug the machine before servicing This machine is equipped with an hour meter to signal maintenance intervals of

250 hours. It will begin flashing at 245 hrs and stop at 255 hrs to signal the operator to check the following:

1. Check the motor brushes for wear or excessive arcing.

2. Check the cord and electrical system.

3. Check the safety lockout on the trigger.

4. Check wheels.

Page 7

Betco, Corp. 8/27/2007 Page 6 Floor Machine

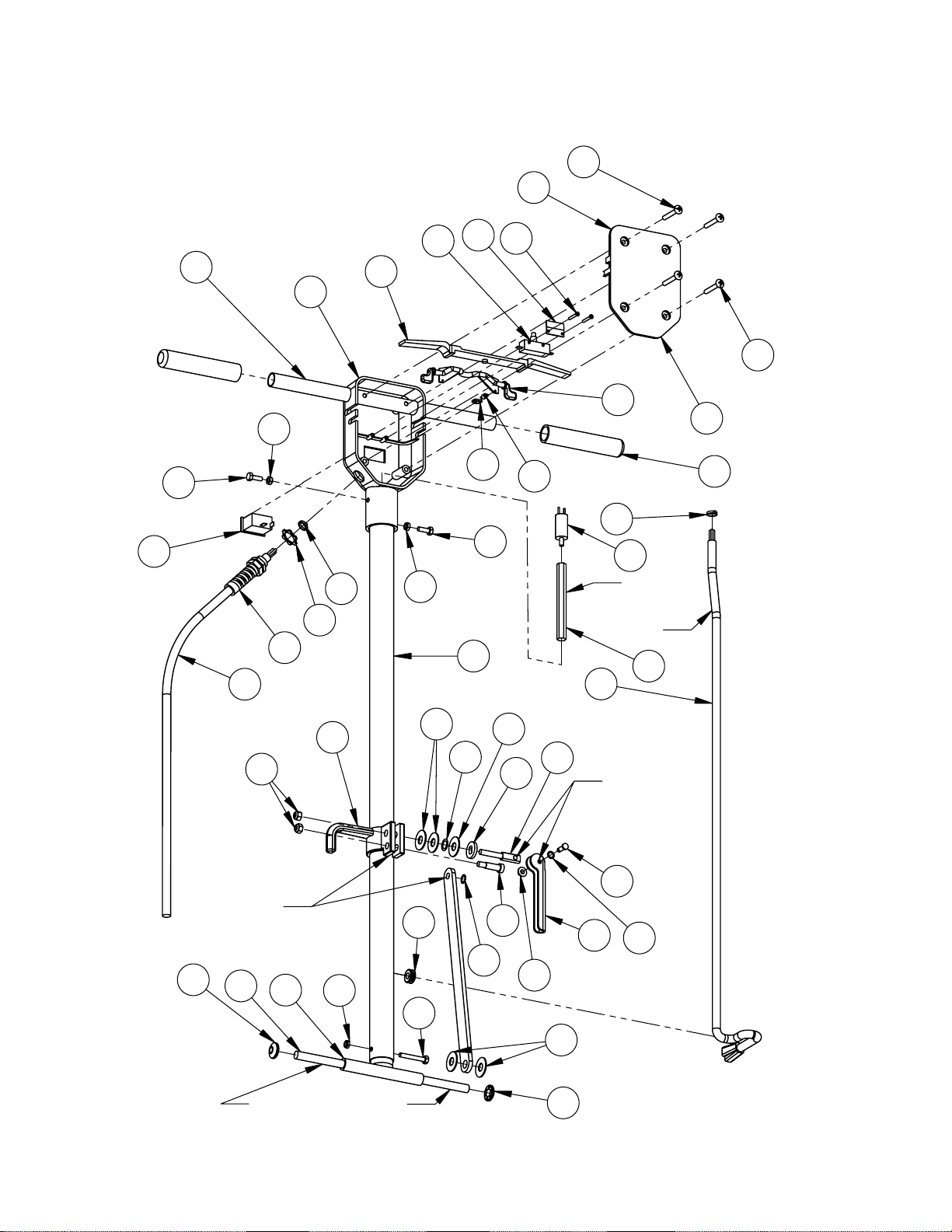

HANDLE PARTS

INSIDE

TUBE

INSIDE

TUBE

THESE PARTS INSIDE

TUBE

INSIDE

HANDLE

CAM

LOCK

INSIDE CORD HOOK

ROD THROUGH BASE

INSIDE

BASE

Page 8

HANDLE PARTS

Betco, Corp. 8/27/2007 Page 7 Floor Machine

ITEM NO.

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42

BETCO PART #

E283523 E283132 E283789 E283131 E283496 E281064 E283520 E283127 E283427 E283426 E283130 E283270 E285032 E283129 E282752 E283325 E283125 E281105 E283451 E281065 E281070 E283519 E283137 E283134 E283135 E283266 E283268 E283133 E281379 E281063 E283145 E281077 E283267 E283269 E283143 E282729 E283136 E283711 E283452 E283662 E283652 E283608

DESCRIPTION NYLON CABLE TIE CORD, HANDLE, 14-3 NUT, ELECTRICAL CONDUIT, 1/2" CORD, 75 FEET, 14-3 ST STRAIN RELIEF FOR REPLACEMENT BOLT, HEX, 1/4-20 x 3/4 NUT, NYLOCK, 1/4-20 GRIP SCREW, PHILLIPS, No. 6 x 1 SCREW, PHILLIPS, 1/4-20 x 1.75 SPRING CLIP, SPRING SWITCH SAFETY LOCK TRIGGER, SWITCH COVER, SWITCH BOX SWITCH BOX, HANDLE, DUAL SPEED PLATE, SWITCH HANDLE TUBE, 7/8 x 16 BOLT, HEX, 1/4-20 x 1-3/4, GRADE 5 NUT, NYLOCK, 1/4-20 GROMMET, .375 ID CORD HOOK BOLT, ADJUSTABLE, CAM, 5/16-18 OVAL WASHER PIN, .25 x .75 CAP, PUSH, .25 HANDLE, CAM LOCK WASHER, SPRING, 3/8 NUT, NYLOK, 5/16-18 WASHER, NYLON BOLT, SHOULDER, 3/8 x 1 WASHER, SPRING, 1/4 WASHER, SPRING, 1/2 CAPS, AXLE, 0.5 HANDLE ATTACHMENT, WELDED "T" BRACKET, FLAT, HANDLE HANDLE TUBE AXLE, 1/2 x 12.375 SPEED CONTROL, DUAL SPEED MACHINE HEAT SINK ROD SWITCH, ROCKER, 2 SPEED

QTY.

2 1 1 1 1 2 2 2 2 4 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 5 1 1 1 2 1 1 1 1 1 1 1

NOTE: DUAL SPEED FLOOR MACHINE HAS ALL PARTS LISTED. SINGLE SPEED MACHINE DOES NOT HAVE PARTS 40, 41, AND 42.

Page 9

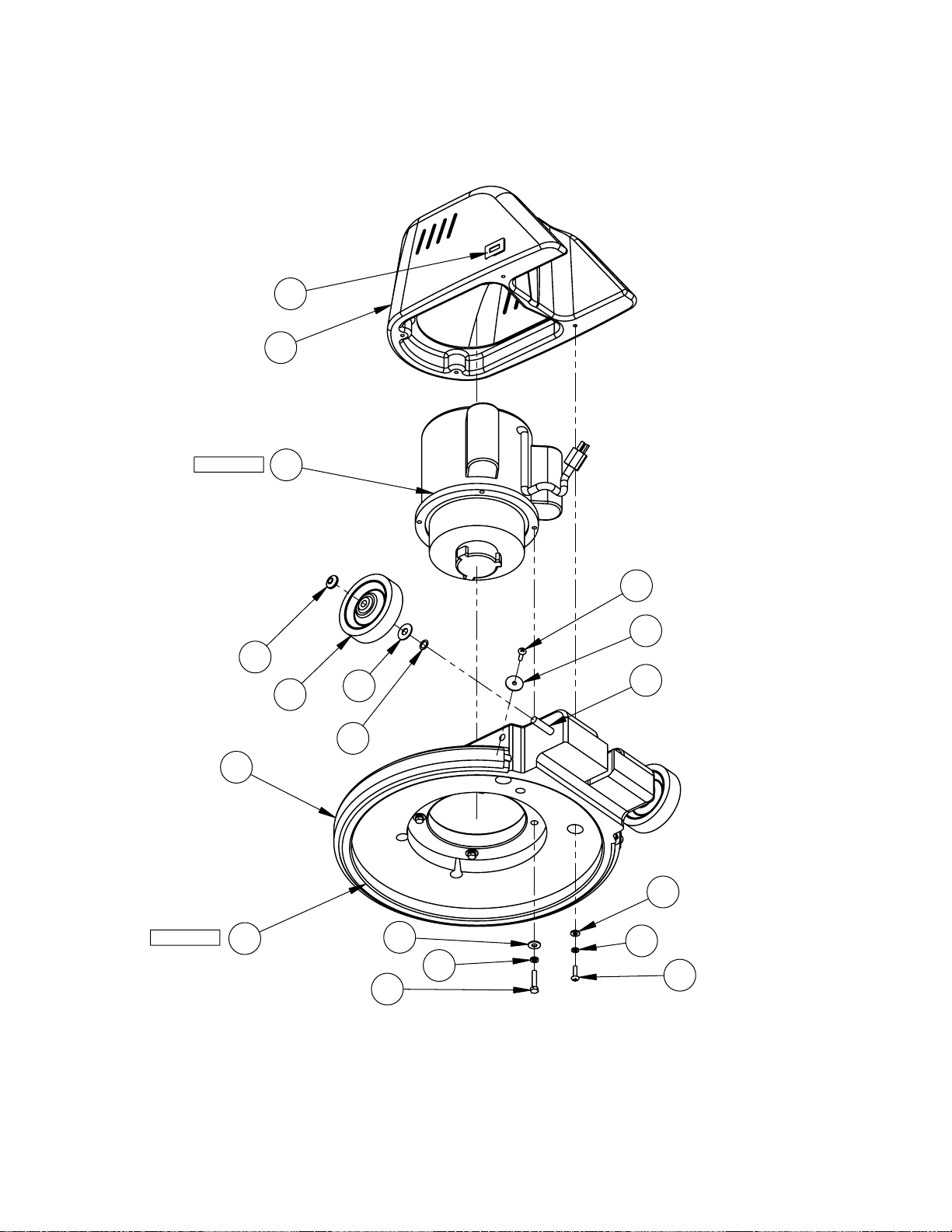

BASE, MOTOR, AND WHEELS

Betco, Corp. 8/27/2007 Page 8 Floor Machine

OR 18B

OR 17B

Page 10

BASE, MOTOR, AND WHEELS

Betco, Corp. 8/27/2007 Page 9 Floor Machine

ITEM NO.

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18

17B 18B

BETCO PART #

E283147 E283570 E489334 E281078 E281068 E283425 E283141 E281397 E283144 E283145 E283269 E283143 E283379 E281067 E281062 E283641 E281129 E283191 E281127 E281106

DESCRIPTION HOUR METER SCREW, PHILLIPS, 1/4-20 x 1 WASHER, FLAT, 1/4 WASHER, LOCK, 1/4 WASHER, FENDER, 1/4 SCREW, PHILLIPS, 1/4-20 x 1 BUMPER COVER, MOTOR, BURGANDY, LOW SPEED WHEEL, 5 INCH WASHER, NYLON WASHER, SPRING, 1/2 CAPS, AXLE, 0.5 AXLE, 1/2 x 13.875 WASHER, LOCK, 5/16 WASHER, FLAT, USS, 5/16 BOLT, HEX, 5/16-18 x 1.5 BASE, 20 INCH, LOW SPEED MOTOR, 1.5 HP, AC BASE, 17 INCH, LOW SPEED MOTOR, 1.5 HP, DUAL SPEED

QTY.

1 4 4 4 2 2 1 1 2 2 2 2 1 4 4 4 1 1 1 1

Page 11

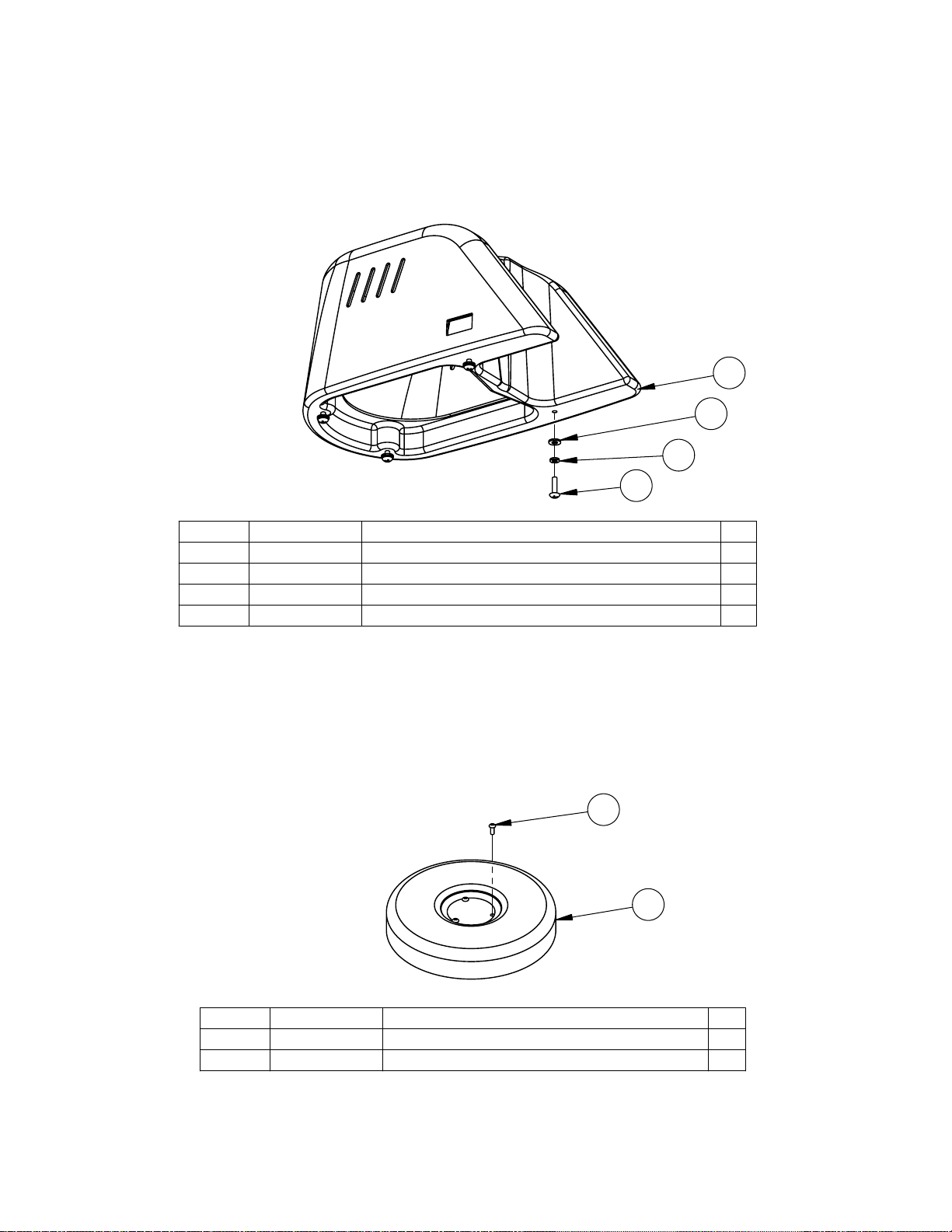

MOTOR COVERS

Betco, Corp. 8/27/2007 Page 10 Floor Machine

ITEM NO.

1 2 3 4

BETCO PART #

E283642 E283570 E489334 E281078

DESCRIPTION COVER, MOTOR, RED, LOW SPEED SCREW, PHILLIPS, 1/4-20 x 1 WASHER, FLAT, 1/4 WASHER, LOCK, 1/4

QTY.

1 4 4 4

ITEM NO.

BETCO PART # 1 2

E281140 E281526

DESCRIPTION COVER, MOTOR, 9" OD x 1.65 TALL SCREW, PHILLIPS, 10-32 x .5 TRUSS HEAD

QTY.

1 3

Page 12

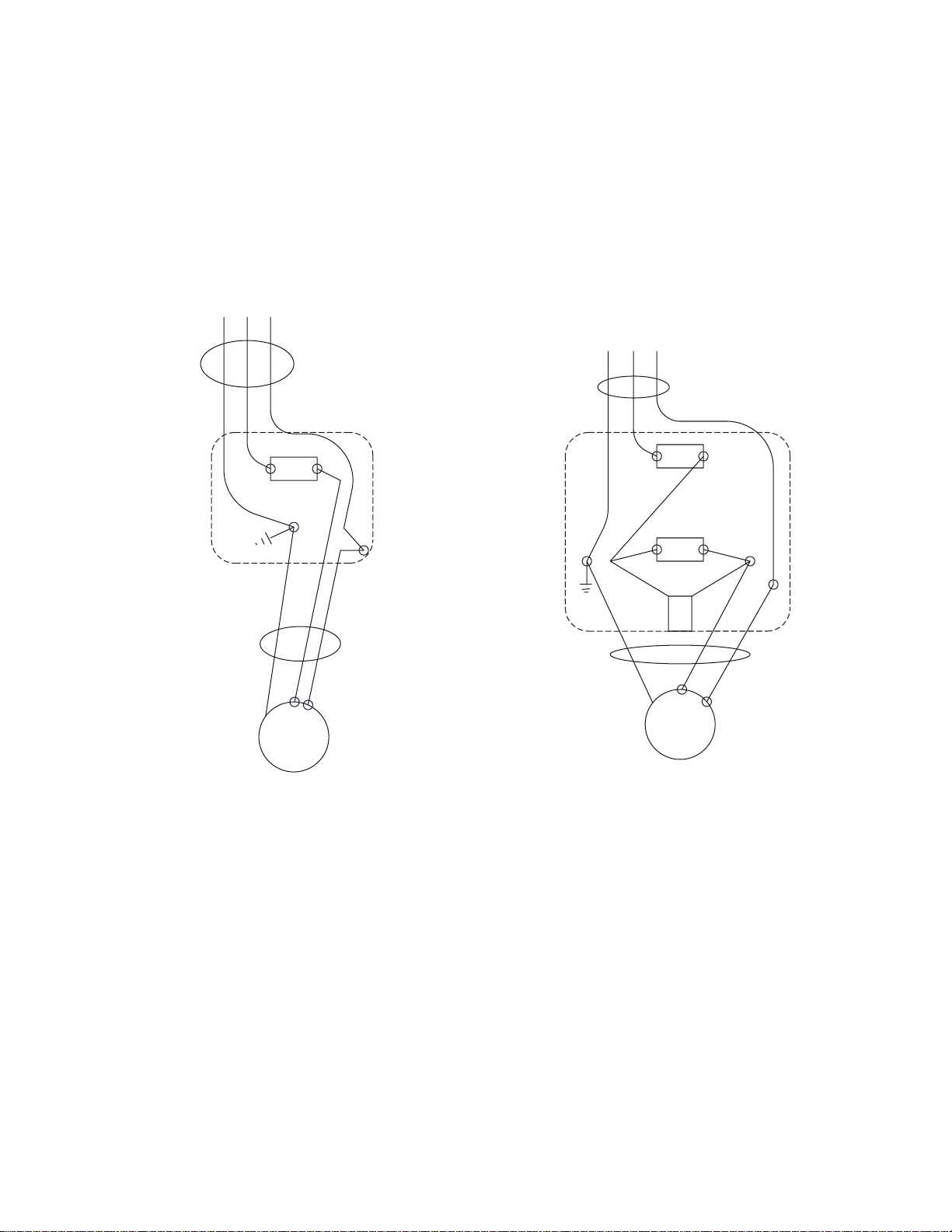

ELECTRICAL

Betco, Corp. 8/27/2007 Page 11 Floor Machine

Green

Micro Switch

Handle Cord

White

Black

Motor

Power Cord

Handle Cord

Black

Green

Spd Cntrl

White

Power Cord

Micro

Switch

Rocker

Switch

Motor

Standard Machines

Two Speed Machines

Page 13

BBeettccoo WWaarrrraannttyy EExxpprreessss PPrrooggrraamm™™

RReevviisseedd NNoovveemmbbeerr 11,, 22000066

10 Year Coverage

Subject to the conditions stated below, Betco Corporation warrants parts and labor on rotationally molded polyethylene tanks/housings and injection molded vacuum head assemblies to be free from defects in materials and workmanship for a period of ten years to the original purchaser.

3 Year Coverage

Subject to the conditions stated below, Betco Corporation warrants parts and labor on all other Betco components to be free from defects in materials and workmanship for a period of three years to the original purchaser.

AAlllloowwaabbllee TTrraavveell TTiimmee WWaarrrraannttyy RReeiimmbbuurrsseemmeenntt::

Eligible equipment: All battery and propane powered equipment products. Warranty period: 90 days from date of sale to the original purchaser. A maximum 60 mile round trip at 44 cents per mile will be allowed for warranty consideration.

PPrrooppaannee MMaacchhiinnee WWaarrrraannttyy::

Honda engines are warranted by Honda for a period of 2 years against manufacturer defect. Kawasaki engines are warranted by Kawasaki for a period of 2 years against manufacturer defect. All other components (except wear items)* are warranted by Betco Corporation for a period of 3 years.

**WWeeaarr iitteemmss eexxeemmpptt ffrroomm wwaarrrraannttyy ccoonnssiiddeerraattiioonn iinnccl

coorrddss,,

haannddllee

Subject to the conditions and exceptions stated in this warranty, Betco warrants the Betco products to be free from defects in material and workmanship, under normal use and service, for the periods listed under the warranty policy to the original purchaser. At any time during the warranty period, Betco will furnish replacement parts for the Betco products to the original purchaser. Such parts will be furnished and charged including transportation costs, to the original owner through any Betco authorized Service Distributor. If the original part is returned within the warranty policy period from date of delivery for inspection by Betco and is found to be defective, the owner will be credited for the cost of replacement parts plus shipping and handling. Replacement parts that have become defective through wear or abuse are not included in this warranty.

This warranty does not apply to damage or defect caused by accident, misuse, negligence, fire or to any Betco product which has been serviced or repaired by other than an authorized Betco Service Distributor or Betco factory personnel. This warranty is void if products are used for any purpose other than that which was intended. There are no other warranties expressed or implied. In no event shall Betco be liable for incidental or consequential damages or any damage to person or property. (Please note some states do not allow the exclusion or limitations for incidental and consequential damages.)

ttrraannssp

oorrtt wwhheeeellss,, vvaaccuuuumm bbaaggss,, bbeellttss,, ssqquueeeeggeeee bbllaaddeess,, ppa

ggrriippss,, ffiilltteerrss,, s

ccrreeeennss,, tthhrroottttllee ccaabblleess,, bbrruusshheess aanndd ccaarrbboonn bbrruusshhees

1 Year Coverage

Subject to the conditions stated below, Betco Corporation offers a limited warranty on parts and labor on the following equipment, parts and accessories to be free from defects in material and workmanship for a period of one year to the original purchaser.

DM Series Vacuums:

●

#85506-00, #85507-00

●Bac Pac Lite Vacuum: #85903-00

●FiberPRO® Floor Dryer: #85507-00

●WORKMAN™ Series Vacuums: #85024-00, #85025-00, #85026-00, #85027-00

●CV100T Vacuum: #85023-00

●All Tools and Accessories

●All Battery Chargers

●All Batteries are pro-rated for 1 year.

luuddee

bbuutt mmaayy nnoott bbee lliimmiitteedd ttoo:: ppoowweerr

add

ddrriivveerrss,, cclluuttcchh ppllaatteess,,

s..
