E29976-00
®
FiberPRO
2.5 H
Heated Spot
Extractor
Customer Service: 888-GO-BETCO • Fax: 800-445-5056 • Technical Service: 877-856-5954 • www.betco.com
Operator and Parts
Manual
1001 Brown Avenue • Toledo, Ohio 43607-0127
1
TABLE OF CONTENTS
RECEIVING THE MACHINE............................................. 3
TECHNICAL SPECIFICATIONS ........................................ 3
GENERAL SAFETY REGULATIONS ................................. 4
MACHINE OVERVIEW .................................................... 5
MACHINE COMPONENTS .............................................. 6
MACHINE OPERATION .............................................. 7 - 8
PARTS DIAGRAMS AND LISTINGS ....................... 10 - 11
WARRANTY ................................................................. 12
2
RECEIVING THE MACHINE
Immediately check, when receiving the machine, that all the materials indicated on delivery documents have been received and
also that the machine has not been damaged in transit. If it has been damaged, this damage must be immediately reported to
the shipper and also to our customer service department. Only acting promptly in this manner will make it possible to receive
missing material and to be compensated for damage.
INTRODUCTION
This is a carpet and upholstery spot cleaning extraction machine
which, via the high pressure spray pump and strong vacuum system
can clean many types of carpet and fabric surfaces.
The machine must be used only for this purpose.
Even the best machines will only work well if used correctly and
kept in good working order. We therefore suggest you read this
instruction booklet carefully and re-read it whenever difficulties
arise while using the machine. Please contact our technical service
department or your dealer if you have any questions about
the machine.
Location of Serial Tag
TECHNICAL SPECIFICATIONS
TECHNICAL DESRIPTION FiberPRO® 2.5 H
Item Number E29976-00
Vac Motor 2-Stage Bypass
Vacuum CFM 97
Water Lift 90"
Solution Pump 55 PSI
Heater 750 Watt
Solution Tank 2.5 Gallon
Recovery Tank 2.5 Gallon
Power Cord 25' - 16/3
Hose 1.25" x 10'
Shutoff System Float Ball
Length 15.5"
Width 11.25"
Height 28.25"
Weight 24 Lbs.
3
GENERAL SAFETY REGULATIONS
The regulations below must be carefully followed in order to avoid harm to the operator and damage to the machine.
• Read all labels on the machine carefully. Do not cover them for any reason and replace them immediately if they become
damaged.
• The machine must be used exclusively by authorized and trained personnel.
• When operating the machine be careful of other people.
• The power cable outlet must be provided with a proper ground.
• Avoid damaging the power cable by crushing, bending, cutting or stressing it.
• Whenever the power cable is damaged, immediately contact a BETCO service center.
• Do not set containers on the machine.
• Machine storage temperature is between -10°F and 130°F, never store outside under humid conditions.
• Operating conditions: room temperature between 33°F and 100°F with relative humidity between 30% to 95%.
• Only use the machine in closed areas and do not expose it directly to rain.
• Never use the machine in an explosive environment.
• Do not use the machine as a means of transport.
• Never use acidic chemicals which could damage the machine.
• Never vacuum up flammable liquids.
• Never use the machine to gather dangerous powders.
• Use a powder fire extinguisher in case of fire. Do not use water.
• Do not hit against shelving or scaffolding. The operator must always be equipped with the appropriate safety device
(gloves, shoes, helmet, glasses, etc.)
• If the machine does not work properly, perform routine maintenance. Otherwise, request the assistance of the BETCO
technical service.
• When replacing parts ask for ORIGINAL spare parts from your Authorized BETCO Dealer and/or Retailer.
• Always turn off the machine and disconnect the power supply whenever maintenance is performed.
• Never wash the machine with direct or pressurized jets of water or with corrosive substances.
• Have your BETCO service center check the machine once a year.
• When your BETCO machine is ready to be retired, the machine must be disposed of properly. It contain oils and electronic
components. The machine was built using totally recyclable materials.
• Liquid ejected from the spray nozzle could be dangerous as a result of its temperature, pressure, or chemical content.
• Keep loose clothing, hair, fingers, and all parts of body away from openings and moving parts.
• Replace the cord or plug immediately if the ground prong becomes damaged.
• Do not handle the plug, the cord, or the machine with wet hands.
• Do not leave the machine unattended when it is plugged in. Unplug the unit from the outlet when not in use and before
servicing.
• Do not use this machine to dry vacuum before wet cleaning.
4
MACHINE OVERVIEW
1. SYSTEM FEATURES
HEAT: The FiberPRO® 2.5H has a built-in heater. A switch at the rear of the machine will turn the heater on or off.
VACUUM: The vacuum motor provides an excellent ratio of water lift to air movement. Surfaces should dry
quickly if not over-wetted while cleaning.
SOLUTION PUMP: The pump is a ‘demand’ style system. It only runs when there is a demand for spray. This feature
increases the life of the pump.
2. CHEMICALS:
The use of clear water in the machine is recommended, with the application of properly diluted cleaner as a pre-spray on
the area to be cleaned. However, you may mix water and cleaning chemicals in a bucket, according to the directions on the
chemical label, and then pour into the solution tank. If you choose to use chemicals in the machine, always use a cleaner with
a pH as close to neutral as possible to avoid premature wear of the pump, seals, and other components. Damage caused by
the use of strong chemicals is not covered under warranty. The use of powder chemicals is discouraged unless they are mixed
very thoroughly and rinsed out completely at the end of the job. Powder cleaners could cause a build-up in the pump, lines,
heater, and quick disconnects. Any problem caused by chemical build-up is not covered by warranty.
If foaming occurs as you clean, use a defoaming agent in the recovery tank only. This will prevent foam overflow which can
cause water damage to machine components.
3. TOOLS & ACCESSORIES:
Use only manufacturer’s recommended tools and accessories. If the spray valve on your cleaning tool begins to leak or if the
spray tips get worn and are no longer providing a nice even spray pattern, order replacements from your distributor.
4. CARE & MAINTENANCE
For continual peak operation, clean the internal plumbing by rinsing with clear water at the end of each job. About once a
month, rinse the machine with a commercial flushing compound to break up an mineral or chemical accumulation that may
have formed from the use of hard water or chemicals.
The vacuum motor and the pump do not require any scheduled maintenance. However, the vacuum motor may require
replacement brushes after 750 – 1000 hours of use.
To help maintain a professional image, clean the exterior of the machine with an all-purpose detergent such as Betco Green
Earth Peroxide Cleaner. The exterior can further be protected with Betco Brite MSP polish. Lubricate the wheels, casters, and
quick disconnects with an all-purpose silicone spray.
5
MACHINE COMPONENTS
1. MAIN BODY OF MACHINE
A. Handle
B. Vacuum Hose Connection
C. Recovery Tank
D. Latch
E. Solution Tank
F. Motor Compartment
G. Power Switches
2. INTERNAL MACHINE COMPONENTS
A. Vacuum Inlet Filter
B. Solution Fill Port
C. Recovery Tank
D. Solution Hose Connection
B
A
C
F
D
E
G
A
C
3. CONTROL PANEL
A. Vacuum Control
B. Vacuum & Solution Control
C. Heat Control
B
D
A
B
C
6
MACHINE OPERATION
1. INSPECT THE MACHINE
Before each use inspect the machine, hoses, and cleanliness and completeness.
Ensure the spray nozzles on the cleaning tool are tight.
2. REMOVE RECOVERY TANK
Release the two latches on the side of the machine, grasp the handle on top of
the recovery tank, and pull the recovery tank up and off the solution tank. Set
the recovery tank aside.
3. FILL SOLUTION TANK
Fill the solution tank with clean water. The heater on the H series is designed
to provide nearly instant hot water for cleaning. If you use warm water in the
solution tank it will increase the heaters efficiency.
Never use water above 120° F (49° C) in the solution tank.
Replace the recovery tank back onto the solution tank and secure both latches.
4. SAFELY PLUG IN MACHINE
Turn off all the switches. Plug the power cords into properly grounded outlets.
5. CONNECT HOSES
Connect the solution hose and the vacuum hose to the machine and to the
cleaning tool. Turn on the pump switch and depress the trigger on the tool for a
few seconds to fill the heater and lines with water.
7
MACHINE OPERATION
6. TURN ON HEAT SWITCH
If hot water is desired for cleaning, turn on the heater switch and wait two minutes for the heater to reach operating
temperature.
7. PRE-SPRAY AREA
Pre-spray the area to be cleaned with the appropriate Betco® cleaning detergent. If you choose to add a detergent to the solution
tank, be sure to mix well and always follow the use and dilution instructions on the chemical label. Use a Betco cleaning detergent with a pH between 5 and 10 to reduce the likelihood of premature wear to the pump and other seals. If excess foaming
occurs, use Betco defoamer to prevent damage to electrical components. Water damage to the vacuum motor is not covered by
the warranty.
8. BEGIN CLEANING
Once all of the switches are turned on, squeeze the trigger on the tool and pull the hand tool in a backward motion. Release the
trigger a few inches before finishing the stroke to ensure he vacuum shoe will pass over the wet area. Then push the tool in a
foward motion back over the same clean path to remove and residual water. Continue in this manner until the entire area has
been cleaned.
9. MONITOR WATER LEVELS
Montior the water level in the solution tank. Do not let the pump run dry. When the solution level gets low, turn off the pump
and vacuum, refill the solution tank, and empty the dirty water from the recovery tank. The machine has a suction shut-off float
in the recovery tank to prevent overflow. If the suction stops, turn off the machine, remove and empty the recovery tank.
10. FINISHING THE JOB
When finished with the job, remove any unused solution from the clean water tank and run a few gallons of clear water through
the system. Drain the recovery tank into a drain or bucket through the vacuum hose connection on the front of the machine.
Disconnect the hoses from the machine and the cleaning tool.
8
9

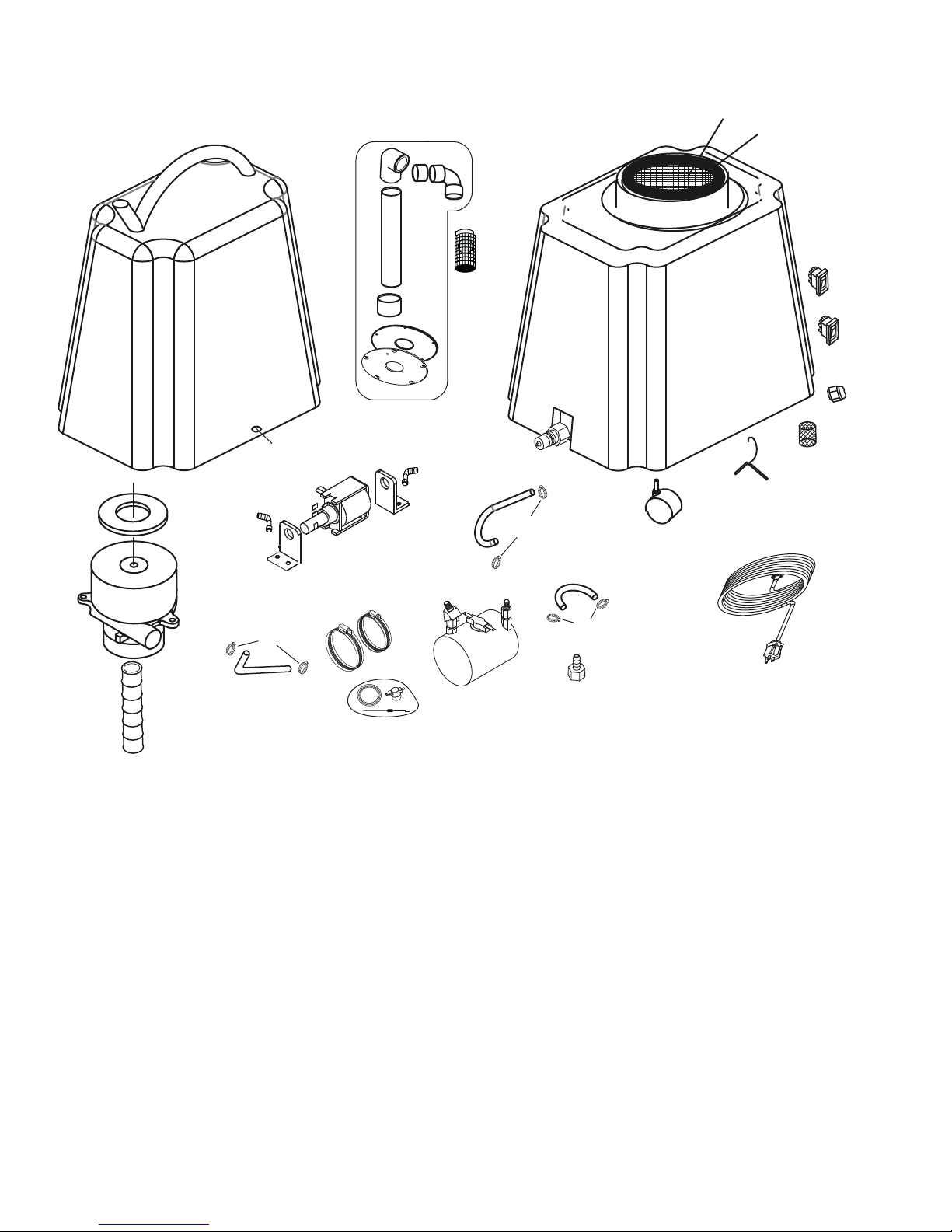

FIBERPRO® 2.5 H PARTS DIAGRAM
5
1
3
2
4
6
7
8
9
30
31
29
26
24
15
11A
25
27
22
25
26
21A
23
14
21
21B
32
15
10
11
13
12
16
15
19
10
FIBERPRO® 2.5 H PARTS LISTING
Item# Part # Description Qty. Item# Part # Description Qty.
1 E84355 Recovery Tank, 2.5 Spotter 1
2 E84356 Solution Tank, 2.5 Spotter 1
3 E84357 Vaccum Inlet Assembly 1
4 E84358 Float Ball Assembly 1
5 E84359 Screen, Vac Inlet, 5 1
6 E84360 Gasket 1
7 E84361 Switch, Rocker, Vacuum & Pump 1
8 E84362 Switch, Heater 1
9 E84363 Cord Strain Relief 1
10 E84364 Filter, Pump Inlet 1
11 E84365 Latch 2
11A E84366 Catch for Latch 2
12 E84367 Power Cord, 25' 1
13 E84368 Caster Wheel 4
14 E84369 Hose, 11” 1
15 E84370 Hose Clamp, 3/4“ 6
16 E84371 Hose 1
19 E84372 Hose Barb, Brass 1
21 E84373 Heater, Complete 1
21A E84374 Elbow, Hose Barb 1
21B E84375 Hose Barb, Brass 1
22 E84376 Hose Clamp, Heater Mount 2
23 E84377 Repair Kit, Heater 1
24 E84378 Hose 1
25 E85649 Bracket, Pump Mount 2
26 E85637 Hose Barb/Elbow, Nylon 2
27 E85553 Pump, 55 PSI 1
29 E84381 Hose, 2” X 13”, Wire Supported 1
30 E84382 Vacuum Motor, 120V 1
31 E85652 Gasket, Vac Motor 1
32 E85638 Quick Disconnect, Male 1
N/A E84437 Hand Tool, 3" 1
11
BETCO US WARRANTY POLICY
10 year coverage
Subject to the conditions stated below,
Betco warrants parts and labor on
rotationally molded polyethylene tanks/
housings and injection molded vacuum
head assemblies to be free from defects
in materials and workmanship for
a period of ten years to the original
purchaser.
Allowable Travel Time Warranty Reimbursement:
Eligible equipment: All battery and propane powered equipment products. Warranty period: 90 days from date of sale to the
original purchaser. A maximum 180 mile round trip at 50 cents per mile will be allowed for warranty consideration.
3 Year Coverage
Subject to the conditions stated below,
Betco warrants parts and labor on all
other Betco components to be free from
defects in materials and workmanship
for a period of three years to the original purchaser.
1 Year Coverage
Subject to the conditions stated below,
Betco offers a limited warranty on parts
and labor on the following equipment:
parts and accessories to be free from
defects in materials and workmanship
for a period of one year to the original
purchaser.
• HF14 Upright Vacuum: #E88820-00
• Bac Pac Lite Vacuum: #85903-00
• FiberPRO® Floor Dryer: #85507-00
• WORKMAN™ Series Vacuums:
#85024-00, #85025-00, #83012-00,
#85027-00
• All Tools and Accessories
• All Battery Chargers
• All Batteries are pro-rated for 1 year
Propane Machine Warranty:
Kawasaki engines are warranted by Kawasaki for a period of 2 years against manufacturer defects. All other components
(except wear items)* are warranted by Betco for a period of 3 years.
*Wear Items exempt from Warranty consideration include but may not be limited to: power cords, transport wheels,
vacuum bags, belts, squeegee blades, pad drivers, clutch plates, handle grips, filters, screens, throttle cables, brushes
and carbon brushes.
Subject to the conditions and exceptions stated in this warranty, Betco warrants the Betco products to be free from defects in
material and workmanship, under normal use and service, for the periods listed under the warranty policy to the original purchaser. At any time during the warranty period, Betco will furnish replacement parts for the Betco parts to the original purchaser. Such parts will be furnished and charged including transportation costs, to the original owner through any Betco authorized
Service Distributor. If the original part is returned within the warranty policy period from date of delivery for inspection by
Betco and is found to be defective the owner will be credited for the cost of replacement parts plus shipping and handling.
Replacement parts that have become defective through wear or abuse are not included in this warranty.
This warranty does not apply to damage or defect caused by accident, misuse. Negligence, fire, or to any Betco product which
has been serviced or repaired by other than an authorized Betco Service Distributor or Betco factory personnel. This warranty
is void if products are used for any purpose other than that which was intended. There are no other warranties expressed or
implied. In no event shall Betco be liable for incidental or consequential damages or any damage to person or property. (Please
note some states do not allow the exclusion or limitations for incidental and consequential damages).
12
Customer Service: 888-GO-BETCO • Fax: 800-445-5056 • Technical Service: 877-856-5954 • www.betco.com
1001 Brown Avenue • Toledo, Ohio 43607-0127
91625-92 FEB15A
Loading...
