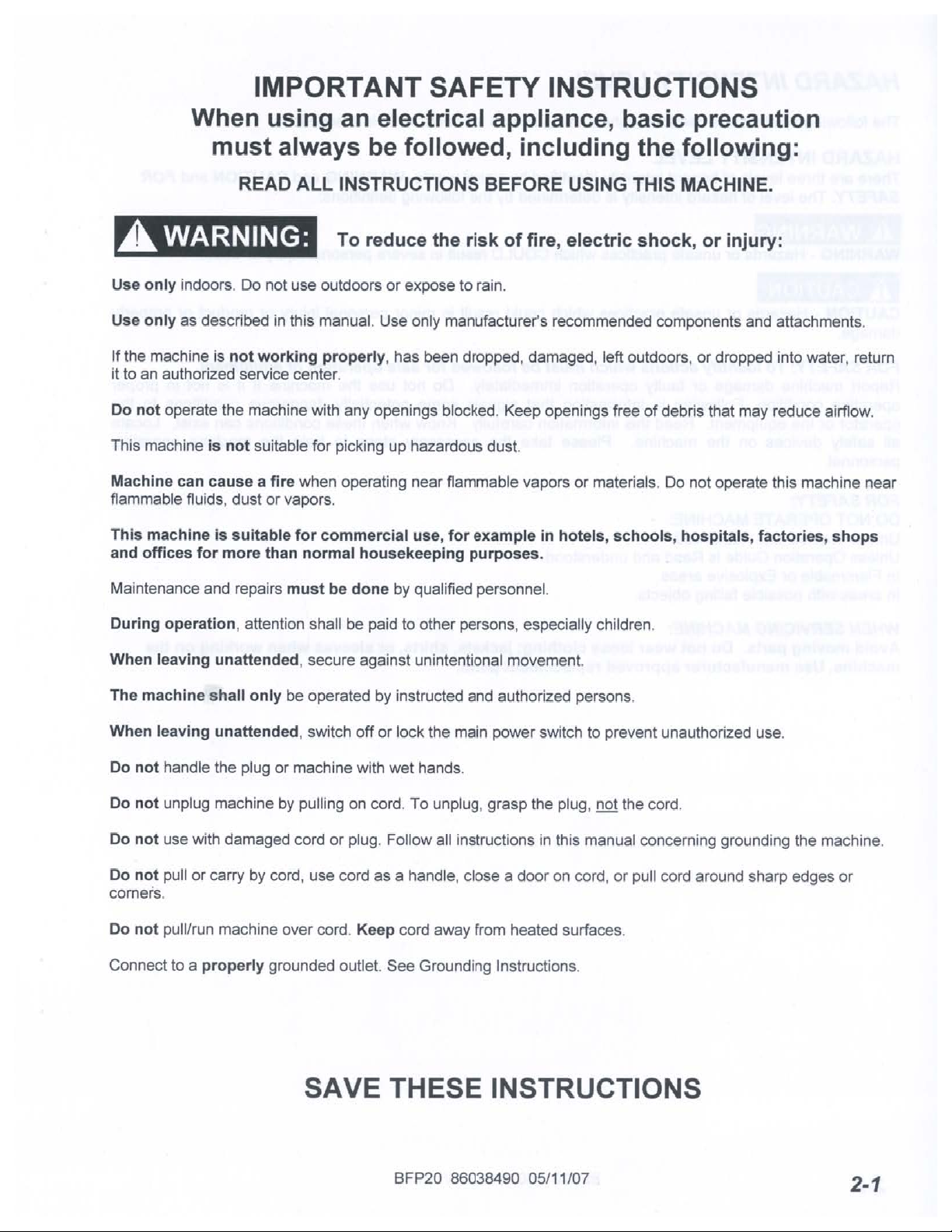

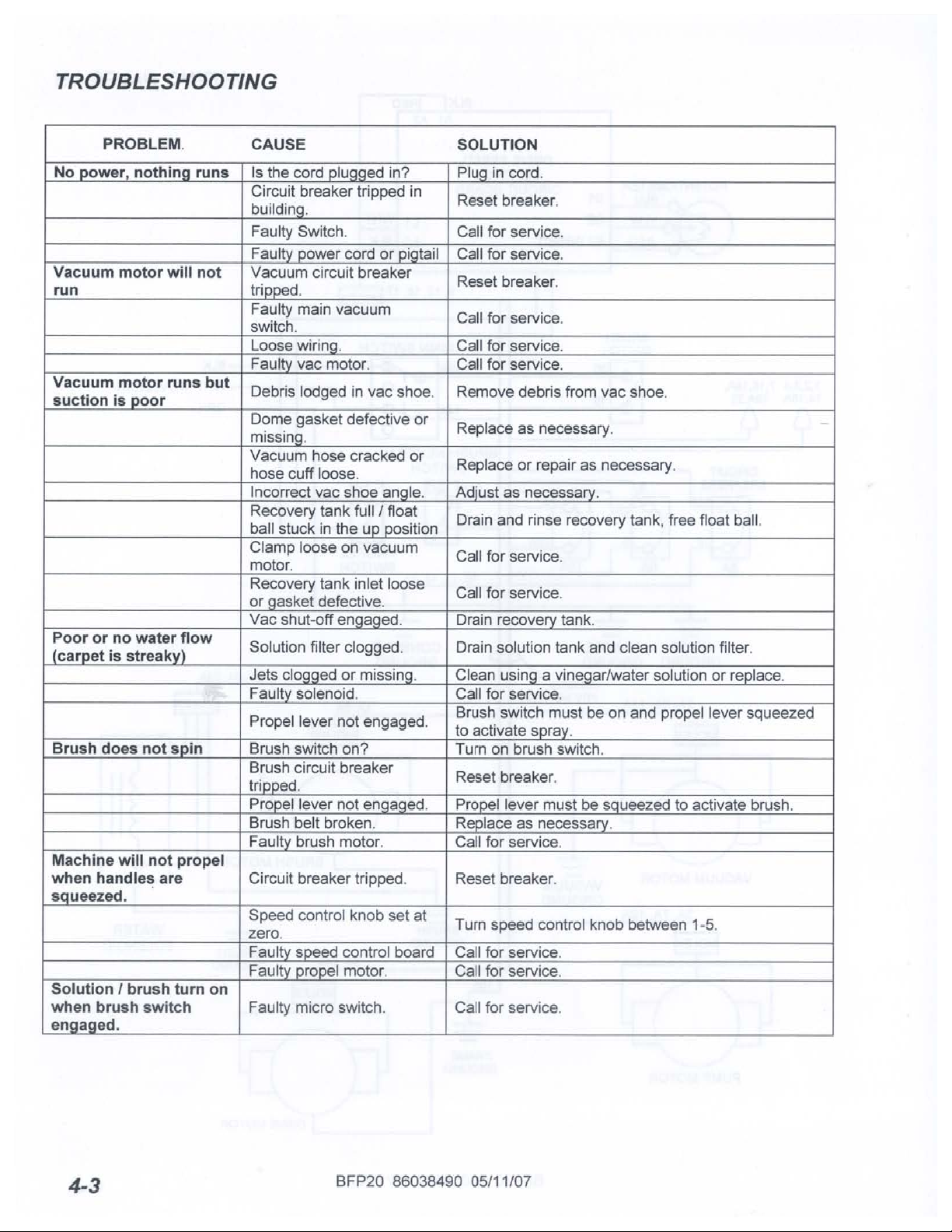

FRAME ASSEMBLY PARTS LIST
Item SKU QTY Description
1 E87678 1 TRANSAXLE, 90VDC.13HP
140593 - BRUSH SET, TRANSAXLE 05120 CCL
2 05130 1 ARM, BRUSH HOUSING RIGHT
3 05131 1 ARM, BRUSH HOUSING LEFT
4 730175 1 STRAIN RELIEF, 18/3 STR.75
5 E87635 2 CASTER, 4 DIA X 2W X 3.56R
6 E85358 4 NUT,1/4-20 HEX NYLOCK
7 E87636 12 NUT, 3/8-16 HEX NYLOCK
8 62714 2 PLATE, DRIVE AXLE
9 70015 2 SCR, 1/4--20x 3/4 HHCS SS
10 70017 2 SCR, 1/4-20 X 2.50 HHCS SS
11 E87637 20 SCR, 3/8-16 X 1.00 HHCS GR5
12 80623 4 RING, 3/4 RETAINING HD SH
13 E87638 8 WASHER, 3/8 X 7/8 FLAT SS
14 87156 4 WASHER, 3/4 X 1.25 NYL
15 87173 4 WASHER, .77 X 1.31 FLAT SS
16 89051 4 WHEEL, VAC SHOE
17 E87680 2 WHEEL ASM.
18 89137 1 FRAME, WELDMENT
19 E88360 - BEARING, ROLLER CLUTCH 1OD X.751D
20 E87260 8 NUT, 3/8-16 SERRATED FLG
BFP20 86038490 05/11/07 5-2
PUMP ASSEMBLY PARTS LIST
Item SKU QTY Description
1 20042 5 CLAMP, 3/8 WORM GEAR
2 E87272 1 COVER, PUMP
3 E87526 2 ELBOW, 3/8 FPT PVC SCH 80
4 E87248 1 HOSE, 3/8 WIRE BOUND X 7
5 E87249 1 HOSE, 3/8 NYLOBRAID X 2
6 E87250 1 HOSE, 3/8 NYLOBRAID X 33
7 40010 3 HOSEBARB, 3/8 MPT X 3/8
8 40034 1 HOSEBARB, 3/8 MPT X 3/8 9OD BRASS
9 E87515 6 NUT, 10-32 HEX NYLOCK
10 E87401 - PUMP ASSEMBLY
11 E87400 1 STRAINER, DEEP 3/8 NPT 80 MESH
12 E87561 6 WASHER, #10 X 9/16 FLAT
13 E87599 - SCREEN, 80 MESH STAINER DEEP
BFP20 86038490 05/11/07 5-4

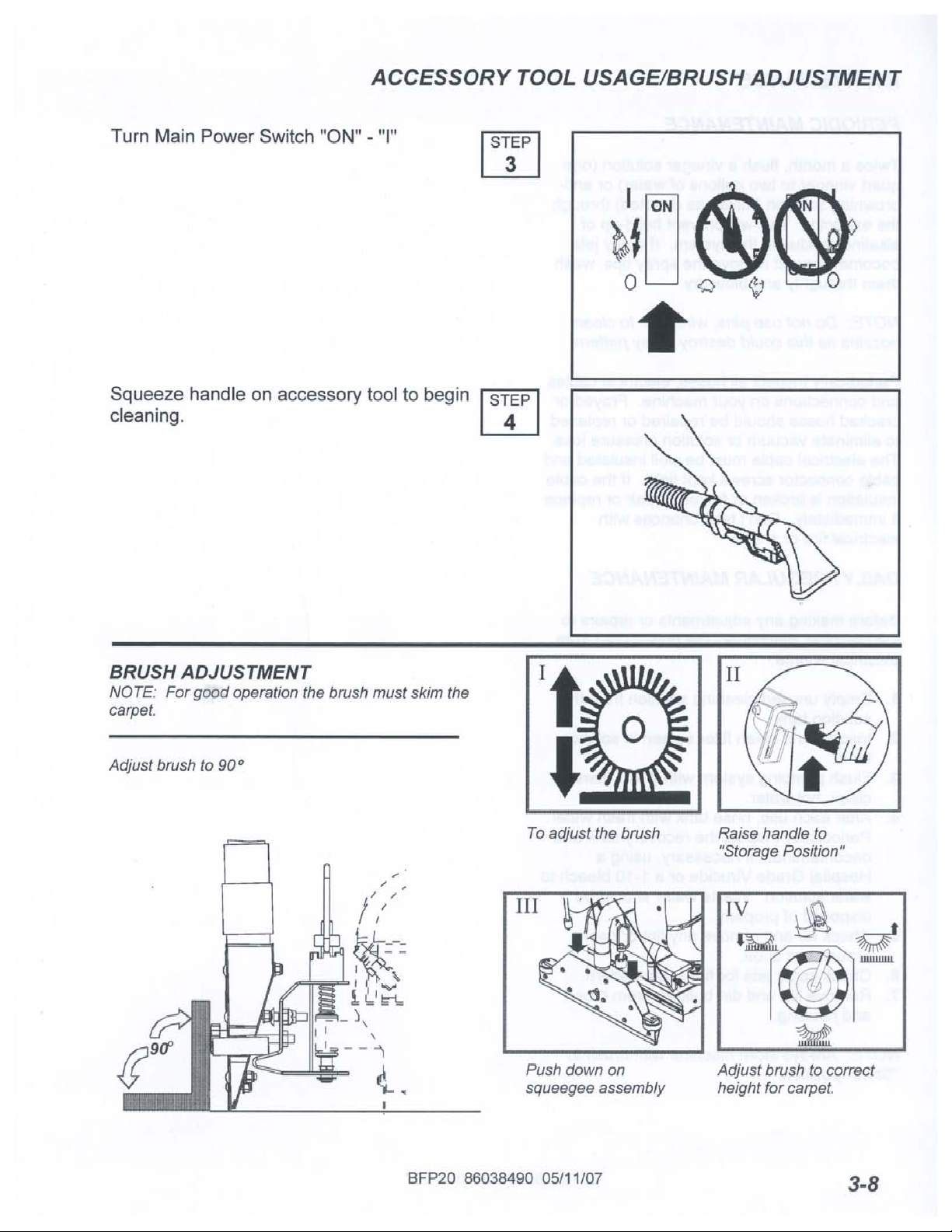

BRUSH ASSEMBLY PARTS LIST
Item SKU QTY Description
1 E87543 1 AXLE, .5 X 19.5 X 1/4-20
2 E87540 1 AXLE, .5 X 4.34 W/ FLATS
3 E87500 5 BEARING, 1.1250D X .501D X.375
4 E87733 2 BEARING, FLANGE
5 E87402 1 BELT, TIMING.375P 16.5PL .5W
6 E87403 1 BRUSH, 18L X 4.50D
7 E87383 2 COUPLER, 1/2 JAW
8 E87384 1 COUPLER, SPIDER
9 E87727 1 GUARD, SPLASH
10 E87719 IDLER ASSEMBLY, BRUSH
11 E87718 MOTOR ASSEMBLY, BRUSH
12 E87515 11 NUT, 10-32 HEX NYLOCK
13 E85358 1 NUT, 1/4-20 HEX NYLOCK
14 57113 4 NOT, 5/16-18 HEX NYLOCK
15 E87243 1 PLATE, BELT ADJUSTMENT
16 E87477 1 PULLEY, TIMING 2.029PD X.375P
17 E87433 1 PULLEY, TIMING.375P 10T .SID
18 E87478 2 RING, 1.13 RETAINING HO
19 E87269 1 RETAINER, SPLASH GUARD
20 E87246 2 SCR, 1/4-20 X 5/8 HHCS SS
21 70017 1 SCR, 1/4-20 X 2.50 HHCS SS
22 E87259 3 SCR, 1/4-20 X 1/4 SH KCP
23 E87244 11 SCR, 10-32 X 5/8 PPHMS
24 70302 4 SCR, 5/16-18 X 1.00 HHCS GR5
25 E87476 4 SCR, 6-32 X 1/2 PFHMS PLTD
26 E87268 2 WASHER, .506 X.94 NYL
27 E87247 2 WASHER, 1/4 EXT. STAR SS
28 E87623 8 WASHER, 5/16 X 3/4 SS
29 E87693 2 WASHER, 1/2 X 1.00 NYL
30 89051 2 WHEEL, VAC SHOE
31 E87223 1 WELDMENT, BRUSH HOUSING
32 E87245 1 BRKT, BRUSH HOUSING END CAP
33 E87596 - PULLEY ASSEMBLY, BRUSH
BFP20 86038490 05/11/07 5-6

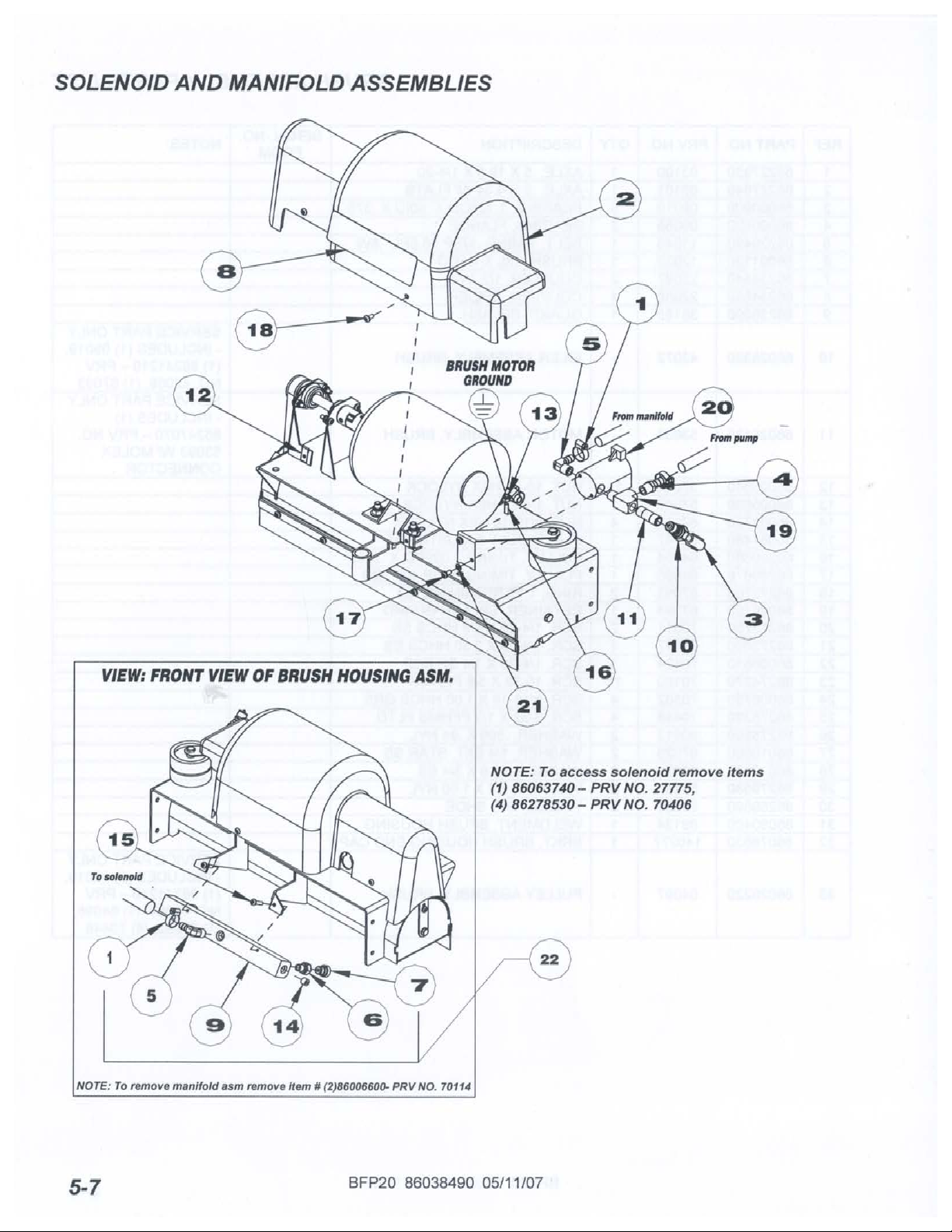

SOLENOID AND MANIFOLD
ASSEMBLIES PARTS LIST
Item SKU QTY Description
1 20042 3 CLAMP, 3/8 WORM GEAR
2 E87308 1 COVER, BRUSH MOTOR
3 E87276 1 ELBOW, 1/4 NPT STREET
4 E87275 1 HOSEBARB, 1/4 MPT 3/8
5 E87273 2 HOSEBARB, 1/4 MPT X 3/8H 900
6 E87512 2 JET, MINI PROMAX BODY
7 E87728 2 JET, MINI PROMAX 9504
8 50947 1 LABEL, ADJ INSTRUCTION
9 E87532 1 MANIFOLD
10 E85638 1 NIPPLE, 1/4 FPT QD
11 E87306 1 NIPPLE, 1/4 X 1.5
12 57028 4 NUT, 10-24 TINNERMAN
13 E87515 1 NUT, 10-32 HEX NYLOCK
14 66095 2 PLUG, 1/8 MPT HEX BRASS
15 E87491 2 SCR, #10 X 3/4 PHST TYPE B
16 E87244 1 SCR, 10-32 X 5/8 PPHMS
17 E87270 2 SCR, 10-32 X 3/8 PPHMS SS
18 E87541 4 SCR, #10 X 3/8 PHSM TYPE B BLK
19 E87307 1 TEE, 1/4 STREET
20 E87726 - SOLENOID ASSEMBLY
21 E87560 3 WASHER, #10 EXT. STAR SS
22 E87488 - MANIFOLD ASSEMBLY
BFP20 86038490 05/11/07 5-8
VACUUM SHOE ASSEMBLY PARTS LIST
Item SKU QTY Description
1 05130 1 ARM, BRUSH HOUSING RIGHT
2 05131 1 ARM, BRUSH HOUSING LEFT
3 E88576 2 BEARING, 1/2 NYLINER SI
4 E87386 2 BUSHING, BRZ FLG.50 X.75 X.75
5 89162 1 WELDMENT, HEIGHT ADJ ROD
6 E87742 1 KNOB, 1.380D X 3/8-16 X 3.00
7 E87260 1 NUT, 3/8-16 HEX FLG
8 E85358 15 NUT, 1/4-20 HEX NYLOCK
9 E87636 1 NUT, 3/8-16 HEX NYLOCK
10 E87535 1 PLATE, VAC
11 E87537 1 PLATE, VAC TRAP
12 66205 1 PIN, ROLL 3/16 X 1.13
13 66219 2 PIN, COTTER HAIR.059 X 1
14 66231 2 PIN, CLEVIS 1/4 X 1.75
15 67132 3 RING, 1/2 RETAINING HD SH
16 67394 1 ROD, VAC PIVOT
17 70015 4 SCR, 1/4-20 X 3/4 HHCS SS
18 E87253 1 SCR, 3/8-16 X 1.5 CARRIAGE PLTD
19 70634 5 SCR, 1/4-20 X 1.25 CARRIAGE
20 70635 2 SCR, 1/4-20 X 2.0 CARRIAGE
21 70636 2 SCR, 1/4-20 X 2.5 CARRIAGE
22 70637 2 SCR, 1/4-20 X 1.5 CARRIAGE
23 73907 1 SPRING, COMP .5501D X.7200D X.085W
24 E87574 1 VACUUM SHOE, INSERT
25 E87414 15 WASHER, 1/4 X 5/8 FLAT SS
26 87136 4 WASHER, .52 X.88 FLAT
27 87167 1 WASHER, .39 X 1.50 FLAT
28 89051 2 WHEEL, VAC SHOE
29 E87261 1 BRKT, VAC SHOE ADJ. WELDMENT
30 E87442 1 CUFF, BLK VAC HOSE
31 E87443 1 HOSE, 1.5 BLK VAC X 30
BFP20 86038490 05/11/07 5-10

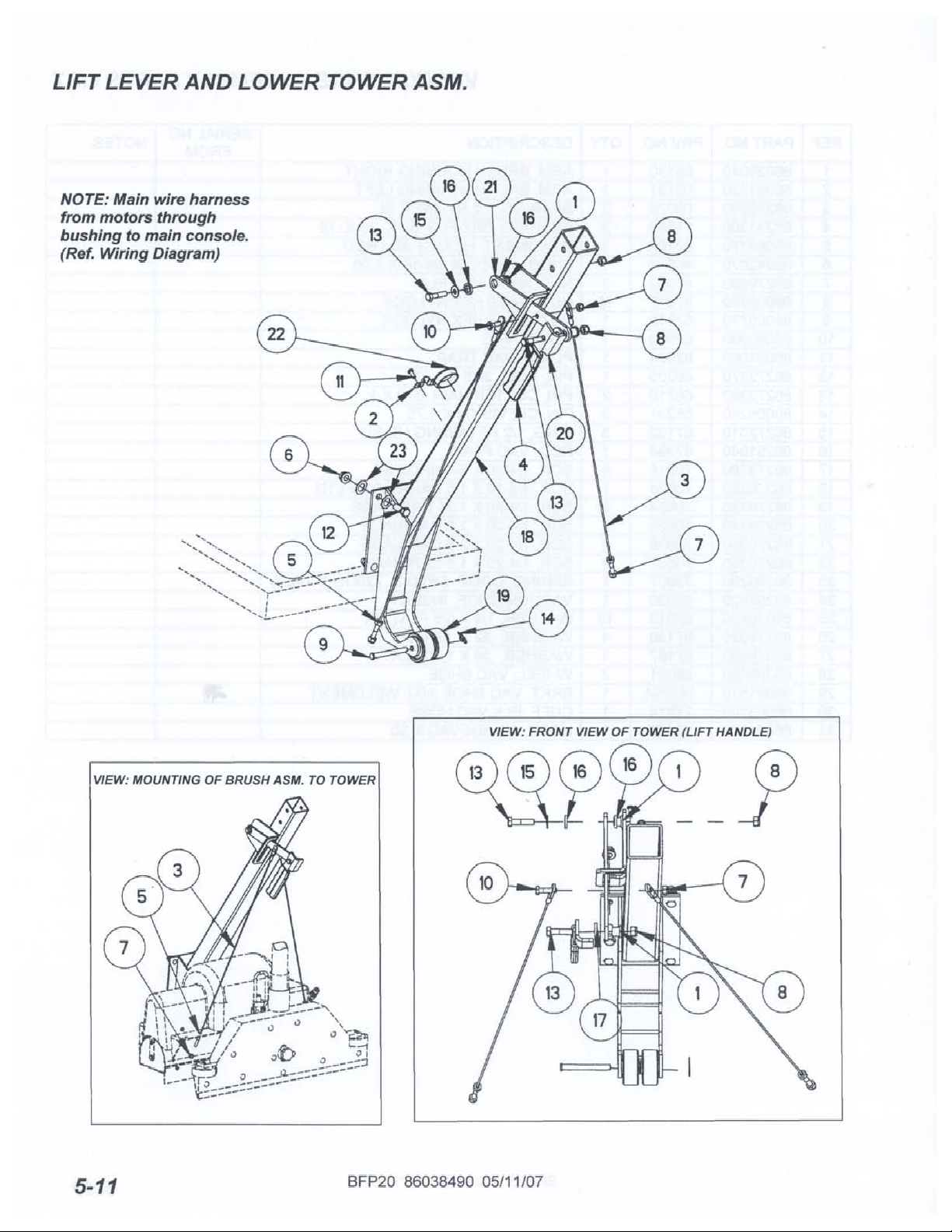

LIFT LEVER AND LOWER TOWER ASSEMBLY
PARTS LIST
Item SKU QTY Description
1 E87539 2 BEARING, FLANGED.3131D X.5020D
2 20086 1 CLAMP, CORD
3 E87438 2 CABLE, 25 X 3/32 X 1/4 EYE X 1/4 STUD
4 E87162 1 GRIP, 3/16 X 1.0 FLAT BAR
5 E87441 2 NUT, 1/4-20 HEX
6 E87260 4 NUT, 3/8-16 HEX FLG
7 E85358 3 NUT, 1/4-20 HEX NYLOCK
8 E81063 2 NUT, 5/16-18 HEX NYLOCK
9 E87597 1 PIN, CLEVIS 5/16 X 2.75
10 70018 1 SCR, 1/4-20 X 1.00 HHCS SS
11 70187 2 SCR, 10-24 X 1/2 PHTC -F12 E87637 4 SCR, 3/8-16 X 1.00 HHCS GR5
13 E87239 2 SCR, 5/16-18 X 1.25 HHCS GR5
14 E87598 1 COTTER, 5/16 RING
15 E87623 1 WASHER, 5/16 X 3/4 SS
16 E83269 2 WASHER, WAVE 1/21D X 3/4D X.125
17 E87693 1 WASHER, 1/2 X 1.00 NYL
18 E87697 1 WELDMENT, POST LOWER CONTROL
19 E87538 2 WHEEL, 20D X.31 ID X.88W PLASTIC
20 E87163 1 BRKT, LIFT LEVER HANDLE
21 E87590 1 BRKT, LIFT LEVER BASE
22 140317 1 BUSHING, 1.5 HOLE SNAP
23 87024 8 WASHER, 3/8 STAR
BFP20 86038490 05/11/07 5-12

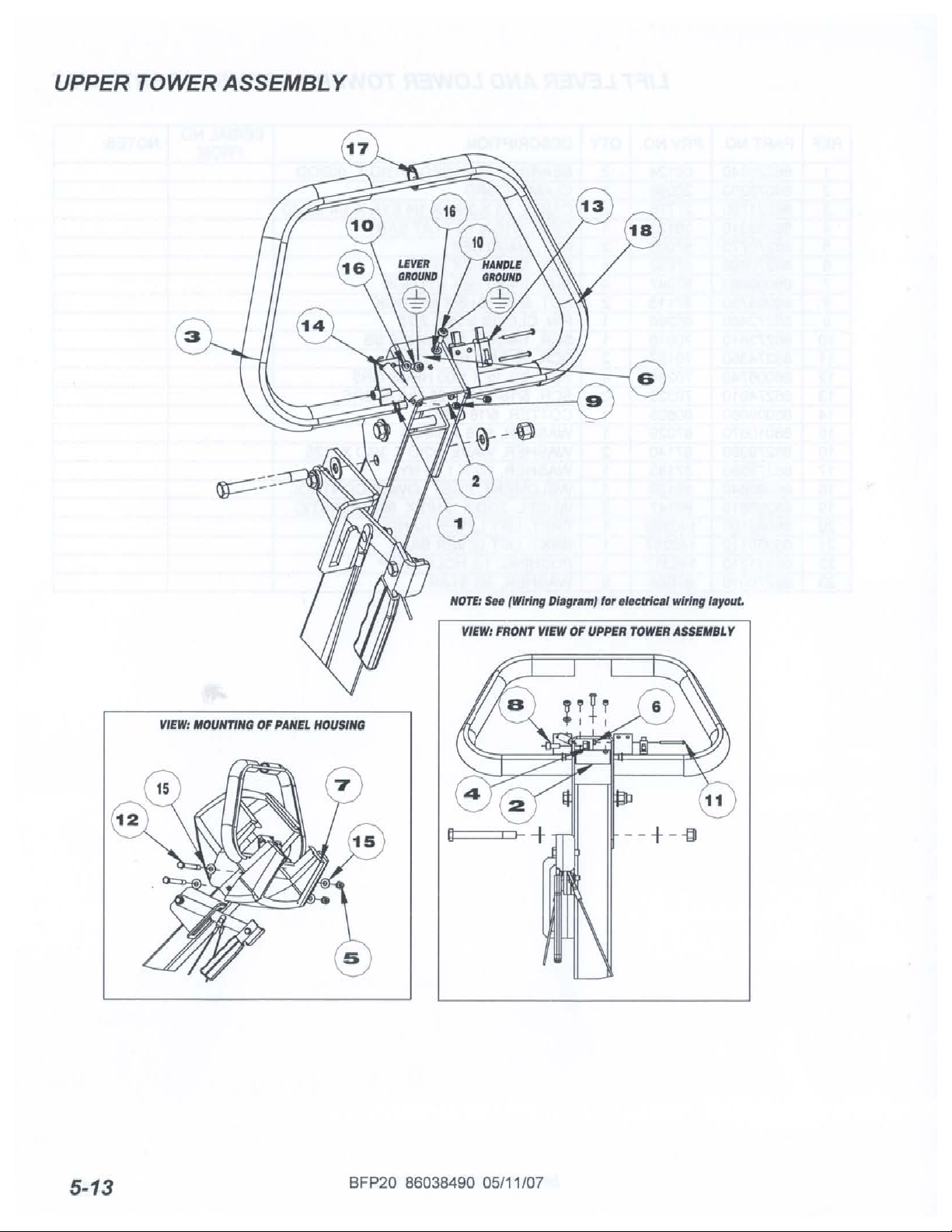

UPPER TOWER ASSEMBLY PARTS LIST
Item SKU QTY Description
1 9128 2 BEARING, 1/4 NYLINER SI
2 27779 1 COLLAR, .750D X.281 ID X 1.875
3 E87412 2 GRIP, .8131D X .085W X 13.OL PVC
4 E85358 1 NUT, 1/4-20 HEX NYLOCK
5 E87636 2 NUT, 3/8-16 HEX NYLOCK
6 57163 2 NUT, 4-40 HEX W/ STAR
7 61346 1 PANEL, CONTROL
8 70094 1 SCR, 1/4-20 X 1/2 SHCS
9 E87259 2 SCR, 1/4-20 X 1/4 SH KCP
10 70187 2 SCR, 10-24 X 1/2 PHTC -F11 70401 2 SCR, 4-40 X 1.25 PPHMS
12 70554 2 SCR, 3/8-16 X 3.50 HHCS GR5
13 E87529 2 SWITCH, 10A ROLLER MINI
14 73210 1 SPRING, EXT.36D X 1.5L X.058W
15 E87638 4 WASHER, 3/8 X 7/8 FLAT SS
16 E87560 2 WASHER, #10 EXT STAR SS
17 89133 1 HANDLE, WELDMENT
18 89138 1 WELDMENT, PROPEL CONTROL
BFP20 86038490 05/11/07 5-14
CONTROL PANEL ASSEMBLY PARTS LIST
Item SKU QTY Description
1 E87352 1 BREAKER, 250VAC, 50VDC
2 E87503 1 BREAKER, 15A 250VAC, 50VDC
3 E87504 1 BREAKER, 6A VDE
4 E87505 3 BOOT, 3/8 CIRCUIT BREAKER
5 E87404 1 CORD ASM, 12/3 PIGTAIL X 24"
6 27417 1 CORD, 99807 1/8 X 12
7 E87409 1 CONTROL PROPEL BOARD 115/240V
8 27795 1 COVER, PROPEL BOARD
9 E87344 1 KNOB, SPEED CONTROL
10 E87981 1 LABEL, CONTROL PANEL
11 57026 2 NUT, 8-32 HEX NYLOCK
12 57040 1 NUT, 1/2 NPT CONDUIT
13 57106 2 NUT, 8-32 HEX W/ STAR
14 E87293 1 PLATE, CONTROL PANEL
15 70219 2 SCR, #6 X 1/2 SHT MTL BLK
16 E87541 4 SCR, #10 X 3/8 PHSM TYPE B BLK
17 E87405 1 SWITCH, DPDT 2-POSITION ROCKER
18 E87609 1 SWITCH, SPST 2-POSITION ROCKER
19 87100 4 WASHER, 3/8 INT STAR
20 E87294 2.8' GASKET, 1/8 X 1/2 1SDA FOAM BLK
21 500235 1 CARD, INSTRUCTION
22 500079 1 LABEL, CIRCUIT BREAKER
23 50279 1 LABEL, GROUND SYMBOL
24 27049 1 CABLE TIE, 7"
25 5153 1 ANCHOR, CABLE TIE #8 MOUNT
26 57049 1 NUT, 6-32 HEX NYLOCK
BFP20 86038490 05/11/07 5-16
SOLUTION TANK ASSEMBLY PARTS LIST
Item SKU QTY Description
1 20042 1 CLAMP, 3/8 WORM GEAR
2 E87613 2 CLAMP, 2.25 WORM GEAR
3 20063 1 CLAMP, 1.75 WORM GEAR X.312
4 E87442 1 CUFF, BLK VAC HOSE
5 27417 1 CORD, 99807 1/8 X 12
6 35226 1 GASKET, DOME 91D X 30.75L
7 39337 1 HOSE, 1.5 BLUE VAC X 24
8 E87633 1 HOSE, 2" VAC X 20"
9 E87251 1 HOSE, DRAIN X 44"
10 E87496 1 HOSEBARB, 1/2 MPT X 3/8 NYLON
11 E87497 1 HOSEBARB, 1/2 MPT X 1/2 HOSE 90
12 E87393 1 LID, SOLUTION TANK
13 E87406 - VAC MOTOR ASSEMBLY
- E87161 - BRUSH SET, 120V 5.7 VAC AMETEK
- E87271 - BRUSH SET, 120V VAC WINDSOR
14 E85358 4 NUT, 1/4-20 HEX NYLOCK
15 62691 1 PLATE, VAC MOTOR
16 62754 1 PLATE, VAC MOTOR COOLING
17 70018 4 SCR, 1/4-20 X 1.00 HHCS SS
18 70187 1 SCR, 10-24 X 1/2 PHTC -F19 70375 6 SCR, 5/16-18 X 1/2 HHCS GR5
20 E87471 1 TANK, SOLUTION
21 E87414 4 WASHER, 1/4 X 5/8 FLAT SS
22 E87560 1 WASHER, #10 EXT STAR SS
23 E87623 6 WASHER, 5/16 X 3/4 SS
24 87067 6 WASHER, 5/16 INT STAR
BFP20 86038490 05/11/07 5/18
RECOVERY TANK ASSEMBLY PARTS LIST
Item SKU QTY Description
1 14665 1 BRKT, PT17 SIGHT TUBE
2 E87615 1 TETHER, DRAIN PLUG
3A E85458 3 CLAMP, 2.0 WORM GEAR X.312
3B E85358 1 CLAMP, 2.0" NYLON RATCHET
5 27765 1 COVER, CMD20 REAR
6 E87407 1 DOME, CMD20
7 E87408 1 FLOAT BALL, VAC SHUT OFF
8 E87489 1 GASKET, 1-1/2 COMPRESSION
9 E87410 1 GASKET, CMD20 DOME
10 E87616 1 HOSE, 1.5 X 24.0 DRAIN
11 40013 1 HOSEBARB, 3/8MPT X 1/2HOSE
12A E87168 1 HOSE, INSERT
12B E87619 1 HOSEBARB, 1.5 DOUBLE MCHD
13 50911 1 LABEL, CMD20 RIGHT
14 50912 1 LABEL, CMD20 LEFT
15 E87515 4 NUT, 10-32 HEX NYLCK
16 E87490 1 NUT, 1.5 SLIP JOINT
17 57044 1 NUT, 3/8 NPT HEX BRASS
18A E87573 1 HOSE,CAP
18B E87620 1 PLUG, DRAIN HOSE
19 E87244 4 SCR, 10-32 X 5/8 PPHMS
20 70274 6 SCR, 5/16-18 X 3/4 FHMS BLK OX
21 70302 1 SCR, 5/16-18 X 1.00 HHCS GR5
22 75244 1 TANK, RECOVERY CMD 20
23 78390 1 TUBE, 1.5 WASTE
24 E87561 8 WASHER, #10 X 9/16 FLAT
25 E87623 1 WASHER, 5/16 X 3/4 SS
26 87067 1 WASHER, 5/16 INT STAR
27A 140408 1 BRKT, HOSE HOOK
27B E87563 1 BRKT, RECOVERY HOSE MTG
28 E87542 1 CUFF, HOSE 1.5" BLK A 2126
29 E87252 1 HOSE, 1.5 BLK VAC X 52"
30 E87551 1 LABEL, BETCO LOGO (GRAY)
31 E87411 - DOME ASSEMBLY
BFP20 86038490 05/11/07 5-20
SUGGESTED SPARE PARTS
SKU Description
E87500 BEARING, 1.1250D X .5001D X .375
E87402 BELT, BRUSH DRIVE
E87741 CORD SET, 14.3 SJTW-A X 50' YELLOW
E85135 CORD END, 125V 15A M NEMA5-15P
E87442 CUFF, BLK 1.91D VAC HOSE X 4.07
E87410 GASKET, DOME
36054 GUARD, THREAD
E87252 HOSE, 1.5 BLU VAC X 52"
44051 JET SEAL, MINI-QUICK
44062 JET, 110015 MINI-QUICK
72004 SWITCH, 125V SPST LIT RCKR
73250 STRAINER, 3/8 FPT 80 MESH
E87402 BELT, TIMING.375P 16.5PL .5W
E87403 BRUSH, 18L X 4.50D
E87352 BREAKER, 8A CIRCUIT
E87503 BREAKER, 15A 250VAC 50VDC
E87504 BREAKER, 6A VDE CIRCUIT
E87438 CABLE, 25 X 3/32 1/4 EYE X 1/4 STUD
E87411 DOME ASM
E87410 GASKET, DOME
39315 HOSE, 1.5 BLU VAC X 28"
E87719 IDLER ASM, BRUSH
E87728 JET, MINI PROMAX 9504
E87406 VAC MOTOR ASM
E87488 MANIFOLD ASM
E87596 PULLEY ASM, BRUSH
E87401 PUMP ASM, 115V
E87405 SWITCH, DPDT 2-POSITION ROCKER
E87609 SWITCH, SPST 2-POSITION ROCKER
E87599 SCREEN, 80 MESH STRAINER DEEP
E87726 SOLENOID ASM
E87161 BRUSH SET, 120V 5.7 VAC AMETEK
E87271 BRUSH SET, 120V VAC WINDSOR
BFP20 86038490 05/11/07 05-21
BETCO US WARRANTY POLICY
10 year coverage
Subject to the conditions stated below,
Betco warrants parts and labor on
rotationally molded polyethylene tanks/
housings and injection molded vacuum
head assemblies to be free from defects
in materials and workmanship for
a period of ten years to the original
purchaser.
Allowable Travel Time Warranty Reimbursement:
Eligible equipment: All battery and propane powered equipment products. Warranty period: 90 days from date of sale to the
original purchaser. A maximum 180 mile round trip at 50 cents per mile will be allowed for warranty consideration.
3 Year Coverage
Subject to the conditions stated below,
Betco warrants parts and labor on all
other Betco components to be free from
defects in materials and workmanship
for a period of three years to the original purchaser.
1 Year Coverage
Subject to the conditions stated below,
Betco offers a limited warranty on parts
and labor on the following equipment:
parts and accessories to be free from
defects in materials and workmanship
for a period of one year to the original
purchaser.
• PowerUp™ 14 Upright Vacuum:
#E29990-00
• Bac Pac Lite Vacuum: #85903-00
• FiberPRO® Floor Dryer: #85507-00
• WORKMAN™ Series Vacuums:
#85024-00, #85025-00, #83012-00,
#85027-00
• All Tools and Accessories
• All Battery Chargers
• All Batteries are pro-rated for 1 year
Propane Machine Warranty:
Kawasaki engines are warranted by Kawasaki for a period of 2 years against manufacturer defects. All other components
(except wear items)* are warranted by Betco for a period of 3 years.
*Wear Items exempt from Warranty consideration include but may not be limited to: power cords, transport wheels,
vacuum bags, belts, squeegee blades, pad drivers, clutch plates, handle grips, filters, screens, throttle cables, brushes
and carbon brushes.
Subject to the conditions and exceptions stated in this warranty, Betco warrants the Betco products to be free from defects in
material and workmanship, under normal use and service, for the periods listed under the warranty policy to the original purchaser. At any time during the warranty period, Betco will furnish replacement parts for the Betco parts to the original purchaser. Such parts will be furnished and charged including transportation costs, to the original owner through any Betco authorized
Service Distributor. If the original part is returned within the warranty policy period from date of delivery for inspection by
Betco and is found to be defective the owner will be credited for the cost of replacement parts plus shipping and handling.
Replacement parts that have become defective through wear or abuse are not included in this warranty.
This warranty does not apply to damage or defect caused by accident, misuse. Negligence, fire, or to any Betco product which
has been serviced or repaired by other than an authorized Betco Service Distributor or Betco factory personnel. This warranty
is void if products are used for any purpose other than that which was intended. There are no other warranties expressed or
implied. In no event shall Betco be liable for incidental or consequential damages or any damage to person or property. (Please
note some states do not allow the exclusion or limitations for incidental and consequential damages).
16
Customer Service: 888-GO-BETCO • Fax: 800-445-5056 • Technical Service: 877-856-5954 • www.betco.com
1001 Brown Avenue • Toledo, Ohio 43607-0127
Sept15
Loading...
