Page 1

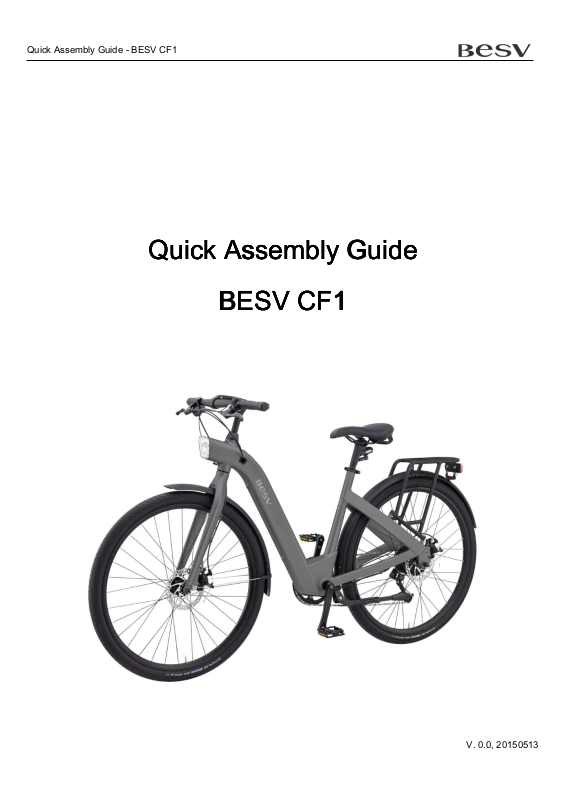

Quick Assembly Guide - BESV CF1
Quick Assembly Guide
Quick Assembly Guide
Quick Assembly GuideQuick Assembly Guide
BESV CF
BESV CF1111
BESV CFBESV CF
V. 0.0, 20150513
Page 2
Quick Assembly Guide - BESV CF1
Contents
1. What’s in the Box ......................................................................................................................................... 2
1.1 Main Box Contents .......................................................................................................................... 2
1.2 Accessary Box Contents ................................................................................................................ 2
2. Assembly Procedures ................................................................................................................................. 3
2.1 Stem and Handlebar ....................................................................................................................... 3
2.2 Pedal .................................................................................................................................................. 5
2.3 Seat Post and Saddle Set .............................................................................................................. 6
3. Checklist ........................................................................................................................................................ 7
1
Page 3
Quick Assembly Guide - BESV CF1
1. What’s in the Box
1.1 Main Box Contents

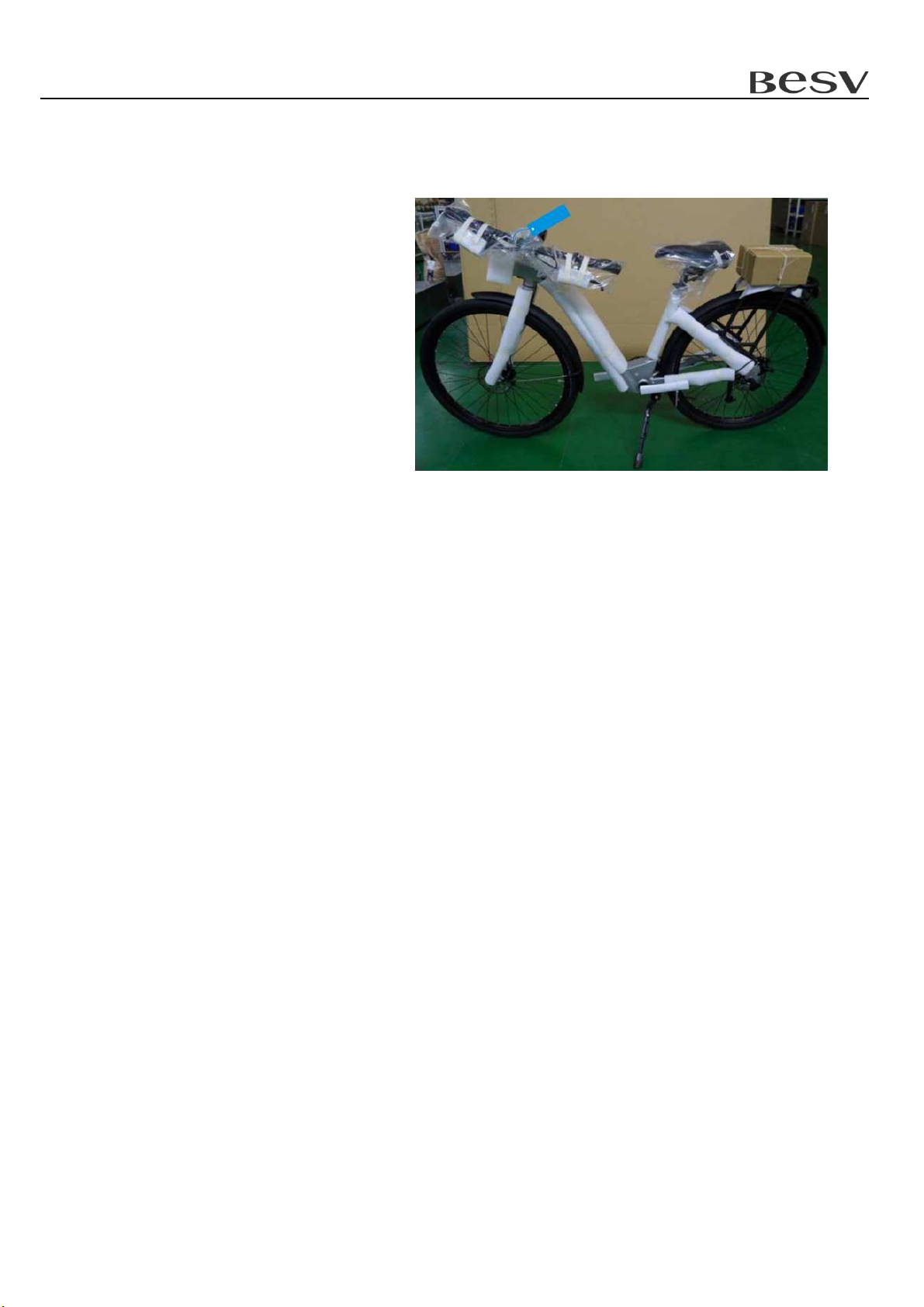

1. Main Bike Assembly
2. Accessary Box
3. Saddle/Seat Post Set
1.2 Accessary Box Contents
1. User Manual
2. Charger
3. Pedal
4. Keys for Seat Post Lock
2
Page 4
Quick Assembly Guide - BESV CF1
a
b
2. Assembly Procedures

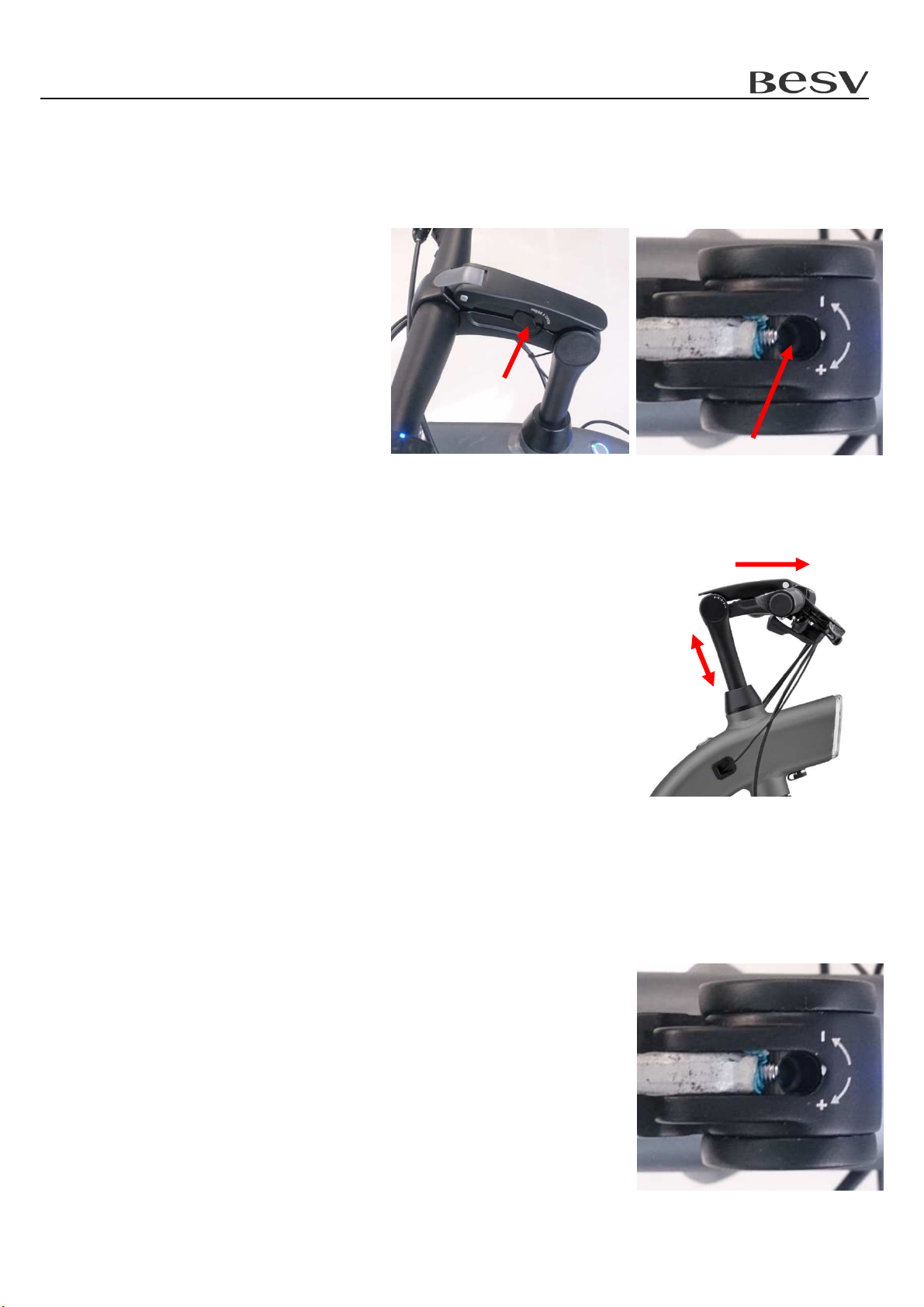

2.1 Stem and Handlebar
2.1.1 Loosen stem fixing screw
Press button(a) on the side
to open stem lever, and
loosen the screw(b) inside.
2.1.2 Adjust stem height and orientation
Adjust stem to proper height and face forward.
Note: Stem should be inserted over minimum insert
marking.
2.1.3 Tighten stem fixing screw
3
Page 5
Quick Assembly Guide - BESV CF1

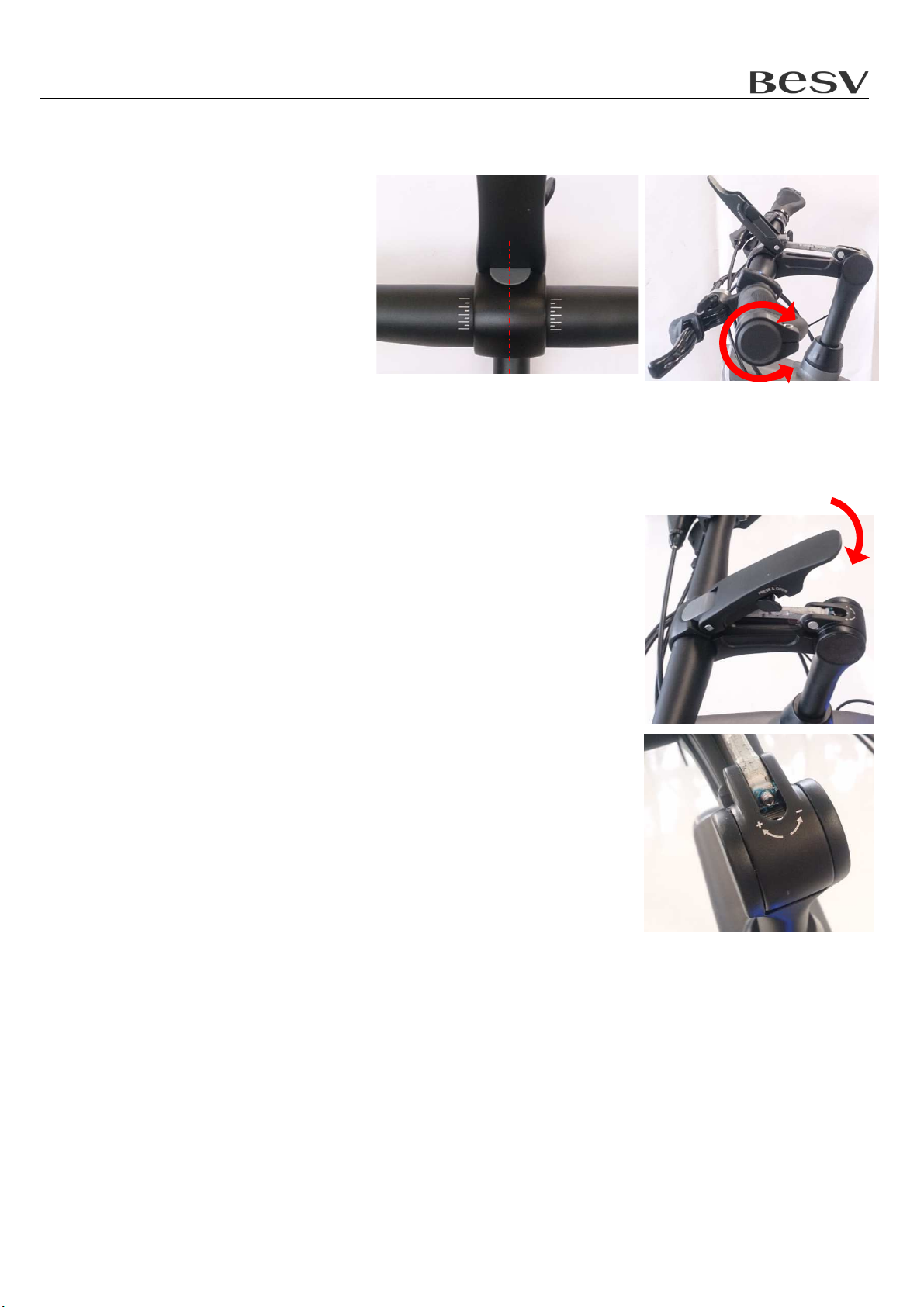

2.1.4 Adjust handlebar
Adjust handlebar to center of
the stem and rotate to proper
angle.
2.1.5 Closure stem lever
Closure stem lever. If stem lever is loosen, adjust the screw on
the stem, “+” to tighten, “-“ to loosen.
Note : Lever closure min force 12 ~15kgf.
Finish stem and handlebar assembly.
4
Page 6
Quick Assembly Guide - BESV CF1
R

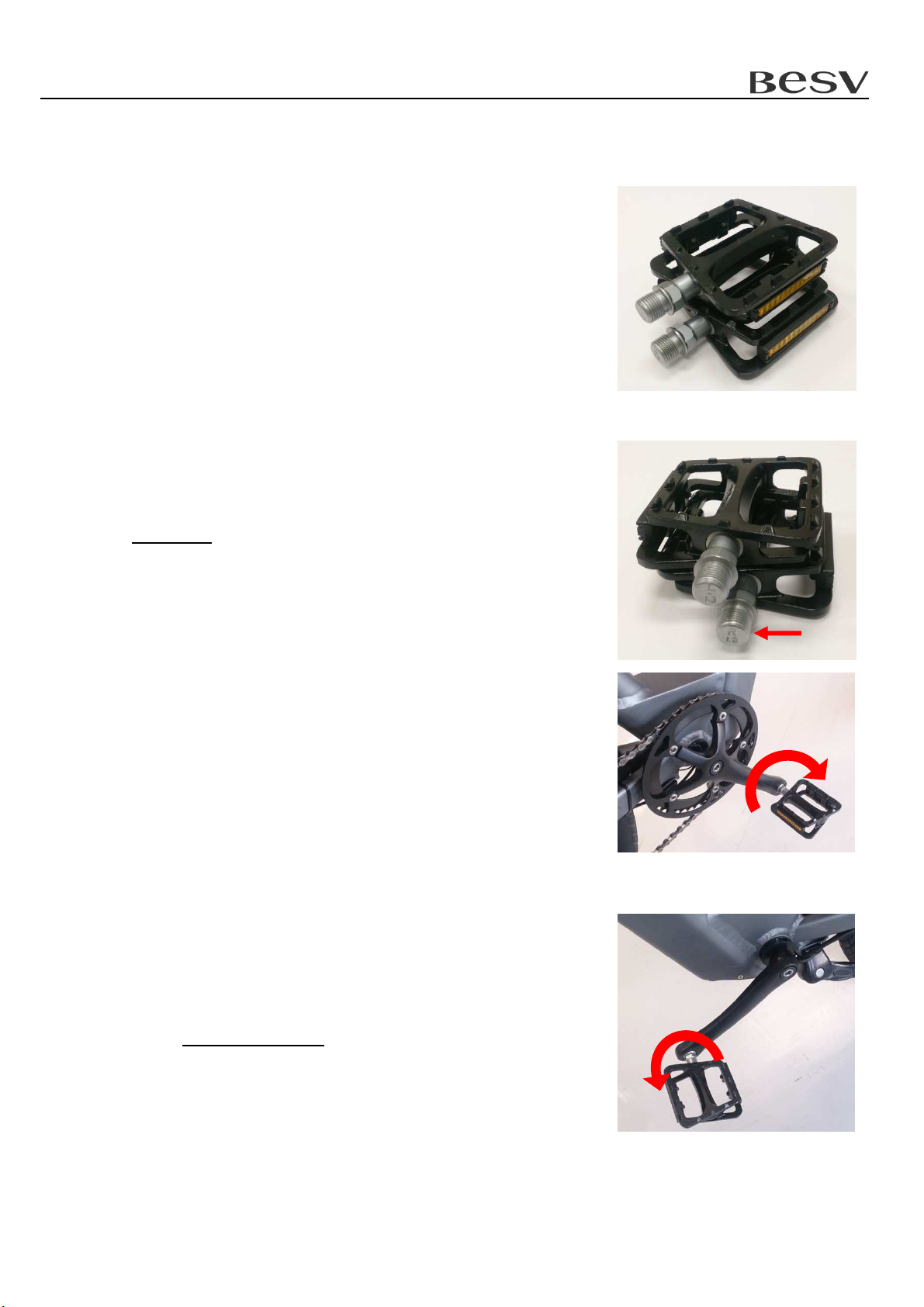

2.2 Pedal
2.2.1 Take out the pedal in the box.
2.2.2 Set up the right pedal.
Assemble the pedal with marking “R” onto the right crank
clockwise
clockwise and tighten it.
clockwiseclockwise
2.2.3 Set up the left pedal
Assemble the other one with marking “L” onto the left
crank counterclockwise
Finish pedal assembly.
counterclockwise and tighten it.
counterclockwisecounterclockwise
5
Page 7
Quick Assembly Guide - BESV CF1
Min 10cm

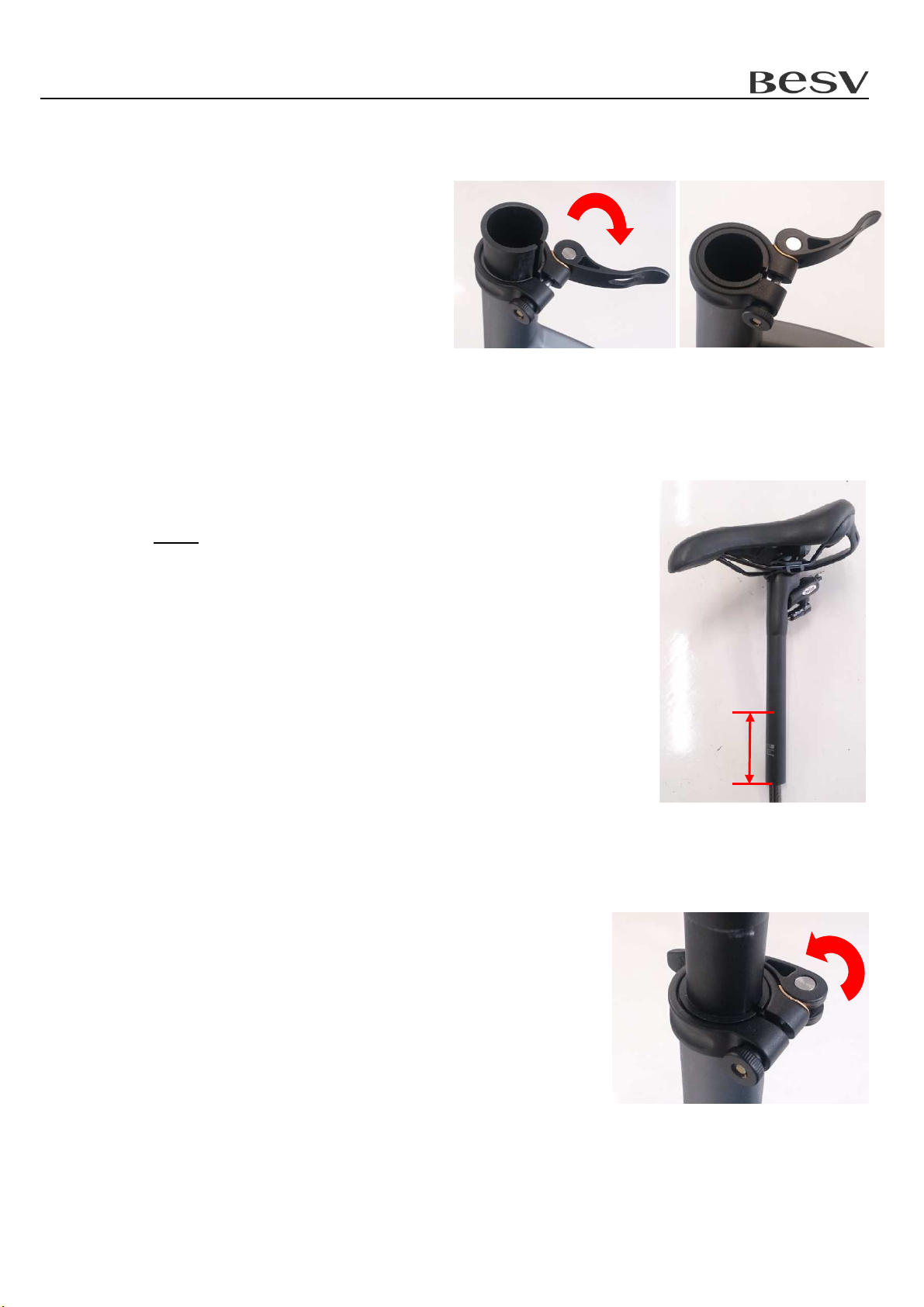

2.3 Seat Post and Saddle Set
2.3.1 Open seat clamp, make sure the
slit on the shim is aligned to the slit
on the frame, and then push the
shim to bottom.
2.3.2 Insert seat post
Note
Note : Regardless of the minimum insert marking,
Note Note
seat post should be inserted at least 10cm.
2.3.3 Adjust saddle to proper height and face forward, then
closure seat clamp.
Finish seat post and saddle set assembly.
6
Page 8
Quick Assembly Guide - BESV CF1
3. Checklist
3.1 Check the tire pressure is normal.
3.2 Check the function of the brakes, derailleur, and chain.
3.3 Check the function of the electric module and the battery power. Please refer to CF1 user
manual.
Finish BESV CF1 Quick Assembly.
7
