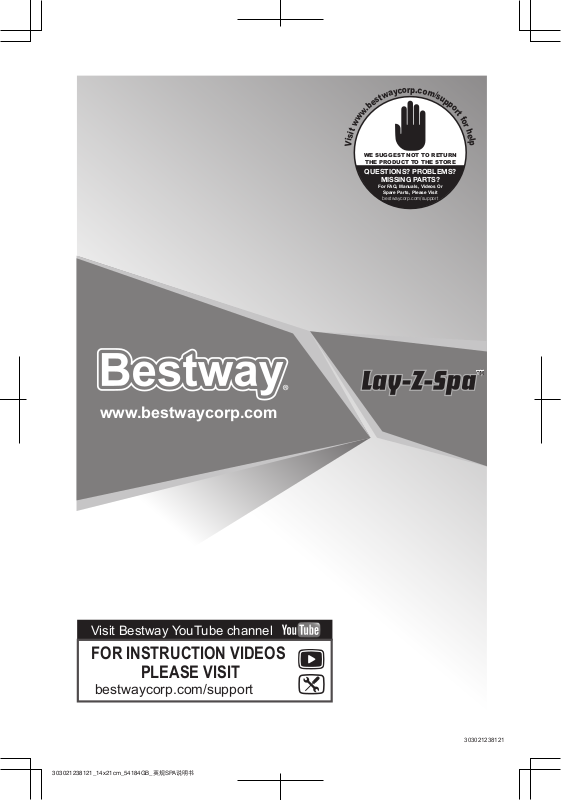

Page 1

www.bestwaycorp.com

WE SUGGEST NOT TO RETURN

THE PRODUCT TO THE STORE

QUESTIONS? PROBLEMS?

MISSING PARTS?

For FAQ, Manuals, Videos Or

Spare Parts, Please Visit

bestwaycorp.com/support

Visit Bestway YouTube channel

FOR INSTRUCTION VIDEOS

PLEASE VISIT

bestwaycorp.com/support

303021238121_14x21cm_54184GB_英规SPA 说明书

303021238121

Page 2

303021238121_14x21cm_54184GB_英规SPA 说明书

Page 3

CONTENTS

1. Safety Instructions .................................................................................................................................

2. Installation ................................................................................................................................................

3. Pump Operation ........................................................................................................................................

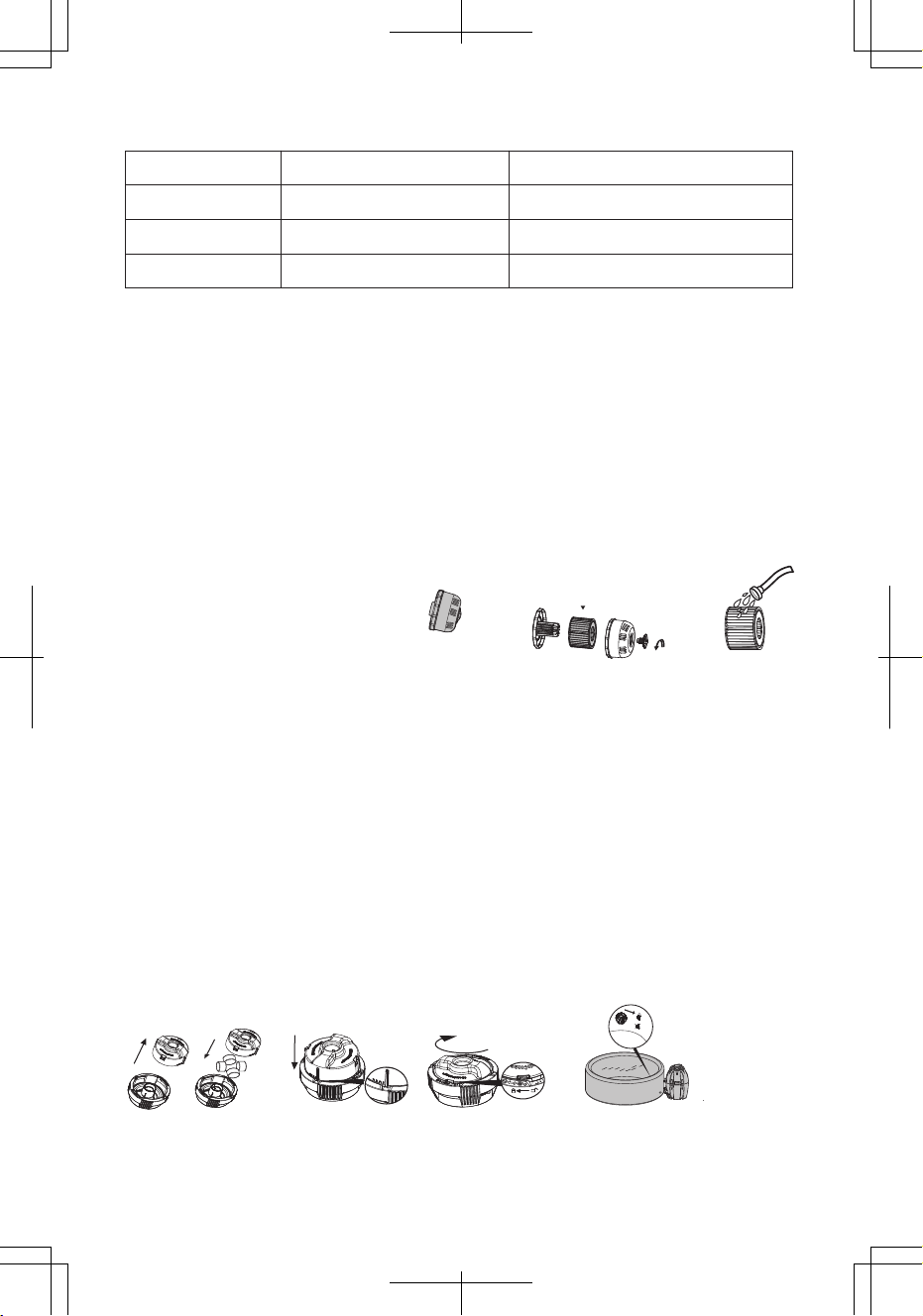

4. Maintenance .............................................................................................................................................

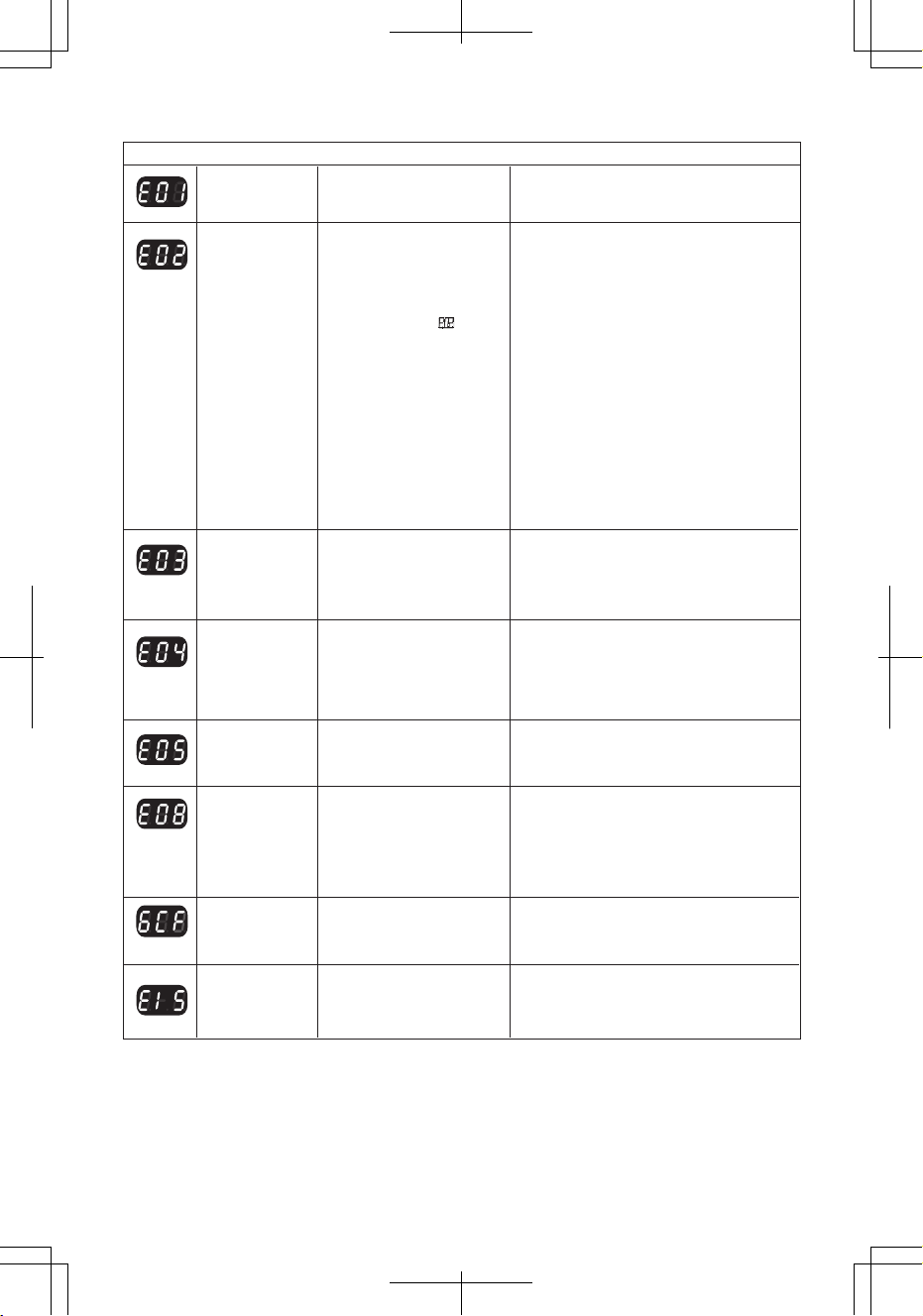

5. Troubleshooting .......................................................................................................................................

SAFETY INSTRUCTIONS

Carefully read, understand, and follow all information in this user

manual before installing and using the spa.

IMPORTANT SAFETY INSTRUCTIONS - READ AND FOLLOW

ALL INSTRUCTIONS.

WARNING:

• The spa must be supplied through an isolating transformer or supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30mA.

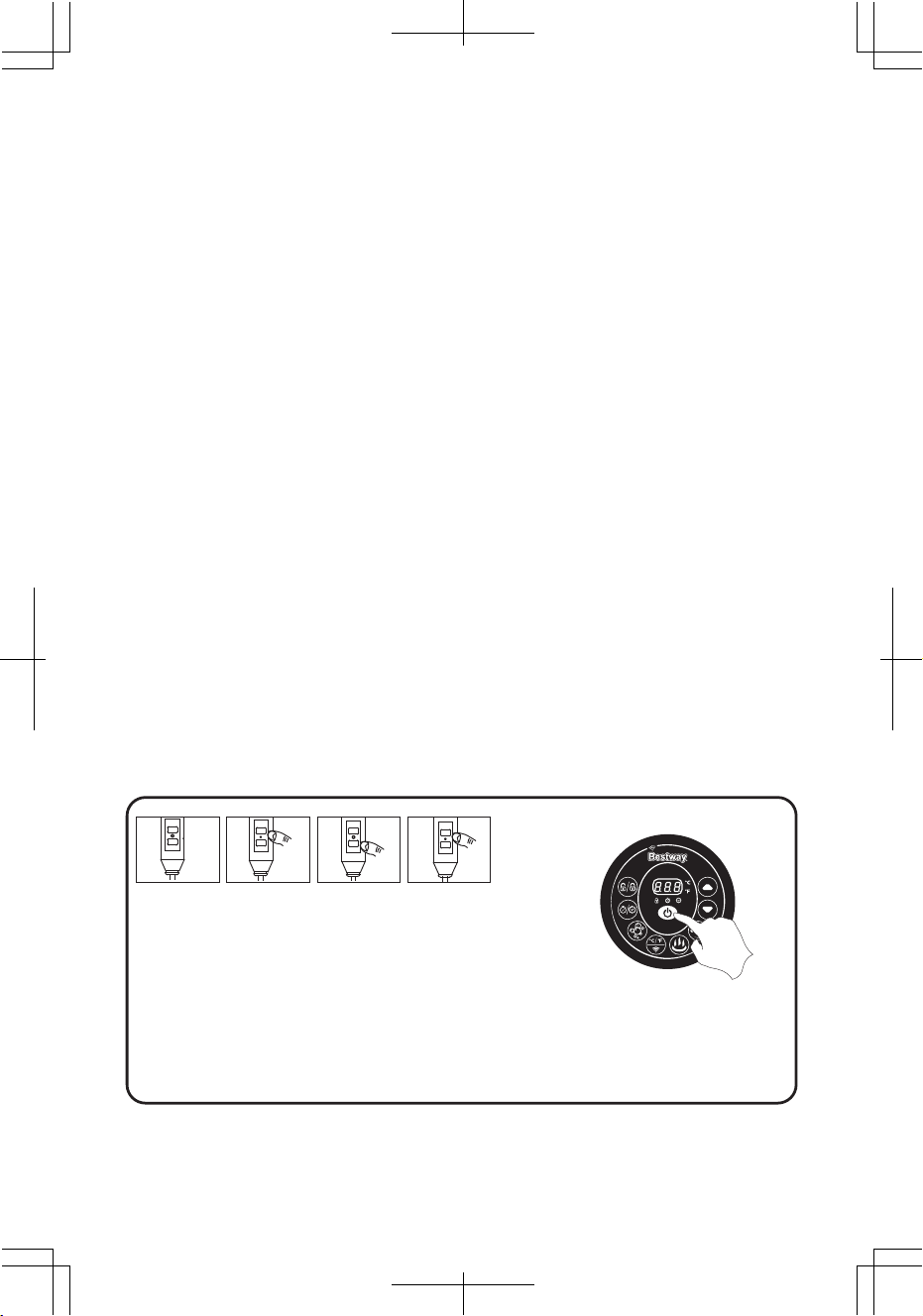

• The pump must be tested before each use, to test follow the instruction of pump.

• If the supply cord is damaged, it must be replaced by the manufacturer, service agent or similarly qualified persons in order to avoid a hazard.

• To reduce the risk of electric shock, do not use extension cord to connect unit to electric supply; provide a properly located outlet.

• No part of the appliance is to be located above the bath during use.

• Parts containing live parts, except parts supplied with safety extra-low voltage not exceeding 12V, must be inaccessible to a person in spa pool; Parts incorporating electrical components, except remote control devices, must be located or fixed so that they cannot fall into the spa pool.

• The spa must be supplied by earthed power source.

• Warning: Always keep plug dry, plug in with wet plug is

definitely forbidden!

• The plug shall be directly connected only to a socket-outlet of the fixed electrical installation.

• It is necessary to have the plug accessible after installation of the spa.

CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by

P3 P10 P15 P18

P20

303021238121_14x21cm_54184GB_英规SPA 说明书

Page 4

the utility. After using your spa for 3-5 years, you should contact your local qualified maintenance technician to ensure the safety and performance of the spa. The main components, such as heating element, air blower motor and non-return valves within the electric unit should be checked and replaced (if necessary) by professional persons.

• TO AVOID ELECTRIC SHOCK, DO NOT USE THE SPA WHEN

IT IS RAINING,THUNDERING OR LIGHTNING.

• Never wear your contact lenses when in your spa.

• Do not use spa during chemical maintenance.

• Extension cords can’t be used.

• Don’t plug or unplug the appliance if hand is wet.

• Always unplug the appliance:

- before cleaning or other maintenance

- if leave it unattended on holidays

• When the appliance will be not used for a long time, such as in

the winter, the spa or pool set should be disassembled and stored indoor.

• For safety reason, only use the accessories provided or

approved by the spa manufacturer.

• Do not to place the spa on slippery surface , and to make sure

the surface is free of sharp object before installation.

• Never place any electrical supplies or appliance, such as a light,

telephone, radio, or television, within 2m of spa.

• Caution: Read the instruction before using the appliance and

installation or reassemble every time.

• Safekeeping the instruction. If instruction is missed, please

contact with manufacturer or search it in website www.bestwaycorp.com

• Warning: For electric safety, a PRCD is incorporated in the

power cord, if the leakage current is detected more than 10mA, the device will operate and cut-off the power supply, in such case, please unplug and stop using the spa at once. Don’t reset the product by yourself. And you must contact the local service agent to check and repair the product.

• This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

303021238121_14x21cm_54184GB_英规SPA 说明书

Page 5

Children shall not play with the appliance. (For EU market)

• Cleaning and user maintenance must be performed by an adult

above18 years old who is familiar with the risk of electric shock. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. (For market other than EU)

• Water attracts children; always attach a spa cover after each use.

• Do not bury cord. Locate cord to minimize abuse from lawn mowers, hedge trimmers, and other equipment.

• DANGER- Risk of Accidental Drowning (especially children under 5 years). Caution shall be exercised to prevent unauthorized access to the spa by children. This can be reached by adult supervisor securing the means of access or installing a safety protection device to the spa. To avoid accidents during spa use, ensure that children are kept under constant adult supervision.

• DANGER-Risk of Injury. The suction fittings in this spa are sized to match the specific water flow created by the pump. Should the need arise to replace the suction fittings or the pump, be sure that the flow rates are compatible. Never operate the spa if the suction fittings are broken or missing. Never replace a suction fitting with one rated less than the flow rate marked on the original suction fitting.

• RISK OF INJURY. Never operate spa if inlet / outlet pipes are broken or missing. Never attempt to replace the inlet / outlet pipes. Always consult your local Customer centre.

• RISK OF ELECTRIC SHOCK. Install at least 2m from all metal surfaces.

• RISK OF ELECTRIC SHOCK. Never operate any electrical appliance when in your spa or when your body is wet. Never place any electric appliance, such as a light, telephone, radio, or television, within 2m of spa.

• During pregnancy, soaking in hot water may cause damage to the fetus. Limit use to 10 minutes at a time.

• TO REDUCE THE RISK OF INJURY: A. The water in a spa should never exceed 40°C (104°F). Water

303021238121_14x21cm_54184GB_英规SPA 说明书

Page 6

temperature between 38°C (100°F) and 40°C (104°F) is considered safe and comfortable for a healthy adult. Lower water temperatures are recommended for young children and when spa use exceeds 10 minutes.

B. Since excessive water temperatures have a high potential for

causing fetal damage during the early months of pregnancy, pregnant or possibly pregnant women should limit spa water temperature to 38°C (100°F).

C. Before entering a spa, the user should measure the water

temperature with an accurate thermometer since the tolerance of water temperature regulating device varies.

D. The use of alcohol, drugs, or medication before or during spa

use may lead to unconsciousness with the possibility of drowning.

E. Obese persons and persons with a history of heart disease,

low or high blood pressure, circulatory system problems, or diabetes should consult a physician before using a spa.

F. Persons using medication should consult a physician before

using a spa since some medication may induce drowsiness while other medication may affect heart rate, blood pressure, and circulation.

G. Avoid putting the head under water at all times. H. Avoid swallowing spa water.

• TO REDUCE THE RISK OF INJURY: Never pour water with a

temperature higher than 40°C (104°F) into the spa pool directly.

• The use of alcohol, drugs, or medication can greatly increase the risk of fatal hyperthermia. Hyperthermia occurs when the internal temperature of the body reaches a level that is several degrees above the normal body temperature of 37°C (98.6°F). The symptoms of hyperthermia include an increase in the internal temperature of the body, dizziness, lethargy, drowsiness, and fainting. The effects of hyperthermia include failure to perceive heat; failure to recognize the need to exit spa or hot tub; unawareness of impending hazard; fetal damage in pregnant women; physical inability to exit the spa or hot tub; and unconsciousness resulting in the danger of drowning.

• Electric installations should follow national wiring rules, consult a qualified electrician with any questions.

• These warnings, instructions, and safety guidelines address some common risks of water recreation, but they cannot cover all risks and dangers in all cases. Always use caution, common

303021238121_14x21cm_54184GB_英规SPA 说明书

Page 7

sense, and good judgment when enjoying any water activity. Retain this information for future use.In addition, the following information can be supplied depending on the spa type: Non Swimmers safety

- Continuous, active, and vigilant supervision of weak swimmers

and non-swimmers especially in exercise spas, by a competent adult is required at all times (remembering that children under five years of age are at the highest risk of drowning).

- Designate a competent adult to supervise the spa each time it

is being used.

- Weak swimmers or non-swimmers should wear personal

protection equipment, especially when using the exercise spa.

- When the spa is not in use, or unsupervised, remove all toys

from the spa and its surrounding area to avoid attracting children to the spa.

Safety devices

- A safety cover or other safety protection device shall be used,

or all doors and windows (where applicable) shall be secured to prevent unauthorized access to the spa.

- Barriers, covers, alarms, or similar safety devices are helpful

aids, but they are not substitutes for continuous and competent adult supervision.

Safety equipment

- It is recommended to keep rescue equipment (e.g. a ring buoy)

by the spa (if appropriate).

- Keep a working phone and a list of emergency phone numbers

near the spa.

Safe use of the spa

- Encourage all users especially children to learn how to swim.

- Learn Basic Life Support (Cardiopulmonary Resuscitation -

CPR) and refresh this knowledge regularly. This can make a life-saving difference in the event of an emergency.

- Instruct all spa users, including children, what to do in case of

an emergency.

- Never dive into any shallow body of water. This can lead to

serious injury or death.

- Do not use the spa when using alcohol or medication that may

impair the bather's ability to safely use the spa.

- When covers are used, remove them completely from the

water surface before entering the spa.

303021238121_14x21cm_54184GB_英规SPA 说明书

Page 8

- Protect spa occupants from water related illnesses by advising

them to keep water treated and practicing good hygiene. Consult the water treatment guidelines in the user's manual.

- Store chemicals out of the reach of children.

- Use the signage provided on the spa or within 2 000 mm of

the spa in a prominent visible position.

- Removable ladders, when removed, shall be stored safely

where children cannot climb on it

CONSULT YOUR PHYSICIAN FOR RECOMMENDATIONS.

CAUTION:

• Before assembly or take down, the spa should be set at room temperature for 24 hours.

• Do not use the spa alone.

• People with infectious diseases should not use a spa.

• Do not use the spa immediately following strenuous exercise.

• Always enter and exit the spa slowly and cautiously. Wet surfaces are slippery.

• Never operate the spa’s pump after deflation unless the spa is filled with water. Doing so could cause damage to the pump.

• Immediately leave spa if the user feels uncomfortable or sleepy.

• Never add water to chemicals. Always add chemicals to water to avoid strong fumes or violent reactions that may result in hazardous chemical spray.

• Regarding the information pertaining to cleaning, maintenance of water, and disposal of water, please see section "MAINTENANCE".

• Regarding the information pertaining to the installation, thanks to refer to the below paragraph of the manual.

NOTE:

• Please examine equipment before use. Notify Bestway at the customer service address listed on this manual for any damaged or missing parts at the time of purchase. Verify that the equipment components represent the models that you had intended to purchase.

• This product is not intended for commercial use.

Transmitter working frequency：2414~2472MHz

Transmitter maximum output power：20dBm

SAVE THESE INSTRUCTIONS

303021238121_14x21cm_54184GB_英规SPA 说明书

Page 9

To reach 40ºC (104ºF), the heating duration required is base on the starting water temperature and ambient

IMPORTANT !

temperature, the data below is purely for reference. To display the current water temperature, run the filter system for at least a minute.

Ambient Temperature

10ºC(50ºF)

15ºC(59ºF)

20ºC(68ºF)

25ºC(77ºF)

30ºC(86ºF)

Water Temperature

10ºC(50ºF)

15ºC(59ºF)

20ºC(68ºF)

25ºC(77ºF)

30ºC(86ºF)

Set Temperature

40ºC(104ºF)

Heating Duration

26.5 h

23.5 h

19 h

15 h

10 h

Be sure to cover the spa with the spa cover whenever the heating function is activated. Leaving the spa uncovered will increase the heating duration required. Please do not use the spa when ambient temperature is lower than -10ºC (14ºF).

Power Rate Massage Tube Power Heat Element Power Water Pump Power

220-240V AC, 50Hz, Single Phase 2,050W at 20ºC

800W

2,000W at 20ºC 50W

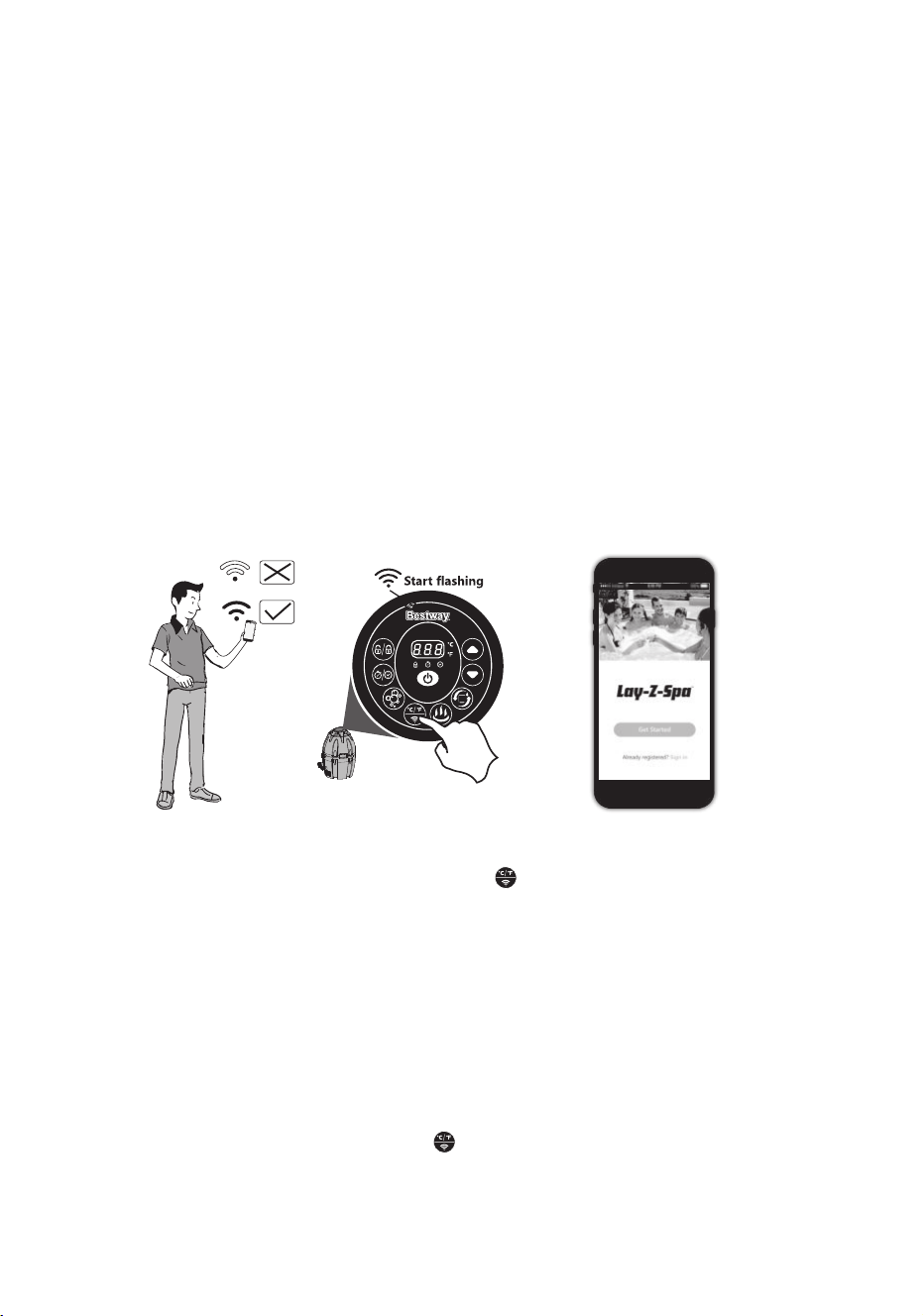

Get started with the Lay-Z-Spa App. Visit www.lay-z-spa.co.uk/app or download from the Apple App Store or Google Play Store – just search Lay-Z-Spa.

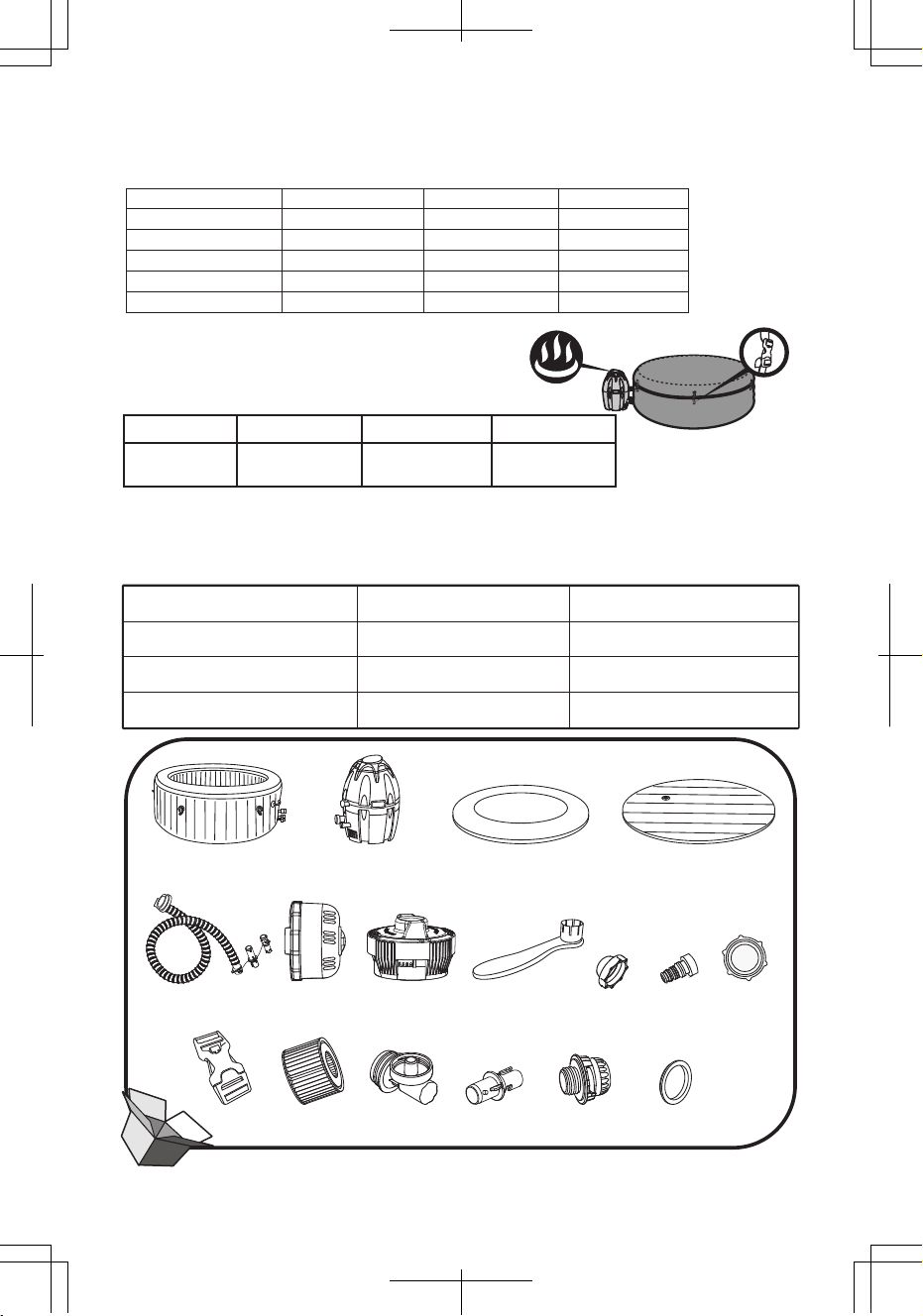

SPECIFICATIONS

Capacity:

Water Capacity (80%):

Inflated Size:

Filled Weight:

4-6 Adults

916 L (242 gal)

1.96m x 71cm (77’’ x 28’’)

954 kg (2,103 Lb) 40ºC (104ºF) 1.2PSI (0.08Bar)

Massaging Turbo Blower:

Heat Element:

Pump:

Temperature Capacities:

800W

2,000W at 20ºC

50W Circulation Filter Pump

Increased Heat Rate:

Actual Water Flow:

Power Rate:

Working Pressure:

Approximately

1.5-2ºC/h (3-4ºF/h)

1,325 L/h (350 gal/h)

220-240V AC, 2,050W at 20ºC

001 002 003 004

005 006 007 008 009 010 011

012 013 014 015 016 017

303021238121_14x21cm_54184GB_英规SPA 说明书

Page 10

001

002

003

004

005

006

007

008

009

010

011

012

013

014

015

016

017

P04602

P04642

P04471

P04470

P6930ASS18

P04674

P03821

F6H189ASS16

P6575ASS16

P6H565ASS16

P00217

F6414ASS16

58323

P61726ASS18

P61725ASS18

P00230

P6609ASS16

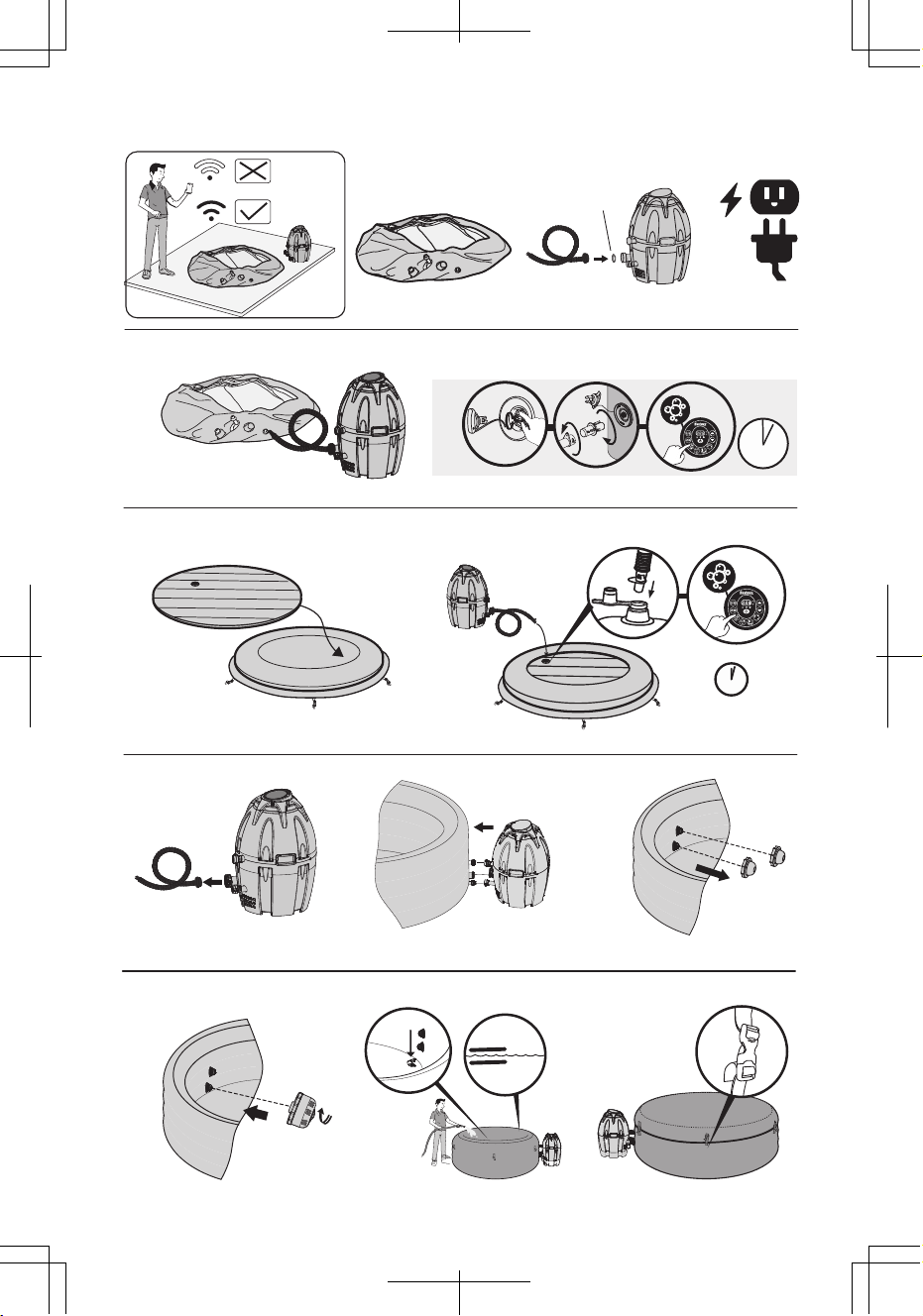

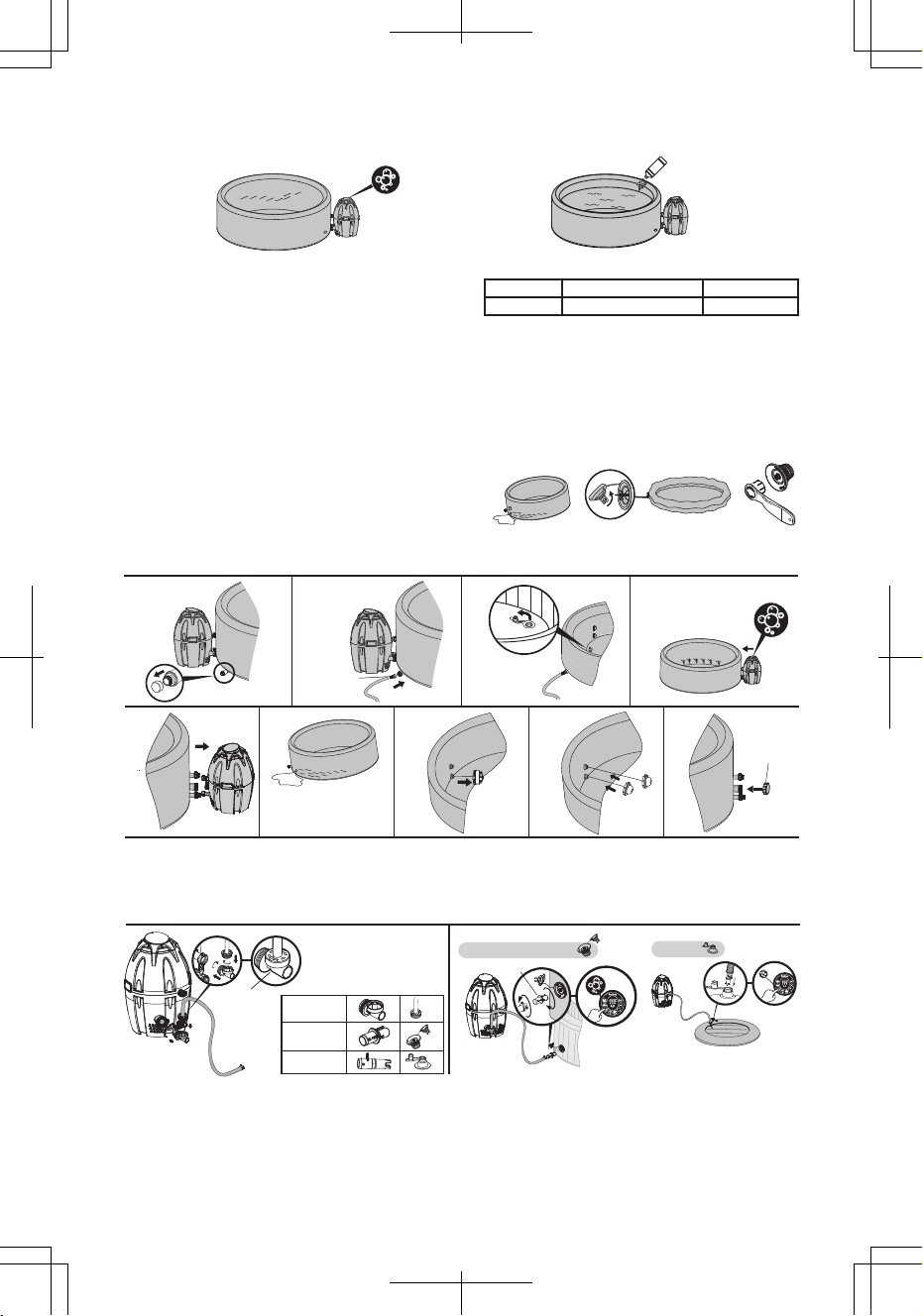

INSTALLATION

Selected Location

indoor and outdoor & above ground & portable wiring & portable spa

WARNING: The selected location has to be able to support of supporting the expected load. WARNING: An adequate drainage system has to be provided to deal with overflow water for both indoor and outdoor installations.

• Always keep the spa cover on to minimize heat loss during heating of the spa between uses (but not while it is being used). Ensure the cover is fitted tightly, as per instructions to maximize insulation. It shall be recommended that the cover, when not in use, should be kept off the ground to retain its cleanliness (particularly the surface in close proximity to the water spa water surface). The cover should be stored in an appropriate location, where it cannot be damaged, or cause damage.

• Check the set water temperature and consider lowering it for the times when the spa will typically not be in use.

• Depending on external conditions, consider turning off the heater entirely if not using the spa for an extended period of time (where the spa provides this option, but still maintains residual disinfection/pH-values).

• It is recommended to use an insulating ground cloth underneath the spa to minimize heat loss through the bottom of the spa.

• Maintain clean filters to preserve appropriate working conditions for the pump and avoid unnecessary water replacement and re-heating.

303021238121_14x21cm_54184GB_英规SPA 说明书

Page 11

• Keep the spa away from the rest area to minimize noise disturbance.

• Recommended to ask a qualified contractor or a structural engineer to verify if the support material is strong enough to support the maximum design load of the spa, spa water and bathers. Read the filled weight information on the package.

• Please keep at least 1m clearance around the spa.

• Consult your local government authority for water regulations related to convenient water supply for filling the spa.

• Recommended to consult experts and/or local authorities to apply local or national laws/regulations relating to childproof fencing, safety barriers, lighting, and other safety requirements.

• Do not put the cover on the ground or any other dirty surface when not in place on the spa.

• When the spa is being used, the cover should be placed in a clean, dry area, otherwise it can pick up dirt and bacteria. Covers should not be put on wooden tables or wooden decking because of the risk of bleaching the wood. A cover lifter, or similar device, is useful for ensuring that the cover does not come into contact with the ground. A cover lifter is strongly recommended for spas in rental settings.

IMPORTANT: Because of the combined weight of the Lay-Z-Spa, water, and users, it is extremely important that the base where the Lay-Z-Spa is installed is smooth, flat, level and capable of uniformly supporting the weight for the entire time the Lay-Z-Spa is installed (not on the carpet or other similar material). If the Lay-Z-Spa is placed on a surface, which does not meet these requirements, any damage caused by improper support is not covered under the manufacturer’s warranty. It is the responsibility of the Lay-Z-Spa owner to assure the integrity of the site at all times.

1. Indoor Installation:

Be aware of special requirements if you install the spa indoors.

• Humidity is a natural side effect with Lay-Z-Spa installation. Determine the effects of airborne moisture on exposed wood, paper, etc. in the proposed location. To minimize these effects it is best to provide plenty of ventilation to the selected area. An architect can help determine if more ventilation is needed.

• Consult your local government authority for installation

regulations.

303021238121_14x21cm_54184GB_英规SPA 说明书

Page 12

• Keep suitable air treatment in the spa chamber (ventilation and dehumidification) regularly to preserve the bathers’ safety and comfort .

• Do not to install the spa on carpet or other floor materials (e.g. untreated cork,timber or other porous materials) that promote or harbour moisture and bacteria, or that could be affected by water treatment chemicals used in the spa.

• Empty the spa before remove it from the chamber or building.

2. Outdoor Installation:

• During filling, draining or when in use, water may flow out of the

spa. Therefore the Lay-Z-Spa should be installed near a floor drain.

• Do not leave the spa's surface exposed to direct sunlight for

long periods of time.

• Consult your local professional installers for environmental

conditions, such as ground water and risk of frost.

• Do not use the spa when ambient temperature is lower than

-10ºC(14ºF) we strongly recommend the spa is disassembled during the winter months to prevent damage, such as from water freezing in the pipes and the circulation system. Piping subject to damage by freezing shall have a uniform slope in one direction and shall be equipped with valves for drainage or shall be capable of being evacuated to remove the water.

• Recommended to protecting the spa from direct sunlight

exposure by a cover when not in use.

PRCD Test

RESET

TEST

NOTE: Drawings for illustration purpose only. May not reflect actual product. Not to scale.

1. Insert the plug.

2. Press the “RESET” button, the indicator light turns on.

3. Press the “TEST” button, the indicator light turns off.

4. Press the “RESET” button, the indicator light turns on.

5. Press the “On/Off” button for 2 seconds, your pump is ready to use.

RESET

TEST

RESET

TEST

RESET

TEST

WARNING: The PRCD plug must be tested before each use to avoid risk of electric shock. WARNING: Before inserting plug into a power outlet, make sure the current rate of the power outlet is suitable for the pump. WARNING: Do not use the pump if this test fails and contact our Customer Service.

303021238121_14x21cm_54184GB_英规SPA 说明书

Page 13

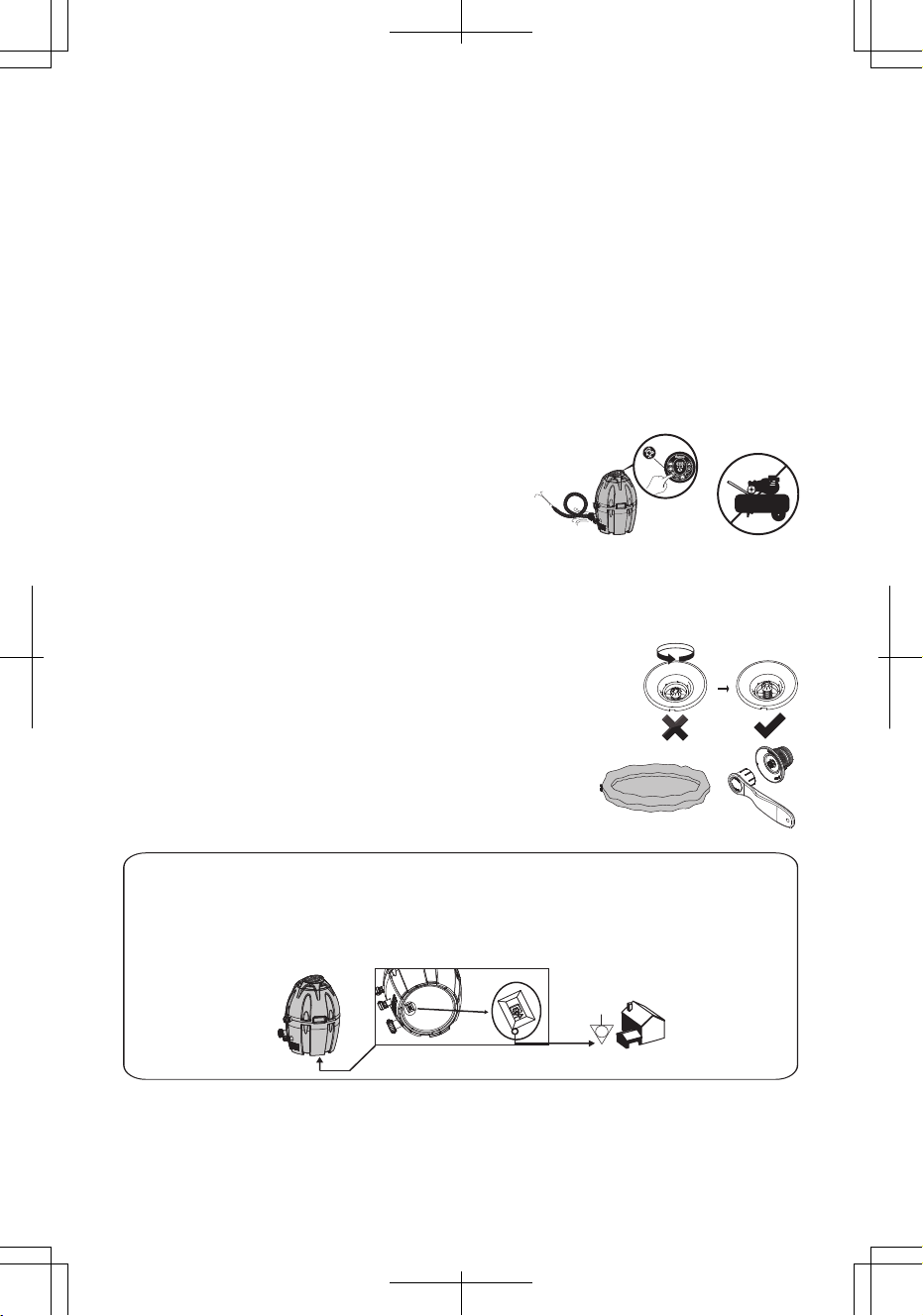

WARNING:Using an extension lead or multi plug adaptor with the spa heater can cause the plug to overheat, causing damage to the equipment and surrounding items. The spa is a class I electrical appliance and must be connected directly to a grounded socket. It is recommended to only use a socket which is resistant to humidity and capable of high power loading. Regularly check the plug and socket for signs of damage before using the spa – do not use the spa if the plug or socket is damaged. If you are unsure about the quality of the electrical supply, please consult a qualified electrician before use.

NOTE: When inflating, you will notice that air will be expelled from the area where the air hose connects to the pump, this is normal for technique requirements. NOTE: Do not use an air compressor to inflate the pool. NOTE:

Do not drag the pool on rough ground as this may cause

damage to the pool liner.

NOTE: Inflation time for reference only.

Air Valve Check

Always check the air valve carefully before inflation to ensure there is not an air leak. If the air valve is loose, use the provided wrench to fasten the air valve following these steps: With one hand, hold the backside of the air valve from the inner side of the spa wall and turn the wrench clockwise.

NOTE:

1. Do not over tighten.

2. Do not adjust the air valve connector when the spa is in use.

SPA PUMP EQUIPOTENTIAL BONDING TERMINAL

It is recommended to arrange for a qualified electrician to connect the spa pump to an equipotential bonding terminal using a minimum 2.5mm2 solid copper conductor.

NOTE:

1. Inflate the spa when the ambient temperature is above 6ºC.

2. The water temperature should be more then 4ºC if you fill the spa pool.

303021238121_14x21cm_54184GB_英规SPA 说明书

Page 14

Assembly

MILAN

P6609ASS16

5 min

2 min

303021238121_14x21cm_54184GB_英规SPA 说明书

MAX. MIN.

Page 15

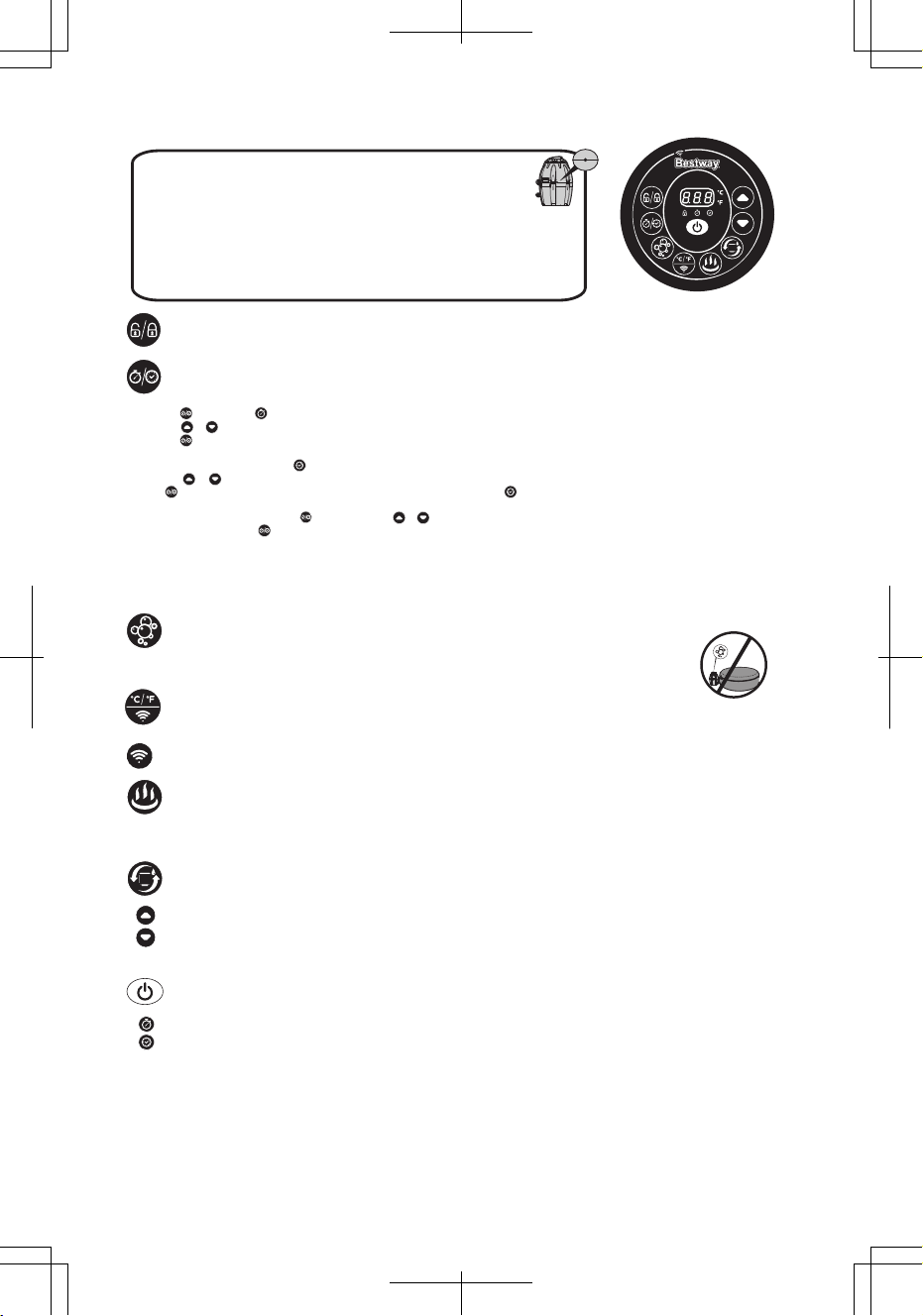

PUMP OPERATION

IMPORTANT: Make sure the pump is upright when using the spa.

Heating Reset

When using the Lay-Z-Spa for first time, or after a long period of inactivity, be sure to press the reset button on the pump using a small and thin object.

If the temperature on the control panel (or the water temperature) has not changed 4-5 hours after activation of the heating system, use a thin object to press the RESET BUTTON, and restart the heating system. IMPORTANT: The heating System will not operate if the outside temperature is above 40ºC (104 ºF) or if the Lay-Z-Spa is under direct sunlight. Under these conditions, please wait until a cooler time of day before pressing the RESET BUTTON with a thin object and restart the heating System.

STEP 1: Set the heating duration

1. Press the button unit the LED starts to flash.

2. Press the or button to adjust the heating duration (From 1-999 hours).

3. Press the button again to confirm the heating duration. STEP 2: Set the number of hours FROM NOW when the heater will activate

1. After setting the heating duration, the LED starts to flash.

2. Press the or button to adjust the hours until time of activation (From 0-999 hours).

3. Press button again or simply touch nothing for 10 seconds to confirmthe setting. The LED will light steadily, and the countdown to heater activation will begin.

To modify the timer settings: Press the button and use the or button to adjust. Cancel the setting: Press the button for 2 seconds.

NOTE: After setting, the screen flashes the current temperature and time alternately. NOTE: Timer adjustment (amount of time with the heater ON) may be set from 1 to 999 hours; Reservation time adjustment (the number of hours FROM NOW

when the heater will begin to function) may be set from 0 to 999 hours. If the timer is set at 0 hour, the heating system will activate immediately. Note that the timer is one time per use - the user sets the duration of the heating cycle, and how many hours from now the heating cycle begins. The timer does NOT repeat until reset.

IMPORTANT: Do not run the Lay-Z-Massage system when the cover is attached. Air can accumulate inside the spa and cause irreparable damage and bodily harm.

NOTE: Heat and massage system work together to create a warm massage experience.

NOTE: If the heating system is activated the filtration system will automatically start. NOTE: After turning off the heating system the filtration system will continue to operate. NOTE: If the PRCD is activated and the water temperature is below 6ºC, it will automatically heat to 10ºC.

NOTE: The default temperature is 35°C (95°F). NOTE: Temperature adjustment ranges from 20°C (68°F) to 40°C (104°F).

NOTE: The water heat rate may change in the conditions below:

• When the outdoor temperature is below 15°C (59°F).

• If the cover is not in position when the heating function is activated. NOTE: To display the current water temperature, run the filter system for at least a minute. The water temperature as tested by an external thermometer may vary from the temperature as displayed on the spa panel by as much as approximately 2°C.

WARNING: If the outdoor temperature is below 4°C and the pump does not work due to a power outage, this could result the pool or pump to freeze. Any damage as a result of using the spa in these conditions is the responsibility of the customer. Do not use the spa when the ambient temperature reaches -10°C.

• Keep good circulation when the spa enters a filtration purge cycle, it is good practice that on exiting the spa, all massage jets are left open, aeration valves are closed and diverters are set half way to allow chemically treated water to flush through all pipework.

• Whenever the spa is emptied, the filter should be cleaned (and drained/dried).

• In the absence of automated and/or continuous water treatment (measurement and chemical dosage) any manual dosing of chemicals shall not be performed while bathers are present in the spa.

IMPORTANT INSTRUCTIONS FOR USING

Lock/Unlock Button

The pump has a 5-minute auto-lock. The LED light will dim out when the pump is locked (no function is activated). To lock or unlock the pump, place a finger over the lock/unlock button for 3 seconds.

Power-Saving Timer Button

This is a newly added function, designed to help avoid wasting power by setting the time and duration of the heating cycle for the spa. This way, you can enjoy your spa at the time you desire, without needing to leave the heater on at all times.

Lay-Z-Massage System Button

Use this button to activate the massage system, which has a 30-minute auto-shutoff feature. The light above the Lay-Z-Massage System Button displays red when activated.

Celsius/Farenheit /Wi-Fi Toggle

This button has two functions: The temperature can be displayed in either Fahrenheit or Celsius. This button has a Wi-Fi activation function. For more information, please refer to Wi-Fi operation instructions. In the up part of the control panel, there is the Wi-Fi LED status.

This LED indicates the status of the Wi-Fi connection. Check in the alarm section for the different statuses of this LED.

Heat Button

Use this button to activate the heating system. When the light above the heat button is red, the heating system is activated. When the light is green, the water is at the set temperature and the heating system is at rest.

Water Filter Button

This button turns the filter pump on and off. The light above the Water Filter Button displays red when activated. NOTE: The heating and filtration systems do not turn off automatically. When finished using either system, be sure to turn them off.

Temperature Adjustment Buttons

Pressing the Temperature Increase or Decrease buttons will cause the LED to flash. When it is flashing you can adjust to the desired temperature setting. If you hold these buttons down the values will rapidly increase or decrease. The new and desired temperature setting will remain on the LED display for 3 seconds to confirm the new value.

On/Off Button

Press this button for 2 seconds to active the control panel bottons and the light turns to green. Press this button for 2 seconds to turn off all currently activated functions.

Power-Saving Timer LED

This LED flashing means you are setting the heating duration. The light will be on when the heating function starts to work. This LED flashing means you are setting the number of hours FROM NOW when the heater will activate. When the light is on, the Power-Saving Timer function is set.

RESET BUTTON

RESET

303021238121_14x21cm_54184GB_英规SPA 说明书

Page 16

Syncing your mobile device with the Spa Pump

The Spa App can be downloaded here： www.lay-z-spa.co.uk/app. Alternatively, you can

search for “Lay-Z-Spa App” in Google. If you are using an Android mobile device, you will need to activate GPS. If you are using an IOS device, this is not required. Note: The device can only be connected to one mobile phone at a time. If you need to connect to another mobile phone, please turn off the On/Off button, and press the Celsius/Fahrenheit button for 3 seconds. When the indicator light flashes slowly, the device will clear the connection information from the previous mobile phone. Please follow the instructions to connect the new phone to the pump.

NOTE: Before connecting the app to the pump, please make sure that your mobile device is close to the pump and the Wi-Fi signal is strong.

NOTE: This app supports Android 7.0 and above or iOS 10.0 and above. NOTE: The device only supports distributing 2.4G network, but does not support 5G network.

Note: It is not recommended to use public Wi-Fi. When connected to public Wi-Fi, you may have issues with the input verification codes during log-in.

Step 1: Ensure your mobile device is connected to Wi-Fi.

Step 2: Plug in the SPA. Press and hold the

syncing. The Wi-Fi indicator light should be flashing a green light slowly.

NOTE:

Ensure the spa is plugged in and test the PRCD, but keep the spa turned off.

Step 3

: Open the Lay-Z-Spa App on your mobile device. Follow the step-by-step guide to syncing with

your app.

○ Login or register your account. ○ Once the Wi-Fi network has been found, input your Wi-Fi password. ○ Change to the Wi-Fi service to: BW-LayZspa-xxx Password: 123456789 ○ Go back to the app, and wait until the connecting process is finished.

Now you can control your Lay-Z-Spa by both mobile device and control panel.

Wi-Fi button

on your pump for 3 seconds to begin

Disconnect

Ensure the On/Off button is turned off， then press the button for 3 seconds until the Wi-Fi indicator flashes slowly.

303021238121_14x21cm_54184GB_英规SPA 说明书

Page 17

Alarms

Causes

The water flow sensors work without pressing the filter or heat button.

After starting or during the functions of filtering or/and heating, the water flow sensors do not detect water flow.

Reasons

1. The water flow sensor flags didn’t fall back into the correct position.

2. The water flow sensors are broken.

1. You forgot to remove the 2 stopper caps from

inside the pool.

2. Filter cartridges are dirty.

3. Activate the filter or heat system and put your

hand in front of the outlet pipe inside the pool to

check if you can feel water flowing out. a. If no water flows out the water pump is broken. b. Water flows out but the alarm appears, the water flow sensors are broken.

4. Filter blockage

5. Bent pipes or poor water flow through the

plasticpipes of the liner

6. Debris screens are blocked: debris screens can

become blocked by hard water due to calcium

build-up.

7. Perished washers The washers within the spa couplings may have

become perished or worn.

1. Unplug the plug gently, strike the side of the pump but not violently, and plug it back in.

2. For assistance, please visit the support section on our website,

www.bestwaycorp.com.

1. Remove the 2 stopper caps before heating, refer to Assembly section in the User’s Manual.

2. Remove the filter set from inside the pool and push the filter or heat button. If no alarm appears, clean or change the filter cartridges install the filter set inside the pool.

3. For assistance, please visit the support section on our website,

www.bestwaycorp.com.

4. Clean the filter and check for damage. Replace or re-install as necessary. For assistance, please visit the support section on our website,

www.bestwaycorp.com.

5. Please check through the spa connection to see if the pipes are bending. For assistance, please visit the support section on our website,

www.bestwaycorp.com.

6. Empty the spa and place a garden hose inside the pipes to wash the debris. To be sure all debris is removed, perform the operation from the outside and inside of the spa.

Use a toothbrush to remove any stubborn debris. For assistance, please visit the support section on our website,

www.bestwaycorp.com.

7.Check the washers inside the coupling for damage. Unscrew the couplings and remove the washer for further inspection.

For assistance, please visit the support section on our website,

www.bestwaycorp.com.

Solutions

The pump’s thermometer reads the water temperature below 4°C (40°F).

The pump’s thermometer reads the water temperature over 50°C (122°F).

The pump’s thermometer connections have issues.

The manual reset thermal cut-out has problem.

Ground Connection Failed.

Wi-Fi Module Connection Failed.

1. The water temperature is lower than 4°C (40°F)

2. If the water temperature is higher than 7°C (44.6°F), the pump’s thermometer is broken.

1. The water temperature is over 50°C (122°F)

2. If the water temperature is lower than 45°C (113°F), the pump’s thermometer is broken.

1. The pump’s thermometer connectors don’t work properly.

2. The pump’s thermometer is broken.

The manual reset thermal cut-out trips off.

1. The ground bonding of your home has some problem.

2. The pump has some problem.

Wi-Fi module is damaged

1. The spa is not designed to operate with water temperatures lower than 4ºC (40°F). Unplug the pump and only re-start the pump when the water temperature reaches 6°C (43°F).

2. For assistance, please visit the support section on our website,

www.bestwaycorp.com.

1. The spa is not designed to operate with water temperatures greater than

40°C (104°F). Unplug the pump and only re-start the pump when the water temperature reaches 38°C (100°F) or lower.

IMPORTANT: Before you re-start the pump, push the pump’s reset button.

2. For assistance, please visit the support section on our website,

www.bestwaycorp.com.

For assistance, please visit the support section on our website, www.bestwaycorp.com.

1. Unplug the pump and push the reset button, then plug the pump back in.

2. In case the alarm still remains, check the RESET BUTTON section in

manual.

3. For assistance, please visit the support section on our website,

www.bestwaycorp.com.

For assistance, please visit the support section on our website, www.bestwaycorp.com.

For assistance, please visit the support section on our website, www.bestwaycorp.com. NOTE: Press any button to remove alarm and continue to use the spa.

303021238121_14x21cm_54184GB_英规SPA 说明书

Page 18

Wi-Fi Led Status

Indicator light flashes slowly

Waiting to connect to the router

The pump is ready to connect to your phone

Indicator light is on

Indicator light flashes quickly

Indicator light is off

Connected to the router

Lost Wi-Fi signal

Light damaged & Wi-Fi module has problem

The pump already connected to your phone

Check the status of your router. The spa lost the Wi-Fi signal.

For more information, please visit the support section on our website, www.bestwaycorp.com.

MAINTENANCE NOTE: Your spa will require additional air to be added from time to time. Changes in temperature from day to night will change the pressure in the spa and may cause a certain amount of deflation. Please follow the Assembly instructions and drain the spa before inflating to the accurate pressure needed.

CAUTION: YOU MUST ENSURE THE PUMP IS UNPLUGGED BEFORE BEGINNING SPA MAINTENANCE TO AVOID RISK OF INJURY OR DEATH.

Filter Cartridge Maintenance NOTE: To ensure your spa water stays clean,

check and clean your filter cartridges every day follow the steps below. NOTE: We recommend changing your filter cartridges every week or, if the filter cartridges remain soiled and discolored, they should be replaced.

Cover Maintenance

The cover shall be cleaned inside and out periodically using a suitable solution that includes adequate disinfection (e.g. 10 mg/l of Free Chlorine).

Water Maintenance

Manypollutants in the water settle on surfaces below the water line. These pollutants can cause bacterial, algal or fungal growth. It is recommended that spas are cleaned as regularly as necessary. After a time, tenacious stains or biofilms may develop on the accessible surfaces below the water line or high concentrations of salts or unwanted reaction by-products may also occur. Depending on hygienic condition, cleanliness, visibility, odour, debris and stains, it is recommended to change the water completely and clean/disinfect the spa. When emptying the spa, the regulations and the instructions for draining the water shall be observed. Keeping your SPA water clean and chemically balanced is necessary. Simply cleaning the filter cartridge is not enough for proper maintenance, we recommend you use pool chemicals to maintain water chemistry and chlorine or bromine tablets (do not use granules) with the chemical dispenser. Water quality will be directly related to frequency of use, number of users and overall maintenance of the spa. The water should be changed after each use if there is no chemical treatment being performed with the water. It is highly recommended to use tap water for spa filling to minimize the influence of unwanted content, such as minerals. Barefoot areas and relaxing areas shall be cleaned as well. No cleaning water may flow into the spa or spa water cycle. The dirt and cleaning agents shall be rinsed carefully to drain in the spa surround. Note: We recommend you take a shower before using your Lay-Z-Spa, as cosmetic products, lotions, and other residues on the skin can quickly degrade water quality.To use the chemical dispenser, please follow the below instruction.

P04674

Filter Set

58323

Filter Cartridge

Using chemical tablets (not included):

303021238121_14x21cm_54184GB_英规SPA 说明书

Page 19

Using chemical liquid (not included):

NOTE: Remove the chemical IMPORTANT: After performing chemical maintenance and

before using the spa, use a test kit (not included) to test the water chemistry. We recommend maintaining your water as table below.

NOTE: Damage resulting from chemical imbalance is not covered by the warranty. Pool chemicals are potentially toxic and should be handled with care. There are serious health risks from chemical vapors and the incorrect labeling and storage of chemical containers. Please consult your local pool supply retailer for more information about chemical maintenance. Pay close attention to the chemical manufacturer's instructions. Spa damage resulting from misuse of chemicals and mismanagement of spa water is not covered by the warranty.

Air-Valve Adjustment

In case of air leakage, check the air-valve first. Using soapy water, cover the air-valve to check if air is leaking, if so, use the provided wrench to fasten the air-valve following these steps:

• With one hand, hold the backside of the air-valve from the inner side of the spa wall and turn the wrench clockwise.

NOTE:

1. Do not over tighten.

Always check the air-valve carefully before use.

3. Do not adjust the air-valve connector when the spa is in use.

dispenser

from spa when the spa is in use.

7.4-7.6

Total Alkalinity

80-120ppm

Free Chlorine

2-4ppm

STORAGE Draining the Spa

2. 3.

P6H565ASS16

NOTE: Dry the spa pool.

5. 6. 7. 8. 9.

P00217

NOTE: Lift up the spa when

there isonly a little water left.

Cleaning the spa

Damages to the handles are not covered under the warranty.

Detergent residues and dissolved solids from bathing suits and chemicals may build up on the spa walls. Use soap and water to clean the walls and rinse thoroughly.

NOTE: DO NOT use hard brushes or abrasive cleaners.

DEFLATION

P61726ASS18

REPAIR For PVC part.

If the spa is torn or punctured, use the provided underwater adhesive repair patch.

1. Clean area to be repaired.

2. Carefully peel patch.

3. Press patch over area to be repaired.

4. Wait 30 seconds before inflation.

2.1.

Quick inflation/deflation valve

P61725ASS18

P61726ASS18

P61725ASS18

P61727ASS18

For Tritech PVC material.

If the spa is torn or punctured, use the provided PVC repair patch and glue (not included) following these steps:

1. Clean and dry area to be repaired.

2. Cut the provided PVC patch to appropriate size.

3. Use glue (not included) to coat the one side of the newly cut patch. Make sure the glue is evenly distributed.

4. Wait for 30 seconds and then place the cut patch with glue over the damaged area.

5. Smooth out any bubbles of air that may be trapped underneath, and press firmly for two minutes.

6. The product is once again ready for use. Repeat this process should further leaks occur.

7. Wait 30 minutes before inflation. 19

Safety valve

303021238121_14x21cm_54184GB_英规SPA 说明书

Page 20

Make sure the spa and pump are completely dry. This is essential to extend the life of the spa. We recommend using the pump to blow dry the spa, pump and pipes. Remove the filter sets and discard the used filter cartridges. Re-attach the two stopper caps onto the spa’s inlet and outlet valves. It is recommended you store the spa in its original package in a warm dry place. NOTE: Plastic becomes brittle and susceptible to breaking when exposed to subzero temperatures. Freezing can severely damage the spa. Improper winterization of your spa can void your warranty.

Disposal

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

TROUBLESHOOTING Bestway strives to provide the most trouble-free spas on the market. If you experience any problems whatsoever, do not hesitate to contact Bestway or your authorized dealer. Here are some helpful tips to help you to diagnose and rectify some common sources of trouble.

Problems

Pump does not operate

Pump does not heat properly

Lay-Z-Massage System does not work

Pump adapters are not level with the spa adapters

Spa pool leakage

Water is not clean

PRCD test failed

Control panel not

working

Probable Causes

- Power failure

- Power circuits broken

- Temperature set too low

- Dirty Filter Cartridge

- The thermal cut-out cut off

- Spa is not covered

- Heating element failed or fuse cutout

- Air Pump is overheating

- The Lay-Z-Spa Massage stops automatically

- Air pump is broken

One characteristic of PVC is that it changes shape, which is normal

- Spa is torn or punctured

- Air valve is loose

- Insufficient filtering time

- Dirty Filter Cartridge

- Improper water maintenance

Something wrong with the SPA

The control panel has an auto-lock,

which is activated after 5 minutes of

inactivity. The LED display has one

icon: If the lock icon is highlighted,

the control panel is locked.

- Control panel is not activated.

Solutions

- Check power source

- For assistance, please visit the support section on our website, www.bestwaycorp.com

- Set to a higher temperature refer tosection pump operation

- Clean/replace the filter cartridge referto section filter cartridge cleaning and replacement

- Unplug the pump, and put the plug in a dry, cool place. Only restart the pump when the water temperature reaches 35°C (95°F) or lower

- Attach the cover

- For assistance, please visit the support section on our website, www.bestwaycorp.com

- Unplug the pump and wait two hours until the pump has cooled. Insert the plug and press the Lay-Z-Massage System Button

- Press the Lay-Z-Massage System Button to reactivate

- For assistance, please visit the support section on our website, www.bestwaycorp.com

- Elevate the pump with wood or another type of insulated material to bring the pump's adapters level with the spa's adapters

- Use provided repair patch

- Using soapy water, cover the air-valve to check if air is leaking, if so, use the provided wrench to fasten the air-valve following these steps:

1. Deflate the SPA.

2. With one hand, hold the backside of the air valve from the inner side of the spa wall and turn the wrench clockwise.

- Increase filtration time

- Clean/replace the Filter Cartridge (refer to Filter Cartridge Cleaning and Replacement section)

- Refer to the chemical manufacturer’s instructions

For assistance, please visit the support section on our website, www.bestwaycorp.com

- To unlock the control panel, press the button for 3 seconds. If the control panel will not unlock, restart the pump – unplug and plug in the pump

- Press the on/off button for 2 seconds. If the problem persists, for assistance, please visit the support section on our website, www.bestwaycorp.com

What kind of chemicals should be used for water maintenance?

Water leaks from the adapters between the pump and spa

Please consult your local chemical supplier for information about chemical maintenance. Pay close attention to the chemical manufacturer’s instructions

- Seals are missing inside the pump adapters

- Seals are not in the correct position

- Seals are damaged

- Adapters are not tightened correctly

303021238121_14x21cm_54184GB_英规SPA 说明书

- Insert the stopper caps on the spa ports to prevent the water from escaping and disconnect the pump. Check if the seals are in place.

- If the seals are not in the correct position, open the gears, and place the seals in correct position.

- If the seals are damaged, they must be replaced. For assistance, please visit the support section on our website,

www.bestwaycorp.com.

- If the seals are in correct position, the adapters are not tightened correctly. Connect the pump to the spa, hand-tighten the adapters, and remove the stopper caps from the spa ports. If there is leakage, tighten the adapter until there is no leakage.

Page 21

The pump has been connected to the wrong band

If the router your pump is connected to is dual-band and currently not connecting to a

2.4GHz network, please switch to another band of the same router (2.4GHz) and try to pair pump heater again. 5GHz networks are not supported.

The Wi-Fi setup is not successful

The spa pump location is too far from the router.

Set up the wrong Network Name Start the connection procedures again and be sure that the network name is typed

The Wi-Fi password used during the connection is wrong

The strength of the Wi-Fi signal is not stable

There is an appliance near the spa pump or the router that creates Signal Interference

Your phone will not connect to the Wi-Fi network during the registration

Check with your cell phone to see if there is full Wi-Fi signal.In case the strength of the signal on your phone is too low, check where the strength of the Wi-Fi signal is full and place the spa in that position.

correctly.

Start the connection procedures again and be sure that the password is correct.

1) Check if the router works correctly.

2) Go near the spa and check the signal on your phone. In case the signal strength is not stable, check the condition of your router. In case

the signal strength is full, repeat the operation to connect the spa to the network.

The Wi-Fi connectivity can be interrupted by electromagnetic or other interferences. Keep the appliance away from other electronic devices that may cause interferences.

Check if the mobile device is in airplane mode. Make sure to have the airplane mode deactivated when connecting to the Wi-Fi network.

APP Feedback Consult the help section in the APP for extensive and up-to-date troubleshooting tips.

303021238121_14x21cm_54184GB_英规SPA 说明书

Page 22

303021238121_14x21cm_54184GB_英规SPA 说明书

Page 23

303021238121_14x21cm_54184GB_英规SPA 说明书

Page 24

For support please visit us at:

bestwaycorp.com/support

All rights reserved/Tous droits réservés/Todos los derechos reservados/Alle Rechte vorbehalten/Tutti i diritti riservati ®™ Trademarks used in some countries under license to/ Marques ®™ utilisées dans certains pays sous la licence de/ Marcas comerciales ®™ utilizadas en algunos países bajo la licencia de/ ®™ Die Warenzeichen werden in einigen Ländern verwendet unter Lizenz der/ ®™ Marchi utilizzati in alcuni paesi concessi in licenza a

Bestway Inflatables & Material Corp., No.3065 Cao An Road, Shanghai, 201812, China.

Manufactured,distributed and represented in the European Union by/ Fabriqués, distribués et représentés dans l’Union Européenne par/Fabricado, distribuido y representado en la Unión Europea por/ Hergestellt, vertrieben und in der Europäischen Union vertreten von/Prodotto, distribuito e rappresentato nell'Unione Europea da

Bestway (Europe) S.r.l., Via Resistenza, 5, 20098 San Giuliano Milanese (Milano), Italy

Distributed in North America by/Distribués en Amérique du Nord par/Distribuido en Norteamérica por

Bestway (USA) Inc., 3411 E. Harbour Drive, Phoenix, Arizona 85034, United States of America

Tel: +86 21 69135588 (For U.S. and Canada) Distributed in Latin America by/Distribué en Amérique latine par/Distribuido en Latinoamérica por/Distribuído na América Latina por

Bestway Central & South America Ltda, Salar Ascotan 1282, Parque Enea, Pudahuel, Santiago, Chile

Distributed in Australia & New Zealand by Bestway Australia Pty Ltd, Unit 2/98-104 Carnarvon St Silverwater, NSW 2128, Australia Tel: Australia: (+61) 29 0371 388; New Zealand: 0800 142 101 Exported by/Exporté par/Exportado por/Exportiert von/Esportato da

Bestway (Hong Kong) International Ltd./Bestway Enterprise Company Limited Suite 713, 7/Floor, East Wing, Tsim Sha Tsui Centre, 66 Mody Road, Kowloon, Hong Kong

www.bestwaycorp.com

303021238121_14x21cm_54184GB_英规SPA 说明书
