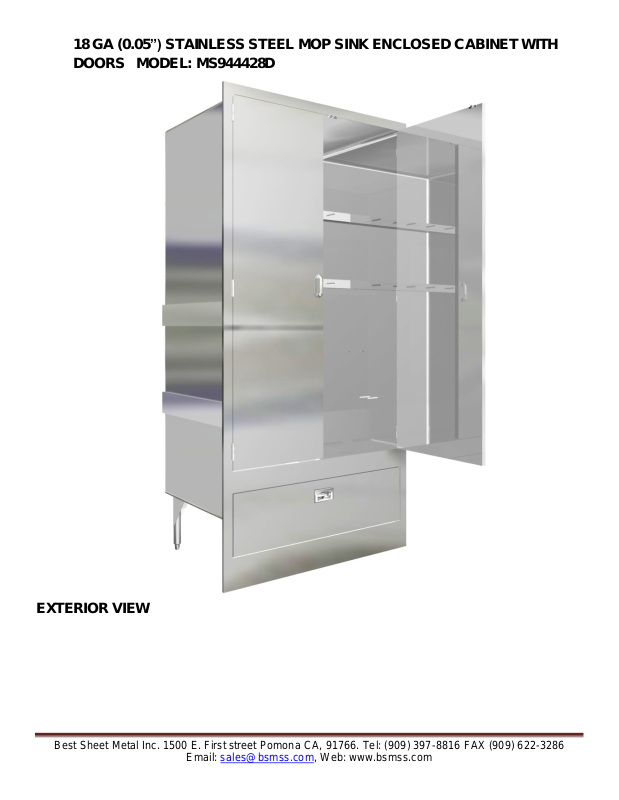

Page 1
18 GA (0.05”) STAINLESS STEEL MOP SINK ENCLOSED CABINET WITH
DOORS MODEL: MS944428D
EXTERIOR VIEW
Best Sheet Metal Inc. 1500 E. First street Pomona CA, 91766. Tel: (909) 397-8816 FAX (909) 622-3286
Email: [email protected], Web: www.bsmss.com
Page 2
Best Sheet Metal Inc. 1500 E. First street Pomona CA, 91766. Tel: (909) 397-8816 FAX (909) 622-3286
Email: [email protected], Web: www.bsmss.com
Page 3
Best Sheet Metal Inc. 1500 E. First street Pomona CA, 91766. Tel: (909) 397-8816 FAX (909) 622-3286
Email: [email protected], Web: www.bsmss.com
Page 4
MOP SINK MODEL: MS944428D
OVER THE YEARS, RESTAURANT OWNERS HAVE BEEN STRUGGLING WITH SANITATION
ISSUES EITHER ON KITCHEN FLOOR OR BEHIND THE BACK DOOR; WATER SPILLAGE ON
THE FLOOR, DETERIORATION OF WALLS IN THE SURROUNDING AREA CAUSED BY
FLOODING OF WASHED WATER AND SANITIZING LIQUID, AND WORSE OF ALL,
ACCUMULATION OF BACTERIA, GERMS, AND BAD ODORS THROUGHOUT THE AREA. A
CONVENTIONAL COMPARTMENT SINK WILL NOT SOLVE THE PROBLEM, SINCE WITH THIS
TYPE OF SINK THE WORKING ENVIRONMENT IS UNSAFE, SLIPPERY AND YOU FACE THE
POSSIBILITY OF A DOWN-GRADING FROM THE HEALTH DEPARTMENT. THESE PROBLEMS
Best Sheet Metal Inc. 1500 E. First street Pomona CA, 91766. Tel: (909) 397-8816 FAX (909) 622-3286
Email: [email protected], Web: www.bsmss.com
Page 5
KEEP INCREASING EACH AND EVERY TIME AND THERE ARE NO OTHER SOLUTIONS OUT
IN THE MARKET TO EFFECTIVELY CORRECT IT, BESIDES WHAT WE HAVE CREATED.
THE SOLUTION THAT BSM HAS CREATED IS UNIQUE – A FULLY ENCLOSED MOP SINK. AN
EXCELLENT IDEA TO FIT IT IN BETWEEN YOUR EXISTING TWO WALLS OR YOU CAN GET
THE OPTIONAL FINISHED SIDE PANELS, SO YOU DO NOT HAVE TO CONSTRUCT NEW
WALLS. THE STAINLESS STEEL WALLS WITH ROUND EDGES INSIDE PREVENTS ANY
COLLECTION OF BACTERIA, GERMS AND GRIME. IT IS LARGE ENOUGH THAT YOU CAN
HANG AND WASH UP TO 5 FLOOR MATS INSIDE. EVEN MORE, IT HAS PIN HANGERS FOR
TWO FLOOR MOPS AND ONE OR TWO UTILITY SHELVES TO STORE CLEANING PRODUCTS.
SINGLE CONTINUOUS PIECE TYPE 304 STAINLESS STEEL, DURABLE, EASY TO CLEAN,
SANITARY.
AVAILABLE:
94˝H X 48” W X 28"D
94”H X 46” W X 28”D
94˝H X 44˝ W X 28"D
94”H X 42” W X 28”D
94”H X 40” W X 28”D
94”H X 38” W X 28”D
& CUSTOM SIZE PLEASE SEND US AN E-MAIL

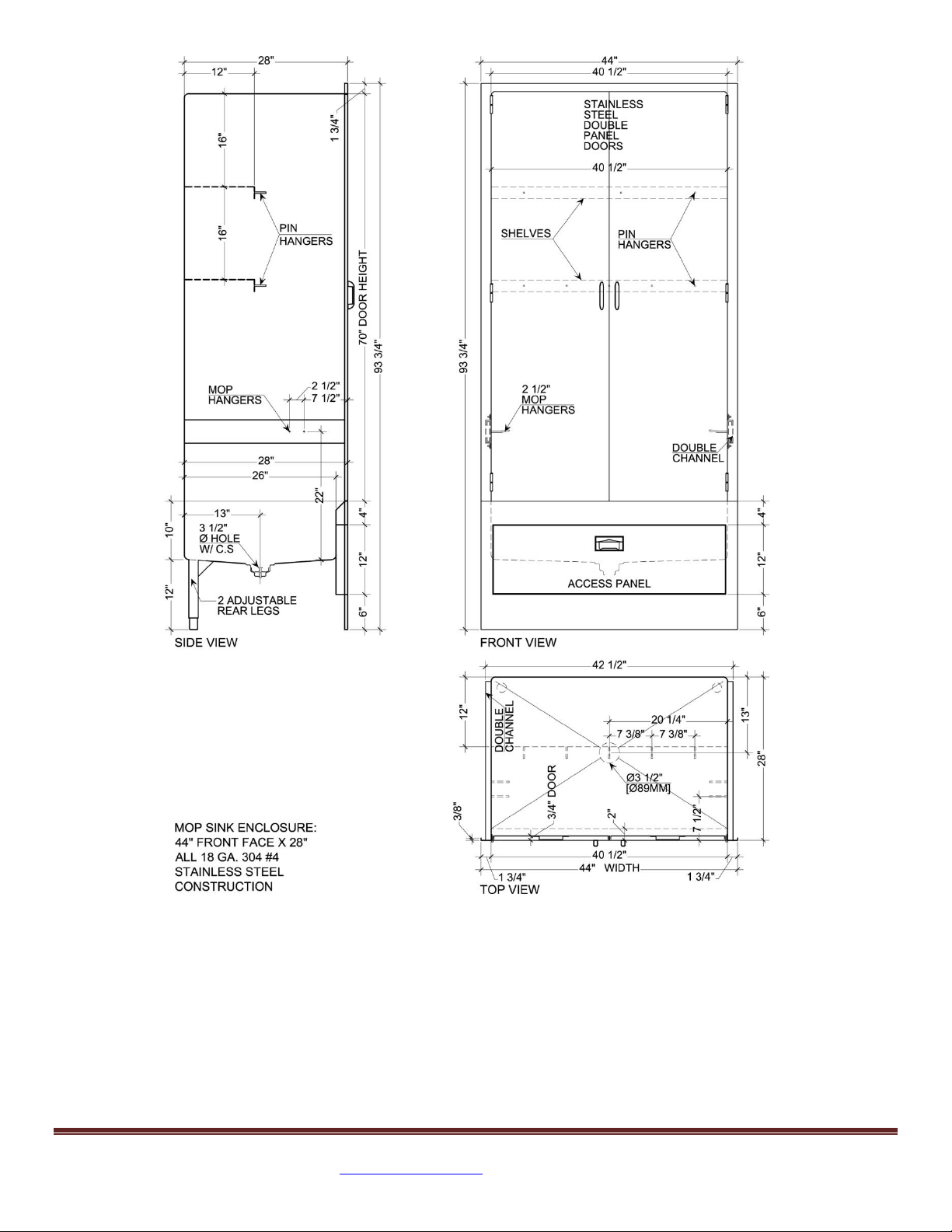

OPENING: 70” X 40-1/2"W X 28"D
2 DOUBLE PANEL SWING DOORS 70” X 21-1/4” X 3/4” STAINLESS STEEL 18GA
EXTERIOR PANEL & 20GA INTERIOR PANEL WITH INSIDE REINFORCED CHANNEL
HEAVY DUTY AND ADJUSTABLE REAR LEGS AND TRIANGLE SUPPORT PLATES ON
TWO SIDES.
INSIDE EDGES COVED 9/16˝ RADIUS.

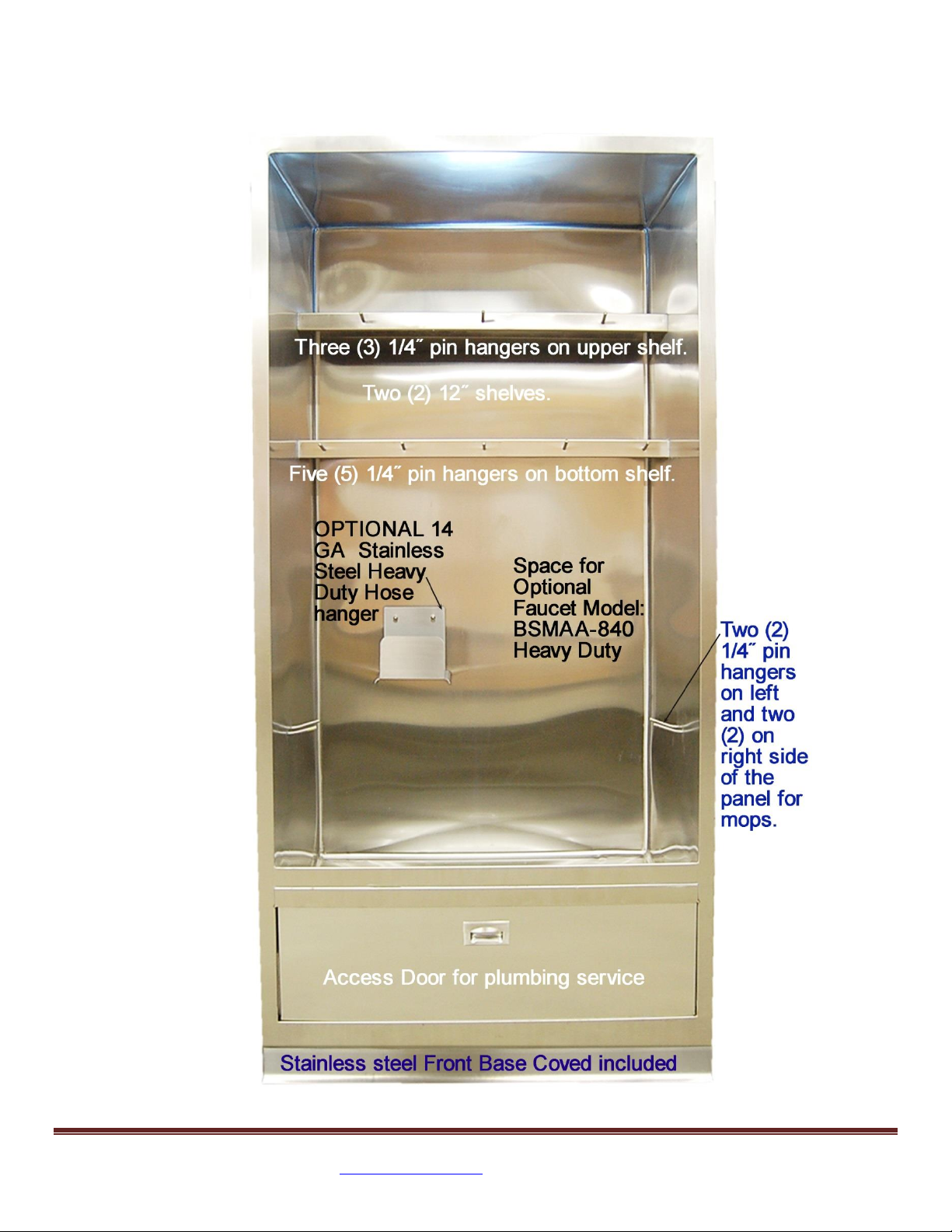

TWO (2) 12˝X40-1/2˝ SHELVES.
THREE (3) 1/4" PIN HANGERS ON UPPER SHELF
FIVE (5) 1/4" PIN HANGERS ON BOTTOM SHELF
TWO (2) 1/4" PIN HANGERS ON LEFT AND TWO (2) ON RIGHT SIDE OF THE PANEL
FOR MOPS.
STANDARD SINK DRAIN HOLE 3-1/2” AND BASKET STRAINER WITH 12˝ CLEARANCE
BETWEEN THE BOTTOM OF THE MOP SINK TO THE FLOOR FOR EASY RELOCATING
THE DRAINAGE.
DOOR AT THE BOTTOM WITH HANDLE FOR PLUMBING ACCESS.
STAINLESS STEEL FRONT BASE COVED INCLUDED
BRACE CHANNELS, 3 ON EACH SIDE, TO STRENGTHEN THE STRUCTURE.
OPTIONALS: HOSE HANGER HEAVY DUTY 14 GA, FAUCET MODEL: BSMAA-840
HEAVY DUTY NOT INCLUDED
OPTIONS: SIDE PANELS AVAILABLE IN CASE YOU DON’T HAVE SIDE WALL(S)
BUILT-IN.
Best Sheet Metal Inc. 1500 E. First street Pomona CA, 91766. Tel: (909) 397-8816 FAX (909) 622-3286
Email: [email protected], Web: www.bsmss.com
Page 6
(I)
FINISHED LEFT SIDE
PANEL
(II)
FINISHED RIGHT SIDE
PANEL
(III)
FINISHED TOP PANEL
(IV)
STAINLESS STEEL
COVED BASE
ALL MODELS
HEIGHT
WIDTH
DEPTH
PRICE
OPTIONS
FINISHED LEFT SIDE PANEL
94˝
N/A
28˝
$495
FINISHED RIGHT SIDE PANEL
94˝
N/A
28˝
$495
FINISHED TOP PANEL
N/A
N/A
28˝
$375
COVED BASE:
N/A
N/A
N/A
FULL WRAP AROUND (L, F, R)
N/A
N/A
N/A
$295
LEFT OR RIGHT AND FRONT
N/A
N/A
N/A
$165
FRONT ONLY
N/A
N/A
N/A
$165
HOSE HOLDER 14GA (.0781”)
6”
8”
6”
$185
*CUSTOM SIZES ARE AVAILABLE
FROM 28" TO 48" WIDTH SAME PRICE.
SPECIFICATION & PRICE:
Best Sheet Metal Inc. 1500 E. First street Pomona CA, 91766. Tel: (909) 397-8816 FAX (909) 622-3286
Email: [email protected], Web: www.bsmss.com
Page 7
PANELS INSTALLED
Best Sheet Metal Inc. 1500 E. First street Pomona CA, 91766. Tel: (909) 397-8816 FAX (909) 622-3286
Email: [email protected], Web: www.bsmss.com
Page 8
HOSE HOLDER INSTALLED
