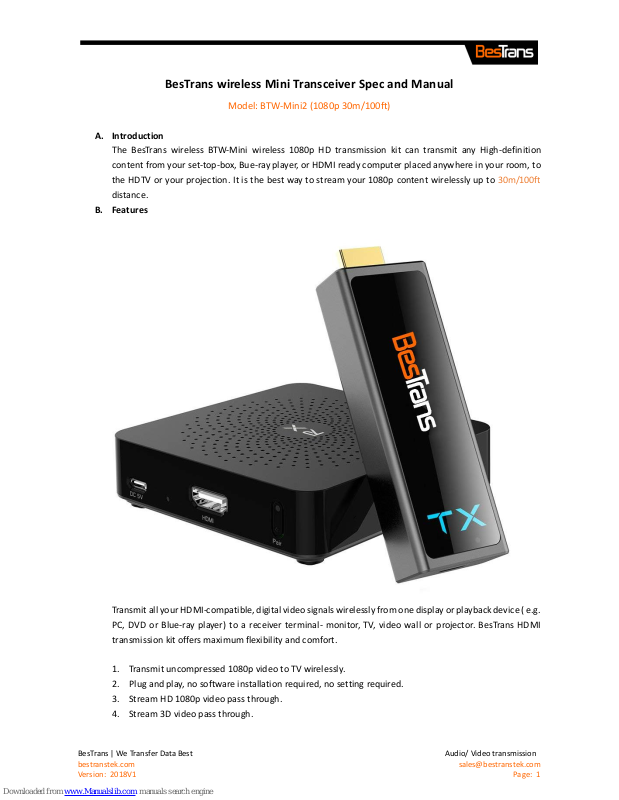

BesTrans wireless Mini Transceiver Spec and Manual
Model: BTW-Mini2 (1080p 30m/100ft)
A. Introduction
The BesTrans wireless BTW-Mini wireless 1080p HD transmission kit can transmit any High-definition
content from your set-top-box, Bue-ray player, or HDMI ready computer placed anywhere in your room, to
the HDTV or your projection. It is the best way to stream your 1080p content wirelessly up to 30m/100ft
distance.
B. Features
Transmit all your HDMI-compatible, digital video signals wirelessly from one display or playback device ( e.g.
PC, DVD or Blue-ray player) to a receiver terminal- monitor, TV, video wall or projector. BesTrans HDMI
transmission kit offers maximum flexibility and comfort.
1. Transmit uncompressed 1080p video to TV wirelessly.
2. Plug and play, no software installation required, no setting required.
3. Stream HD 1080p video pass through.
4. Stream 3D video pass through.
Page 2
BesTrans | We Transfer Data Best Audio/ Video transmission
5. Support the highest rate 1.485G, and TMDS clock up to 148.5MHz.
6. Transmission up to 30 meters or 100ft.
The HDMI Transmitter stick is as big as a USB drive, and easy to connect with your notebook or PC via an
HDMI port. The power is supplied via 2 wall plug transformers or via USB.
The HDMI receiver Box displays the transferred signals on your TV, monitor, video wall or projection with
an HDMI input port.
C. Specs
Standard
Wireless HD1.1
Bandwidth
4Gpbs
Middle frequencies
60GHz (59-66GHz)
RF power
10dBm
Security agreement
HDCP 2.2
Delay time
<5ms
Distance
30 meters/100ft, open area no wall and no block.
Resolution
Up to 1080p/60Hz
Output port
HDMI A
Average power
Tx: 1.5W; Rx: 2.5W
Power in
Micro USB B, 5V 1A
Temperature
0-60 C
Tx dimension
95x29x16mm
Rx dimension
87x87x21mm
Page 3
BesTrans | We Transfer Data Best Audio/ Video transmission

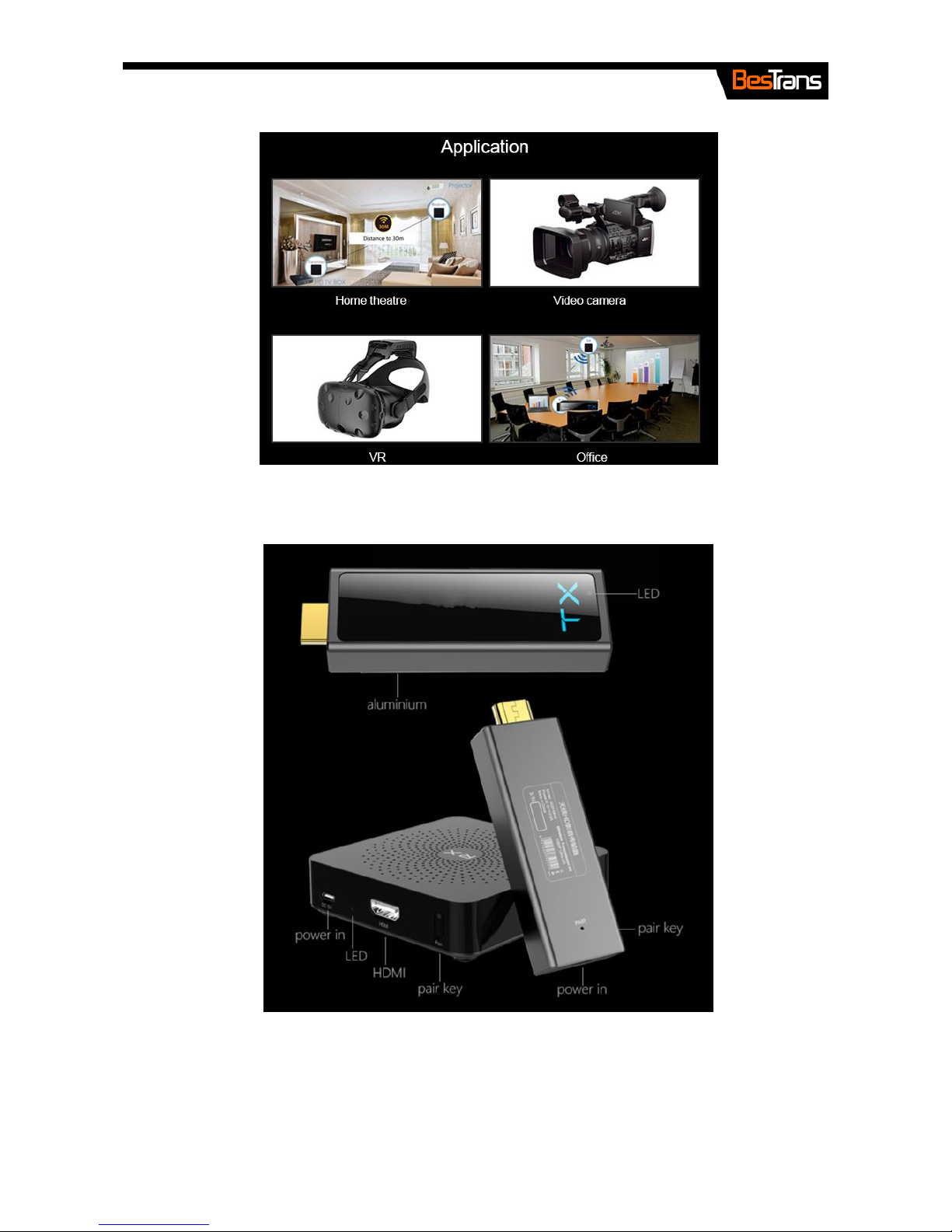

D. Applications
E. Interfaces
