Best Barns BBRN1044 Specifications

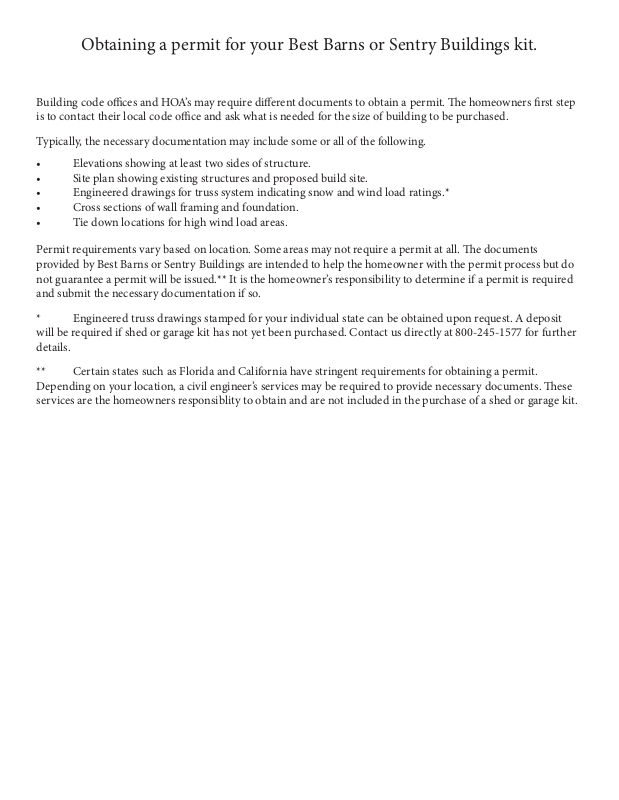

Obtaining a permit for your Best Barns or Sentry Buildings kit.

Building code oces and HOA’s may require dierent documents to obtain a permit. e homeowners rst step
is to contact their local code oce and ask what is needed for the size of building to be purchased.

Typically, the necessary documentation may include some or all of the following.

• Elevations showing at least two sides of structure.

• Site plan showing existing structures and proposed build site.

• Engineered drawings for truss system indicating snow and wind load ratings.*

• Cross sections of wall framing and foundation.

• Tie down locations for high wind load areas.

Permit requirements vary based on location. Some areas may not require a permit at all. e documents
provided by Best Barns or Sentry Buildings are intended to help the homeowner with the permit process but do
not guarantee a permit will be issued.** It is the homeowner’s responsibility to determine if a permit is required
and submit the necessary documentation if so.

* Engineered truss drawings stamped for your individual state can be obtained upon request. A deposit
will be required if shed or garage kit has not yet been purchased. Contact us directly at 800-245-1577 for further
details.

** Certain states such as Florida and California have stringent requirements for obtaining a permit.
Depending on your location, a civil engineer’s services may be required to provide necessary documents. ese
services are the homeowners responsiblity to obtain and are not included in the purchase of a shed or garage kit.

2x4 Trusses 24" o.c.

Before you order our kit or begin construction, obtain a building permit.
If additional documents are required contact [e-mail].

NEW CASTLE ELEVATION

6/12 Roof
Pitch

9' - 6" Building Height

6' - 0"

5' - 4"

15' - 9" Floor Length

Floor: Sold optionally
Wall Framing: 2x4 Construction with 24" on

center stud spacing, single bottom plate and top
plate with 2x4 tie plates.

Siding: Louisianna-Pacific 'SmartPanel' 8" o.c.
groove, primed ready to paint.

Pre-Built Doors: Doors pre-built ready to hang.

7' - 3" Headroom

6' - 4" Sidewall Height

2x4 Studs 24" o.c.

12'-0" Building Width

Roof System: 2x4 trusses spaced 24" on center,
(see engineered truss drawing for load ratings).
7/16" OSB roof sheathing. Shingles by owner.

Exterior Trim: White pine trim for corners,
door, gable trim and front and back fascia. Primed
ready to paint.

Hardware: Nails for all framing, door hardware
and metal hurricane hangers for trusses included.

4x4 Treated
Runners

a division of Reynolds Building Systems, Inc.205 Arlington Drive, Greenville, PA 16125

3/4" Plywood

2x4 Treated

Joist 16" o.c.

Deluxe Floor (optional accessory): 4x4 treated
runners can be installed directly on the grass. The
runners elevate the floor providing air flow
eliminating moisture. 12' wide floor has four
runners. Floor covering is 3/4" plywood.

Job

PER16912

In Lieu of Standard Plates, Attach 7/16" 24/16 APA
OSB to Both Sides of Truss As Shown with 100% PL400
Glue Contact and (2) Rows 0.131" x 2 3/8" Nails at 3" c/c
into All Members

Truss

T1

5.92

12

6-0-0
6-0-0

Truss Type

KINGPOST

Qty1Ply

1

Job Reference (optional)

ID:L58nGTzwTmsRVEQ6hMpDeXz1NJ6-VKhNHkoCnli?TGeDuyOAhGFLWHRMpMltVEkXFmz1N7j

3x4

3

7.630 s Jul 9 2015 MiTek Industries, Inc. Wed Jun 29 16:16:00 2016 Page1

12-0-0

6-0-0

Connections to the Bearing Walls and the
Walls Themselves Must be Capable of
Resisting the Following Loads:
658 lbs Gravity
99 lbs Uplift
1216 lbs Horizontal Thrust

1-0-0

1.5x4

3-1-11

2

6

2-0-0

2-0-0

1

0-2-3

6-0-0

Plate Offsets (X,Y)-- [3:0-2-0,Edge]

LOADING

TCLL
(Ground Snow=60.0)
TCDL
BCLL
BCDL

LUMBER-

TOP CHORD 2x4 SPF No.2
WEBS 2x4 SPF No.2

REACTIONS.

FORCES.

TOP CHORD 1-2=-1377/213, 2-6=-512/54, 3-6=-403/67, 3-7=-403/67, 4-7=-512/54, 4-5=-1377/213
WEBS 2-4=-862/183

NOTES-

1) Wind: ASCE 7-10; Vult=130mph (3-second gust) Vasd=103mph; TCDL=6.0psf; BCDL=6.0psf; h=25ft;B=45ft; L=24ft; eave=4ft; Cat.

2) TCLL: ASCE 7-10; Pg= 60.0 psf (ground snow);Pf=46.2 psf (flat roof snow); CategoryII; Exp B; Partially Exp.; Ct=1.1

3) Unbalancedsnow loads have been consideredfor this design.

4) * This truss has been designed for a live load of 20.0psf on the bottom chord in all areaswhere a rectangle 3-6-0 tall by2-0-0 wide

5) Bearing at joint(s) 1, 5 considers parallel to grain value using ANSI/TPI 1 angle to grain formula. Building designer should verify

6) Provide mechanical connection (by others) of truss to bearing plate capable of withstanding 99 lb uplift at joint 1 and 99 lb uplift at

7) Non Standard bearing condition. Review required.

8) This truss is designedin accordance with the 2015 International Residential Code sections R502.11.1 and R802.10.2 and referenced

9) "Pin all pitchbreaks" Memberend fixity model was usedin the analysis and design of this truss.

LOAD CASE(S)

(psf)

46.2

10.0

0.0 *

10.0

(lb/size) 1=658/0-3-8 (min. 0-1-8),5=658/0-3-8 (min. 0-1-8)
Max Horz 1=1223(LC 1), 5=-1223(LC 1)
Max Uplift 1=-99(LC 10),5=-99(LC 10)

(lb) - Maximum Compression/Maximum Tension

II; Exp B; enclosed;MWFRS (directional); Lumber DOL=1.60 plate grip DOL=1.60

will fit between the bottom chord and anyother members.
capacity of bearing surface.
joint 5.

standard ANSI/TPI 1.

Standard

SPACING-

Plate Grip DOL
Lumber DOL
Rep Stress Incr
Code

6-0-0

2-0-0

1.15

1.15
YES

IRC2015/TPI2014

CSI.

TC
BC
WB
(Matrix)

0.56

0.00

0.79

in

(loc)

DEFL.

Vert(LL)
Vert(CT)
Horz(CT)

BRACING-

TOP CHORD Structural wood sheathingdirectlyapplied or 4-8-13 oc purlins.
BOT CHORD Rigid ceiling directly applied or 10-0-0 oc bracing.

-0.18

-0.19

0.00

MiTek recommends thatStabilizers and required cross bracing
be installed during truss erection, in accordance with Stabilizer
Installation guide.

2-3
2-3

l/defl
>776
>734

n/a

240
180

12-0-0

6-0-0

L/d

n/a

7

2-0-0

1.5x4
4

PLATES

MT20

Weight: 24 lb FT = 20%

GRIP

197/144

5

0-2-3

Best Barns model:________

___ft. wide x ___ft. long

Concrete Slab

Wood Floor

2x4 Studs 24” o.c.

Manufactured by:
Reynolds Building Systems, Inc.
205 Arlington Drive
Greenville, PA 16125
phone: [phone]
fax: [phone]

Common Foundation

Cross Sections

is document illustrates common
foundation types which can be
used for construction of Best Barns
12 . wide structures. Alteration
may be necessary to conform to
homeowners intended use and or
permitting requirements.

Drawings not to scale.

Instructions:

__ ga Wire Mesh

__” Thick Cement

__” Deep Gravel

Homeowner Design

3/8” L.P. Smartside

2x4 Studs 16” o.c.

2x4 KD Plate

__ ga Rebar

Depth

3/8” L.P. Smartside

2x4 Plate

2x4 PT Joist Header

3/4” Plywood

2x4 PT Joists 16” o.c.

4x4 PT Timber

Check appropriate foundation cross
section and provide specications
as necessary.

Homeowner may also design and
draw in space provided for custom
foundation type.

Best Barns model:_________

___ft. wide x ___ft. long

Manufactured by:
Reynolds Building Systems, Inc.
205 Arlington Drive
Greenville, PA 16125
phone: [phone]
fax: [phone]

2x4 Collar Tie

2x4 Truss Member

Truss & Wall

Cross Section

Top of wall inclusive of wall
framing and truss cross sections.

Drawing not to scale.

Instructions:

Homeowner may provide
additional information as
appropriate.

Notes:

Refer to installation manual for
further detail.

7/16” OSB

7/16” OSB Gusset

2x4 Wall Plates

1x4 Fascia

Simpson H1

3/8” L.P. So󰀩t

3/8” L.P Smartside

2x4 Stud 24” o.c.

Site Plan for:
_________________________

Manufactured by:
Reynolds Building Systems, Inc.
205 Arlington Drive
Greenville, PA 16125
phone: [phone]
fax: [phone]

Instructions:

Draw property line, existing
structures and proposed placement
of building.

Homeowner may also be required
to show trees and shubs. Check
with HOA or permit oce for
requirements.
