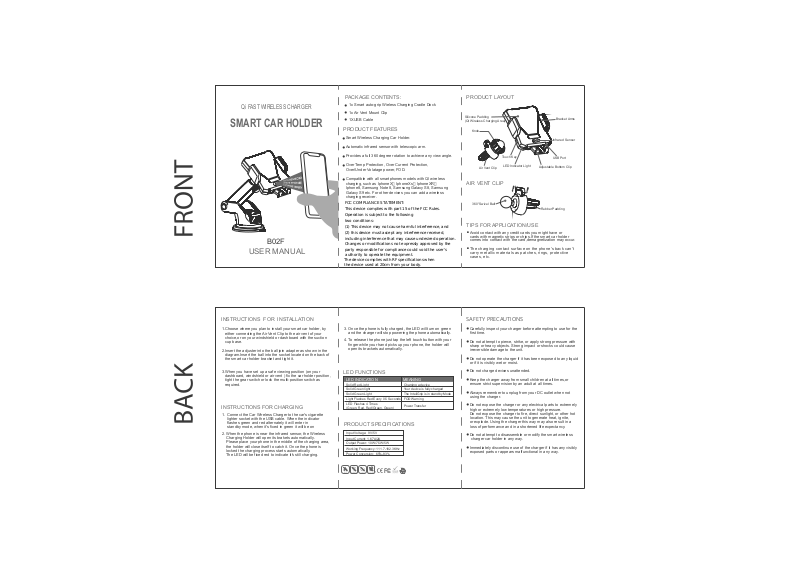

Qi FAST WIRELESS CHARGER
SMART CAR HOLDER
B02F
USER MANUAL
INSTRUCTIONS FOR INSTALLATION
1.Choose where you plan to install your smart car holder, by
either connecting the Air Vent Clip to the air vent of your
choice,or on your windshield or dashboard with the suction
cup base.
2.Insert the adjuster into the ball join adapter as shown in the
diagram.Insert the ball into the socket located on the back of
the smart car holder bracket and tight it.
3.When you have set up a safe viewing position (on your
dashboard, windshield or air vent ) fix the car holder position,
tight the gear switch or lock the multi-position switch as
required.
INSTRUCTIONS FOR CHARGING
1. Connect the Car Wireless Charger to the car's cigarette
lighter socket with the USB cable. When the indicator
flashes green and red alternately it will enter in
standby mode, when it's fixed in green it will be on
2. When the phone is near the infrared sensor, the Wireless
Charging Holder will open its brakets automatically.
Please place your phone in the middle of the charging area,
the holder will close itself to catch it. Once the phone is
locked the charging process starts automatically.
The LED will be fixed red to indicate it's still charging.
PACKAGE CONTENTS:
1x Smart auto-grip Wieless Charging Cradle Dock
ȕ
1x Air Vent Mount Clip
ȕ
1XUSB Cable
ȕ
PRODUCT FEATURES
Smart Wireless Charging Car Holder.
ȕ
Automatic infrared sensor with telescopic arm.
ȕ
Provides a full 360 degree rotation to achieve any view angle.
ȕ
Over Temp Protection, Over Current Protection,
ȕ
Over/Under Volatage power, FOD.
Compatible with all smartphones models with QI wireless
ȕ
charging, such as IphoneX，IphoneXs，IphoneXR，
Iphone8, Samsung Note 8, Samsung Galaxy S8, Samsung
Galaxy S9 etc. For other devices you can add a wireless
charging receiver.
FCC COMPLIANCE STATEMENT:
This device complies with part 15 of the FCC Rules.
Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
Changes or modifications not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment.
The device complies with RF specifications when
the device used at 20cm from your body.
3. Once the phone is fully charged, the LED will turn on green
and the charger will stop powering the phone automatically.
4. To release the phone just tap the left touch button with your
finger while your hand picks up your phone, the holder will
open its brackets automatically.
LED FUNCTIONS
LED INDICATION
Solid Red Light
Solid Green light
Solid Green Light
Light Flashes Red Every 0.5 Seconds
LED Flashes 4 Times
(Green, Red, Red/Green, Green)
MEANING
Charging a device
Your device is fully charged
The InteliGrip is in standby Mode
FOD Warning
Power Transfer
PRODUCT SPECIFICATIONS
Input Voltage:9V/5V
Input Current: 1.67A/2A
Output Power: 10W/7.5W/5W
Working Frequency: 111.7-182.3KHz
Power Conversion: 65%-83%
PRODUCT LAYOUT
Silicone Padding
(QI Wireless Charging Area)
Knob
Air Vent Clip
Touch Key
LED Indicator Light
Bracket Arms
Infrared Sensor
USB Port
Adjustable Bottom Clip
AIR VENT CLIP
360°Swivel Ball
TIPS FOR APPLICATION/USE
Avoid contact with any credit cards you might have or
g
cards with magnetic strips or chips.If the smart car holder
comes into contact with the card,demagnetization may occur.
The charging contact surface on the phone's back can't
g
carry metallic materials as patches, rings, protective
cases, etc.
Rubber Padding
9',+:?68+)';:/549
Carefully inspect your charger before attempting to use for the
ȕ
first time.
Do not attempt to pierce, strike, or apply strong pressure with
ȕ
sharp or heavy objects. Strong impact or shocks could cause
irreversible damage to the unit.
Do not operate the charger if it has been exposed to any liquid
ȕ
or if it is visibly wet or moist.
Do not charge devices unattended.
ȕ
Keep the charger away from small children at all times,or
ȕ
ensure strict supervision by an adult at all times.
Always remember to unplug from your DC outlet when not
ȕ
using the charger.
Do not expose the charger or any electrical parts to extremely
ȕ
high or extremely low temperatures or high pressure.
Do not expose the charger to fire, direct sunlight, or other hot
location. This may cause the unit to generate heat, ignite,
or explode. Using the charger this way may also result in a
loss of performance and in a shortened life expectancy.
Do not attempt to disassemble or modify the smart wireless
ȕ
charger car holder in any way.
Immediately discontinue use of the charger if it has any visibly
ȕ
exposed parts or appears malfunctional in any way.
