WTT32I48SB
12-1/16"
RANGE HOOD
SPECIFICATION SHEET
Traditional Italian design wall mount chimney
hood. Design includes modern features and
high performance necessary in today’s upscale
residential kitchens.
FEATURES
Wall mount
•
Finish: 430 Stainless Steel #4 Brushed
•
Width: 48”
•
Depth: 22”
•
Duct connector with back draft damper - 10” round
•
Three-setting cook top lighting. Uses three (3), 50W,
•
GU10 halogen lamps. Bulbs included.
Quick release stainless steel / aluminum mesh filters are
•
dishwasher safe.
4-speed electronic push button control with blue backlit
•
selection indicators.
Powerful, centrifugal blower with high efficiency motor
•
produces 1200 CFM
Quiet operation
•
Heat Sentry ™ - automatically turns blower to high
•
speed when excess cooking heat is detected.
Delay timer control automatically shuts off range hood
•
after 5 minutes.
Special control indicates when it’s time to clean the
•
filters.
OPTIONS
Flue extension for 10-foot ceilings - AEWTT328SB
•
Make-up Air damper - MD6T (6” duct), MD8T (8” duct)
•
- Relay and transformer included
16-5/8"
16-3/8"
1"
48"
22"
1-9/16"
16-3/8"
min. 28" max. 44"
12-3/8"
SPECIFICATIONS
MODEL NO. VOLTS AMPS CFM / SONES CFM / SONES DUCT
(High Speed) (Low Speed)
WTT32I48SB 120 8.5 1200 / 12.0 400 / 2.0 10" round
BEST Hartford, Wisconsin www.BestRangeHoods.com 800-558-1711
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted by Date
21K 99045057A
HVI-2100 CERTIFIED RATINGS comply with new testing
technologies and procedures prescribed by the Home
Ventilating Institute, for off-the-shelf products, as they are
available to consumers. Product performance is rated at 0.1
in. static pressure, based on tests conducted in a state-ofthe-art test laboratory. Sones are a measure of humanlyperceived loudness, based on laboratory measurements.
WTT32
Ceiling
Desired Hood Distance (Above 36" High Cooktop)
I48SB WIRING
HOOD
CENTERLINE
120 VOLT 60 HZ
3
7
/
4
”
GROUNDED WALL OUTLET -
OFFSET FROM DUCT CENTER LINE
(STAY WITHIN 15½” DIMENSION)
CENTER LINE OF
DUCT AND HOOD
WTT32I48SB MOUNTING
HOOD
A
SEE
CHART
BELOW
10 3/4 ”
24”
MAX.
7 1/2 ”
STRUCTURAL
STRUCTURAL
C
L
FRAMING
4mm x 38mm
FRAMING
NOTE: A clock outlet can be used to
minimize clearance related issues
with the range hood plug.
7 1/2 ”
SCREWS
HERE
6 3/8 ”6 3/8 ”
24" 25"26" 27" 28"29" 30"
Height
8 Feet 36-1/8" 37-1/8" 38-1/8" 39-1/8"40-1/8"41-1/8" 42-1/8"
9 Feet
9 Feet
with
AEWTT328SB
10 Feet
with
AEWTT328SB
BEST Hartford, Wisconsin www.BestRangeHoods.com 800-558-1711
Upper Mounting Screws Location (Distance above 36" High Cooktop)
36-1/8" 37-1/8" 38-1/8"
36-1/8" 37-1/8" 38-1/8" 39-1/8"40-1/8"41-1/8" 42-1/8"
36” HIGH COOKTOP
(Dimension “A”)
41-1/8"40-1/8"
42-1/8"

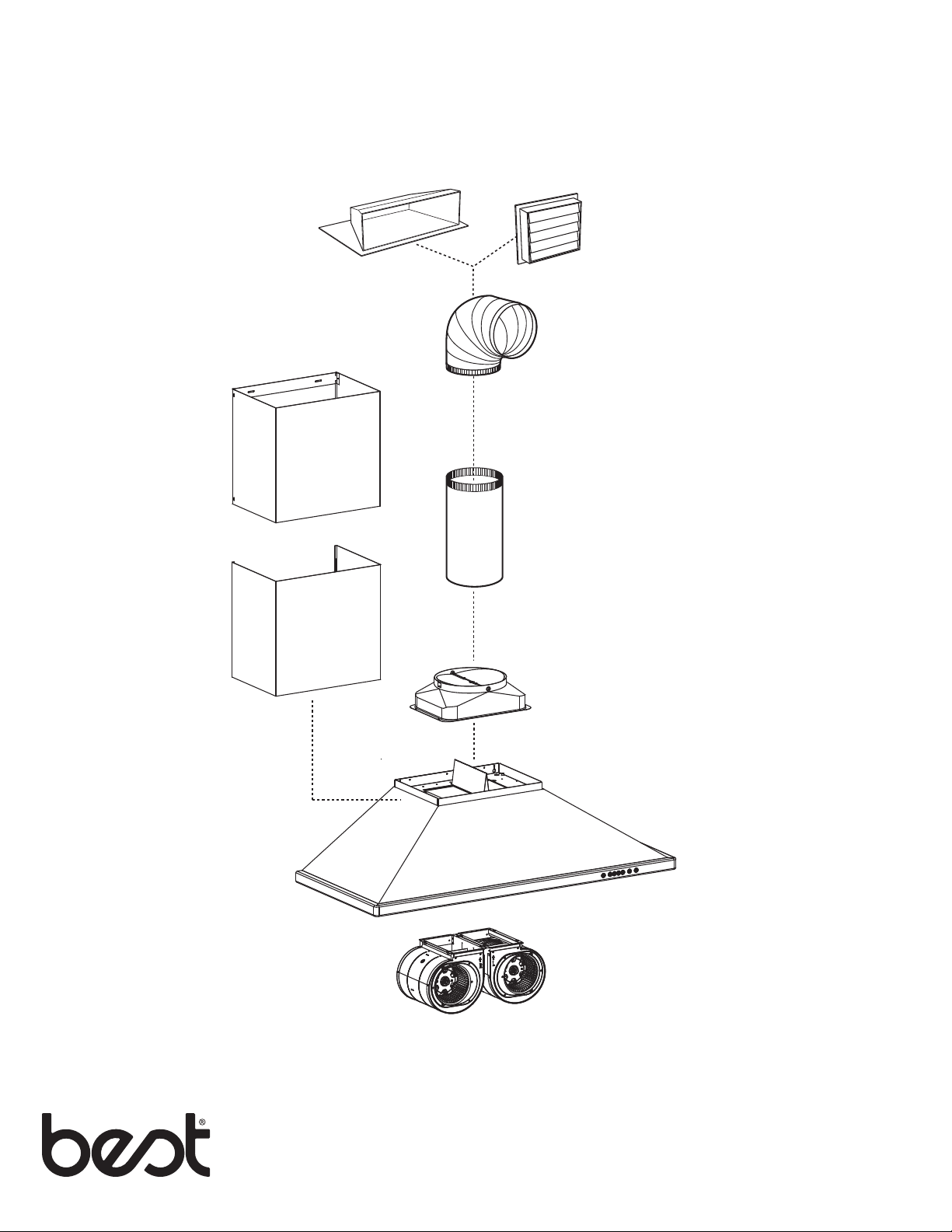

WTT32I48SB RANGE HOOD SYSTEM
MODEL 437
HIGH CAPACITY
ROOF CAP
(Optional)
UPPER
FLUE
(Included)
MODEL 441
10” ROUND
WALL CAP
(Optional)
MODEL 418
10” ROUND
ADJUSTABLE ELBOW
(Optional)
MODEL 410
10” ROUND DUCT
(2 ft. sections)
(Optional)
LOWER
FLUE
(Included)
10” ROUND
ADAPTER / DAMPER
(Included)
DUAL
BLOWER
(Included)
BEST Hartford, Wisconsin www.BestRangeHoods.com 800-558-1711
