Best WTT32I30SB Installation

WTT32I Series

HB0103

In USA - BEST® Hartford, Wisconsin

For additional Information visit www.BestRangeHoods.com

READ AND SAVE THESE INSTRUCTIONS

INTENDED FOR DOMESTIC COOKING ONLY

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSON(S) OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.

2. Before servicing or cleaning unit, switch power off at service panel and lock service disconnecting means to prevent power from being switch on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

3. Installation work and electrical wiring must be done by qualified personnel in accordance with all applicable codes and standards, including fire-rated construction codes and standards.

4. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer’s guidelines and safety standards such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities.

5. This product may have sharp edges. Be careful to avoid cuts and abrasions during installation and cleaning.

6. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.

7. Ducted fans must always be vented to the outdoors.

8. To reduce the risk of fire, use only steel ductwork.

9. Do not use this unit with any other solid-state speed control device.

10. Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.

11. GROUNDING INSTRUCTION: The appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. The appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. WARNING: Improper grounding can result in a risk of electric shock. Consult a qualified electrician if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded. Do not use an extension cord. If the power supply cord is too short, have a qualified electrician install an outlet near the appliance.

- 2 -

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

a) Never leave surface units unattended at high settings. Boilovers cause smoking

and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.

b) Always turn hood ON when cooking at high heat or when cooking flaming foods

(i.e. Crêpes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).

c) Clean ventilating fans frequently. Grease should not be allowed to accumulate

on fan or filters.

d) Use proper pan size. Always use cookware appropriate for the size of the

surface element.

TO REDUCE THE RISK OF INJURY TO PERSON(S) IN THE EVENT OF A RANGE

TOP GREASE FIRE, OBSERVE THE FOLLOWING*:

1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. IF THE FLAMES DO NOT GO OUT IMMEDIATELY, EVACUATE AND CALL THE FIRE DEPARTMENT.

2. NEVER PICK UP A FLAMING PAN – You may be burned.

3. DO NOT USE WATER, including wet dishcloths or towels – This could cause

a violent steam explosion.

4. Use an extinguisher ONLY if:

A. You know you have a Class ABC extinguisher and you know how to operate it.

B. The fire is small and contained in the area where it started. C. The fire department has been called. D. You can fight the fire with your back to an exit. * Based on “Kitchen Fire Safety Tips” published by NFPA.

CAUTION

1. For indoor use only.

2. For general ventilating use only. Do not use to exhaust hazardous or explosive

materials and vapors.

3. To avoid motor bearing damage and noisy and/or unbalanced impeller, keep

drywall spray, construction dust, etc. off power unit.

4. Your hood motor has a thermal overload which will automatically shut off the

motor if it becomes overheated. The motor will restart when it will cool down. If the motor continues to shut off and restart, have the hood serviced.

5. The bottom of the hood MUST NOT BE LESS than 24” and at a maximum of

30” above cooktop for best capture of cooking impurities.

6. Two installers are recommended because of the size of this hood.

7. To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do

not exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.

8. Be careful when installing the decorative flue and hood, they may have sharp

edges.

9. Please read specification label on product for further information and

requirements.

- 3 -

OPERATION

Always turn your hood on before you begin cooking to establish an air flow in the kitchen. Let the blower run for a few minutes to clear the air after you turn off the range.

The hood is operated using the push buttons on the front panel.

A B C D

A. DELAY SWITCH

When a blower speed is selected, press this switch to activate the delay func-

tion. The delay button will illuminate to indicate this function is activated. The blower will continue to operate for 5 minutes and will stop automatically. To cancel the delay function, press the delay switch once again.

B. START / STOP / SPEED SELECTION SWITCHES

Press the switch corresponding to the desired blower speed (from 1 for low

speed to 4 for high speed). The chosen switch will light. To turn off the blower, press once more on the corresponding blower speed switch; the switch light will shut off.

C. MASTER OFF / FILTER MAINTENANCE / HEAT SENTRY™

(TRIPLE FUNCTION SWITCH)

To turn off the blower and the light simultaneously, press this switch once. After

25 hours of operation, this switch will light to indicate the filters and the blower wheel(s) need to be cleaned in order to maintain efficient operation of the unit. The switch light will stay on until the function is reset by pressing this switch for 3 seconds. The light indicator is used for the Heat Sentry function as well.

HEAT SENTRY: When an excessively high temperature is detected, the Heat

Sentry takes control over the blower and sets it on speed 3. The triple-function switch will flash.The blower will remain on until the heat condition is back to normal. It will then return to the speed previously selected.

WARNING: The Heat Sentry can start the blower even if the hood is

turned off. When this situation occurs, it is impossible to turn the blower off using the push buttons. If you must stop the blower, do it from the main electrical panel.

D. LIGHT SWITCH

This switch allows three different lighting levels according to your needs. Press

once for nightlight, twice for normal or three times to obtain full intensity. To shut off the lights without turning off the blower, press once more.

- 4 -

GRD

MAKE UP DAMPER CONNECTION

MAKE-UP AIR DAMPER

The hood is compatible with Broan Make-Up Air Damper Model MD6T or Model MD8T (optional). Purchase separately.

MAKE-UP AIR DAMPER

24V TRANSFORMER (INCLUDED)

120 VAC 60 HZ

(switched low voltage)

20 GAUGE BELL WIRE FOR LOW VOLTAGE CONNECTION ON TOP OF HOOD

DRY CONTAC

TERMINAL

HOOD

BUSHING FOR LOW VOLTAGE CONNECTION

Make the connection to the Make-Up Air Damper with low voltage wiring, as shown. See Make-Up Air Damper instructions for additional information.

- 5 -

CLEANING & MAINTENANCE

For performance, appearance, and health reasons, clean filter, fan and grease-laden surfaces regularly. Use only a clean cloth and mild detergent solution on stainless and painted surfaces.

Clean all-metal filters in the dishwasher using a non-phosphate detergent. Discoloration of the filter may occur if using phosphate detergents, or as a result of local water conditions but this will not affect filter performance. This discoloration is not covered by the warranty.

Clean the non-duct recirculating filter surfaces frequently with a damp cloth and a mild detergent. DO NOT immerse filters in water or put in dishwasher. Change the nonduct recirculating filters every 6 months. For replacement non-duct recirculating filters

- purchase S97018968 or Model AFCWTT32 (for 30” wide hood) or S97019039 or Model AFCWTT326 (for 36” and 42” wide hoods).

The motor is permanently lubricated and never needs oiling. If the motor bearings make excessive or unusual noise, replace the blower assembly with an exact service replacement.

LIGHT BULBS

WARNING:

Bulbs may be hot. Always allow bulbs to cool down before removing them.

Use (2) Halogen Bulbs (included with hood) 120 V, 50 W, shielded halogen bulbs - MR16 with GU10 base. (3 bulbs for 42” & 48” hoods.)

NOTE:

Suction Cup Tool (included with hood) can be used to install and remove light bulbs. Align pins on bulb with large diameter opening on socket, then push bulb in towards hood and rotate clockwise until firmly seated. The position of the bulb socket (depth) is adjustable and may require adjustment when: a) certain brands of bulbs are difficult to install. b) the bulb protrudes too far below the light panel.

To change the depth of bulb

sockets:

- Remove screws on light panel – set screws aside

- Remove Light Panel.

- Loosen 2 Screws holding Lamp Socket Bracket to Light Panel.

- Adjust socket/bracket to desired depth.

- Re-tighten screws securely.

- Re-attach light panel with screws that were previously set aside.

HALOGEN

BULB

(2)

ROTATE

CLOCKWISE

LAMP SOCKET

BRACKET

LIGHT

PANEL

SUCTION

CUP TOOL

(1)

PUSH IN

SCREWS

- 6 -

MEASURE THE INSTALLATION

MOUNTING

HOOD

ROOF

CAP

ROUND

HOOD

12 1/8” TO CENTER

UPPER MOUNTING

HOLES

1 3/8” TO CENTER

LOWER HOOD

OF CHASSIS

ELBOW

WALL CAP

BRACKET

HOLES

8” ROUND DUCT

DECORATIVE

FLUE

4 3/8” FROM WALL TO

CENTER

LINE OF DUCT

DECORATIVE FLUE

24” TO 30” ABOVE

COOKING

SURFACE

HOOD

CAP

ROOF

ROUND

13 1/8” TO CENTER

UPPER MOUNTING

HOLES

1 3/8” TO CENTER

LOWER HOOD

OF CHASSIS

ELBOW

WALL CAP

HOOD

BRACKET

HOLES

10” ROUND DUCT

DECORATIVE

FLUE

6 9/16” FROM WALL TO

CENTER

LINE OF DUCT

DECORATIVE FLUE

24” TO 30” ABOVE

COOKING

SURFACE

For 30”, 36”, & 42” Hoods For 48” Hoods

The minimum hood distance above cooktop MUST NOT BE LESS than 24”. A maximum of 30” above cooktop is highly recommended for best capture of

cooking impurities. Distances over 30” are at the installer and users discretion; providing that the

ceiling height permits.

INSTALL THE DUCTWORK (Ducted Hoods Only)

1. Decide where the ductwork will run between the hood and the outside.

2. A straight, short duct run will allow the hood to perform most efficiently.

3. Long duct runs, elbows and transitions will reduce the performance of the

hood. Use as few of them as possible. Larger ducting may be required for best performance with longer duct runs.

4. Install wall cap or roof cap. Connect round metal ductwork to cap and work back

towards the hood location. Use duct tape to seal the joints between ductwork sections.

- 7 -

PREPARE THE HOOD

Unpack hood and check contents. You should receive: 1 - Hood Assembly 1 - Decorative Flue Assembly (consisting of upper and lower flue) 1 - Upper Flue Mounting Bracket 2 - Aluminum Grease Filters (installed on hood) (3 - on 48” model) 2 - 50W MR16 GU10 Halogen Lamps (installed on hood) (3 - on 42” & 48” model) 1 - 8” Damper / Duct Connector (for 30”, 36”, 42” models) 1 - 10” Damper / Duct Connector (for 48” model) 1 - Damper Diverter (for 48” model) 1 - Parts Bag containing:

6 - Mounting Screws (4mm x 38mm Cross Recessed Pan Head) 2 - Mounting Screws (4mm x 12mm Cross Recessed Pan Head) 4 - Mounting Screws (4mm x 8mm Cross Recessed Pan Head) (6 for 48” model) 1 - Suction Cup Tool (for bulb installation / removal)

6 MOUNTING

SCREWS

UPPER

FLUE MOUNTING

BRACKET

1 - DAMPER/DUCT

CONNECTOR

(8” dia. for 30”, 36”, &

42” models)

(10” dia. for 48” model)

(4mm x 38mm

Cross Recessed

Pan Head)

2 MOUNTING SCREWS (4mm x 12mm Cross Recessed Pan Head)

4 MOUNTING SCREWS (4mm x 8mm Cross Recessed Pan Head) (6 for 48” model)

1 - DAMPER DIVERTER

(48” model only)

BULB

SUCTION

CUP TOOL

- 8 -

DECORATIVE

FLUE

ASSEMBLY

HOOD ASSEMBLY

”

TOP

INSTALL THE WIRING

HOOD

CENTERLINE

GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of an electrical short circuit,

grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Position the electrical outlet within the space covered by the decorative flue and where it will not interfere with the round duct. Make sure the outlet is no further than 24” from the top of the hood chassis, and that the outlet does not interfere with a mounting bracket fastening area or where the decorative flue touches the wall.

NOTE: A clock outlet can be used to minimize clearance related issues with the range hood plug.

”

(30”, 36”, & 42” models)

”

(48” model)

24”

MAX.

24” TO 36”

ABOVE

COOK

- 9 -

INSTALL THE HOOD MOUNTING SUPPORT

36” HIGH COOKTOP

Ceiling Height

** For non-duct installation, use upper flue from AEWTT32SB and lower flue from standard hood.

Desired Hood Distance (Above 36" High Cooktop)

1. Construct structural wall framing that is flush with interior surface of wall studs.

Make sure the framing is centered over installation location.

NOTE

Hood distance above cooktop is: Minimum 24”, Maximum 30”. 9-ft. and 10-ft.

ceilings may require Flue Extension, Model AEWTT32SB (for 30”, 36” & 42” wide

hoods) or Model AEWTT328SB (for 48” wide hoods), depending on installation

height (purchase separately). See charts below for additional installation height

information.

2. After wall surface is finished, fasten (2) 4mm x 38mm screws at the locations

shown below. DO NOT TIGHTEN screws all the way - leave approximately 1/4”

between screw head and wall.

For 30-in., 36-in., & 42-in. wide hoods

HOOD

SEE CHART BELOW

11 3/4 ”

4 3/4 ”

STRUCTURAL

FRAMING

6 3/8 ”

STRUCTURAL

FRAMING

4 3/4 ”

4mm x 38mm

SCREWS

HERE

6 3/8 ”

24" 25"26" 27" 28"29" 30"

Upper Mounting Screws Location (Distance above 36" High Cooktop)

8 Feet 37-1/8" 38-1/8" 39-1/8" 40-1/8"41-1/8"*42-1/8"*43-1/8" 9 Feet

9 Feet

with

AEWTT32SB

**37-1/8" **38-1/8" **39-1/8"

(Dimension “A”)

43-1/8"

10 Feet

with

AEWTT32SB

* Not applicable for non-duct installation.

37-1/8" 38-1/8" 39-1/8" 40-1/8"41-1/8"42-1/8" 43-1/8"

- 10 -

36” HIGH COOKTOP

Ceiling

Height

Desired Hood Distance (Above 36" High Cooktop)

For 48-in. wide hoods

7 1/2 ”

STRUCTURAL

FRAMING

10 3/4 ”

HOOD

24" 25"26" 27" 28"29" 30"

Upper Mounting Screws Location (Distance above 36" High Cooktop)

8 Feet 36-1/8" 37-1/8" 38-1/8" 39-1/8"40-1/8"41-1/8" 42-1/8" 9 Feet

9 Feet

with

AEWTT328SB

36-1/8" 37-1/8" 38-1/8"

SEE CHART BELOW

STRUCTURAL

FRAMING

7 1/2 ”

4mm x 38mm

SCREWS

HERE

6 3/8 ”6 3/8 ”

(Dimension “A”)

41-1/8"40-1/8"

42-1/8"

10 Feet

with

AEWTT328SB

36-1/8" 37-1/8" 38-1/8" 39-1/8"40-1/8"41-1/8" 42-1/8"

- 11 -

INSTALL THE HOOD (Ducted Hoods Only)

Ceiling

1. Center the flue mounting bracket over the hood location and flush with the ceiling. Secure the upper flue bracket to the wall using (2) 4mm x 38mm mounting screws. Note: Drywall anchors may be required (not included).

2. Tighten the screws completely. Make sure that the bracket is tight against the wall and ceiling.

3. Remove the protective plastic film covering the decorative flue and the hood at this time.

4. Remove the grease filters by pulling down the metal latch tab and tilting filters downward to remove.

5. Remove all internal foam fillers that support the blower assembly inside the hood.

Center of

installation

Upper flue mounting

bracket slots

Flush with the ceiling

6. For 48” wide hood only: Attach damper / diverter to top of hood using (2) 4mm x 8mm mounting screws.

7. Attach the damper / duct connector (8” diameter for 30”, 36”, and 42” wide hoods and 10” diameter for 48” wide hood) using (4) 4mm x 8mm mounting screws.

- 12 -

8. Align the two outer keyhole slots on the hood with the mounting screws that were partially tightened into the wall framing. Ensure that hood is seated entirely on mounting screws and that hood is level. Then tighten screws completely.

9. Install (2) 4mm x 38mm long screws into the holes inside the hood and tighten them securely.

10. Reinstall grease filters by aligning rear filter tabs with slots in the hood. Pull

down the metal latch tab, push filters into position and release. Make sure filters are securely engaged after installation.

8” ROUND STEEL DUCT

(10” for 48” wide hood)

DUCT LENGTH

DECORATIVE

FLUE

11. Measure and install steel ductwork to hood duct connector and ductwork

rough-in on ceiling or wall. Use duct tape to make all joints secure and air tight.

12. Plug power cord into wall outlet.

- 13 -

13. Slide the upper decorative flue section into the lower decorative flue section.

NOTE For ducted applications, the louvers on the upper flue should be hidden by

positioning the louvers down, inside of the lower flue.

14. Carefully place the upper/lower flue assembly into the recessed area of the

hood.

15. Slide the upper flue upward until it is aligned with its mounting bracket. The

bracket should be inside the flue. Secure the upper flue to the upper flue mounting bracket using (2) 4mm x 12mm mounting screws.

NOTE 9-10 ft. ceilings may require Flue Extension Model AEWTT32SB (for 30”, 36”

& 42” wide hoods) or Model AEWTT328SB (for 48” wide hoods), depending on installation height (purchase separately). Discard the upper and lower flues supplied with your hood and replace them with Flue Extensions.

- 14 -

INSTALL THE HOOD

(Non-Ducted Hoods Only)

NON-DUCT KIT MODEL ANKWTT320 OR ANKWTT326 CONTENTS

NOTE

Non-ducted installations require Non-Duct Kit, Model ANKWTT320 (for 30” wide hood) or Model ANKWTT326 (for 36” or 42” wide hood).

NON-DUCT PLENUM

ASSEMBLY

FLEXIBLE DUCT

8 FILTER CLIPS

NON-DUCTED RECIRCULATION FILTERS

2 MOUNTING

SCREWS

(4mm x 38mm

Cross Recessed

Pan Head)

1. Center the non-duct plenum over the hood

Ceiling

location and flush with the ceiling. Secure the non-duct plenum to the wall using (2) 4mm x

Flush with the ceiling

38mm mounting screws. Note: Drywall anchors may be needed (not included).

2. Tighten the screws completely. Make sure that the non-duct plenum is tight against

Upper flue mounting

bracket slots

the wall and ceiling.

3. Remove damper flaps from damper / duct connector and discard flaps.

Center of

installation

4. Remove the protective plastic film covering the decorative flue and the hood at this time.

5. Attach the 8” round duct connector to the top of the hood using (4) 4mm x 8mm mounting screws.

6. Remove the grease filters by pulling down the metal latch tab and tilting filters downward to remove.

7. Remove all internal foam fillers that support the blower assembly inside the hood.

- 15 -

9. Install (2) 4mm x 38mm long screws into the holes inside the hood and tighten them securely.

10. Attach non-

ducted filters to grease filter using (8) filter clips.

11. Reinstall grease/

non-duct filter assembly by aligning rear filter tab with slots in the hood. Pull down the metal latch tab, push filters into position and release. Make sure filters are securely engaged after installation.

- 16 -

NON-DUCT

8” ROUND FLEXIBLE

METAL DUCT

DECORATIVE

FLUE

DAMPER / DUCT

12. Measure and install section of flexible metal ductwork (included with

ANKWTT320 or ANKWTT326) to damper/duct connector and bottom of nonduct plenum. Use duct tape to make all joints secure and air tight.

CAUTION

Do not use plastic duct.

13. Plug power cord into wall outlet.

14. Slide the upper decorative flue section into the lower decorative flue section.

NOTE For non-ducted

applications, the upper flue should be oriented so the louvers are towards the ceiling.

15. Carefully place the

upper/lower flue assembly into the recessed area of the hood.

16. Slide the upper

flue upward until it is aligned with the non-duct plenum. The non-duct plenum should be inside the flue. Secure the upper flue to the non-duct plenum using (2) 4mm x 12mm mounting screws.

NOTE 9-10 ft. ceilings may require Flue Extension Model AEWTT32SB depending

on installation height (purchase separately). Discard the upper and lower flues supplied with your hood and replace them with Flue Extension Model AEWTT32SB.

PLENUM

DUCT LENGTH

CONNECTOR

- 17 -

WIRING DIAGRAMS

MODEL WTT32I30SB

MODEL WTT32I36SB

- 18 -

WIRING DIAGRAMS

MODEL WTT32I42SB

MODEL WTT32I48SB

- 19 -

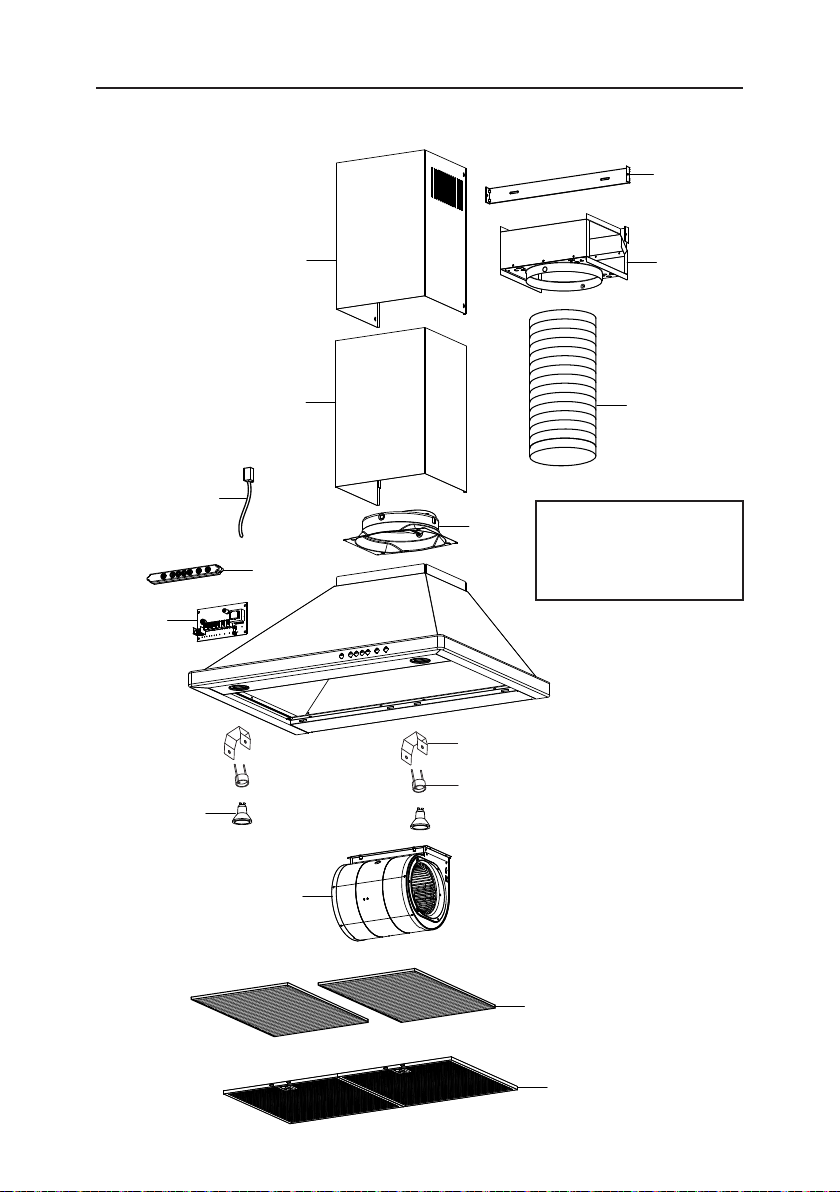

SERVICE PARTS

30”, 36” & 42” Wide Models

KEY PART NO. DESCRIPTION QTY. 1 S99528405 Decorative Upper and Lower Flues 1

2 S99528407 Motor / Blower Assembly 1 3 S99528408 Light Socket (30” & 36” wide hoods) 2 (includes mounting hardware) Light Socket (42” wide hood) 3 (includes mounting hardware) 4 S99528409 Light Socket Bracket (30” & 36” wide hoods) 2 (includes mounting hardware) Light Socket Bracket (42” wide hood) 3 (includes mounting hardware) 5 S99528410 User Interface Assembly 1 6 S99528411 User Interface Cable 1 7 S99528412 Control Board 1 8 S99528414 Aluminum Grease Filter (30” wide hood) 2 S99528415 Aluminum Grease Filter (36” & 42” wide hoods) 2 9 S97018968 Non-Duct Recirculation Filter (30” wide hood) 2 S97019039 Non-Duct Recirculation Filter (36” & 42” wide hoods) 2 10 S99528418 8” Damper Assembly 1 11 S99528429 8” Dia. Expandable Flexible Aluminum Duct 1 12 S99528421 Non-Duct Plenum Assembly 1 13 S99528422 Upper Flue Mounting Bracket 1 14 V05921 50W MR16 GU10 Halogen Lamp (30” & 36” wide hoods) 2 50W MR16 GU10 Halogen Lamp (42” wide hood) 3 * S99528423 Capacitor 1 * S99528425 Parts Bag 1 * S99528518 Heat Sensor 1

* Not shown. Order service parts by Part No. - not by Key No.

- 20 -

SERVICE PARTS

30”, 36” & 42” Wide Models

Replacement parts can be

ordered on our website:

www.BestRangeHoods.com

- 21 -

SERVICE PARTS

48” Wide Model

KEY PART NO. DESCRIPTION QTY. 1 S99528406 Decorative Upper and Lower Flues 1

2 S99528407 Motor / Blower Assembly 2 3 S99528408 Light Socket 3 (includes mounting hardware) 4 S99528409 Light Socket Bracket 3 (includes mounting hardware) 5 S99528410 User Interface Assembly 1 6 S99528411 User Interface Cable 1 7 S99528413 Control Board 1 8 S99528414 Aluminum Grease Filter 3 9 S99528419 10” Damper Assembly 1 10 S99528420 Diverter 1 11 S99528438 Upper Flue Mounting Bracket 1 12 V05921 50W MR16 GU10 Halogen Lamp 3 * S99528423 Capacitor 2 * S99528430 Parts Bag 1 * S99528518 Heat Sensor 1

* Not shown. Order service parts by Part No. - not by Key No.

- 22 -

+ 50 hidden pages
