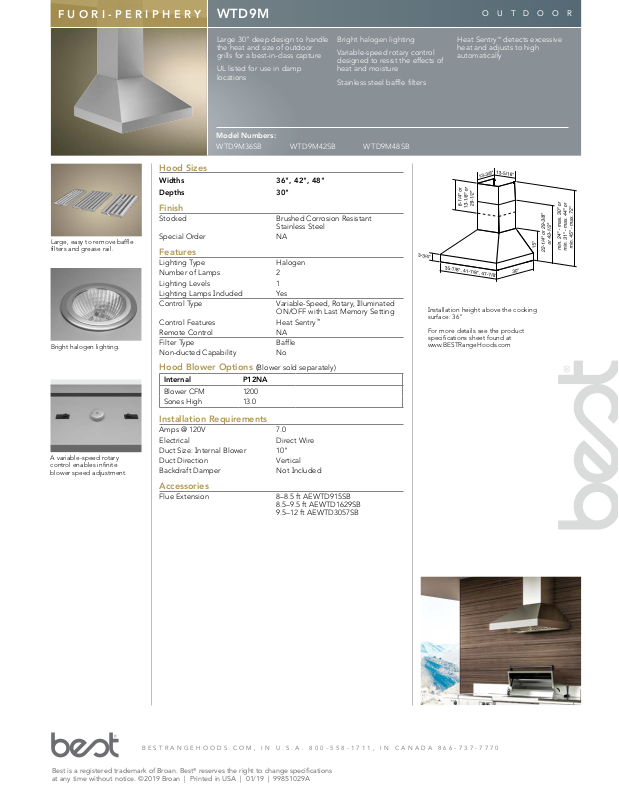

Best WTD9M36SB, WTD9M42SB, WTD9M48SB Reference Sheet

FUORI-PERIPHERY

•

BESTRANGEHOODS.COM, IN U.S.A. 800-558-1711, IN CANADA 866-737-7770

WTD9M

OUTDOOR

Large, easy to remove baffle filters and grease rail.

Bright halogen lighting.

Large 30" deep design to handle the heat and size of outdoor grills for a best-in-class capture

UL listed for use in damp locations

Bright halogen lighting

Variable-speed rotary control designed to resist the effects of heat and moisture

Stainless steel baffle filters

Model Numbers:

WTD9M36SB WTD9M42SB WTD9M48SB

Hood Sizes

Widths 36", 42", 48"

Depths 30"

Finish

Stocked Brushed Corrosion Resistant Stainless Steel

Special Order NA

Features

Lighting Type Halogen Number of Lamps 2 Lighting Levels 1 Lighting Lamps Included Yes Control Type Variable-Speed, Rotary, Illuminated

ON/OFF with Last Memory Setting Control Features Heat Sentry

™

Remote Control NA Filter Type Baffle Non-ducted Capability No

Hood Blower Options (Blower sold separately)

Internal P12NA

Blower CFM 1200 Sones High 13.0

™

Heat Sentry heat and adjusts to high

detects excessive

automatically

•

Installation height above the cooking surface: 36"

For more details see the product specifications sheet found at www.BESTRangeHoods.com

•

A variable-speed rotary control enables infinite blower speed adjustment.

Installation Requirements

Amps @ 120V 7.0 Electrical Direct Wire Duct Size: Internal Blower 10" Duct Direction Vertical Backdraft Damper Not Included

Accessories

Flue Extension 8–8.5 ft AEWTD915SB

8.5–9.5 ft AEWTD1629SB

9.5–12 ft AEWTD3057SB
