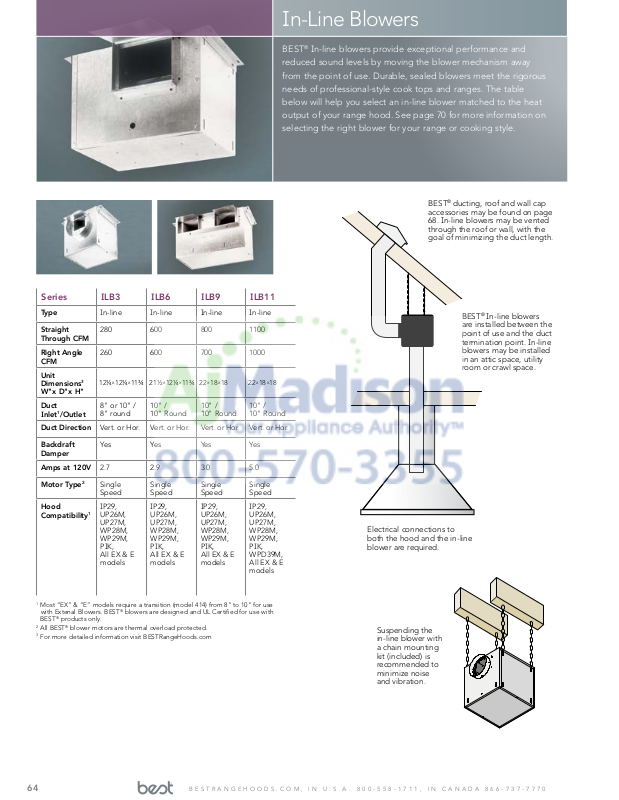

Best WP28M54SB In-Line Blowers Selection Chart

BESTRANGEHOODS.COM, IN U.S.A. 800-558-1711, IN CANADA 866-737-7770

Series ILB3 ILB6 ILB9 ILB11

Type In-line In-line In-line In-line

Straight Through CFM

Right Angle CFM

Unit Dimensions W"x D"x H"

Duct Inlet1/Outlet

Duct Direction Vert. or Hor. Vert. or Hor. Vert. or Hor. Vert. or Hor.

Backdraft Damper

Amps at 120V 2.7 2.9 3.0 5.0

Motor Type

Hood Compatibility

280 600 800 1100

260 600 700 1000

12¼x12¼x11¾ 21½x12¼x11¾ 22x18x18 22x18x18

8" or 10" / 8" round

10" / 10" Round

Yes Yes Yes Yes

Single Speed

IP29,

UP26M, UP27M, WP28M, WP29M, PIK, All EX & E models

Single Speed

IP29, UP26M, UP27M, WP28M, WP29M, PIK, All EX & E models

Single Speed

IP29, UP26M, UP27M, WP28M, WP29M, PIK, All EX & E models

10" / 10" Round

Single Speed

IP29, UP26M, UP27M, WP28M, WP29M, PIK, WPD39M, All EX & E models

In-Line Blowers

BEST® In-line blowers provide exceptional performance and reduced sound levels by moving the blower mechanism away from the point of use. Durable, sealed blowers meet the rigorous needs of professional-style cook tops and ranges. The table below will help you select an in-line blower matched to the heat output of your range hood. See page 70 for more information on selecting the right blower for your range or cooking style.

BEST

ducting, roof and wall cap

accessories may be found on page

68. In-line blowers may be vented through the roof or wall, with the goal of minimizing the duct length.

BEST

In-line blowers are installed between the point of use and the duct termination point. In-line blowers may be installed in an attic space, utility room or crawl space.

Electrical connections to both the hood and the in-line blower are required.

Most “EX” & “E” models require a transition (model 414) from 8" to 10" for use

with Extenal Blowers. BEST

products only.

BEST

All BEST® blower motors are thermal overload protected.

For more detailed information visit BESTRangeHoods.com

blowers are designed and UL Certified for use with

Suspending the in-line blower with a chain mounting kit (included) is recommended to minimize noise and vibration.
