Best WCP3I30SB Installation Guide
INSTALLATION INSTRUCTIONS
HB0311
WCP3I SERIES
! !
INTENDED FOR DOMESTIC COOKING ONLY
READ AND SAVE THESE INSTRUCTIONS
INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER.
HOMEOWNER: USE AND CARE INFORMATION ON PAGES 12 AND 13.
BEST; Hartford, Wisconsin www.BestRangeHoods.com 800-558-1711
BEST; Drummondville, QC, Canada www.BestRangeHoods.ca 866-737-7770
23863 rev. 03
!
WARNING
!
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
INJURY TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer.
If you have questions, contact the manufacturer at the address
or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service
panel and lock service disconnecting means to prevent
power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by
qualified personnel in accordance with all applicable codes
and standards, including fire-rated construction codes and
standards.
4. Sufficient air is needed for proper combustion and exhausting
of gases through the flue (chimney) of fuel burning equipment
to prevent backdrafting. Follow the heating equipment
manufacturer’s guidelines and safety standards such as
those published by the National Fire Protection Association
(NFPA) and the American Society for Heating, Refrigeration
and Air Conditioning Engineers (ASHRAE) and the local code
authorities.
5. When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
6. Ducted fans must always be vented outdoors.
7. Do not use this unit with any solid-state speed control device.
8. To reduce the risk of fire, use only metal ductwork.
9. This unit must be grounded.
10. When applicable, local regulations comprise more
restrictive installation and/or certification requirements,
the aforementioned requirements prevail on those of this
document and the installer agrees to conform to these at his
own expense.
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
a) Never leave surface units unattended at high settings. Boilovers
cause smoking and greasy spillovers that may ignite. Heat oils
slowly on low or medium settings.
b) Always turn power hood ON when cooking at high heat or
when flambeing food (i.e.: Crêpes Suzette, Cherries Jubilee,
Peppercorn Beef Flambé).
c) Clean ventilating fans frequently. Grease should not be allowed
to accumulate on fan, filters or in exhaust ducts.
d) Use proper pan size. Always use cookware appropriate for the
size of the surface element.
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE
EVENT OF A RANGE TOP GREASE FIRE, OBSERVE
THE FOLLOWING*:
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet or
metal tray, then turn off the burner. BE CAREFUL TO PREVENT
BURNS. IF THE FLAMES DO NOT GO OUT IMMEDIATELY,
EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN — You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels —
This could cause a violent steam explosion.
4. Use an extinguisher ONLY if:
A. You own a Class ABC extinguisher and you know how to
operate it.
B. The fire is small and contained in the area where it started.
C. The fire department has been called.
D. You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by NFPA.
CAUTION
1. For indoor use only.
2. For general ventilating use only. Do not use to exhaust
hazardous or explosive materials and vapors.
3. To avoid motor bearing damage and noisy and/or unbalanced
impellers, keep drywall spray, construction dust, etc. off power
unit.
4. Your hood motor has a thermal overload which will automatically
shut off the motor if it overheats. The motor will restart when it
cools down. If the motor continues to shut off and restart, have
the hood serviced.
5. The minimum hood distance above cooktop must not be
less than 24” (30” over a gas range). A maximum of 30”
above cooktop is recommended for best capture of cooking
impurities.
6. Two installers are recommended because of the large size and
weight of this unit.
7. To reduce the risk of fire and to properly exhaust air, be sure to
duct air outside — Do not exhaust air into spaces within walls
or ceiling or into attics, crawl space or garage.
8. Because of the high exhausting capacity of this hood, you
should make sure enough air is entering the house. Open a
window close to or in the kitchen.
9. To reduce the risk of fire and electrical shock, the Best WCP3I
Series models should only be installed with their own built-in
blowers.
10. When used in recirculation mode, to reduce the risk of fire and
shock, use only conversion kit model HRKBSS.
11. Please read specification label on product for further
information and requirements.
2
1. PREPARE THE INSTALLATION
!
WARNING
When performing installation, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves.
NOTE: Before proceeding to the installation, check the contents of the box. If items are missing or damaged, contact the manufacturer.
Make sure that the following items are included:
- Hood
- Accessories • Decorative flue assembly (lower and upper flues)
• Hood mounting bracket
• Upper flue mounting bracket
• 2 hybrid filters
• 6” round adapter/damper (for vertical discharge), in a bag
• 3¼” x 10” adapter/damper (for horizontal or vertical discharge)
• Bag of parts including: 5 no. 8 x 1½” countersunk screws, 8 no. 8 x 3/4” screws, 6 no. 8 x 3/8” screws,
6 drywall anchors, 3 washers, 2 no. 8 x 1/2”, 2 neoprene pieces. If need be,
discard extra hardware.
Parts sold separately:
- Duct, elbows, wall or roof caps.
- Optional flue extension for 10-ft. ceilings model AEWCP3SB.
- Non-duct kit model HRKBSS, mandatory for non-ducted installation.
NOTE: The maximum ceiling height must not exceed 9 ft. when using a non-duct kit.
Before installation, remove and discard the shipping bracket (in grey) and its retaining
SCREW LOCATIONS
screws. See illustration on the right.
HD0937
2. SELECT INSTALLATION TYPE
NOTE: During the installation, protect countertop and/or cooktop.
2.1 NON-DUCTED INSTALLATION
The non-duct kit model HRKBSS is required for a non-ducted installation.
2.2 DUCTED INSTALLATION
Plan where and how the ductwork will be installed.
Install proper-sized ductwork, elbows and roof or wall cap depending on the type
of installation. For vertical discharge, use 6” round or 3¼” x 10” ductwork and for
horizontal discharge use 3¼” x 10” ductwork only. Use metal foil duct tape to seal duct
joints.
2.3 ALL INSTALLATIONS
The minimum hood distance above cooktop is 24” (30” over a gas range). A
maximum of 30” above cooktop is recommended for best capture of cooking
impurities.
Distances over 30” are at the installer and users discretion providing that ceiling
height and decorative flue length allow it.
CEILING HEIGHT
MINIMUM HOOD DISTANCE ABOVE
ELECTRIC RANGE COOKTOP
8 FT. 24 IN. 30 IN.
FT. 28½ IN. 30 IN.
9
10 FT.* 28½ IN. 30 IN.
MINIMUM HOOD DISTANCE
ABOVE GAS RANGE COOKTOP
DECORATIVE
FLUE
HOOD
REFER TO CHART
DISTANCE ABOVE
FOR
COOKING SURFACE
HH0246A
ROOF CAP
3¼” X 10” DUCT
OR 6 ” ROUND DUCT
WALL
C
AP
3¼” X 10” DUCT
* 10-ft. ceilings require flue extension model AEWCP3SB (sold separately).
3
2. SELECT INSTALLATION TYPE (CONT'D)
Refer to illustrations below to locate duct opening according to discharge type chosen (grey parts to be installed later).
VERTICAL DISCHARGE
15/16”
3”
C
9¾”
L
2
3¼”
7
/8”
HORIZONTAL DISCHARGE
3¼”
C
L
9¾”
67/16”
127/8”
WIDTH HOOD
30”
36” WIDTH HOOD
HK0258A
1415/16”
1715/16”
VERTICAL DISCHARGE OR NON-DUCTED INSTALLATION
C
L
1415/16”
15
/16”
17
HK0261A
WIDTH HOOD
30”
36” WIDTH HOOD
6” DIA.
3. REMOVE HYBRID GREASE FILTERS
HK0273A
15
14
/16”
1715/16”
WIDTH HOOD
30”
36” WIDTH HOOD
Rest the range hood on a table. Remove tapes on filters. Remove filters from range hood by
pushing them down and tilt, then set aside the filters.
Remove both styrofoam pieces and tape from under the blower and discard.
4
1
2
HD1099
4. CHOOSE THE OPENING
HR0122
FOR VERTICAL DISCHARGE OR NON-DUCTED INSTALLATION:
Remove the knockout in order to clear vertical discharge opening (see illustration beside).
FOR HORIZONTAL DISCHARGE:
From outside the unit, remove the knockout from back of hood (see illustration beside).
HR0123
5. BLOWER REMOVAL (HORIZONTAL DISCHARGE ONLY)
These range hoods are factory shipped with the blower mounted for a vertical discharge configuration. For a horizontal discharge
configuration, disassemble the blower from the inner top of the hood (see procedure below). It will be assembled to the inner back of the
hood once the hood is mounted on the wall.
2) Using a 5/16” socket, or a Robertson or a Phillips no. 2 screwdriver,
remove the 4 blower mounting screws (2 on each side) from the inner
top of the hood. Set the blower and screws aside.
1) Unplug the blower.
LEFT SIDE MOUNTING
SCREW LOCATIONS
RIGHT SIDE MOUNTING
SCREW LOCATIONS
HE0234
HD0385
HD0386
5
!

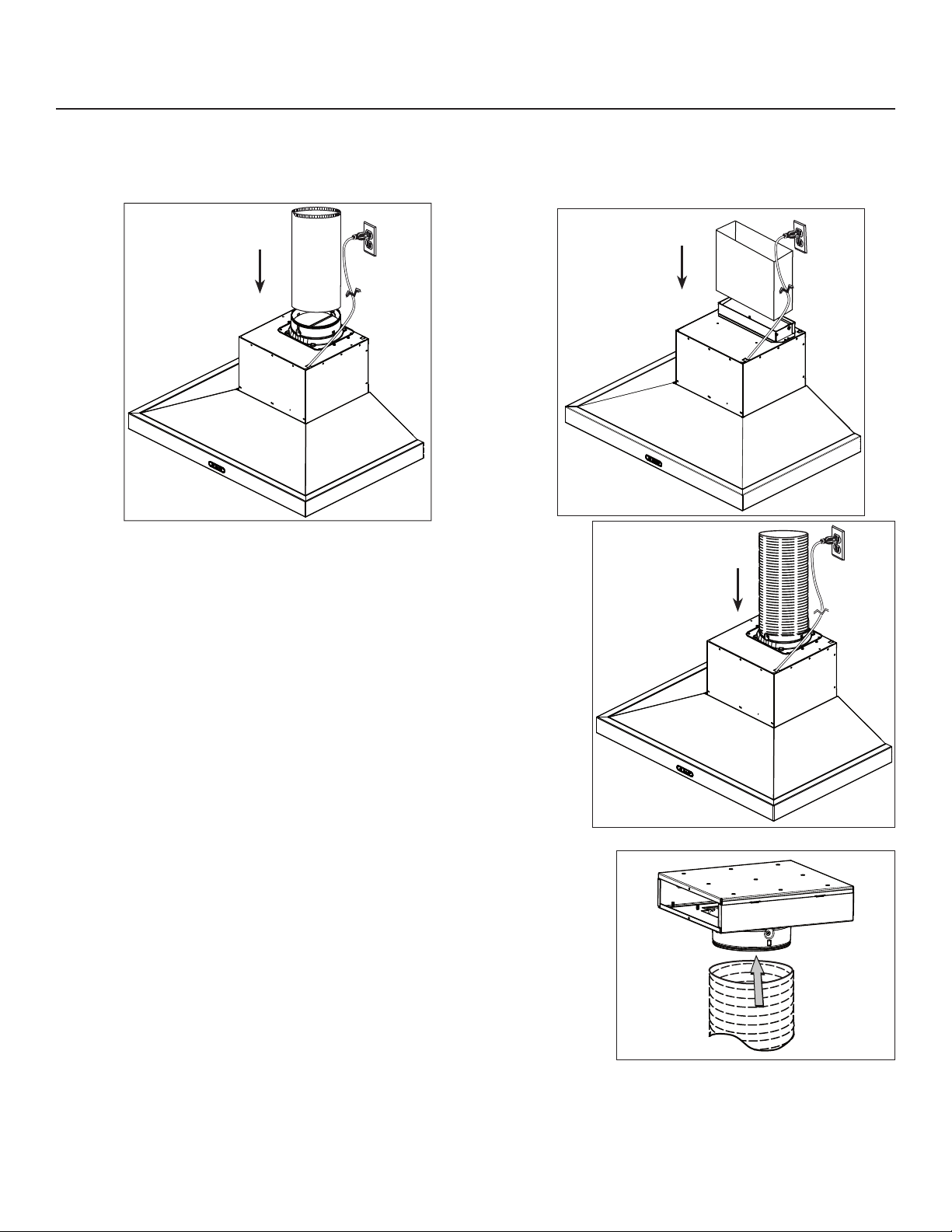

6. INSTALL ADAPTER/DAMPER (6” ROUND OR 3¼” X 10”)
Mount the 6” round adapter/damper (included in bag) using 4 no. 8 x 3/8” screws (included) or the 3¼” x 10” adapter/damper to the hood
using 2 no. 8 x 3/8” screws (included). Seal the adapter/damper to the hood using metal foil duct tape.
VERTICAL DISCHARGE 6” ROUND AND
NON-DUCTED INSTALLATION ONLY
HJ0139
Secure the adapter/damper to the back of the hood using 2 no. 8 x 3/8” screws
(included). Seal the adapter/damper to the hood using metal foil duct tape.
NOTE: The wall ducting must be properly prepared to receive the adapter. Before
performing the installation, make sure the adapter fits easily in the duct.
VERTICAL DISCHARGE 3¼” X 10”
HJ0140
ORIZONTAL DISCHARGE 3¼” X 10” ONLY
H
HJ0129

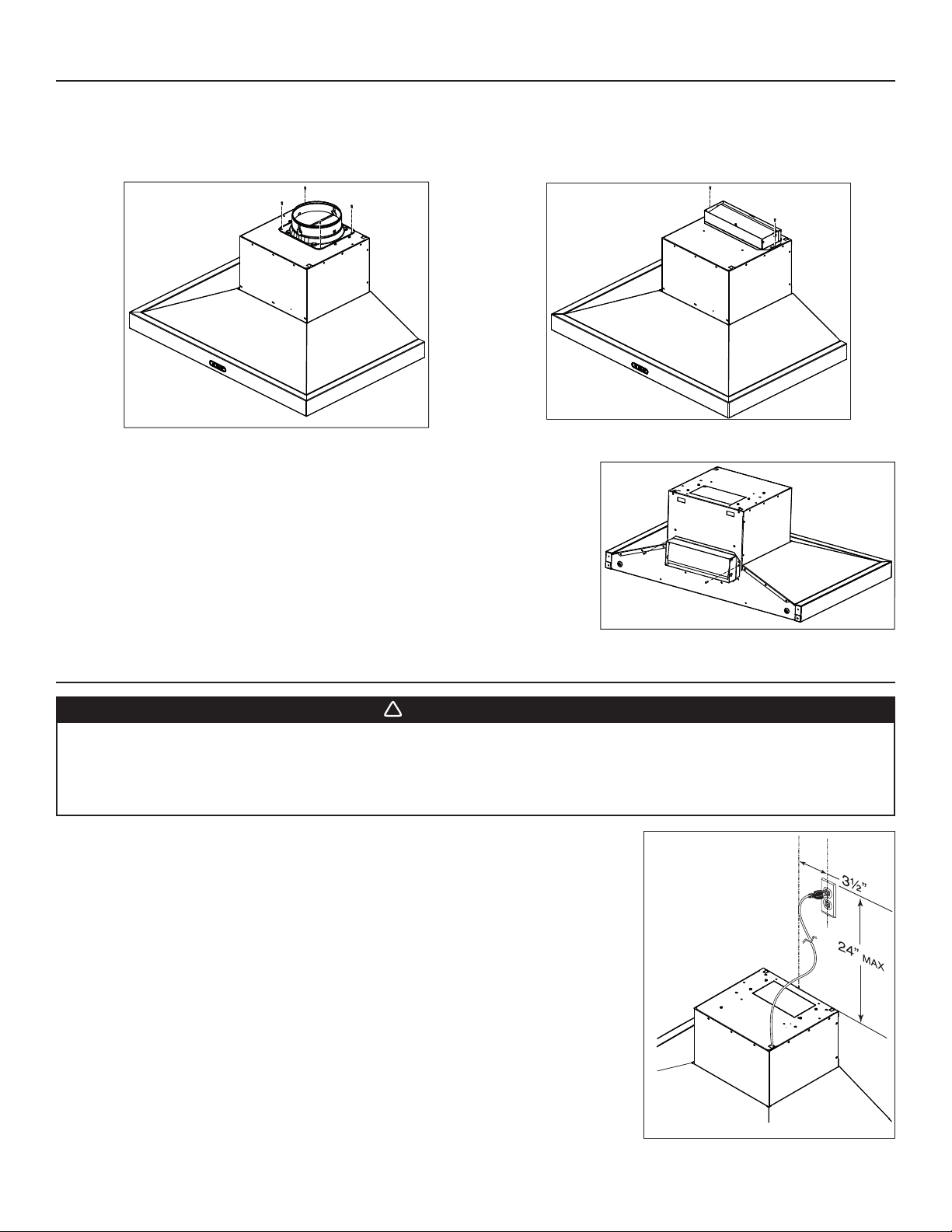

7. WIRING INSTALLATION
WARNING
Improper grounding can result in a risk of electric shock. Consult a qualified electrician if the grounding instructions
are not completely understood, or if there is any doubt as to whether the appliance is properly grounded. Do not
use an extension cord. If the power supply cord is too short, have a qualified electrician install an outlet near the
appliance, in accordance with all applicable codes and standards. Turn off electrical power at service entrance
before wiring.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an
escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must
be plugged into an outlet that is properly installed and grounded.
C
C
L
L
Position the outlet within the space covered by the decorative flue. Place the outlet at a
maximum distance of 24” (from where the cord exits from the hood). The center of the outlet
must be positioned at 3½”
Make sure this does not interfere with a mounting bracket fastening area or with the decorative
flue (where the flue touches the wall).
from the center of the future hood location (as illustrated beside).
HE0233A
6
8. INSTALL HOOD MOUNTING BRACKET
!
HD0377
C
L
!
HD0813A
WARNING
WALL STUDS
When cutting or drilling into wall, do not damage electrical
wiring and other hidden utilities.
Construct wood wall framing that is even with the surface of wall studs.
Wood wall framing must be at least 1/2” thick and 3” high. Fasten wood wall
framing to wall studs for a solid installation.
Make sure that the height of the framing will allow the mounting bracket
to be secured to the framing within the dimensions shown (see illustration
beside).
After wall surface is finished, carefully center and level the hood
mounting bracket over installation location. Secure it to wall framing using
3 no. 8 x 1½” screws.
Using a level, draw a vertical line up to the ceiling starting from the
mounting bracket center.
FRAMING BEHIND DRYWALL
367/8” = BOTTOM OF HOOD 24” ABOVE COOKTOP
427/8” = BOTTOM OF HOOD 30” ABOVE COOKTOP
9. INSTALL UPPER FLUE MOUNTING BRACKET (DUCTED INSTALLATION ONLY)
Center the upper flue mounting bracket with the center line previously
drawn in step 8 and place it flush with the ceiling.
Use the upper flue mounting bracket as a template to mark the position of
its screws.
Drill the 3 screw holes using a 3/16” drill bit.
Insert the included drywall anchors into the drilled holes (1 per hole).
Secure the upper flue bracket to the wall using 3 no. 8 x 3/4” screws.
Ensure that the bracket is tight against the wall.
CEILING
SCREW LOCATIONS
MOUNTING BRACKET
FLUSH WITH CEILING
10. INSTALL THE HOOD
WARNING
BE CAREFUL when installing the decorative flue and hood, they may have sharp edges.
CAUTION
DO NOT REMOVE the protective plastic film covering the decorative flue (upper & lower) yet.
1. Align the hood and center it above the hood mounting bracket. Gently lower the
hood until it securely engages the bracket.
2. Level the hood.
3. With the hood hanging in place, mark both hole locations on wall (2 embossed
holes on back of hood; see illustration at right).
4. Remove the hood.
5. Drill through both marked holes on wall using a 3/16” drill bit. Insert the included
drywall anchors into the drilled holes (one for each hole).
6. Hang the hood to the wall bracket.
7. Secure the hood to the wall using 2 no. 8 x 3/4” screws and 2 washers.
7
SIDE VIEW
HD0810A
HOLE LOCATIONS
NOTE: ILLUSTRATION ABOVE REPRESENTS HORIZONTAL
EXHAUST CONFIGURATION, BUT IT ALSO APPLIES TO
ALL CONFIGURATIONS.
Ø 3/16” TYP.
11. REINSTALL BLOWER (HORIZONTAL DISCHARGE ONLY)
1) Position the blower on the inner back of the hood, as shown on the right.
2) Using a 5/16” socket, or a Robertson or a Phillips no. 2 screwdriver and the 4 screws
previously removed, secure the blower to the hood.
NOTE: In order to ease installation, before mounting the blower, prepare the screw holes
by screwing all 4 screws without the blower, then remove and mount the blower.
3) Plug the blower connector back in and plug hood power cord into the outlet.
HD0829
12. PLENUM INSTALLATION (NON-DUCTED INSTALLATION ONLY)
RIGHT SIDE
MOUNTING
SCREW
LOCATIONS
Remove the shipping tape retaining the lower and upper plenum plates with the 6” round adapter
together. Carefully align the upper plenum plate central notch with the line traced in step 8 (see
inset at right) and place it flush to the ceiling. Use the plate as a template to mark the position (A)
of its screws.
NOTE: To ease installation, there are many screw configurations: 6 in ceiling and 2 in wall, on each
side. Only 4 screws are needed to hold the top plenum plate.
Insert the included drywall anchors in the marked holes, then secure the upper plate using
4 no. 8 x 3/4” screws and washers (included with non-duct kit). Make sure the plate is tight against
the wall and ceiling.
Using 4 no. 8 x 3/8” provided screws, assemble the 6” round adapter to the lower plenum plate.
HD1024
HA0135
A
A
A
Assemble the lower plenum plate and 6” round adapter assembly to the upper plate by inserting
both tabs of the top plenum plate to their corresponding slots in lower plenum plate. Secure the
plenum assemby using 2 no. 8-18 x 3/8” screws (included).
8
HD1025
13. DUCT CONNECTION (VERTICAL DISCHARGE AND NON-DUCTED INSTALLATION ONLY)
VERTICAL DISCHARGE:
Plug hood power cord into the outlet. Slide a 6” round or a 3¼” x 10” metal duct over the adapter/damper on the hood. Use metal foil duct
tape to seal the joint.
HJ0141
HJ0142
NON-DUCTED INSTALLATION:
Plug hood power cord into the outlet.
Slide a 6” round flexible metal duct (included) over the adapter/damper on the hood.
Use metal foil duct tape to seal the joint.
HJ0153
Stretch the flexible metal duct up to the plenum, over the adapter. Use metal foil duct tape
to seal the joint.
HJ0155
9

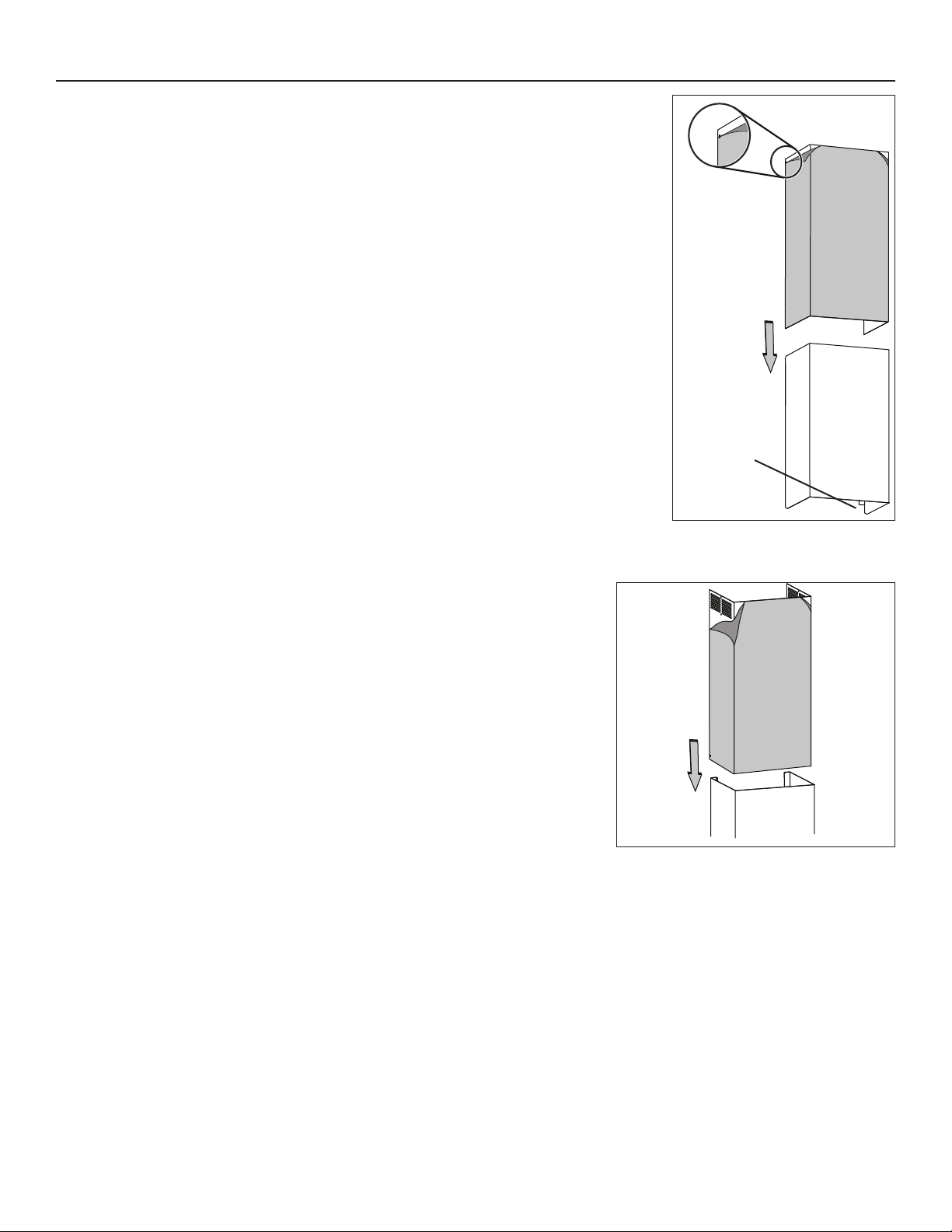

14. PREPARE DECORATIVE FLUE
DUCTED INSTALLATION:
Remove protective plastic film covering the lower flue only.
Peel off both corners at the top of the upper flue (note that upper part has one hole on left and right
sides; see image on the right).
Position the lower flue rear notches down.
Gently slide upper flue inside lower flue.
Both lower and upper flues are included with the hood, but for a 10-foot ceiling, discard the provided
upper flue and use the optional flue extension model AEWCP3SB (sold separately).
LOWER FLUE
REAR NOTCH
HO0271
NON-DUCTED INSTALLATION:
Remove protective plastic film covering the lower flue only.
NOTE: Do not use the upper decorative flue included with the hood.
Peel off the plastic film covering both top corners of the upper decorative flue (included with
the non-duct kit).
Position the lower flue rear notches down (the ones with the 45° angle).
Gently slide upper flue inside lower flue, louvers end up.
LOUVERS
HA0078
10
15. INSTALL DECORATIVE FLUE
ALL INSTALLATIONS:
Carefully slide in place decorative flue base (notches end first) in the groove
(shaded part in inset at right) behind the exterior wall of the top of the hood.
HO0272
UPPER FLUE MOUNTING BRACKET
FRONT VIEW
DUCTED INSTALLATIONS:
Slide up the upper flue until it is aligned with its mounting bracket. The bracket must be
inside the flue. Secure the upper flue to its bracket using 2 no. 8 x 3/8” screws (included).
See illustration beside.
NOTE: Duct not shown in illustration to ease understanding.
NON-DUCTED INSTALLATION:
Slide the upper flue up to the ceiling. The plenum must be inside the flue. Secure the upper
flue to the plenum sides using 2 no. 8 x 3/8” screws (included) per side for stainless steel
model or 2 no. 8 x 1/2” black screws (included) per side for black stainless model.
NOTE: Ceiling not shown in illustration to ease understanding.
ALL INSTALLATIONS:
Remove protective plastic film covering the upper flue.
16. REINSTALL HYBRID FILTERS
UPPER
FLUE
HO0140
HA0136
Rest rear filters edge on filter springs in the range hood. Using finger cup, tilt up the filters into position.
Make sure both tabs (A) are securely engaged in range hood front edge slots after installation.
11
HD1100
A
17. LIGHTING
!
!
WARNING
Do not touch lamps during or soon after operation. Burns may occur. Cannot be replaced by any other type of light
bulb or LED module.
The lighting of WCP3I Series range hood is produced by two LED modules (included).
18. CARE
WARNING
Before servicing or cleaning the unit, switch power off at service panel and lock service panel to prevent power
from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
Grease Filters
The hybrid filters should be cleaned frequently. Use a warm dishwashing detergent solution. Grease filters are dishwasher safe.
Clean all-metal filters in the dishwasher using a non-phosphate detergent. Discoloration of the filters may occur if using phosphate
detergents, or as a result of local water conditions - but this will not affect filter performance. This discoloration is not covered by the
warranty.
Hood cleaning
Do:
• Regularly wash with clean cloth or rag soaked with warm water
and mild phosphate-free soap or liquid dish detergent.
• Always clean in the direction of original polish lines.
• Always rinse well with clear water (2 or 3 times) after cleaning.
Wipe dry completely.
• You may also use a specialized household stainless steel
cleaner
Avoid when choosing a detergent:
- Any cleaners that contain bleach will attack stainless steel.
- Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.
- Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly explosive and should never be
used close to a range.
Don’t:
• Use any steel or stainless steel wool or any other scrapers to
remove stubborn dirt.
• Use any harsh or abrasive cleansers.
• Allow dirt to accumulate.
• Let plaster dust or any other construction residues reach the
hood. During construction/renovation, cover the hood to make
sure no dust sticks to stainless steel surface.
12
19. OPERATION
Always turn your hood on before you begin cooking to establish an air flow in the kitchen.
Let the blower run for a few minutes to clear the air after you turn off the range. This will help keep the whole kitchen cleaner and fresher.
Operate the hood as follows:
BLOWER BUTTON
When blower is OFF, press this button to turn ON the blower at the last saved speed. If there was no speed saved, the blower will be set
on LOW speed.
NOTE: When LOW speed is activated from OFF, the blower starts on MEDIUM speed for a very short lapse of time, and then resume to
LOW speed.
To change the blower speed, press on this button again until the desired speed is reached (from LOW to MEDIUM to HIGH speed to OFF).
Each time a blower speed is activated, a beep is heard and LED indicators light up to show the corresponding speed chosen (lower LED
for LOW speed, lower and center LEDs for MEDIUM speed and all LEDs for HIGH speed).
When blower is on (no matter the speed level), press and hold this button until the beep sound ends; this will turn off the blower and save
this blower speed to memory.
LIGHT BUTTON
When lights are OFF, press once on this button to turn ON the lights at the last saved setting. If there was no light setting saved, the lights
will be set on LOW intensity. Press another time to set the lights on HIGH intensity. Pressing another time after the HIGH setting will turn
OFF the lights. Each time the lights are turned ON, a beep is heard and LED indicators light up to show the corresponding intensity chosen
(lower LED for LOW and both LEDs for HIGH).
When lights are on (no matter the lighting level), press and hold this button until the beep sound ends; this will turn off the lights and save
the chosen light intensity.
FILTER CLEANING REMINDER
When it is time to clean the hood and filters, the 3 blower button LED indicators will flash slowly for 30 seconds after turning the blower OFF.
This will happen every time the blower is turned OFF until the filter cleaning reminder has been reset. Once the cleaning is done, reset
the filter cleaning reminder indicators by pressing on the blower button for 3 seconds while the 3 blower button LED indicators flash slowly.
13
20. WIRING DIAGRAM
USER INTERFACE
MOUNTED TO J10
ON BAC K OF
CONTROL BOARD
5
4
6
32
1
J6
OVERRIDE
J4
4
8
7
3
2
6
J10
5
1
INTERFACE
J1
J2
POWER
CONTROL BOARD
LED
1
2
3
LED
4
RED
RED
5
4
3
BLU
2
BLU
1
TRANSFORMER
MOTOR
BLK
7
6
5
4
3
2
BLK
1
BLK
RED
WHT
RED (LOW)
BLK (HIGH)
ORG ( MEDIUM
WHT
WHT
)
LED
6
5
4
3
2
1
COLOR CODE
BLK BLACK
BLU BLUE
BRN BROWN
GRY GREY
ORG ORANGE
RED RED
WHT WHITE
BLU
WHT
BLK
ORG
RED
FAN MOTOR
BRN
NEUTRAL
GROUND
120 V AC
HE0236A
LINE
BLK
WHT
GRY
14

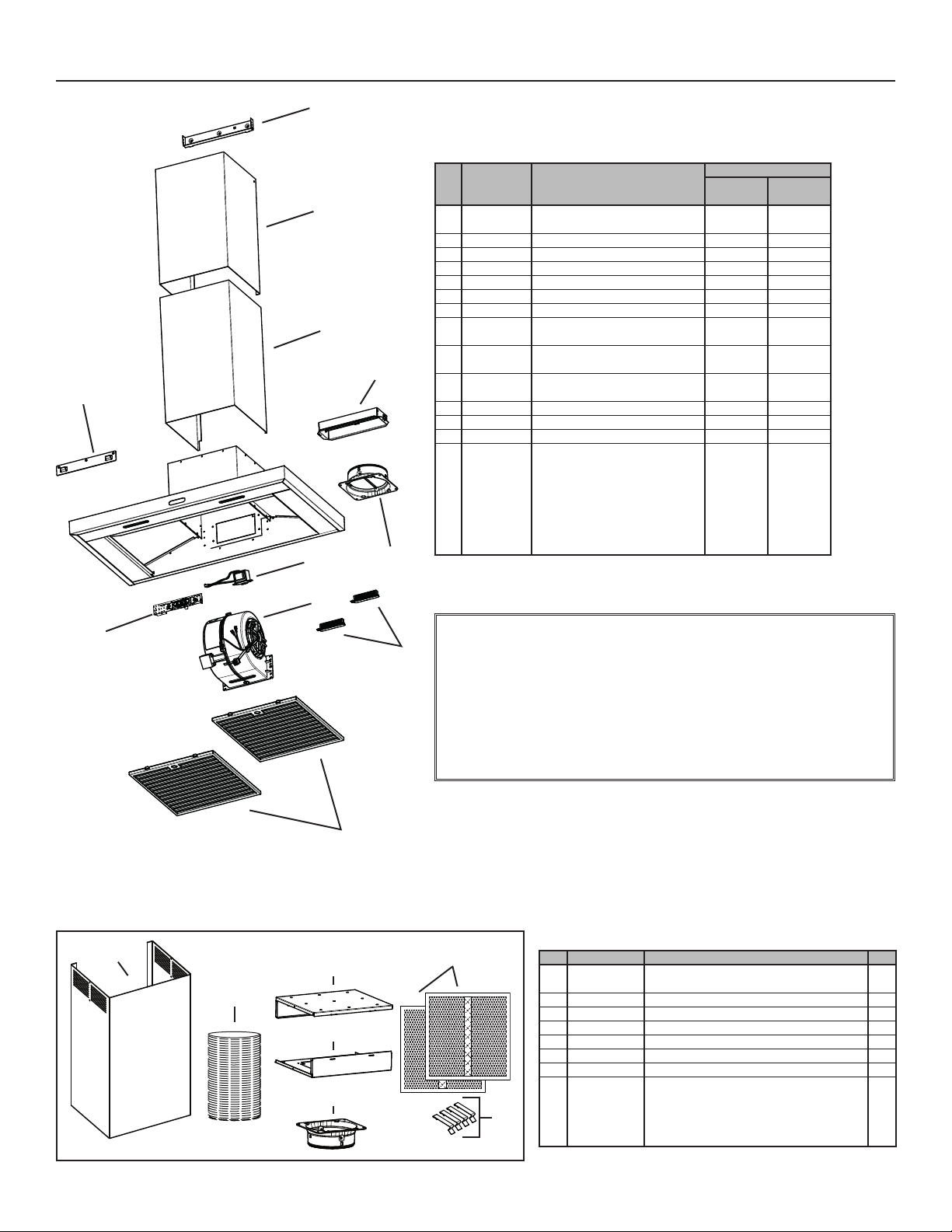

21. SERVICE PARTS
HL0446
B
L
K
C
H
I
D
E
F
ITEM
PART NO.DESCRIPTION
NO.
1 SV63673 U
2 SV63663 UPPER DECORATIVE FLUE, STAINLESS 11
3 SV63662 LOWER DECORATIVE FLUE, STAINLESS 11
4 S97020534 3¼” X 10” ADAPTER/DAMPER 11
5 SV08487 6” ROUND ADAPTER/DAMPER 11
6 S97020444 LED MODULE (1) 2 2
7 S97020445 TRANSFORMER 11
8 SV08582
9 SV62053
10 S97020431
11 SV09014 HOOD MOUNTING BRACKET 11
* SV05869 BEST LOGO 11
* SV23863 INSTALLATION GUIDE 11
* SV09027
OT SHOWN
* N
PPER FLUE MOUNTING BRACKET 11
INTERNAL BLOWER
(INCLUDING CAPACITOR)
YBRID FILTER
H
15.875” X 14” X 0.5” (1)
CAPACITIVE CONTROL
2 BUTTONS (STAINLESS)
ARTS BAG:
P
5 NO. 8 X 1½” COUNTERSUNK SCREWS,
8 NO. 8 X 3/4” SCREWS,
6 NO. 8 X 3/8” SCREWS,
6 DRYWALL ANCHORS, 3 WASHERS,
2 NO. 8 X 1/2” SCREWS
2 NEOPRENE PIECES
QTY. (HOOD WIDTH)
30” 36”
11
22
11
11
REPLACEMENT PARTS AND REPAIRS
In order to ensure your unit remains in good working condition, you must
G
use Broan-NuTone genuine replacement parts only. Broan-NuTone genuine
replacement parts are specially designed for each unit and are manufactured to
comply with all the applicable certification standards and maintain a high standard
of safety. Any third party replacement part used may cause serious damage and
drastically reduce the performance level of your unit, which will result in premature
failing. Broan-NuTone recommends to contact a certified service depot for all
replacement parts and repairs.
HL0385
M
J
NON-DUCT KIT MODEL HRKBSS
O
N
P
Q
R
15
S
KEY
PART NO.DESCRIPTION QTY.
NO.
12 SV63628 NON-DUCT KIT UPPER DECORATIVE FLUE CHIMNEY 1
13 SV22756 6” ROUND METAL FLEXIBLE DUCT 1
14 SV63626 U
15 SV63627 LOWER PLENUM PLATE 1
16 SV08487WD 6” ROUND ADAPTER 1
17 SV22759 CHARCOAL FILTER (PAIR)1
18 SV22757 CHARCOAL FILTER CLIP (SET OF 4) 1
* SV05803
* NOT SHOWN.
PPER PLENUM PLATE 1
PARTS BAG:
10 NO. 8-18 X 3/8” SCREWS,
4 NO. 8 X 1/2” BLACK SCREWS,
9 NO. 8-18 X 3/4” SCREWS, 4 WASHERS,
9 DRYWALL ANCHORS, 6 NO. 6 X 1/2” SCREWS.
1
Loading...
