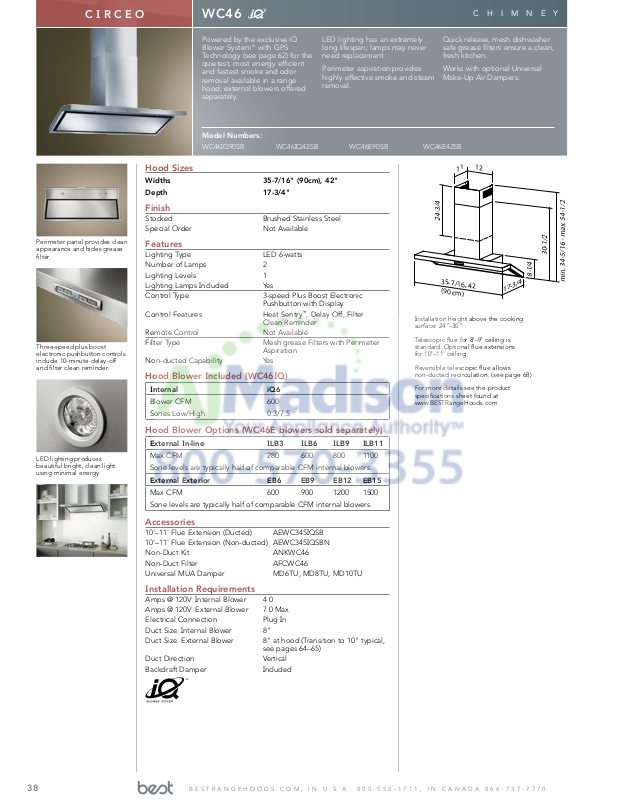

Best WC46E90SB Reference Sheet

CIRCEO

min. 34-5/16 - max. 54-1/2

12

11

BESTRANGEHOODS.COM, IN U.S.A. 800-558-1711, IN CANADA 866-737-7770

WC46

CHIMNEY

Perimeter panel provides clean
appearance and hides grease
filter.

Three-speed plus boost
electronic pushbutton controls
include 10-minute delay-off
and filter clean reminder.

Powered by the exclusive iQ
Blower System

™

with GPS
Technology (see page 62) for the
quietest, most energy efficient
and fastest smoke and odor
removal available in a range
hood; external blowers offered

LED lighting has an extremely
long lifespan; lamps may never
need replacement.

Perimeter aspiration provides
highly effective smoke and steam
removal.

separately.

Model Numbers:

WC46IQ90SB WC46IQ42SB WC46E90SB WC46E42SB

Hood Sizes

Widths 35-7/16" (90cm), 42"

Depth 17-3/4"

Finish

Stocked Brushed Stainless Steel
Special Order Not Available

Features

Lighting Type LED 6-watts
Number of Lamps 2
Lighting Levels 1
Lighting Lamps Included Yes
Control Type 3-speed Plus Boost Electronic

Pushbutton with Display
Control Features Heat Sentry

Clean Reminder

™

, Delay Off, Filter

Remote Control Not Available
Filter Type Mesh grease Filters with Perimeter

Aspiration
Non-ducted Capability Yes

Hood Blower Included (WC46IQ)

Internal iQ6

Blower CFM 600

Sones Low/High 0.3/7.5

Quick release, mesh dishwasher
safe grease filters ensure a clean,
fresh kitchen.

Works with optional Universal
Make-Up Air Dampers.

24-3/4

35-7/16, 42
(90 cm)

Installation height above the cooking
surface: 24"–30"

Telescopic flue for 8'–9' ceiling is
standard. Optional flue extensions
for 10'–11' ceiling

Reversible telescopic flue allows
non-ducted recirculation. (see page 68)

For more details see the product
specifications sheet found at
www.BESTRangeHoods.com

17-3/4

30-1/2

8-1/4

LED lighting produces
beautiful bright, clean light
using minimal energy.

Hood Blower Options (WC46E blowers sold separately)

External In-line ILB3 ILB6 ILB9 ILB11

Max CFM 280 600 800 1100

Sone levels are typically half of comparable CFM internal blowers.

External Exterior EB6 EB9 EB12 EB15

Max CFM 600 900 1200 1500

Sone levels are typically half of comparable CFM internal blowers.

Accessories

10'–11' Flue Extension (Ducted) AEWC345IQSB
10'–11' Flue Extension (Non-ducted) AEWC345IQSBN
Non-Duct Kit ANKWC46
Non-Duct Filter AFCWC46
Universal MUA Damper MD6TU, MD8TU, MD10TU

Installation Requirements

Amps @ 120V: Internal Blower 4.0
Amps @ 120V: External Blower 7.0 Max
Electrical Connection Plug In
Duct Size: Internal Blower 8"
Duct Size: External Blower 8" at hood (Transition to 10" typical,

see pages 64–65)
Duct Direction Vertical
Backdraft Damper Included

38
