WC34I90SB
RANGE HOOD
The common made uncommon. ECLISSE can be
a powerful statement from one angle but nearly
disappear from another. This is a unique “brick”
design that makes it most attractive and exclusive.
FEATURES
Italian design
•
Wall mount
•
Finishes: 430 Stainless Steel, #4 Brushed
•
Width: 90 cm (35-7/16”)
•
Ducted/non-ducted telescopic flue accommodates 8’ to 9’
•
ceilings (Purchase non-duct recirculation kit separately.)
6” round duct connector/backdraft damper
•
2-level, halogen lighting (2 bulbs included. Type T4, G9 base,
•
120 volt, 25 watts max.)
4-speed electronic blower control with LED speed indicator
•
Quiet, variable-speed centrifugal blower with high-efficiency
•
motor produces 450 CFM of exhaust
Heat Sentry
•
when excess cooking heat is detected
Delay timer control automatically shuts off range hood after
•
10 minutes
Filter clean reminder
•
Dishwasher-safe filter features a quick-release latch
•
For indoor use only
•
TM
- automatically turns blower to high speed

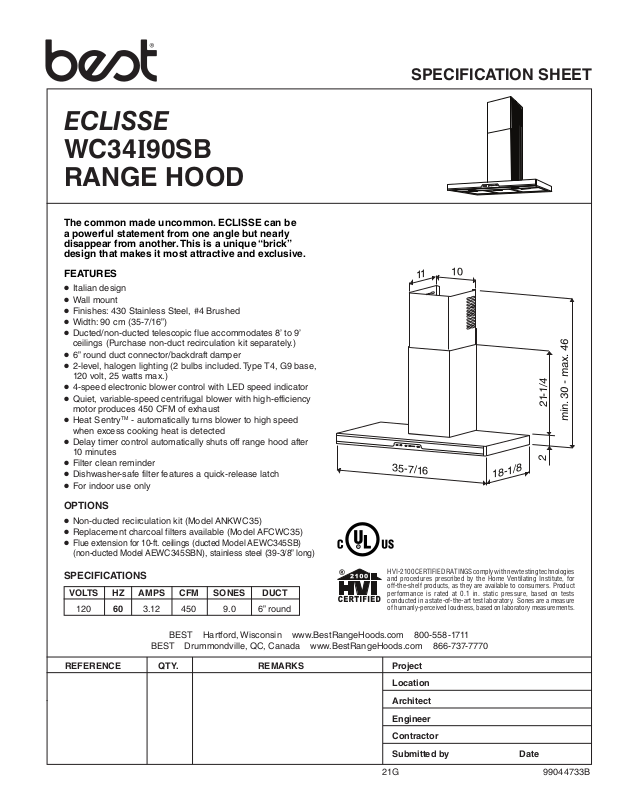

SPECIFICATION SHEET
21-1/4
2
35-7/16
18-1/8
min. 30 - max. 46
OPTIONS
Non-ducted recirculation kit (Model ANKWC35)
•
Replacement charcoal filters available (Model AFCWC35)
•
Flue extension for 10-ft. ceilings (ducted Model AEWC345SB)
•
(non-ducted Model AEWC345SBN), stainless steel (39-3/8” long)
SPECIFICATIONS
VOLTS HZ AMPS CFM SONES DUCT
120 60 3.12 450 9.0 6” round
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted by Date
BEST Hartford, Wisconsin www.BestRangeHoods.com 800-558-1711
BEST Drummondville, QC, Canada www.BestRangeHoods.com 866-737-7770
HVI-2100 CERTIFIED RATINGS comply with new testing technologies
and procedures prescribed by the Home Ventilating Institute, for
off-the-shelf products, as they are available to consumers. Product
performance is rated at 0.1 in. static pressure, based on tests
conducted in a state-of-the-art test laboratory. Sones are a measure
of humanly-perceived loudness, based on laboratory measurements.
21G 99044733B
WC34I90SB WIRING
L
L
C
5 "
1
16
CENTERLINE
OF HOOD
WC34I90SB MOUNTING
8”
4”
120 VOLT 60 HZ GROUNDED WALL OUTLET
17” to 18”
OFFSET FROM DUCT CENTER LINE
(STAY WITHIN 4” DIMENSION)
FRAMING BEHIND
WOOD CROSS
SUPPORT
WOOD CROSS SUPPORT –
SECURED TO FRAMING AND
LOCATED BEHIND DRYWALL
DRYWALL
MOUNTING BRACKET
LOCATION
(ABOVE 36” HIGH
CEILING
HEIGHT
8 FEET
9 FEET
10 FEET (see note B)
A. Minimum hood distance above cook top must not be less than 24”. A maximum of 30” above cook top is highly recommended for best
capture of cooking impurities. Distances over 30” are at the installer and user’s discretion; and if ceiling height and flue length permit.
B. Requires optional 10-ft. flue extension - ducted Model AEWC345SB or non-ducted Model AEWC345SBN.
DUCT
METHOD
DUCTED
NON-DUCTED
DUCTED OR
NON-DUCTED
HOOD DISTANCE ABOVE 36” HIGH COOK TOP (see note A)
24” 25” 26” 27” 28” 29”
MOUNTING BRACKET LOCATION ABOVE 36” HIGH COOK TOP
36-1/8” 37-1/8” 38-1/8” 39-1/8”
36-1/8” 37-1/8” 38-1/8” 39-1/8” 40-1/8”
38-1/8” 39-1/8” 40-1/8”
36-1/8” 37-1/8” 38-1/8” 39-1/8” 40-1/8”
40-1/8”
41-1/8” 42-1/8”
41-1/8”
41-1/8” 42-1/8”
41-1/8”
42-1/8”
