- 2 -

READ AND SAVE THESE INSTRUCTIONS

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact
the manufacturer at the address or telephone number listed in the warranty.

2. Before servicing or cleaning unit, switch power off at service panel and lock service panel to
prevent power from being switched on accidentally. When the service disconnecting means can­not be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

3. Installation work and electrical wiring must be done by a qualified person(s) in accordance with
all applicable codes and standards, including fire-rated construction codes and standards.

4. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney)
of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer’s
guidelines and safety standards such as those published by the National Fire Protection Associa­tion (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.

5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden
utilities.

6. Ducted fans must always be vented to the outdoors.

7. Do not use this unit with any separate solid-state speed control device.

8. To reduce the risk of fire, use only metal ductwork.

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the
risk of electrical shock by providing an escape wire for the electric current. This appliance is equipped
with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet
that is properly installed and grounded.

WARNING - Improper grounding can result in a risk of electric shock.
Consult a qualified electrician if the grounding instructions are not completely understood, or if doubt

exists as to whether the appliance is properly grounded.
Do not use an extension cord. If the power supply cord is too short, have a qualified electrician install

an outlet near the appliance.

!

INTENDED FOR DOMESTIC COOKING ONLY

!

- 3 -

!

CAUTION

1. For indoor use only.

2. To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent exhaust
air into spaces within walls or ceilings or into attics, crawl spaces, or garages.

3. Take care when using cleaning agents or detergents.

4. Avoid using food products that produce flames under the Range Hood.

5. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and
vapors.

6. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray,
construction dust, etc. off power unit.

7. Your hood motor has a thermal overload which will automatically shut off the motor if it becomes
overheated. The motor will restart when it cools down. If the motor continues to shut off and
restart, have the hood serviced.

8. For best capture of cooking impurities, the bottom of the hood should be a minimum of 24”
and a maximum of 30” above the cooking surface. See “Install Mounting Bracket” section for
mounting restrictions.

9. Two installers are recommended because of the large size and weight of this hood.

10. This product is equipped with a thermostat which may start blower automatically. To reduce
the risk of injury and to prevent power from being switched on accidentally, switch power off at
service panel and lock or tag service panel.

11. Please read specification label on product for further information and requirements.

12. To reduce the risk of fire and electric shock, install this range hood only with Best Exterior
Blower Models EB6, EB9, EB12 or EB15 or Best In-Line Blower Models ILB3, ILB6, ILB9 or
ILB11. Other blower cannot be substituted. Blowers sold separately.

WARNING

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

A. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy

spillovers that may ignite. Heat oils slowly on low or medium settings.

B. Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette,

Cherries Jubilee, Peppercorn Beef Flambe’).
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
D. Use proper pan size. Always use cookware appropriate for the size of the surface element.

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE
FIRE, OBSERVE THE FOLLOWING:*

1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner.

BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND

CALL THE FIRE DEPARTMENT.

2. NEVER PICK UP A FLAMING PAN - You may be burned.

3. DO NOT USE WATER, including wet dishcloths or towels - violent steam explosion will result.

4. Use an extinguisher ONLY if:

A. You know you have a Class ABC extinguisher and you already know how to operate it.
B. The fire is small and contained in the area where it started.
C. The fire department is being called.

D. You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by NFPA.

- 4 -

OPERATION

Controls

The hood is operated using the (5) push buttons located on the front edge of the hood. Fig. 1.

The Light On/Off buttons turn the lights on and off.

The Blower Off / - button decreases the blower speed each time pressed. Depress and hold
the button for 2 seconds to turn the blower off.

The Blower On /+ button turns the blower on and increases the blower speed each time
pressed. There are four different speed settings: Low, Medium-Low, Medium-High and High.

The Blower LED Indicators illuminate to indicate the selected blower speed.
The Delay button activates the delay-off feature. When the blower in on and the button is

pushed, the blower will continue to operate at the current speed setting for 10-minutes before
automatically turning itself off. The LED (on the right) flashes during operation.

The LED (on the right) is also used as a filter clean reminder. It will flash after 30 hours of
operation - indicating the need to clean the filters.

The Filter Clean Reset button is used to reset the 30-hour filter timer. To reset the filter clean
timer after filters are cleaned or replaced: Press button once while the LED is flashing.

HEAT SENTRY™

Your hood is equipped with a HEAT SENTRY™ thermostat. This thermostat is a
device that will turn on or speed up the blower if it senses excessive heat above
the cooking surface.

1) If blower is OFF - it turns blower ON to HIGH speed.

2) If blower is ON at a lower speed setting - it turns blower up to HIGH speed.
When the temperature level drops to normal, the blower will return to its original setting.

WARNING
The HEAT SENTRY thermostat can start the blower even if the hood is turned OFF. When
this occurs, it is impossible to turn the blower OFF with its switch. If you must stop the
blower, do it from the main electrical panel.

Light

Off

FIG. 1

OFF

ON

OFF / -

ON / + R

Light

On

Blower

Off / Speed

Blower

On / Speed

Blower LED

Indicators

Time Delay /

Filter Clean

Reset

LED

Auto Shut-Off Feature

If the blower and/or the lights are on continuously for 10 hours without any user interaction with
the controls, the hood will automatically shut off. Press any control button to re-activate the hood.

- 5 -

LED LAMPS

The hood is provided with LED lamps which require no maintenance.

CLEANING AND MAINTENANCE

Proper maintenance of the Range Hood will assure proper performance of the unit.

Motor

The motor is permanently lubricated and never needs oiling. If the motor bearings make excessive or
unusual noise, replace the motor with the exact service motor. The impeller should also be replaced.

Grease Filter

The grease filter should be cleaned frequently. Use a warm detergent solution. Grease filter is dishwasher
safe.

Clean all-metal filters in the dishwasher using a non-phosphate detergent. Discoloration of the filter may
occur if using phosphate detergents, or as a result of local water conditions - but this will not affect filter
performance. This discoloration is not covered by the warranty.

See “INSTALL FILTERS” section for removal and installation instructions.

Non-ducted Recirculation Filter

The non-ducted recirculation filter should be changed every 6 months. Replace more often if your
cooking style generates extra grease, such as frying and wok cooking. See “INSTALL FILTERS” section
for removal and installation instructions.

Stainless Steel Cleaning

DO:

• Regularly wash with clean cloth or rag soaked
with warm water and mild soap or liquid dish
detergent.

• Always clean in the direction of original polish
lines.

• Always rinse well with clear water (2 or 3 times)
after cleaning. Wipe dry completely.

• You may also use a specialized household
stainless steel cleaner.

DON’T:

•

Use any steel or stainless steel wool or any
other scrapers to remove stubborn dirt.

• Use any harsh or abrasive cleansers.

• Allow dirt to accumulate.

• Let plaster dust or any other construction

residues reach the hood. During construction/
renovation, cover the range hood to make sure
no dust sticks to the stainless steel surface.

Avoid: When choosing a detergent

• Any cleaners that contain bleach will attack stainless steel

• Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.

• Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly

explosive and should never be used close to a range.

- 6 -

PREPARE THE HOOD

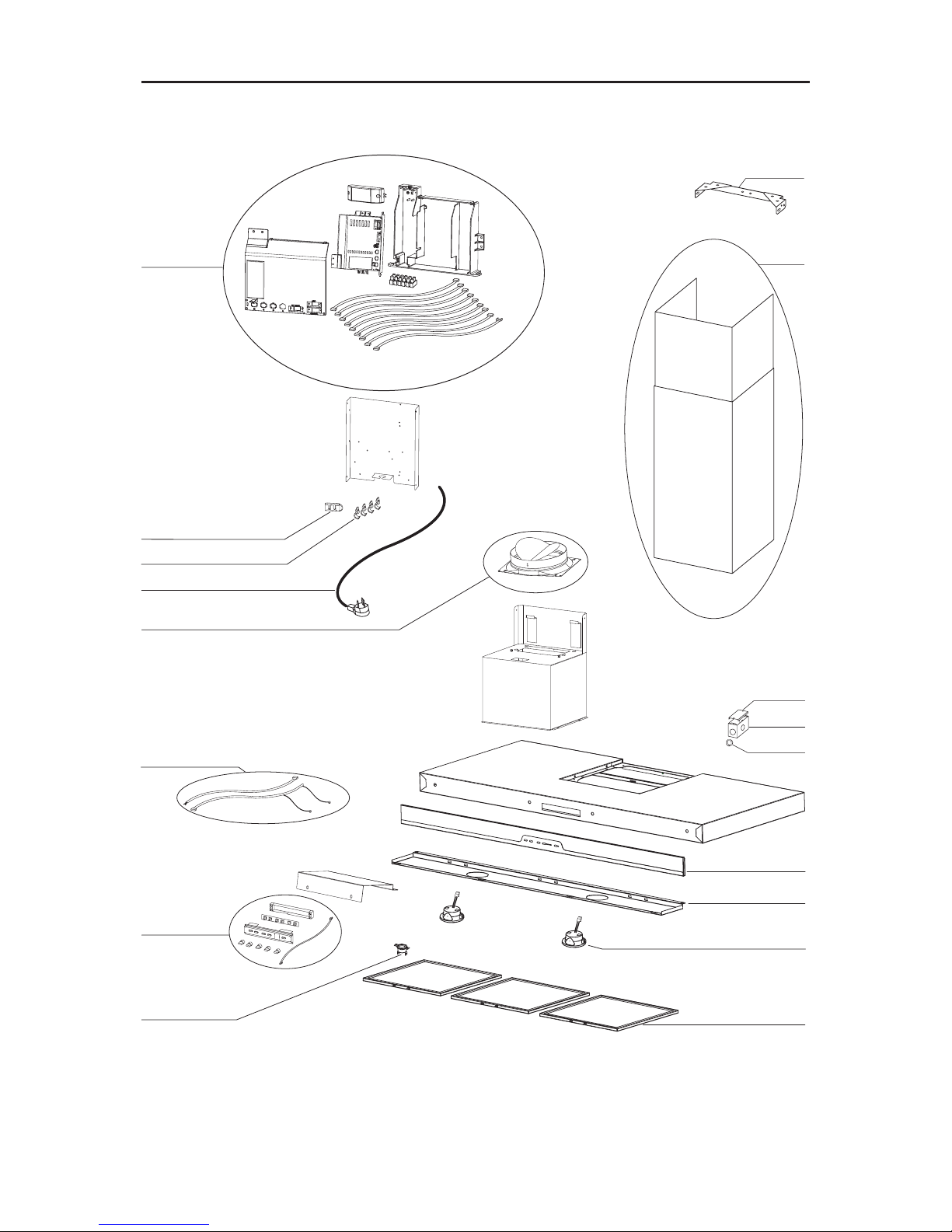

Unpack hood and check contents.

You should receive:
1 - Hood
1 - Decorative Flue Assembly
1 - Parts Bag containing:
2 - Mounting Bracket
1 - Damper Kit
1 - Flue Mounting Bracket Assembly
8 - Mounting Screws (4.8 x 38mm Pan Head)
4 - Mounting Screws (3.9 x 9.5mm Pan Head)
2 - Mounting Screws (3.9 x 6mm Flat Head)
8 - Drywall Anchors
2 - Lock Washers
1 - Installation Instructions

MOUNTING
BRACKETS

DAMPER KIT

FLUE MOUNTING BRACKET

8 MOUNTING SCREWS
(4.8 x 38mm Pan Head)

8 DRYWALL
ANCHORS

4 MOUNTING
SCREWS (3.9 x

9.5mm Pan Head)

DECORATIVE
FLUE

2 MOUNTING
SCREWS (3.9 x
6mm Flat Head)

FIG. 2

2 LOCK
WASHERS

- 7 -

EXTERIOR OR IN-LINE BLOWER SELECTION (WC34E)

CAUTION: Either an exterior blower or in-line blower may be used with this hood.
The hood must be installed with blower models EB6, EB9, EB12, EB15, ILB3,
ILB6, ILB9, or ILB11 only. Other Blowers cannot be substituted (Blowers sold
separately).

DECORATIVE

FLUE

8” ROUND

DUCT

INSTALL THE DUCTWORK

NOTE: To reduce the risk of fire, use only metal ductwork.

1. Choose the location where the Exterior or In-Line Blower will be mounted. See
illustrations below for mounting location suggestions and restrictions.

2. A straight, short duct run will allow the hood to perform most efficiently.

3. Long duct runs, elbows and transitions will reduce the performance of the
hood. Use as few of them as possible. Larger ducting may be required for best
performance with long duct runs.

4. After the Exterior or In-Line Blower has been installed, connect round metal
ductwork and work back towards the hood location. Use duct tape to seal joints
between ductwork sections.

5. An 8” round to 10” round transition (Model 414) is required. For best air
performance, install the transition as close to the range hood as possible.

OK

OK

SUGGESTED MOUNTING LOCATIONS

EXTERIOR BLOWER

CAUTION: MAY NOT FIT

UNDER EAVES OF SINGLE

STORY HOMES

EXTERIOR

BLOWER

10” ROUND

DUCT

EXTERIOR

BLOWER

8” TO 10”

ROUND

TRANSITION

8” ROUND

ELBOW

10”

ROUND

DUCT

HOOD

24” TO 30” ABOVE

COOKING SURFACE

4¼” DISTANCE FROM
CENTERLINE OF DUCT
TO DRYWALL

- 8 -

IN-LINE BLOWER

- 9 -

ROOF CAP

8-INCH

ROUND DUCT

DECORATIVE

FLUE

HOOD

WALL

CAP

8-INCH
ROUND
ELBOW

24” TO 30”

ABOVE
COOKING
SURFACE

(see “INSTALL

MOUNTING

BRACKETS”

section for

mounting

restrictions)

INSTALL THE DUCTWORK

DUCTED HOODS ONLY

CAUTION: To reduce the risk of fire, use
only metal ductwork.

1. Decide where the ductwork will run be­tween the hood and the outside. Fig. 3.

2. A straight, short duct run will allow the
hood to perform most efficiently.

3. Long duct runs, elbows, and transitions
will reduce the performance of the hood.
Use as few of them as possible. Larger
ducting may be required for best perfor­mance with longer duct runs.

4. Install a roof or wall cap. Connect round
metal ductwork to cap and work back
towards hood location. Use duct tape to
seal the joints between ductwork sections.

INSTALL ELECTRICAL

DUCTED and NON-DUCTED HOODS

WARNING : Electrical wiring must

be done by a qualified person(s) in ac­cordance with all applicable codes and
standards. This range hood must be prop­erly grounded. Turn off electrical power at
service entrance before wiring.

1. Plan where the hood will be located
above the cook top. Refer to the “INSTALL
MOUNTING BRACKET” section for hood
mounting height options.

2. Install a standard 2” x 4” wall outlet box
and 3-blade 125 volt, 15 Amp grounded
receptacle. Fig. 4.

3. Mount the center of the wall outlet 17” to
18” above the bottom of the hood.

4. Locate the box and the receptacle within
boundary shown and off center of the
ductwork (to allow for power cord plug
and flue clearance).

FIG. 3

FIG. 4

17” to 18”

4”

8”

CENTERLINE

OF HOOD

4¼”

DISTANCE

FROM

CENTERLINE

OF DUCT TO

DRYWALL

- 10 -

EXTERNAL BLOWER ELECTRICAL CONNECTIONS

Blower connection at hood: (Fig. 5)

1. Run 2-wire plus ground power cable from
the Exterior or In-Line Blower to the hood’s
wiring box marked “motor connection”.

2. Remove the cover from the wiring box and
remove one knockout.

3. Feed 6” of cable through the knockout
opening and secure the cable to the wiring
box with an appropriate connector.

4. Make electrical connections at the hood.
Connect white-to-white, red-to-black and
green-to-ground.

5. Replace the wiring box cover and screws.
make sure wires are not pinched between
the cover and box.

Exterior or In-line blower connection:

1. Make electrical connections at the exterior
or in-line blower (see instructions provided
with the exterior or in-line blower).

Power connection at hood:

1. Plug the power cord into the electrical wall
receptacle.

BLOWER CONNECTION AT HOOD

BOX MARKED
“MOTOR
CONNECTION”

CONNECT:
WHITE-TO-WHITE,
RED-TO-BLACK,
GREEN-TO-GROUND.

Exterior or

In-Line blower

FIG. 5

- 11 -

INSTALL MOUNTING
BRACKETS

DUCTED and NON-DUCTED HOODS

1. Construct wood wall framing that is flush

with interior surface of wall studs. Fig. 6.

Make sure:

a) the framing is centered over installa-

tion location.

b) the height of the framing will allow the

mounting brackets to be secured
to the framing within the dimensions
shown.

2. After wall surface is finished, secure

the mounting brackets to framing with (4)

4.8 x 38 mm mounting screws. See chart
below for mounting bracket location. Do

not use drywall anchors.

* Possible installation height - however, Non-Duct Filter Slots will be exposed.

Notes:
a. Minimum hood distance above cook top must not be less than 24”. A maximun of 30” above

cook top is highly recommended for best capture of cooking impurities. Distances over 30”
are at the installer and user’s discretion; and if ceiling height and flue length permit.

b. Requires optional 10’ flue extension, ducted model AEWC345

IQSB or non-ducted model

AEWC345IQSBN.

HOOD DISTANCE ABOVE 36” HIGH COOK TOP (see note below)

30”

MOUNTING BRACKET CENTER HOLE LOCATION ABOVE 36” HIGH COOK TOP

CEILING

HEIGHT

8 FEET

24” 25” 26” 27” 28” 29”

38” 39” 40” 41”

WOOD CROSS

SUPPORT BEHIND

DRYWALL

DRYWALL

FIG. 6

42”

43” 44”

DUCTED

NON-DUCTED

DUCT

METHOD

FRAMING

BEHIND WOOD

CROSS SUPPORT

CENTERLINE

3-1/2”

38” 39” 40” 41” 42”

43” 44”

3-1/2”

2-3/16”

9 FEET

38” * 39” * 40” * 41” 42”

43” 44”

DUCTED

NON-DUCTED

38” 39” 40” 41” 42”

43” 44”

10 FEET

(see note b.)

38” * 39” * 40” 41” 42”

43” 44”

DUCTED

NON-DUCTED

38” 39” 40” 41” 42”

43” 44”

42”

43” 44”

DUCTED

NON-DUCTED

42”

43” 44”

11 FEET

(see notes

a. & b.)

- 12 -

INSTALL FLUE MOUNTING
BRACKET

DUCTED AND NON-DUCTED HOODS

1. Assemble the flue mounting brack­et, adjusting outside width as shown.
F i g. 7.

2. Carefully center the mounting bracket
directly over the range hood location.

3. Secure the bracket assembly to the
ceiling using (2) 4.8 x 38 mm mount­ing screws and drywall anchors.
Fig. 8. Make sure the bracket is pushed
into the corner, tight against the wall and
centered over the hood.

FLUE MOUNTING BRACKET

11¾”

FIG. 7

3.9 x 6 mm FLAT HEAD
BRACKET SCREWS

FIG. 8

4.8x38mm

MOUNTING SCREWS

DRYWALL ANCHORS

FIG. 10

INSTALL THE HOOD

Note: Remove the plastic protective film
from all exterior surfaces, decorative
flues and filters, prior to final installation.
Remove filters. (Refer to the “Install Filters”
Section.)

DUCTED and NON-DUCTED INSTALLATION

1. Remove the electrical system box from
chimney frame by removing (2) 3.9 x 9.5 mm
screws. Fig. 9.

2. Attach electrical system box to frame using (2)

3.9 x 9.5 mm screws removed in Step 1 and
(2) 3.9 x 9.5 mm screws and (2) lock washers
from hardware bag.

3. Install hood onto the wall mounting brackets.
Fig. 10. Adjust leveling screws on mounting
brackets to level hood with floor.

3. Mark and install (2) additional screws as
shown. Use drywall anchors only if necessary.

ELECTRICAL

SYSTEM BOX

FIG. 9

REMOVE (2)

3.9 x 9.5 mm
SCREWS

4.8 x 38 mm
SCREWS

INSTALL (4)

3.9 x 9.5 mm
SCREWS &

LOCK WASHERS
ON (2) SCREWS

- 13 -

FIG.11

DAMPER

8-INCH DIA.

METAL DUCT

DUCTED INSTALLATION ONLY

Note: Rooms with 10-foot ceiling require
flue extension model AEWC345

IQSB,

available from your local dealer. Discard
the upper flue supplied with the range
hood and replace it with the longer flue
extension.

1. Remove protective tape from blower outlet
before installing damper to hood with
(4) screws supplied and tape joint with
aluminum duct tape. Fig. 11.

2. Run 8-inch diameter metal ductwork to
the outside location.

3. Install an appropriate wall or roof cap with
damper to exhaust the air to the outside.

4. Tape all duct joints with aluminum duct
tape.

5. Plug power cord into wall outlet.

6. Install upper and lower decorative flues
onto the range hood. Fig. 12.

- Vents are concealed on 8-foot
ceilings.

- Vents are exposed on 9-foot
ceilings.

7. Secure upper flue to flue mounting bracket
with (2) 3.9 x 6 mm screws. Fig. 13.

FIG.12

FIG.13

CONCEALED

VENTS

CEILING

- 14 -

NON-DUCTED INSTALLATION ONLY

Note:
a. Purchase Model ANKWC345 Non-ducted

Recirculation Kit from your local dealer.

b. Rooms with 10-foot ceiling require

flue extension model AEWC345

IQSB,

available from your local dealer. Discard
the upper flue supplied with the range
hood and replace it with the longer flue
extension.

1. Remove protective tape from blower outlet
before installing damper to hood with
(4) screws supplied and tape joint with
aluminum duct tape. See Fig. 11.

2. Attach the 6”-to-8” adapter to blower
discharge and tape joint with aluminum
duct tape. Fig. 14.

3. Install the plenum to the upper decorative
flue using (4) 3.4 x 15 mm screws
provided as shown. Fig. 15.

4. Attach 6-inch expandable ducting to the
plenum and tape joint with aluminum duct
tape. Fig. 16.

5. Attach non-duct filter frame using (4) 3.9
x 6 mm screws. Fig. 17.

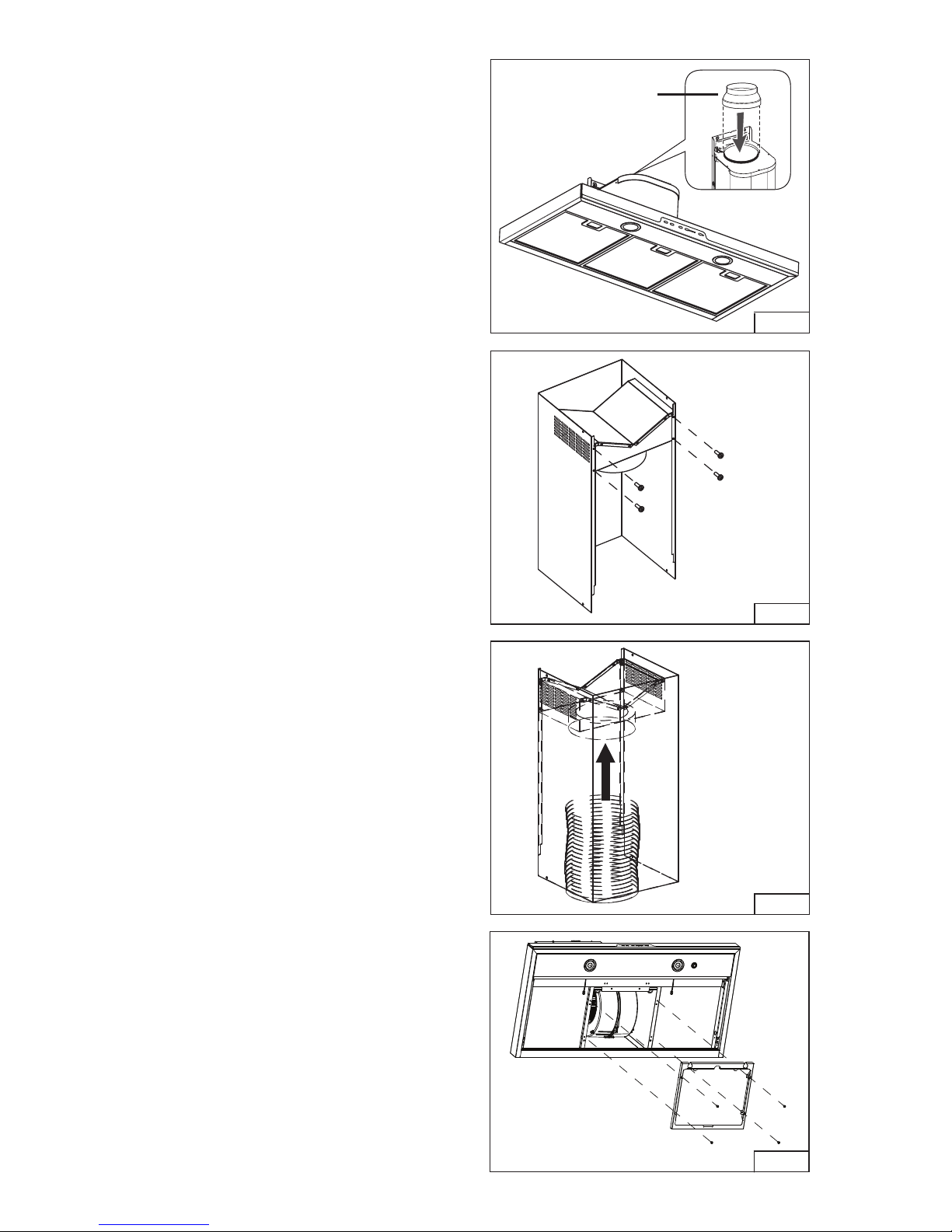

FIG.14

FIG.15

FIG.16

6-INCH

TO 8-INCH

ADAPTER

3.9 x 6mm
SCREWS

FIG.17

- 15 -

6. Temporarily secure the upper and lower
flue together with duct tape as shown.
Fig.18.

7. Lift the flue into position. Secure upper flue
to the flue mounting bracket with (2) 3.9 x
6 mm screws. Fig. 19.

8. Stretch expandable duct, attach it to the 6”­to-8” adapter and tape duct joints. Fig.20.

9. Plug power cord into wall outlet.

10. Remove tape from flues and lower into
position on the hood. Fig. 21.

FIG.19

FIG.18

FIG.20 FIG. 21

- 16 -

INSTALL FILTERS

DUCTED AND NON-DUCTED HOODS

1. To remove the GREASE filter, push in latch
tab to disengage the filter from the hood.
Tilt the filter downward and remove. Fig.

22.

2. To install the GREASE filter, align rear filter
tabs with slots in the hood. Push latch tab
in, push filter into position and release.
Make sure the filter is securely engaged
after installation. Fig. 22.

NOTE: Prior to use, remove protective film
from the filter frame.

NON-DUCTED HOODS ONLY

1. To remove the CHARCOAL filter, grip and
push filter tab toward rear of hood. Pull the
filter down to disengage the rear filter tabs.
Fig. 23.

2. To install the CHARCOAL filter, align filter
in rectangular opening. Push filter against
springs in rear of hood and press into place.
Make sure the filter is securely engaged
after assembly.

3. Install GREASE filter after charcoal filter
is installed.

4. The charcoal filter replacement model is
AFCWC345.

FIG.22

FIG.23

NON-DUCTED

RECIRCULATION

FILTER

- 17 -

CALIBRATE IQ BLOWER
SYSTEM

TM

(WC34IQ)

INTERNAL BLOWER DUCTED UNITS ONLY

After the hood is installed and wired,
engage the calibration process (our
Guaranteed Performance System
Technology to ensure full-rated airflow is
being delivered). Prior to calibration, ensure
that all filters, light bulbs and duct system
are installed.

CALIBRATION PROCESS Fig. 24.

Hold the calibration button for 3 seconds;
calibration button will light up and stay on
for up to 13 minutes. The blower will start
and begin the calibration process. When
calibration is complete, one of two things
will occur:

1. The blower turns off and calibration
button light stays on = Successful
calibration. Press the button to turn off
the LED. Note: The LED will also turn off
if you select any blower speed on the
control.

2. The blower turns off and calibration
button light blinks continuously = Too
much restriction in the ductwork is
preventing the IQ Blower System™ from
achieving the rated airflow. The blower is
automatically set to maximum intensity.

NOTE: Common items that cause

restrictions: restricted damper flap
(backdraft damper, wall cap, roof cap),
too many elbows, duct size less than
80% of hood outlet, poor transition, use
of flex ducting and/or crushed ducting.

FIG.24

CALIBRATION

BUTTON

CALIBRATION

LIGHT

Three options are available if your hood

system has too much restriction:

1. Accept airflow as is.
a. Press the calibration button to accept

airflow as is. The IQ Blower System™
is now configured to the highest
possible performance. The blinking
calibration light goes out. Note: The
LED will also turn off if you select any
blower speed on the control.

2. Correct duct restriction, clear the
original calibration data, and repeat the
calibration process.

a. Correct the duct restriction.
b. Clear the original calibration data

by holding calibration button for 10
seconds. The light will blink 3 times to
confirm and the blower configuration
will go back to default settings.

c. Repeat calibration process from the

beginning.

3. Clear calibration data to reset hood
to default factory setting and achieve
standard high pressure blower
performance.

a. Clear calibration data and reset hood

to factory default setting by holding
calibration button for 10 seconds. The
light will blink 3 times to confirm and
the blower configuration will go back
to default settings.

- 18 -

Light

Off

FIG. 25

OFF

ON

OFF / -

ON / + R

Light

On

Blower

Off / Speed

Blower

On / Speed

Blower LED

Indicators

Time Delay /

Filter Clean

Reset

LED

EXTERNAL BLOWER
PROGRAMMING MODE PROCEDURE (WC34E)

The range hood is designed to work with
several different blower models. Before
using, the control must first be programmed
to your blower model, in order to achieve
proper operating speeds.

From the chart below:

1. Find the SETUP number that
corresponds to the blower model that is
installed with your range hood.

2. The control is factory-preset to SETUP

3. If your blower model is listed under
SETUP 3, no programming is required
and the range hood is ready to use.

SETUP 1 SETUP 2 SETUP 3

(default)

BLOWER

MODEL

NUMBER

EB6
ILB3
ILB6

EB12
EB15

ILB9

EB9

ILB11

3. To program blower models listed under
SETUP 1 and 2:

A) Power must be supplied to the

hood. The blower and lights must be
turned off.

B) Press and hold OFF and ON/+

for 5 seconds. The Blower LED
Indicators will flash 3 times. Then
only the LED will stay lit. After 1
second, the Blower LED Indicators
will show the current setting as
follows:

•

°°°

SETUP 1

°

• •

°

SETUP 2

° ° °

•

SETUP 3

C) To select the proper SETUP:

Press OFF/- or ON/+ to select the
desired SETUP.

D) Once the proper SETUP is found:

Press ON to memorize the setting,
or wait 15 seconds and the program
will automatically exit and store the
SETUP.

E) The range hood is now ready to use.

- 19 -

KEY NO. DESCRIPTION PART NO.

76 TOP GLASS 003102748
CAS BLOWER ASSEMBLY 06002259
49 FAN (CLOCK WISE) 03295071
IME ELECTRICAL INSTALLATION ASSEMBLY 06145222
114 WIRE CLAMP 032904990
506 BLDC DRIVER 97019431
67 WIRES 06102592
202 REFLECTOR STOP 03292290
415 FAIRLEAD 03202288
60 FEEDER CABLE 02300249
507 ASSEMBLY CALIBRATION BUTTON 06102584
439 STOP RING 02320034
37 KNOB 02300804
474 LED LAMP 08093413
AQI SWITCH BOX ASSEMBLY 06102594
17 LIGHT DIFFUSER SUPPORT E3351891
9 GREASE FILTER 08087825
ARU CONNECTION AIR OUTLET SET 080810849
485 TELESCOPIC DUCT KIT 08016368
120 TELESCOPIC DUCT UPPER BRACKET 08091851
ANKWC345 NON-DUCT FILTER KIT 08999175
58 8” TO 6” REDUCER 03294170
503 6” EXPANDABLE DUCT 02011557
86 6” ADAPTER RING 032292300
122 NON-DUCT PLENUM 08093478
64 NON-DUCT FILTER FRAME 08093447
NON-DUCT FILTER 08999176
HARDWARE BAG 080810993

SERVICE PARTS

WC34IQ SERIES

- 20 -

SERVICE PARTS

WC34IQ SERIES

507

439

9

76

US-ECLIPSE HS BLDC

17

37

AQI

474

485

CAS

IME

506

202

60

415 (03202288)

415 (03202288)

49

1

14

120

ANKWC345

67

202

ARU

122

86

503

58

64

- 21 -

KEY NO. DESCRIPTION PART NO.

76 TOP GLASS 003102748
IME ELECTRICAL INSTALLATION ASSEMBLY 06145223
166 ELECTRICAL PRINTED CIRCUIT BOARD 08080877
145 FEEDER CABLE CONNECTION BOX 032920170
147 JUNCTION CLAMP R2300132
146 FEEDER CABLE CONNECTION BOX COVER 03292180
151 ELECTRICAL BOX WIRES STOP 032920200
114 WIRE CLAMP 032904990
67 WIRES 06102593
60 FEEDER CABLE 02300249
37 KNOB 02300804
114 RUNNER WIRES 032904990
474 LED LAMP 08093413
AQI SWITCH BOX ASSEMBLY 06102595
17 LIGHT DIFFUSER SUPPORT E3351891
9 GREASE FILTER 08087825
ARU CONNECTION AIR OUTLET SET 080810849
485 TELESCOPIC DUCT KIT 08016368
120 TELESCOPIC DUCT UPPER BRACKET 08091851
HARDWARE BAG 08010993

SERVICE PARTS

WC34E SERIES

- 22 -

9

76

US-ECLIPSE HS EXT BLDC

17

37

AQI

474

485

IME

120

67

ARU

116
115

415

202

60

114

SERVICE PARTS

WC34E SERIES
