Best WC26E42SB User Manual

Model WC26E

ENGLISH.....................................2

FRANÇAIS................................16

ESPAÑOL..................................30

In USA - BEST Hartford, Wisconsin In CANADA - BEST Drummondville, QC, Canada

For additional Information visit www.BestRangeHoods.com

READ AND SAVE THESE INSTRUCTIONS

INTENDED FOR DOMESTIC COOKING ONLY

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.

2. Before servicing or cleaning unit, switch power off at service panel and lock service panel to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

3. Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction codes and standards.

4. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer’s guidelines and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.

5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.

6. Ducted fans must always be vented to the outdoors.

7. Do not use this unit with any separate solid-state speed control device.

8. To reduce the risk of fire, use only metal ductwork.

9. This unit must be grounded.

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE: A. Never leave surface units unattended at high settings. Boilovers cause smoking and

greasy spillovers that may ignite. Heat oils slowly on low or medium settings.

B. Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes

Suzette, Cherries Jubilee, Peppercorn Beef Flambe’).

C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or

filter.

D. Use proper pan size. Always use cookware appropriate for the size of the surface

element.

WARNING

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:*

1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.

2. NEVER PICK UP A FLAMING PAN - You may be burned.

3. DO NOT USE WATER, including wet dishcloths or towels - violent steam explosion will result.

4. Use an extinguisher ONLY if:

A. You know you have a Class ABC extinguisher and you already know how to operate

it. B. The fire is small and contained in the area where it started. C. The fire department is being called. D. You can fight the fire with your back to an exit. * Based on “Kitchen Fire Safety Tips” published by NFPA.

- 2 -

CAUTION

1. To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.

2. Take care when using cleaning agents or detergents.

3. Avoid using food products that produce flames under the Range Hood.

4. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.

5. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.

6. Your hood motor has a thermal overload which will automatically shut off the motor if it becomes overheated. The motor will restart when it cools down. If the motor continues to shut off and restart, have the hood serviced.

7. For best capture of cooking impurities, the bottom of the hood should be a minimum of 22" and a maximum of 28" above the cooking surface. See “Install Mounting Bracket” section for mounting restrictions.

8. Two installers are recommended because of the large size and weight of this hood.

9. This product is equipped with a thermostat which may start blower automatically. To reduce the risk of injury and to prevent power from being switched on accidentally, switch power off at service panel and lock or tag service panel.

10. Use with approved cord-connection kit only.

11. Please read specification label on product for further information and requirements.

12. To reduce the risk of fire and electric shock, install this range hood only with Best by Broan Exterior blower models EB6, EB9, EB12, or EB15, or Best by Broan In-Line Blower models ILB3, ILB6, ILB9, or ILB11. Other Blowers cannot be substituted (Blowers sold separately).

- 3 -

OPERATION

Controls

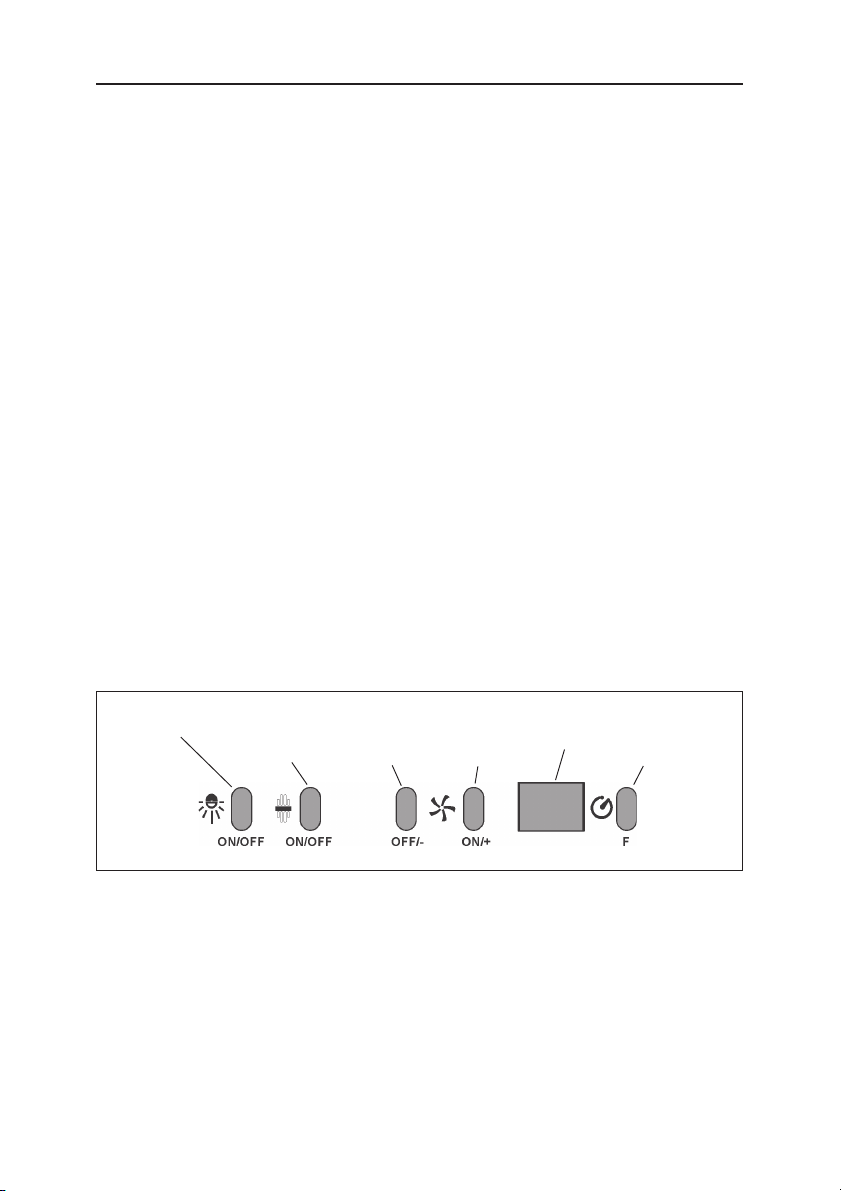

The hood is operated using the (5) push buttons located on the front edge of the

hood. The Light switch turns the halogen lights on and off. Push the light switch once to

turn the lights ON - push a second time to turn the lights ON to a brighter level push a third time to turn the lights OFF.

The Glass switch turns the glass light on. Push the glass switch once to turn the glass light ON - push a second time to turn the light OFF. Depress and hold the button to activate the automatic light sensor. When the LED Display indicates “A”, the glass light will automatically light when the room becomes dark. Push a second time to deactivate the sensor and turn the light off. The Blower Off/Speed switch turns the blower off and changes blower speed to four different speed settings: high, medium-high, medium-low and low speed. Depress and hold the button for 2 seconds to turn the blower off. The Blower On/Speed switch turns the blower on to four different speed settings: Low, medium-low, medium-high and high speed. The LED Display:

- Indicates blower speed selection from 1 (low speed) to 4 (high speed).

- Flashes the blower speed when the 10-minutes delay off has been activated.

- After 30 hours of operation, the center segment of the display blinks and remains

lit, indicating that filters need to be cleaned.

- Indicates “A” when the Light Sensor is ON.

The Time Delay switch activates a delay off feature. When pushed, the blower will continue to operate at the current speed setting for 10-minutes before automatically turning itself off. The Filter Alarm Reset switch is used to reset the 30-hour filter timer. After filters are cleaned or replaced, press this switch once to reset the filter clean alarm.

Time Delay/ Filter Alarm Reset

Light Switch

Glass Switch

Blower On/Speed

Blower Off/Speed

LED Display

HEAT SENTRY™

Your hood is equipped with a HEAT SENTRY™ thermostat. This thermostat is a device that will turn on or speed up the blower if it senses excessive heat above the cooking surface.

1) If blower is OFF - it turns blower ON to HIGH speed.

2) If blower is ON at a lower speed setting - it turns blower up to HIGH speed.

When the temperature level drops to normal, the blower will return to its original setting.

WARNING The HEAT SENTRY thermostat can start the blower even if the hood is turned OFF. When this occurs, it is impossible to turn the blower OFF with its switch. If you must stop the blower, do it from the main electrical panel.

- 4 -

HALOGEN BULBS

This range hood requires two halogen bulbs (Type T3, 12Volt, 20Watt Max, G-4 Base).

WARNING: Always switch off the elec-

trical supply before carrying out any operation on the appliance.

To change bulbs:

1. Open the cover by prying from the proper

slots. Fig. 2.

2. Remove the bulb by pulling sideways. (DO

NOT ROTATE).

CAUTION: Bulb may be hot.

3. Replace with Type T3, 12Volt, 20 Watt

Max, G-4 Base halogen bulb. Do not touch replacement bulb with bare hands!

CAUTION: Use of bulbs greater than

20 watts will cause the fuse to open.

FUSE REPLACEMENT

IF LIGHTS FAIL TO OPERATE, DISCONNECT POWER AT THE SERVICE ENTRANCE. CHECK THE FUSE AND REPLACE IF NECESSARY.

1. Remove the grease filter.

2. Unscrew the cap from the fuse holder and

remove the fuse.

3. Replace the fuse with the same size and

amperage (5 x 20mm, 4 amp, 125 volt).

CAUTION: Use a fuse greater than 4

amps may damage the transformer.

4. Reinstall the fuse holder cap.

5. Reconnect power at the service

entrance.

FIG. 2

FUSE

- 5 -

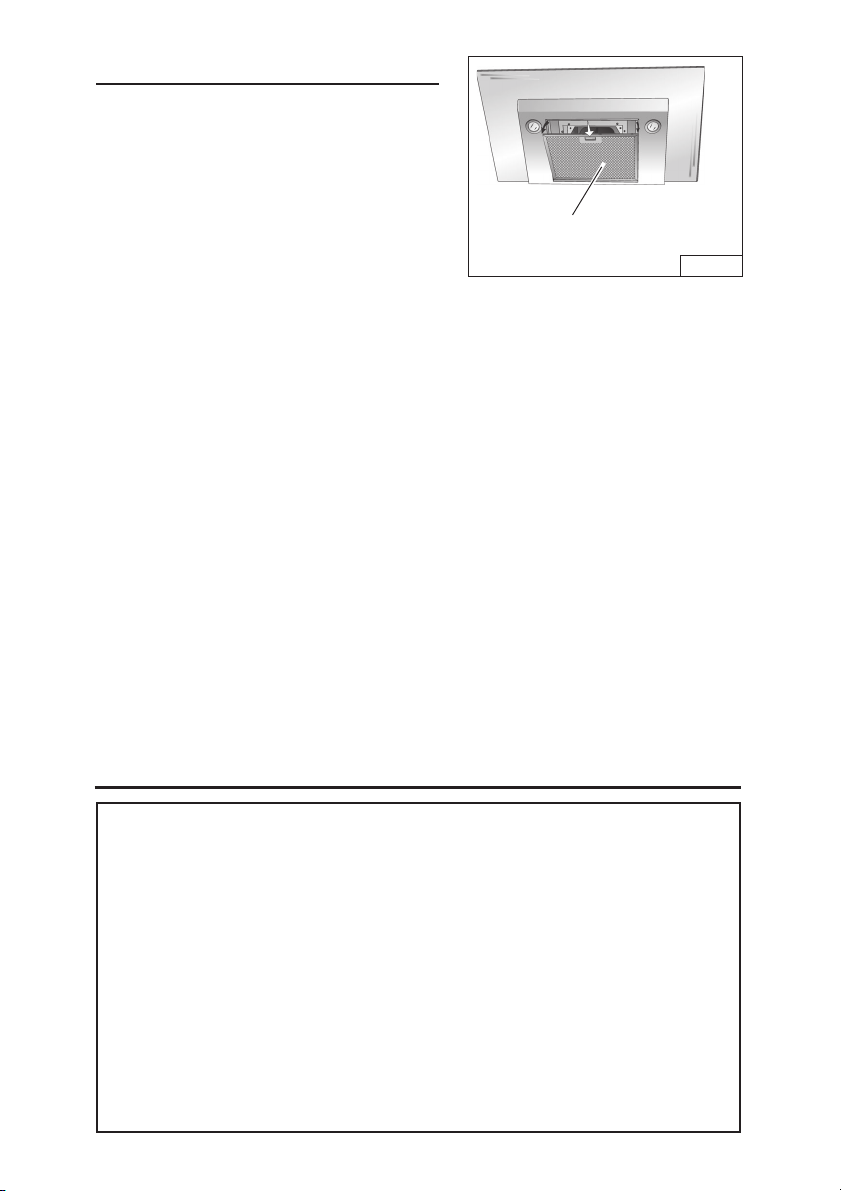

GREASE FILTER

FIG. 3

MAINTENANCE

Proper maintenance of the Range Hood will assure proper performance of the unit.

Grease Filter

The grease filter should be cleaned frequently. Use a warm detergent solution. Grease filter is dishwasher safe.

See “INSTALL FILTERS” section for removal and installation instructions.

Hood Cleaning

Stainless steel is one of the easiest materials to keep clean. Occasional care will help preserve its fine appearance.

Cleaning tips:

O Hot water with soap or detergent is all that is usually needed. O Follow all cleaning by rinsing with clear water. Wipe dry with a clean, soft cloth to

avoid water marks.

O For discolorations or deposits that persist, use a non-scratching household cleanser

or stainless steel polishing powder with a little water and a soft cloth.

O For stubborn cases, use a plastic scouring pad or soft bristle brush together with

cleanser and water. Rub lightly in direction of polishing lines or "grain" of the stainless finish. Avoid using too much pressure which may mar the surface.

O DO NOT allow deposits to remain for long periods of time. O DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere

to the surface causing rust.

O DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to

remain in contact with stainless steel for extended periods. Many of these compounds contain chemicals which may be harmful. Rinse with water after exposure and wipe dry with a clean cloth.

Painted surfaces should be cleaned with warm water and mild detergent only.

- 6 -

PREPARE THE HOOD

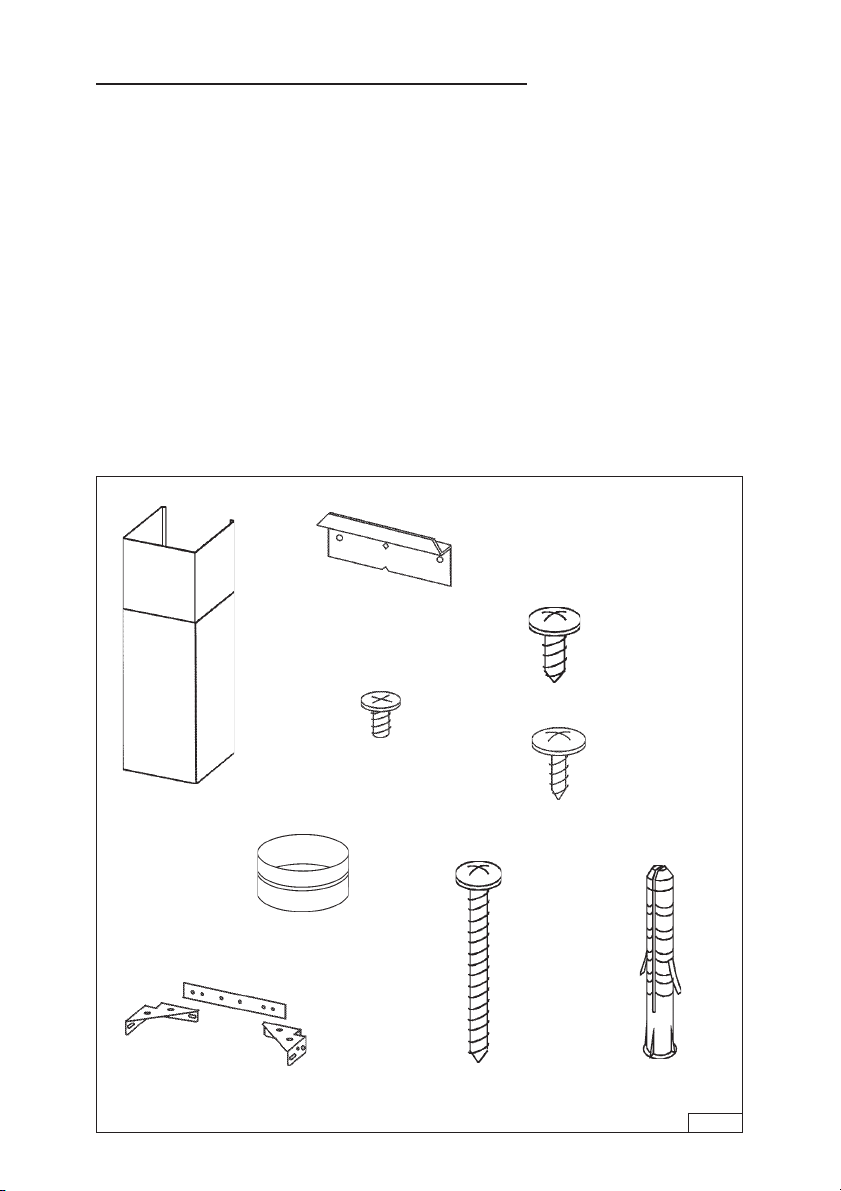

Unpack hood and check contents. You should receive: 1 - Hood 1 - Decorative Flue Assembly 1 - Parts Bag (B080810747) containing:

1 - Mounting Bracket 1 - Discharge Collar 1 - Flue Mounting Bracket 8 - Mounting Screws (4.8 x 38mm Pan Head) 6 - Mounting Screws (3.9 x 9.5mm Pan Head) 2 - Mounting Screws (3.9 x 6mm Flat Head) 8 - Drywall Anchors 1 - Mounting Screws (2.9 x 9.5mm Pan Head)

1 - Installation Instructions

MOUNTING BRACKET

6 MOUNTING SCREWS (3.9 x

9.5mm Pan Head)

DECORATIVE FLUE

FLUE MOUNTING BRACKET

2 MOUNTING SCREWS (3.9 x 6mm Flat Head)

DISCHARGE COLLAR

8 MOUNTING SCREWS (4.8 x 38mm Pan Head)

- 7 -

1 MOUNTING SCREW (2.9 x

9.5mm Pan Head)

8 DRYWALL ANCHORS

FIG. 4

EXTERIOR OR IN-LINE BLOWER SELECTION

CAUTION: Either an exterior blower or in-line blower may be used with this hood. The PKEX22 hood must be installed with blower models EB6, EB9, EB12, EB15, ILB3, ILB6, ILB9, or ILB11 only. Other Blowers cannot be substituted (Blowers sold separately). The blower must be UL listed for Canadian and U.S. use, and evaluated for use with solid state speed control, rated 120V, 60 Hz, 6.0 A max.

INSTALL THE DUCTWORK

NOTE: To reduce the risk of fire, use only metal ductwork.

1. Choose the location where the Exterior or In-Line Blower will be mounted. See

illustrations below for mounting location suggestions and restrictions.

2. A straight, short duct run will allow the hood to perform most efficiently.

3. Long duct runs, elbows and transitions will reduce the performance of the

hood. Use as few of them as possible. Larger ducting may be required for best performance with long duct runs.

4. After the Exterior or In-Line Blower has been installed, connect round metal

ductwork and work back towards the hood location. Use duct tape to seal joints between ductwork sections.

5. An 8” round to 10” round transition (Model 414) is required. For best air

performance, install the transition as close to the range hood as possible.

6. Check In-Line blower instructions for required duct and transition size.

EXTERIOR BLOWER

SUGGESTED MOUNTING LOCATIONS

INLINE

BLOWER

10” ROUND

DUCT

EXTERIOR

BLOWER

8” TO 10”

ROUND

TRANSITION

CAUTION: MAY NOT FIT

UNDER EAVES OF SINGLE

STORY HOMES

- 8 -

8” ROUND

DUCT

HOOD

22” TO 28” ABOVE

COOKING SURFACE

(see “INSTALL

MOUNTING BRACKETS”

section for mounting

restrictions

EXTERIOR

BLOWER

10”

ROUND

DUCT

8” ROUND

ELBOW

IN-LINE BLOWER

- 9 -

WIRING

CAUTION: All electrical wiring should be done by a qualified person (s) in accordance with all applicable codes and standards. This range hood must be properly grounded.

Do not turn power on at service panel until all wires have been connected.

Blower connection at hood:

1. Run conductors (2-wire plus ground) from

the Exterior or In-Line Blower to the hood’s wiring box marked “motor connection”. Fig.7

2. Remove the cover from the wiring box

and remove one knockout. Fig. 7

3. Secure the conduit to the wiring box

through a conduit connector. Fig.7

4. Make electrical connections at the hood.

Connect white-to-white, red-to-black and green-to-ground. Fig.7

5. Replace the wiring box cover and screws.

Make sure wires are not pinched between the cover and box.

Exterior or In-Line blower connection:

1.Make electrical connections at the

exterior or In-Line blower (see instructions provided with the exterior or in-line blower).

Power connection at hood:

1. Run supply conductors to the hood wiring

box marked “120VAC input”. Fig. 8

2. Remove the cover from the wiring box

and remove one knockout. Fig. 8

3. Secure the conduit to the wiring box

through a conduit connector. Fig. 8

4. Make electrical connections at the hood.

Connect white-to-white, black-to-black and green-to-ground. Fig. 8

5. Replace the wiring box cover and screws.

Make sure wires are not pinched between the cover and box.

BLOWER CONNECTION AT

CONNECT: WHITE-TO-WHITE, RED-TO-BLACK, GREEN-TO-GROUND.

BOX MARKED “MOTOR CONNECTION”

POWER CONNECTION AT HOOD

BOX MARKED “120 VAC INPUT”

HOOD

120 Volt 60Hz

LINE-IN

Exterior or

In-Line blower

FIG. 7

CONNECT: WHITE-TO-WHITE, BLACK-TO-BLACK, GREEN-TO-GROUND.

FIG. 8

- 10 -

INSTALL MOUNTING BRACKET

1. Construct wood wall framing that is flush

with interior surface of wall studs. Fig. 9. Make sure:

a) the framing is centered over

installation location.

b) the height of the framing will allow the

mounting bracket to be secured to the framing within the dimensions shown.

2. After wall surface is finished, secure the

mounting bracket to framing with (2) 4.8 x 38mm mounting screws. See chart below for mounting bracket location.

FRAMING BEHIND

WOOD CROSS

SUPPORT

CEILING HEIGHT

8-FOOT 9-FOOT

10- FOOT (see note b)

WOOD CROSS

SUPPORT BEHIND

DRYWALL

FIG. 9

HOOD DISTANCE ABOVE 36” HIGH COOK TOP (see note a)

22” 23” 24” 25” 26” 27”

MOUNTING BRACKET LOCATION ABOVE 36” HIGH COOK TOP

41-1/4” 42-1/4” 43-1/4” 44-1/4” 41-1/4” 42-1/4” 43-1/4” 44-1/4” 41-1/4” 42-1/4” 43-1/4” 44-1/4”

45-1/4” 46-1/4”

DRYWALL

47-1/4” 47-1/4”45-1/4” 46-1/4”

Notes: a. Minimum hood distance above cook top must not be less than 22”.

A maximun of 28” above cook top is highly recommended for best capture of cooking impurities. Distances over 28” are at the installer and user’s discretion; and if ceiling height and flue length permits.

b. Requires optional 10’ flue extension, ducted model AEWC26xB.

28”

- 11 -

INSTALL FLUE MOUNTING BRACKET

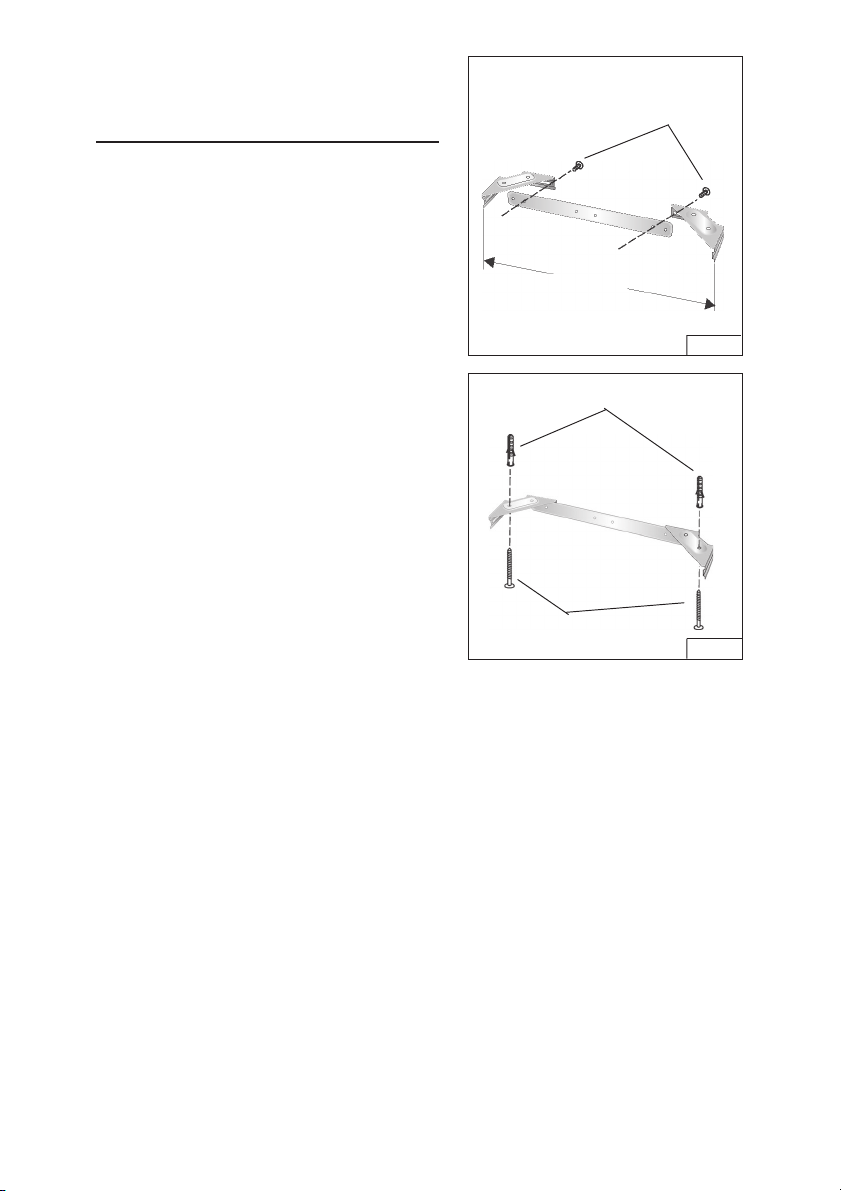

1. Assemble the flue mounting bracket,

adjusting outside width as shown. Fig.10

2. Carefully center the mounting bracket

directly over the range hood location.

3. Secure the bracket assembly to the ceiling

using (2) 4.8x38mm mounting screws and drywall anchors (Fig. 11). Make sure the bracket is pushed into the corner, tight against the wall and centered over the hood.

FLUE MOUNTING BRACKET

3.9 x 6 mm FLAT HEAD BRACKET SCREWS

9-13/16”

(24.9 cm)

DRYWALL ANCHORS

4.8x38mm

MOUNTING SCREWS

FIG.10

FIG.11

- 12 -

INSTALL THE HOOD

Note: On stainless steel hoods, carefully remove the plastic protective film from all exterior surfaces of the hood and decorative flues, prior to final installation.

Note: at least two people will be required to mount the hood.

1. Raise the hood into its mounting position.

2. Align the rectangular opening on the back of the hood with the wall-mounting bracket. Gently lower the hood until it securely engages the bracket. Fig. 12.

3. Level the hood with (2) 3.9x9.5mm mounting screws and secure with (4)

4.8x38mm mounting screws. Use drywall anchors provided if wall studs or framing are not available. Fig. 12.

4. Install the discharge collar inside the tabs and secure with (2) 3.9 x 9.5mm screws. Fig. 13.

5. Attach 8” round metal duct between the hood’s discharge collar and duct that leads to the blower.

6. Tape all duct joints to make them secure and air tight.

7. Plug the power cord into the electric wall receptacle. Tuck excess cord behind the flue.

MOUNTING

SCREWS

(4.8x38mm)

MOUNTING SCREWS

(3.9x9.5mm)

TABS

WALL FRAMING

MOUNTING

BRACKET

RECTANGULAR

CUTOUT

DISCHARGE

COLLAR

FIG. 12

- 13 -

FIG.13

INSTALL THE HOOD, cont’d

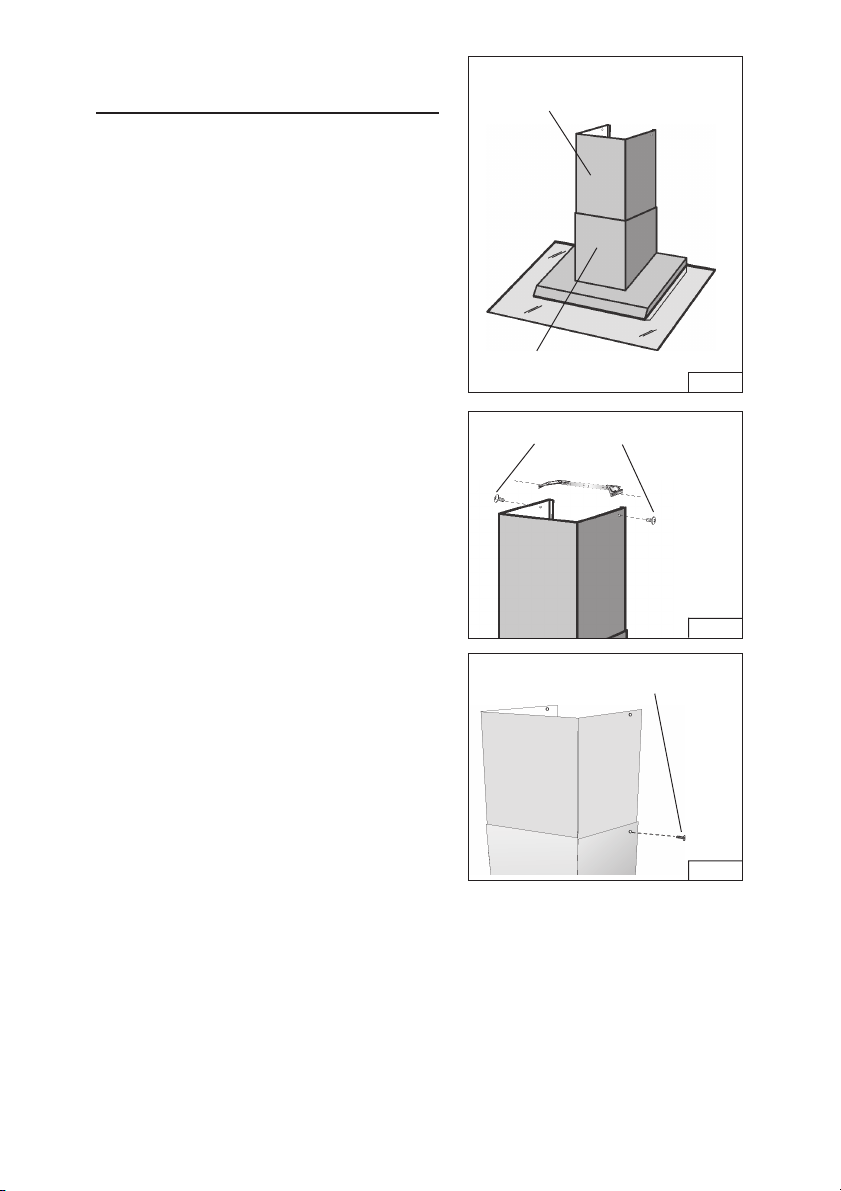

7. Carefully place the decorative flue on the hood. Fig. 14.

ROOMS WITH 10-FOOT CEILINGS

Rooms with 10-foot ceilings require flue extension model AEWC26xB, available from your local dealer.

8. Discard the upper flue supplied with the

product. Replace it with the flue extension.

9. Raise the upper flue until its holes align

with holes in the flue mounting bracket (located on ceiling). Fig. 15.

10.Secure the flue with (2) 3.9x9.5mm

mounting screws. Fig. 15.

11. Secure the lower flue to the upper flue

with (1) 2.9x9.5mm mounting screw. Drill the hole (1/16” Diameter) in the upper flue. Fig. 16.

UPPER FLUE

LOWER FLUE

MOUNTING SCREWS

FIG.14

3.9x9.5mm

FIG.15

- 14 -

2.9x9.5mm

MOUNTING SCREW

FIG.16

INSTALL FILTERS

1. To remove the GREASE filter, grip the latch tab and pull it down. This will disengage the filter from the hood. Tilt the filter downward and remove. Fig. 17.

2. To install the GREASE filter, align rear filter tabs with slots in the hood. Pull latch tab down, push filter into position and release. Make sure the filter is securely engaged after installation. Fig.17.

NOTE: Prior to use, remove protective film

from the filter frame.

GREASE FILTER

FIG. 17

WARRANTY

Broan warrants to the original consumer purchaser of its products that such products will be free from defects in materials or workmanship for a period of one year from the date of original purchase. THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OR MERCHANT ABILITY OR FITNESS FOR A PARTICULAR PURPOSE. During this one-year period, Broan will, at its option, repair or replace, without charge, any product or part which is found to be defective under normal use and service. THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS, TUBES, HALOGEN AND INCANDESCENDT BULBS. This warranty does not cover (a) normal maintenance and service or (b) any products or parts which have been subject to misuse, negligence, accident, improper maintenance or repair (other than by Broan), faulty installation or installation contrary to recommended installation instructions. The duration of any implied warranty is limited to the one-year period as specified for the express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. BROAN’S OBLIGATION TO REPAIR OR REPLACE, AT BROAN’S OPTION, SHALL BE THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE OR PERFORMANCE. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. This warranty supersedes all prior warranties. To qualify for warranty service, you must (a) notify Broan at the address stated below or telephone: 1-800-637-1453, (b) give the model number and part identification and (c) describe the nature of any defect in the product or part. At the time of requesting warranty service, you must present evidence of the original purchase date.

BEST BY BROAN, P.O. Box 140 Hartford, Wisconsin 53027

BROAN ONE YEAR LIMITED WARRANTY

- 15 -

+ 33 hidden pages
