CENTRO POCO
30” TO 48”
IN 6” INCREMENTS
UP27M SERIES
RANGE HOOD
SPECIFICATION SHEET
For domestic
cooking only.
Centro Poco offers modern under-cabinet styling designed
to be the focal point of the room. With high performance,
and durable construction, Centro Poco will meet the needs
of professional-quality residential cooking..
A complete installation requires several optional components.
Refer to page 2 when planning your installation.
FEATURES
HOOD:
Widths: 30”, 36”, 42”, 48”
•
Stainless Steel, 20 gauge, type 304
•
Dishwasher safe, mesh, hi-flow baffle filters
•
Variable cooktop lighting (Uses 50W, GU10 halogen lamps.
•
30” & 36” wide hoods = 2 lamps, 42” & 48” wide hoods = 4
lamps. Bulbs included.)
Variable speed rotary control with last speed memory
•
Exclusive, Heat Sentry™ turns blower ON to HIGH speed
•
when excess heat is detected
For indoor use only
•
OPTIONS:
Non-duct recirculation kit: Models ANKUP302RSB,
•
ANKUP362RSB, ANKUP422RSB, ANKUP482RSB
Replacement charcoal filters: Model AFCROUND2
•
BACKSPLASH:
RMP Series (Optional)
Widths: 30”, 36”, 42”, 48”
•
Stainless steel, 22 gauge, type 430 - protects back wall and
•
wipes clean easily
Two (2) dual position condiment storage shelves
•
SPECIFICATION:
120 VAC, 60 Hz,
•
0.8 Amps without blower (30” & 36” widths)
•
1.7 Amps without blower (42” & 48” widths)
UP27M Series Hood
30, 36, 42, 48
RMP Series Backsplash
(Optional)
BEST Hartford, Wisconsin www.BestRangeHoods.com 800-558-1711
BEST Drummondville, QC Canada www.BestRangeHoods.com 866-737-7770
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted By Date
31M 99045207A
UP27M SERIES
RANGE HOOD SYSTEM
- Interior Blowers -
Model 647
(8” Round wall cap)
Model 415
(8” round adjustable elbow)
Model 407
(8” round duct—2 ft. sections)
Model 634 or 644
(roof cap)
8-in. ROUND
ADAPTER / DAMPER
(Included with blower)
OPTIONAL
ANKUP SERIES
NON-DUCT KIT
MODEL P3, P6, iQ6
BLOWER/ROUGH-IN KIT
(300 or 600 cfm interior blower &
rough-in plate)
(Purchased separately)
UP27M SERIES
HOOD
(Canopy with
blower controls
& lighting.)

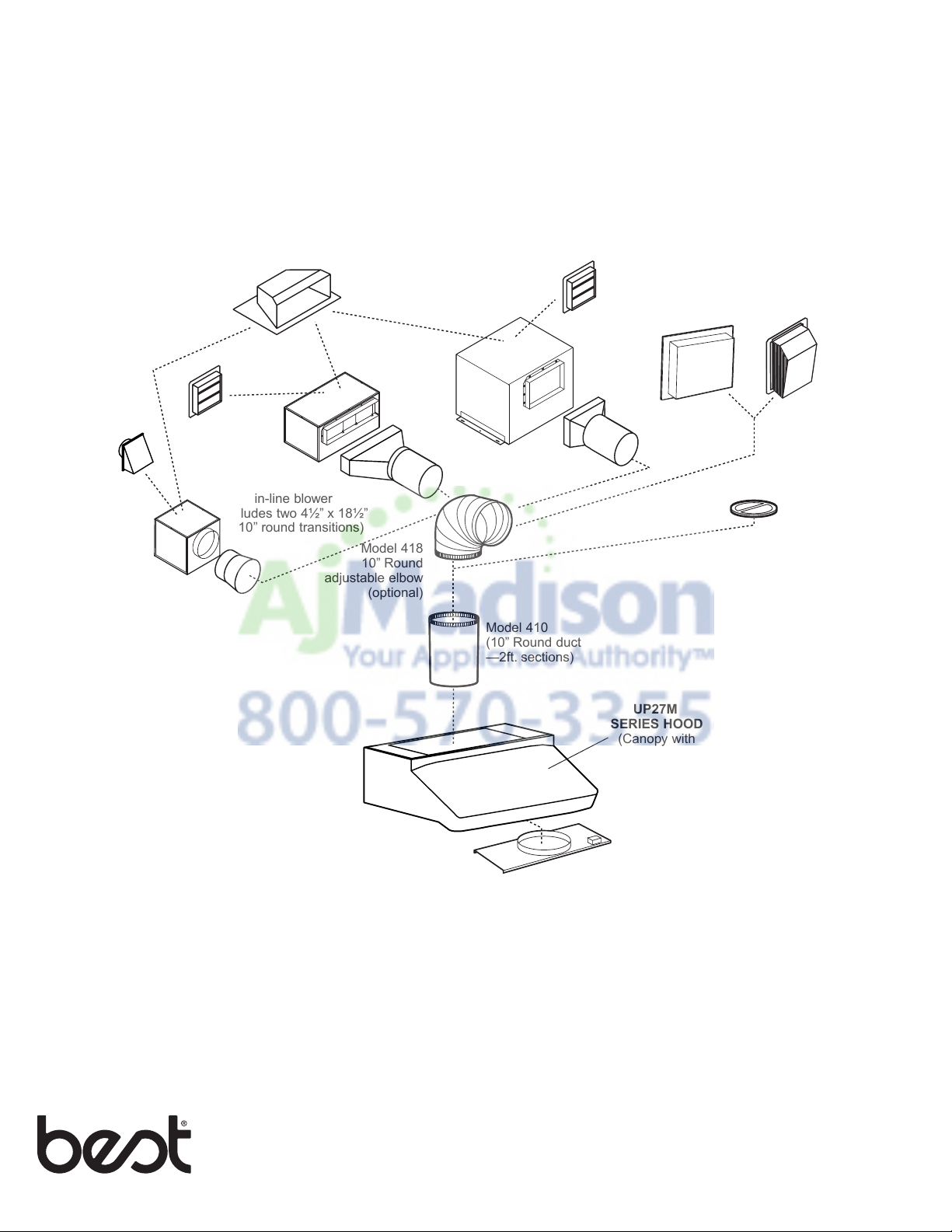

UP27M SERIES
RANGE HOOD SYSTEM
- Exterior Blowers -
Model 643
(8” Round
wall cap)
Model ILB3 (280 cfm)
in-line blower
(includes one 8” to 10”
round transition)
Model 437
(High capacity roof cap)
Model 441
(10” Round
wall cap)
Model ILB6 (600 cfm)
in-line blower
(includes two 4½” x 18½”
to 10’’ round transitions)
adjustable elbow
Model ILB9 (800 cfm)
or ILB11 (1100 cfm)
in-line blower
(includes two 8” x 12” to
10’’ round transitions)
Model 418
10” Round
(optional)
Model 441
(10” Round wall cap)
Model 410
(10” Round duct
—2ft. sections)
Model EB12 (1200 cfm)
or EB15 (1500 cfm)
Model EB6 (600 cfm)
or EB9(900 cfm)
exterior blower
Model 421
(10” Round vert.
in-line damper)
Recommended
for use with
exterior blowers
exterior blower
UP27M
SERIES HOOD
(Canopy with
blower controls
& lighting.)
In-line and exterior blower rough-in kit
(included with EB6, EB9, EB12, EB15,
ILB3, ILB6, ILB9 and ILB11 blowers.)
