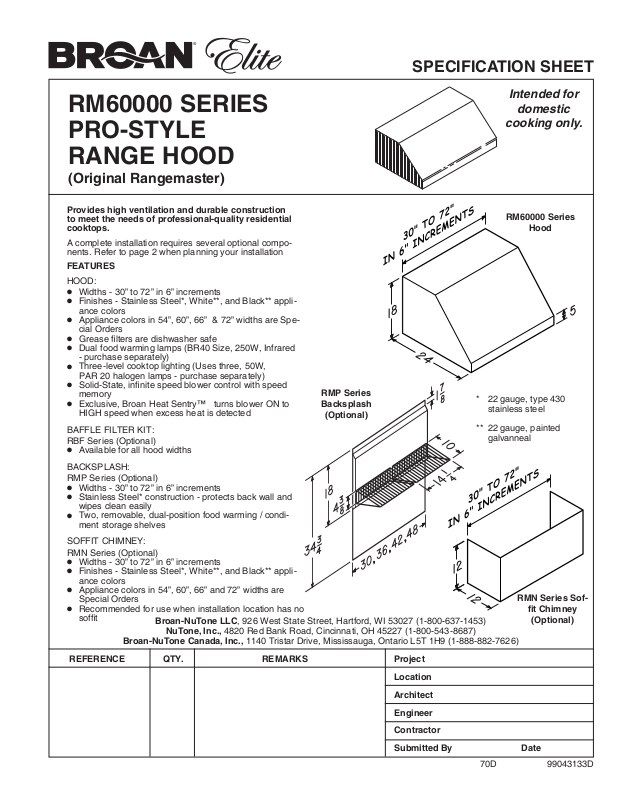

RM60000 SERIES
PRO-STYLE
RANGE HOOD
(Original Rangemaster)
SPECIFICATION SHEET
Intended for
domestic
cooking only.
Provides high ventilation and durable construction
to meet the needs of professional-quality residential
cooktops.
A complete installation requires several optional components. Refer to page 2 when planning your installation
FEATURES
HOOD:
Widths - 30” to 72” in 6” increments
•
Finishes - Stainless Steel*, White**, and Black** appli-
•
ance colors
Appliance colors in 54”, 60”, 66” & 72” widths are Spe-
•
cial Orders
Grease lters are dishwasher safe
•
Dual food warming lamps (BR40 Size, 250W, Infrared
•
- purchase separately)
Three-level cooktop lighting (Uses three, 50W,
•
PAR 20 halogen lamps - purchase separately)
Solid-State, innite speed blower control with speed
•
memory
Exclusive, Broan Heat Sentry™ turns blower ON to
•
HIGH speed when excess heat is detected
BAFFLE FILTER KIT:
RBF Series (Optional)
Available for all hood widths
•
BACKSPLASH:
RMP Series (Optional)
Widths - 30” to 72” in 6” increments
•
Stainless Steel* construction - protects back wall and
•
wipes clean easily
Two, removable, dual-position food warming / condi-
•
ment storage shelves
SOFFIT CHIMNEY:
RMN Series (Optional)
Widths - 30” to 72” in 6” increments
•
Finishes - Stainless Steel*, White**, and Black** appli-
•
ance colors
Appliance colors in 54”, 60”, 66” and 72” widths are
•
Special Orders
Recommended for use when installation location has no
•
soft
Broan-NuTone Canada, Inc., 1140 Tristar Drive, Mississauga, Ontario L5T 1H9 (1-888-882-7626)
Broan-NuTone LLC, 926 West State Street, Hartford, WI 53027 (1-800-637-1453)
NuTone, Inc., 4820 Red Bank Road, Cincinnati, OH 45227 (1-800-543-8687)
RMP Series
Backsplash
(Optional)
RM60000 Series
Hood
* 22 gauge, type 430
stainless steel
** 22 gauge, painted
galvanneal
RMN Series Sof-
fit Chimney
(Optional)
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted By Date
70D 99043133D
HL0075
RMP SERIES BACKSPLASH
(Stainless steel wall covering
with warming shelves. Optional)
Model 415
(7” round adjustable elbow)
Model 427
(4
1
/2” x 181/2”
to 10” Round,
6” high - lateral
Model 423
(41/2” x 181/2” to
10” Round - vertical
Model 424
(41/2” x 181/2” to
10” Round - horiz.
front/rear
Model 454
(41/2” x 181/2”
to 10” Round -
horiz. /right
Model 453
(41/2” x 181/2”
to 10” Round -
horiz. /left
RM60000
SERIES HOOD
(Canopy with
blower controls
& lighting.
Required for all
installations.)
OPTIONAL
SOFFIT CHIMNEY
RMN SERIES
- RM60000 SERIES RANGE HOOD SYSTEM -
INTERNAL BLOWERS
Model 437
(High capacity roof cap)
Model 441
(10’’ Round wall cap)
Model 634 or 644
(roof cap)
Model 647
(7” Round wall cap)
Model 407
(7” round duct—2 ft. sections)
Model 410
(10” round duct—2 ft. sections)
MODEL RM325H
BLOWER/ROUGH-IN KIT
(600 cfm interior blower &
rough-in plate)
MODEL RM326H
BLOWER/ROUGH-IN KIT
(1200 cfm interior blower
& rough-in plate)
Model 418
(10” round adjustable elbow)
OPTIONAL
BAFFLE FILTERS
RBF SERIES
NOTE: In addition to the blower models shown, the
RM60000 Series Hood is also compatible with older
internal blowers Models 325H & 326H. Discard the
installation instructions for those blowers, and contact
Technical Support to obtain replacement instructions.
