IPP9E SERIES

RANGE HOOD

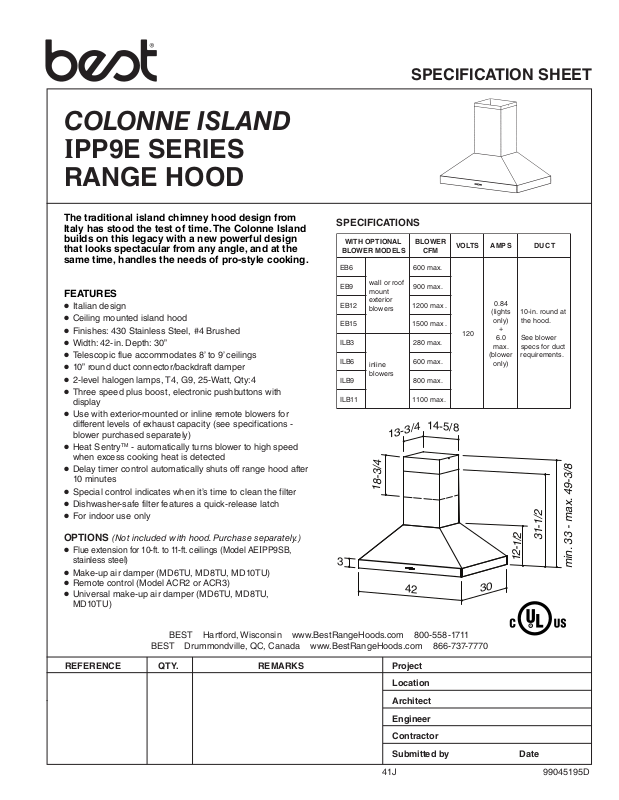

SPECIFICATION SHEET

The traditional island chimney hood design from
Italy has stood the test of time. The Colonne Island
builds on this legacy with a new powerful design
that looks spectacular from any angle, and at the
same time, handles the needs of pro-style cooking.

FEATURES

Italian design

•
Ceiling mounted island hood

•
Finishes: 430 Stainless Steel, #4 Brushed

•
Width: 42-in. Depth: 30”

•
Telescopic flue accommodates 8’ to 9’ ceilings

•
10” round duct connector/backdraft damper

•
2-level halogen lamps, T4, G9, 25-Watt, Qty:4

•
Three speed plus boost, electronic pushbuttons with

•

display

Use with exterior-mounted or inline remote blowers for

•

different levels of exhaust capacity (see specifications ­blower purchased separately)

Heat Sentry

•

when excess cooking heat is detected

Delay timer control automatically shuts off range hood after

•

10 minutes

Special control indicates when it’s time to clean the filter

•
Dishwasher-safe filter features a quick-release latch

•
For indoor use only

•

TM

- automatically turns blower to high speed

SPECIFICATIONS

1

18-3/4

OPTIONS (Not included with hood. Purchase separately.)

Flue extension for 10-ft. to 11-ft. ceilings (Model AEIPP9SB,

•

stainless steel)

Make-up air damper (MD6TU, MD8TU, MD10TU)

•
Remote control (Model ACR2 or ACR3)

•
Universal make-up air damper (MD6TU, MD8TU,

•

MD10TU)

REFERENCE QTY. REMARKS Project

Location

Architect

Engineer

Contractor

Submitted by Date

BEST Hartford, Wisconsin www.BestRangeHoods.com 800-558-1711

BEST Drummondville, QC, Canada www.BestRangeHoods.com 866-737-7770

42

41J 99045195D

30

12-1/2

31-1/2

IPP9E SERIES WIRING

BLOWER CONNECTION AT HOOD

CONNECT:
WHITE-TO-WHITE,
RED-TO-BLACK,
GREEN-TO-GROUND.

EXTERIOR BLOWER

BOX MARKED
“MOTOR
CONNECTION”

IPP9E SERIES MOUNTING

ROOF CAP

10” ROUND

DUCT

10” ROUND

HOOD

24” TO 36” ABOVE

COOKING SURFACE

DECORATIVE

ELBOW

FLUE

EAVE
VENT

CEILING

HEIGHT

24” 25” 26”

LOCATION FOR INCOMING POWER TO HOOD.

PROVIDE 36-IN. OF WIRE FOR 8-FT. TO 9-FT. CEILINGS

AND 60-IN. OF WIRE FOR 10-FT. TO 11-FT. CEILINGS.

10-1/4” DIA.

11

10-1/4”

FRONT OF HOOD

2"x4"
STRUCTURE
MINIMUM

MOUNTING AT CEILING

HOOD DISTANCE ABOVE 36” HIGH COOK TOP (see notes below)

27” 28” 29” 30”

ASSEMBLED SUPPORT FRAME HEIGHT (IN.)

31”

32” 33” 34”

11-7/16”

35”

36”

8 FEET

9 FEET

10 FEET

(see note b.)

11 FEET

(see note b.)

24¾” 23¾”

--- --- 33¾” 32¾” 31¾” 30¾” 29¾” 28¾” 27¾” 26¾” 25¾” 24¾”

48¾”

22¾” 21¾”

---

47¾” 46¾” 45¾” 44¾” 43¾” 42¾” 41¾” 40¾” 39¾”

--- --- ---

--- ---

56¾” 55¾” 54¾” 53¾” 52¾” 51¾” 50¾” 49¾” 48¾”---

--- ---

--- ---

--- ---

38¾” ---

---

---

--- Mounting height is not possible.

a. Minimum hood distance above cook top must not be less than 24”. A maximun of 36” above

cook top is highly recommended for best capture of cooking impurities. Distances over
36” are at the installer and user’s discretion; and if ceiling height and flue length permit.

b. Requires optional 10-ft. to 11-ft. flue extension, ducted model AEIPP9SB.
