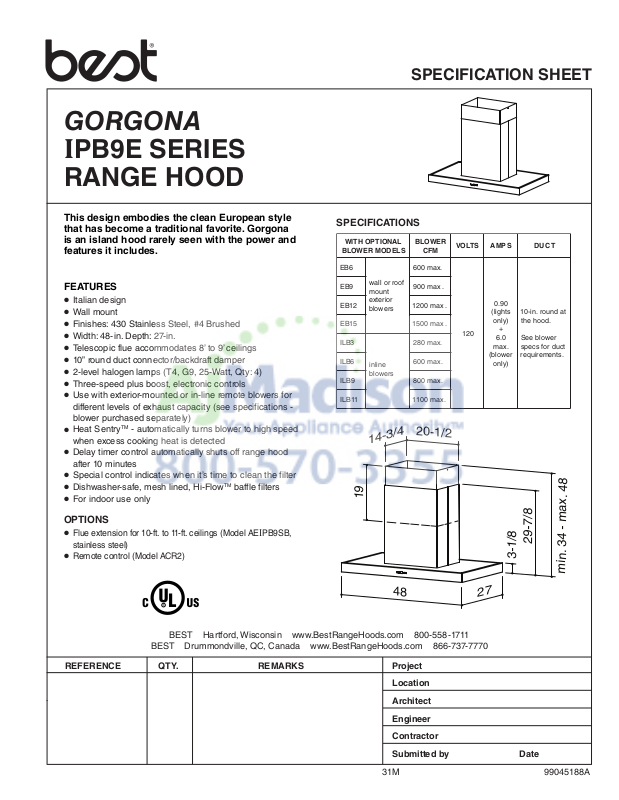

IPB9E SERIES
RANGE HOOD
SPECIFICATION SHEET
This design embodies the clean European style
that has become a traditional favorite. Gorgona
is an island hood rarely seen with the power and
features it includes.
FEATURES
Italian design
•
Wall mount
•
Finishes: 430 Stainless Steel, #4 Brushed
•
Width: 48-in. Depth: 27-in.
•
Telescopic flue accommodates 8’ to 9’ ceilings
•
10” round duct connector/backdraft damper
•
2-level halogen lamps (T4, G9, 25-Watt, Qty: 4)
•
Three-speed plus boost, electronic controls
•
Use with exterior-mounted or in-line remote blowers for
•
different levels of exhaust capacity (see specifications -
blower purchased separately)
Heat Sentry
•
when excess cooking heat is detected
Delay timer control automatically shuts off range hood
•
after 10 minutes
Special control indicates when it’s time to clean the filter
•
Dishwasher-safe, mesh lined, Hi-Flow
•
For indoor use only
•
TM
- automatically turns blower to high speed
TM
baffle filters
SPECIFICATIONS
1
19
OPTIONS
•
•
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted by Date
Flue extension for 10-ft. to 11-ft. ceilings (Model AEIPB9SB,
stainless steel)
Remote control (Model ACR2)
BEST Hartford, Wisconsin www.BestRangeHoods.com 800-558-1711
BEST Drummondville, QC, Canada www.BestRangeHoods.com 866-737-7770
29-7/8
3-1/8
min. 34 - max. 48
48
31M 99045188A
27
IPB9E SERIES WIRING
10” ROUND
DECORATIVE
EXTERIOR
BLOWER CONNECTION AT HOOD
CONNECT:
WHITE-TO-WHITE,
RED-TO-BLACK,
GREEN-TO-GROUND.
EXTERIOR BLOWER
BOX MARKED
“MOTOR
CONNECTION”
IPB9E SERIES MOUNTING
BLOWER
16-3/4”
DUCT
HOOD
FLUE
24” TO 36” ABOVE
COOKING SURFACE
CEILING
HEIGHT
8 FEET
9 FEET
10 FEET
(see note b.)
11 FEET
(see note b.)
HOOD DISTANCE ABOVE 36” HIGH COOK TOP (see note below)
24” 25” 26”
233/8” 223/8”
--- --- 34
3
47
3
/8”
46
/8” 453/8” 443/8” 433/8” 423/8” 413/8” 403/8” 393/8” 383/8”
3
58
/8” 573/8” 563/8” 553/8” 543/8” 533/8” 523/8” 513/8” 503/8” 493/8” 483/8”---
10-1/4” DIA.
11-7/16”
2x4
STRUCTURE
10-1/4”
MOUNTING AT CEILING
27”
28” 29” 30”
ASSEMBLED SUPPORT FRAME HEIGHT (IN.)
--- ---
3
/8” 333/8” 323/8” 313/8” 303/8” 293/8” 283/8” 273/8” 263/8” 253/8” 243/8”
--- ---
31”
--- ---
32” 33” 34”
--- ---
MINIMUM
35”
--- ---
3
37
/8” 363/8” ---
47
36”
---
3
/8”
--- Mounting height is not possible.
a. Minimum hood distance above cook top must not be less than 24”. A maximun of 36” above
cook top is highly recommended for best capture of cooking impurities. Distances over
30” are at the installer and user’s discretion; and if ceiling height and flue length permit.
b. Requires optional 10-ft. to 11-ft. flue extension, ducted model AEIPB9SB.
