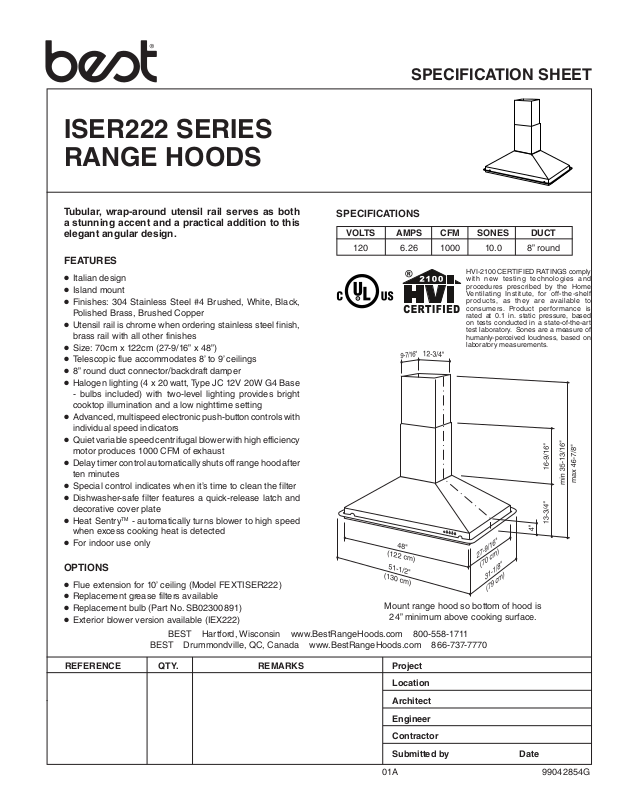

Page 1
ISER222 SERIES
RANGE HOODS
SPECIFICATION SHEET
Tubular, wrap-around utensil rail serves as both
a stunning accent and a practical addition to this
elegant angular design.
FEATURES
Italian design
•
Island mount
•
Finishes: 304 Stainless Steel #4 Brushed, White, Black,
•
Polished Brass, Brushed Copper
Utensil rail is chrome when ordering stainless steel finish,
•
brass rail with all other finishes
Size: 70cm x 122cm (27-9/16” x 48”)
•
Telescopic flue accommodates 8’ to 9’ ceilings
•
8” round duct connector/backdraft damper
•
Halogen lighting (4 x 20 watt, Type JC 12V 20W G4 Base
•
- bulbs included) with two-level lighting provides bright
cooktop illumination and a low nighttime setting
Advanced, multispeed electronic push-button controls with
•
individual speed indicators
Quiet variable speed centrifugal blower with high efficiency
•
motor produces 1000 CFM of exhaust
Delay timer control automatically shuts off range hood after
•
ten minutes
Special control indicates when it’s time to clean the filter
•
Dishwasher-safe filter features a quick-release latch and
•
decorative cover plate
Heat SentryTM - automatically turns blower to high speed
•
when excess cooking heat is detected
For indoor use only
•
SPECIFICATIONS
VOLTS AMPS CFM SONES DUCT
120 6.26 1000 10.0 8” round
HVI-2100 CERTIFIED RATINGS comply
with new testing technologies and
procedures prescribed by the Home
Ventilating Institute, for off-the-shelf
products, as they are available to
consumers. Product performance is
rated at 0.1 in. static pressure, based
on tests conducted in a state-of-the-art
test laboratory. Sones are a measure of
humanly-perceived loudness, based on
laboratory measurements.
OPTIONS
Flue extension for 10’ ceiling (Model FEXTISER222)
•
Replacement grease filters available
•
Replacement bulb (Part No. SB02300891)
•
Exterior blower version available (IEX222)
•
BEST Hartford, Wisconsin www.BestRangeHoods.com 800-558-1711
BEST Drummondville, QC, Canada www.BestRangeHoods.com 866-737-7770
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted by Date
Mount range hood so bottom of hood is
24” minimum above cooking surface.
01A 99042854G
Page 2
ISER222 SERIES WIRING
Air Outlet Ø 7-7/8”
ISER222 SERIES MOUNTING
Wiring Box
Controls Side
10-7/8”
7-13/16”
