CATTURATM DOWNDRAFT
66
MODELS D49M30SB,
D49M36SB, D49M48SB,
SPECIFICATIONS
Page 1
D49M30BLS, D49M36BLS
Powerful VERTEX
finest island hoods. Compact design allows the choice of
many cooktop styles, free-standing and built-in ranges for
island or wall applications.
FEATURES
HOUSING:
• Galvanized steel construction
• Left, right, front, below or rear discharge
• Flexible installation - can be used with cooktops, rangetops,
slide-in, and free-standing ranges
• 30", 36", or 48" widths - Fits standard-size cabinets (Some
blower configurations may require deeper cabinets.)
For indoor domestic use only
•
CHIMNEY ASSEMBLY:
• Quiet actuation linear drive system
• Chimney rises 18" when activated - ideal for tall pots
• Aluminum mesh filters - easy to remove, dishwasher-safe
• 304 stainless steel chimney - makes cleanup quick and
easy
• 4-speed capacitive-touch control, with delay off and filter
clean reminder
• Heat Sentry™ adjusts speed of blower in case of excess
heat
• 2-level LED task light. 7W (30"), 14W (36"), 18W (48")
• Up to 100% capture - equal to comparable island hoods
TRIM / DOOR:
• Low profile
• 304 stainless steel construction
• Articulating door to hide chimney when retracted
• Integrated, capacitive-touch UP button
BLOWER (sold separately):
• Compatible with quiet and efficient 600 cfm Flex Blower Model PF6
•
Permanently lubricated, thermally-protected motor
•
Neoprene, resilient anti-vibration mounts
• Can be mounted directly to downdraft or mounted remotely
• Uses standard 8" or 10" round duct
• Can be rotated on housing to exhaust left, right or down
• Compatible with in-line/exterior blower models:
EB6, EB9*, EB12*, EB15*, ILB3, ILB6, ILB9, ILB11*
*
Recommended models
BEST Hartford, Wisconsin www.BestRangeHoods.com 800-558-1711
BEST Drummondville, QC, Canada www.BestRangeHoods.ca 866-737-7770
REFERENCE QTY. REMARKS Project
TM
Complete Capture Design rivals the
TYPICAL SPECIFICATION
Downdraft blower system shall be Best
(D49M36SB), (D49M48SB), (D49M30BLS) or (D49M36BLS).
Unit to have stainless steel housing. Chimney to rise 18" and have
304 stainless steel contruction for ease of cleaning.
Filters to be aluminum mesh, easy to remove and dishwasher-safe.
Flex blower will connect directly to 8" round duct. Remote blower
will connect directly to 10" round duct. Blower to discharge left,
right, front, below or rear.
Motor shall be mounted to blower assembly with grease resistant
anti-vibration mounts, be removable, and lifetime lubricated.
Unit to include Heat Sentry
excess heat.
Unit to include trim / door to hide chimney when retracted.
Downdraft system shall operate on 120 VAC and be able to be
plugged into a standard grounded outlet. It will have a 4-speed
blower control, with delay off, and filter clean reminder.
Downdraft shall include 2-level LED task lighting.
Downdraft blower system to be cULus listed.
SPECIFICATIONS
Volts: 120
Hz: 60
Amps: 3.2
Duct: 8" or 10" Round
NOTE: Dimensions
shown are for reference
only. Before cutting out
countertop, refer to
instructions packed with
downdraft and cooktop.
HB01
®
Model D49M30SB,
™
, to adjust blower speed in case of
HK0198
NOTE: D
ARE IN INCHES.
IMENSIONS SHOWN
Location
Architect
Engineer
Contractor
Submitted by Date
PRODUCT SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
91A 99045243E
CABINET CUTOUTS
!
5-7/8
"
(14.9 cm)
21
"
(53.3
cm
)
1
-
1/8
"
(2.9 cm)
21
"
(5
3.3 cm)
24-3/4
"
(62.9 cm)
CAUTION: BEFORE CUTTING HOLE IN
CABINET FOR DUCTWORK, check for
interference with floor joists, wall studs,
electrical wiring or plumbing.
PLANNING
Page 2
Flex Blower Ducting – Remote Location Cutout
Below, Side or Rear Ducting Cutouts
5-7/8"
5-7/8"
(14.9 cm)
(14.9 cm)
Appliance
Cutout
(5.1 cm)
21"
21"
(53.3 cm)
(53.3 cm)
(10.2 cm)
2"
24-3/4"
1
1
-1/8"
-1/8"
(2.9 cm)
(2.9 cm)
24-3/4"
(62.9
(62.9
cm)
cm)
21"
21"
(53.3
(53.3
cm)
cm)
4"
(10.2 cm)
(10.2 cm)
4"
4"
(53.3 cm)
(53.3 cm)
21"
21"
Flex Blower Ducting Cutout
4"
(10.2 cm)
Appliance
Cutout
Center line of downdraft
Ø8"
(20.3 cm)
7-5/8"
7-5/8"
(19.4 cm)
(19.4 cm)
Dimensions based off of Model 432 - 8" round elbow
10" Exterior or In-line Blower Ducting Cutout
Appliance
Cutout
Appliance
Cutout
Ø8"
(20.3 cm)
1-1/2"
(3.8 cm)
(14.3 cm)
(14.3 cm)
Center line of downdraft
5-5/8"
5-5/8"
Center line of downdraft
Ø10"
(25.4 cm)
8-5/8
8-5/8
(21.9 cm)
(21.9 cm)
"
"
Dimensions based off of Model 418 - 10" round elbow
Use the dimensions in illustrations to help plan how and where to
provide duct access through your cabinet. A 1-7/8" x 19" rectangular
duct can be used through left, right, floor and back of cabinet.
Also, 8" round or 10" round can be used through cabinet floor.
For left, right, or rear exhaust:
Allow at least 18" for transition and elbow or blower.
For left / right exhaust:
A 30" deep cabinet is recommended to align properly with flex
blower. Flex blower can be mounted to rear cabinet wall or to a
platform / frame (not provided) on the base of the cabinet floor.
(See flex blower instructions).
Cabinet depths of 24" to 30" are required - depending on the
type of cooking appliance.
PLANNING
2-7/8"
A
B
2-3/4"
Downdraft
Cooktop
Front to Back
Inside Cabinet Depth
CountertopCountertop
Page 3
ELECTRICAL PANEL
The unit has a 30-in. power cord with a 3-pronged plug. Plan to provide a grounded outlet within reach of this cord.
DOWNDRAFT
Refer to the cooktop installation instructions for dimensions of cooktop, countertop cut-out, and cabinet requirements. However, it is recommended
that oversized cabinets be used for easier installation. Custom island designs need to account for deeper cabinets - especially when installed with
a range in front of the downdraft or when mounting the blower behind the downdraft. You must also plan for an access door.
Cooktop depth can vary greatly from one to another. This may cause the fit of these two appliances to be rather tight.
Pay special attention to the areas of potential interference highlighted above. A countertop with (A) a raised lip and/or (B) a backsplash may not
allow enough flat countertop for a proper installation. Note that 2-3/4" of flat countertop is required behind cooktop and that 2-7/8" is necessary
between the back edge of the cooktop and the inside of cabinet back.

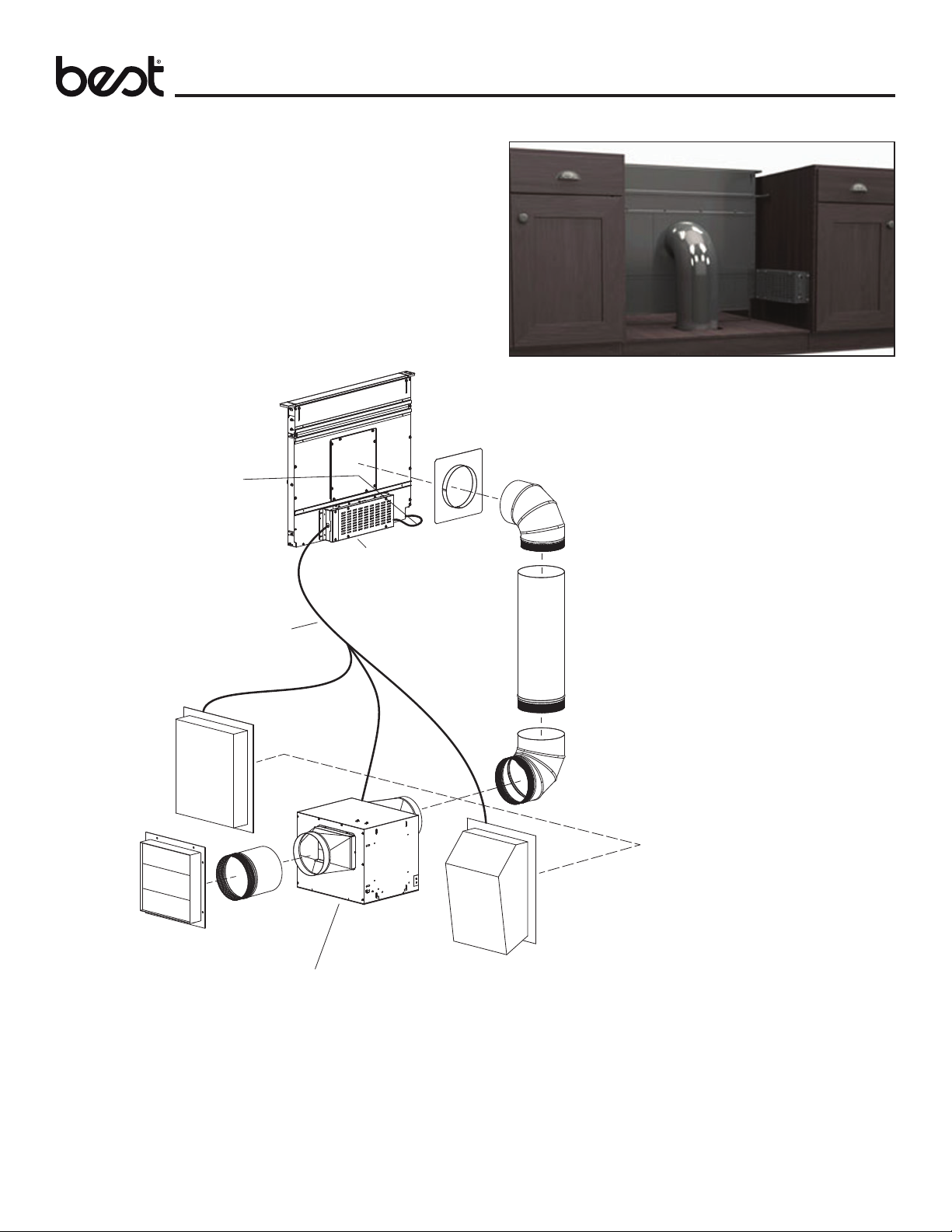

DUCTWORK
HOUSING
FLEX
A
Remote blowers
*
use 8" or 10" round
remote discharge
plate instead of flex
blower.
The downdraft blower system is designed for use with 8" round ductwork using a Flex Blower or 10" round ductwork using a remote blower.
(Purchase blowers separately.) Seven (7) different discharge connections are available - with side-to-side adjustment for accurate alignment
of ductwork:
A = 8" Round, Left Discharge out of Flex Blower
B = 8" Round, Right Discharge out of Flex Blower
C = 8" Round, Down Discharge out of Flex Blower (Electrical Panel to be mounted remotely)
D = 1-7/8" x 19", Left Discharge out of Housing to Remote Blower or Flex Blower in remote location. Use 1-7/8" x 19" to 8" round transition,
1-7/8" x 19" to 10" round transition, or 1-7/8" x 19" ductwork as appropriate.
E = 1-7/8" x 19", Right Discharge out of Housing to Remote Blower or Flex Blower in remote location. Use 1-7/8" x 19" to 8" round transition,
1-7/8" x 19" to 10" round transition, or 1-7/8" x 19" ductwork as appropriate.
F = 1-7/8" x 19", Rear Discharge out of Housing to Remote Blower or Flex Blower in remote location. Use 1-7/8" x 19" to 8" round transition,
1-7/8" x 19" to 10" round transition, or 1-7/8" x 19" ductwork as appropriate.
G = 1-7/8" x 19", Below Discharge out of Housing to Remote Blower or Flex Blower in remote location. Use 1-7/8" x 19" to 8" round transition,
1-7/8" x 19" to 10" round transition, or 1-7/8" x 19" ductwork as appropriate.
For best performance: Choose the ducting option which allows the shortest length of ductwork and a minimum number of elbows and
transitions. Check location of floor joists, wall studs, electrical wiring or plumbing for possible interference.
D
HD1101
BLOWER*
C
F
G
B
E
ELECTRICAL
PANEL
OPTIONAL ACCESSORIES
Page 4
OPTIONAL
ACCESSORY
MODELS
ACRD
ACRDBLS
MODELS
HA0141
ATSKD30
ATSKD36
ATSKD48
MODELS
MD6T
MD8T
MD10T
DESCRIPTION /
APPLICATION
REMOTE UP/DOWN CONTROL
Use when you cannot reach the UP/
DOWN Button on the downdraft chimney.
Can be located on counter top, face of
cabinetry or on the side cabinet of an
island. Cut-out size: 2¼" H x 2" W.
Cannot be used where remote control
will interfere with cooking, where hot
pans could be set, or where hot liquids
could be spilled on the control.
Remote wiring connects with
6-pin connection.
GAS COOKTOP SEAL KIT
Recommended for use with all gas
cooktops. Includes trim bracket and
trim seal.
30", 36" & 48" widths.
MAKE-UP AIR DAMPER
Use to provide make-up air (when called
for) to keep the home comfortable by
allowing the downdraft to operate at
optimum levels.
Directwire design works with select
®
BEST
downdrafts to balance indoor
air pressure by providing interlocked
make-up air; damper opens automatically
when the range hood is activated.
8" & 10" round diameters.
Connects to 2 CONTACTS on
ELECTRICAL PANEL.
OPTIONAL
ACCESSORY
MODEL AEWD5
MODEL ANKD
MODEL AFCD
MODEL AVDKD8
DESCRIPTION /
APPLICATION
EXTENSION CABLE - 5-FT.
Use where electrical panel is remotely
mounted. Extends electrical panel
cable an additional 5 feet.
NON-DUCT
RECIRCULATING KIT
Use where ducting is not feasible or
available. Mount to toe kick or base of
a cabinet and attach directly to Model
PF6 Flex Blower using 8" round duct.
Kit can be rotated so that the exhaust
is not directly at your feet. Includes
recirculation filter and decorative cover
plate.
RECIRCULATION FILTER
REPLACEMENT
Replacement filter for ANKD Non-Duct
Recirculating Kit. Use to effectively
capture cooking contaminants.
1-7/8" X 19" TO 8" ROUND
TRANSITION
Rectangular to 8" round transition for
left, right, below or rear exhaust - using
Model PF6 Flex Blower. Can be attached
to downdraft unit or rectangular duct
(AEDD2). Includes S-clips for easy,
secure attachment.
MODELS
ATKD30SB
ATKD36SB
ATKD48SB
MAKE-UP
AIR DAMPER
CONTACTS
RANGE TRIM KIT
Use with free-standing range - where a
gap is present between back of range
and downdraft.
30", 36" & 48" widths.
1-7/8" X 19" TO 10" ROUND
TRANSITION
Rectangular to 10" round transition for
left, right, below or rear exhaust - using
external blower. Can be attached to
downdraft unit or rectangular duct
(AEDD2).
MODEL AVDKD10
RECTANGULAR ADAPTER
FOR 1-7/8" X 19"
Use to connect 1-7/8" x 19" rectangular
duct directly to downdraft when using
side, below or rear exhaust.
MODEL AVDKD219
OPTIONAL ACCESSORIES
Page 5
OPTIONAL
ACCESSORY
MODELS
ATTD1
ATTD1BLS
MODEL ACVPD8
DESCRIPTION /
APPLICATION
END CAP TRIM EXTENSION
+1" WIDTH - LH & RH
Use left and right to increase the
overall trim width by 1".
FRONT PANEL ROUGH-IN PLATE 8" ROUND
Use where 8" round duct or elbow
attaches to front of airbox (Model PF6
remote blower installation).
FRONT PANEL ROUGH-IN PLATE 10" ROUND
Use where 10" round duct or elbow
attaches to front of airbox (exterior or
in-line blower installation).
OPTIONAL
ACCESSORY
HJ0123
MODEL AVDKD8810
DESCRIPTION /
APPLICATION
TRANSITION
“Y” (2) - 8" ROUND TO
(1) - 10" ROUND
Galvanized steel construction.
MODEL ACVPD10
MODEL 432 - 8" RD.
MODEL 418 - 10" RD.
MODEL 408 - 8" RD.
MODEL 410 - 10" RD.
MODEL AEDD2
0
90
DUCTWORK ELBOW
Adjustable from straight to 90
0
.
Galvanized steel construction.
STRAIGHT ROUND DUCT - 2-FT.
Galvanized steel construction.
RECTANGULAR DUCT - 2-FT.
SECTIONS (1-7/8" X 19")
Galvanized steel construction.
MODELS ATTD1 OR ATTD1BLS
End Cap Trim Extensions
(Increases trim width 1-inch
to 31, 37, or 49 inches.)
OPTIONAL ACCESSORIES
Page 6
MODEL ATKD30SB, 36, 48
Range Trim Kit
(Option to fill gap between
range and downdraft.)
MODEL ATSKD30, 36, 48
Gas Cooktop Seal Kit
(Recommended for use with
gas cooktops.)
HD1102A
MODELS ACRD OR ACRDBLS
Remote Up/Down
Control
HA0141
7.500
5.750
SYSTEM DIMENSIONS
Page 7
12.750
11.586
PF6
FLEX BLOWER
12.750
11.560
FRONT
OUTLET
4.240
7.320
30.000
36.000
48.000
FRONT
27.152
33.152
45.152
D49M30SB
D49M36SB
D49M48SB
DOWNDRAFT
SIDE
DUCTING
AEDD2 1-7/8” X 19”
RECTANGULAR DUCT
408 (8”) OR 410 (10”)
ROUND DUCT
24.000
24.000
19.000
AVDKD10
1-7/8” X 19”
TO 10” RD.
TRANSITION
7.500
6.000
12.750
5.000
AVDKD8
1-7/8” X 19”
TO 8” RD.
TRANSITION
FRONT
ANKD NON-DUCT
RECIRCULATION KIT
PF6
FLEX BLOWER
SIDE
INLET
OUTLET
5.272
10.310
15.952
14.048
7.976
16.000
17.478
6.478
11.000
11.586
3.750
HJ0124A
FRONT REAR
REAR
DUCTING
2.410
AEDD2 1-7/8” X 19”
RECTANGULAR DUCT
24.000
AVDKD10
1-7/8” X 19”
TO 10” RD.
TRANSITION
5.750
1.875
AVDKD8
1-7/8” X 19”
TO 8” RD.
TRANSITION
7.500
6.000
7.500
SIDE
12.063
13.813
10.984
8.250
9.517
10.000
8.000
5.528
418
10” RD.
ELBOW
8.250
13.000
432
8” RD.
ELBOW
7.000
11.000
INTERNAL BLOWER (PF6) - FRONT MOUNTED TO DOWNDRAFT
• Flex Blower (PF6)
attached to front
of Downdraft in
cabinet
• Ducted to Wall
Cap or Non-Duct
Recirculation Kit
Page 8
Electrical Panel
(Mount in remote location)
MODEL AEWD5
5-foot Extension
Cable (sold separately)
(Only required if electrical panel
is more than 2-feet away from
downdraft. Use up to 2 extension
cables connected together.)
MODEL PF6
Flex Blower (sold separately)
(“Down” discharge shown. Blower
can also be rotated for “Left” or
“Right” discharge.)
MODEL 408 *
8-inch Round
Straight Duct
MODEL 432 *
8-inch Round Elbow
MODEL ANKD
Non-Duct Recirculation Kit with
Kickspace Grille (sold separately)
(Only required for non-duct
applications. “Front” discharge
shown. Kit can also be rotated for
“Left” , “Right” or “Rear” discharge.)
MODEL 643 *
8-inch Round
Wall Cap
MODEL 408 *
8-inch Round
Straight Duct
* As required - sold separately.
INTERNAL BLOWER (PF6) - REMOTE MOUNTED - FRONT OUTLET
• Ducting connected to front of
Downdraft
• Flex Blower in cabinet - or - in
remote, in-line location
• Ducted to Wall Cap
MODEL ACVPD8
8-inch Round Front
Rough-in Plate
(sold separately)
Page 9
Electrical Panel
(Can be mounted
in remote location)
MODEL AEWD5
5-foot Extension Cable
(sold separately)
(Only required if electrical panel
is mounted in a remote location more than 2-feet away from
downdraft. Use up to 2 extension
cables connected together.)
MODEL 432 *
8-inch Round Elbow
MODEL 408 *
8-inch Round
Straight Duct
* As required - sold separately
MODEL PF6
Flex Blower (sold separately)
MODEL 408 *
8-inch Round
Straight Duct
MODEL 643 *
8-inch Round
Wall Cap
INTERNAL BLOWER (PF6) - REMOTE MOUNTED - SIDE OUTLET
• Ducting connected to right side
of Downdraft
(Ducting connects to left side or rear
of downdraft in same manner.)
• Flex Blower mounted in a side
cabinet or other remote, in-line
location
• Ducted to Wall Cap or Non-Duct
Recirculation Kit
MODEL AVDKD219 *
1-7/8-inch x 19-inch
Rectangular Adapter
(sold separately)
(Only required to
extend duct along
back of cabinet.)
MODEL AEDD2 *
1-7/8-inch x 19-inch
Rectangular Duct
(sold separately)
(Only required to
extend duct along
back of cabinet.)
MODEL AVDKD8
1-7/8-inch x 19-inch
to 8-inch Round Transition
(sold separately)
Page 10
MODEL PF6
Flex Blower
(sold separately)
(Mounted in
adjacent cabinet)
Electrical Panel
(Can be mounted in
remote location.)
MODEL 643 *
8-inch Round
Wall Cap
MODEL 432 *
8-inch Round
Elbow
MODEL AEWD5
5-foot Extension Cable
(sold separately)
(Only required if
electrical panel is mounted
in a remote location - more
than 2-feet away from downdraft.
Use up to 2 extension cables
connected together.)
MODEL 408 *
8-inch Round
Straight Duct
MODEL 408 *
8-inch Round
Straight Duct
MODEL PF6
Flex Blower
(sold separately)
(Mounted in
adjacent cabinet)
MODEL 408 *
8-inch Round
Straight Duct
MODEL ANKD
Non-Duct Recirculation Kit
with Kickspace Grille
(sold separately)
(Only required for non-duct
applications. “Front” discharge
shown. Kit can also be rotated
for “Left” , “Right” or “Rear” discharge.)
* As required - sold separately.
INTERNAL BLOWER (PF6) - REMOTE MOUNTED - REAR OUTLET
• Ducting connected to
rear of Downdraft
• Flex Blower in side
cabinet or other
remote, in-line location
• Ducted to Wall Cap or
Non-Duct Recirculation
Kit
Page 11
18” min.
MODEL AVDKD219 *
1-7/8-inch x 19-inch
Rectangular Adapter
(sold separately)
MODEL 643 *
8-inch Round
Wall Cap
MODEL 408 *
8-inch Round
Straight Duct
MODEL AEDD2 *
1-7/8-inch x 19-inch
Rectangular Duct
(sold separately)
MODEL 432 *
8-inch Round
Elbow
MODEL 408 *
8-inch Round
Straight Duct
MODEL PF6
Flex Blower
(sold separately)
(Mounted in
remote location)
MODEL AVDKD8
1-7/8-inch x 19-inch
to 8-inch Round Transition
(sold separately)
MODEL PF6
Flex Blower
(sold separately)
(Mounted in
adjacent cabinet)
MODEL 408 *
8-inch Round
Straight Duct
MODEL ANKD
Non-Duct Recirculation Kit
with kickspace grille
(sold separately)
(Only required for non-duct
applications. “Front” discharge
shown. Kit can also be rotated
for “Left” , “Right” or “Rear” discharge.)
* As required - sold separately.
INTERNAL BLOWER (PF6) - REMOTE MOUNTED - BELOW OUTLET
• Ducting connected
below Downdraft
• Ducted to Wall Cap or
Non-Duct Recirculation
Kit
Electrical Panel
(Can be mounted in
remote location.)
Page 12
MODEL AEWD5
5-foot Extension Cable
(sold separately)
(Only required if
electrical panel is mounted
in a remote location - more
than 2-feet away from downdraft.
Use up to 2 extension cables
connected together.)
MODEL AVDKD8
1-7/8-inch x 19-inch
to 8-inch Round Transition
(sold separately)
MODEL 643 *
8-inch Round
Wall Cap
MODEL 408 *
8-inch Round
Straight Duct
MODEL PF6
Flex Blower
MODEL 408 *
8-inch Round
Straight Duct
* As required - sold separately.
(sold separately)
(Mounted in
adjacent cabinet)
MODEL 432 *
8-inch Round Elbow
MODEL PF6
Flex Blower
(sold separately)
(Mounted in
adjacent cabinet)
MODEL 408 *
8-inch Round
Straight Duct
MODEL ANKD
Non-Duct Recirculation Kit
with Kickspace Grille
(sold separately)
(Only required for non-duct
applications. “Front” discharge
shown. Kit can also be rotated
for “Left” , “Right” or “Rear” discharge.)
EXTERIOR OR IN-LINE BLOWER - FRONT OUTLET
• EB15 Exterior Blower is
recommended for all rangetops or
cooktops with grill & any 48-inch
wide rangetop or cooktop
• Ducting connected to front of
Downdraft
• 10-inch round duct connected to
In-Line or Exterior Blower
MODEL AEWD5
5-foot Extension Cable
(sold separately)
(Only required if
Electrical Panel is mounted
in a remote location - more
than 2-feet away from downdraft.
Use up to 2 Extension Cables
connected together.)
Electrical Panel
(Can be mounted in
remote location.)
MODEL
ACVPD10
10-inch Round
Front Rough-in Plate
(sold separately)
Page 13
MODEL 418 *
10-inch Round Elbow
MODEL EB9 **
900 cfm
10-inch Round
Exterior Blower
MODEL 441 *
10-inch Round
Wall Cap
(Standard 120 VAC
wiring rated for 6 A
minimum - sold separately.)
MODEL 410 *
10-inch Round
Straight Duct
MODEL ILB11 **
1100 cfm
10-inch Round
In-Line Blower
MODEL EB12 **
1200 cfm
10-inch Round
Exterior Blower
-- OR --
MODEL 410 *
10-inch Round Straight Duct
MODEL 418 *
10-inch Round Elbow
* As required - sold separately.
** Choose 1 exterior or in-line
blower - sold separately.
MODEL EB15 **
1500 cfm
10-inch Round
Exterior Blower
EXTERIOR OR IN-LINE BLOWER - SIDE OR REAR OUTLET
• EB15 Exterior Blower with dual duct
(see page 16) is recommended for all
rangetops or cooktops with grill & any
48-inch wide rangetop or cooktop
• Ducting connected to side or rear of
Downdraft
• 10-inch round duct connected to
In-Line or Exterior Blower
MODEL AVDKD219 *
1-7/8-inch x 19-inch
MODEL AEWD5
5-foot Extension Cable
(sold separately)
(Only required if
Electrical Panel is mounted
in a remote location - more
than 2-feet away from downdraft.
Use up to 2 extension cables
connected together.)
Rectangular Adapter
(sold separately)
(Only required to extend
duct along back of cabinet)
MODEL AEDD2 *
1-7/8-inch x 19-inch
Rectangular Duct
(sold separately)
(Only required to
extend duct along
back of cabinet.)
Page 14
18”
min.
MODEL AVDKD10
1-7/8-inch x 19-inch
to 10-inch Round Transition
(sold separately)
MODEL 418 *
10-inch Round Elbow
Electrical Panel
(Can be mounted in
remote location)
MODEL EB9 **
900 cfm
10-inch Round
Exterior Blower
MODEL 441 *
10-inch Round
Wall Cap
(Standard 120 VAC
wiring rated for 6A
minimum - sold separately)
MODEL 410 *
10-inch Round
Straight Duct
MODEL ILB11 **
1100 cfm
10-inch Round
In-Line Blower
MODEL EB12 **
1200 cfm
10-inch Round
Exterior Blower
-- OR --
MODEL 410 *
10-inch Round Straight Duct
MODEL 418 *
10-inch Round Elbow
* As required - sold separately
** Choose 1 exterior or in-line
blower - sold separately.
MODEL EB15 **
1500 cfm
10-inch Round
Exterior Blower
EXTERIOR OR IN-LINE BLOWER - BELOW OUTLET
• EB15 Exterior Blower is
recommended for all rangetops or
cooktops with grill & any 48-inch
wide rangetop or cooktop
• Ducting connected below Downdraft
• 10-inch round duct connected to
In-Line or Exterior Blower
Electrical Panel
(Can be mounted in
remote location.)
Page 15
MODEL AEWD5
5-foot Extension Cable
(sold separately)
(Only required if
electrical panel is mounted
in a remote location - more
than 2-feet away from downdraft.
Use up to 2 extension cables
connected together.)
MODEL AVDKD10
1-7/8-inch x 19-inch
to 10-inch Round Transition
(sold separately)
MODEL EB9 **
900 cfm
10-inch Round
Exterior Blower
MODEL 441 *
10-inch Round
Wall Cap
(Standard 120 VAC
wiring rated for 6 A
minimum - sold separately.)
MODEL 410 *
10-inch Round
Straight Duct
MODEL ILB11 **
1100 cfm
10-inch Round
In-Line Blower
MODEL EB12 **
1200 cfm
10-inch Round
Exterior Blower
-- OR --
MODEL 410 *
10-inch Round Straight Duct
MODEL 418 *
10-inch Round Elbow
* As required - sold separately.
** Choose 1 exterior or in-line
blower - sold separately.
MODEL EB15 **
1500 cfm
10-inch Round
Exterior Blower
EXTERIOR OR IN-LINE BLOWER - DUAL DUCT - SIDE OUTLETS
• EB15 Exterior Blower is recommended for all
rangetops or cooktops with grill & any 48-inch
wide rangetop or cooktop
• Ducting connected to right and left sides of
Downdraft
side & rear of downdraft in same manner.)
(Ducting may be connected to either
Page 16
• 8-inch round duct connected to Dual 8-inch
to 10-inch round Transition
• 10-inch round duct
connected
to Exterior or
In-Line Blower
MODEL AEWD5
5-foot Extension Cable
(sold separately)
(Only required if electrical
panel is mounted in a remote
location - more than 2-feet
away from downdraft. Use
up to 2 extension cables
connected together.)
(Standard 120 VAC wiring rated
for 6A minimum - sold separately)
MODEL AVDKD219 *
1-7/8-inch x 19-inch
Rectangular Adapter
(sold separately)
(Only required to extend
duct along back of cabinet)
MODEL AEDD2 *
1-7/8-inch x 19-inch
Rectangular Duct
(sold separately)
(Only required to
extend duct along
back of cabinet)
Electrical Panel
(Can be mounted in
remote location)
18”
min.
MODEL AVDKD8
1-7/8-inch x 19-inch
to 8-inch Round Transition
(sold separately)
MODEL 423 *
8-inch Round Elbow
MODEL 408 *
8-inch Round Straight Duct
MODEL EB9 **
900 cfm
10-inch Round
Exterior Blower
MODEL 441 *
10-inch Round
Wall Cap
MODEL 410 *
10-inch Round
Straight Duct
MODEL ILB11 **
1100 cfm
10-inch Round
In-Line Blower
MODEL EB12 **
1200 cfm
10-inch Round
Exterior Blower
-- OR --
MODEL ATKD8810
Dual 8-inch Round to 10-inch
Round Transition (sold separately)
MODEL 418 *
10-inch Round Elbow
* As required - sold separately.
** Choose 1 exterior or in-line
blower - sold separately
MODEL EB15 **
1500 cfm
10-inch Round
Exterior Blower
Loading...
