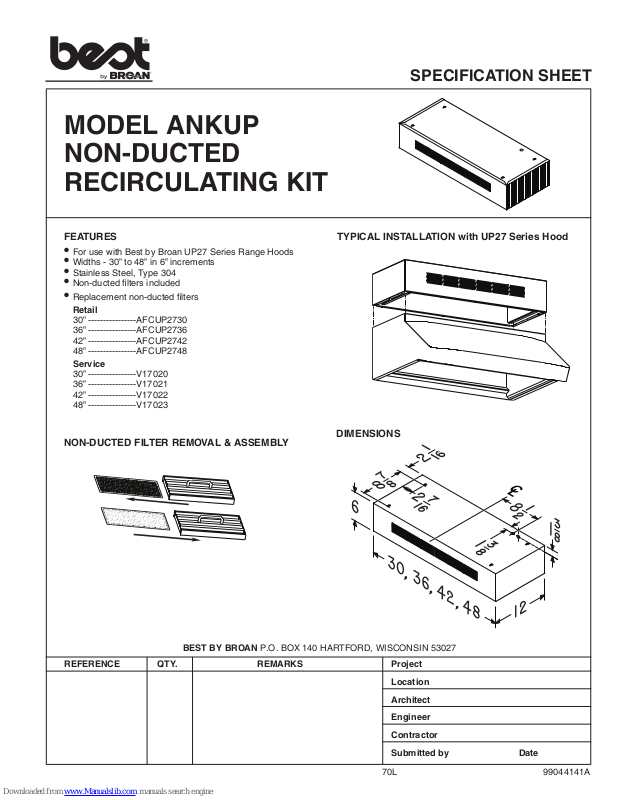

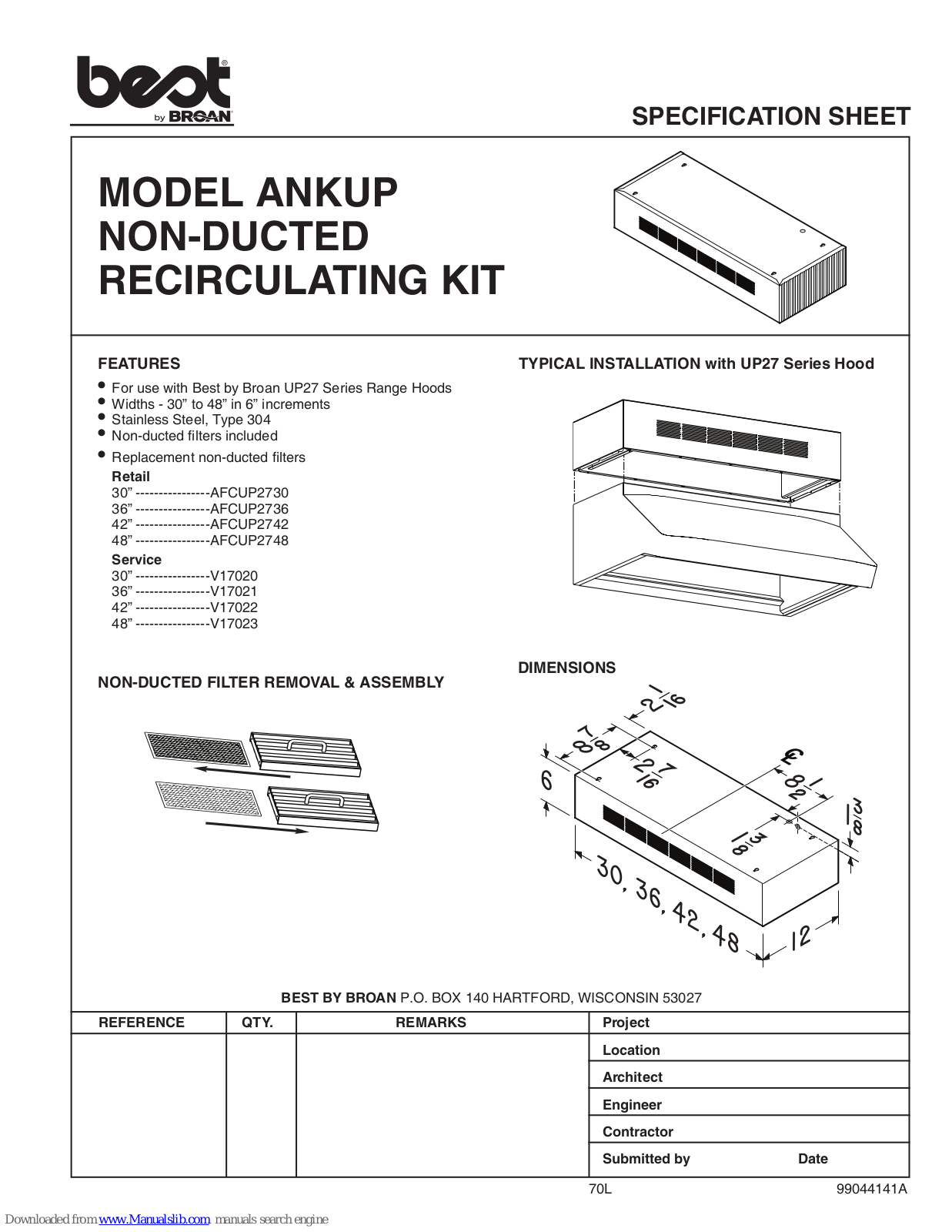

Best ANKUP Specification Sheet

MODEL ANKUP

C

L

NON-DUCTED
RECIRCULATING KIT

SPECIFICATION SHEET

FEATURES

• For use with Best by Broan UP27 Series Range Hoods

• Widths - 30” to 48” in 6” increments

• Stainless Steel, Type 304

• Non-ducted lters included

• Replacement non-ducted lters

Retail
30” ----------------AFCUP2730
36” ----------------AFCUP2736
42” ----------------AFCUP2742
48” ----------------AFCUP2748

Service
30” ----------------V17020
36” ----------------V17021
42” ----------------V17022
48” ----------------V17023

NON-DUCTED FILTER REMOVAL & ASSEMBLY

TYPICAL INSTALLATION with UP27 Series Hood

DIMENSIONS

BEST BY BROAN P.O. BOX 140 HARTFORD, WISCONSIN 53027

REFERENCE QTY. REMARKS Project

Location

Architect

Engineer

Contractor

Submitted by Date

70L 99044141A
