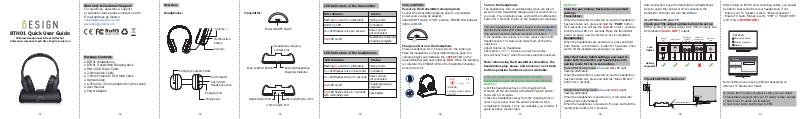

BTH01 Quick User Guide
Wireless Headphones &Transmitter Set
Units auto-reconnect each time they’re turned on
Warranty & Customer Support
For questions, assistance, support,
or warranty claims please contact us with
E-mail address as follows:
contact@besign-tech.com
www.besign-tech.com
Package Contents
● BTH01 Headphones
● BTH01 Transmitter/Charging dock
● Micro USB Power Cable
● 3.5mm Audio Cable
● 3.5mm Female to RCA Male Cable
● Optical Cable
● 6.35mm to 3.5mm adapter(for AV receiver)
● User Manual
● Power Adapter
Overview
Headphones: Transmitter:
Volume +
Multifunction
button
Volume –
Blue Led/Pair Button
Charging Contacts Points
Led Indicator
Aux/3.5mm
Headphone Jack
Charging Port
Microphone
Optical Audio Port
Power ON/OFF Switch
Headphone charging
contact pins
Red Led/Headphone
Charging Indicator
Micro USB Power Port
3.5mm Audio Port
LED Indicators of the transmitter
LED Indicator
Flashing Red and Blue alternately Pairing mode
Solid Blue LED
Blue LED flashes once per second
Red LED on/off
Status
Connected
Power on and
not connected
Headphone Charging/
Charging complete
LED Indicators of the headphones
LED Indicator Status
Flashing Red and Blue alternately Pairing mode
Blue LED flashes once in 8 seconds
Blue LED flashes twice in 5 seconds
Red LED on/off
Red LED flashes twice in 7 seconds
with reminding voice
Connected
Power on and
not connected
Charging/charging
complete
Low battery
Turn on BTH01
Power up the transmitter/charging dock
Connect the transmitter/charging dock to a compatible
power source using AC adapter.
Slide ON/OFF switch to “ON” position, POWER LED indicator
Turn on the headphone:
The headphones turn on automatically when you take it
away from the transmitter/charging dock or wear them on
your ears. You could also press and hold the multifunction
button for 3 seconds to turn on the headphones manually.
lights up BLUE.
Then the headphones will auto connect to the transmitter
and the transmitter LED indicator will turn SOLID blue.
The auto-connection will take around 1-2 minutes.
If the headphones volume is too low, please insure both
Headphones & TV volume and make them both at the
Charge and turn on the headphone
Charge headphone for 2.5 hours prior to the initial use:
Place the headphone on transmitter/charging dock, the
charging begins automatically, the CHARGE LED on the
transmitter/charging dock lights up RED. When the charging
is complete, the CHARGE LED on the transmitter/charging
dock will turn off.
RED
(off)
right level.
Adjust Volume on Headphone:
Short press “+”or “-” to raise or lower the volume.
One will hear “beep” when the volume reaches maximum.
Note: when using the transmitter connection, the
headphones play, pause, and previous / next track
button operation functions are not workable.
Pair and connect the transmitter with the
headphones again after auto-connection failed.
Option 1:
(CHARGE)
Complete when indicator
rurns off
A.Put the headphones back on the charging dock.
B.Switch off the transmitter with ON/OFF switch button,
then switch it on again.
C.Take the headphones away from the charging dock or
wear on your head, then the auto-connection will be
completed in minutes. If it is not workable, you could try it
again as above solution later.
Option 2:
Clear the pair history/Restore factory default
settings
Transmitter:
When the transmitter is powered on and the headphone
has been taken out, press and hold the “PAIR” button
for 8 seconds, you will see the red LED on for 1 seconds,
then the blue LED on 1 seconds. Make the transmitter
power on again, now the factory re-set is completed.
Headphones:
When the headphones are powered on, press and hold
both Volume + and Volume – button for 5 seconds. Then
switch off the headphones and power on again.
After the Factory defalt settings, you need to
make both transmitter and headphones into
pairing mode for the re-connection.
Transmitter Pairing mode: blue and red LED light
flashing alternately.
When the transmitter is powered on and the headphone
has been taken out, press and hold the “Blue LED Pair”
button for 2 seconds.
Headphones Pairing mode: blue and red led light
flashing alternately.
When the headphones is powered on, it will enter into
pairing mode automatically.
When the headphones is powered off, press and hold the
multifunction button for 3 seconds.
Auto-connection: keep the transmitter and headphones
close to each other and wait. Once connected, the
transmitter LED light will turn SOLID Blue.
Use BTH01 with your TV
Check your TVs output options before the set up
BTH01 works with optical output, AUX 3.5mm output, and
RCA (labeled “Audio OUT”) output.
Jack
Options
Natively
Supported?
Optical
OUT
AUX/3.5mm
RCA jacks
labeled
“AUDIO OUT”
R L
Other RCA
jacks(usually
audio IN)
Big Phone
Jack
TVs with OPTICAL audio out
OPTICAL
Optical audio cable
After turning on BTH01 and connecting cables, you should
be able to hear sound from your headphones; if not,
· Ensure your TV Speaker is set to “External Speaker”.
· Ensure TV Audio Format is set to “PCM” or “DOLBY/DTS”
is off (This is IMPORTANT).
Speakers
Internal speakers
External speakers
Headset
Settings
PCM
Audio Format
Dolby Digtal
DTS
DTS Neo 2:5
Note: Setting menu may be different depending on
different TV brands and model.
To ensure the TV audio out signal is valid, you can contact
TV manufacture support with your TV model number and ask
1) how to set TV audio out to Optical;
2) how to set Audio Out Format to PCM.
- 01 - - 02 - - 03 - - 04 - - 05 - - 06 - - 07 - - 08 - - 09 - - 10 -
TVs with AUX 3.5mm Audio out
AUX/3.5 mm
AUX/3.5 mm
audio cable
After turning on BTH01 and connecting cables, you
should be able to hear sound from your headphones;
if not, ensure your TV speaker is set to “Headset”.
Speakers
Internal speakers
External speakers
Headset
Note: Setting menu may be different depending on
different TV brands and model.
TVs with RCA audio out(Red/White ports labeled
“AUDIO OUT”)
AUDIO OUT
AUDIO OUT
AUX/3.5 mm
audio cable
3.5mm to RCA
audio cable
After turning on BTH01 and connecting cables, you should
be able to hear sound from your headphones; if not,
· Ensure use TV Red/White ports labeled “AUDIO OUT”,
other Red/White ports are incorrect (This is IMPORTANT).
· Ensure your TV Speaker is set to “External Speaker”.
TV REAR
AUDIO OUT
R
L
COMPONENT IN
VIDEO IN
Speakers
Internal speakers
External speakers
Headset
For AUX and RCA out, you can test the signal with
the headphone by insert the audio wire directly
into the headphone and see whether you can hear
sound. If not, and need help for audio signal, you
may contact TV manufacture support and ask how
to set your TV audio out to the port you are using.
How to set up with AV Receiver:
For most AV Receiver (e.g. Yamaha, Denon, etc.), please
use the big headphone jack in the front. You need to get
a 6.35mm to 3.5mm audio adapter.
Please use a wired headphone to test the PHONES jack,
make sure you can hear sound.
PHONES
PHONES
6.35mm to
3.5mm Converter (purchase separately)
3.5mm audip cable
NOTE: Do NOT use the RCA ports on the back of an AV
receiver. These are not suitable and will not work or
could even permanently damage your BTH01 transmitter!
MEMDRYINFO IWPD
SCENE
1 2 3 4
MULTI ZONE
ZONE 2
ZONE 3
ZONE 4 OWFOL
AUX
AUDIO
L R
FM AM TUNING
PRESET
Use the headphones independently with cellphone
BTH01 headphones can be separately used with cellphone,
please follow the step-by step instruction below:
1)Ensure the transmitter is off.
2)Enter the headphones into PAIRING MODE:
The BTH01 headphones will enter into pairing mode
automatically after it is powered on or disconnected.
Turn on: when it is powered off, press and hold the
multifunction button for 3 seonds until you see the the
first sight of the BLUE light.
Pairing mode: Blue and Red light flashing alternately.
3)Turn on bluetooth on your smart phone/tablet. Find &
select “BTH01” to pair and connect.
The next time, you want to use your headphones in
this way, you will need to select “BTH01” on your smart
phone/tablet to reconnect.
BTH01 Headphones operation instruction when
you use with cellphone.
Power on: when it is powered off, press and hold the
multifunction button for 3 seconds until you see the first
sight of the BLUE light.
Power off: Press and hold the multifunction button for 3
seconds until you see the first of the RED light.
To Answer the call: Short press the Multifunction button once.
To Hang up the call: Short press the Multifunction button once.
To reject a call: Hold the Multifunction button for 2 seconds
to reject an incoming call.
Pause/Resume: Press the multi-function button once.
Volume Control: Press the volume +/- button once.
Next / Previous Track: Press and hold the volume + / -
button for 2 seconds.
Important Note: when using the transmitter connection,
the headphones play, pause, and previous / next track
button operation functions are not workable.
Use BTH01 Headphones as a wired headphones
You could also use the BTH01 headphones as a wired
headphones with 3.5mm Aux cable.
First, switch off the BTH01 headphones.
Second, connect the BTH01 headphones with a audio sources
via 3.5mm AUX cable.
NOTE: The buttons and microphone on your BTH01 headphones
will not work when connected as wired headphones.
Tips
Adjust Volume on Headphone
Short press “+”or “-” to raise or lower the volume.
One will hear “beep” when the volume reaches maximum.
After use
Place headphones on the transmitter/charging dock to
recharge. The headphones will switch off automatically in
this way.
Pair and connect the transmitter with the
headphones again after auto-connection failed.
1. Put the headphones back on the charging dock.
2. Switch off the transmitter with ON/OFF switch button,
then switch it on again.
3.Take the headphones away from the charging dock or
wear on your head, then the auto-connection will be
completed in minutes. If it is not workable, you could try
it again as above solution later.
The sound is cut off
This is due to signal interference with the transmitter or
low battery. Adjust the transmitter position to allow for a
good connection between the transmitter and the
headphones, and charge the headphones sufficiently.
The Headphones is already connected to the
transmitter, No sound from the Headphones
while watching TV.
1)Please ensure your TV audio is set to “External Speaker”
2)If you select Optical audio input, please ensure:
a) Ensure your TV audio format is set to “PCM”, the
transmitter can decode PCM, but can’t decode Dolby/DTS.
b) Ensure the 3.5mm audio cable is NOT plugged in, or the
transmitter will prioritize the AUX input.
3) If you select AUX audio input, please ensure the transmitter
is connected to the correct analog audio port on the audio
sources—Plug in a pair of wired headphones/earbuds into
your audio source’ audio output to check if it works.
Headphone charging
When headphone battery is low, headphone indicator will
flash RED. You will also hear an “beep” from headphone
once every 5 minutes. This means it’s time to place headphone
on the transmitter/charging dock for charging. When
headphone are properly seated on the transmitter/charging
dock, the CHARGE indicator will light up Red. This means
headphones are recharging properly. If headphone are not
properly placed, the CHARGE indicator will not light up.
Once the charging is complete, the Red CHARGE LED on
transmitter/charging dock will turn off. There is no need to
remove headphone from transmitter/charging dock.
Better reception
BTH01 work range reaches up to 100 feet, it may varies
due to the environment. If your headphones are picking
up noise or interference, move closer to the transmitter.
Even within the work range, there may be some “dead
spots” where the RF signal cannot be received. This issue
is inherent with RF signals and does notindicate a faulty
product. Just slightly move the transmitter and the “dead
spot” can be corrected.
Suggested care & Maintenance
● Please power off when not in use or before storing.
● Please keep away from excessive heat and humidity.
● Do not use chemicals or detergents to clean this product.
● Extreme temperatures can shorten lifespan of internal
components.
Warranty & Customer Support
For questions, assistance, support, or warranty claims,
please contact us with E-mail address as follows:
contact@besign-tech.com
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
quipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio
or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment andreceiver.
- Connect the equipment into an outlet on a circuit differ
ent from that to which thereceiver is connected.
- Consult the dealer or an experienced radio/TV technician
for help
Changes or modifications not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
Product Support:
E-mail: contact@besign-tech.com
Know more about us, you could visit our website:
www.besign-tech.com
- 19 - - 20 -- 11 - - 12 - - 13 - - 14 - - 15 - - 16 - - 17 - - 18 -
Loading...
