Besa Lighting Willow User Manual

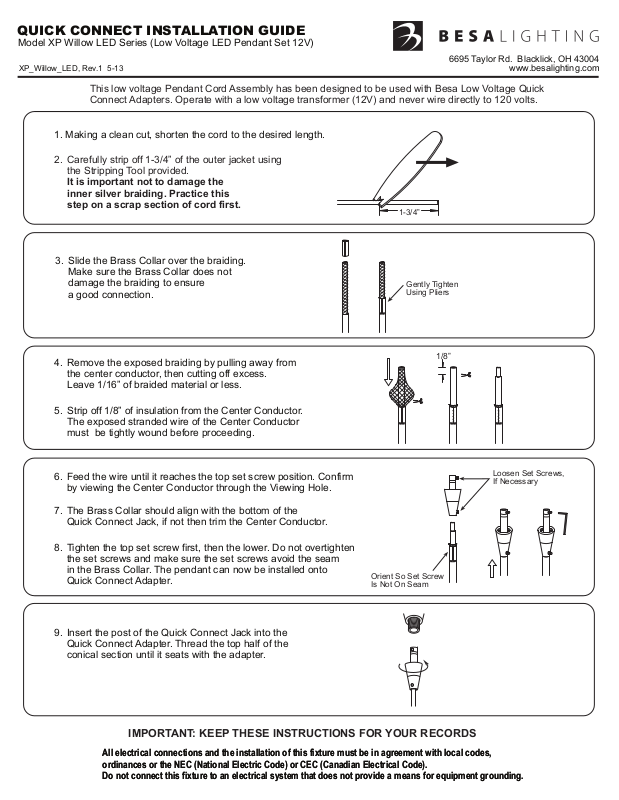

QUICK CONNECT INSTALLATION GUIDE

Model XP Willow LED Series (Low Voltage LED Pendant Set 12V)

XP_Willow_LED, Rev.1 5-13

This low voltage Pendant Cord Assembly has been designed to be used with Besa Low Voltage Quick
Connect Adapters. Operate with a low voltage transformer (12V) and never wire directly to 120 volts.

6695 Taylor Rd. Blacklick, OH 43004

www.besalighting.com

1. Making a clean cut, shorten the cord to the desired length.

2. Carefully strip off 1-3/4” of the outer jacket using
the Stripping Tool provided.

It is important not to damage the
inner silver braiding. Practice this
step on a scrap section of cord first.

3. Slide the Brass Collar over the braiding.
Make sure the Brass Collar does not
damage the braiding to ensure
a good connection.

4. Remove the exposed braiding by pulling away from
the center conductor, then cutting off excess.
Leave 1/16” of braided material or less.

5. Strip off 1/8” of insulation from the Center Conductor.
The exposed stranded wire of the Center Conductor
must be tightly wound before proceeding.

1-3/4”

Gently Tighten
Using Pliers

1/8”

6. Feed the wire until it reaches the top set screw position. Confirm
by viewing the Center Conductor through the Viewing Hole.

7. The Brass Collar should align with the bottom of the
Quick Connect Jack, if not then trim the Center Conductor.

8. Tighten the top set screw first, then the lower. Do not overtighten
the set screws and make sure the set screws avoid the seam
in the Brass Collar. The pendant can now be installed onto
Quick Connect Adapter.

9. Insert the post of the Quick Connect Jack into the
Quick Connect Adapter. Thread the top half of the
conical section until it seats with the adapter.

IMPORTANT: KEEP THESE INSTRUCTIONS FOR YOUR RECORDS

All electrical connections and the installation of this fixture must be in agreement with local codes,

All electrical connections and the installation of this fixture must be in agreement with local codes,
ordinances or the NEC (National Electric Code) or CEC (Canadian Electrical Code).

ordinances or the NEC (National Electric Code) or CEC (Canadian Electrical Code).
Do not connect this fixture to an electrical system that does not provide a means for equipment grounding.

Do not connect this fixture to an electrical system that does not provide a means for equipment grounding.

Loosen Set Screws,
If Necessary

Orient So Set Screw
Is Not On Seam

GLASS SHADE INSTALLATION GUIDE

Use With
these Models:

• Willow
(1688WW)

1. Install Glass by sliding the Glass over the Lightsource and aligning the holes of the Glass to the holes
of the Lightsource.

2. Install Posts through the holes in the Glass and thread into the Lightsource to secure the Glass.

3. With provided Crystal-rods, install each by sliding one by one into the bottom opening of the Glass.
Adjust each Crystal-rod accordingly to meet desired look.

NOTE: Crystal-rods are accents included with the fixture, but customizable accents are optional.

4. Restore power.

Lightsource

6695 Taylor Rd. Blacklick, OH 43004

www.besalighting.com

1

NOTE:

Glass Shade is for

instructional purposes.

Actual Glass Shade may

vary in size and shape.

2

3

4

All electrical connections and the installation of this fixture must be in agreement with local codes,
ordinances or the NEC (National Electric Code) or CEC (Canadian Electrical Code).
Do not connect this fixture to an electrical system that does not provide a means for equipment grounding.
