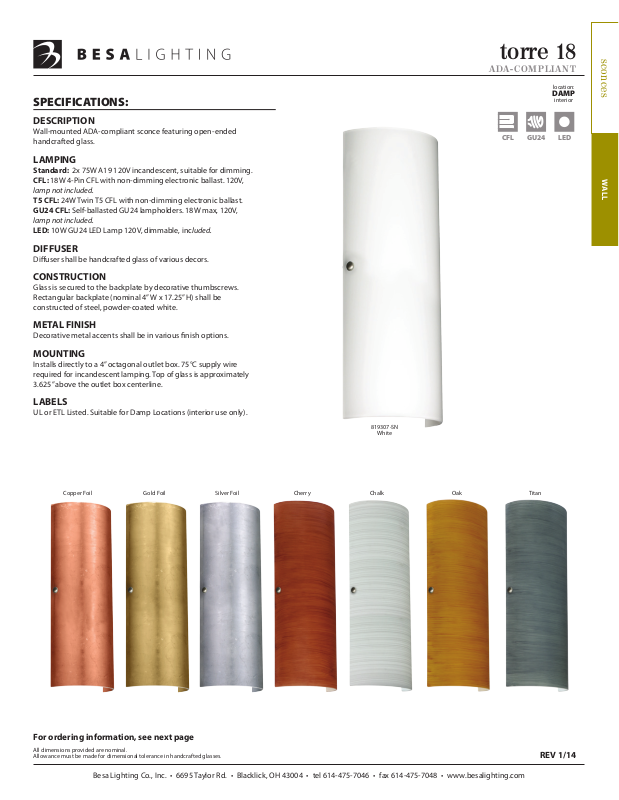

Page 1
SPECIFICATIONS:
DESCRIPTION
Wall-mounted ADA-compliant sconce featuring open-ended
handcrafted glass.
LAMPING
Standard: 2x 75W A19 120V incandescent, suitable for dimming.
CFL: 18W 4-Pin CFL with non-dimming electronic ballast. 120V,
lamp not included.
T5 CFL: 24W Twin T5 CFL with non-dimming electronic ballast.
GU24 CFL: Self-ballasted GU24 lampholders. 18W max, 120V,
lamp not included.
LED: 10W GU24 LED Lamp 120V, dimmable, included.
DIFFUSER
Diuser shall be handcrafted glass of various decors.
CONSTRUCTION
Glass is secured to the backplate by decorative thumbscrews.
Rectangular backplate (nominal 4” W x 17.25” H) shall be
constructed of steel, powder-coated white.
METAL FINISH
Decorative metal accents shall be in various nish options.
torre 18
ADA-COMPLIANT
location:
DAMP
interior
CFL GU24 LEd
sconces
WALL
MOUNTING
Installs directly to a 4” octagonal outlet box. 75°C supply wire
required for incandescent lamping. Top of glass is approximately
3.625” above the outlet box centerline.
LABELS
UL or ETL Listed. Suitable for Damp Locations (interior use only).
819307-SN
White
Copper Foil Gold Foil Silver Foil Cherry Chalk Oak Titan
For ordering information, see next page
All dimensions provided are nominal.
Allowance must be made for dimensional tolerance in handcrafted glasses.
Besa Lighting Co., Inc. • 6695 Taylor Rd. • Blacklick, OH 43004 • tel 614-475-7046 • fax 614-475-7048 • www.besalighting.com
REV 1/14
Page 2
ORDERING:
torre 18
ADA-COMPLIANT
sconces
8 1 9 3
Torre 18 Fixture/Decor Lamp Options Metal Finish
819307 White (blank) 2x 75W A19 Incan BK Black
8193CF Copper Foil E2 2x 18W Quad 120V BR Bronze
8193CH Cherry N2 2x 18W Quad 277V PN Polished Nickel
8193GF Gold Foil 124T5 1x 24W Twin T5 120/277V SN Satin Nickel
8193KR Chalk GU24 2x 18W GU24 120V WH White
8193OK Oak LED 2x 6W LED 120V,
8193SF Silver Foil
8193TN Titan
- -
non-dimmable
3.5” 7”
WALL
17.75”
LED WALL SCONCES:
• Internal driver integrated in the lamp, GU24 base
• Total power of only 10 watts
• Dimmable with a standard dimmer
• Rated life: 30,000 hours
• Frosted acrylic diffuser
• 820 lumens
• CCT: 2700° Kelvin
• CRI: 82
• 3 year warranty
Project Information:
