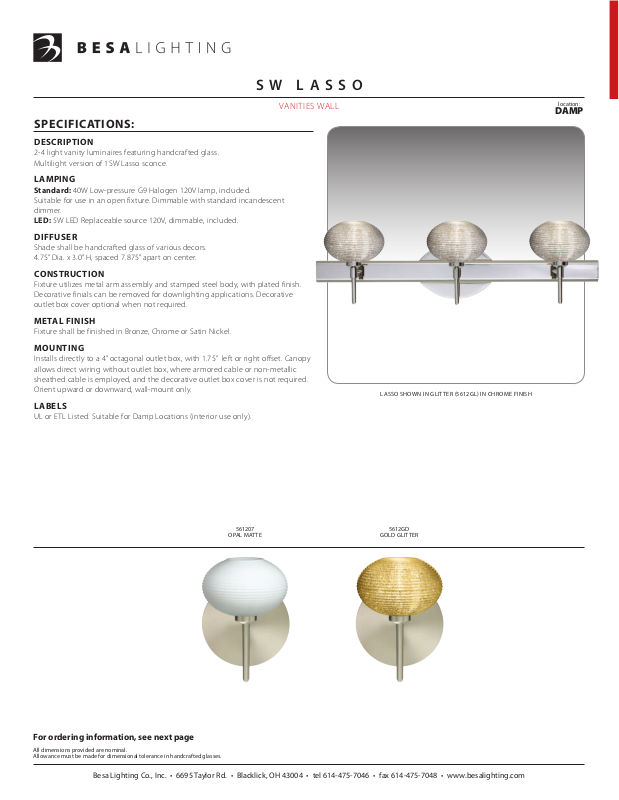

Besa Lighting BN3495 Specifications

SW laSSo

Vanities wall

SPECIFICATIONS:

DESCRIPTION

2-4 light vanity luminaires featuring handcrafted glass.
Multilight version of 1SW Lasso sconce.

LAMPING

Standard: 40W Low-pressure G9 Halogen 120V lamp, included.

Suitable for use in an open fixture. Dimmable with standard incandescent
dimmer.

LED: 5W LED Replaceable source 120V, dimmable, included.

DIFFUSER

Shade shall be handcrafted glass of various decors.

4.75” Dia. x 3.0” H, spaced 7.875” apart on center.

CONSTRUCTION

Fixture utilizes metal arm assembly and stamped steel body, with plated finish.
Decorative finials can be removed for downlighting applications. Decorative
outlet box cover optional when not required.

METAL FINISH

Fixture shall be finished in Bronze, Chrome or Satin Nickel.

MOUNTING

Installs directly to a 4” octagonal outlet box, with 1.75” left or right offset. Canopy
allows direct wiring without outlet box, where armored cable or non-metallic
sheathed cable is employed, and the decorative outlet box cover is not required.
Orient upward or downward, wall-mount only.

LABELS

UL or ETL Listed. Suitable for Damp Locations (interior use only).

location:

DAMP

LASSO SHOWN IN GLITTER 5612GL IN CHROME FINISH

For ordering information, see next page

All dimensions provided are nominal.
Allowance must be made for dimensional tolerance in handcrafted glasses.

Besa Lighting Co., Inc. • 6695 Taylor Rd. • Blacklick, OH 43004 • tel [phone] • fax [phone] • www.besalighting.com

561207

OPAL MATTE

5612GD

GOLD GLITTER

ORDERING:

SW laSSo

Vanities wall

FIXTURE

2SW 2 Light Vanity 561207 Opal Matte (blank) 40W G9 Hal BR Bronze SQ Square
3SW 3 Light Vanity 5612GD Gold Glitter LED 5W LED 120V, CR Chrome Canopy
4SW 4 Light Vanity 5612GL Glitter dimmable SN Satin Nickel

Ex. 3SW-5612GL-SN

Lasso 3-Light Vanity w/ Glitter Glass,
Satin Nickel Finish



GLASS OPTIONS

METAL FINISHMETAL FINISHOPTIONS



3.8”

C

L

5.875”

1.75”
2”

4.5”

2SW: 14.625” L

3SW: 22.5” L

6.25”

LED SCONCES:

• Total power of only 5 watts

• Dimmable with a standard dimmer

• Rated life: 25,000 hours

• 450 lumens

• CCT: 3000° Kelvin

• CRI: 80+

Project Information:

4SW: 30.375” L

Canopy allows direct wiring without outlet box, where
armored cable or non-metallic sheathed cable is
employed, and the decorative outlet box cover is not
required. Orient upward or downward, wall-mount only.

Besa Lighting Co., Inc. • 6695 Taylor Rd. • Blacklick, OH 43004 • tel [phone] • fax [phone] • www.besalighting.com
