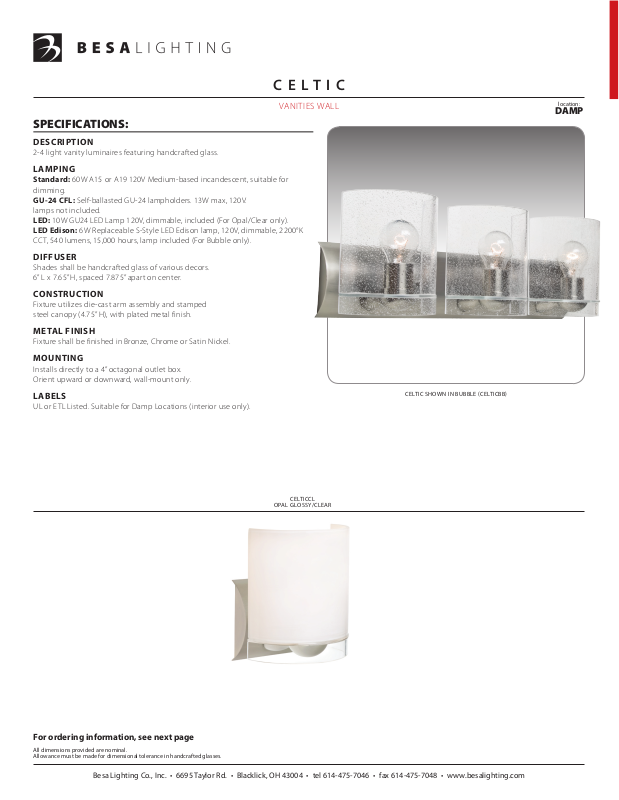

Page 1
CELTIC
Vanities wall
SPECIFICATIONS:
DESCRIPTION
2-4 light vanity luminaires featuring handcrafted glass.
LAMPING
Standard: 60W A15 or A19 120V Medium-based incandescent, suitable for
dimming.
GU-24 CFL: Self-ballasted GU-24 lampholders. 13W max, 120V.
lamps not included.
LED: 10W GU24 LED Lamp 120V, dimmable, included (For Opal/Clear only).
LED Edison: 6W Replaceable S-Style LED Edison lamp, 120V, dimmable, 2200°K
CCT, 540 lumens, 15,000 hours, lamp included (For Bubble only).
DIFFUSER
Shades shall be handcrafted glass of various decors.
6” L x 7.65” H, spaced 7.875” apart on center.
CONSTRUCTION
Fixture utilizes die-cast arm assembly and stamped
steel canopy (4.75” H), with plated metal finish.
METAL FINISH
Fixture shall be finished in Bronze, Chrome or Satin Nickel.
MOUNTING
Installs directly to a 4” octagonal outlet box.
Orient upward or downward, wall-mount only.
LABELS
UL or ETL Listed. Suitable for Damp Locations (interior use only).
location:
DAMP
CeltiC shown in BuBBle (CeltiCBB)
For ordering information, see next page
All dimensions provided are nominal.
Allowance must be made for dimensional tolerance in handcrafted glasses.
Besa Lighting Co., Inc. • 6695 Taylor Rd. • Blacklick, OH 43004 • tel 614-475-7046 • fax 614-475-7048 • www.besalighting.com
CeltiCCl
opal Glossy/Clear
Page 2
ORDERING:
WZ CELTIC
Vanities wall
FIXTURE
1WZ Sconce CELTICBB Bubble (blank) 60W A19 Incan BR Bronze
2WZ 2 Light CELTICCL Opal/Clear GU24 13W GU24 120V CR Chrome
3WZ 3 Light LED 10W LED (For Opal/Clear) SN Satin Nickel
4WZ 4 Light EDIL 6W LED Edison (For Bubble)
GLASS OPTIONS
LAMPING OPTIONS
Ex. 1WZ-CELTICCL-SN
Celtic Mini Sconce w/ Clear Glass,
Satin Nickel Finish
METAL FINISH
4.75”
7.65”
2WZ: 14.5” L
3WZ: 22.4375” L
LED:
• Total power of only 10 watts
• Dimmable
• Rated life: 30,000 hours
• 800 lumens
• CCT: 2800° Kelvin
• CRI: 80+
Project Information:
Besa Lighting Co., Inc. • 6695 Taylor Rd. • Blacklick, OH 43004 • tel 614-475-7046 • fax 614-475-7048 • www.besalighting.com
4WZ: 30.3125” L
