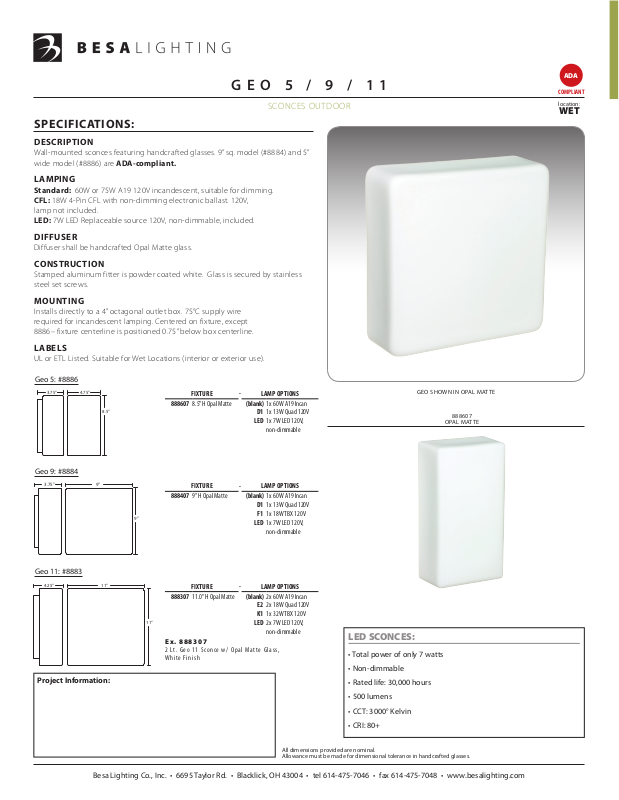

Geo 5 / 9 / 11
sconces outdoor
SPECIFICATIONS:
DESCRIPTION
Wall-mounted sconces featuring handcrafted glasses. 9” sq. model (#8884) and 5”
wide model (#8886) are ADA-compliant.
LAMPING
Standard: 60W or 75W A19 120V incandescent, suitable for dimming.
CFL: 18W 4-Pin CFL with non-dimming electronic ballast. 120V,
lamp not included.
LED: 7W LED Replaceable source 120V, non-dimmable, included.
DIFFUSER
Diffuser shall be handcrafted Opal Matte glass.
CONSTRUCTION
Stamped aluminum fitter is powder coated white. Glass is secured by stainless
steel set screws.
MOUNTING
Installs directly to a 4” octagonal outlet box. 75°C supply wire
required for incandescent lamping. Centered on fixture, except
8886– fixture centerline is positioned 0.75” below box centerline.
LABELS
UL or ETL Listed. Suitable for Wet Locations (interior or exterior use).
ADA
COMPLIANT
location:
WET
Geo 5: #8886
3.75” 4.75”
Geo 9: #8884
3.75” 9”
Geo 11: #8883
4.25” 11”
Project Information:
FIXTURE
8.5”
9”
888607 8.5” H Opal Matte (blank) 1x 60W A19 Incan
FIXTURE
888407 9” H Opal Matte (blank) 1x 60W A19 Incan
FIXTURE
888307 11.0” H Opal Matte (blank) 2x 60W A19 Incan
11”
Ex. 888307
2 Lt. Geo 11 Sconce w/ Opal Matte Glass,
White Finish
LAMP OPTIONs
-
D1 1x 13W Quad 120V
LED 1x 7W LED 120V,
LAMP OPTIONs
-
D1 1x 13W Quad 120V
F1 1x 18W TBX 120V
LED 1x 7W LED 120V,
LAMP OPTIONs
-
E2 2x 18W Quad 120V
K1 1x 32W TBX 120V
LED 2x 7W LED 120V,
non-dimmable
non-dimmable
non-dimmable
LED SCONCES:
• Total power of only 7 watts
Geo shown in opal matte
888607
opal matte
• Non-dimmable
• Rated life: 30,000 hours
• 500 lumens
• CCT: 3000° Kelvin
• CRI: 80+
All dimensions provided are nominal.
Allowance must be made for dimensional tolerance in handcrafted glasses.
Besa Lighting Co., Inc. • 6695 Taylor Rd. • Blacklick, OH 43004 • tel 614-475-7046 • fax 614-475-7048 • www.besalighting.com
