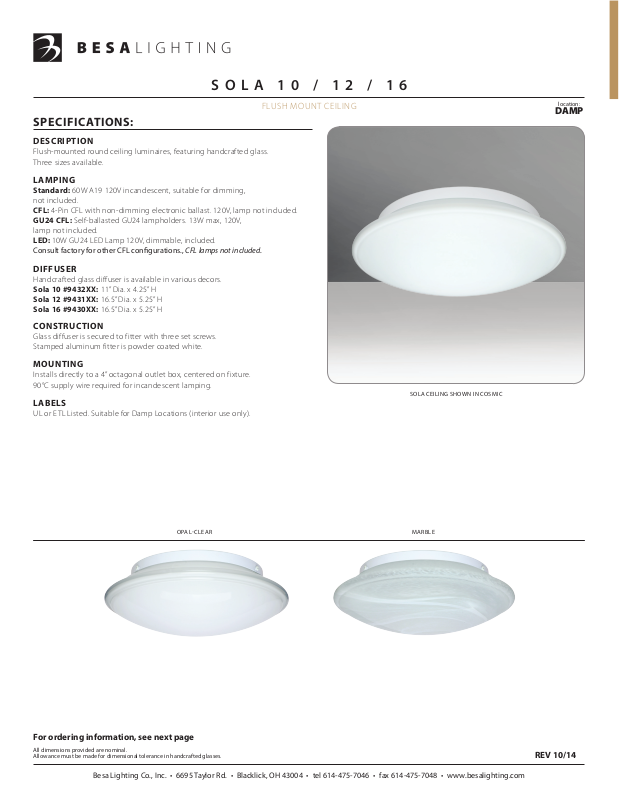

Sola 10 / 12 / 16
flush mount ceiling
SPECIFICATIONS:
DESCRIPTION
Flush-mounted round ceiling luminaires, featuring handcrafted glass.
Three sizes available.
LAMPING
Standard: 60W A19 120V incandescent, suitable for dimming,
not included.
CFL: 4-Pin CFL with non-dimming electronic ballast. 120V, lamp not included.
GU24 CFL: Self-ballasted GU24 lampholders. 13W max, 120V,
lamp not included.
LED: 10W GU24 LED Lamp 120V, dimmable, included.
Consult factory for other CFL congurations., CFL lamps not included.
DIFFUSER
Handcrafted glass diffuser is available in various decors.
Sola 10 #9432XX: 11” Dia. x 4.25” H
Sola 12 #9431XX: 16.5” Dia. x 5.25” H
Sola 16 #9430XX: 16.5” Dia. x 5.25” H
CONSTRUCTION
Glass diffuser is secured to fitter with three set screws.
Stamped aluminum fitter is powder coated white.
MOUNTING
Installs directly to a 4” octagonal outlet box, centered on fixture.
90°C supply wire required for incandescent lamping.
LABELS
UL or ETL Listed. Suitable for Damp Locations (interior use only).
location:
DAMP
SOLA CEILING SHOWN IN COSMIC
OPALCLEAR MARBLE
For ordering information, see next page
All dimensions provided are nominal.
Allowance must be made for dimensional tolerance in handcrafted glasses.
Besa Lighting Co., Inc. • 6695 Taylor Rd. • Blacklick, OH 43004 • tel 614-475-7046 • fax 614-475-7048 • www.besalighting.com
REV 10/14
Page 2
ORDERING:
Sola 10: #9432
10”
Sola 10 / 12 / 16
flush mount ceiling
3.75”
DECOR
943207C 10.0” Dia. Opal Matte (blank) 1x 60W A19 Incan LW Low Wattage
943252C 10.0” Dia. Marble D1 1x 13W Quad 120V labeling
LAMP OPTIONS OPTIONS
GU24 1x 13W GU24 120V
LED 1x 10W LED 120V,
dimmable
Sola 12: #9431
12.5”
DECOR
943107C 12.5” Dia. Opal Matte (blank) 2x 60W A19 Incan LW Low Wattage
943139C 12.5” Dia. Opal-Clear D2 2x 13W Quad 120V labeling
943152C 12.5” Dia. Marble GU24 2x 13W GU24 120V
4.25”
LAMP OPTIONS OPTIONS
LED 2x 10W LED 120V,
dimmable
Sola 16: #9430
16”
4.75”
DECOR
943007C 16.0” Dia. Opal Matte (blank) 3x 60W A19 Incan LW Low Wattage
943052C 16.0” Dia. Marble H2 2x 26W Quad 120V labeling
Ex. 943007C
Sola 16 Ceiling w/ Opal Matte Glass
LAMP OPTIONS OPTIONS
GU24 3x 13W GU24 120V
LED 3x 10W LED 120V,
dimmable
Project Information:
Besa Lighting Co., Inc. • 6695 Taylor Rd. • Blacklick, OH 43004 • tel 614-475-7046 • fax 614-475-7048 • www.besalighting.com
LED 120V PENDANTS:
• Internal driver integrated in the lamp, GU24 base
• Total power of only 10 watts
• Dimmable with a standard dimmer
• Rated life: 30,000 hours
• Frosted acrylic diffuser
• 800 lumens
• CCT: 2800° Kelvin
• CRI: 80+
