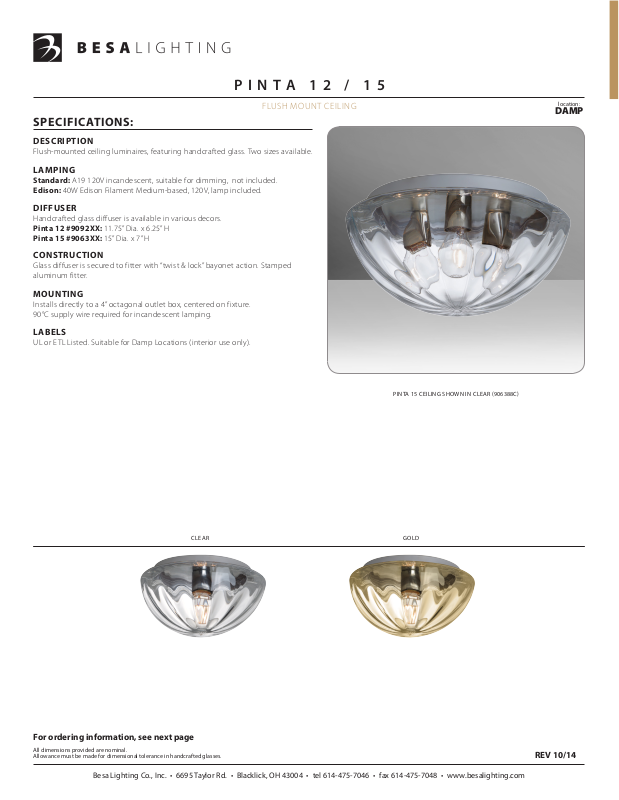

Page 1
PINTA 12 / 15
FLUSH MOUNT CEILING
SPECIFICATIONS:
DESCRIPTION
Flush-mounted ceiling luminaires, featuring handcrafted glass. Two sizes available.
LAMPING
Standard: A19 120V incandescent, suitable for dimming, not included.
Edison: 40W Edison Filament Medium-based, 120V, lamp included.
DIFFUSER
Handcrafted glass diffuser is available in various decors.
Pinta 12 #9092XX: 11.75” Dia. x 6.25” H
Pinta 15 #9063XX: 15” Dia. x 7” H
CONSTRUCTION
Glass diffuser is secured to fitter with “twist & lock” bayonet action. Stamped
aluminum fitter.
MOUNTING
Installs directly to a 4” octagonal outlet box, centered on fixture.
90°C supply wire required for incandescent lamping.
LABELS
UL or ETL Listed. Suitable for Damp Locations (interior use only).
location:
DAMP
PINTA 15 CEILING SHOWN IN CLEAR (906388C)
CLEAR GOLD
For ordering information, see next page
All dimensions provided are nominal.
Allowance must be made for dimensional tolerance in handcrafted glasses.
Besa Lighting Co., Inc. • 6695 Taylor Rd. • Blacklick, OH 43004 • tel 614-475-7046 • fax 614-475-7048 • www.besalighting.com
REV 10/14
Page 2
ORDERING:
Pinta 12: #9062
11.75”
PINTA 12 / 15
FLUSH MOUNT CEILING
6.25”
FIXTURE/DECOR
906288C 11.75” Dia. Clear (blank) 1x 100W A19 Clear Incan LW Low Wattage
9062GDC 11.75” Dia. Gold EDI 1x 40W Edison labeling
LAMP OPTIONS - OPTIONS
-
Pinta 15: #9063
7”
15”
FIXTURE/DECOR
906388C 15” Dia. Clear (blank) 3x 60W A19 Clear Incan LW Low Wattage
9063GDC 15” Dia. Gold EDI 3x 40W Edison labeling
Ex. 9062GDC
Pinta 12 Ceiling w/ Gold Glass
LAMP OPTIONS - OPTIONS
-
Project Information:
Besa Lighting Co., Inc. • 6695 Taylor Rd. • Blacklick, OH 43004 • tel 614-475-7046 • fax 614-475-7048 • www.besalighting.com
