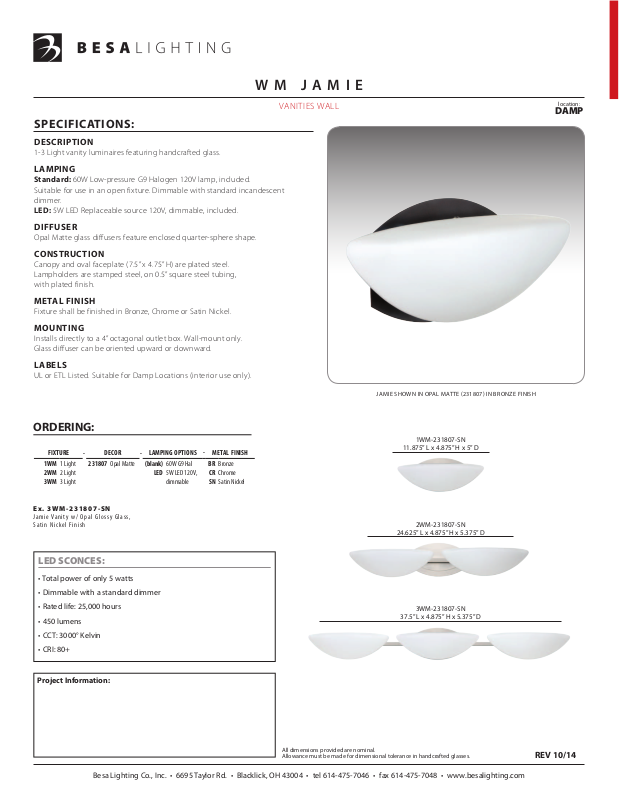

wm jamie
SPECIFICATIONS:
DESCRIPTION
1-3 Light vanity luminaires featuring handcrafted glass.
LAMPING
Standard: 60W Low-pressure G9 Halogen 120V lamp, included.
Suitable for use in an open fixture. Dimmable with standard incandescent
dimmer.
LED: 5W LED Replaceable source 120V, dimmable, included.
DIFFUSER
Opal Matte glass diffusers feature enclosed quarter-sphere shape.
CONSTRUCTION
Canopy and oval faceplate (7.5” x 4.75” H) are plated steel.
Lampholders are stamped steel, on 0.5” square steel tubing,
with plated finish.
METAL FINISH
Fixture shall be finished in Bronze, Chrome or Satin Nickel.
MOUNTING
Installs directly to a 4” octagonal outlet box. Wall-mount only.
Glass diffuser can be oriented upward or downward.
LABELS
UL or ETL Listed. Suitable for Damp Locations (interior use only).
Vanities wall
location:
DAMP
ORDERING:
FIXTURE
1WM 1 Light 231807 Opal Matte (blank) 60W G9 Hal BR Bronze
2WM 2 Light LED 5W LED 120V, CR Chrome
3WM 3 Light dimmable SN Satin Nickel
Ex. 3WM-231807-SN
Jamie Vanity w/ Opal Glossy Glass,
Satin Nickel Finish
LED SCONCES:
• Total power of only 5 watts
• Dimmable with a standard dimmer
• Rated life: 25,000 hours
• 450 lumens
• CCT: 3000° Kelvin
• CRI: 80+
Project Information:
DECOR
LAMPING OPTIONS METAL FINISH
Jamie shown in opal matte (231807) in bronze finish
1wm-231807-sn
11.875” l x 4.875” h x 5” D
2wm-231807-sn
24.625” l x 4.875” h x 5.375” D
3wm-231807-sn
37.5” l x 4.875” h x 5.375” D
All dimensions provided are nominal.
Allowance must be made for dimensional tolerance in handcrafted glasses.
Besa Lighting Co., Inc. • 6695 Taylor Rd. • Blacklick, OH 43004 • tel 614-475-7046 • fax 614-475-7048 • www.besalighting.com
REV 10/14
