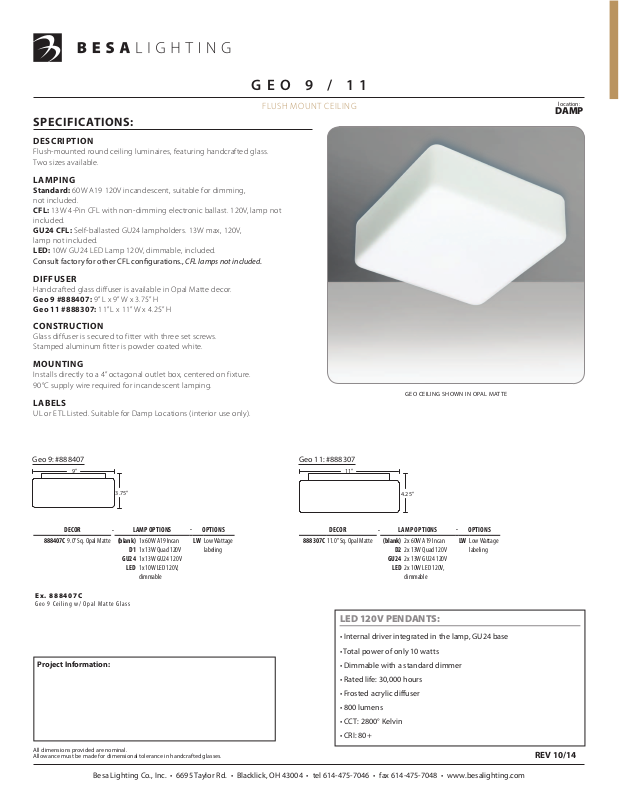

Geo 9 / 11
Flush mount ceiling
SPECIFICATIONS:
DESCRIPTION
Flush-mounted round ceiling luminaires, featuring handcrafted glass.
Two sizes available.
LAMPING
Standard: 60W A19 120V incandescent, suitable for dimming,
not included.
CFL: 13W 4-Pin CFL with non-dimming electronic ballast. 120V, lamp not
included.
GU24 CFL: Self-ballasted GU24 lampholders. 13W max, 120V,
lamp not included.
LED: 10W GU24 LED Lamp 120V, dimmable, included.
Consult factory for other CFL congurations., CFL lamps not included.
DIFFUSER
Handcrafted glass diffuser is available in Opal Matte decor.
Geo 9 #888407: 9” L x 9” W x 3.75” H
Geo 11 #888307: 11” L x 11” W x 4.25” H
CONSTRUCTION
Glass diffuser is secured to fitter with three set screws.
Stamped aluminum fitter is powder coated white.
MOUNTING
Installs directly to a 4” octagonal outlet box, centered on fixture.
90°C supply wire required for incandescent lamping.
LABELS
UL or ETL Listed. Suitable for Damp Locations (interior use only).
location:
DAMP
GEO CEILING SHOWN IN OPAL MATTE
9”
3.75”
DECOR
888407C 9.0” Sq. Opal Matte (blank) 1x 60W A19 Incan LW Low Wattage
Ex. 888407C
Geo 9 Ceiling w/ Opal Matte Glass
LAMP OPTIONS OPTIONS
D1 1x 13W Quad 120V labeling
GU24 1x 13W GU24 120V
LED 1x 10W LED 120V,
dimmable
Project Information:
All dimensions provided are nominal.
Allowance must be made for dimensional tolerance in handcrafted glasses.
Geo 11: #888307 Geo 9: #888407
11”
4.25”
DECOR
888307C 11.0” Sq. Opal Matte (blank) 2x 60W A19 Incan LW Low Wattage
LAMP OPTIONS OPTIONS
D2 2x 13W Quad 120V labeling
GU24 2x 13W GU24 120V
LED 2x 10W LED 120V,
dimmable
LED 120V PENDANTS:
• Internal driver integrated in the lamp, GU24 base
• Total power of only 10 watts
• Dimmable with a standard dimmer
• Rated life: 30,000 hours
• Frosted acrylic diffuser
• 800 lumens
• CCT: 2800° Kelvin
• CRI: 80+
REV 10/14
Besa Lighting Co., Inc. • 6695 Taylor Rd. • Blacklick, OH 43004 • tel 614-475-7046 • fax 614-475-7048 • www.besalighting.com
