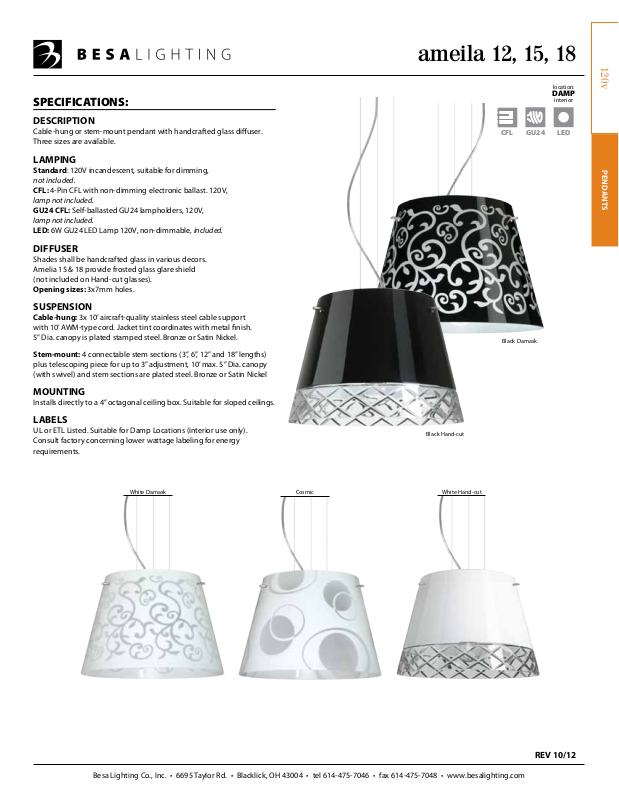

Page 1
SPECIFICATIONS:
DESCRIPTION
Cable-hung or stem-mount pendant with handcrafted glass diuser.
Three sizes are available.
ameila 12, 15, 18
location:
DAMP
interior
GU24 lEdCFl
120v
LAMPING
Standard: 120V incandescent, suitable for dimming,
not included.
CFL: 4-Pin CFL with non-dimming electronic ballast. 120V,
lamp not included.
GU24 CFL: Self-ballasted GU24 lampholders, 120V,
lamp not included.
LED: 6W GU24 LED Lamp 120V, non-dimmable, included.
DIFFUSER
Shades shall be handcrafted glass in various decors.
Amelia 15 & 18 provide frosted glass glare shield
(not included on Hand-cut glasses).
Opening sizes: 3x7mm holes.
SUSPENSION
Cable-hung: 3x 10’ aircraft-quality stainless steel cable support
with 10’ AWM-type cord. Jacket tint coordinates with metal nish.
5” Dia. canopy is plated stamped steel. Bronze or Satin Nickel.
Stem-mount: 4 connectable stem sections (3”, 6”, 12” and 18” lengths)
plus telescoping piece for up to 3” adjustment, 10’ max. 5” Dia. canopy
(with swivel) and stem sections are plated steel. Bronze or Satin Nickel
MOUNTING
Installs directly to a 4” octagonal ceiling box. Suitable for sloped ceilings.
LABELS
UL or ETL Listed. Suitable for Damp Locations (interior use only).
Consult factory concerning lower wattage labeling for energy
requirements.
Pendants
Black Damask
Black Hand-cut
White Damask
Besa Lighting Co., Inc. • 6695 Taylor Rd. • Blacklick, OH 43004 • tel 614-475-7046 • fax 614-475-7048 • www.besalighting.com
Cosmic
White Hand-cut
REV 10/12
Page 2
ameila 12, 15, 18
ORdeRInG: Pendant OPtIOns:
120v
Amelia12:
Lamp: 1x 100W A19 120V
8.25”
11.75”
Amelia15:
Lamp: 3x 100W A19 120V
15”
Amelia18:
Lamp: 3x 100W A19 120V
12.5”
18.25”
Amelia12:
- - - -
Connection* Amelia 12 Decor Lamp Options Metal Finish Options
3x Cable Fixture 4393BC Black Hand-cut (blank) 100W A19 Incan BR Bronze L 15’ cord
1KG 1 Lt. Flat 4393BD Black Damask F1 18W TBX 120V SN Satin Nickel
4393CS Cosmic O1 18W TBX 277V
Stem Fixture 4393WC White Hand-cut GU24 26W GU24 120V
1TT 1 Lt. Flat 4393WD White Damask LED 6W LED 120V
Amelia15:
10.5”
cable-hung pendant
5.5”
• 3x 10’ aircraft-quality stainless steel cable
• 1KG Series: x lampholder
1KV Series: 3x lampholder
10’
max
• 1KV Series includes flat glass glare shield
• Cord: 10’ AWM-type provided
• Bronze or Satin Nickel
5.5”
1”
10’
max
1”
steM pendant
• Swivel at canopy, suitable for sloped ceilings
• Includes telescoping sec tion plus 4 connectable
• Bronze or Satin Nickel
5”
39” std
10’ max
0.625”
stem sections, (1x 3”, 1x 6”, 1x 12”, 1x 18”),
10’ max
lEd 120V PENdANTS:
• Internal driver integrated in the lamp, GU24 base
• Total powe of only 6 watts
• Non-dimmable
• Rated life: 30,000 hours
• Frosted acrylic diffuser
ACCESSORIES:
ADDITIONAL STEM SECTIONS:
Additional connecting stems are available to increase overall length,
up to 10’ max. Telescoping adjustable section allows up to 3” movement.
T20A-SN or T20A-BR Adj. Section
T203-SN or T203-BR 3” Section
T206-SN or T206-BR 6” Section
T212-SN or T212-BR 12” Section
T218-SN or T218-BR 18” Section
Pendants
- - - -
Connection* Amelia 15 Decor Lamp Options Metal Finish Options
3x Cable Fixture 4340BC Black Hand-cut (blank) 3x 100W A19 Incan BR Bronze L 15’ cord
1KV 1 Lt. Flat 4340BD Black Damask F3 3x 18W TBX 120V SN Satin Nickel
4340CS Cosmic O3 3x 18W TBX 277V
Stem Fixture 4340WC White Hand-cut GU24 3x 18W GU24 120V
1KT 1 Lt. Flat 4340WD White Damask LED 3x 6W LED 120V
Amelia18:
- - - -
Connection* Amelia 18 Decor Lamp Options Metal Finish Options
3x Cable Fixture 4394BC Black Hand-cut (blank) 3x 100W A19 Incan BR Bronze L 15’ cord
1KV 1 Lt. Flat 4394BD Black Damask I3 3x 26W TBX 120V SN Satin Nickel
4394CS Cosmic R3 3x 26W TBX 277V
Stem Fixture 4394WC White Hand-cut GU24 3x 26W GU24 120V
1KT 1 Lt. Flat 4394WD White Damask LED 3x 6W LED 120V
Besa Lighting Co., Inc. • 6695 Taylor Rd. • Blacklick, OH 43004 • tel 614-475-7046 • fax 614-475-7048 • www.besalighting.com
