Print

February 2010

Copystar CS 520i

www.BERTL.com

In December 2009, Copystar introduced the new CS 520i black & white multifunctional system. The CS 520i completes Copystar’s black & white MFP product series, the CS 420i and 300i models. These MFP’s are built using the same engine technology that utilizes the company’s patented long-life Amorphous Silicon drum, and an offers crisp 600 dpi image quality with fast and efficient print, copy and scan functionality and document portability. Overall, these MFP’s have been designed to lower total cost of ownership while delivering fast productivity, excellent image quality and outstanding ease of use for midsized workgroups.

BERTL recently tested the Copystar CS 520i, which has a rated print speed of 52 ppm. The recommended monthly print volume is 200,000 pages with high toner yields of 34,000 pages per cartridge. The drum life also has a high life span of 500,000 pages. The CS 520i has flexible media capabilities with a maximum paper capacity of 4,200 pages, the ability to print on stock as heavy as 110lb. index (216 gsm) and sheets up to 11" x 17”.

The new Copystar CS 520i black & white MFP is designed to be easy on the environment and offers the following features:

• Energy Star and Restriction of Hazardous Substances (RoHS) certified

• High resolution 8.5" wide screen color tilting touchpanel display with graphical navigation simplifies operation by providing an intuitive user interface to keep ahead of today’s fast-paced office document distribution needs

• Standard memory capacity o 2 GB RAM and a 160 GB hard disk drive

• Image Preview and Thumbnail view modes, to locate and retrieve stored jobs quickly and easily.

• Copystar offers a comprehensive suite of solutions designed to assist in the document creation process and workflow including their KX Driver, PDF Direct print, PRESCRIBE Solution, KYOcapture and KYOcapture Express

• The CS 520i series comes standard with Secure Print and Security Watermark capabilities

• An optional Data Security Kit provides security overwrite and encryption for printing, copying and scanning ensuring critical information is never compromised.

This device is available with three different speed configurations and sold globally through Copystar authorized providers and direct marketing resellers. Pricing for each model in the series is as follows:

• CS 520i $8,493

• CS 420i $9,845

• CS 520i $11,495

In the following test report, BERTL takes an in-depth look at the Copystar CS 520i, testing and evaluating its productivity, image quality and ease-of-use.

Copystar CS 520i Features Summary

List Price $11,495.00 Imaging Technology Laser, Electrostatic

Network Print, Copy,

Standard Functions

Network Scanner,

Document Box

Optional Functions

Super G3 Fax,

Internet fax Maximum Monthly Print Volume 200,000 Mono Print Speed 52 ppm Mono First Page Out Time 3.9 seconds Automatic Duplex Yes

Network Scanning Yes Color Scanning Yes

NT Authentication Yes LDAP Compatibility Yes Hard Disk Overwrite Yes

BERTL’S GALAXY© STAR RATING

All Rights Reserved. The license under which this document is made available and applicable law prohibit any reproduction or further transmission of any portion of this document. This document may only be viewed electronically through the www.BERTL.com Web site and may not be stored in electronic or hard copy format. Any reproduction of trademarks is strictly prohibited. BERTL accepts no responsibility for any inaccuracies or omissions contained in this document.

Page 3

Print

February 2010

Copystar CS 520i

www.BERTL.com

PRINT PRODUCTIVITY

Evaluating print productivity is not as simple as timing copy jobs. The printing process involves several steps and can be affected by a variety of factors along the way.

The document must first be spooled by the print driver into a PCL or Postscript file. The PCL or Postscript file is then sent to the printer where it is raster image processed (Ripped) into image data by the device processor. The image data is then sent to the marking engine and output as printed pages.

There are three obvious factors highlighted above (spool time, RIP time, and print engine speed), which can all make or break a device’s overall productivity. Other factors that could affect productivity and print speed of the device are the use of other device functions such as scanning and faxing.

It is possible to time and compare these factors through the use of careful preparation, conditioning and testing. Following are charts that show printing performance when tested under controlled conditions.

NETWORK PRINTING SYSTEMS

« The CS 520i delivers multiple Page Description Languages (PDLs) including the following: PRESCRIBE, PCL 6/PCL5e and KPDL3 (PS3) drivers.

« The CS 520i also provides users a choice of multiple print drivers including: KX Driver, Mini Driver, KX Driver for XPS, XPS Mini Driver, Network Fax Driver and PPD for MAC.

« All the drivers offer bidirectional communication with its user-selectable interface for all of the Windows base operating systems.

« High print resolutions at 600 x 600 dpi for enhanced image quality.

«Driver supports the following OS’s: Windows 2000/XP/2003/Vista/2008/Windows 7, Novell NetWare

3.x/4.x/5.x/6.x, Mac OS 10.x, Sun OS 4.1.x; Solaris 2.x; AIX; HP-UX (LPR).

« Supported Network Protocols include

TCP/IP (IPv4,

IPv6, SSL, HTTPs), IPX/SPX, AppleTalk and NetBEUI. « Users can connect to the CS 520i via 10/100BaseTX,

Hi-Speed USB 2.0 or a USB Host Interface. «Printing utilities for the CS 520i include the following:

PDF Direct Print, KMnet Admin, KMnet for Accounting, KMnet Viewer.

«Fast productivity with the PowerPC 750FL/ 600 MHz controller and 2 GB of RAM.

«Comes standard with a 160 GB Hard Disk Drive for added memory.

TESTING RESULTS

*All testing was done using the KX driver.

Print Productivity

(seconds)

# of Originals

Mode PCL PS

50 Simplex 52.0 ppm 52.0 ppm

50 Duplex 38.2 ppm 38.0 ppm

*Print productivity is evaluated based on a text based letter sized 50 page PDF file.

Network-Bandwidth/Print File Sizes

1-page Digital Photo PDF

4 page Passport Form PDF

16-page Magazine in PDF

22-page Excel Worksheet

32-page TextBased PowerPoint

Native File

Size

PCL6 PS

4.48 MB 4.26 MB 5.79 MB

0.08 MB 260 KB 503 KB

1.78 MB 4.23 MB 3.41 MB

0.12 MB 243 KB 1.33 MB

0.23 MB 1.13 MB 1.75 MB

32-page Graphic Intensive

4.20 MB 7.47 MB 8.10 MB

PowerPoint 38-page Form

Word Document 50-page Text-

Based PDF 50-page Text-

Based PDF Duplex

0.91 MB 3.67 MB 3.67 MB

0.17 MB 4.36 MB 1.72 MB

All Rights Reserved. The license under which this document is made available and applicable law prohibit any reproduction or further transmission of any portion of this document. This document may only be viewed electronically through the www.BERTL.com Web site and may not be stored in electronic or hard copy format. Any reproduction of trademarks is strictly prohibited. BERTL accepts no responsibility for any inaccuracies or omissions contained in this document.

Page 4

Print

February 2010

Copystar CS 520i

www.BERTL.com

Job List

Media

Size

First Page Out

Time (seconds)

Mode PCL6 PS PCL6 PS

Total Job

Time (seconds)

1-page Digital photo print original Letter 1:1 10.21 18.66 10.21 18.66 4-page Passport Form PDF Letter 1:1 8.08 8.20 11.62 11.65 16-page Magazine PDF Letter 1:1 19.59 9.55 28.41 36.18 22-page Excel Worksheet Letter 1:1 29.96 14.61 59.19 38.68 32-page Text-Based PowerPoint Letter 1:1 7.93 8.08 44.09 45.44 32-page Graphic Intensive PowerPoint Letter 1:1 8.74 9.49 44.41 50.47 38-page Form Word Document Letter 1:1 9.31 10.61 52.15 66.09 50-page Text-Based PDF Letter 1:1 10.71 9.18 68.43 65.75 50-page Text-Based PDF (duplex) Letter 1:2 15.36 13.64 90.41 89.12

WHAT WE LIKED

• Tested simplex network-print speed was as fast as 52 ppm with both the Postscript and PCL6 drivers, matching Copystar’s rated speed of 52 ppm.

• Tested duplex network-printer productivity was extremely productive up to 38 ppm with both the Postscript PCL6 drivers.

• Tested First-Page-Out-Time was 8.08 seconds with the PCL6 driver and 8.20 seconds with the Postscript driver.

• In BERTL’s job stream test the PCL6 driver completed the stream job test in 5 minutes and 24 seconds, running at 46 ppm, which translates to an efficiency rate of 87%. Using the Postscript driver the efficiency rate was up to 75% as well.

All Rights Reserved. The license under which this document is made available and applicable law prohibit any reproduction or further transmission of any portion of this document. This document may only be viewed electronically through the www.BERTL.com Web site and may not be stored in electronic or hard copy format. Any reproduction of trademarks is strictly prohibited. BERTL accepts no responsibility for any inaccuracies or omissions contained in this document.

Page 5

Copy

February 2010

Copystar CS 520i

www.BERTL.com

COPY PRODUCTIVITY

Advertised speeds are always quoted using the simplest route (in-and-out of a device). Of course, users often apply finishing options, incorporate different media sizes and types into the document, print in duplex, and add other elements that can affect speed. In the chart below, BERTL tests how different modes—mixed-size original mode and duplex mode—affect document-feeder productivity.

To assess copier productivity, BERTL ran copy jobs in order to determine document-feeder scanning speed, the affect of the first set out on overall engine speed, and whether specific job attributes affect engine throughput capability. Each job was set up by feeding media from the shortest media route to the shortest available output destination. A separate test examines how adding finishing/output destinations affects productivity.

COPY FEATURES

« The CS 520i offers an optional reversing automatic document processor with capacity for up to 75-sheets and scan speeds up to 50 images per minute.

« Users can submit jobs that require single or duplex copying. The CS 520i supports copy jobs that require 1:1, 1:2, 2:2 and 2:1 side printing.

« Users can make copies that range from 1 to 999 in quantity and copy paper sizes from 5.5” x 8.5” up to 11” x 17”.

« Copy Resolution is set at 600 x 600 dpi. « Copystar’s Rated Output Speed is up to 30 cpm. « Copystar’s Rated First-Copy-Out Time (FCOT) is as fast

as 5.1 seconds. « Copystar’s warm up time is as fast as 29 seconds or

less. «The CS 520i has many image modes to choose from

including: Text, Photo, Text/Photo, Auto, Manual and Map.

« The CS 520i can simultaneously copy, fax and scan. « Users can use the variable zoom to Full Size, 5

Reduction, 5 Enlargement Preset Ratios and scale from 25% to 400% in 1% increments.

«Copy Features included with the CS 520i incorporate the following: Positive/Negative Reverse, Mirror Image, Rotate Copy, Border Erase, Split Copy, Electronic Sort and Margin Shift.

« The CS 520i comes standard with the following document boxes: Custom Box, Job Box, Removable Memory Box, Fax Box (with optional Fax System).

« Memo Page delivers copies with a space for adding notes on the side of the document.

« The CS’s on-board help guide provides simple step by step instructions for any task.

« The CS features a function called EcoPrint. This function can be used to save toner when high quality printing is unnecessary.

« The Combine Mode allows user to copy 2 or 4 originals combined onto a single page (2-in-1 mode or 4-in-1 mode A). This feature is specifically designed to help users reduce printing costs.

First Copy Out Time

Using the Automatic Document Feeder

Monochrome Mode

Number of Originals Time In Seconds

1 Simplex Original 6.75

1 Duplex Original 12.10

First Copy Out Time

Using the Platen Glass Monochrome Mode

Number of Originals Time In Seconds

1 Simplex Original 3.90

Copy Job Time

# of

originals

Monochrome Mode

10 1 sided to 1 sided 17.44 34.4 10 1 sided to 2 sided 25.84 23.2 10 2 sided to 1 sided 45.04 13.3 10 2 sided to 2 sided 51.49 11.7

Time In

Seconds

CPM

All Rights Reserved. The license under which this document is made available and applicable law prohibit any reproduction or further transmission of any portion of this document. This document may only be viewed electronically through the www.BERTL.com Web site and may not be stored in electronic or hard copy format. Any reproduction of trademarks is strictly prohibited. BERTL accepts no responsibility for any inaccuracies or omissions contained in this document.

Page 6

Copy

February 2010

Copystar CS 520i

www.BERTL.com

Copy Productivity

(seconds)

# of

Originals

Mode Monochrome

1 Simplex 51 cpm 1 Duplex 35 cpm

*Copy productivity is evaluated based on a single text based letter file copied 50 times.

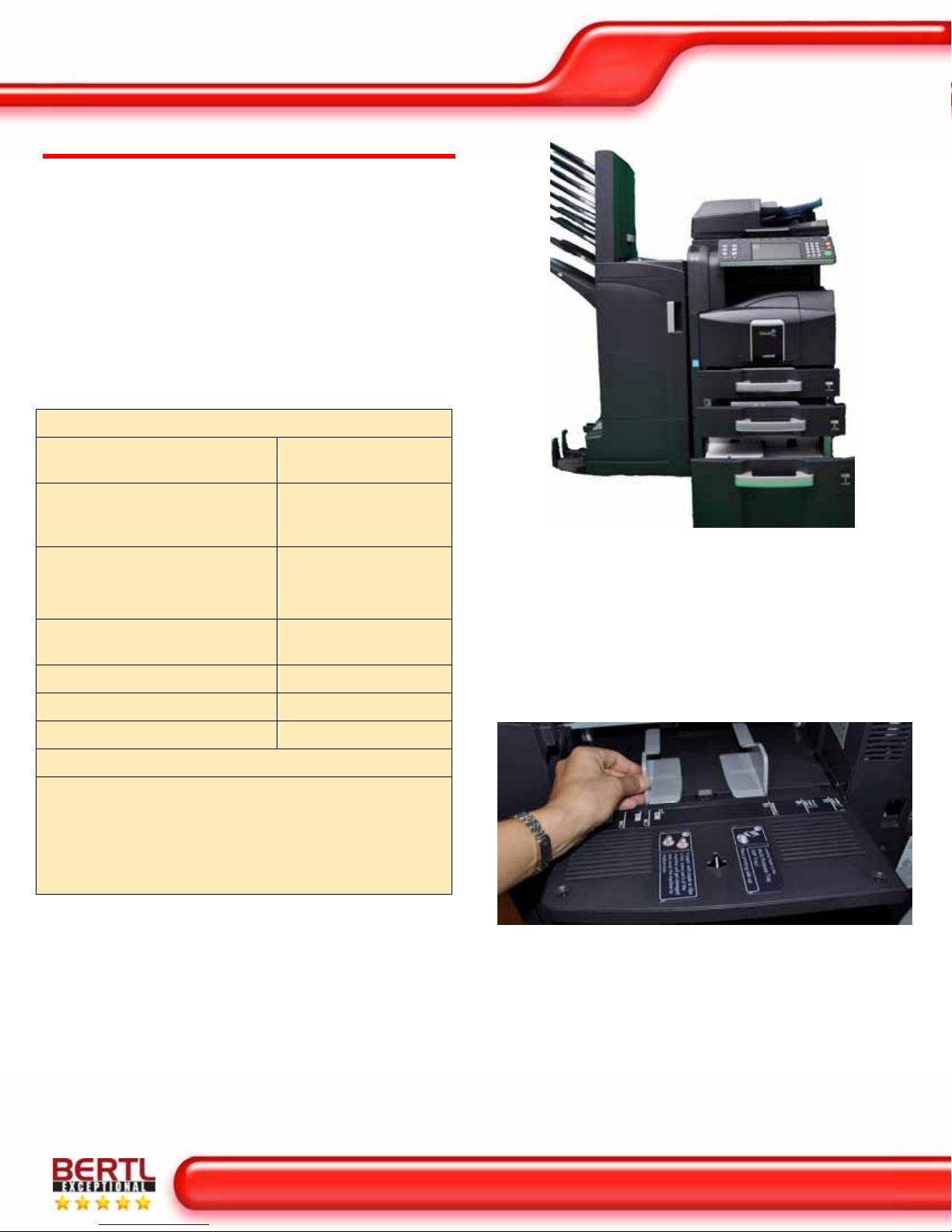

Above and below: The CS 520i’s platen (above) and document feeder (below).

The “Copy” touch screen is clearly labeled and has all the most common copy settings

The CS 520i offers an accessibility display option which enlarges the options shown on the control panel.

All Rights Reserved. The license under which this document is made available and applicable law prohibit any reproduction or further transmission of any portion of this document. This document may only be viewed electronically through the www.BERTL.com Web site and may not be stored in electronic or hard copy format. Any reproduction of trademarks is strictly prohibited. BERTL accepts no responsibility for any inaccuracies or omissions contained in this document.

Page 7

Copy

February 2010

Copystar CS 520i

www.BERTL.com

Document Feeder Productivity

BERTL also takes the user into account and looks at how document-feeder productivity affects the amount of time a user has to wait at the device before they can walk away with their originals.

Document Feed Speed

# of

originals

Monochrome Mode

Time In

Seconds

OPM*

11 Simplex Originals 12.53 47.9

6 Duplex Originals 27.25 11.0

11 Mixed Originals 32.72 18.3

*Originals per minute.

Document Finishing Penalty

# of

originals

Finishing Selection

Time

In

(Sec)

1 Set Time (Sec)

Penalty

(Sec)

10/5 Corner Staple 74.09 20.22 0.56 10/5 Side Staple 76.44 20.69 0.32

WHAT WE LIKED

• Copy touch screen is clearly labeled and easy to use.

• Tested copy First-Page-Out-Time was 3.90 seconds

off the platen glass and 6.75 seconds using the automatic document feeder.

• Tested total job time in simplex mode was 51 cpm; closely matching Copystar’s rated copy speed of up to 52 ppm.

• Very productive duplex copier productivity up to 35 cpm

• Fast document feeder productivity.

8/5

Saddle-Stitch

Booklet

248.68 55.14 3.77

All Rights Reserved. The license under which this document is made available and applicable law prohibit any reproduction or further transmission of any portion of this document. This document may only be viewed electronically through the www.BERTL.com Web site and may not be stored in electronic or hard copy format. Any reproduction of trademarks is strictly prohibited. BERTL accepts no responsibility for any inaccuracies or omissions contained in this document.

Page 8

Scan

NETWORK SCANNING SYSTEMS FEATURES

« The CS supports many scan destinations including the following: Scan to SMB, Scan to e-Mail, Scan to FTP, Scan to USB, WSD Scan and TWAIN Scan.

« Advanced USB host interface gives users the ability to conveniently print-from and scan-to a USB drive in PDF, JPEG, TIFF and XPS file formats directly from the control panel.

« TheCS 520i offers users the option to scan their jobs in using Grayscale, Monochrome and Color.

« Copystar provides users with a multitude of file format options which include:

• Black: PDF and TIFF

• Color: PDF, TIFF, JPEG and XPS

• PDF Extension: High Compression PDF and Encrypted

PDF

« Scanned PDF documents can be password protected and encrypted right from the control panel.

« Users can scan paper sizes up to 11” x 17” using the CS 520i.

« Users can scan while the system is copying, printing or while it is transferring scan to network or fax jobs.

«Supports the following network protocols include: 10/100BaseTX and TCP/IP.

« Users can select the best image quality setting suitable to the type of original being scanned. This includes options for Text + Photo, Photo, Text, and OCR.

« This device offers several resolution options aimed at satisfying the most demanding customers. Options include the following:

• 200 dpi

• 300 dpi

• 400 dpi

• 600 dpi

« Copystar’s Document Box creates a simple way for users to store, secure and access critical documents directly at the device. In addition users can manage their stored files as they are able to organize, search, print, annotate, enhance, store and send files, as well as combine multiple files regardless of their file format.

« Copystar Custom Box provides “thumbnail” views of files, which is especially helpful when a user is handling a large number of files and may not recall the identity of files.

February 2010

Copystar CS 520i

www.BERTL.com

The Copystar TWAIN driver provides users with the ability to scan hard copy originals into most software applications such as Adobe Acrobat, Photoshop, MS Word, Excel and etc.

The Copystar CS 520i features a standard USB flash interface for printing files stored on USB flash memory devices. Users can also scan files to USB memory devices. The USB interface is conveniently located on the right side of the device.

All Rights Reserved. The license under which this document is made available and applicable law prohibit any reproduction or further transmission of any portion of this document. This document may only be viewed electronically through the www.BERTL.com Web site and may not be stored in electronic or hard copy format. Any reproduction of trademarks is strictly prohibited. BERTL accepts no responsibility for any inaccuracies or omissions contained in this document.

Page 9

Scan

Users can scan hard-copy originals, converting them into electronic files. Users can select the scanning color mode, single or duplex scanning mode, document type and scan presets. Users can add up to 6 preset buttons on this screen.

Scanning Productivity Test (Pages Per Minute)

Res

(DPI)

Scan

Color

Scan

Mode

Scan Time

(sec.)

File Size (MB/KB)

200 Black Text 8.76 234 KB 68.49 300 Black Text 10.18 603 KB 58.94 200 Grayscale Photo 15.03 659 KB 39.92 300 Grayscale Photo 15.22 2.0 MB 39.42 200 Color Photo 15.13 1.3 MB 39.66 300 Color Photo 14.43 2.4 MB 41.58

200 Black 600 Color 600 Grayscale

*Scan productivity is evaluated based on a test of 1-10 letter sized pages and using PDF format.

Text/


Text/


Text/


8.84 399 KB 67.87

26.90 9.4 MB 22.30

26.16 7.5 MB 22.94

Scans

per

Minute

February 2010

Copystar CS 520i

www.BERTL.com

WHAT WE LIKED

• In BERTL's scan productivity test the CS 520i produced 68.49 ipm using black/text mode at 200 dpi.

• The smallest file size achieved was 234 KB using black text mode at 200dpi, while the largest file size obtained was 9.4 MB using color text/photo mode at 600 dpi.

• No print slowdown when scanning in jobs or when scan-date transfer is underway.

• Versatile features include Scan to E-mail, Scan to SMB, Scan to FTP, Scan to e-Mail, Scan to USB, WSD Scan and TWAIN Scan.

• Scanned documents can be saved to TIFF, JPEG, PDF and XPS for optimum compatibility.

• LDAP compatibility enables users to access the network address book, making destinationmanagement chores easier for network administrators.

• Copystar TWAIN driver offers users an array of scanning features to improve productivity.

• Eliminate errors by previewing and approving thumbnails of scanned documents before final output or distribution via Scan-to-Email or Scan-to-Folder.

• Promote multitasking and minimize time spent at the system with high-speed scanning up to 75 sides-perminute.

All Rights Reserved. The license under which this document is made available and applicable law prohibit any reproduction or further transmission of any portion of this document. This document may only be viewed electronically through the www.BERTL.com Web site and may not be stored in electronic or hard copy format. Any reproduction of trademarks is strictly prohibited. BERTL accepts no responsibility for any inaccuracies or omissions contained in this document.

Page 10

Fax

February 2010

Copystar CS 520i

www.BERTL.com

OPTIONAL SUPER G3 FAX AND INTERNET FAX

Users can add facsimile capability to their Copystar CS 520i device with the optional Super G3 fax system, which offers advanced features such as; multi-send, combine fax and scanning. For Internet Fax operation, users can add the optional Internet Fax kit.

FAX FEATURES

Fax / Network Fax Option

Fax System(S) / Internet Fax Kit(A) (requires Fax System(S)

Fax Modem Speed 33.6 Kbps

Normal: 8 dot/mm x 3.85 line/mm, Fine: 8 dot/mm x 7.7

Scanning density

line/mm, Superfine: 8 dot/mm x

15.4 line/mm, Ultrafine: 16 dot/mm x 15.4 line/mm,

Halftone Max. original size A3 Compression method MH, MMR, MR, JBIG

Compatibility Super G3 Fax Fax Memory

Standard: 12 MB; Maximum:

120 MB

WHAT WE LIKED

• The optional Super G3 Fax Module expands the unit into a powerful workgroup fax.

• Internet fax function lets users transmit documents right from their desktop for added ease and productivity.

• Advanced features include: Optional Internet fax, Network faxing, Rotate transmission, Rotate reception, Remote diagnostics, Duplex fax reception, Memory reception, Mailbox, Dual fax with second fax system.

Duplex TX/RX, Confidential

Fax Functions

RX/TX, F-Code RX/TX, Broadcasting, Fax Box, Fax Block, Dual Fax

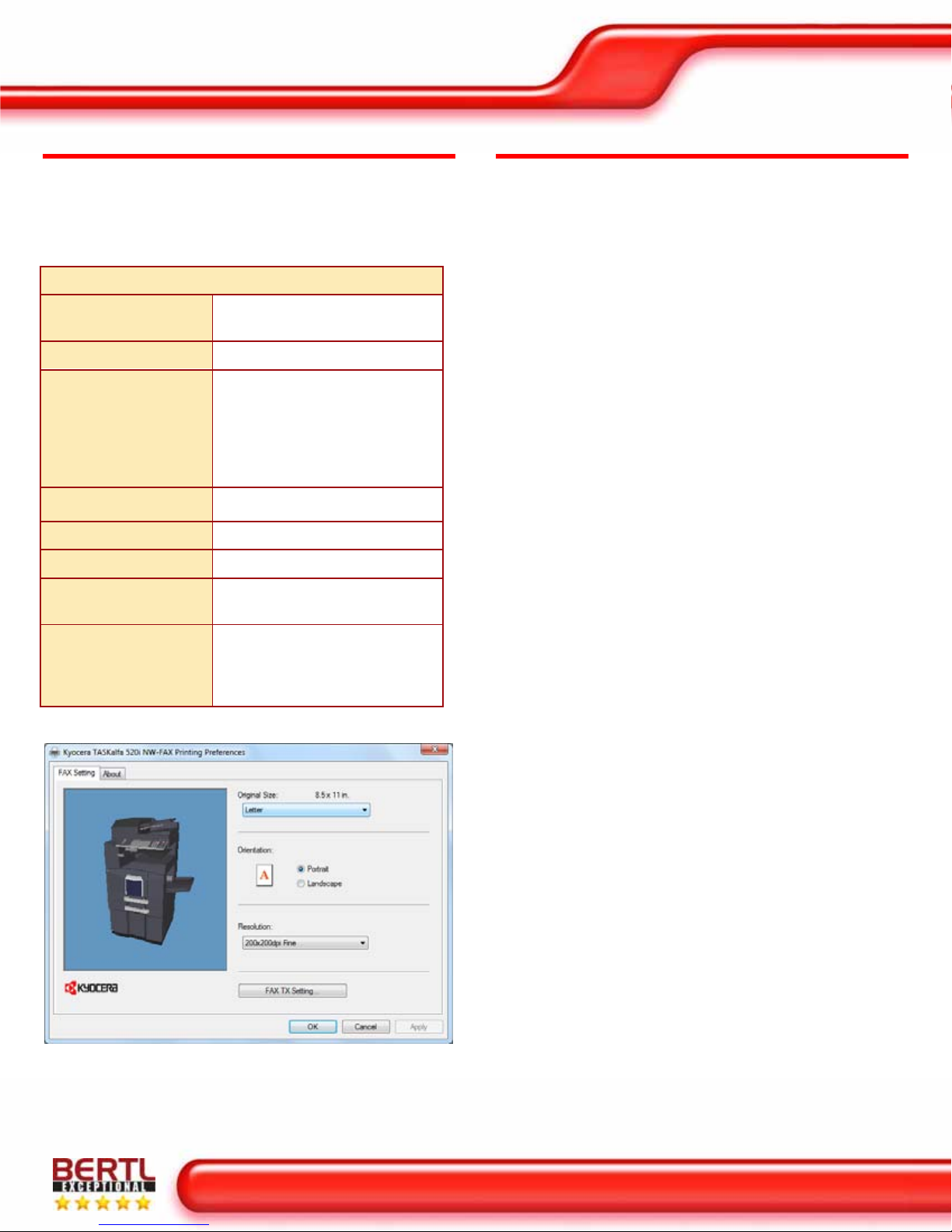

The Copystar CS 520i network fax driver offers the most common used fax features for users to easily send faxes from their PC’s.

All Rights Reserved. The license under which this document is made available and applicable law prohibit any reproduction or further transmission of any portion of this document. This document may only be viewed electronically through the www.BERTL.com Web site and may not be stored in electronic or hard copy format. Any reproduction of trademarks is strictly prohibited. BERTL accepts no responsibility for any inaccuracies or omissions contained in this document.

Page 11

Image Quality

IMAGE QUALITY

BERTL evaluates the output of several “test targets” in order to determine image quality. Following are descriptions of key elements of image quality. Note the numbered examples on each of the test targets shown in the right column.

Office Color Image Quality

1. Density of Solid Areas - Better contrast; more vivid overall images

2. Line Work - Better production of lines and text

3. Halftones - Better production of photographic and screened images

4. Negative/Positive - Better production of fine detail

Photographic Color Image Quality

5. Flesh tones - Better production of portraits

6. Banding - Better solid and dithered fill

7. Low Contrast - Better production of dark images

8. Saturation - Better production of bright colors

9. Caste – Better color fidelity

10. Fine Detail – Better reproduction of fine details

Density of Solid Areas*

Copy Density Print Density

Black 1.27 1.32

*Density is on a scale of 0 to 2.5, with 2.5 being the best possible.

Copy & Print Resolution*

Copy Resolution Print Resolution

Vertical Horizontal Vertical Horizontal

Black 3.6 3.6 2.0 2.0

*Line Pairs per Millimeter. For copy resolution, higher is better (range,

2.0-8.0); for printer resolution, lower is better (range, 1.0-5.0).

Copy Halftones

Min. Gradation* Max. Gradation**

Black 10 100

Print Halftones

Min. Gradation* Max. Gradation**

Black 10 100

*Minimum gradation is on a scale of 10 – 100 percent in 10 percent increments. The best possible minimum gradation is 10 percent. **Maximum gradation is on a scale of 10 – 100 percent in 10 percent increments. The best possible maximum gradation is 100 percent.

February 2010

Copystar CS 520i

www.BERTL.com

2

4

1 1

3

1

BERTL uses ImageExpert printer test targets for the evaluation of printed image quality. BERTL technicians measure image density and evaluate the device’s ability to produce a full range of halftones and various sizes of negative/positive text, dots and lines in each primary printing color (CYMK).

1

9

6

10

7

10

8

10

5

1

5

10

BERTL uses synthetic (photographic) test images obtained from ISO International Standard 12640--Graphic Technology—Prepres s digital data exchange—CYMK Standard Color Image Data (CYMK/SCID) in

order to evaluate the ability to print photographic images.

All Rights Reserved. The license under which this document is made available and applicable law prohibit any reproduction or further transmission of any portion of this document. This document may only be viewed electronically through the www.BERTL.com Web site and may not be stored in electronic or hard copy format. Any reproduction of trademarks is strictly prohibited. BERTL accepts no responsibility for any inaccuracies or omissions contained in this document.

Page 12

Image Quality

February 2010

Copystar CS 520i

www.BERTL.com

IMAGE QUALITY

Negative/Positive Lines*

Line Width

(points)

1 2 3 4 5 6

A “√” mark indicates the device was able to print the line width correctly. *Chart cells containing an “x” indicate that the printer was not able to print the line width correctly. Overall, the fewer “x’s,” the better the image quality. If no cells are marked with an “x,” then the device was able to print all line widths correctly.

Negative Positive

Vertical Horizontal Vertical Horizontal

√ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √

Negative/Positive Dots*

Line Width (points) % of Dots Printed

1 pixel Black 100

1 pixel Black Neg 100

2x2 pixel Black 100

2x2 pixel Black Neg 100

Checkerboard apparent? No

*On a scale of 0 – 100%. The higher the percentage, the better.

WHAT WE LIKED

• High quality output with 600 x 600 dpi resolution.

• Overall excellent image quality was produced from the

Copystar CS 520i.

• Great print and copy densities.

• Excellent resolution in both copy and printer modes.

• Great halftone reproduction in printer and copier

modes when printing all grayscale shades.

• Text was clean, crisp, and could be read without any difficulty. Even small sizes remained legible.

• Gradations where smooth in all grayscale shades.

• No saturation was noticed in any of BERTL’s test files.

• Excellent production of photos, business charts and

graphs.

All Rights Reserved. The license under which this document is made available and applicable law prohibit any reproduction or further transmission of any portion of this document. This document may only be viewed electronically through the www.BERTL.com Web site and may not be stored in electronic or hard copy format. Any reproduction of trademarks is strictly prohibited. BERTL accepts no responsibility for any inaccuracies or omissions contained in this document.

Page 13

Ease of Use

PROGRAMMING THE CONTROL PANEL

A control panel’s ease of use—or lack of—can often have a significant effect on user productivity. The harder it is to select frequently used options such as duplexing, document finishing, etc., the more time the user has to spend programming the device and the less productive they are. The Copystar CS 520i’s control panel incorporates a large 8.5” color touch screen and several hard keys. The hard buttons on the left allow the user to switch between different functions such as Copy, Send, Document Box, Program and Application. Also contributing to the productivity of this device is the ability to Scan-to and Print-from a USB flash drive instantly allowing users a more portable way of accessing their documents.

BERTL was exceptionally impressed with its animated step-by-step instructions for device management and its intuitive help guides.

February 2010

Copystar CS 520i

www.BERTL.com

When users select the Copy function on the left side of the control panel, the Copy screen appears. Here users can specify copy settings such as paper selection, zoom, simplex/duplex, orientation, staple and etc.

Selections Required for

Frequently Used Copy Functions

Photo Mode 2 Reduce to 78% 2 Corner Staple 2 1:2 2 2:2 2

Users have the option of sending electronic documents to a multitude of places with options that include:

• Scan to network server

• Scan to remote email destinations via SMTP

• Scan to application (Electronic Document Management

System/Repositories)

• Scan to Microsoft Exchange 2000 Web Folders

• Scan to Windows XP client SMB or FTP

• Scan to Folder

• Scan to USB

All Rights Reserved. The license under which this document is made available and applicable law prohibit any reproduction or further transmission of any portion of this document. This document may only be viewed electronically through the www.BERTL.com Web site and may not be stored in electronic or hard copy format. Any reproduction of trademarks is strictly prohibited. BERTL accepts no responsibility for any inaccuracies or omissions contained in this document.

Page 14

Ease of Use

February 2010

Copystar CS 520i

www.BERTL.com

The Document Box function allows users to store, retrieve and send commonly used documents straight from the device simply by utilizing the Custom Box, Job Box and Removable Memory features.

Using the Status/Job Cancel function users can check the status and history of jobs and cancel the jobs being processed or waiting to be printed.

Above and below: The CS 520i offers intuitive help guides on the control panel for all functions. BERTL Analyst found these help file to be extremely helpful.

In the Application screen users can access loaded applications such as the internet and print out web pages directly from the control panel

.

All Rights Reserved. The license under which this document is made available and applicable law prohibit any reproduction or further transmission of any portion of this document. This document may only be viewed electronically through the www.BERTL.com Web site and may not be stored in electronic or hard copy format. Any reproduction of trademarks is strictly prohibited. BERTL accepts no responsibility for any inaccuracies or omissions contained in this document.

Device administrators can add a company logo as a background image which can be viewed when the power button is pushed on the control panel.

Page 15

Ease of Use

PCL AND POSTSCRIPT PRINT DRIVERS

The CS 520i comes standard with Copystar’s KX Driver, PDF Direct Print and unique PRESCRIBE Solution for ondemand black and white document creation and output. The KX Driver allows users to access features integrated into each CS MFP from one common print driver.

Print-Driver Checklist

Do print drivers have identical user interfaces? Yes Are print drivers interfaces identical to other

models from this vendor? Are finishing, duplex and paper tray selections

located on the first tab? Bi-directional communication within print drivers? Yes Auto device configuration from within print driver? Yes

Yes

February 2010

Copystar CS 520i

www.BERTL.com

A unique feature offered with all Copystar devices is the ability to modify the PDL within a single interface. Users have the option of selecting their driver from a dropdown list suitable to their printing needs. This functionality allows users to take full advantage of the unique features integrated into each CS MFP directly from one common print driver.

Does print-driver installation require rebooting of the workstation?

No

Are print-driver deployment processes included? Yes Are print-driver deployment guidelines and

procedures included?

*The driver settings and tabs can be configured or customized by the device administrator or the user. Based on the driver configuration the paper selection can be located on the second tab when the “Quick Print” tab is set to default. If the “Basic” tab is set as the default tab, then the paper selection is shown on the first tab.

Yes

The CS 520i’s PCL 6 driver’s first tab, QuickPrint, provides profile settings for quick access to frequent and commonly used tasks. Additional options include the ability to change the orientation, collate, print on both sides and multiple pages per sheet (N-up) as well as EcoPrint mode.

Also note that the left side of each tab displays a graphic image indicating the current print-job settings enabled, as well as a graphic of the CS 520i showing how it is currently configured.

In order to specify system defaults and installed options, administrators select the Printers and Faxes folder from the Microsoft Windows’ Start menu, and then select the CS 520i’s print driver. Administrators can manually indicate which options are installed, or, by selecting the Auto Configuration option in the upper right, installed options will be automatically indicated in the print driver.

All Rights Reserved. The license under which this document is made available and applicable law prohibit any reproduction or further transmission of any portion of this document. This document may only be viewed electronically through the www.BERTL.com Web site and may not be stored in electronic or hard copy format. Any reproduction of trademarks is strictly prohibited. BERTL accepts no responsibility for any inaccuracies or omissions contained in this document.

Page 16

Ease of Use

February 2010

Copystar CS 520i

www.BERTL.com

The PCL6 driver’s Basis tab provides options for specifying the paper size, source media type, and destination. Additional options include the ability to change the document orientation, number of copies, print on both sides, and color (CMYK, Black & White, and EcoPrint) settings.

In the Layout tab users can arrange document data on printed pages without changing the original document. Depending on the device options users can choose from the following;

 Booklet Mode – prints a multi-page document in a

book format that can be folded and stapled

 Multiple Pages per Sheet – prints more than one

document page on a single sheet

 Poster – prints a large banner using several sheets of

paper

 Scaling – increases or decreases the print size

The Finishing tab lets users apply several finishing options to print jobs using the optional output devices. Options include Finishing Edge, Gutter, Staple, Punch, and Separation.

The Imaging tab contains options for print job quality, trapping, color mode, printer profiles, adjustments, and settings such as print text as black.

All Rights Reserved. The license under which this document is made available and applicable law prohibit any reproduction or further transmission of any portion of this document. This document may only be viewed electronically through the www.BERTL.com Web site and may not be stored in electronic or hard copy format. Any reproduction of trademarks is strictly prohibited. BERTL accepts no responsibility for any inaccuracies or omissions contained in this document.

Page 17

Ease of Use

February 2010

Copystar CS 520i

www.BERTL.com

The Publishing tab lets users specify extra sheets to be added to print jobs. Users can select from Cover Mode (Front/Back), Page Insert, and transparency interleaving which inserts a blank or printed page between transparencies.

The Job tab lets users manage print jobs on the printing system's standard hard disk. Storage options include Custom Box, Quick Copy, Proof and hold, Private print, and Job storage. Users can also set the name of the job for easy identification.

The Advance tab contains features that extend the capabilities of the printing system. Options include Prologue/Epilogue (used for special printing commands), Watermark (displays semi-transparent text), Color Optimizer, and the status monitor used to display the printing system status messages.

ROUTINE MAINTENANCE

The reliability factor that really sets Copystar apart from the competition is their long life consumables and components, as well as their maintenance intervals and warranties. The long life consumables reduce the frequency of major component replacement and downtime. Copystar’s maintenance intervals and patented Amorphous Silicon drum technology with high yield of 500,000 pages deliver a durable imaging system day-in and day-out.

Also contributing to the CS 520i is animated, step-by-step instructions for routine tasks, such as clearing paper misfeeds or replacing toner. BERTL found these animated screens very helpful when performing these routine maintenance tasks.

Maintenance Checklist

Load ink/toner while running? No Requires rear access for access to maintenance

items?

No

All Rights Reserved. The license under which this document is made available and applicable law prohibit any reproduction or further transmission of any portion of this document. This document may only be viewed electronically through the www.BERTL.com Web site and may not be stored in electronic or hard copy format. Any reproduction of trademarks is strictly prohibited. BERTL accepts no responsibility for any inaccuracies or omissions contained in this document.

Requires side access for access to maintenance items such as toner cartridge?

No

All-in-one imaging units? No User-disposable waste item(s)? Yes

Page 18

Ease of Use

ROUTINE MAINTENANCE–REPLACING TONER

February 2010

Copystar CS 520i

www.BERTL.com

In order to replace the CS 520i’s toner, the user must first open the front panel by simply pulling the door open.

Before removing the toner cartridge first push the blue release latch upward.

Above and below: Once the latch is released the user simply slides the toner container out for replacement. Overall, BERTL found replacing the toner cartridge to be very easy.

All Rights Reserved. The license under which this document is made available and applicable law prohibit any reproduction or further transmission of any portion of this document. This document may only be viewed electronically through the www.BERTL.com Web site and may not be stored in electronic or hard copy format. Any reproduction of trademarks is strictly prohibited. BERTL accepts no responsibility for any inaccuracies or omissions contained in this document.

Page 19

Ease of Use

February 2010

Copystar CS 520i

www.BERTL.com

CHANGING THE WASTE TONER CONTAINER

Above and below: Users must periodically empty the CS

520i’s waste toner collection container. After opening the front door, the user pulls the container out and twists counterclockwise to release the waste toner box.

MISFEED ACCESS

The document feeder’s misfeed access area is accessed by lifting up the ADF cover.

All Rights Reserved. The license under which this document is made available and applicable law prohibit any reproduction or further transmission of any portion of this document. This document may only be viewed electronically through the www.BERTL.com Web site and may not be stored in electronic or hard copy format. Any reproduction of trademarks is strictly prohibited. BERTL accepts no responsibility for any inaccuracies or omissions contained in this document.

To access the front misfeed area, the user first opens the front door. Once open, the user can use the green levers to clear any jammed paper.

Page 20

Ease of Use

February 2010

Copystar CS 520i

www.BERTL.com

Above and below To access the left side misfeed area, the user must first slide out the finisher, then open the side panel by lifting this gray button and lowering the panel. Once open, the user can clear any misfeeds.

The CS 520i has two paper transport misfeed areas.

All Rights Reserved. The license under which this document is made available and applicable law prohibit any reproduction or further transmission of any portion of this document. This document may only be viewed electronically through the www.BERTL.com Web site and may not be stored in electronic or hard copy format. Any reproduction of trademarks is strictly prohibited. BERTL accepts no responsibility for any inaccuracies or omissions contained in this document.

When a finisher is attached all jammed paper can be cleared by opening the finisher door and following the instructions on the panel door or the animated, step-bystep instructions shown on the control panel.

Page 21

Ease of Use

February 2010

Copystar CS 520i

www.BERTL.com

Misfeeds can be cleared in the top finisher area by lifting this flap up and clearing any jammed paper.

CLIENT UTILITIES AND DEVICE MANAGMENT

In order to take the best and most efficient advantage of a device and its capabilities, as well as ensure maximum uptime, clients need an efficient way to access and monitor the device. Copystar offers many features and options to help productivity for all users. Copystar’s HyPAS (Hybrid Platform for Advanced Solutions) is a software development platform for advanced solutions, which allows users to further optimize the CS 520i with powerful integrated solutions designed to boost their business activities. HyPAS delivers a broad range of options that enable the CS 520i to seamlessly integrate with widely accepted software applications and operate in virtually any environment.

The Device / Printer Status page provides users with detail information associated with the devices current software levels, device settings, options, media input, document output settings.

From the Printing Jobs Log users can view a list of jobs which have been submitted to the device for printing. Users can use this screen to check if their jobs have been completed. Similar logs are available for jobs that were sent out and stored on the device.

The CS 520i’s Command Center web page enables users to check device status, Network IP information, System identification, as well as the status of paper sources and toner status.

All Rights Reserved. The license under which this document is made available and applicable law prohibit any reproduction or further transmission of any portion of this document. This document may only be viewed electronically through the www.BERTL.com Web site and may not be stored in electronic or hard copy format. Any reproduction of trademarks is strictly prohibited. BERTL accepts no responsibility for any inaccuracies or omissions contained in this document.

Page 22

Ease of Use

February 2010

Copystar CS 520i

www.BERTL.com

The Counters page provides users and administrators with an accounting of how the device is being used. Administrators can easily view the total number of pages printed, scanned, copies, and faxed. In addition, administrators can also get an accounting of the paper sizes being used.

The Network Status Page provides users with very detail network protocol information such as the IP Filters, SNMP, POP3, SMTP, Netware, etc.

The Copystar CS 520i’s embedded Web page enables administrators to manage, monitor and maintain the CS 520i.

Administrators can modify all of the device’s default settings directly from the embedded web interface. This includes settings for functions such as printing, copying, scanning, faxing and security settings.

All Rights Reserved. The license under which this document is made available and applicable law prohibit any reproduction or further transmission of any portion of this document. This document may only be viewed electronically through the www.BERTL.com Web site and may not be stored in electronic or hard copy format. Any reproduction of trademarks is strictly prohibited. BERTL accepts no responsibility for any inaccuracies or omissions contained in this document.

Administrators can manage address books by adding and deleting addresses as needed.

Page 23

Ease of Use

February 2010

Copystar CS 520i

www.BERTL.com

Depending on an organizations internal security requirement, administrators have a multitude of options from which they can choose to lock down a device.

Administrators can configure the system so that specified users are automatically sent an e-mail message indicating that a specified status condition has occurred, such as toner is low.

KMnet Viewer is very comprehensive and easy to use tool designed specifically to aid administrators with managing large number of devices on their network.

KMnet Viewer provides bi-directional communication between connected devices and the administrator, locally or remotely.

All Rights Reserved. The license under which this document is made available and applicable law prohibit any reproduction or further transmission of any portion of this document. This document may only be viewed electronically through the www.BERTL.com Web site and may not be stored in electronic or hard copy format. Any reproduction of trademarks is strictly prohibited. BERTL accepts no responsibility for any inaccuracies or omissions contained in this document.

Page 24

Ease of Use

WHAT WE LIKED

• Exceptionally easy-to-use with a well designed large color touch screen layout.

• All consumables are quick and easy to replace.

• BERTL found replacing the toner cartridges and waste

container to be easy.

• BERTL found it easy to access and remove any misfeeds.

• Copystar’s Command Center is a very well designed and capable web-based utility that enables network administrators to manage the CS remotely via the network. This utility makes it very easy to monitor the device and supplies directly from a client workstation. BERTL liked the ability to set up automatic e-mail alerts and maintenance notification.

• Copystar’s KX Driver allows users to access the unique features integrated into each CS MFP from one common print driver, minimizing user acclimation when switching between devices.

• Advanced document workflow solutions such as KYOcapture and KYOcapture Express, integrate with many of the industry’s leading document management systems, including SentryFile, LaserFishe, Documentum, and Microsoft SharePoint.

• KMnet Viewer allows administrators to monitor all devices on the network, including those from other vendors. KMnet Viewer provides proactive information showing problems before affecting users.

• KMnet Viewer also provides visual, audible and E-mail notification of all device alerts to users, administrators and service locations. Administrators can easily customize alerts and create device groups for easy reporting and device management.

• With KMnet Viewer administrators can configure, view, and monitor fleets of devices remotely as well as gather print job statistics and print reports.

• HyPAS technology is a powerful and scalable software solution platform designed to optimize Copystar’s MFPs with integrated solutions that enable the CS 520i to seamlessly integrate with widely accepted software applications and operate in virtually any environment.

• Vast security options include IPv6 and IPsec, Security Watermark, PrintQ Manager Secure Job Release, Secure Printing, Custom Box and optional Data Security Kit for hard disk overwrite and encryption.

February 2010

Copystar CS 520i

www.BERTL.com

All Rights Reserved. The license under which this document is made available and applicable law prohibit any reproduction or further transmission of any portion of this document. This document may only be viewed electronically through the www.BERTL.com Web site and may not be stored in electronic or hard copy format. Any reproduction of trademarks is strictly prohibited. BERTL accepts no responsibility for any inaccuracies or omissions contained in this document.

Page 25

Media Handling

MEDIA INPUT

The CS 520i comes standard with dual 500-sheet adjustable paper drawers and a 200-sheet multi-purpose tray. For high-volume printing, a 3,000-sheet Large Capacity Tray option increases the total capacity to 4,200 sheets. A wide range of paper sizes and weights are supported. Paper sizes up to 11 x 17 inches are supported through the bypass and the 500-sheet trays. Standard bond and post cards run easily with great dependability. Advanced finishing options are available on this device to fulfill any task. Users can choose from a space saving 500sheet internal finisher, 1,000-sheet finisher or a 3,000 sheet finisher with booklet folding and multi bin mailbox options.

Media Handling Checklist

February 2010

Copystar CS 520i

www.BERTL.com

Minimum/Maximum Media Weight (Paper Trays)

Minimum/Maximum Media Weight (3,000-sheet Large Capacity Tray)

Minimum/Maximum Media Weight (Multi-Purpose Tray)

16 lb bond ( 60 gsm)/

90 lb index (312 gsm)

16 lb bond ( 60 gsm)/

28 lb bond (105 gsm)

12 lb bond (60 gsm)/

110 lb index (216

gsm)

Feeds maximum media weight from all sources?

No

Offset Stacker Yes (Optional) Finisher Yes (optional) Hole Punch Yes (optional)

Additional Options

KYOcapture, KYOcapture Express, Fax Memory, Platen Cover, Job Separator JS-700(B), Attachment Kit AK-700, Stand, Data Security Kit (E) - Security Overwrite and Encryption for Print/Copy/Scan, Prin ted Document Guard Kit (A)and Optional Document Processor (DP-760(B) or DP-750(B)).

The Copystar CS 520i shown here is equipped with the following:

Standard: two 500-sheet paper cassettes and a 200-sheet multi-purpose tray. Optional: 3,000-sheet Large Capacity Tray and a 3,000sheet saddle stitch finisher with the 7 Bin Mailbox option.

The 200-sheet multi-purpose tray can be adjusted by sliding these levers into place.

All Rights Reserved. The license under which this document is made available and applicable law prohibit any reproduction or further transmission of any portion of this document. This document may only be viewed electronically through the www.BERTL.com Web site and may not be stored in electronic or hard copy format. Any reproduction of trademarks is strictly prohibited. BERTL accepts no responsibility for any inaccuracies or omissions contained in this document.

Page 26

Media Handling

February 2010

Copystar CS 520i

www.BERTL.com

LOADING MEDIA

Media Loading Checklist

Drop-in loading of a full ream of paper? Yes Corner separators in paper trays? No Spring-loaded ramps in paper trays? Yes Geared media size side guides? No Captured rear media guide? No Automatic paper size detection? Yes

The 3,000-sheet Large Capacity Tray supports letter sized paper and expanded the device to a maximum paper capacity to 4,200 sheets for longer uninterrupted jobs.

Above and below: In order to adjust the paper drawers to accommodate different paper sizes, the user squeezes and slides the green guides into place. BERTL found it easy to adjust the paper drawers.

All Rights Reserved. The license under which this document is made available and applicable law prohibit any reproduction or further transmission of any portion of this document. This document may only be viewed electronically through the www.BERTL.com Web site and may not be stored in electronic or hard copy format. Any reproduction of trademarks is strictly prohibited. BERTL accepts no responsibility for any inaccuracies or omissions contained in this document.

The optional 3,000-sheet finisher supports multi-position stapling, booklet folding and a variety of paper weights and sizes for complex finishing. Users can also add on the 7 Bin Mailbox for advanced sorting needs.

Page 27

Media Handling

February 2010

Copystar CS 520i

www.BERTL.com

MEDIA OUTPUT AND FINISHING

The CS 520i offers three high-performance finishers that give documents a professional look and feel. Users can choose from a 3,000-sheet finisher, 1,000-sheet finisher or a 500-sheet internal finisher. All models offer stapling, stacking and more advanced options.

Optional 3,000 Sheet Finisher DF-760(B)

Stack/Staple Capacity Main Tray: 3,000 Sheets; Sub

Tray(B): 200 Sheets; Sub Tray(C): 50 Sheets / 50 Sheets:

8.5" x 11"; 30 Sheets: 8.5" x 14", 11" x 17"

Paper Size Main Tray: 8.5" x 11" – 11" x 17";

Sub Tray(B): 5.5" x 8.5" – 11" x 17"; Sub Tray(C): 8.5" x 11"

Paper Weight Main Tray: 16 lb Bond - 90 lb

Index Duplex; 16 lb Bond - 120 lb Index Simplex; Sub Tray (B/C): 16 - 24 lb Bond

Edge Staple Position 3 Positions: Top Left, Bottom

Left, Center Bind

Optional Multi-Bin Mailbox

(MT-720) Includes 7 Trays; Supports 16 lb Bond – 90 lb Index Stack Capacity per Bin: 100 Sheets: 5.5" x 8.5", 8.5" x 11"; 50 Sheets: 8.5" x 14", 11" x 17"

Optional Punch (PH-5A) 2 and 3 Hole Punch

Unit, Supports 8.5" x 11" - 11" x 17", 16 lb Bond - 110 lb Index

Optional Internal Finisher DF-720(B)

Stack/Staple Capacity 500 Sheets; 30 Sheets: 8.5" x

11"; 20 Sheets: 8.5" x 14", 11" x 17"

Paper Size / Weight 8.5" x 11" - 11" x 17" / 16 - 31

lb Bond

Edge Staple Position 1 Position

WHAT WE LIKED

• 200-sheet Multi Purpose tray is easily adjusted to accommodate different paper sizes including envelopes.

• Paper capacity can be expanded up to 4,200 sheets for longer uninterrupted operation.

• Users can choose from a 3,000-sheet sheet, 1,000sheet finisher or a 500-sheet internal finisher for advanced finishing options.

• The 3,000-sheet finisher supports multi-position stapling, with options including 2/3 hole punch, multitray, 7 bin mailbox, and booklet folding for advanced in-house finishing.

• Support the following paper materials: Bond Paper, Recycled Paper, Transparencies, Cardstock and Envelopes.

• Paper drawers can handle 16 lb - 28 lb Bond, while the Multi Purpose tray can 12 lb Bond - 110 lb Index.

• BERTL Analyst found it very easy to adjust and fill the paper drawers.

Optional Saddle Stitch/Fold

(BF-720) Supports 8.5" x 11",

8.5" x 14", 11" x 17", 16 lb Bond – 120 lb Index; Over 20 lb Bond Single Sheet Folding Capacity: 1-3 Sheets - 30 Booklets; 4-6 Sheets - 20 Booklets; 7-16 Sheets - 10 Booklets

Optional 1,000 Sheet Finisher DF-780(B)

Stack/Staple Capacity 1,000 Sheets; 50 Sheets: 8.5"

x 11"; 30 Sheets: 8.5" x 14", 11" x 17"

Paper Size / Weight 8.5" x 11" – 11" x 17 / 16 – 32

lb Bond

Edge Staple Position 3 Positions: Top Left, Bottom

Left, 2 Point Long Edge

All Rights Reserved. The license under which this document is made available and applicable law prohibit any reproduction or further transmission of any portion of this document. This document may only be viewed electronically through the www.BERTL.com Web site and may not be stored in electronic or hard copy format. Any reproduction of trademarks is strictly prohibited. BERTL accepts no responsibility for any inaccuracies or omissions contained in this document.

Page 28

Summing Up

February 2010

Copystar CS 520i

www.BERTL.com

Copystar really stepped up to the plate with the CS 520 i with its exceptional performance speeds, outstandi ng imag e quality and intuitive ease of use. During BE RTL’s extensive testing of the CS 520i, this office-monochrome, laserbased MFP for mid-size to large workgroups performed exceptionally well. BERTL observed the f ollowing when testing the CS 520i:

• Tested simplex net work-print speed was as fast as 52 ppm with both the Postscript and PCL6 drivers, matching Copystar’s rated speed of 52 ppm.

• Tested duplex network-printer productivity was extremely productive up to 38 ppm with both the Postscript PCL6 drivers.

• In BERTL’s job stream test the PCL6 driver completed the stream job test in 5 minutes a nd 24 seconds, runni ng at 46 ppm, which translates to an efficiency rate of 87%. Using the Postscript driver the efficiency rate was up to 75% as well.

• Tested copy First-Page-Out-Time was 3.90 seconds off the plate n glass and 6.75 seconds using t he automatic document feeder.

• Tested total copy job time in simplex m ode was 51 cpm; closely matchi ng Copystar’s rated copy spee d of up to 52 ppm.

• In the image quality department, the CS 520i was exceptional when compared to competitor devices in the same class.

• The high-resolution large color touch screen provides exceptional state-of-the-art help guides, along with excellent clarity, and well organized menus, users will find it very easy to navigate.

• Various Scan-to functions let users share informatio n at the touch of a button. These include Scan-to-Email for rapid delivery, Scan-to- Folder for automated archiving, and Scan-to-USB that lets a use r scan a document to a USB clip drive as well as Scan-to-FTP, Scan-to-SMB, WSD Scan and TWAIN Scan.

• The optional Super G3 Fax Module and Internet Fax expands the unit into a po werful workgroup fax.

• Copystar’s Command Center Internet Services, which provides detailed device and consumables’ status, and

provides network configuration, access management and accounting controls for administrators, is a capabl e and easy to use tool.

• The CS 520i was exceptionally easy to use and maintain, from the larg e and easy-to-navigate touch screen to using the print drivers and device-management software. Ease of mainten ance is very good, with front-loading toner cartridges that even novice users will find easy to r eplace, and unc omplicated misfeed access and paperreplacement.

• BERTL Analysts were very impressed with the CS’s document management capabilities. Copystar’s KYOcapture offers users a convenient way to manage and capture content for electronic archiving and document distribution to major document management systems such SentryFile, LaserFi she, Document um, and Microsoft SharePoint and many others.

• HyPAS technology is a p owerful and scalable soft ware solution platform designed to optimize Copystar’s MF Ps with integrated solutions that enable the CS 520i to seamlessly integrate with widely accepted software applications and operate in virtually any environment.

• Vast security options include: IPv6 and IPsec, Security Watermark, PrintQ Manager Secure Job Release, Secure Printing, Custom Box and optional Data Security Kit for hard disk over write and encryption making this product a cut above the rest at this price point.

• Versatile medi a handling a nd flexibil ity, with the abilit y to print on stock as heav y as 110 l b. index (216 g sm) and paper sizes up to 11"x 17”.

• Multiple finishing choices designed to hand le any workgroup’s basic finishing requireme nts including the ability to collate, stack and staple.

• Ability to expand paper supply to up 4,200 sheets.

• The Copystar CS 520i has superior ener gy and supply-saving features, which include fast warm-up and first

copy out times, duplex and combine copy modes, long life components and consumables, lo w noise levels, minimal ozone emissions and is energy star and restriction of hazardous substances (ROHS) compliant.

• In compliance with Section 508 with features that include: a large, easy-to-view color display, an adjustable control panel, visual and audible alerts, and easy-to-access paper drawers.

Considering Copystar’s CS 520i exceptional overall performance in testi ng, outstanding ease of use, and brilliant office- CS 520i monochrome image quality, BERT L awards the CS 520i its Five-Star Ex recommends the device for mid-size to large offices and workgroups that require a reliable and fully functional monochrome MFP.

ceptional rating and highly

All Rights Reserved. The license under which this document is made available and applicable law prohibit any reproduction or further transmission of any portion of this document. This document may only be viewed electronically through the www.BERTL.com Web site and may not be stored in electronic or hard copy format. Any reproduction of trademarks is strictly prohibited. BERTL accepts no responsibility for any inaccuracies or omissions contained in this document.

Page 29

About BERTL

February 2010

Copystar CS 520i

www.BERTL.com

About BERTL

The success of an organization depends on its ability to manage its information and assets. An effective workflow process requires the complex integration of information, devices, software and people.

IT managers, office managers, and other knowledge-management professionals need to know what digital imaging devices would best serve their specialized workflow processes.

BERTL’s services are designed around this real-world framework, delivering business consumers the independent analysis and insight needed to make critical decisions about digital imaging’s role in their organization.

Independent Analysis and Insight

BERTL Services

Reports and St ar Ratings

BERTL analysts provide detailed reports on the technical and practical benefits of thousands of color and monochrome workgroup, office, graphic arts, and production devices.

Product Specifications

DataCheck Gen II provides the most current competitive data on printers, copiers, MFPs, fax devices, wide format printers, scanners, and more.

News, Interviews, and Analysis

The ITchat online magazine provides insight into the dynamics and trends of the digital imaging marketplace through interviews, feature articles, and software reviews.

BERTL Awards

BERTL’s reports, comparative data, and strategic guides look at digital imaging through the eyes of the business user. The research examines not only the technical features, but also vertical market applications, and business benefits. The impact on worker productivity is a primary concern.

BERTL is 100 percent independent. It receives no funding from manufacturers and all product evaluations and reports are published at BERTL’s own expense for its subscribers. Business users worldwide trust BERTL for objective, unbiased analysis of digital imaging systems.

BERTL analysts recognize the leading devices and software solutions in the annual BERTL’s Best awards. BERTL also honors the performance of manufacturers in the annual Readers’ Choice selections.

Contact BERTL

BERTL Inc. 363 Route 46 West, Suite 100 Fairfield, NJ 07004 Phone: 1-973-882-0200 Fax: 1-973-882-0201 Email: info@bertl.com www .BER TL.com

All Rights Reserved. The license under which this document is made available and applicable law prohibit any reproduction or further transmission of any portion of this document. This document may only be viewed electronically through the www.BERTL.com Web site and may not be stored in electronic or hard copy format. Any reproduction of trademarks is strictly prohibited. BERTL accepts no responsibility for any inaccuracies or omissions contained in this document.

Page 30

BERTL Exeptional Copystar CS 520i User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
