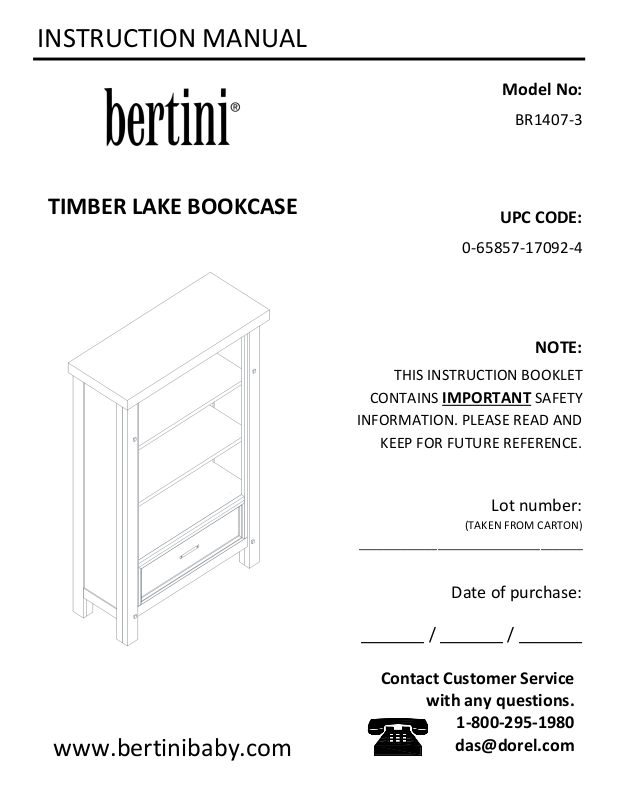

Page 1
BR1407-3
0-65857-17092-4
Model No:
TIMBER LAKE BOOKCASE
UPC CODE:
KEEP FOR FUTURE REFERENCE.
INSTRUCTION MANUAL
NOTE:
www.bertinibaby.com
_______ / _______ / _______
THIS INSTRUCTION BOOKLET
_____________________________________
(TAKEN FROM CARTON)
Date of purchase:
CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND
Lot number:
Contact Customer Service
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
Page 2
*
* Handling will require two people.
*
CUSTOMER SERVICE
If you have any questions about this product, contact our customer service representative first!
CALL 1-800-295-1980
Customer Service Department No. 413
12345 Albert-Hudon Boulevard, Suite 100
Montreal, Quebec
Canada H1G 3L1
E-MAIL: [email protected]
NOTES:
LIMITED WARRANTY
Dorel warrants its product to be free from defects in material and workmanship and agrees
to remedy any such defect. This warranty covers 1 year from the date of original purchase.
This warranty is valid only upon presentation of proof of purchase. This is solely limited to
the repair or replacement of defective furniture components and no assembly labor is
included. This warranty does not apply to any product which has been improperly
assembled, subjected to misuse or abuse or which has been altered or repaired in any way.
This warranty gives you specific legal rights and you may also have other rights which vary
from State to State.
WARNING: Should this product become damaged, and/or
components are broken or missing, DO NOT USE.
Do not use the unit if it is damaged or broken.
To avoid unnecessary damage, when levelers have been extended, DO NOT drag across
surface when moving. Be sure to lift and carry the item to its location.
CARE AND CLEANING
Dust regularly with a soft, lint-free cloth to prevent soil build-up. A damp cloth may be used
occasionally to clean surface. Dry immediately. Do not use any abrasives that may damage
finish. Excessive exposure to sunlight and extreme changes in temperature and moisture
can damage wood furniture.
MAINTENANCE
Check bolts/screws periodically and tighten them if necessary.
Page 3
PARTS LIST
NO. Drawing Description Q'ty
A Drawer 1 PC
B Shelf 2 PCS
C Saftey Strap kit 1 KIT
TIMBER LAKE BOOKCASE
BR1407-3
Page 4
TIMBER LAKE BOOKCASE
BR1407-3
CAUTION: This unit is intended for use only with the
products and/or maximum weights indicated. Use with other
products and/or products heavier than the maximum weights
indicated may result in instability or cause possible injury.
MAXIMUM WEIGHT
FOR DRAWER - 15 LBS
MAXIMUM
WEIGHT PER
SHELF - 10 LBS
Contact Customer Service
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
Page 5
Furniture Wall Safety Strap
Hardware List
TOOLS NECESSARY: RUBBER MALLET AND PHILLIPS SCREW DRIVER ARE NOT INCLUDED.
NOTE: 5/16" DRILL BIT AND ELECTRIC DRILL ARE NOT PROVIDED.
PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT
AND KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. IF YOU HAVE ANY
QUESTIONS, PLEASE CALL OUR CUSTOMER SERVICE NUMBER: 1-800-295-1980.
TO MOVE THE FURNITURE AFTER THE SAFETY WALL STRAP HAS BEEN INSTALLED, SIMPLY
REMOVE THE SCREW (A) FROM THE WALL TO LOOSEN THE SAFETY WALL STRAP.
WARNING: WHEN UPRIGHT, IT IS POSSIBLE THAT THE FURNITURE MAY TIP OVER.
PLEASE INSTALL THE SAFETY WALL STRAP BEHIND THE FURNITURE TO ENSURE
SAFETY.
STEP 1: ATTACH A METAL BRACKET (B) SECURELY TO THE BACK TOP RAIL OF FURNITURE USING THE SHORT SCREW
(C), THROUGH THE SMALLER HOLE.
STEP 2: LOCATE THE OTHER METAL BRACKET (B) ON THE WALL OVER A WALL STUD AND 2 INCHES BELOW THE
MOUNTING BRACKET SECURED TO THE BACK OF YOUR UNIT. ATTACH TO THE WALL STUD USING THE LONG SCREW
(A) PROVIDED, THROUGH THE SMALLER HOLE.
STEP 3: PLACE THE FURNITURE INTO POSITION SO BOTH MOUNTING BRACKETS ARE VERTICALLY IN LINE. LACE THE
END OF THE SAFETY WALL STRAP (D) THROUGH THE LARGER HOLE IN EACH MOUNTING BRACKET (B). BRING BOTH
ENDS TOGETHER AND SLIDE THE FLAT END THROUGH THE LOCKING END AND DRAW IT THROUGH UNTIL ALL SLACK IS
REMOVED.
STEP 4: CONFIRM THAT THE STRAP IS SECURELY LACED AND LOCKED.
LONG SCREW 1 PC
METAL BRACKET 2 PCS
SHORT SCREW 1 PC
SAFETY WALL STRAP 1 PC
ABC
D
B
B
A
C
D
B
Page 6
MODEL #: BR1407-3
PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING
NUMBERS SHOULD YOU HAVE ANY QUESTIONS.
Customer Service Fax Number 514-353-7819
Request Date:
Name:
Shipping Address:
Street & Number:
City & State:
Zip Code:
Day Time Phone Number:
(including area code)
Date & Place of Purchase:
Part(s) description and quantity (Please be sure to list model number or SKN number):
Email: [email protected]
Customer Service
Customer Service Representative Mailing Address:
Customer Service Department No. 413, 12345 Albert-Hudon Boulevard, Suite 100, Montreal, QC, Canada, H1G 3L1
Customer Service Phone Number 1-800-295-1980
