Rod source shields
LB 8300
Operating manual
64217BA2
Rev. No.: 00, 10/2017
BERTHOLD TECHNOLOGIES GmbH & Co. KG
Calmbacher Str. 22
75323 Bad Wildbad, Germany
www.berthold.com
Telephone +49 7081 177-0
Fax +49 7081 177-100
industry@berthold.com
Table of contents Rod source shields LB 8300
4
64217BA2 Rev. 00, 10/2017
Table of Contents
1 About this operating manual ............................................................................. 6
1.1 Some prior remarks ...................................................................................................... 6
1.2 Storage .......................................................................................................................... 6
1.3 Target Group ................................................................................................................ 6
1.4 Validity of the Manual ................................................................................................. 7
1.5 Structure of the Manual............................................................................................... 7
1.6 Copyrights ..................................................................................................................... 7
1.7 Representation ............................................................................................................. 7
1.8 Symbols Used ................................................................................................................ 8
1.8.1 Structure of Warnings .................................................................................................. 8
1.8.2 Symbols used on the device ......................................................................................... 9
2 Safety manual ................................................................................................... 10
2.1 Proper use ................................................................................................................... 10
2.2 Ambient conditions during operation and storage ................................................. 11
2.3 Qualification of the personnel .................................................................................. 11
2.4 Radiation Protection .................................................................................................. 13
2.4.1 Basic principles and regulations ................................................................................ 13
2.4.2 Exposure of employees to radiation ......................................................................... 14
2.4.3 Theft protection ......................................................................................................... 14
2.4.4 In the case of fire ........................................................................................................ 14
2.6 Type plate of the source ............................................................................................ 15
3 System Description ........................................................................................... 16
3.1 View ............................................................................................................................. 17
4 Installation ........................................................................................................ 19
4.1 Safety Instructions ...................................................................................................... 19
4.2 Ambient conditions during assembly ........................................................................ 20
4.3 Intermediate storage of the source .......................................................................... 20
4.4 Preparing the Installation .......................................................................................... 20
4.5 Checking the delivery ................................................................................................. 20
4.6 Installation of the shield ............................................................................................ 21
4.7 Marking ....................................................................................................................... 26
5 Usage ................................................................................................................ 27
5.1 Safety instructions ...................................................................................................... 27
5.2 Opening and closing the locking mechanism .......................................................... 27
5.3 Commissioning ............................................................................................................ 29
6 Maintenance and Repair .................................................................................. 30
6.1 Safety instructions ...................................................................................................... 30
6.2 Visual inspection ......................................................................................................... 31
6.3 Leak test ...................................................................................................................... 31
6.4 Checking the locking mechanism .............................................................................. 33
6.5 Removing and installing the source .......................................................................... 34
6.5.1 Removing the source .................................................................................................. 34
6.5.2 Installing the source ................................................................................................... 37
6.6 Source replacement .................................................................................................... 39
6.6.1 Replacing the source .................................................................................................. 39
7 Decommissioning .............................................................................................. 41
7.1 Safety instructions ...................................................................................................... 41
7.2 Disassemble the shield ............................................................................................... 42
Rod source shields LB 8300 Table of contents
7 64217BA2 Rev. 00, 10/2017
5
7.3 Disposal of radioactive substances ............................................................................ 43
7.4 Shipment of radioactive substances .......................................................................... 43
8 Appendices ....................................................................................................... 45
8.1 Check lists for tests ..................................................................................................... 45
1 About this operating manual Rod source shields LB 8300
6
64217BA2 Rev. 00, 10/2017
1 About this operating manual
1.1 Some prior remarks
The product is handed over to you by the manufacturer
BERTHOLD TECHNOLOGIES GmbH & Co. KG in a complete and functionally
reliable condition.
This operating manual illustrates how to:
• set up/install the product
• operate the product
• carry out maintenance on the product
• disassemble the product
• dispose of the product
Read these instructions thoroughly and completely before working with the
product. We have tried to compile all the information for safe and proper
operation for you.
However, should questions arise which are not answered in this manual, please
contact BERTHOLD TECHNOLOGIES GmbH & Co. KG.
Store the instructions where they are accessible for all users at all times.
1.2 Storage
This operating manual as well as all product-related documentation relevant to
the respective application must be accessible at all times during the life cycle near
the device.
1.3 Target Group
The product may only be installed, operated, maintained and repaired by trained
personnel.
This manual is directed at qualified specialist personnel who are familiar with
handling radioactive sources and heavy system components.
Specialist personnel refers to those who can assess the work assigned to them and
recognise possible dangers through their specialist training, knowledge and
experience as well as knowledge of the relevant regulations.
Rod source shields LB 8300 1 About this operating manual
64217BA2 Rev. 00, 10/2017
7
1.4 Validity of the Manual
The manual is valid from the delivery of the Berthold product to the user until its
disposal. Version and release date of this operating manual can be found in the
bottom of each page. An alteration service is not provided by the manufacturer
BERTHOLD TECHNOLOGIES GmbH & Co. KG.
The manufacturer reserves the right to make changes to this operating manual at
any time without stating reasons.
NOTICE
The current revision of this operating manual replaces all previous versions.
1.5 Structure of the Manual
This manual has been divided into chapters. The order of the chapters should
help you to familiarise yourself quickly and properly with the operation.
1.6 Copyrights
This manual contains copyright-protected information. None of the chapters may
be copied or reproduced in any other form without prior authorisation from the
manufacturer.
1.7 Representation
Identifier
Meaning
Example
Round brackets
Image reference
Connect the plug (fig. 1,
item 1)
1 About this operating manual Rod source shields LB 8300
8
64217BA2 Rev. 00, 10/2017
1.8 Symbols Used
1.8.1 Structure of Warnings
j
Signal word
Source and consequence
Explanation, if required
Measure
In case of emergency
•
Warning symbols: (warning triangle) draws attention to the hazard
•
Signal word: states the severity of the hazard
•
Source: states the type and source of the hazard
•
Consequence: describes the consequences if warning is ignored
•
Measure: states how one can avoid the hazard.
•
In case of emergency: states how to react in case of direct danger.
Warning levels used
In this manual, warning instructions in front of instructions for action refer to
risks of injury or damage to property. The hazard-prevention measures described
must be observed.
j
DANGER
Indicates an
imminent
, major hazard, which will certainly result in serious
injuries or even death if the hazard is not avoided.
j
WARNING
Indicates a
potential
hazard, which can result in serious injuries or even death
if the hazard is not avoided.
j
CAUTION
Refers to a
potentially dangerous
situation, which can result in medium or
minor physical injuries or damages to property, if it is not avoided.
NOTICE
If this information is not observed, deterioration in the operation and/or
property damage may occur.
Rod source shields LB 8300 1 About this operating manual
64217BA2 Rev. 00, 10/2017
9
IMPORTANT
Sections marked with this symbol point out important information on the
product or on handling the product.
Tip
Provides tips on application and other useful information.
1.8.2 Symbols used on the device
Ionising radiation
The shield is equipped with a radioactive source. Please note the handling
instructions. Please observe the transport instructions in this operating
manual.
2 Safety manual Rod source shields LB 8300
10
64217BA2 Rev. 00, 10/2017
2 Safety manual
2.1 Proper use
The source with shield is used in connection with a detector and a suitable
evaluation unit provided by BERTHOLD TECHNOLOGIES to measure the radiation
intensity occurring during a radiometric measurement.
The shield was developed as shield/protective container for radioactive sources
and may be used exclusively for this purpose.
Usually, the shield contains a radioactive source. The notes on radiation
protection contained in the present manual as well as any statutory requirements
in this respect are to be strictly adhered to.
The following constitutes proper use:
• Adhering strictly to the instructions and operation sequences and not
undertaking any different, unauthorised practices which could put your safety
and the operational reliability of the shield at risk!
• Observing the provided safety instructions!
• Carrying out the prescribed maintenance measures or having them carried out
for you!
The following constitutes improper use and is to be avoided:
• Any non-compliance with the present operating manual for the supplied
products
• Applying conditions and requirements which do not conform to those stated
in the technical documents, data sheets, operation and assembly instructions
and other specific guidelines of the manufacturer.
• Using the product after any repair carried out by employees who have not
been authorized by BERTHOLD TECHNOLOGIES GmbH & Co. KG.
• Using the product in a damaged or corroded condition.
• Dismounting the unit while the radiation beam outlet is open (except for
situations in which the locking mechanism is defective and the beam outlet
can no longer be closed).
• Operation without the safety precautions provided by the manufacturer.
• Any modification to design and function, except for any activities provided for
and described in the present manual.
• Restructuring or changing the system components.
• Manipulation or avoidance of existing safety equipment.
BERTHOLD TECHNOLOGIES GmbH & Co. KG shall only accept liability for /
guarantee the correspondence of the product to its publicised specifications.
If the product is used in a way which is not described in this manual, the product's
protection is compromised and the warranty becomes void.
Rod source shields LB 8300 2 Safety manual
64217BA2 Rev. 00, 10/2017
11
2.2 Ambient conditions during operation and storage
The shield was specifically designed for use in rough ambient conditions. The
compliance with the operating conditions specified below contributes to
guaranteeing the permanent functionality of the shield and the prevention of
damage.
Shields containing radioactive substances and sources are to be stored in a
lockable storage room complying with the national requirements as regards the
storage of radioactive substances.
Furthermore, the following prescribed ambient conditions are to be observed:
• The minimum admissible operating/storage temperature is -40°C. Below this
temperature, the sealing rings of the shield may become brittle. In such case,
the leakproofness of the shield can no longer be guaranteed.
• The maximum admissible operating/storage temperature is +100°C. Above this
temperature, the sealing rings of the shield may be destroyed. In such case,
the leakproofness of the shield can no longer be guaranteed.
• The higher the dust and dirt content of the environment, the more likely
stiffness or an entire blockage of the locking mechanism is. For this reason, the
functional test intervals (see chapter 6) should be adjusted to the ambient
conditions.
• Highly combustible or explosive substances must not be kept in the vicinity of
shields in order to prevent a fire from spreading to the radioactive substances.
2.3 Qualification of the personnel
NOTICE
A minimum requirement for all work on or with the product would be
employees with general knowledge who are instructed by an expert or
authorised person.
At different parts in this manual, reference is made to personnel with certain
qualifications who can be entrusted with different tasks during the installation,
usage and maintenance.
The four groups this refers to are:
• Employees with general knowledge
• Experts
• Authorised persons
• Radiation Safety Officer
2 Safety manual Rod source shields LB 8300
12
64217BA2 Rev. 00, 10/2017
Employees with general knowledge
NOTICE
Employees with general knowledge must always be guided by one expert at
the very least. When dealing with radioactive substances, a radiation safety
officer must also be consulted.
Employees with general knowledge are e.g. technicians or welders who can
undertake different tasks during the transportation, assembly and installation of
the product under the guidance of an authorised person. This may also refer to
construction site personnel. The persons in question must have experience in
handling the product.
Experts
Experts are persons who have sufficient knowledge in the required area due to
their specialist training and who are familiar with the relevant national health
and safety regulations, accident prevention regulations, guidelines and
recognised technical rules.
Expert personnel must be capable of safely assessing the results of their work and
they must be familiar with the content of this manual.
Authorised Persons
Authorised persons are those who are either designated for the corresponding
task due to legal regulations or those who have been authorised by
BERTHOLD TECHNOLOGIES for particular tasks. When dealing with radioactive
materials, a radiation safety officer must also be consulted.
Radiation Safety Officer
In order to ensure proper handling and compliance with the statutory
requirements, the company has to appoint a radiation safety officer in
accordance with the applicable national law (in Germany:
Strahlenschutzverordnung [German radiation protection regulation]). The
radiation safety officer must implement the statutory radiation protection
requirements in order to protect employees against damage to their health
caused by handling radioactive materials.
NOTICE
Dangerous goods officers must not perform any activities as radiation
protection officers!
Radiation protection officers must have a special training with attendance of
an officially recognized course and appropriate professional experience.
Rod source shields LB 8300 2 Safety manual
64217BA2 Rev. 00, 10/2017
13
2.4 Radiation Protection
2.4.1 Basic principles and regulations
The amount of radiation absorbed by the body (exposure to radiation) is
determined by three parameters from which the basic radiation protection
regulations can be derived:

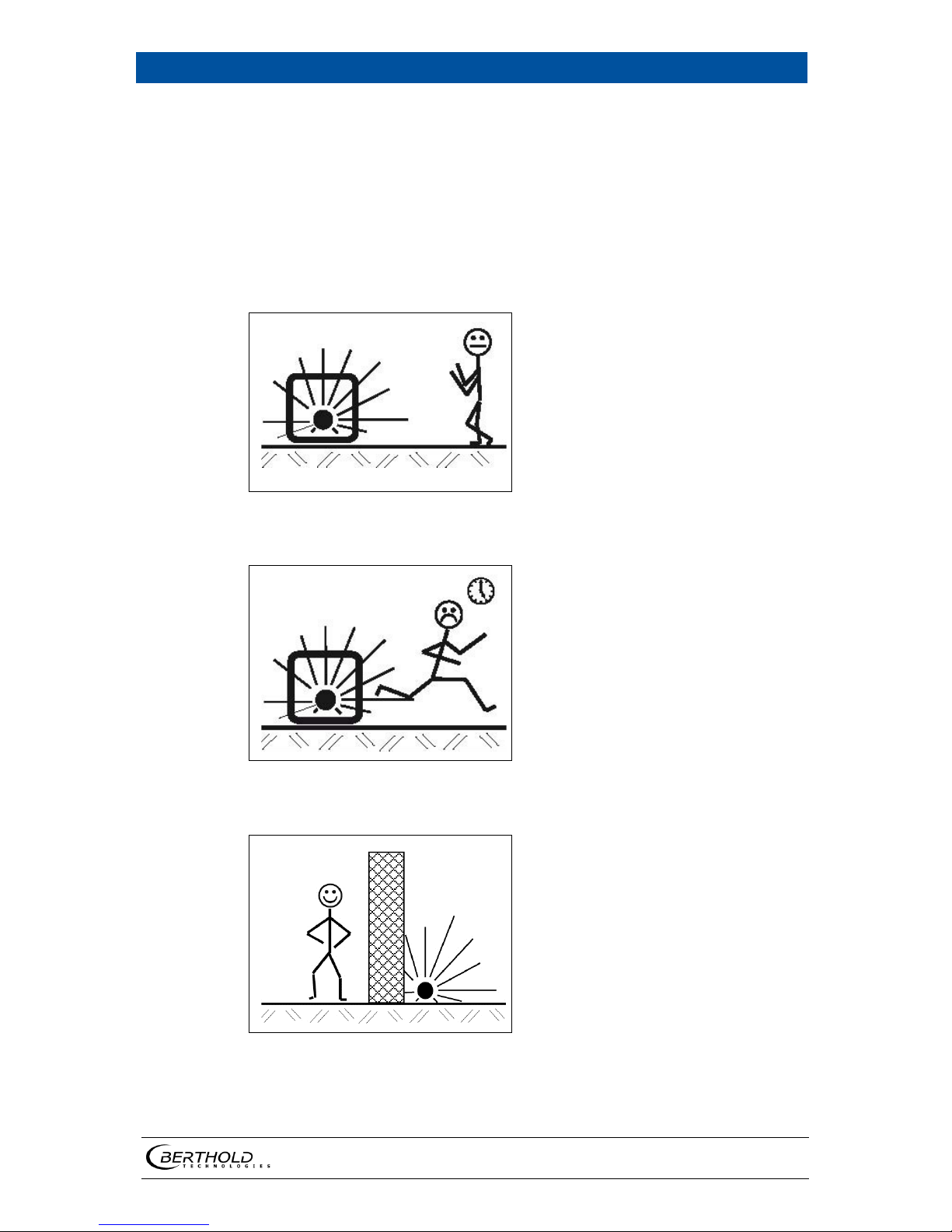

Distance
If work close to equipment containing
radioactive substances is required, the
largest distance possible is to be kept. In
particular, this shall apply for employees
which do not immediately participate in
such work.
Time
Any
work required in the vicinity of
radiometric measuring systems is to be
prepared carefully and to be organised
in a way that the work can be executed
as quickly as possible. Here, providing
the correct tools and aids is particularly
important.
Shield
W
hen mounting and dismounting the
shield, it is to be ensured in advance that
the radiation beam outlet is closed.
2 Safety manual Rod source shields LB 8300
14
64217BA2 Rev. 00, 10/2017
2.4.2 Exposure of employees to radiation
During installation, maintenance and decommissioning of the shield, employees
may be exposed to radiation.
In order to keep such exposure as low as possible, the shield with the source may
only be mounted and/or dismounted by authorized employees. Such authorised
staff is to be instructed as regards all rules of behaviour when handling
radioactive substances in advance.
It is to be ensured that the locking mechanism of the shield is closed and secured
in order to prevent the emission of unshielded radiation. Modification or damage
to the shield must be avoided at all times.
Work may only be executed according to the instructions and under the
supervision of the radiation safety officer, who furthermore has to calculate or
estimate the exposure of the employees to radiation in order to ensure that the
statutory dose rate limits are not exceeded.
2.4.3 Theft protection
Radioactive substances or equipment containing radioactive substances must be
secured in a way that they are protected against access by unauthorized persons.
In the case of firmly installed equipment containing radioactive substances, the
protection against unauthorized access is generally provided by the firmly
attached installation.
Shields with radioactive sources which are decommissioned for a certain period of
time must be dismounted and securely stored in a storage room complying with
the national regulations as regards the storage of radioactive substances.
Portable measuring systems must never be left unsupervised. When this
equipment is out of use, it is to be protected against access by unauthorised
persons.
2.4.4 In the case of fire
The shield material can melt and leak from the shield if exposed to very high
temperatures for an extended period of time. During and after a fire, there is a
risk of major long-time consequences for your health due to the incorporation of
lead as well as a risk of increased radiation exposure.
When planning the use of radiometric measuring systems, constructional
measures ensuring fire prevention are to be provided.
In the case of fire, these measures limit the access to this area.
Avoid the incorporation by keeping sufficient distance.
Notify BERTHOLD TECHNOLOGIES of the situation; you will promptly receive
information on immediate measures.
Rod source shields LB 8300 2 Safety manual
64217BA2 Rev. 00, 10/2017
15
2.5 Operator's obligations
The operator of the product must regularly train his personnel in the following
topics:
• Observation and use of the operating manual and the legal provisions.
• Proper use of the product.
• Observation of the plant security instructions and the operating instructions of
the operator

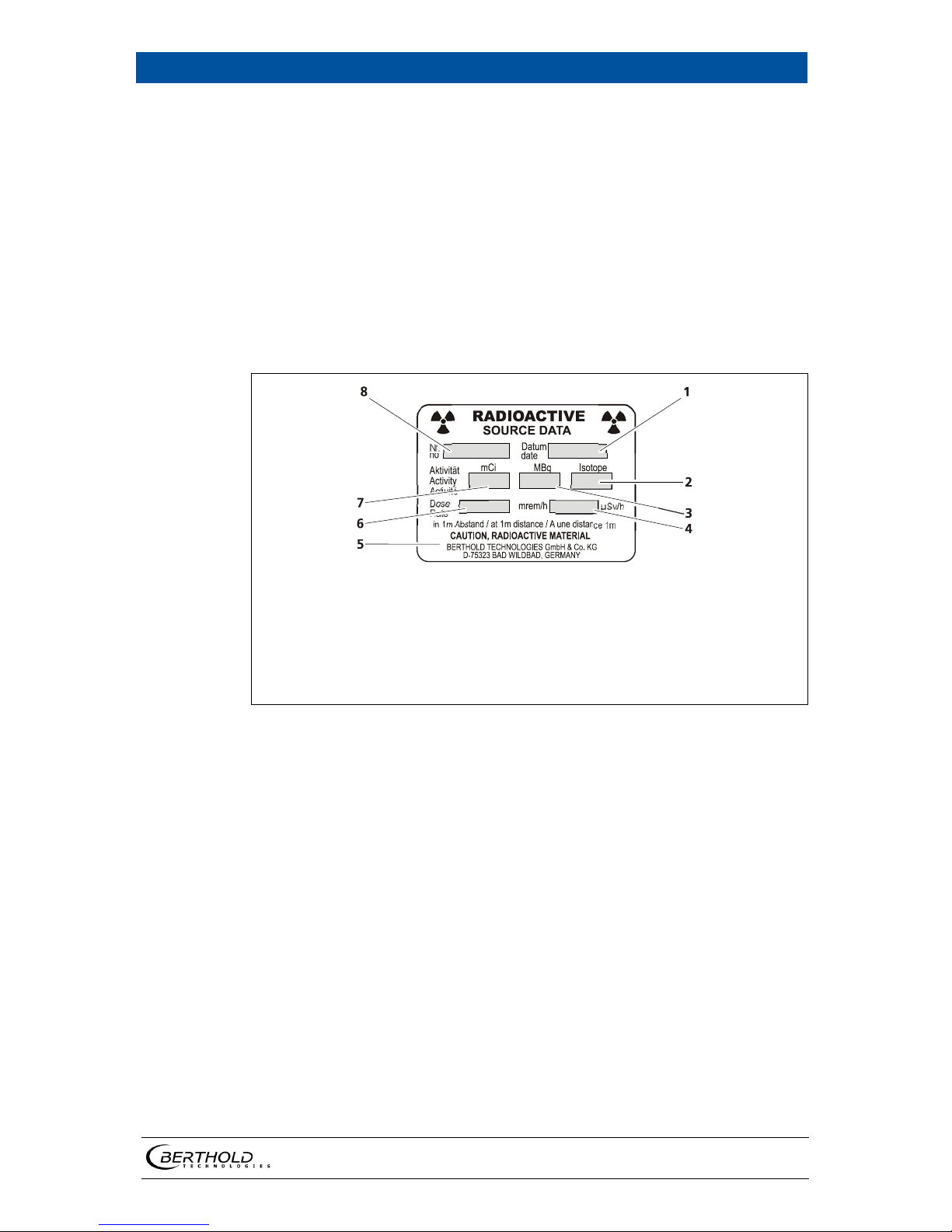

2.6 Type plate of the source

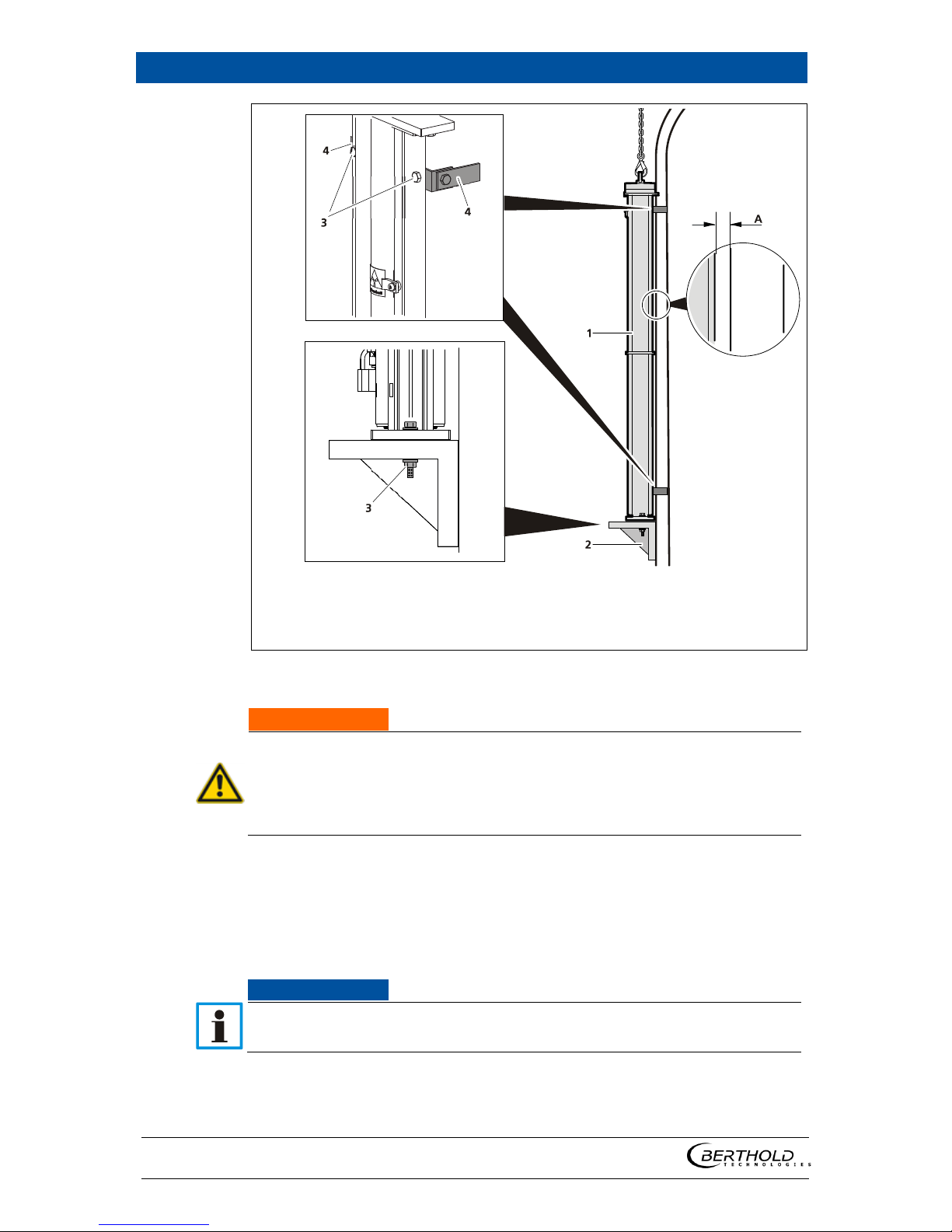

1
2
3
4
5
6
7
8
Date of manufacture of the source
Isotope
Activity [MBq]
Dose rate within 1 m distance [µSv/h]
Supplier of the source
Dose rate within 1 m distance [mrem/h]
Activity [mCi]
Source number
Fig.
1 Type plate of the source
3 System Description Rod source shields LB 8300
16
64217BA2 Rev. 00, 10/2017
3 System Description
The rod source shield is intended as shield/protective container for radioactive
rod sources. The radioactive substance is contained in a leak-proof welded source
capsule and installed in the rod source shield. Apart from source and shield,
additional system components such as detectors and evaluation units are required
for a complete measuring system. Usage of these system components is not
subject of this operating manual. Please refer to the individual manuals of the
respective system components.
The shield container consists of a robust steel housing filled with lead. The
locking cylinder of the shield is pivoted. The provided lever rod can be used to
turn the locking cylinder to the two end positions. The radiation beam outlet is
thereby opened and closed.
The locking plate on the upper side of the shield ensures that the source cannot
be removed by unauthorized persons. Operators can secure the locking plate by
installing a padlock at the right-hand and the left-hand side.
The locking cylinder can be locked in both rotational positions (radiation beam
outlet open, radiation beam outlet closed) using fixing screws or a padlock.
Only the lower mounting plate and additionally the holes in the vertical bars
are permitted to mount the shield!
The rod source shield is available in different versions. You can find an overview
of all variants in the appendix (Technical Information).
The shield has the following functions:
• Shield radiation to a level that is non-hazardous for the operating personnel
• Locking the radiation beam outlet channel for transport and during
installation
• Protecting the integrated source capsule from mechanical damage and the
effects of the surrounding environment
Rod source shields LB 8300 3 System Description
64217BA2 Rev. 00, 10/2017
17

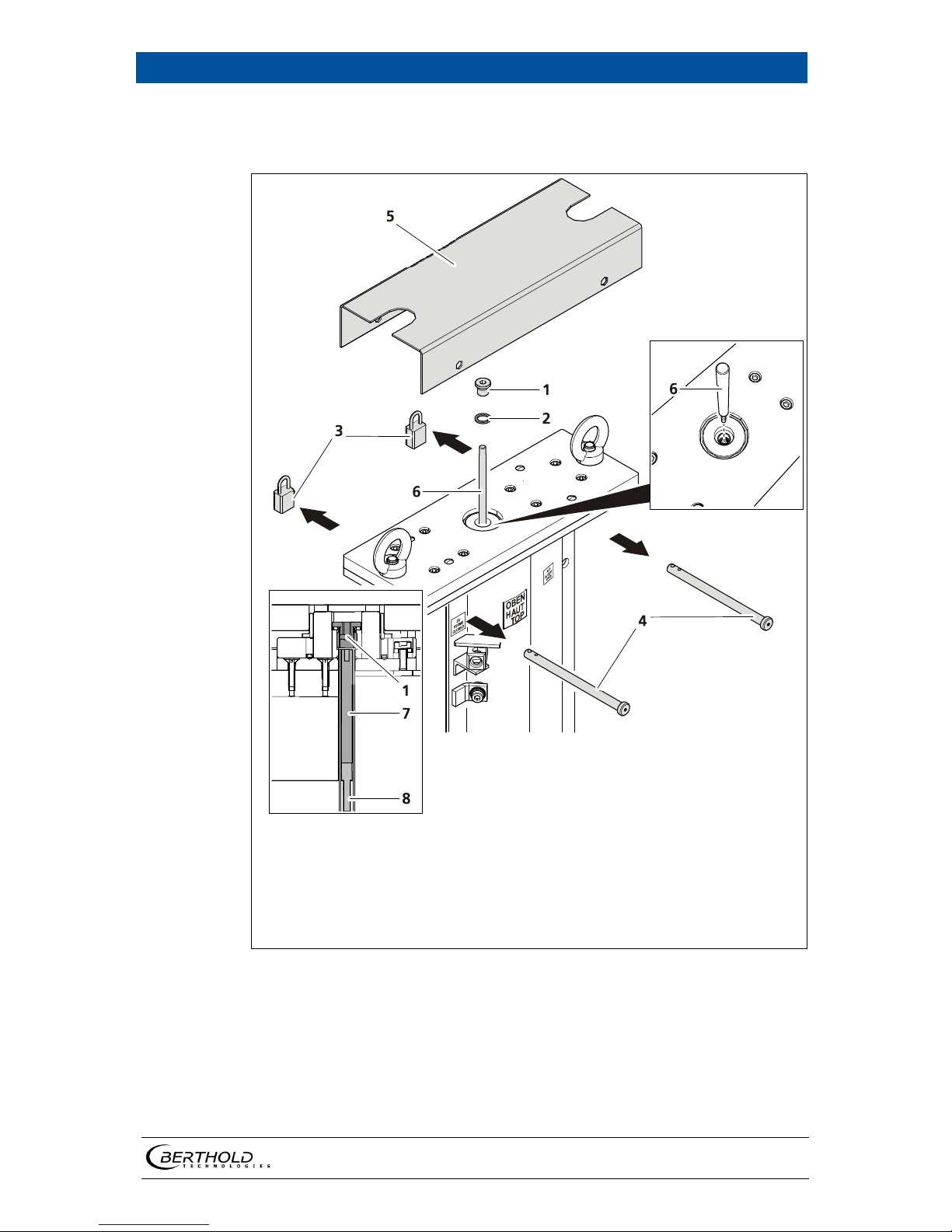

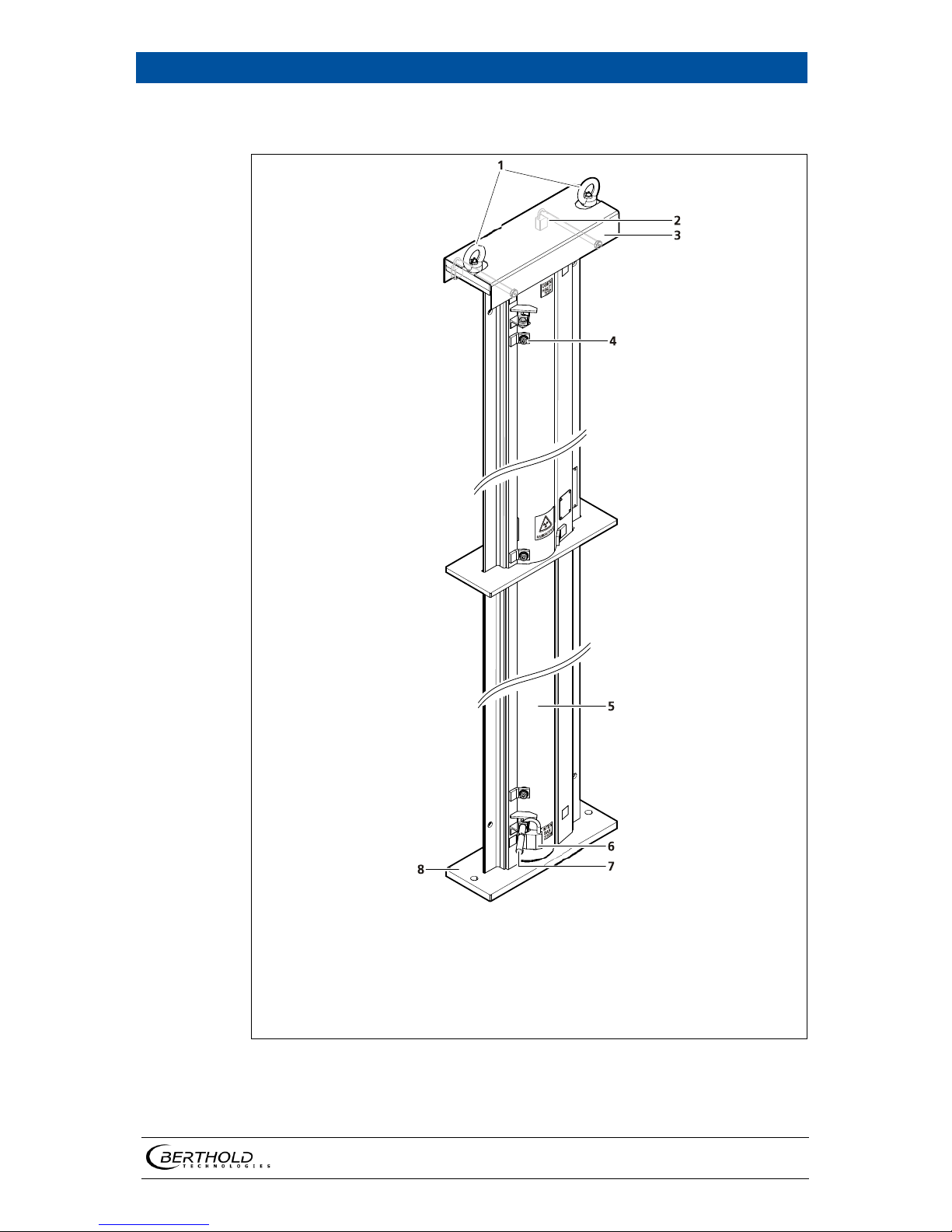

3.1 View
1
2
3
4
5
6
7
8
Ring nuts
Fastening bolts with padlock
Locking plate
Transport lock
Locking cylinder
Lever rod (auxiliary equipment used for turning the locking cylinder)
Padlock (secures the closed shield against rotation)
Mounting base
Fig.
2 Basic layout
3 System Description Rod source shields LB 8300
18
64217BA2 Rev. 00, 10/2017
1
2
3
4
Source holder
Source
Radiation beam outlet channel
Locking cylinder with shield material
Fig.
3 Sectional view (position CLOSE)
Rod source shields LB 8300 4 Installation
64217BA2 Rev. 00, 10/2017
19
4 Installation
4.1 Safety Instructions
j
WARNING
Danger of injury by falling loads
Never stand underneath a lifted or suspended load, keep at a safe
distance.
Only use tested sling gear components appropriate for the transport
weight.
Exclusively use the provided fixing possibilities (lifting brackets) for
attaching the sling gear.
Observe the abient temperature during installation (4.2 Ambient
conditions during assembly)
Observe the marking for the centre of gravity on the outer packaging, if
applicable.
Wear head protection and safety shoes.
j
WARNING
Danger of injury caused by heavy and bulky system components
Heavy and bulky system components should only be handled using aids
and by a at least 2 persons.
Observe the guidelines for safe handling of heavy loads.
Ensure stability and use the provided fixing possibilities.
j
CAUTION
Danger caused by ionising radiation
Shields usually contain radioactive sources. An increased exposure to radiation
may lead to damage to health.
Consult the radiation safety officer responsible for your company.
Transport the source exclusively inside the closed and secured shield.
IMPORTANT
The applicable national regulations of the country of use have to be observed.
4 Installation Rod source shields LB 8300
20
64217BA2 Rev. 00, 10/2017
4.2 Ambient conditions during assembly
The assembly is made by two ring bolts (Fig. 2, item 1). The minimum permissible
temperature during assembly is
-20 °C.
4.3 Intermediate storage of the source
If the source must be intermediately stored at the site of use between delivery
and installation, please observe the following notes:
Store the source exclusively inside a closed and secured shield.
Store the shield in a lockable and properly marked room. The storage room
must comply with the national requirements regarding the storage of
radioactive substances.
Accessible areas of increased radiation exposure must be marked and closed
off, if required.
4.4 Preparing the Installation
IMPORTANT
Size and position of the applicable measuring range are specified in the
project planning phase and determined by means of drawings, sketches or
written notes. During installation, these specifications must be strictly
observed since deviations may lead to malfunction of the measuring system.
To avoid an unnecessary exposure to radiation, the handling period of the source
(even if it is shielded) must be kept as short as possible during installation. It is
therefore recommended to perform the following steps prior to delivery of the
source:
• Installation planning (incl. estimation of radiation exposure)
• Instruction of the employees
• Organising and cleaning the installation site
• Preparing the required tools and hoisting devices
• Removing all obstacles which might hinder the installation of the shield or the
source
4.5 Checking the delivery
1. Check the delivery for completeness using the packing list.
2. Clean the parts, if required
3. In the case of damage, immediately notify the forwarding agent and the
manufacturer.
Rod source shields LB 8300 4 Installation
64217BA2 Rev. 00, 10/2017
21
4.6 Installation of the shield
To avoid unnecessary exposure to radiation, install the shield as final system
component.

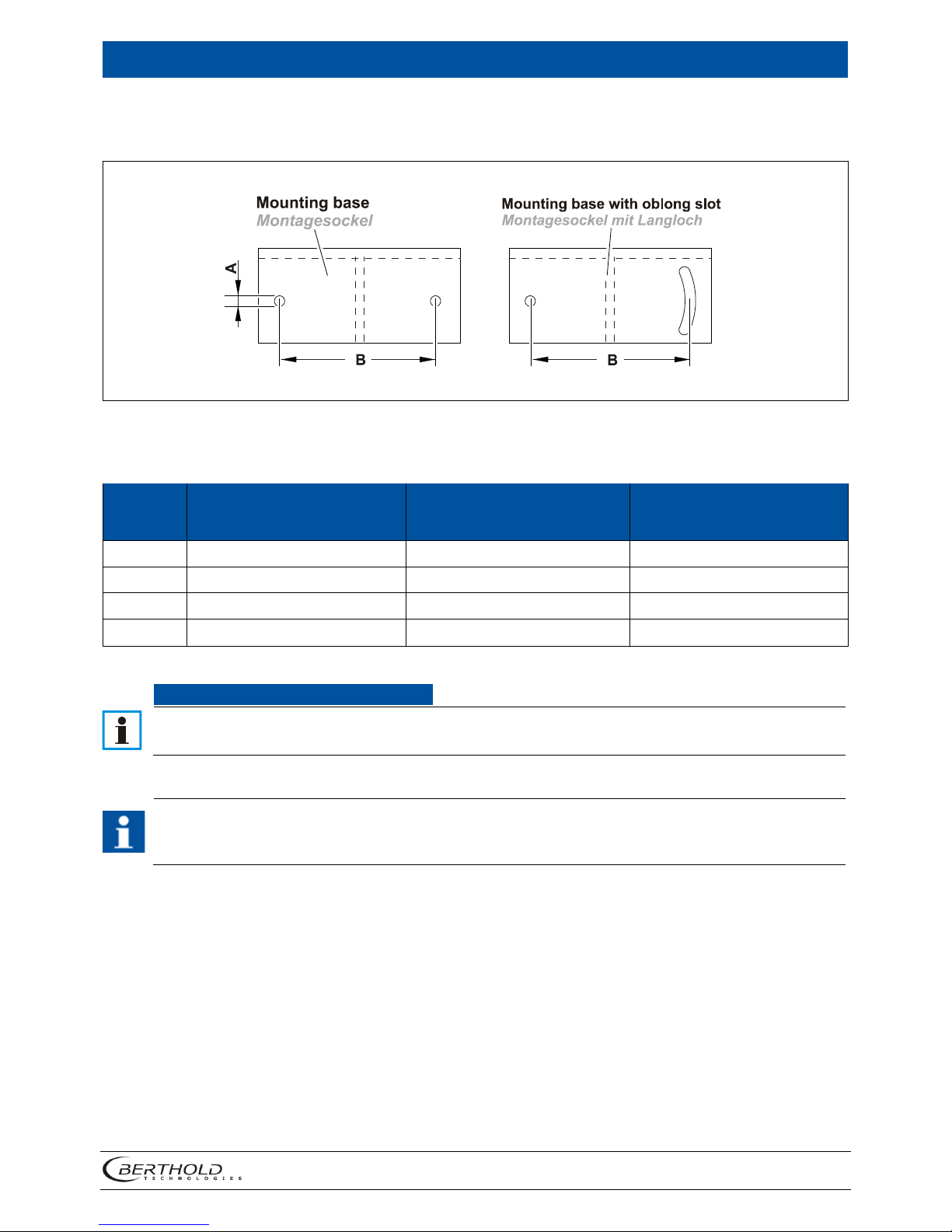

The shield is placed on a mounting base at the measuring point and fixed. The
shield on the container is secured against tilting by means of a tipping protection.
j
WARNING
Risk of injury due to tilting shield
There is a risk of injury to persons when working on non-fixed shields.
Always secure upright shields against falling by fasten lifting means at the
ring nuts.
IMPORTANT
The specification of the mounting base and the tilt safety device are
determined during the project planning and defined by drawings, sketches or
written instructions.
These instructions must be observed strictly during assembly.
Tip
If the shield contains a radioactive source, the measurement of the
background count rate of the detector should take place before the shield is
installed.
4 Installation Rod source shields LB 8300
22
64217BA2 Rev. 00, 10/2017
1
2
3
CLOSED position
Padlock
Transport securing device

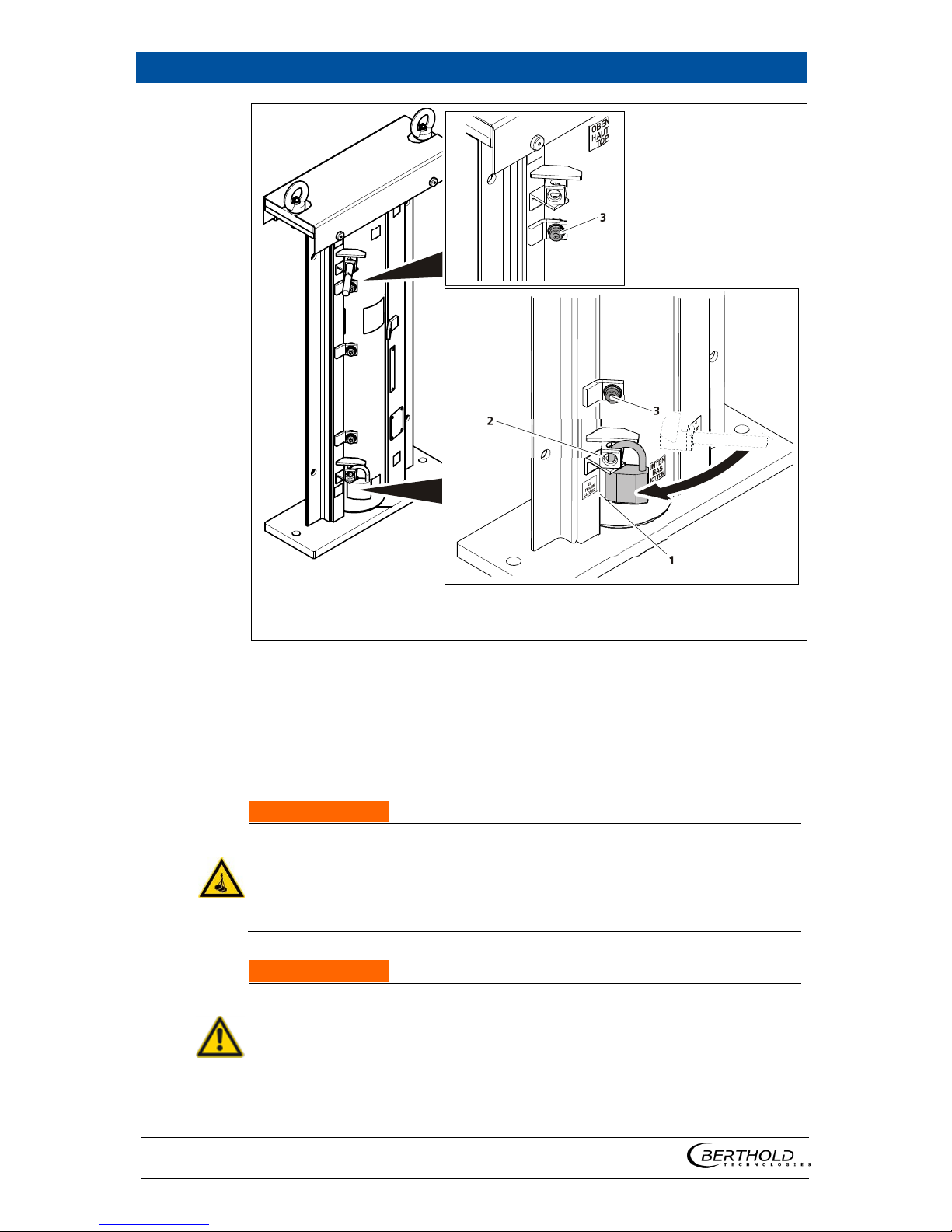

Fig.
4 Shield closed (CLOSED position)
1. Ensure that the shield has been closed and secured
the locking cylinder is set to the CLOSED position
the transport securing device and, if applicable, the padlock are installed
j
WARNING
Danger of injury by falling loads
Falling loads can endanger people.
Never stand underneath a lifted or suspended load, keep at a safe
distance.
Cordon off the danger zone with barrier tape.
j
WARNING
Danger of crushing by moving the shields
Due to the high weight of the shield, there is a risk of injury.
Heavy and bulky system components should only be handled using aids
and by a at least 2 persons.
Do not reach between the shield and the container or mounting base.
Rod source shields LB 8300 4 Installation
64217BA2 Rev. 00, 10/2017
23
1
2
3
Ring nuts
Container
Mounting base
Fig.

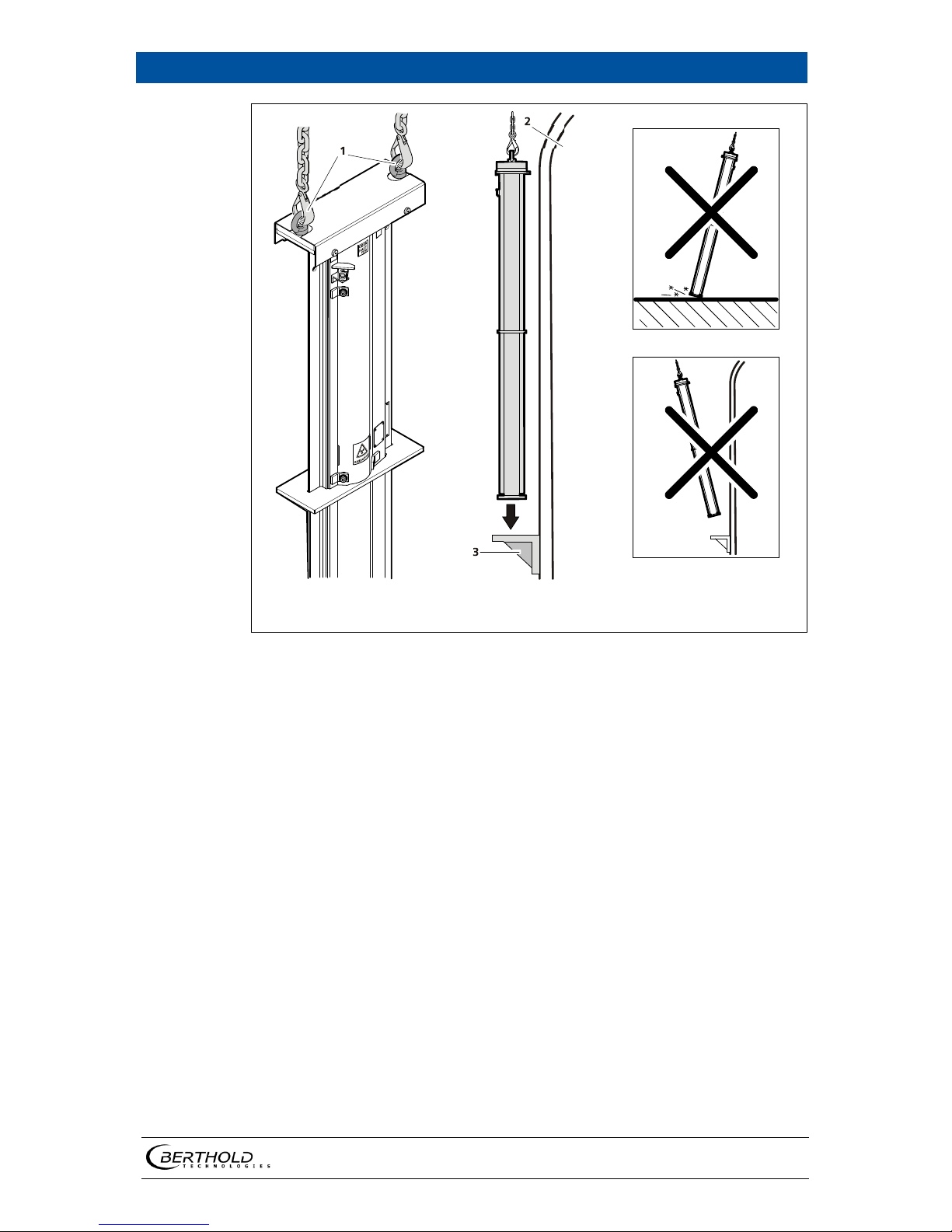

5 lift and lower the shield

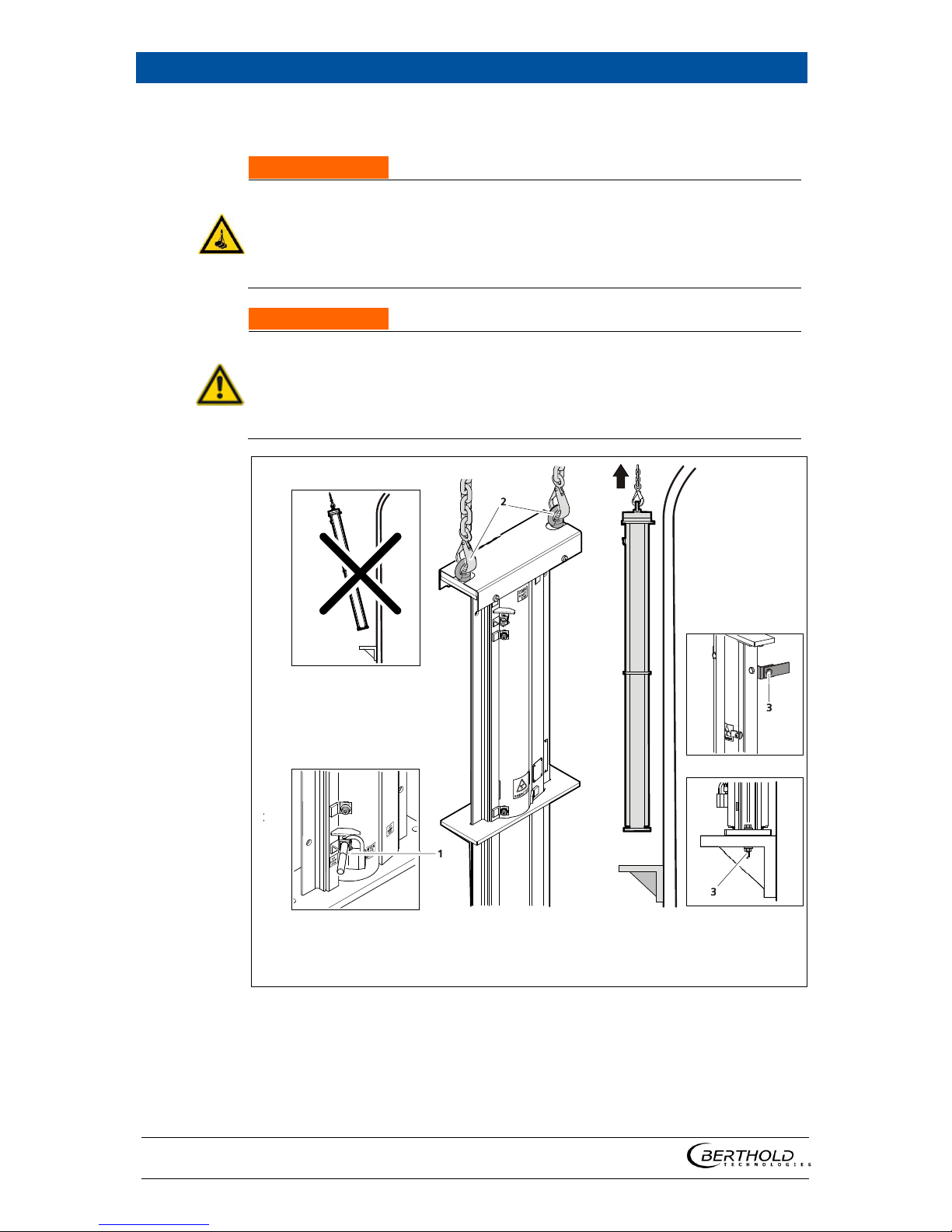

2. Fasten the shield with sufficiently dimensioned lifting straps at the ring bolts
(
Fig. 5, item 1).
3. Raise the shield and place it vertically in the mounting position.
4. Carefully place the shield on the mounting base (Fig. 5, item 3).
4 Installation Rod source shields LB 8300
24
64217BA2 Rev. 00, 10/2017
1
2
3
4
A
Shield
Mounting base
Screw connection
Tilt protection
Distance to container wall
Fig.
6 Installation at containers
j
WARNING
Incorrect assembly may result in accidents.
Incorrect selection of the fastening elements endangers the stability of the
shield.
Use correctly sized and approved mounting elements (mounting base, anti-
tilt, screw connections, screw locks).
5. Screw the shield (Fig. 6, item 1) to the mounting base (Fig. 6, item 2). The
plant operator is responsible for selecting the connection elements (Fig. 6,
item 3), the screw locking and the tightening torque.
6. Secure the shield to the container wall with the anti-tilt device on both sides
(
Fig. 6, Pos.4). The plant operator is responsible for selecting the connection
elements (Fig. 6, item 3), the screw locking and the tightening torque.
NOTICE
In the design of the shield it was assumed that the shield is mounted with a
distance A of 20 mm, see Fig. 6.
Rod source shields LB 8300 4 Installation
64217BA2 Rev. 00, 10/2017
25
NOTICE

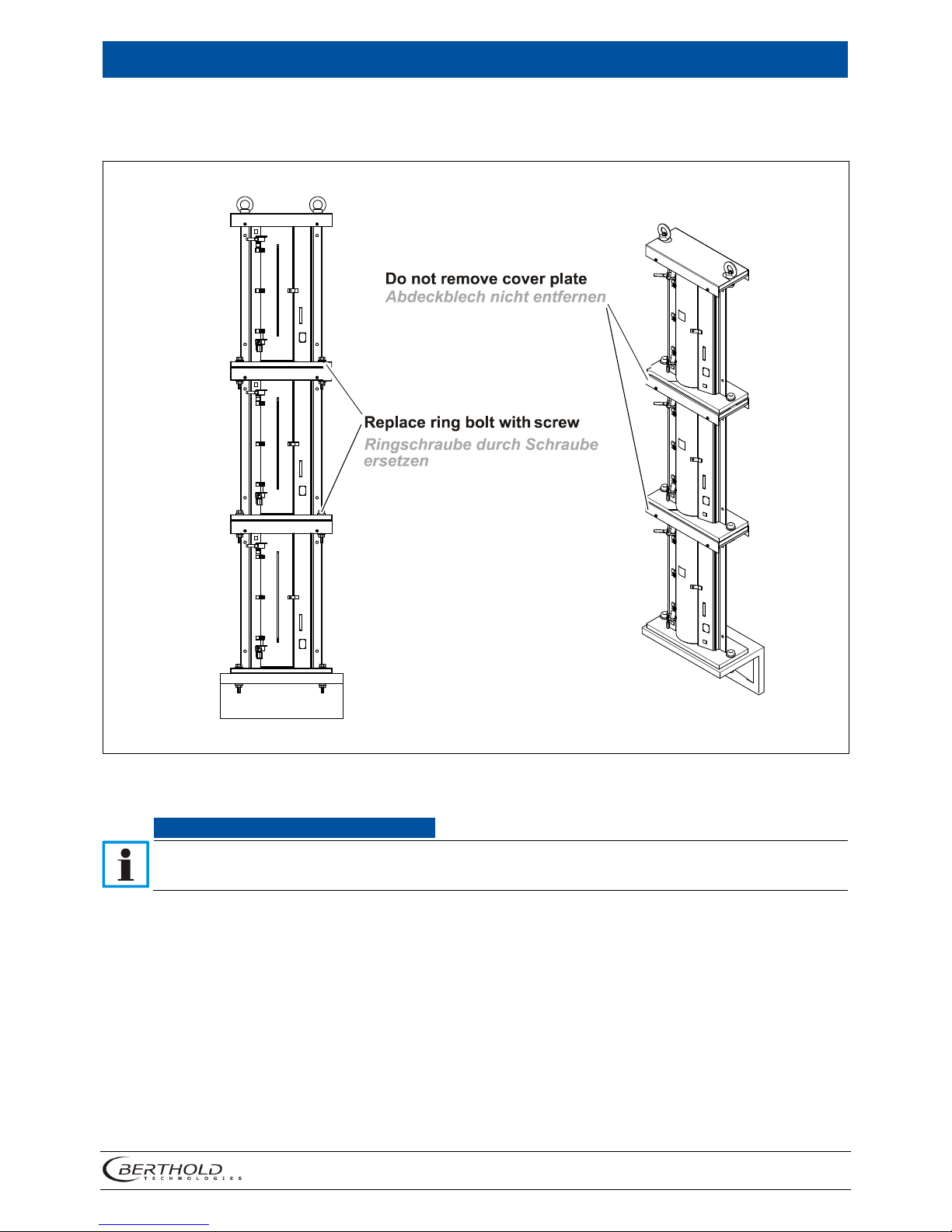

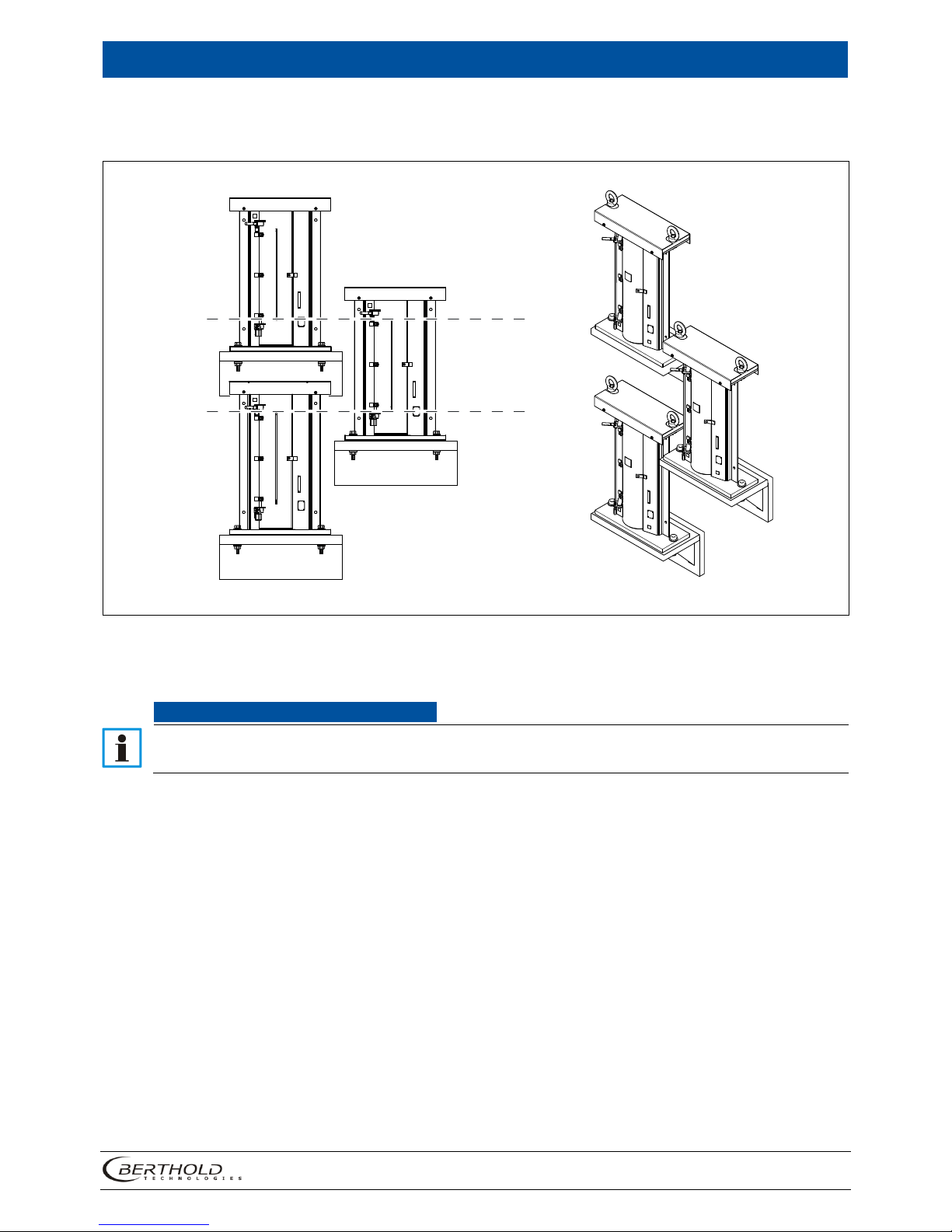

Shields can be stacked or offset. Please refer to the "Mounting variants" in
appendix technical information.
4 Installation Rod source shields LB 8300
26
64217BA2 Rev. 00, 10/2017
4.7 Marking
The warning sign (Fig. 7, item 1) indicates the beginning of the control area as
long as the control area is outside the shield.
If the control area is within the shield, then the radiation warning sign (Fig. 7,
item 2) already applied to the shield is sufficient. Fig. 7 shows an exemplary
identification of the control area according to German law. Please observe the
local legislation of the country of employment.

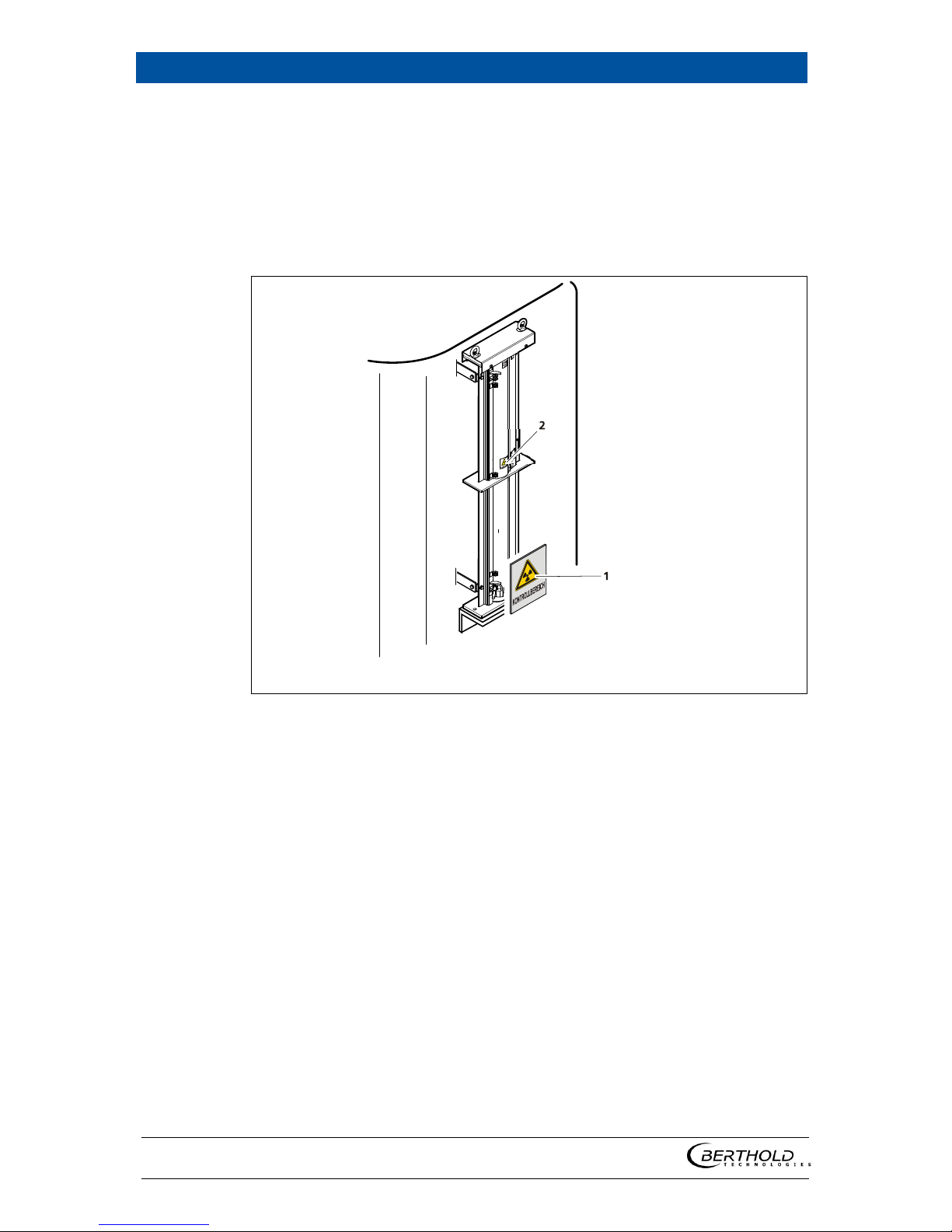

1 2 Warning sign control area
Warning sign rod source shield
Fig
. 7 Example marking
Rod source shields LB 8300 5 Usage
64217BA2 Rev. 00, 10/2017
27
5 Usage
5.1 Safety instructions
j
CAUTION
Danger caused by nuclear radiation
Shields usually contain radioactive sources. An increased exposure to radiation
may lead to damage to health.
Consult the radiation safety officer responsible for your company.
Ensure that the shield does not show any signs of damage or functional
limitations.
Please observe the instructions on regular maintenance.
5.2 Opening and closing the locking mechanism
The locking mechanism is used for opening and closing the beam path.
IMPORTANT
During transport and installation of the shield, the locking cylinder must be
set to CLOSED and be secured.
IMPORTANT
The locking mechanism may only be operated by persons who are at least
employees with general knowledge and were instructed by an expert or
authorized person. If the shield includes a radioactive source, the responsible
radiation safety officer must be consulted.
Opening the locking mechanism:
1. If applicable, remove the padlock.
2. Remove the transport lock.
3. Turn the locking cylinder to the OPEN position with the help of the lever rod.
4. Retain the locking cylinder in the new position using fixing screws.
The radiation beam outlet is now open.
5 Usage Rod source shields LB 8300
28
64217BA2 Rev. 00, 10/2017
1
2
3
Fixing screws

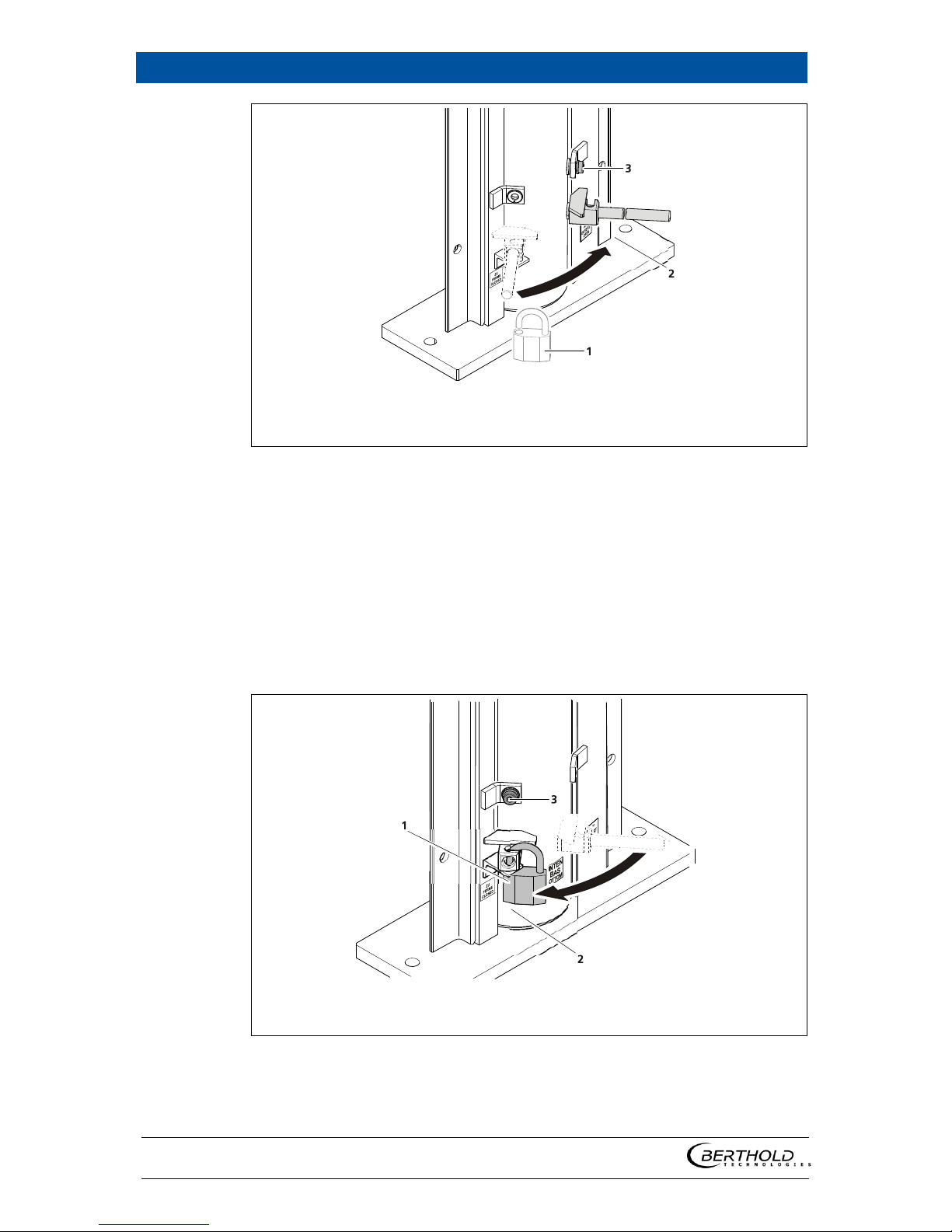

OPEN position
fixing screws
Fig.
8 Shield open (OPEN position)
Closing the locking mechanism:
1. Remove the fixing screws.
2. Turn the locking cylinder to the CLOSED position using the lever rod.
3. Retain the locking cylinder in the new position using fixing screws and/or a
padlock.
The radiation beam outlet channel is now closed.
1
2
3
CLOSED position
Padlock

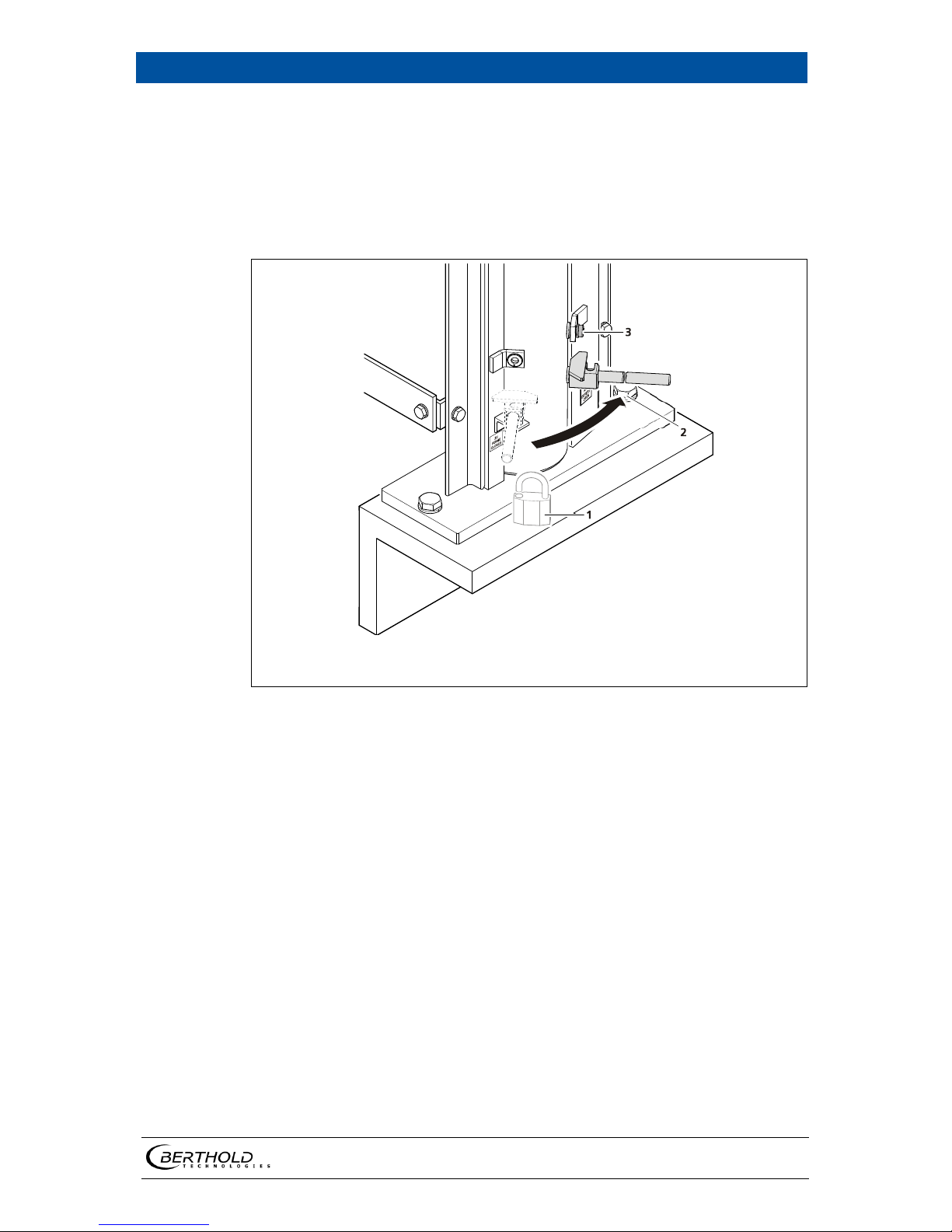

Transport lock
Fig.
9 Shield closed (CLOSED position)
Rod source shields LB 8300 5 Usage
64217BA2 Rev. 00, 10/2017
29
5.3 Commissioning
To commission the shield after installation, proceed as follows:
1. Remove the transport lock.
2. If applicable, remove the padlock.
1
2
3
Padlock
OPEN position
Fixing screws
Fig.
10 Shield open (OPEN position)
3. To open the shield directly before commissioning the measuring system: Turn
the locking cylinder to the OPEN position.
4. Retain the locking cylinder in the new position using fixing screws.
6 Maintenance and Repair Rod source shields LB 8300
30
64217BA2 Rev. 00, 10/2017
6 Maintenance and Repair
6.1 Safety instructions
j
CAUTION
Danger caused by nuclear radiation
Shields usually contain radioactive sources. An increased exposure to radiation
may lead to damage to health.
Consult the radiation safety officer responsible for your company.
Ensure that no one is in the radiation beam during operation.
Longer repair and maintenance work on shields must not be carried out
with the source installed. If a removal of the source is not possible, please
contact the manufacturer.
IMPORTANT
The applicable national regulations of the country of use have to be observed.
IMPORTANT
Document the results of the tests you conducted using the check list in the
appendix. This documentation as well as the seal test certificates must be kept
during the entire life cycle of the shield.
NOTICE
Adjust the intervals of the visual inspection and the functional check to the
ambient conditions. If the ambient conditions are especially rough, the
atmosphere is corrosive and / or there is a serious threat of contamination, the
intervals should be shortened accordingly.
NOTICE
If damage affecting the secure function of the shield is detected during
handling, maintenance or regular checks, the damage must be repaired after
consultation with BERTHOLD TECHNOLOGIES GmbH & Co KG before the
system is used again. Only spare parts specified by
BERTHOLD TECHNOLOGIES GmbH & Co. KG may be used and required repair
work may be carried out exclusively by authorized persons.
Rod source shields LB 8300 6 Maintenance and Repair
64217BA2 Rev. 00, 10/2017
31
6.2 Visual inspection
The visual inspection must be carried out by persons who are at least employees
with general knowledge at the following intervals:
• before initial commissioning
• with every repair that may be required
• regularly at least every six months
• before dispatch
When determining the intervals for the visual inspection, the following
conditions are to be considered:
• ambient conditions (outdoors, rain, sunlight, wind)
• operating conditions (degree of utilisation of the plant, misuse)
Performing the visual inspection:
1. Check the shield for obvious damage (dents, cracks, holes etc.) and corrosion.
2. Only before dispatch: Check if the shield is in closed position and if the
padlock as well as the transport securing device are installed.
Tip
If there is any doubt regarding the actual position of the locking mechanism:
Check the dose rate at the shield using a dose rate measuring device. If the
shield is closed, the dose rate in the direction of the beam may not be
significantly higher than at other parts of the shield.
3. If any defects are identified during visual inspection, inform the radiation
safety officer who will initiate the measures required for repairing the
defects.
For further information, please contact the manufacturer.
6.3 Leak test
Depending on the supervisory authority responsible for the area where the
source is used, regular leak tests must be carried out. These tests are to be carried
out at the discretion of the competent supervisory authority either by an
authorized expert or by the manufacturer. For this test, the corresponding source
documentation must be made available.
6 Maintenance and Repair Rod source shields LB 8300
32
64217BA2 Rev. 00, 10/2017
Required documents
• Inventory list of the sources to be tested including indication of previous leak
tests.
•
Source certificate containing the following information: Nuclide, activity,
procurement date, physical/chemical form, description of the enclosure and
type of sealing, resistance against mechanical and thermal influences or
classification of the source design. The source certificate is provided together
with the source.
• Information on the location, application as well as on the maximum customary
mechanical and thermal strains.
• If the source is installed in a device, a drawing is to be provided. In the
drawing, the position of the source and of all parts intended to protect the
source against external influences must be clearly indicated. Recommendations
regarding the most appropriate test method should be given, e.g. by
indicating alternative test areas. If required, recommendations should be given
on how the necessary test can be conducted without affecting the
functionality of the system or device.
Alternative test areas:
Alternative test areas are areas of a shield which will most likely be contaminated
if a source is leaking.

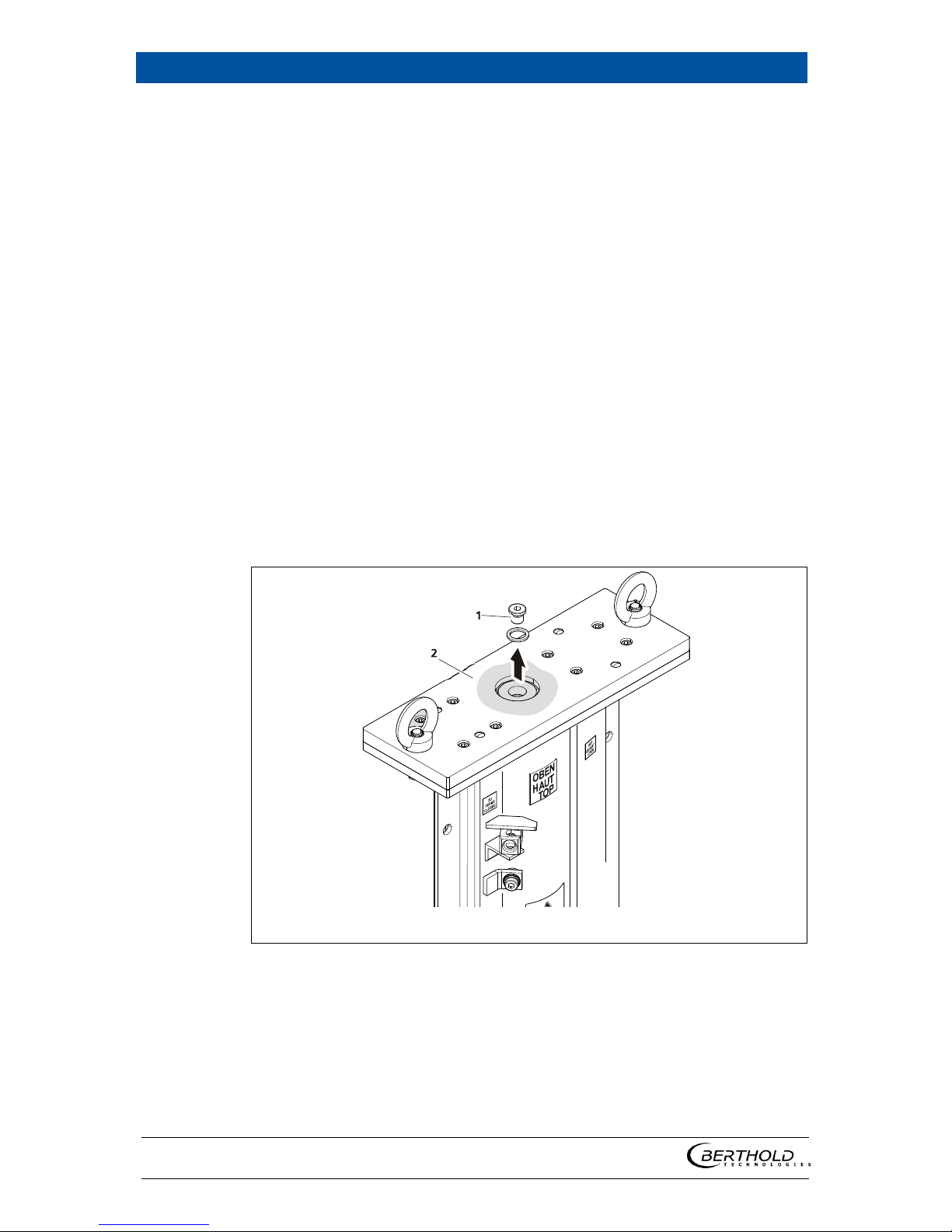

1 2 Screwed sealing plug
Alternative test area
Fig.
11 Alternative test area
The following alternative test area of the shield can be used:
• the area marked in grey in the figure above
1. Remove the guard plate and the screwed sealing plug (1) of the source
holder.
2. Conduct the contamination test at the alternative test area (2).
Rod source shields LB 8300 6 Maintenance and Repair
64217BA2 Rev. 00, 10/2017
33
6.4 Checking the locking mechanism
The functional test of the locking mechanism must be carried out by a person
who is at least an employee with general knowledge. We recommend conducting
the test of the locking mechanism at the same intervals as the visual inspection if
the operating condition of the system allows.
1. Ensure that no employees are present in the direction of the radiation beam
outlet. Otherwise, these persons will be exposed to the radiation beam when
the locking mechanism is opened.
2. Open and close the locking mechanisms several times (see chapter 5) while
observing the measuring signal of the corresponding measurement system.
The locking mechanism works properly if the measured value approximately
corresponds to the maximum value when the locking mechanism is closed
(CLOSED position).
Tip
Alternatively, you can measure the dose rate in the beam path. In this case,
the dose rate in the CLOSED position must be clearly lower than in the OPEN
position. At the same time, the dose rate in the CLOSED position may not be
significantly higher than at other parts of the shield.
3. Return the locking cylinder to its starting position (OPEN position or CLOSED
position).
4. If applicable, reinstall the fixing screws and/or the padlock.
5. Immediately report any malfunction or stiffness of the locking mechanism to
the competent radiation safety officer.
6 Maintenance and Repair Rod source shields LB 8300
34
64217BA2 Rev. 00, 10/2017
6.5 Removing and installing the source
Before conducting extended maintenance work at the shield, you have to remove
the source. After the maintenance work is finished, you can reinstall the source.
This does require the direct handling of the unshielded source.
You must clarify with the responsible supervisory authority in advance whether
your license for handling radioactive substances comprises handling unshielded
sources.
In any case, the source may only be installed/removed by authorised persons. The
competent radiation safety officer is responsible for planning and monitoring the
work.
NOTICE
In order to keep the exposure to radiation during the removal / installation of
the source as low as possible, all persons involved should familiarise
themselves with the exact procedure in advance.
NOTICE
Only remove / install the source in areas with closed floors. Any apertures
which are larger than the external diameter of the source (7 mm) are to be
covered before commencing any work.
6.5.1 Removing the source
To install the source, the following tools are required:
• pliers to securely grip the source
• 12 mm hexagon wrench to unscrew the screwed sealing plug of the source
holder
• M3 threaded rod (approx. 50 mm)
Rod source shields LB 8300 6 Maintenance and Repair
64217BA2 Rev. 00, 10/2017
35
To remove the source, proceed as follows:
1. Prepare the transport shield (Fig. 13, item 4) for the source, remove the cover
(Fig. 13, item 6) and the locking plug (Fig. 13, item 5).
1
2
3
4
5
6
7
8
Screwed sealing plug
O-ring
Padlock
Fastening bolts
Locking plate
Threaded rod
Holder extension
Source
Fig.
12 Removing the source from the shield
2. Open the padlocks (Fig. 12, item 3) and remove the fastening bolts (Fig. 12,
item 4)
3. Remove the locking plate (Fig. 12, item 5).
You can now see the screwed sealing plug of the source holder.
4. Loosen the screwed sealing plug (Fig. 12, item 1).
6 Maintenance and Repair Rod source shields LB 8300
36
64217BA2 Rev. 00, 10/2017
5. Remove the O-ring (Fig. 12, item 2).
j
CAUTION
Danger caused by ionising radiation
When the source is removed, the unshielded source must be handled at short
time. An increased exposure to radiation may lead to damage to health.
Hold the source only with pliers.
Keep the source far from the body.
Ensure that no persons are in the field of radiation during the work.
1
2
3
4
5
6
Threaded rod
Source holder
Source
Protective cover
Locking plug transport shield
Cover transport shield

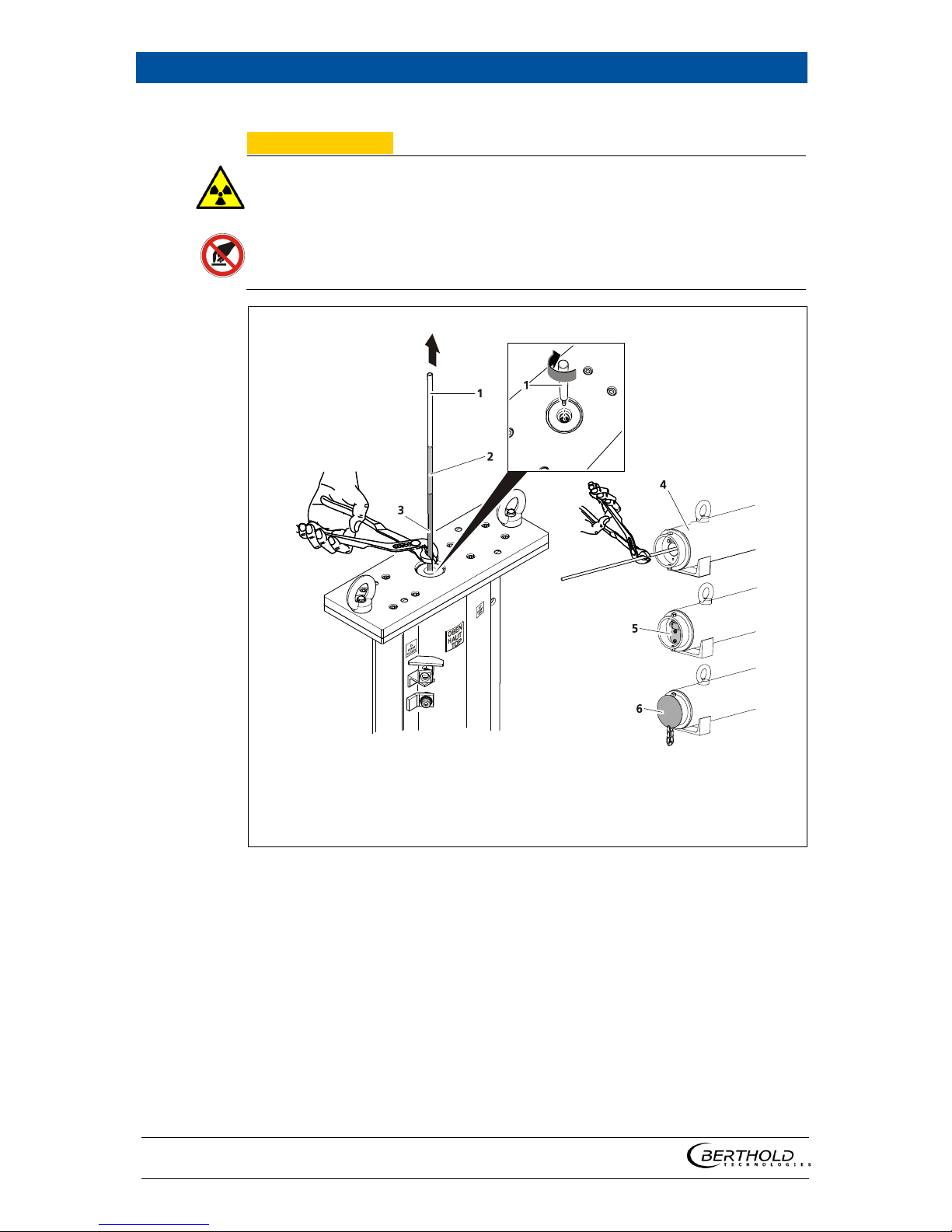

Fig.
13 Remove source out of shield
6. Screw the threaded rod (Fig. 13, item 1) into the thread of the source holder
(Fig. 13, item 2).
7. Pull the source out of the shield at the threaded rod. Hold the source (Fig.
13, item 3) with pliers.
8. Insert the source as quickly as possible into the provided and opened
transport shield (
Fig. 13, item.4) and close the locking plug (Fig. 13, item 5)
and the cover (Fig. 13, item 6).
Rod source shields LB 8300 6 Maintenance and Repair
64217BA2 Rev. 00, 10/2017
37
6.5.2 Installing the source
To install the source, the following tools are required:
• pliers to securely grip the source
• 12 mm hexagon wrench to unscrew the screwed sealing plug of the source
holder
• M3 threaded rod (approx. 50 mm)
To install the source, proceed as follows:
1. If necessary, remove the padlocks (Fig. 14, Pos.3), the fastening bolts (Fig. 14,
Pos.4) and remove the locking plate (Fig. 14, Pos.5).
2. Loosen the screwed sealing plug (Fig. 14, item 1).
3. Remove the O-ring (Fig. 14, Pos.2).
4. Prepare the transport shield with the source to be installed and remove the
cover of the transport shield (
Fig. 14, Pos.6).
5. Remove the locking plug (Fig. 14, Pos. 7) to open the transport shield.
1
2
3
4
5
6
7
Screwed sealing plug
Transport shield
Padlock
Fastening bolt
Locking plate
Cover transport shield
Locking plug transport shield

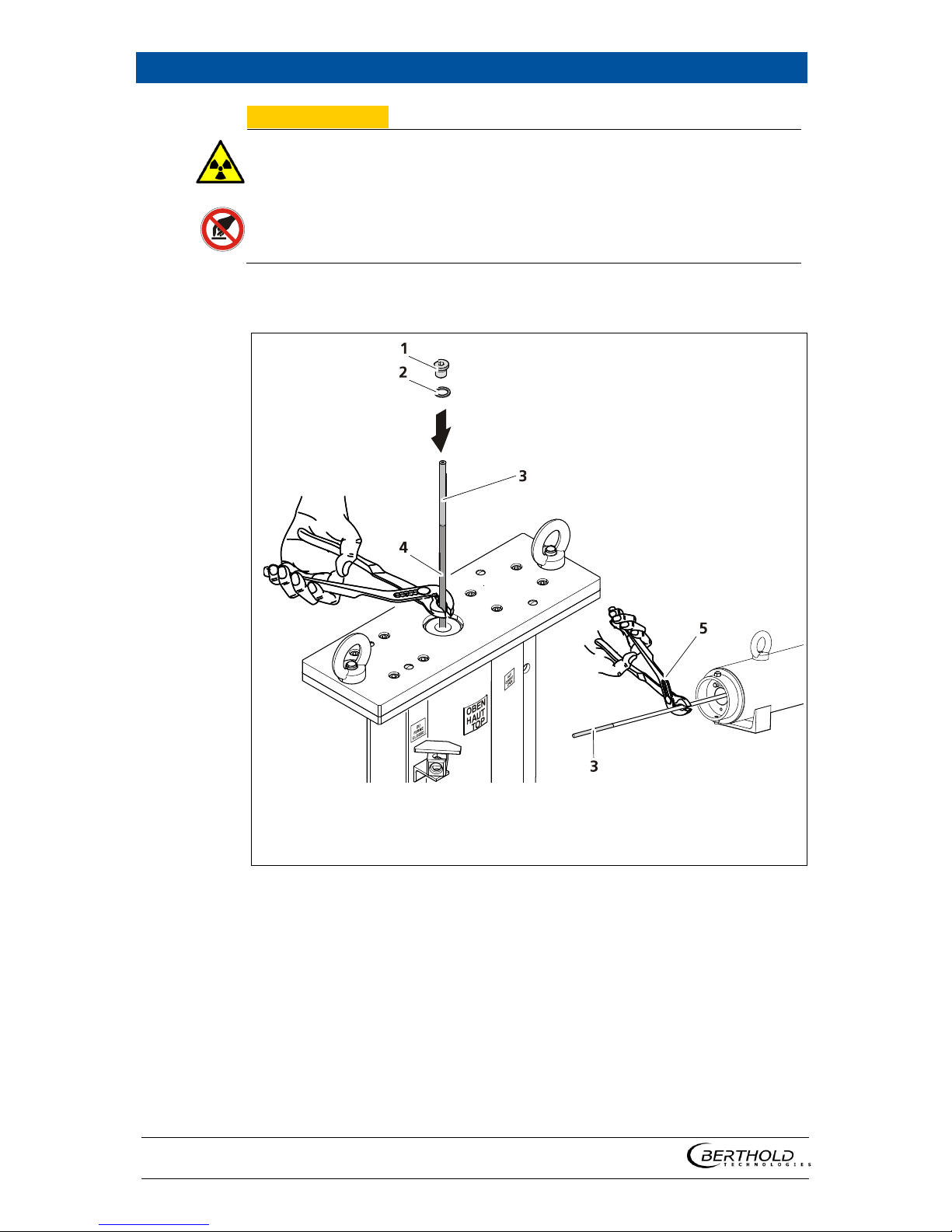

Fig.
14 Prepare the installation
6 Maintenance and Repair Rod source shields LB 8300
38
64217BA2 Rev. 00, 10/2017
j
CAUTION
Danger caused by ionising radiation
When the source is removed, the unshielded source must be handled at short
time. An increased exposure to radiation may lead to damage to health.
Hold the source only with pliers.
Keep the source far from the body.
Ensure that no persons are in the field of radiation during the work.
6. Grasp the source holder (Fig. 15, item 3) and pull the radiator out of the
transport shield with the forceps (Fig. 15, item 5).
1
2
3
4
5
Screwed sealing plug
O-Ring
Source holder
Source
Handling with plier
Fig.
15 Installing the source in the shield
7. Insert the source as soon as possible into the shield.
8. Attach the O-ring (Fig. 15, item 2) and tighten the Screwed sealing plug (Fig.
15, item 1).
9. Place the locking plate (Fig. 14, Pos.5) and secure locking plate by fastening
bolts (Fig. 14, item 4) and attach padlocks (Fig. 14, item 3).
10. Turn the locking cylinder to the starting position (position OPEN or position
CLOSED).
11. Replace the fixing screws and the padlock.
Rod source shields LB 8300 6 Maintenance and Repair
64217BA2 Rev. 00, 10/2017
39
6.6 Source replacement
When to replace the source
Generally, the radioactive source used enables a service life between 5 and 10
years. A replacement of the source is only required if the statistical fluctuations of
the output signal are inadmissibly large and compensation by increasing the time
constant is no longer possible, e.g. for control-technical reasons.
Manufacturer’s number for reordering
When reordering, always indicate the manufacturer’s number of the source used
since the new source must correspond to the original version.
The manufacturer’s number can be found on the type plate of the shield as well
as on the individual seal test certificate of each source.
6.6.1 Replacing the source
Replacing the source does require the direct handling of the unshielded source.
You must clarify with the responsible supervisory authority in advance whether
your license for handling radioactive substances comprises handling unshielded
sources.
In any case, the source may only be installed/removed by authorised persons. The
competent radiation safety officer is responsible for planning and monitoring the
work.
NOTICE
In order to keep the exposure to radiation during the removal / installation of
the source as low as possible, all persons involved should familiarise
themselves with the exact procedure in advance.
NOTICE
Only remove / install the source in areas with closed floors. Any apertures
which are larger than the external diameter of the source (14 mm) are to be
covered before commencing any work.
To replace the source, the following tools are required:
• pliers to securely grip the source
• 12 mm hexagon wrench to unscrew the screwed sealing plug of the source
holder
• M3 threaded rod (approx. 50 mm)
6 Maintenance and Repair Rod source shields LB 8300
40
64217BA2 Rev. 00, 10/2017
To replace the source, proceed as follows:
1. Prepare the transport shield and open it.
2. Remove the old source from the shield and insert the old source in the
transport shield, see chapter 6.5.1.
3. Check the shield for damage and wear and repair it if required
(see chapter 6.2).
4. Remove the type plate of the old source from the shield and rivet on the
new type plate.
5. Install the new source in the shield, see chapter 6.5.2.
Rod source shields LB 8300 7 Decommissioning
64217BA2 Rev. 00, 10/2017
41
7 Decommissioning
7.1 Safety instructions
j
WARNING
Danger of injury by falling loads
Never stand underneath a lifted or suspended load, keep at a safe
distance.
Only use tested sling gear components appropriate for the transport
weight.
Exclusively use the provided fixing possibilities (lifting brackets) for
attaching the sling gear.
Wear head protection and safety shoes.
j
CAUTION
Danger of injury caused by heavy and bulky system components
Heavy and bulky system components should only be handled using aids
and by at least 2 persons.
Observe the guidelines for safe handling of heavy loads.
Ensure stability and use the provided fixing possibilities.
j
CAUTION
Danger caused by nuclear radiation
Shields usually contain radioactive sources. An increased exposure to radiation
may lead to damage to health.
Consult the radiation safety officer responsible for your company.
Transport the source exclusively inside the closed and secured shield.
IMPORTANT
The applicable national regulations of the country of use have to be observed.
7 Decommissioning Rod source shields LB 8300
42
64217BA2 Rev. 00, 10/2017
7.2 Disassemble the shield
j
WARNING
Danger of injury by falling loads
Falling loads can endanger people.
Never stand underneath a lifted or suspended load, keep at a safe
distance.
Cordon off the danger zone with barrier tape.
j
WARNING
Danger of crushing by moving the shields
Due to the high weight of the shield, there is a risk of injury.
Heavy and bulky system components should only be handled using aids
and by a at least 2 persons.
Do not reach between the shield and the container or mounting base.
1
2
3
Position CLOSED
Ring nuts
Screw connection
Fig
. 16 Dissasemble the shield
1. Ensure that the shield has been closed and secured.
the locking cylinder is set to the CLOSED position
the transport securing device and, if applicable, the padlock are installed.
Rod source shields LB 8300 7 Decommissioning
64217BA2 Rev. 00, 10/2017
43
2. Fasten the shield with sufficiently dimensioned lifting straps at the ring bolts
(
Fig. 16, item 2).
3. Remove all screw connections (Fig. 16, item 3).
4. Raise and set down the shield vertically.
7.3 Disposal of radioactive substances
NOTICE
Should you have any questions regarding the transportation or disposal of
radioactive substances, please contact the manufacturer.
Generally, each country has a depot where radioactive material is accepted and
can be disposed of.
7.4 Shipment of radioactive substances
If you wish to dispatch radioactive material, you must observe the international
regulations for the transport of dangerous goods and for radiation protection as
well as any applicable national regulations. It is the full responsibility of the
sender to comply with these regulations.
Please also note the following:
• Dose rate at the surface of the packaging must be lower than 2000 μSv/h.
• Dose rate at a distance of 1m from the surface of the packaging must be lower
than 100 μSv/h.
• The packaging must be marked with a reference for dangerous goods in
accordance with the applicable regulations with the UN number.
• Furthermore, transport documents with the correct description of the content
as well as an accident procedures sheet according to the ADR regulations are
required.
o With regard to transport by air, the IATA DGR.
o IAEA as the basis for all regulations.
• Packaging must comply with the current ADR regulations (for example
European Agreement concerning the International Carriage of Dangerous
Goods by Road).
• The cargo must be secured in the transport vehicle according to the applicable
national and international regulations.
• Before dispatch, each shield containing a source must be subjected to a visual
inspection by the user (chapter 6.2). The shields may only be dispatched if the
test requirements are met.
• At the time of dispatch, a valid certificate concerning the leakproofness of the
source must be available.
7 Decommissioning Rod source shields LB 8300
44
64217BA2 Rev. 00, 10/2017
Preconditions for returning shields to BERTHOLD
TECHNOLOGIES GmbH & Co. KG
• Radioactive substances and their shields must not be damaged in any way and
a respective, valid seal test certificate must be provided. The seal test
certificate issued before the arrival of the radioactive substances in Germany
may not be older than 6 months.
• If radioactive sources with isotope Am-241 or Cm-244 are returned, the special
form certificate must be attached.
• At all times, any radioactive material sent to us must be sufficiently labelled
with your name and address. If we have sent you a quotation in advance, our
quotation number must be indicated, as well.
• Radioactive substances may only be returned after the respective approval by
BERTHOLD TECHNOLOGIES GmbH & Co. KG. We are pleased to send you a
quotation regarding the costs.
• Radioactive substances must be sent to Bad Wildbad, Germany, carriage paid.
BERTHOLD TECHNOLOGIES GmbH & Co. KG will not assume any costs for
customs clearance or transportation.
• BERTHOLD TECHNOLOGIES GmbH & Co. KG is to be informed about any return
transport in advance. BERTHOLD TECHNOLOGIES GmbH & Co. KG will reject
any radioactive substances sent to Berthold without prior notice. Any storage
costs accrued in such case shall be borne by the sender.
• A notification of the radioactive sources you wish to send to BERTHOLD
TECHNOLOGIES GmbH & Co. KG. We will be pleased to send you the current
version of the message form.
• BERTHOLD TECHNOLOGIES GmbH & Co. KG is to be informed about any return
transport in advance. BERTHOLD TECHNOLOGIES GmbH & Co. KG will reject
any radioactive substances sent to Berthold without prior notice. Any storage
costs accrued in such case shall be borne by the sender.
NOTICE
Observe the observance of the current regulations when taking them out of
operation and disposal.
Rod source shields LB 8300 8 Appendices
64217BA2 Rev. 00, 10/2017
45
8 Appendices
8.1 Check lists for tests
Visual inspection
Requirement
met not met
The shield must be free from damage.
The type plates must be legible.
If there is corrosion, it must not affect
the function and stability of the shield.
Only before dispatch:
The beam path must be closed.
Only before dispatch:
The locking plate must be mounted
and secured.
Only before dispatch:
The transport securing device(s) must
be installed.
Name of inspector: Date: Signature:
8 Appendices Rod source shields LB 8300
46
64217BA2 Rev. 00, 10/2017
Checking the functions of the locking mechanism
Requirement
met not met
It must be possible to move the locking
mechanism completely back and forth
between the two positions (OPEN /
CLOSED).
The measuring signal of the
measurement system must
approximately correspond to the
maximum value in the CLOSED
position.
If alternatively a dose rate
measurement device is used, the dose
rate in the CLOSED position must be
clearly lower than in the OPEN
position.
Only with manual actuation:
It must be possible to turn the locking
cylinder using one hand and the lever
rod.
Only with pneumatic actuation:
The air
pressure required for moving
the locking mechanism may not
exceed the maximum permissible air
pressure (see technical data of the
pneumatic actuators)
Name of inspector: Date: Signature:
© BERTHOLD TECHNOLOGIES GmbH & Co. KG Language: English Printed in Germany
10/2017 Rev. no.: 00
BERTHOLD TECHNOLOGIES GmbH & Co. KG
Calmbacher Str. 22
D-75323 Bad Wildbad
Germany
www.berthold.com ID no. 64217BA2
Modifications due to technical advancement reserved.
Rod source shield LB 8300
Stabstrahlerabschirmung LB 8300
Technical Information
Technische Information
64217TI
Rev. No.: 00, 10/2017
Technical Information - Rod source shield LB 8300
Technische Information – Stabstrahlerabschirmung LB 8300
64217TI Rev. 00, 10/2017
Maximum permissible activities during transport
Zulässige Maximalaktivitäten für den Transport
The activities indicated here are the maximum activities with which the individual shields can be loaded
according to the international dose rate limit for the transport of radioactive substances (2000 µSv/h at the
surface of the package and 100 µSv/h at a distance of one meter from the surface). National dose rate limits
for the operation of measurement systems are usually significantly lower and only allow loading with
significantly lower activities. The national provisions must be complied with.
Bei den hier angegebenen Aktivitäten handelt es sich um die maximalen Aktivitäten, mit denen die jeweiligen
Abschirmungen unter Einhaltung der internationalen Dosisleistungsgrenzwerte für den Transport von
radioaktiven Stoffen (2000 µSv/h an der Oberfläche des Packstückes und 100 µSv/h in einem Meter Abstand
von der Oberfläche) beladen werden dürfen. Nationale Dosisleistungsgrenzwerte für den Betrieb von Messsystemen sind üblicherweise deutlich geringer und erlauben somit nur die Beladung mit deutlich geringeren
Aktivitäten. Die nationalen Bestimmungen sind unbedingt einzuhalten.
Shield model
Abschirmungsmodell
Maximum activity (Co-60)
Maximalaktivität (Co-60)
Maximum activity (Cs-137)
Maximalaktivität (Cs-137)
Variant 100
Variante 100
1,36 MBq/mm 0,037 mCi/mm 48 MBq/mm 1,3 mCi/mm
Variant 150
Variante 150
11,8 MBq/mm 0,32 mCi/mm 1656 MBq/mm 44,7 mCi/mm
Variant 200
Variante 200
67,3 MBq/mm 1,82 mCi/mm 42920 MBq/mm 1160 mCi/mm
Variant 270
Variante 270
473 MBq/mm 12,8 mCi/mm n/a n/a
gerechnete Werte
calculated values
Technical Information - Rod source shield LB 8300
Technische Information – Stabstrahlerabschirmung LB 8300
64217TI Rev. 00, 10/2017
Technical Data
Technische Daten
Variant 100
Variant 100
Variant
Variante
Housing
Gehäuse
Shielding
Abschirmung
Source length
Strahlerlänge
Weight
Gewicht
Operating
temperature
Betriebstemperatur
Coating
Beschichtung
Fire proof
Feuerfest
LB 8300-2051-200-10000-0500
ID: 64217-01
Carbon steel S235
C-Stahl S235
44 mm lead
44 mm Blei
500 mm 97 kg
-40°…+100°C
RAL 1004 2K polyurethane varnish
RAL 1004 2K Polyurethan Lack
No
nein
LB 8300-2051-200-10000-0600
ID: 64217-02
600 mm 110 kg
LB 8300-2051-200-10000-0700
ID: 64217-03
700 mm 123 kg
LB 8300-2051-200-10000-0800
ID: 64217-04
800 mm 136 kg
LB 8300-2051-200-10000-0900
ID: 64217-05
900 mm 150 kg
LB 8300-2051-200-10000-1000
ID: 64217-06
1000 mm 163 kg
LB 8300-2051-200-10000-1100
ID: 64217-07
1100 mm 176 kg
LB 8300-2051-200-10000-1200
ID: 64217-08
1200 mm 189 kg
LB 8300-2051-200-10000-1240
ID: 64217-09
1240 mm 193 kg
Technical Information - Rod source shield LB 8300
Technische Information – Stabstrahlerabschirmung LB 8300
64217TI Rev. 00, 10/2017
Variant 150
Variant 150
Variant
Variante
Housing
Gehäuse
Shielding
Abschirmung
Source length
Strahlerlänge
Weight
Gewicht
Operating
temperature
Betriebstemperatur
Coating
Beschichtung
Fire proof
Feuerfest
LB 8300-4051-200-10000-0500
ID: 64698-01
Carbon steel S235
C-Stahl S235
68 mm lead
68 mm Blei
500 mm 249 kg
-40°…+100°C
RAL 1004 2K polyurethane varnish
RAL 1004 2K Polyurethan Lack
No
nein
LB 8300-4051-200-10000-0600
ID: 64698-02
600 mm 274 kg
LB 8300-4051-200-10000-0700
ID: 64698-03
700 mm 303 kg
LB 8300-4051-200-10000-0800
ID: 64698-04
800 mm 338 kg
LB 8300-4051-200-10000-0900
ID: 64698-05
900 mm 368 kg
LB 8300-4051-200-10000-1000
ID: 64698-06
1000 mm 397 kg
LB 8300-4051-200-10000-1100
ID: 64698-07
1100 mm 426 kg
LB 8300-4051-200-10000-1200
ID: 64698-08
1200 mm 456 kg
LB 8300-4051-200-10000-1240
ID: 64698-09
1240 mm 466 kg
Technical Information - Rod source shield LB 8300
Technische Information – Stabstrahlerabschirmung LB 8300
64217TI Rev. 00, 10/2017
Variant 200
Variant 200
Variant
Variante
Housing
Gehäuse
Shielding
Abschirmung
Source length
Strahlerlänge
Weight
Gewicht
Operating
temperature
Betriebstemperatur
Coating
Beschichtung
Fire proof
Feuerfest
LB 8300-5051-200-10000-0500
ID: 65750-01
Carbon steel S235
C-Stahl S235
90 mm lead
90 mm Blei
500 mm 412 kg
-40°…+100°C
RAL 1004 2K polyurethane varnish
RAL 1004 2K Polyurethan Lack
No
nein
LB 8300-5051-200-10000-0600
ID: 65750-02
600 mm 456 kg
LB 8300-5051-200-10000-0700
ID: 65750-03
700 mm 500 kg
LB 8300-5051-200-10000-0800
ID: 65750-04
800 mm 563 kg
LB 8300-5051-200-10000-0900
ID: 65750-05
900 mm 607 kg
LB 8300-5051-200-10000-1000
ID: 65750-06
1000 mm 652 kg
LB 8300-5051-200-10000-1100
ID: 65750-07
1100 mm 697 kg
LB 8300-5051-200-10000-1200
ID: 65750-08
1200 mm 741 kg
LB 8300-5051-200-10000-1240
ID: 65750-09
1240 mm 757 kg
Technical Information - Rod source shield LB 8300
Technische Information – Stabstrahlerabschirmung LB 8300
64217TI Rev. 00, 10/2017
Variant 270
Variant 270
Variant
Variante
Housing
Gehäuse
Shielding
Abschirmung
Source length
Strahlerlänge
Weight
Gewicht
Operating
temperature
Betriebstemperatur
Coating
Beschichtung
Fire proof
Feuerfest
LB 8300-6051-200-10000-0500
ID: 65934-01
Carbon steel S235
c-Stahl S235
122 mm lead
122 mm Blei
500 mm 761 kg
-40°…+100°C
RAL 1004 2K polyurethane varnish
RAL 1004 2K Polyurethan Lack
No
nein
LB 8300-6051-200-10000-0600
ID: 65934-02
600 mm 838 kg
LB 8300-6051-200-10000-0700
ID: 65934-03
700 mm 938 kg
LB 8300-6051-200-10000-0800
ID: 65934-04
800 mm 1016 kg
LB 8300-6051-200-10000-0900
ID: 65934-05
900 mm 1094 kg
LB 8300-6051-200-10000-1000
ID: 65934-06
1000 mm 1171 kg
LB 8300-6051-200-10000-1100
ID: 65934-07
1100 mm 1249 kg
LB 8300-6051-200-10000-1200
ID: 65934-08
1200 mm 1327 kg
LB 8300-6051-200-10000-1240
ID: 65934-09
1240 mm 1355 kg
Technical Information - Rod source shield LB 8300
Technische Information – Stabstrahlerabschirmung LB 8300
64217TI Rev. 00, 10/2017

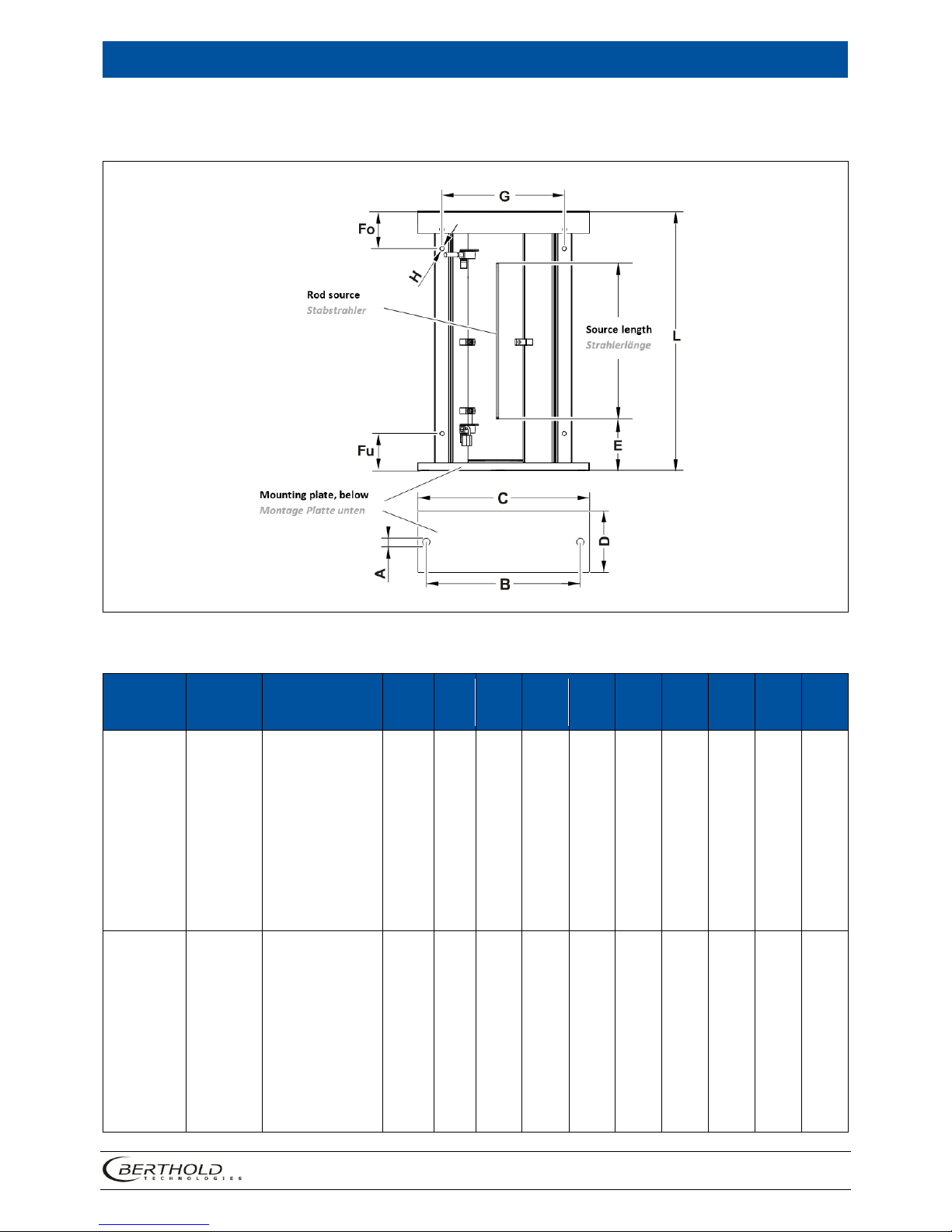

Dimensions Variant 100 / 150
Abmessungen Variante 100 / 150
Dimension in mm
Abmessungen in mm
Variant
Variante
ID
Source length
Strahlerlänge
L A B C D E Fu Fo G H
100
64217-01
64217-02
64217-03
64217-04
64217-05
64217-06
64217-07
64217-08
64217-09
500
600
700
800
900
1000
1100
1200
1240
691
791
891
991
1091
1191
1291
1391
1431
Ø 14 305 340 120 95 120 122 225 Ø 12
150
64698-01
64698-02
64698-03
64698-04
64698-05
64698-06
64698-07
64698-08
64698-09
500
600
700
800
900
1000
1100
1200
1240
772
872
972
1072
1172
1272
1372
1472
1512
Ø 18 425 465 180 136 120 122 333 Ø 14
Technical Information - Rod source shield LB 8300
Technische Information – Stabstrahlerabschirmung LB 8300
64217TI Rev. 00, 10/2017

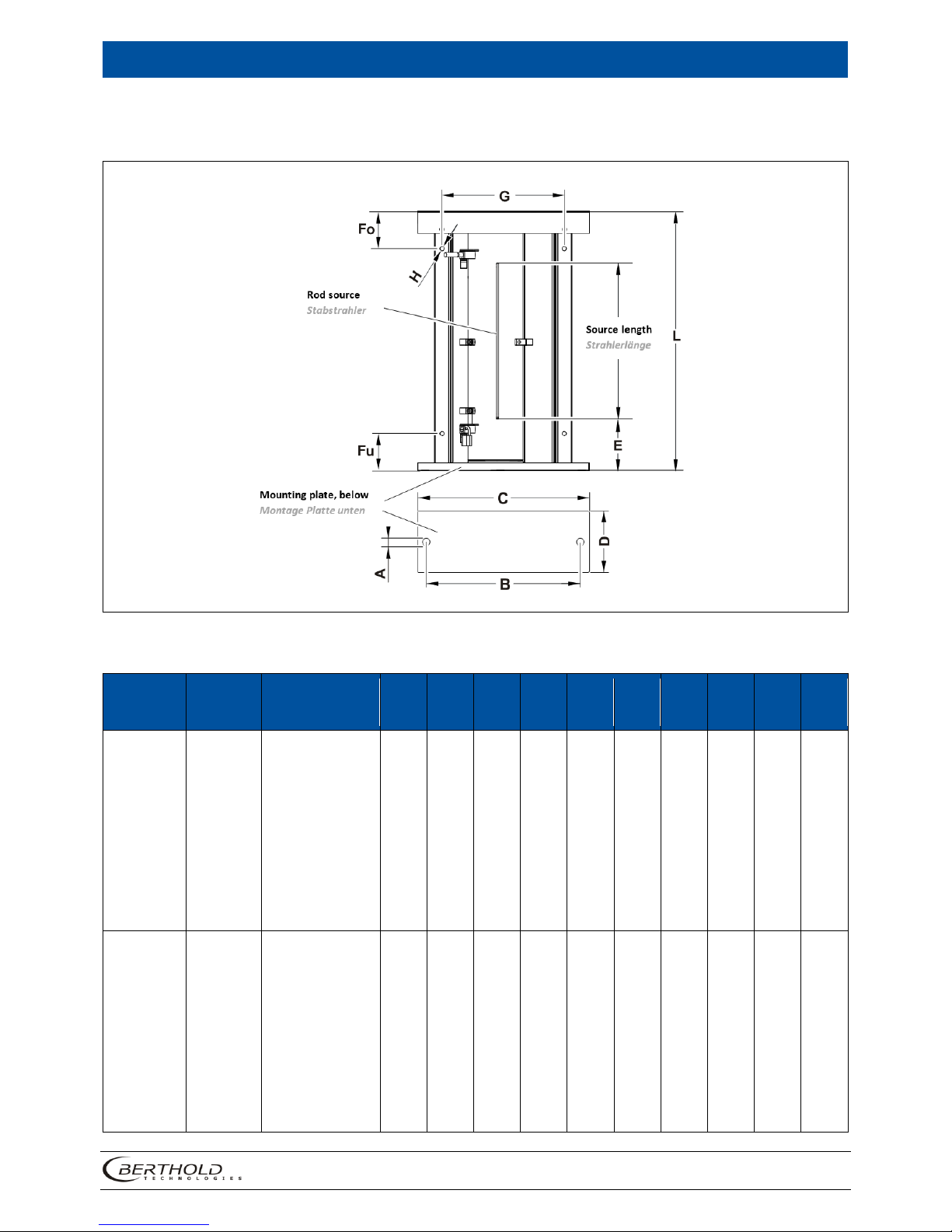

Dimensions Variant 200 / 270
Abmessungen Variante 200 / 270
Dimension in mm
Abmessungen in mm
Variant
Variante
ID
Source length
Strahlerlänge
L A B C D E Fu Fo G H
200
65750-01
65750-02
65750-03
65750-04
65750-05
65750-06
65750-07
65750-08
65750-09
500
600
700
800
900
1000
1100
1200
1240
844
944
1044
1144
1244
1344
1444
1544
1584
Ø 26 510 560 220 172 120 122 398 Ø 14
270
65934-01
65934-02
65934-03
65934-04
65934-05
65934-06
65934-07
65934-08
65934-09
500
600
700
800
900
1000
1100
1200
1240
919
1019
1119
1219
1329
1419
1519
1619
1659
Ø 26 510 600 300 210 120 137 497,5 Ø 14
Technical Information - Rod source shield LB 8300
Technische Information – Stabstrahlerabschirmung LB 8300
64217TI Rev. 00, 10/2017
Mounting Base LB 8300
Montagesockel LB 8300
Dimension in mm
Abmessungen in mm
Variant
Variante
Mounting base
Montagesockel
B
A
100 > 340 x 120 305 > Ø 14
150 > 465 x 180 425 > Ø 18
200 > 560 x 220 510 > Ø 26
270 > 600 x 300 510 > Ø 26
NOTICE HINWEIS
The mounting base and tilt-protection must be provided by the plant manufacturer.
Montagesockel und Kippsicherung sind vom Anlagenhersteller bereitzustellen.
IMPORTANT WICHTIG
The Mounting base with the oblong slot, allows an adjustment of the radiation beam to the
detector.
Der Montagesockel mit Langloch ermöglicht die Ausrichtung des Strahlers auf den Detektor.
Technical Information - Rod source shield LB 8300
Technische Information – Stabstrahlerabschirmung LB 8300
64217TI Rev. 00, 10/2017
Mounting variant stacked
Montagevariante gestapelt
Mounting variant stacked
Montagevariante gestapelt
NOTICE / HINWEIS
The mounting base and tilt-protection must be provided by the plant manufacturer.
Montagesockel und Kippsicherung sind vom Anlagenhersteller bereitzustellen.
Technical Information - Rod source shield LB 8300
Technische Information – Stabstrahlerabschirmung LB 8300
64217TI Rev. 00, 10/2017
Mounting variants staggered
Montagevarianten versetzt
Mounting variant sta
ggered
Montagevariante versetzt
NOTICE / HINWEIS
The mounting base and tilt-protection must be provided by the plant manufacturer.
Montagesockel und Kippsicherung sind vom Anlagenhersteller bereitzustellen.
Loading...
