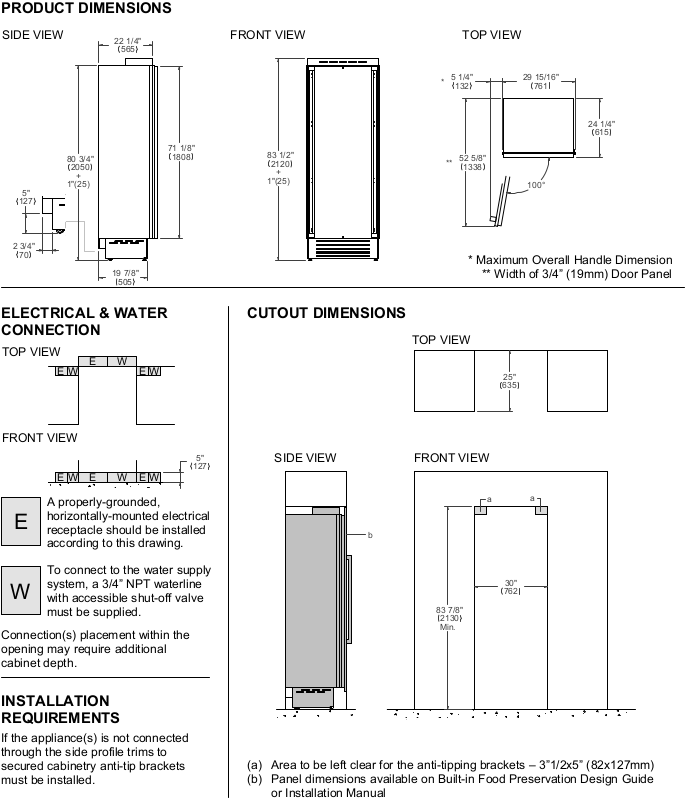

PRODUCT DIMENSIONS
SIDE VIEW |
22 1/4" |
FRONT VIEW |
|
565 |
|
|
71 1/8" |
83 1/2" |
80 3/4" |
1808 |
|
2050 |
|
2120 |
|
+ |
|
+ |
|
|
|
1"(25) |
|
1"(25) |
|
5" |
127 |
2 3/4"
70
19 7/8" 505
TOP VIEW
* |
5 1/4" |
29 15/16" |
132 |
761 |
24 1/4"
615
** |
52 5/8" |
1338 |
100°
*Maximum Overall Handle Dimension
**Width of 3/4” (19mm) Door Panel
ELECTRICAL & WATER CONNECTION
TOP VIEW |
|
|
|
|
||||
|
|
|
|
E |
W |
|
|
|
|
|
E |
W |
|
|
E |
W |
|
|
|
|
|
|
|
|
|
|
FRONT VIEW
5" 127
E W E W E W
A properly-grounded,
Ehorizontally-mounted electrical receptacle should be installed according to this drawing.
To connect to the water supply
Wsystem, a 3/4” NPT waterline with accessible shut-off valve must be supplied.
Connection(s) placement within the opening may require additional cabinet depth.
INSTALLATION
REQUIREMENTS
If the appliance(s) is not connected through the side profile trims to secured cabinetry anti-tip brackets must be installed.
CUTOUT DIMENSIONS
TOP VIEW
25" |
635 |
SIDE VIEW |
FRONT VIEW |
a |
a |
b |
|
|
30" |
|
762 |
83 7/8" |
|
2130 |
|
Min. |
|
(a)Area to be left clear for the anti-tipping brackets – 3”1/2x5” (82x127mm)
(b)Panel dimensions available on Built-in Food Preservation Design Guide or Installation Manual
