Bertazzoni MAST486GGASXT Specifications

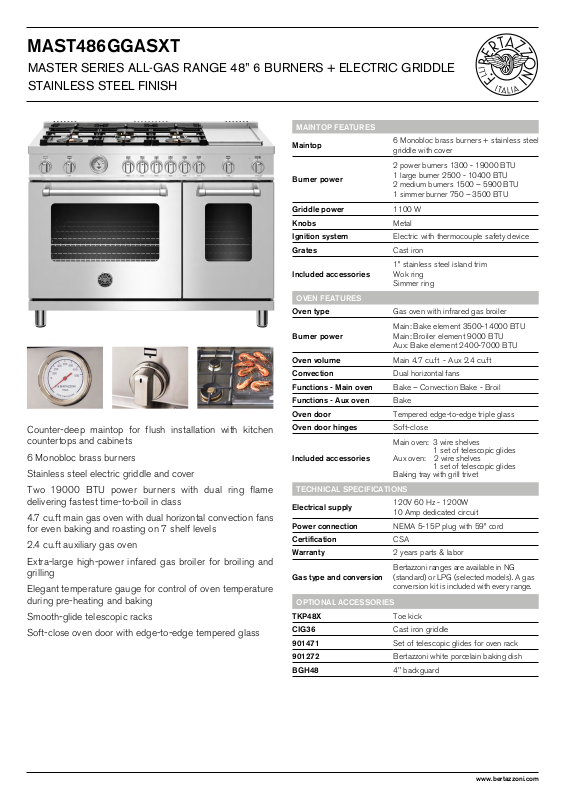

MAST486GGASXT

MASTER SERIES ALL-GAS RANGE 48” 6 BURNERS + ELECTRIC GRIDDLE STAINLESS STEEL FINISH

Counter-deep maintop for flush installation with kitchen countertops and cabinets

6 Monobloc brass burners

Stainless steel electric griddle and cover

Two 19000 BTU power burners with dual ring flame delivering fastest time-to-boil in class

4.7 cu.ft main gas oven with dual horizontal convection fans for even baking and roasting on 7 shelf levels

2.4 cu.ft auxiliary gas oven

Extra-large high-power infared gas broiler for broiling and grilling

Elegant temperature gauge for control of oven temperature during pre-heating and baking

Smooth-glide telescopic racks

Soft-close oven door with edge-to-edge tempered glass

MAINTOP FEATURES

Maintop

6 Monobloc brass burners + stainless steel

griddle with cover









2 power burners 1300 - 19000 BTU

Burner power

1 large burner 2500 - 10400 BTU

2 medium burners 1500 – 5900 BTU





1 simmer burner 750 – 3500 BTU





Griddle power

1100 W





Knobs

Metal





Ignition system

Electric with thermocouple safety device





Grates

Cast iron





Included accessories

1” stainless steel island trim

Wok ring



Simmer ring

OVEN FEATURES



Oven type

Gas oven with infrared gas broiler

Burner power

Main: Bake element 3500-14000 BTU

Main: Broiler element 9000 BTU



Aux: Bake element 2400-7000 BTU





Oven volume

Main 4.7 cu.ft - Aux 2.4 cu.ft





Convection

Dual horizontal fans





Functions - Main oven

Bake – Convection Bake - Broil





Functions - Aux oven

Bake





Oven door

Tempered edge-to-edge triple glass





Oven door hinges

Soft-close







Main oven: 3 wire shelves

Included accessories

1 set of telescopic glides

Aux oven: 2 wire shelves



1 set of telescopic glides



Baking tray with grill trivet

TECHNICAL SPECIFICATIONS

Electrical supply

120V 60 Hz - 1200W

10 Amp dedicated circuit







Power connection

NEMA 5-15P plug with 59” cord





Certification

CSA





Warranty

2 years parts & labor





Gas type and conversion

Bertazzoni ranges are available in NG

(standard) or LPG (selected models). A gas



conversion kit is included with every range.

OPTIONAL ACCESSORIES

TKP48X

Toe kick





CIG36

Cast iron griddle





901471

Set of telescopic glides for oven rack





901272

Bertazzoni white porcelain baking dish





BGH48

4" backguard





www.bertazzoni.com
