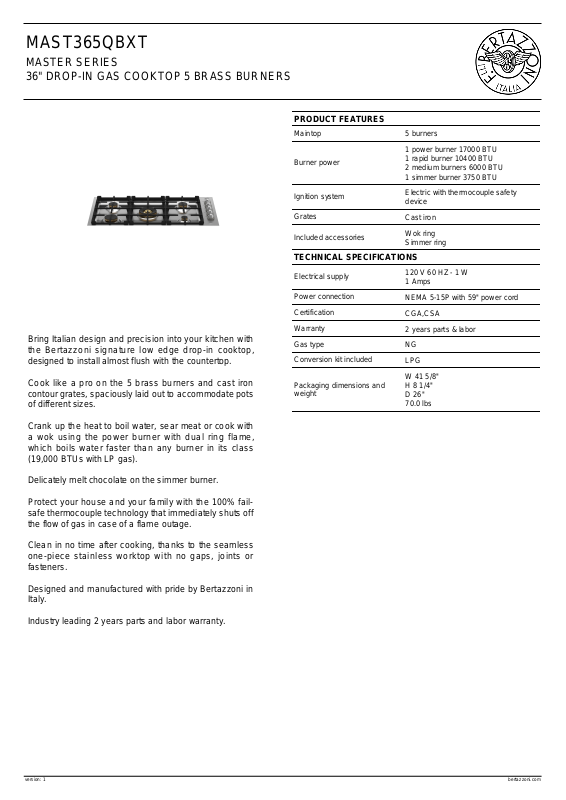

Bertazzoni MAST365QBXT Specifications

MAST365QBXT
MASTER SERIES 36" DROP-IN GAS COOKTOP 5 BRASS BURNERS
Bring Italian design and precision into your kitchen with the Bertazzoni signature low edge drop-in cooktop, designed to install almost flush with the countertop.
Cook like a pro on the 5 brass burners and cast iron contour grates, spaciously laid out to accommodate pots of different sizes.
PRODUCT FEATURES
Maintop
Burner power
Ignition system
Grates
Included accessories
5 burners 1 power burner 17000 BTU
1 rapid burner 10400 BTU 2 medium burners 6000 BTU 1 simmer burner 3750 BTU
Electric with thermocouple safety device
Cast iron Wok ring
Simmer ring
TECHNICAL SPECIFICATIONS
Electrical supply
Power connection Certification Warranty Gas type Conversion kit included
Packaging dimensions and weight
120 V 60 HZ - 1 W 1 Amps
NEMA 5-15P with 59'' power cord CGA,CSA 2 years parts & labor NG LPG W 41 5/8''
H 8 1/4'' D 26''
70.0 lbs
Crank up the heat to boil water, sear meat or cook with a wok using the power burner with dual ring flame, which boils water faster than any burner in its class (19,000 BTUs with LP gas).
Delicately melt chocolate on the simmer burner. Protect your house and your family with the 100% fail-
safe thermocouple technology that immediately shuts off the flow of gas in case of a flame outage.
Clean in no time after cooking, thanks to the seamless one-piece stainless worktop with no gaps, joints or fasteners.
Designed and manufactured with pride by Bertazzoni in Italy.
Industry leading 2 years parts and labor warranty.
bertazzoni.comversion: 1
MAST365QBXT
TOP VIEW
FRONT VIEW
SIDE VIEW
PRODUCT DIMENSIONS
CUTOUT DIMENSIONS
ELECTRICAL & GAS CONNECTION
SIDE VIEW FRONT VIEW
TOP VIEW
INSTALLATION REQUIREMENTS
A
n agency-approved, properly-sized manual shut-off valve should be installed according to this drawing.
A
properly-grounded, horizontally-mounted electrical receptacle should be installed according to this drawing.
E
G
Combustible material cannot be installed within shaded area.
For installation with an updraft or downdraft hood as well as any OTR, refer to the hood/OTR manufacturer’s installation requirements.
21 1/4"
540
36 3/8"
925
2 5/8"
68
3/8"
11
3/4"
19
3/4"
18
3/4"
18
35 5/8"
905
CUT-OUT
WIDTH
20 1/2"
520
CUT-OUT
DEPTH
1 3/4"
45
18"
457
36" 915
36 3/8"
925
6"
152
35 5/8"
905
1/8"
4
3 1/8"
80
BELOW
COUNTERTOP
36"
914
13"
330
E
G
4"
102
COUNTERTOP
15"
381
15" 381
MASTER SERIES 36" DROP-IN GAS COOKTOP 5 BRASS BURNERS
For installation of multiple products in combination, refer to the Design Guide at us.bertazzoni.com or ca.bertazzoni.com
Disclaimer: while every effort has been made to ensure the accuracy of the information contained in this document, Fratelli Bertazzoni reserves the right to change it at any time without notice.
For detailed installation instructions, consult the installation manual. Fratelli Bertazzoni, Bertazzoni and the winged wheel brand icon are registered trademarks of Bertazzoni Spa.
