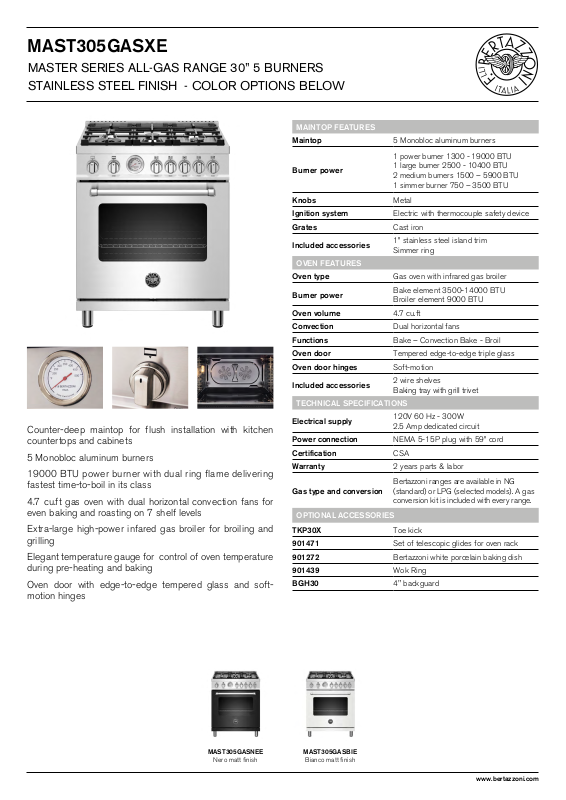

Bertazzoni MAST305GASNEE Specification Sheet
MAST305GASXE
MASTER SERIES ALL-GAS RANGE 30” 5 BURNERS STAINLESS STEEL FINISH - COLOR OPTIONS BELOW
Counter-deep maintop for flush installation with kitchen countertops and cabinets
5 Monobloc aluminum burners
19000 BTU power burner with dual ring flame delivering fastest time-to-boil in its class
4.7 cu.ft gas oven with dual horizontal convection fans for even baking and roasting on 7 shelf levels
Extra-large high-power infared gas broiler for broiling and grilling
Elegant temperature gauge for control of oven temperature during pre-heating and baking
Oven door with edge-to-edge tempered glass and softmotion hinges
MAINTOP FEATURES
Maintop |
5 Monobloc aluminum burners |
|
|
1 power burner 1300 - 19000 BTU |
|
Burner power |
1 large burner 2500 - 10400 BTU |
|
2 medium burners 1500 – 5900 BTU |
||
|
||
|
1 simmer burner 750 – 3500 BTU |
|
|
|
|
Knobs |
Metal |
|
|
|
|
Ignition system |
Electric with thermocouple safety device |
|
|
|
|
Grates |
Cast iron |
|
|
|
|
Included accessories |
1” stainless steel island trim |
|
Simmer ring |
||
|
||
OVEN FEATURES |
|
|
Oven type |
Gas oven with infrared gas broiler |
|
|
|
|
Burner power |
Bake element 3500-14000 BTU |
|
Broiler element 9000 BTU |
||
|
||
Oven volume |
4.7 cu.ft |
|
|
|
|
Convection |
Dual horizontal fans |
|
|
|
|
Functions |
Bake – Convection Bake - Broil |
|
|
|
|
Oven door |
Tempered edge-to-edge triple glass |
|
|
|
|
Oven door hinges |
Soft-motion |
|
|
|
|
Included accessories |
2 wire shelves |
|
Baking tray with grill trivet |
||
|
||
TECHNICAL SPECIFICATIONS |
||
Electrical supply |
120V 60 Hz - 300W |
|
2.5 Amp dedicated circuit |
||
|
||
|
|
|
Power connection |
NEMA 5-15P plug with 59” cord |
|
|
|
|
Certification |
CSA |
|
|
|
|
Warranty |
2 years parts & labor |
|
|
|
|
Gas type and conversion |
Bertazzoni ranges are available in NG |
|
(standard) or LPG (selected models). A gas |
||
|
conversion kit is included with every range. |
|
OPTIONAL ACCESSORIES
TKP30X |
Toe kick |
|
|
901471 |
Set of telescopic glides for oven rack |
|
|
901272 |
Bertazzoni white porcelain baking dish |
|
|
901439 |
Wok Ring |
|
|
BGH30 |
4" backguard |
|
|
MAST305GASNEE |
MAST305GASBIE |
Nero matt finish |
Bianco matt finish |
www.bertazzoni.com
