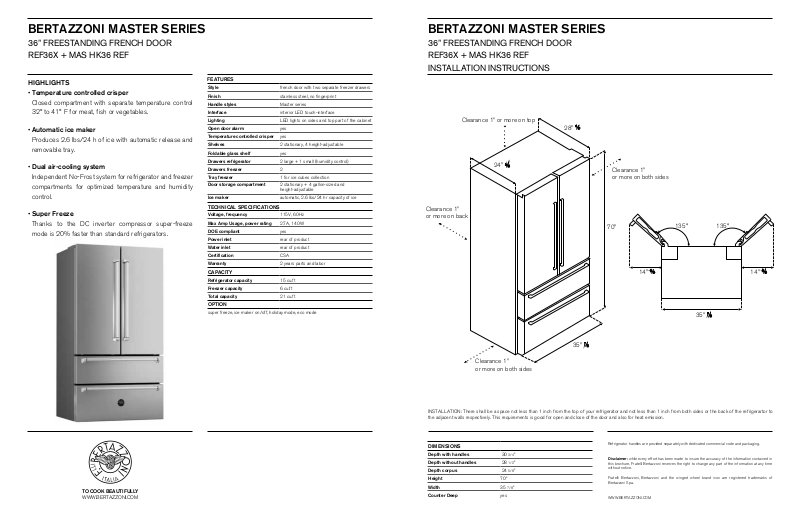

Bertazzoni MASHK36REF Specification Sheet

0 (0)
BERTAZZONI MASTER SERIES
BERTAZZONI MASTER SERIES
36” FREESTANDING FRENCH DOOR REF36X + MAS HK36 REF
HIGHLIGHTS
Temperature controlled crisper Closed compartment with separate temperature control
32° to 41° F for meat, fish or vegetables.
Automatic ice maker Produces 2.6 lbs/24 h of ice with automatic release and
removable tray.
Dual air-cooling system Independent No-Frost system for refrigerator and freezer
compartments for optimized temperature and humidity control.
Super Freeze Thanks to the DC inverter compressor super-freeze
mode is 20% faster than standard refrigerators.
FEATURES
Style french door with two separate freezer drawers
Finish stainless steel, no fingerprint
Handle styles Master series
Interface interior LED touch-interface
Lighting LED lights on sides and top part of the cabinet
Open door alarm yes
Temperature controlled crisper yes
Shelves 2 stationary, 4 height-adjustable
Foldable glass shelf yes
Drawers refrigerator 2 large + 1 small (humidity control)
Drawers freezer 2
Tray freezer 1 for ice cubes collection Door storage compartment 2 stationary + 4 gallon-sized and
Ice maker automatic, 2.6 lbs/24 hr capacity of ice
TECHNICAL SPECIFICATIONS
Voltage, frequency 115V, 60Hz
Max Amp Usage, power rating 2.7A, 140W
DOE compliant yes
Power inlet rear of product
Water inlet rear of product
Certification CSA
Warranty 2 years parts and labor
CAPACITY
Refrigerator capacity 15 cu.ft
Freezer capacity 6 cu.ft
Total capacity 21 cu.ft
OPTION
super freeze, ice maker on/off, holiday mode, eco mode
height-adjustable
36” FREESTANDING FRENCH DOOR REF36X + MAS HK36 REF INSTALLATION INSTRUCTIONS
Clearance 1” or more on top
28" 1⁄2
24" 5⁄8
Clearance 1” or more on back
Clearance 1” or more on both sides
70"
135° 135°
14" 3⁄8 14" 3⁄8
35" 7⁄8
TO COOK BEAUTIFULLY
WWW.BERTAZZONI.COM
7
8
35"
Clearance 1” or more on both sides
INSTALLATION: There shall be a space not less than 1 inch from the top of your refrigerator and not less than 1 inch from both sides or the back of the refrigerartor to the adjacent walls respectively. This requirements is good for open and close of the door and also for heat emission.
DIMENSIONS
Depth with handles 30
Depth without handles 28
Depth corpus 24
Height 70”
Width 35
Counter Deep yes
7/8
3/4
1/2
5/8
Refrigerator handles are provided separately with dedicated commercial code and packaging.
Disclaimer: while every effort has been made to insure the accuracy of the information contained in this brochure, Fratelli Bertazzoni reserves the right to change any part of the information at any time without notice.
Fratelli Bertazzoni, Bertazzoni and the winged wheel brand icon are registered trademarks of Bertazzoni Spa.
WWW.BERTAZZONI.COM
