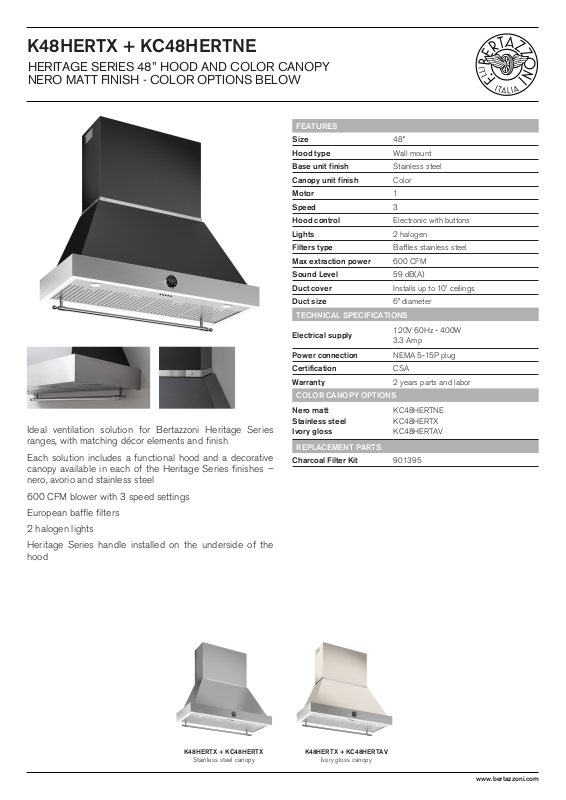

K48HERTX + KC48HERTNE
HERITAGE SERIES 48” HOOD AND COLOR CANOPY
NERO MATT FINISH - COLOR OPTIONS BELOW
|
FEATURES |
|
|
Size |
48” |
|
|
|
|
Hood type |
Wall mount |
|
|
|
|
Base unit finish |
Stainless steel |
|
|
|
|
Canopy unit finish |
Color |
|
|
|
|
Motor |
1 |
|
|
|
|
Speed |
3 |
|
|
|
|
Hood control |
Electronic with buttons |
|
|
|
|
Lights |
2 halogen |
|
|
|
|
Filters type |
Baffles stainless steel |
|
|
|
|
Max extraction power |
600 CFM |
|
|
|
|
Sound Level |
59 dB(A) |
|
|
|
|
Duct cover |
Installs up to 10’ ceilings |
|
|
|
|
Duct size |
6” diameter |
|
TECHNICAL SPECIFICATIONS |
|
|
Electrical supply |
120V 60Hz - 400W |
|
3.3 Amp |
|
|
|
|
|
|
|
|
Power connection |
NEMA 5-15P plug |
|
|
|
|
Certification |
CSA |
|
|
|
|
Warranty |
2 years parts and labor |
|
COLOR CANOPY OPTIONS |
|
|
Nero matt |
KC48HERTNE |
Ideal ventilation solution for Bertazzoni Heritage Series |
Stainless steel |
KC48HERTX |
Ivory gloss |
KC48HERTAV |
|
ranges, with matching décor elements and finish |
|
|
REPLACEMENT PARTS |
|
|
|
|
|
Each solution includes a functional hood and a decorative |
Charcoal Filter Kit |
901395 |
canopy available in each of the Heritage Series finishes – nero, avorio and stainless steel
600 CFM blower with 3 speed settings European baffle filters
2 halogen lights
Heritage Series handle installed on the underside of the hood
K48HERTX + KC48HERTX |
K48HERTX + KC48HERTAV |
Stainless steel canopy |
Ivory gloss canopy |
www.bertazzoni.com
