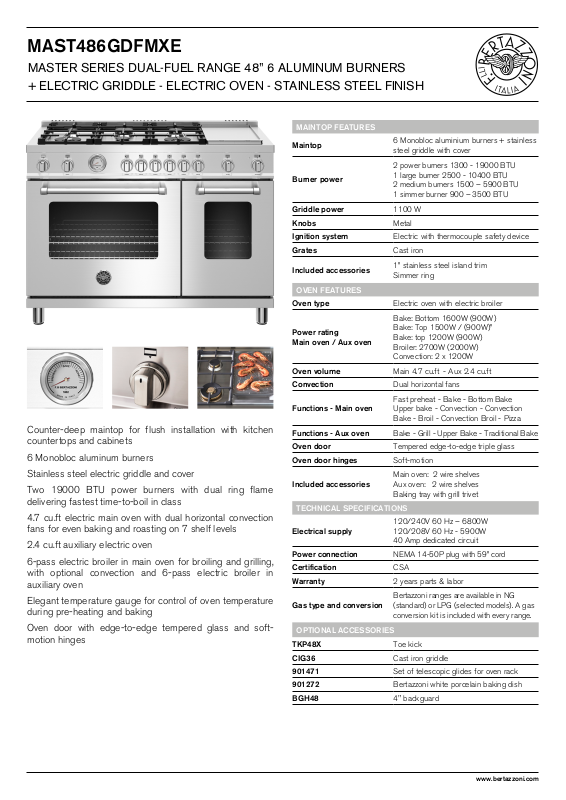

MAST486GDFMXE
MASTER SERIES DUAL-FUEL RANGE 48” 6 ALUMINUM BURNERS
+ ELECTRIC GRIDDLE - ELECTRIC OVEN - STAINLESS STEEL FINISH
MAINTOP FEATURES
6 Monobloc aluminium burners + stainless
steel griddle with cover
2 power burners 1300 - 19000 BTU
1 large burner 2500 - 10400 BTU
2 medium burners 1500 – 5900 BTU
1 simmer burner 900 – 3500 BTU
1” stainless steel island trim
Simmer ring
Bake: Bottom 1600W (900W)
Bake: Top 1500W / (900W)”
Bake: top 1200W (900W)
Broiler: 2700W (2000W)
Convection: 2 x 1200W
Fast preheat - Bake - Bottom Bake
Upper bake - Convection - Convection
Bake - Broil - Convection Broil - Pizza
Main oven: 2 wire shelves
Aux oven: 2 wire shelves
Baking tray with grill trivet
120/240V 60 Hz – 6800W
120/208V 60 Hz - 5900W
40 Amp dedicated circuit
Bertazzoni ranges are available in NG
(standard) or LPG (selected models). A gas
conversion kit is included with every range.
Counter-deep maintop for flush installation with kitchen
countertops and cabinets
6 Monobloc aluminum burners
Stainless steel electric griddle and cover
Two 19000 BTU power burners with dual ring flame
delivering fastest time-to-boil in class
4.7 cu.ft electric main oven with dual horizontal convection
fans for even baking and roasting on 7 shelf levels
2.4 cu.ft auxiliary electric oven
6-pass electric broiler in main oven for broiling and grilling,
with optional convection and 6-pass electric broiler in
auxiliary oven
Elegant temperature gauge for control of oven temperature
during pre-heating and baking
Oven door with edge-to-edge tempered glass and softmotion hinges
Maintop
Burner power
Griddle power 1100 W
Knobs Metal
Ignition system Electric with thermocouple safety device
Grates Cast iron
Included accessories
OVEN FEATURES
Oven type Electric oven with electric broiler
Power rating
Main oven / Aux oven
Oven volume Main 4.7 cu.ft - Aux 2.4 cu.ft
Convection Dual horizontal fans
Functions - Main oven
Functions - Aux oven Bake - Grill - Upper Bake - Traditional Bake
Oven door Tempered edge-to-edge triple glass
Oven door hinges Soft-motion
Included accessories
TECHNICAL SPECIFICATIONS
Electrical supply
Power connection NEMA 14-50P plug with 59” cord
Certification CSA
Warranty 2 years parts & labor
Gas type and conversion
OPTIONAL ACCESSORIES
TKP48X Toe kick
CIG36 Cast iron griddle
901471 Set of telescopic glides for oven rack
901272 Bertazzoni white porcelain baking dish
BGH48 4" backguard
www.bertazzoni.com
Page 2
MAST486GDFMXE
3" 7⁄16
2" 7⁄16
23" 7⁄8
3" 11⁄16
3" 7⁄16
2" 7⁄16
23"
7
⁄8
3" 11⁄16
GAS
ELECTRIC
3" 7⁄16
2" 7⁄16
23" 7⁄8
3" 11⁄16
⁄25"
1
2
min
⁄31"
1
2
12"
max
17" min
20"max
27"
3
⁄8
48"
25"3⁄
1"
15
⁄
16
1"
5
⁄
8
5"
3
- 5"
1
⁄2
32"
3" 7⁄16
2" 7⁄16
23" 7⁄8
3" 11⁄16
2" 7⁄16
23"
7
⁄8
GAS
ELECTRIC
1"
16
2" 7⁄16
23" 7⁄8
8"
4"
8"
MASTER SERIES DUAL-FUEL RANGE 48” 6 ALUMINUM BURNERS
+ ELECTRIC GRIDDLE - ELECTRIC OVEN - STAINLESS STEEL FINISH
16
25"3⁄
48"
5
1"
⁄
8
MAXMIN -
2
⁄
1
37"
4
⁄
3
5"
35"
3
21"
⁄
4
48"
2"
2"
1"
⁄8
3
27"
15
1"
⁄
16
1"
32"
⁄8
7
23"
⁄2
1
- 5"
⁄4
3
3
⁄
8
1
⁄
8
5
1"
⁄
8
3"
3" 7⁄16
GAS
ELECTRIC
2" 7⁄16
3" 11⁄16
18"
1
25"
2
min
1
31"
2
max
25"
1
⁄
16
13"
35"
37"
3
⁄4 min
1
⁄2 max
6"
48"
ELECTRICAL LINE
A properly-grounded horizontally- mounted electri cal receptacle
should be installed no higher than 3” (7.6 cm) above the floor, no
less than 2” (5 cm) and no more than 8” (20,3 cm) from the left
side (facing product). Check all local code requirements.
Side Clearance Requirements:
6” min clearance from edge of maintop.
Overhead Cabinet:18” min height above
countertop
13” max depth.
Ventilation Hood Clearance:
Ventilation Hood Clearance:
recommended height 25 ½” – 31 ½”
above cooking surface.
GAS LINE
An agency-approved, properly-sized manual shut-off valve should
be installed no higher than 3” (7 .6 cm) above the floor and no
less than 2” (5 cm) and no more than 8” (20.3 cm) from the right
side (facing product).
To connect gas between shut-off valve and regula tor, use
agency-approved, properly sized flexible or rigid pipe. Check all
local code requirements.
Disclaimer: while every effort has been made to insure the accuracy of the information contained in this document, Fratelli Bertazzoni reserves the right to change any part of the information at any
time without notice. For detailed installation specifications consult the installation manual. Fratelli Bertazzoni, Bertazzoni and the winged wheel brand icon are registered trademarks of Bertazzoni Spa.
2"
Installation clearance
available behind range
Electrical Installation
Location
Gas Installation
Location
www.bertazzoni.com
